BSC2085L - brain model

1. Olfactory nerve (C.N. I)

2. Optic nerve (C. N II)

3. Oculomotor nerve (C. N III)

4. Trochlear nerve (C. N IV)

5. Abducens nerve (C. N VI)

6. Vestibulocochlear nerve (C. N VIII)

7. Facial nerve (C. N VII)

8. Hypoglossal nerve (C. N XII)

9. Vagus nerve (C. N X)

10. Accessory nerve (C. N XI)

11. pituitary gland

12. optic chiasm

13 optic tract

14. mammillary body

15. Pons

16. Cerebellum

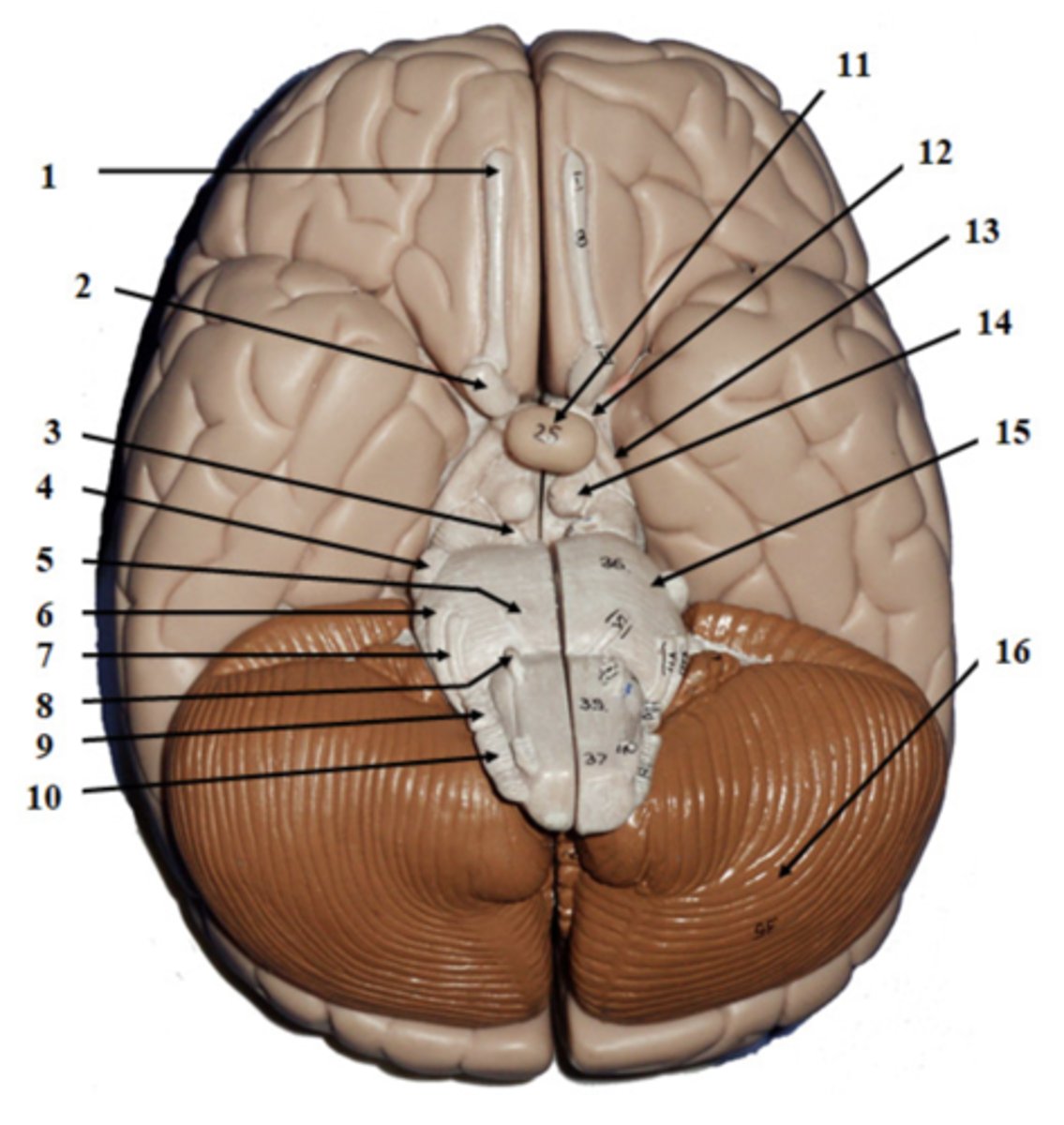

identify the cranial nerve on the left side and the brain structure on the right

17. Frontal lobe

18. Longitudinal fissure

19. Precentral gyrus

20. Central sulcus

21. Postcentral gyrus

22. Parietal lobe

23. Occipital lobe

24. Primary motor cortex

25. Primary somatosensory cortex

26. somatosensory association cortex

27. Primary visual cortex

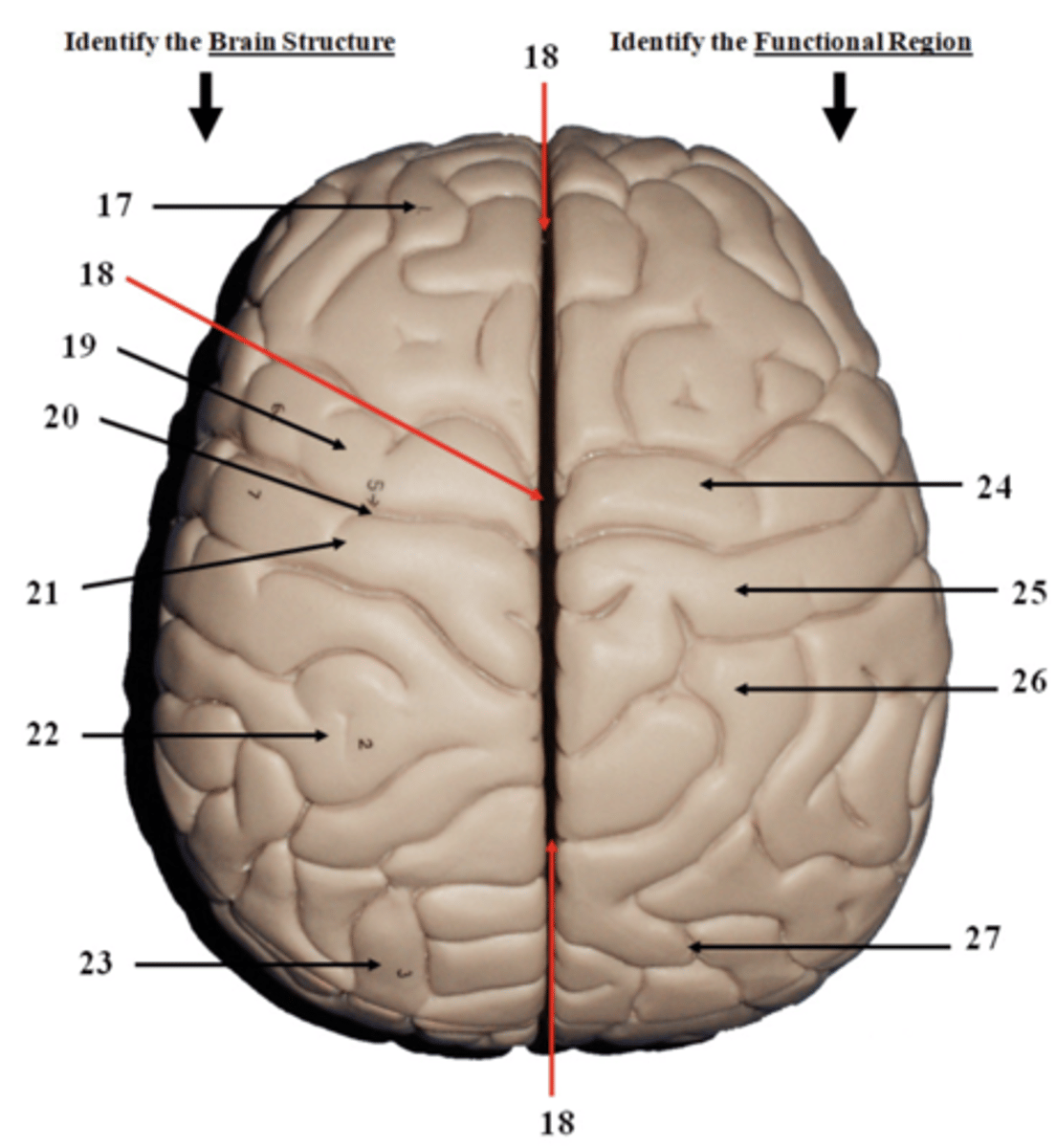

identify the brain structure on the left and the functional region on the right

11. Pituitary gland

15. Pons

16. Cerebellum

17. Frontal lobe

19. Precentral gyrus

20. Central sulcus

21. Postcentral gyrus

22. Parietal lobe

23. Occipital lobe

28. lateral sulcus

29. temporal lobe

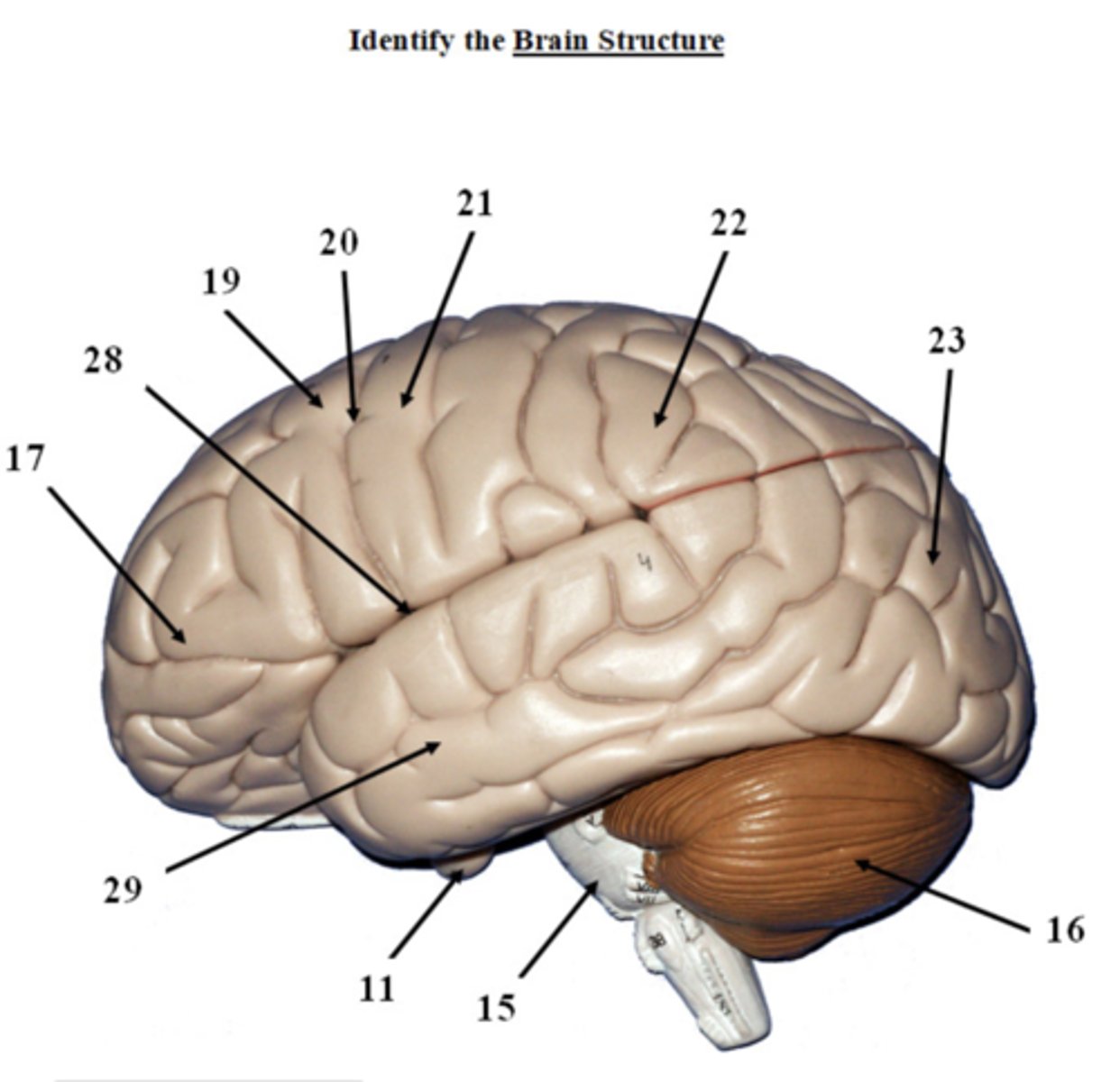

identify the brain structure

24. Primary motor cortex

25. Primary somatosensory cortex

26. somatosensory association cortex

27. Primary visual cortex

30. Broca's area

31. Wernicke's area

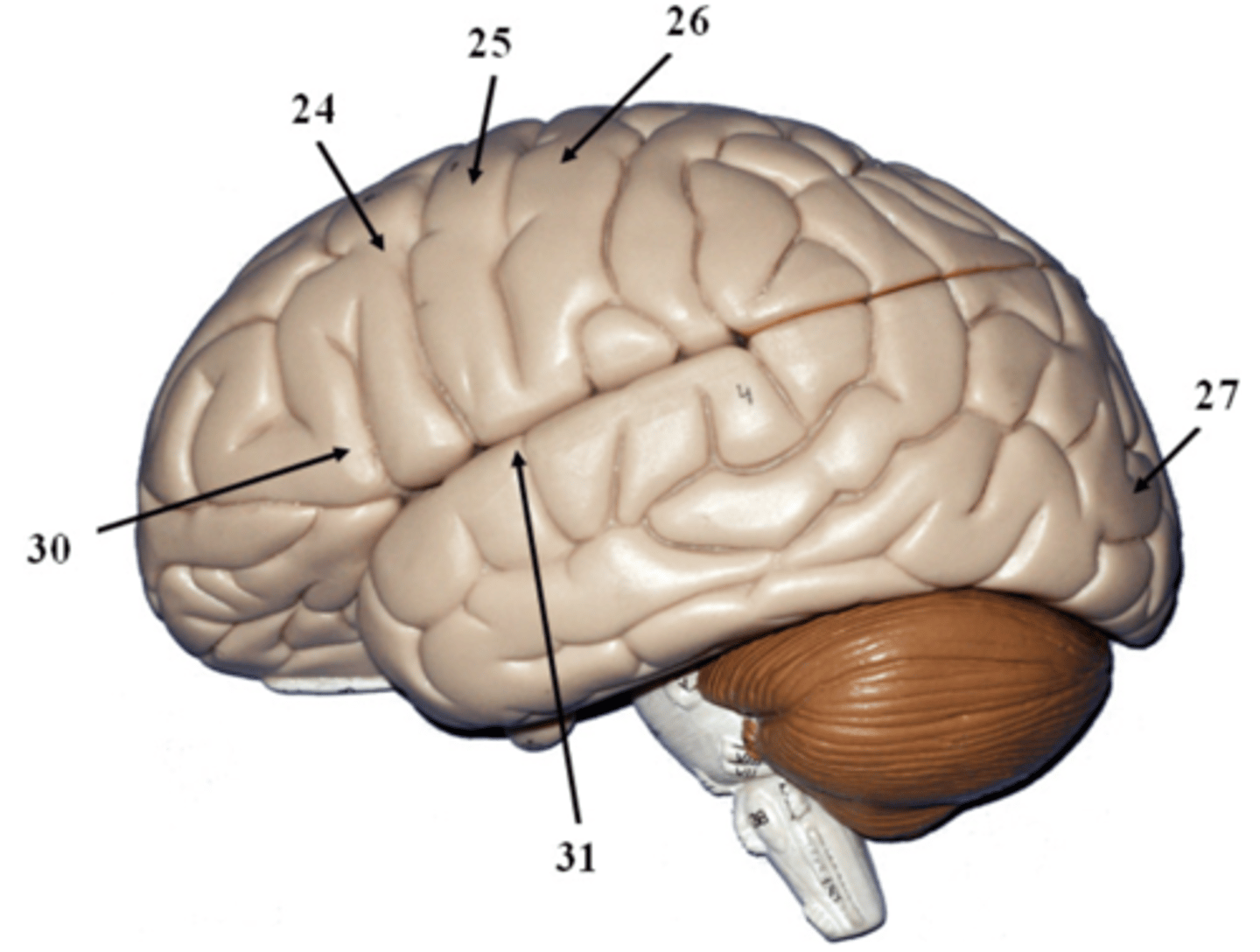

identify the functional region

11. pituitary gland

15. Pons

32. Pineal gland

33. Choroid plexus

34. Corpus Callosum

35. Thalamus

36.Hypothalamus

37. Cerebral aqueduct

38. Fourth ventricle

39. Medulla oblongata

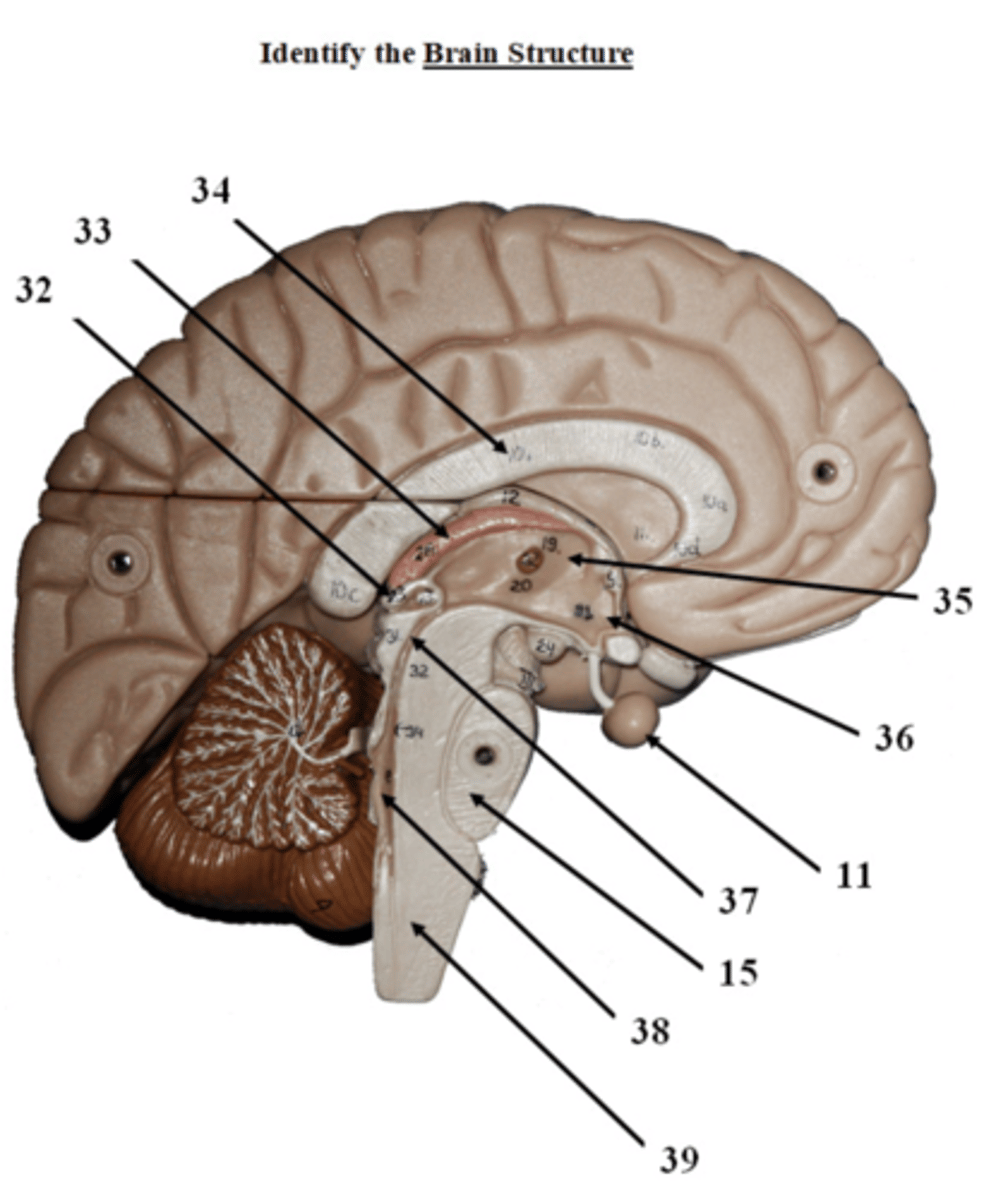

identify the brain structure
