GEOL 1010 - Physical Geology, drawings and rock identifications

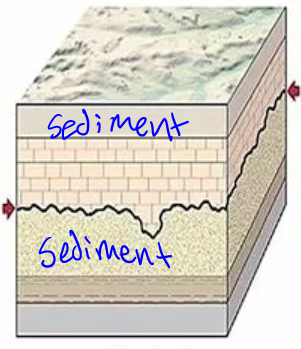

What is this?

disconformity

What is this?

non-conformity

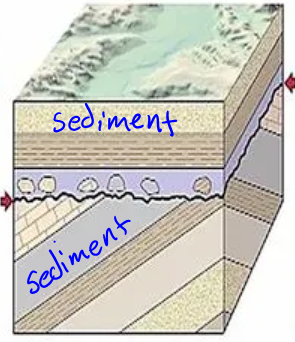

What is this?

angular unconformity

what is this?

law of superposition

what is this?

law of original horizontality

what is this?

law of cross-cutting relationships

Define the law of superposition

sediments are deposited on top of one another, oldest at the bottom, youngest at the top

Define the law of original horizontality

Layers of sediment are deposited horizontally under the action of gravity (at least, MOSTLY horizontally) However, different processes can cause those layers to deform.

Define the law of cross-cutting relationships

any geological feature which cuts across another feature must be younger than the feature it cuts through

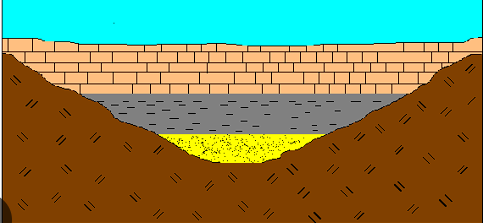

What is this?

originally placed horizontal strata

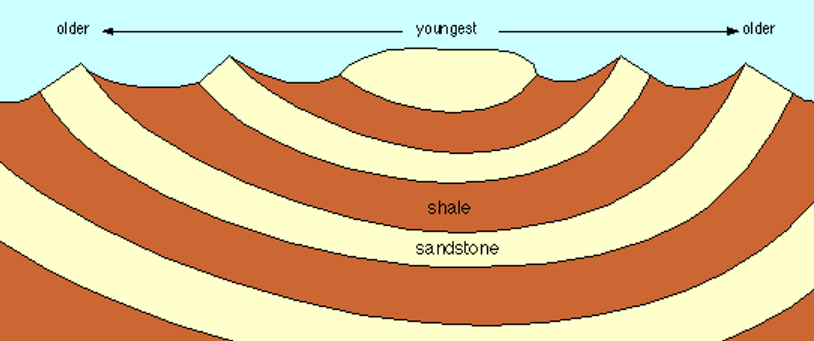

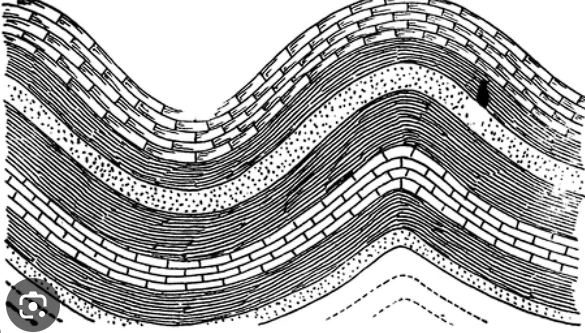

What is this?

folded syncline

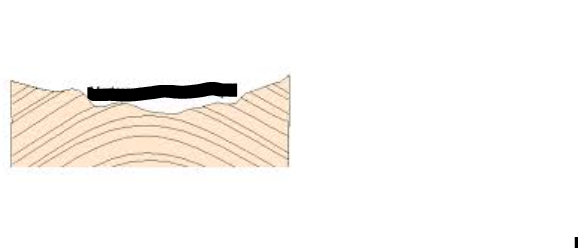

what is this?

eroded syncline

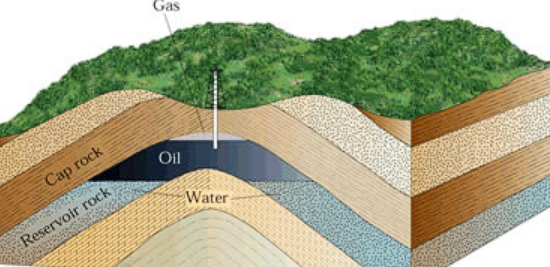

what is this?

anticline

what is this?

eroded anticline

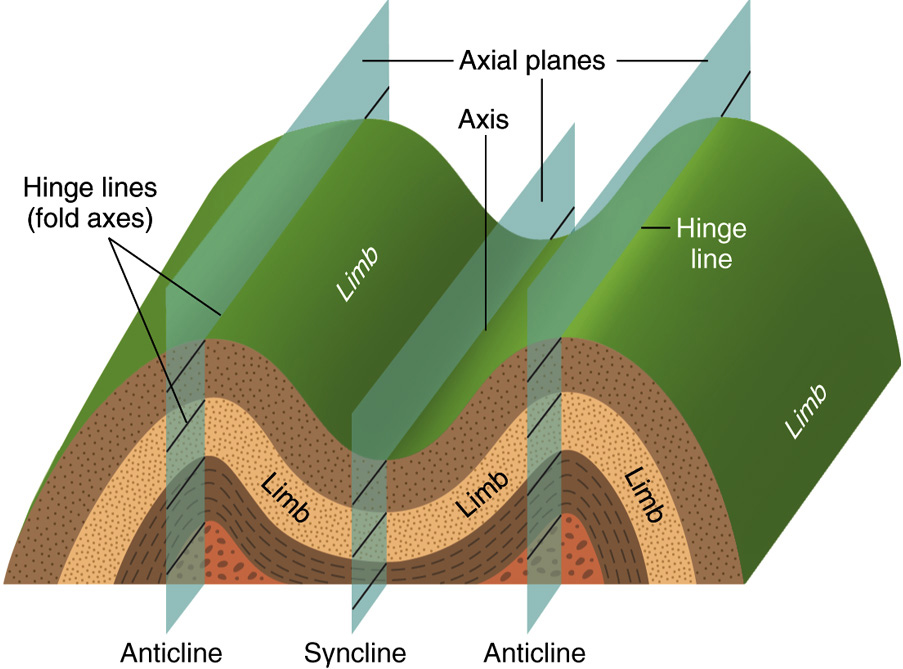

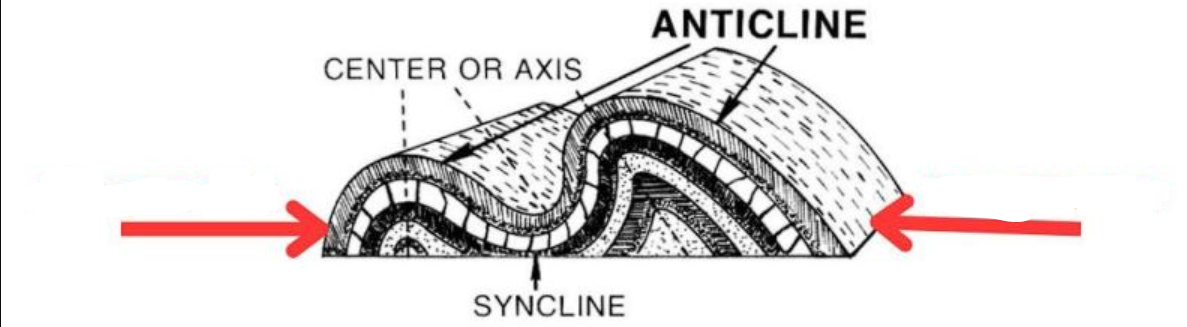

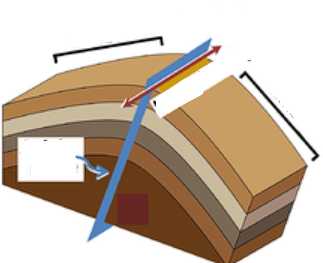

What can you find in this image?

anticline limbs and axial planes

what can you find in this image?

syncline axial planes, limbs

what can you find in this image?

compression

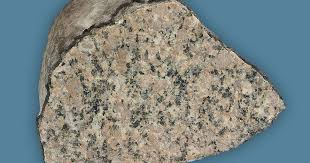

What kind of rock is this?

granite

What kind of rock is this?

Schist

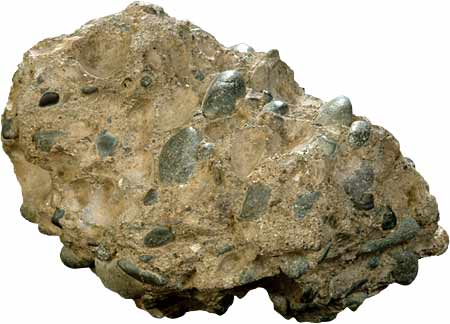

What kind of rock is this?

conglomerate

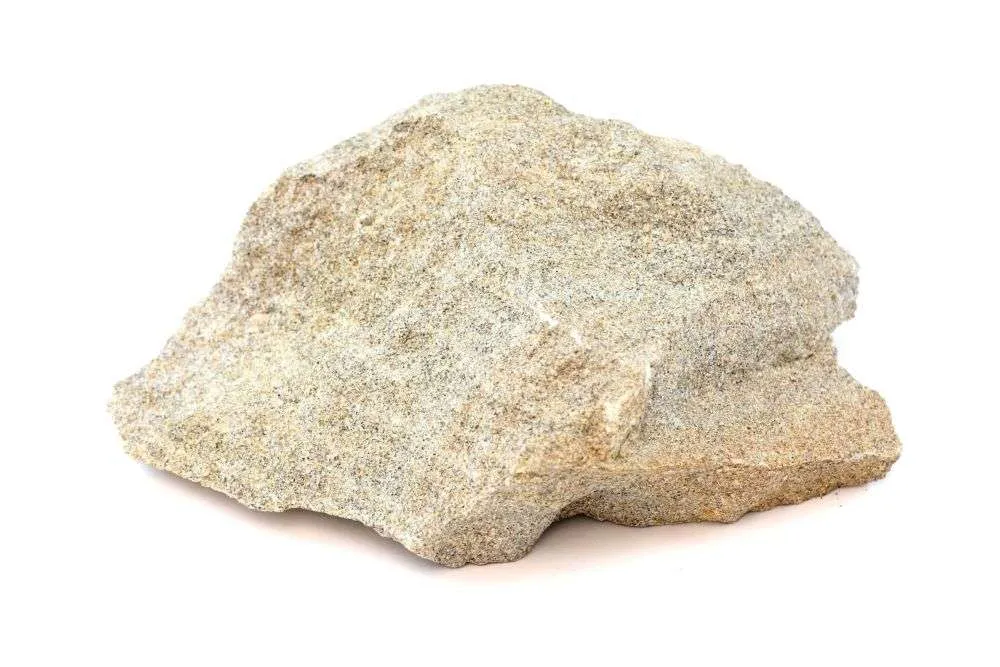

What kind of rock is this?

Sandstone

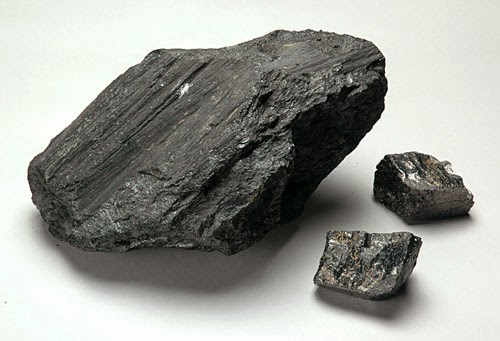

What kind of rock is this?

Coal

What kind of rock is this?

Scoria

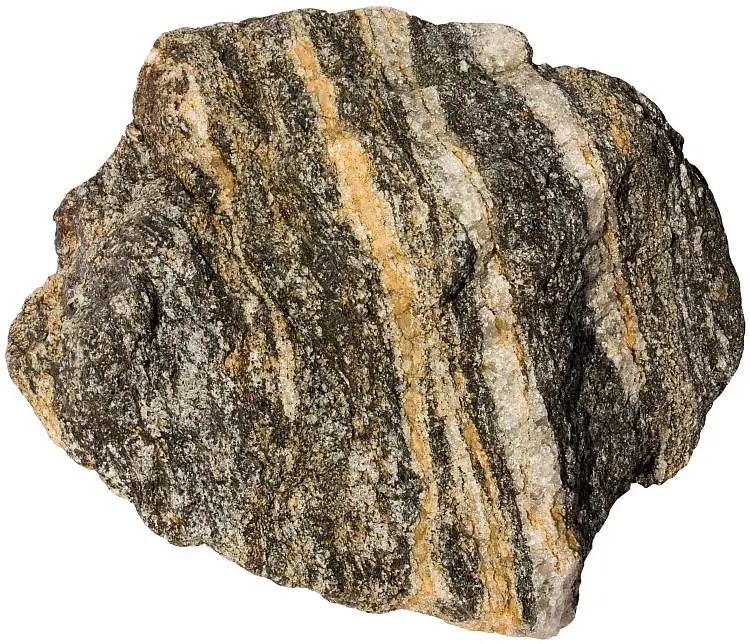

What kind of rock is this?

Gneiss

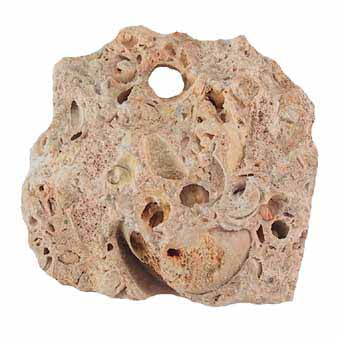

What kind of rock is this?

fossiliferous limestone

Granite identifications

Intrusive igneous rock

Schist identifications

Metamorphic, foliated

Conglomerate identification?

Detrital sedimentary rock

Sandstone identification

Detrital sedimentary rock

Coal identification

Biochemical sedimentary

Scoria identification

Extrusive igneous rock

Gneiss identification

Foliated metamorphic rock

fossiliferous limestone identification

Biochemical sedimentary
