Piper Seminole Memory Items

TO checklist, Gear Down Before Landing checklist, Engine Failure checklist, Announced Callouts on Approach

Approach Callouts

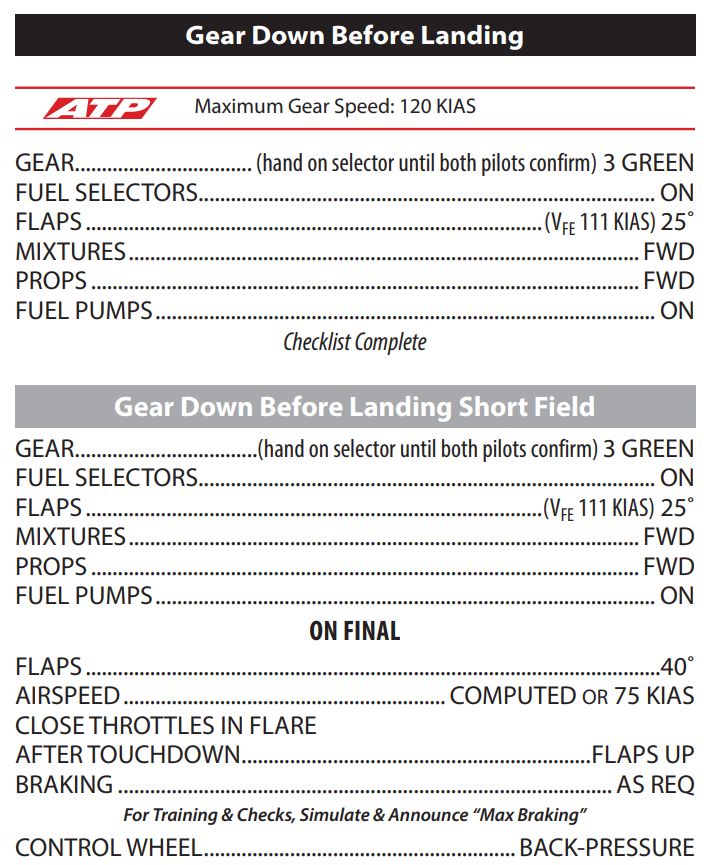

“Gear Down Before Landing Checklist”

Where:

• Visual: Before descending below TPA

• Instrument: ½ dot below glideslope intercept (or at FAF, if no vertical guidance)

Actions - Pilot Flying:

• Complete the Gear Down Before Landing checklist, calling out each step.

• After the first step (GEAR… 3 GREEN), leave your hand on the selector until the PNF also announces “Three green.” Then, proceed with the remaining steps.

Actions - Pilot Not Flying:

• Monitor the PF’s performance of the checklist. (Reference the checklist placard.)

• After the PF announces “Gear - three green,” verify that the landing gear is deployed, and then state “Three green.”

“Blueline—GUMP. Gas, Undercarriage, Mixtures, Props.”

Where:

• Visual: On base or turning final

• Instrument: 1,000 feet AGL

Actions - Pilot Flying:

• Call out “Blueline—GUMP.”

• Verify the aircraft is on speed (VYSE).

• Check the items, calling out each one in turn (“Gas, Undercarriage, Mixtures, Props”).

Actions - Pilot Not Flying:

• Silently back up the PF.

“Gear Down—Stabilized”

Where:

• All approaches: 400 feet AGL

Actions - Pilot Flying:

• Confirm that the landing gear is down and that all stabilized approach criteria are met.

• Announce “Gear down—stabilized.”

Actions - Pilot Not Flying:

• After the PF’s callout, confirm that the gear is down and the approach is stabilized.

• Announce “Gear down—stabilized.”

Notes: • If either pilot notes that the gear is not down, or the approach is not stabilized, go around.

"Approaching Minimums" / "Minimums"

• During instrument approaches, to enhance altitude awareness, the PF will also call out "Approaching Minimums" when 100 feet above MDA or DA, followed by "Minimums" at MDA or DA.

“Gear Down Before Landing Checklist”

Where:

• Visual: Before descending below TPA

• Instrument: ½ dot below glideslope intercept (or at FAF, if no vertical guidance)

Actions - Pilot Flying:

• Complete the Gear Down Before Landing checklist, calling out each step.

• After the first step (GEAR… 3 GREEN), leave your hand on the selector until the PNF also announces “Three green.” Then, proceed with the remaining steps.

Actions - Pilot Not Flying:

• Monitor the PF’s performance of the checklist. (Reference the checklist placard.)

• After the PF announces “Gear - three green,” verify that the landing gear is deployed, and then state “Three green.”

“Blueline—GUMP. Gas, Undercarriage, Mixtures, Props.”

Where:

• Visual: On base or turning final

• Instrument: 1,000 feet AGL

Actions - Pilot Flying:

• Call out “Blueline—GUMP.”

• Verify the aircraft is on speed (VYSE).

• Check the items, calling out each one in turn (“Gas, Undercarriage, Mixtures, Props”).

Actions - Pilot Not Flying:

• Silently back up the PF.

“Gear Down—Stabilized”

Where:

• All approaches: 400 feet AGL

Actions - Pilot Flying:

• Confirm that the landing gear is down and that all stabilized approach criteria are met.

• Announce “Gear down—stabilized.”

Actions - Pilot Not Flying:

• After the PF’s callout, confirm that the gear is down and the approach is stabilized.

• Announce “Gear down—stabilized.”

Notes: • If either pilot notes that the gear is not down, or the approach is not stabilized, go around.

"Approaching Minimums" / "Minimums"

• During instrument approaches, to enhance altitude awareness, the PF will also call out "Approaching Minimums" when 100 feet above MDA or DA, followed by "Minimums" at MDA or DA.

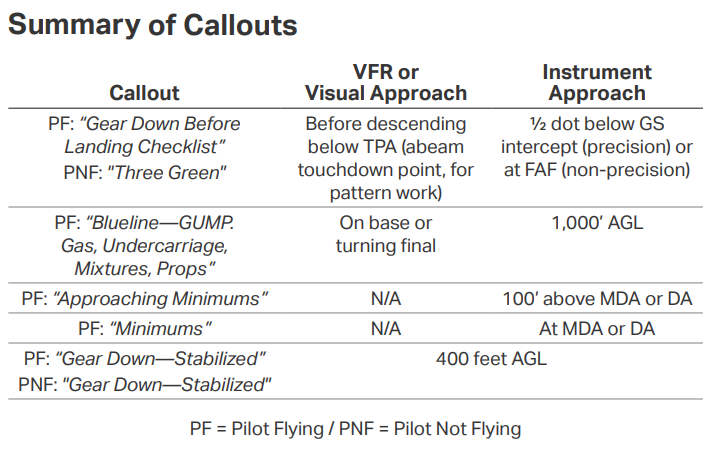

Summary of Callouts

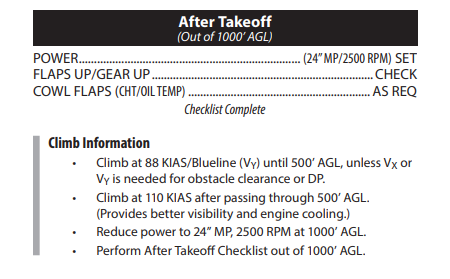

After Takeoff Checklist

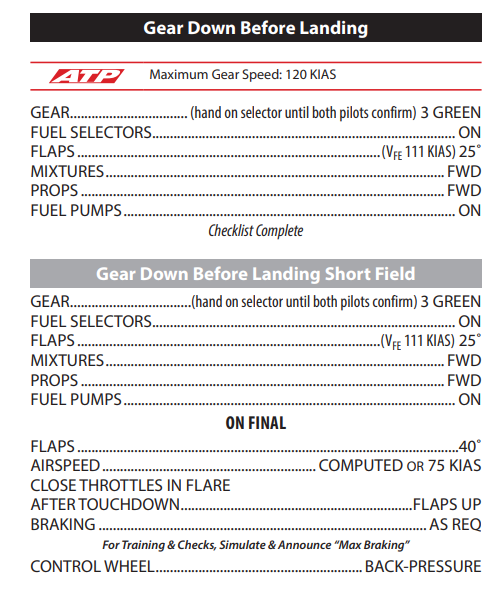

Gear Down Before Landing Checklist

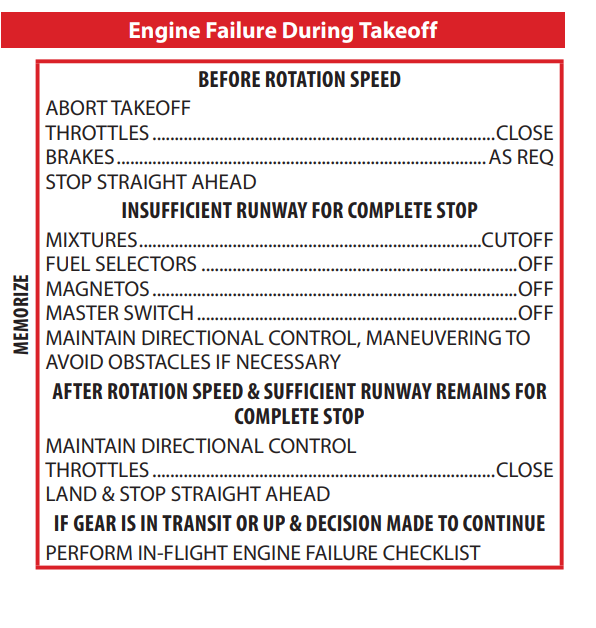

Engine Failure During Takeoff

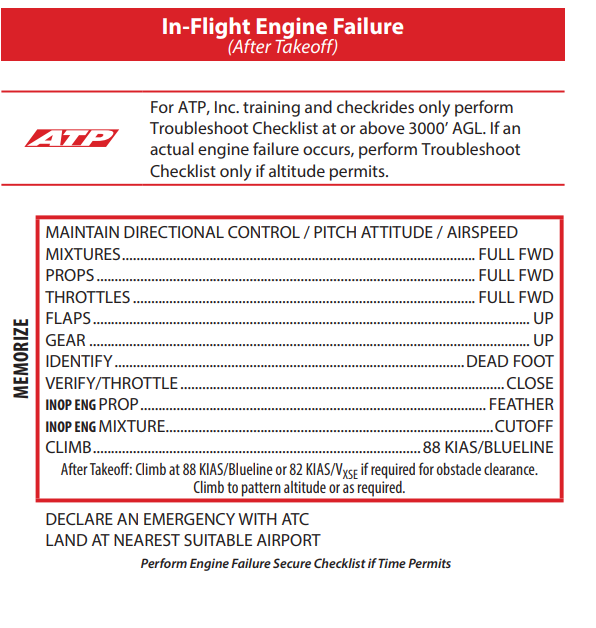

In-Flight Engine Failure (after Takeoff)

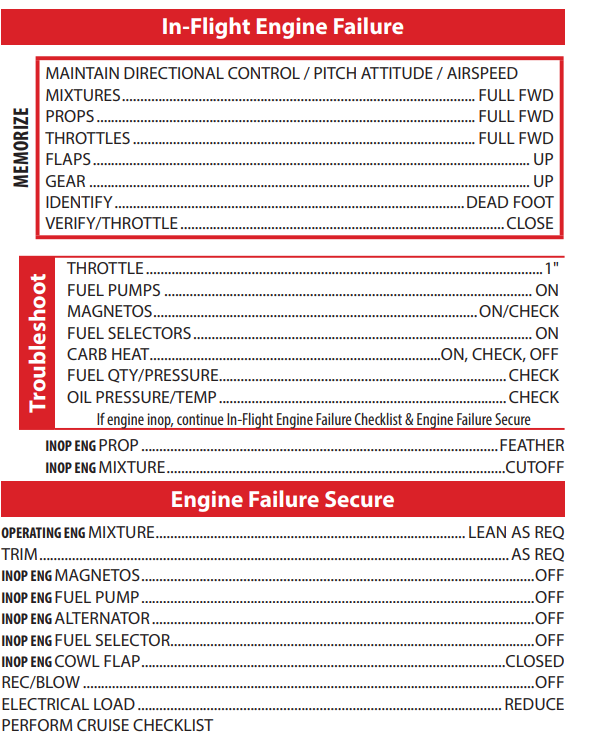

In-Flight Engine Failure

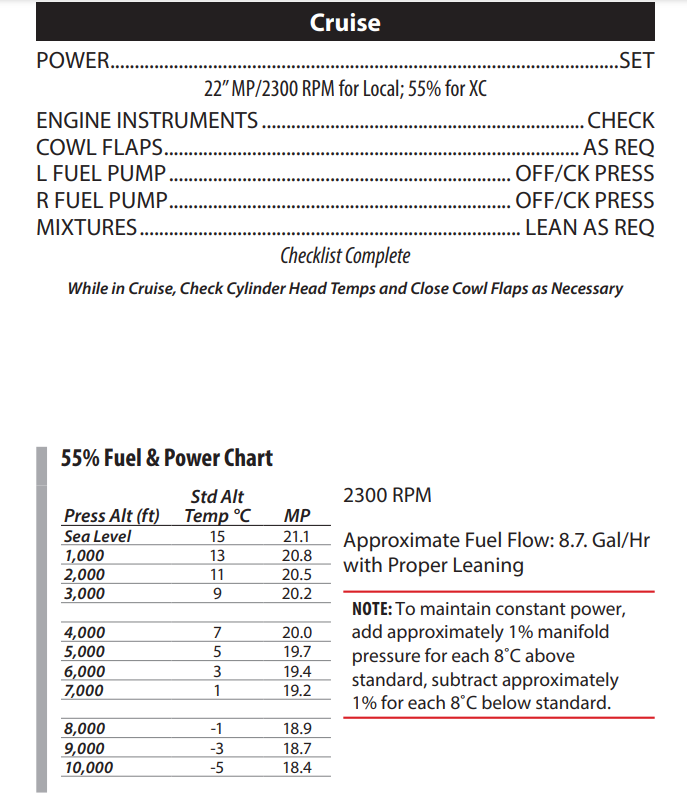

Cruise Checklist
