Ch. 11 - Cranium

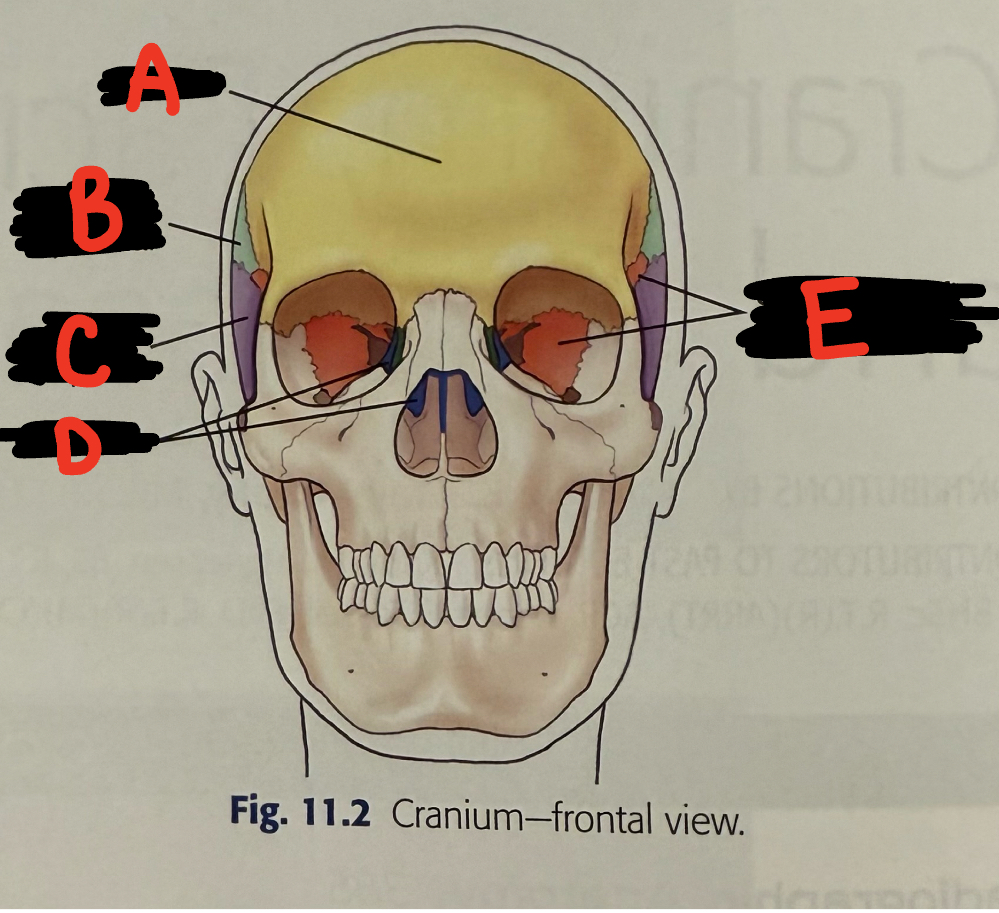

A

frontal

B

right parietal

C

right temporal

D

ethmoid

E

sphenoid

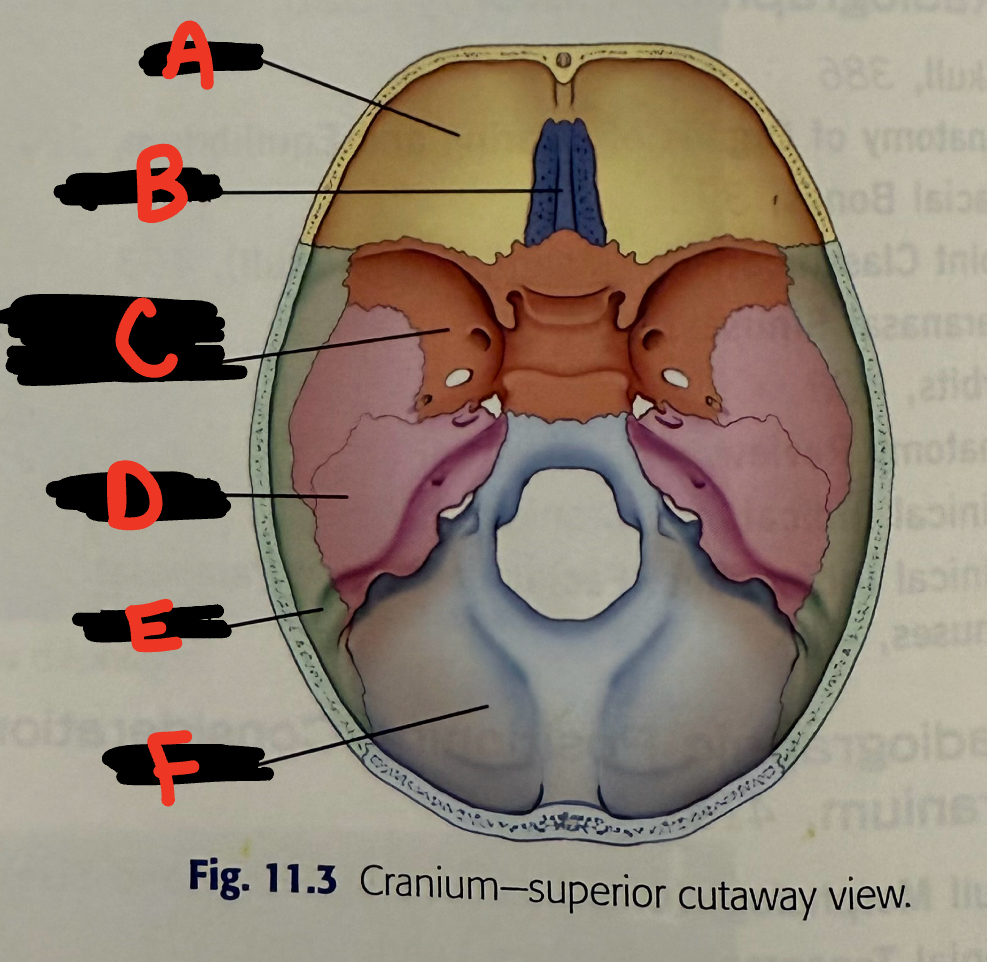

A

frontal

B

ethmoid

C

sphenoid

D

temporal

E

parietal

F

occipital

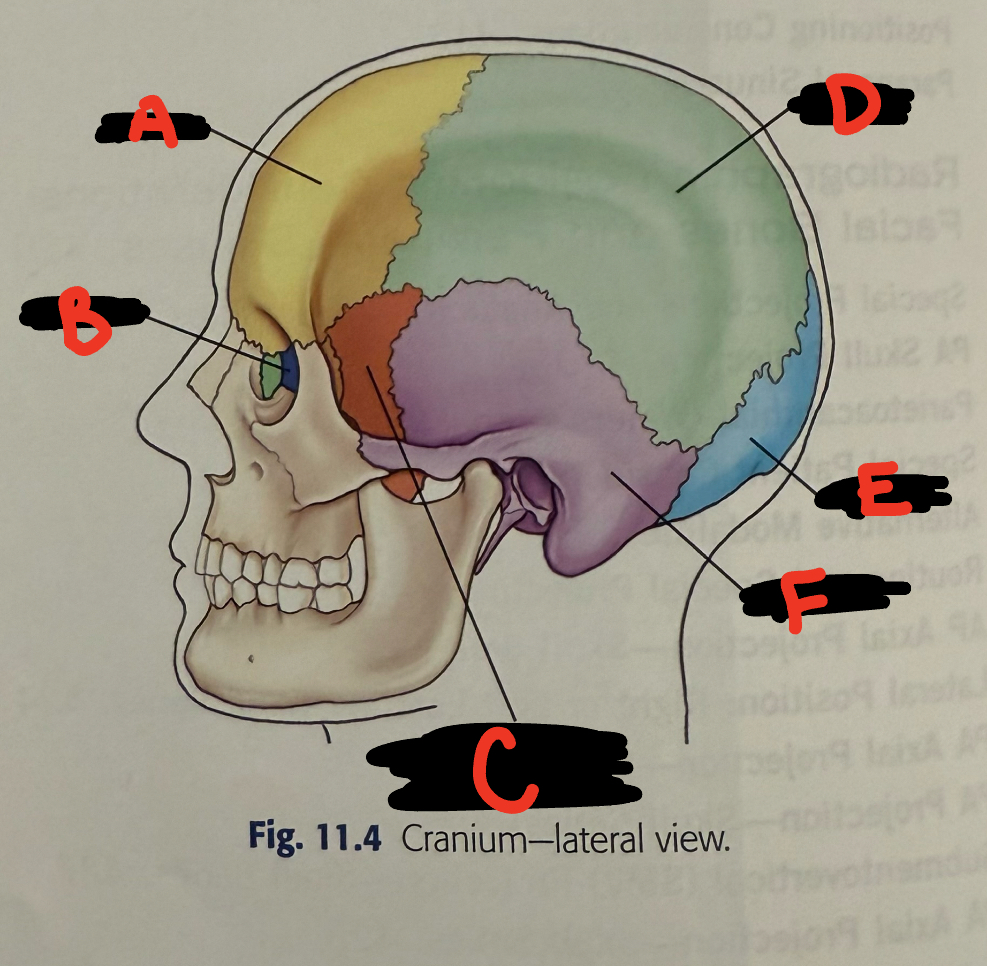

A

frontal

B

ethmoid

C

sphenoid

D

parietal

E

occipital

F

temporal

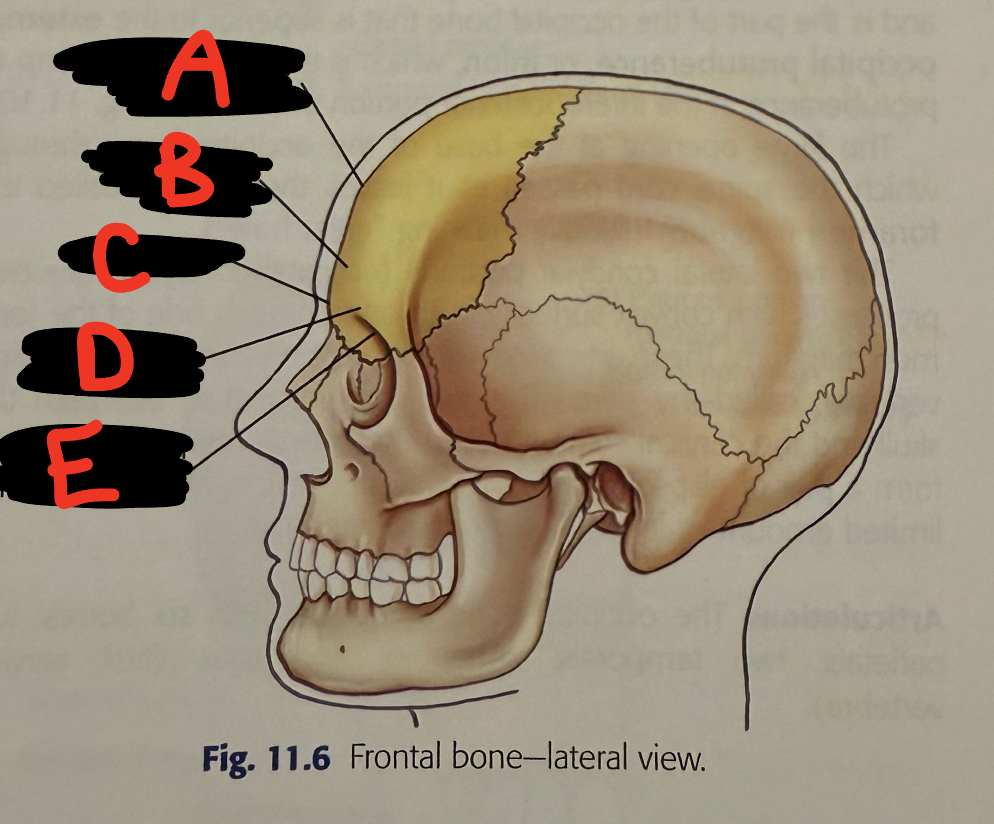

A

glabella

B

superciliary ridge

C

supraorbital margin (SOM)

D

frontal tuberosity

E

supraorbital groove

F

supraorbital notch (foramen)

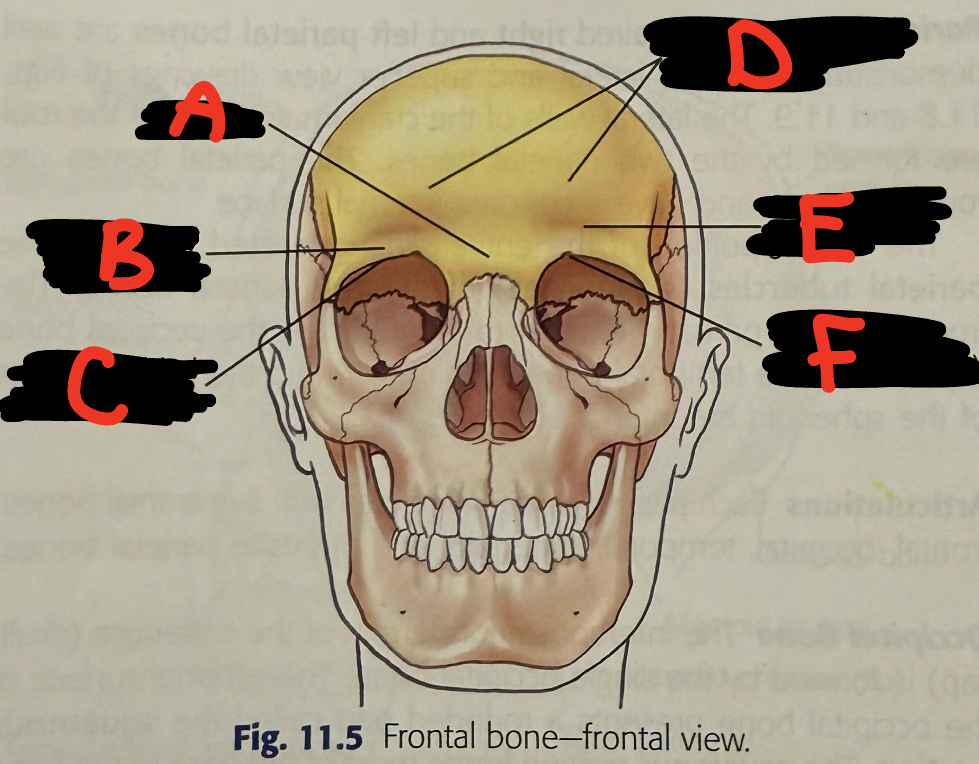

A

frontal tuberosity

B

supraorbital groove

C

glabella

D

superciliary ridge

E

supraorbital margin (SOM)

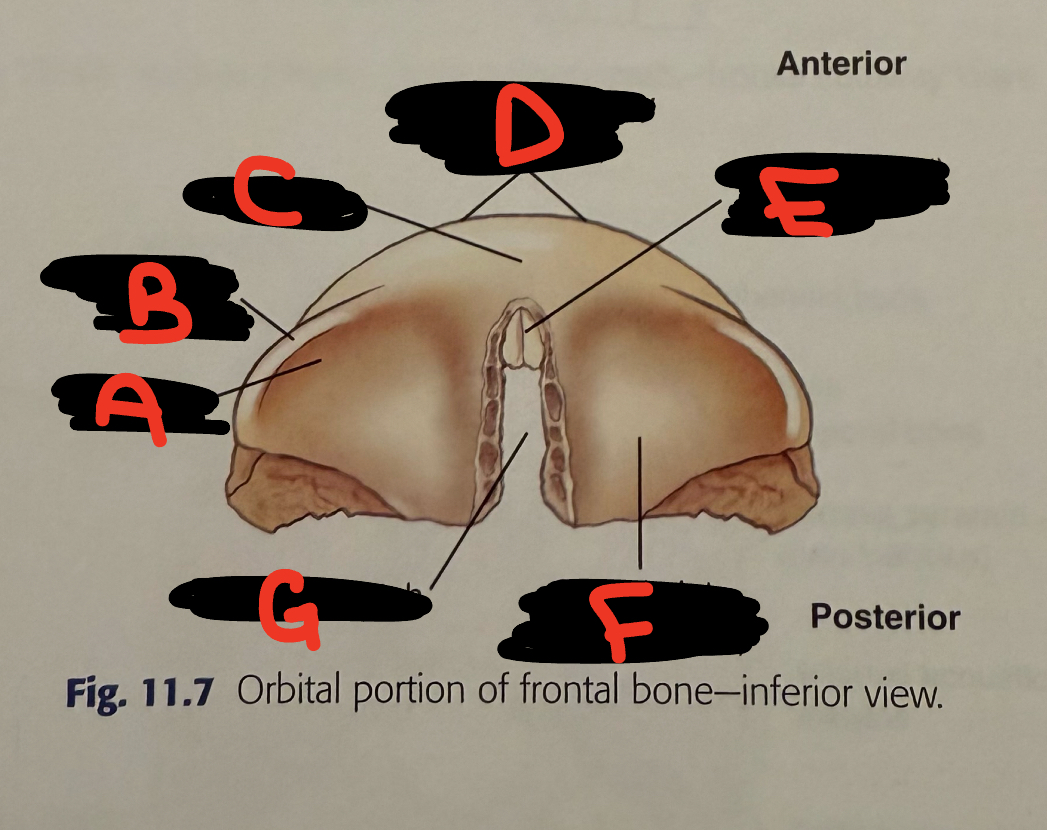

A

SOM

B

superciliary arch

C

glabella

D

frontal tuberosity

E

nasal spine

F

orbital plate

G

ethmoid notch

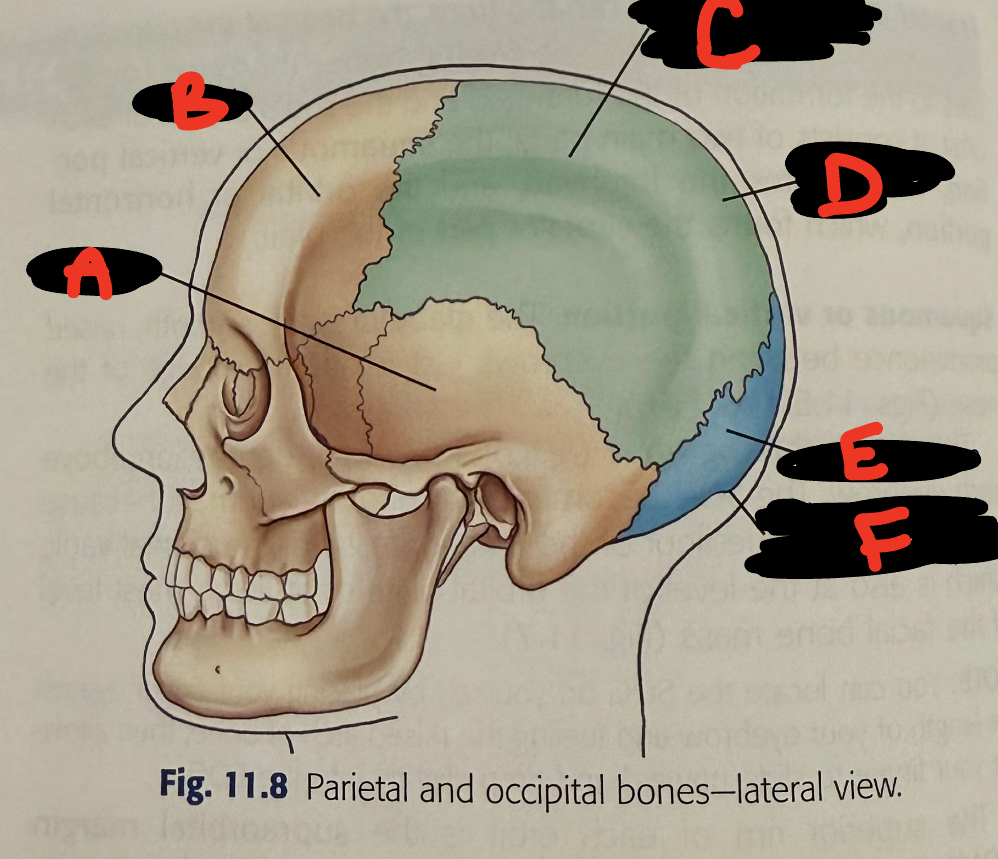

A

temporal

B

frontal

C

parietal tubercle

D

left parietal

E

occipital

F

external occipital protuberance (inion)

A

right parietal

B

occipital

C

frontal

D

parietal tubercle

E

left parietal

A

lateral condylar (occipital condyle)

B

foramen magnum

C

external occipital protuberance (inion)

D

squamous portion

A

frontal

B

sphenoid

C

zygomatic arch

D

temporomandibular fossa

E

styloid process

F

EAM

G

mastoid process (tip)

H

mastoid portion

I

occipital

J

squamous portion

K

parietal bone

A

squamous portion

B

mastoid portion

C

mastoid process (tip)

D

styloid process

E

petrous ridge

F

petrous portion (pyramid)

A

frontal

B

left temporal

C

petrous ridge

D

occipital

E

sphenoid

F

right temporal

G

petrous pyramid

H

internal acoustic meatus

I

external acoustic meatus (EAM)

J

jugular foramen

A

anterior clinoid process

B

foramen rotundum

C

foramen ovale

D

foramen spinosum

E

clivus

F

lesser wing

G

greater wing

H

sella turcica

I

dorsum sellae

A

foramen rotundum

B

foramen ovale

C

lateral pterygoid process (plate)

D

pterygoid hamulus

E

medial pterygoid process (plate)

F

sella turcica

G

dorsum sellae

H

chiasmatic (optic) groove

I

optic canal

J

optic foramen

K

greater wing

L

lesser wing

M

anterior clinoid processes

N

superior orbital fissure
