Logic Gates

AND, OR, NAND, NOR, XOR, XNOR, NOT, Logic Gates

What Logic Gate is this?

if a and b:

output = true

else:

output = false

AND

What Logic Gate is this?

if a or b:

output = true

else:

output = false

OR

What Logic Gate is this?

if not (a and b):

output = true

else:

output = false

NAND

What Logic Gate is this?

if not (a or b):

output = true

else:

output = false

NOR

What Logic Gate is this?

if a != b:

output = true

else:

output = false

XOR

What Logic Gate is this?

if a == b:

output = true

else:

output = false

XNOR

What Logic Gate is this?

if not a:

output = true

else:

output = false

NOT

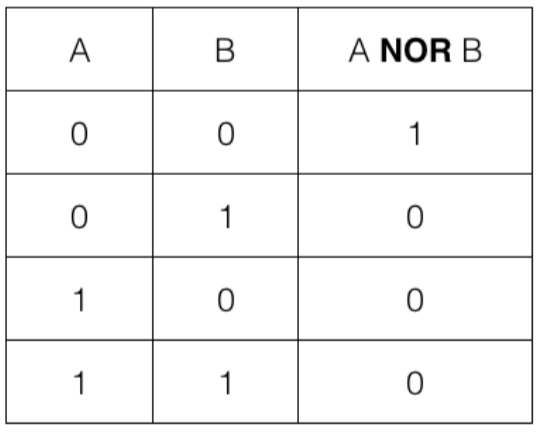

What Logic Gate is this?

NOR

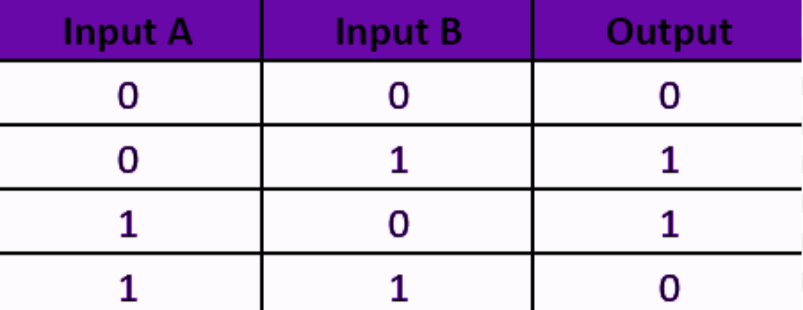

What Logic Gate is this?

XOR

What Logic Gate is this?

XNOR

The example stated below best suits for what gate?

A phone goes into sleep mode only when no buttons are being pressed and no notifications is coming in.

NOR

The example stated below best suits for what gate?

A safety systems shuts down a machine unless both saftety switches are pressed

NAND

The example stated below best suits for what gate?

You can use the bathroom pass if exactly one student has it, not zero, not two

XOR
