12 Terms

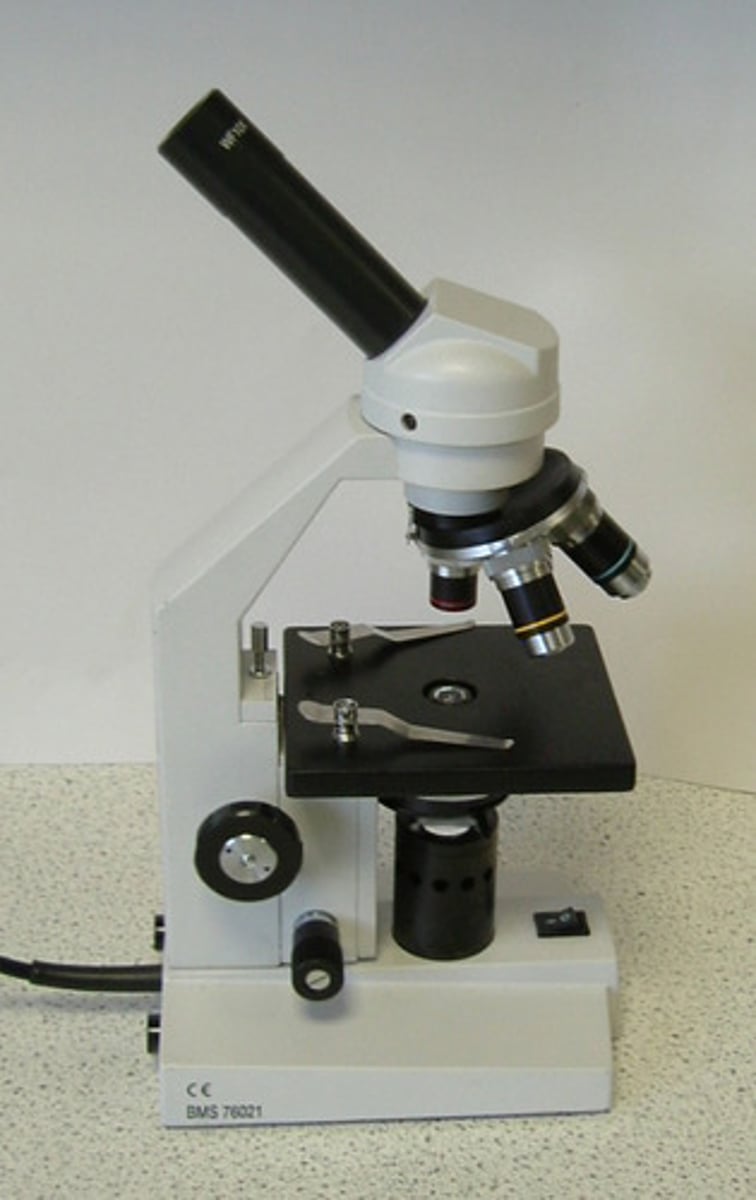

Microscope
device that produces magnified images of structures that are too small to see with the unaided eye

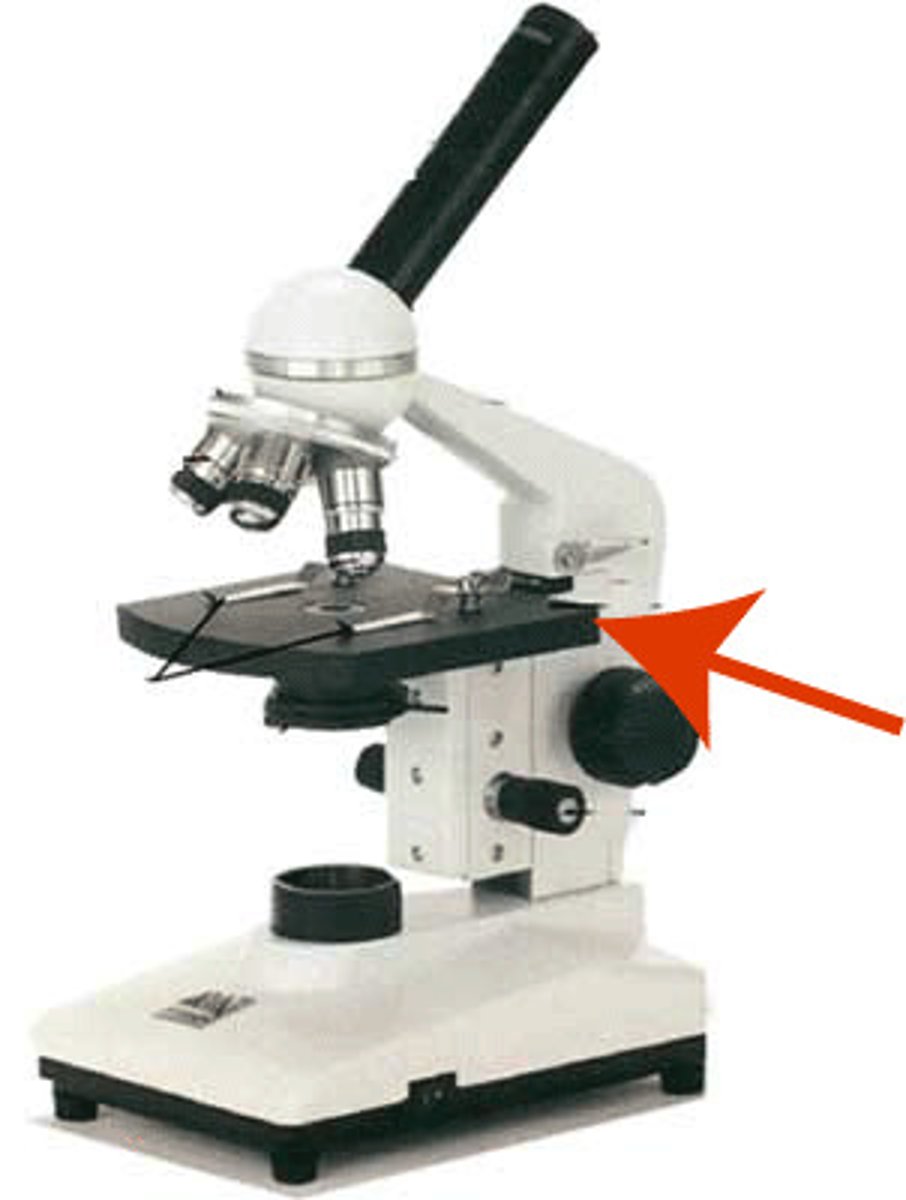

TERM
Stage
DEFINITION
Where the slide is placed
TERM
Light source
DEFINITION
Light used under the stage to shine up through the slide and assist in observing what is on the slide.

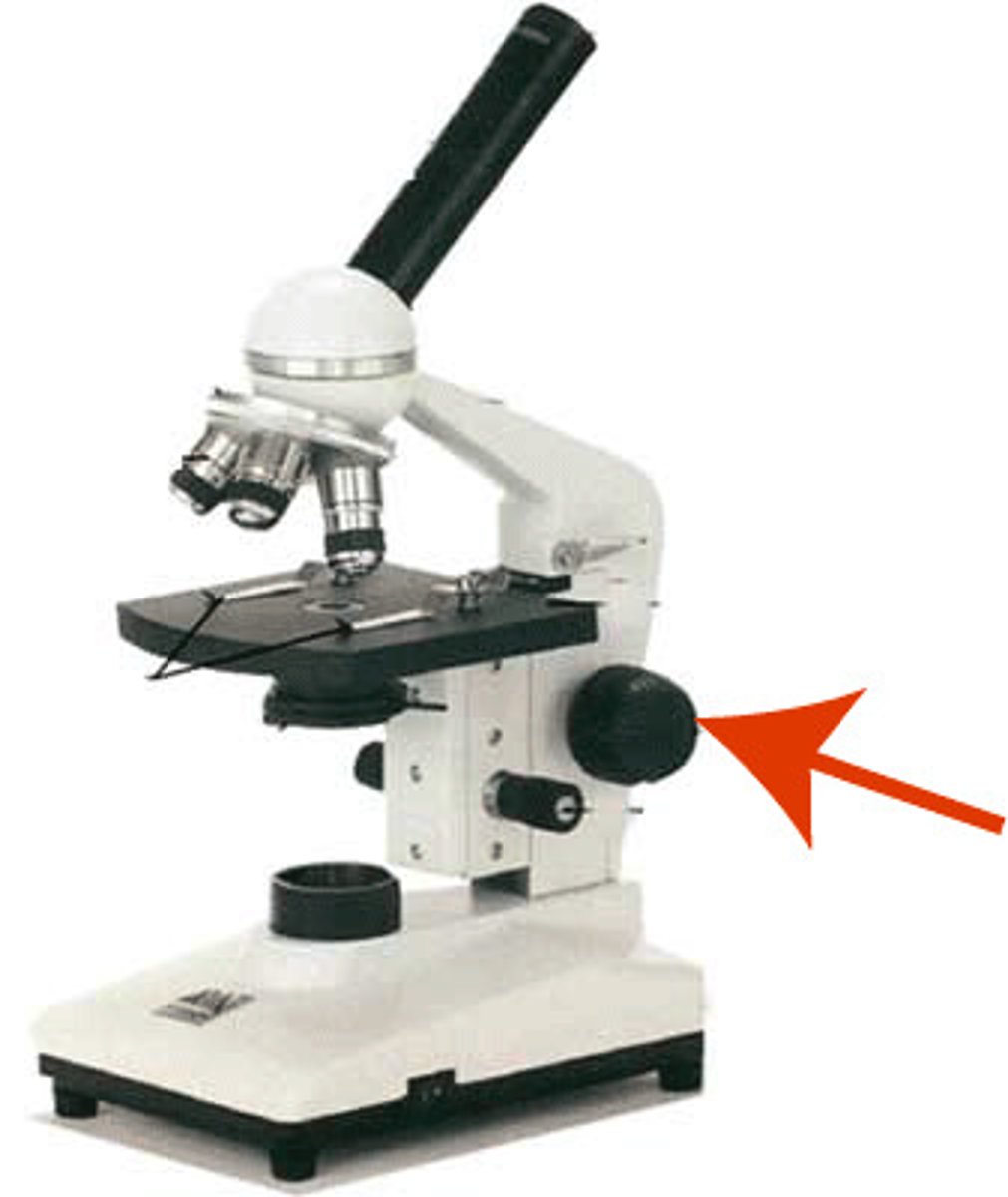

TERM
Course Adjustment
DEFINITION
Large knob used to move the stage up and down for focusing on low and middle power.
TERM
Fine Adjustment
DEFINITION
the small knob which moves the body tube to produce small changes in focus.
TERM

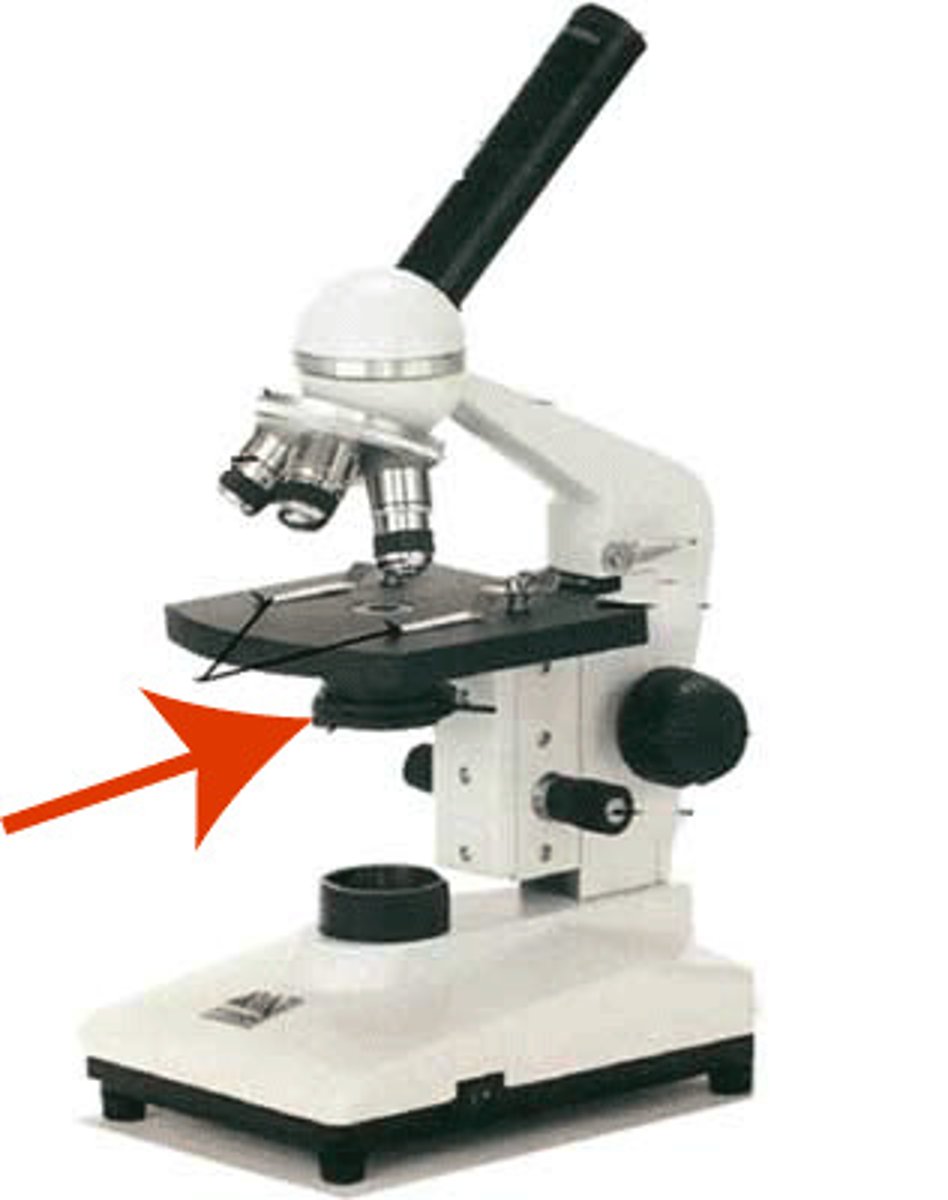

Diaphragm
DEFINITION
Controls the amount of light passing through the opening of the stage
TERM

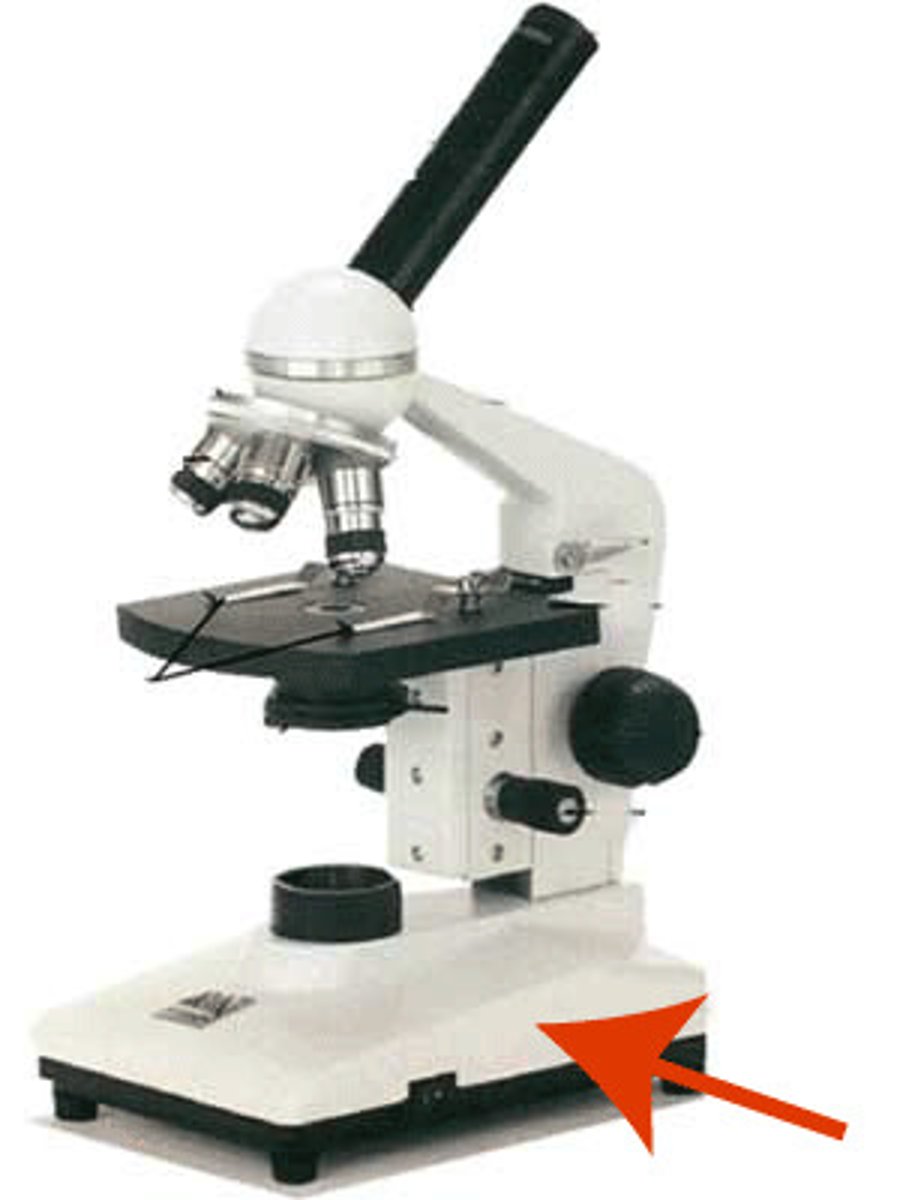

Base
DEFINITION
The bottom of the microscope that supports the microscope.

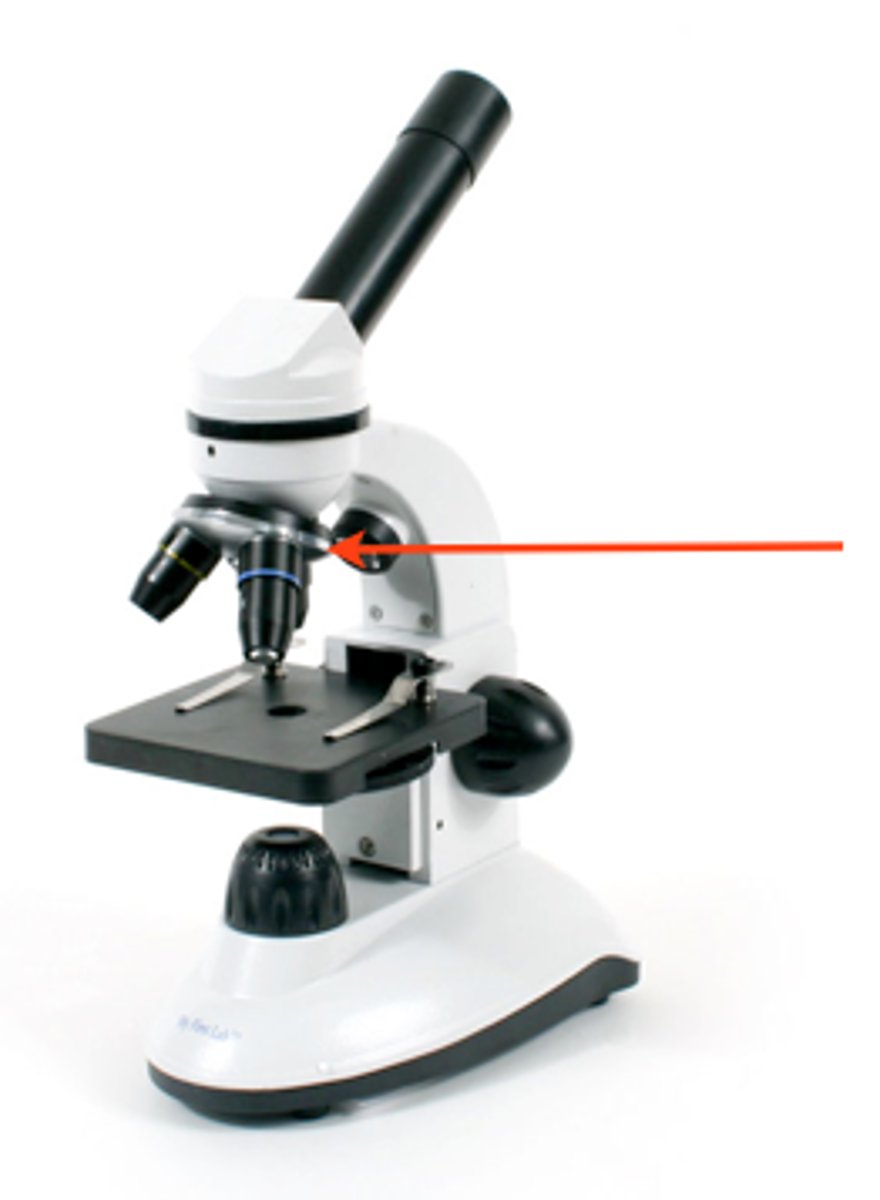

TERM
Nose Piece
DEFINITION
hold the objective lenses and allows them to be changed

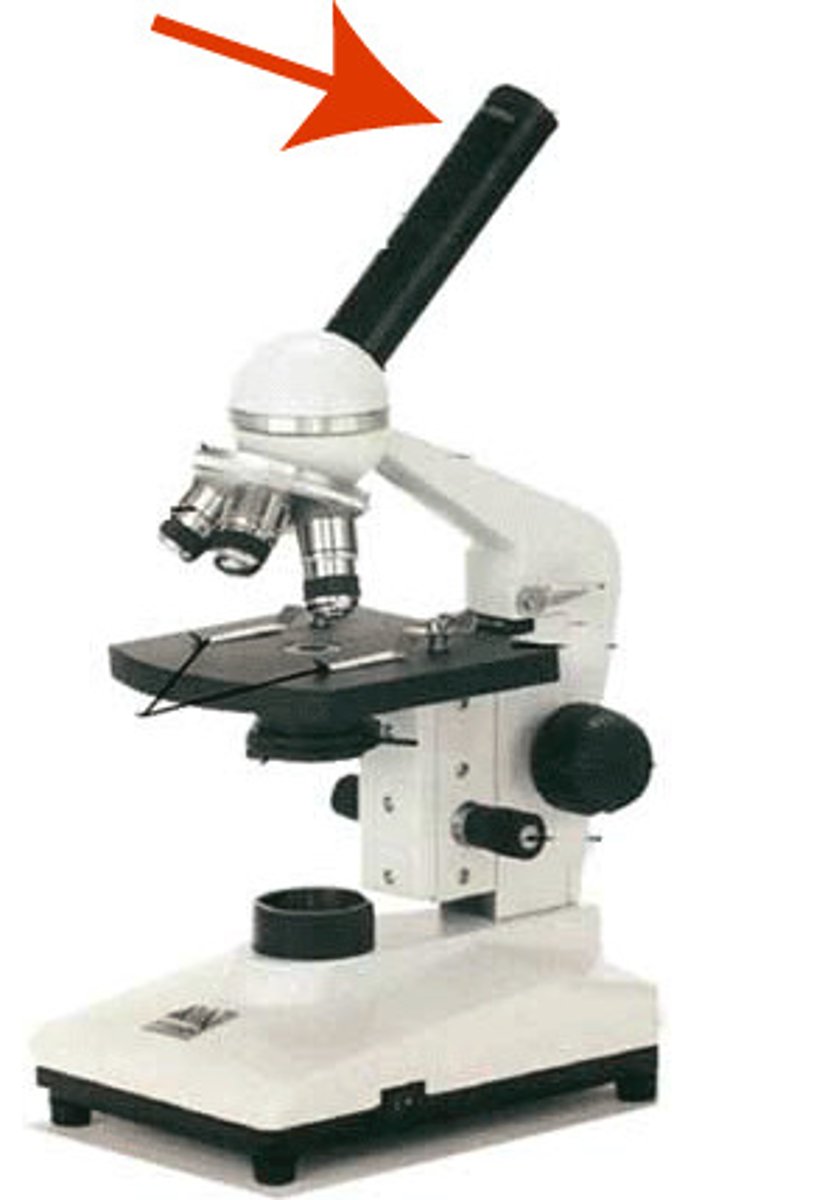

TERM
Eye Piece
DEFINITION
the part you look at with your eye (10x magnification)

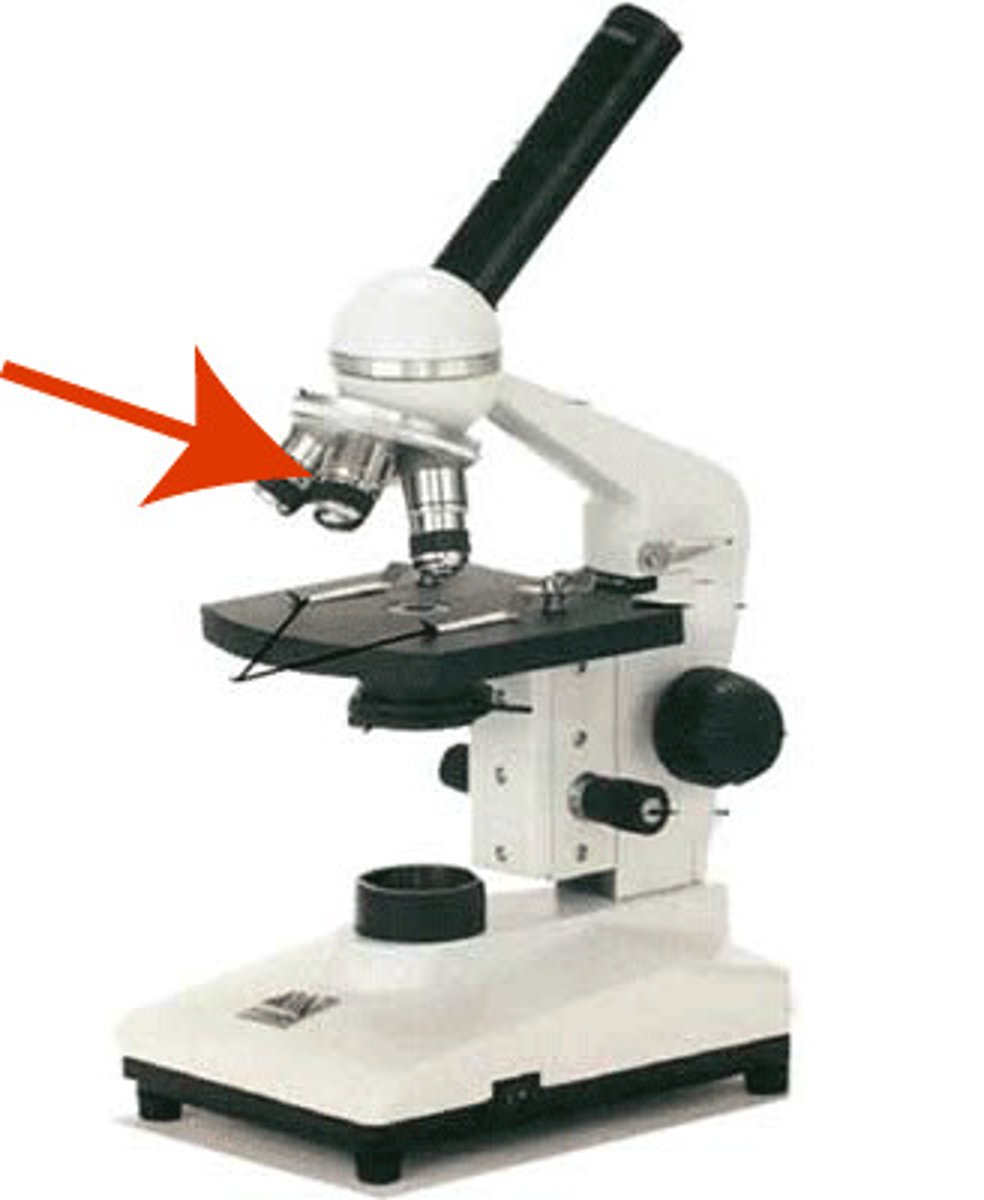

TERM
Objective Lens
DEFINITION
The lens of a compound microscope closest to the object; common powers are 4x, 10x, 40x, and 100x

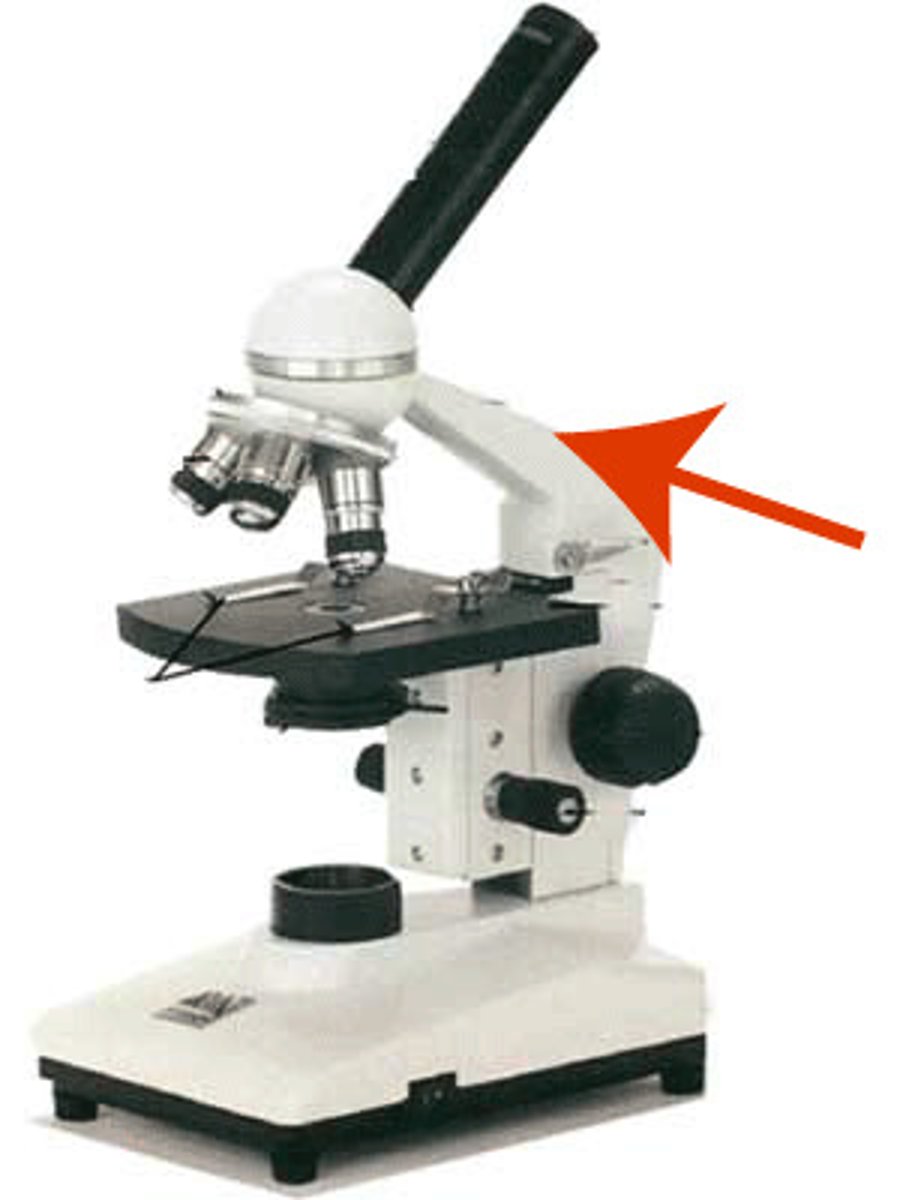

TERM
Arm
DEFINITION
Supports the body tube and connects it to the base

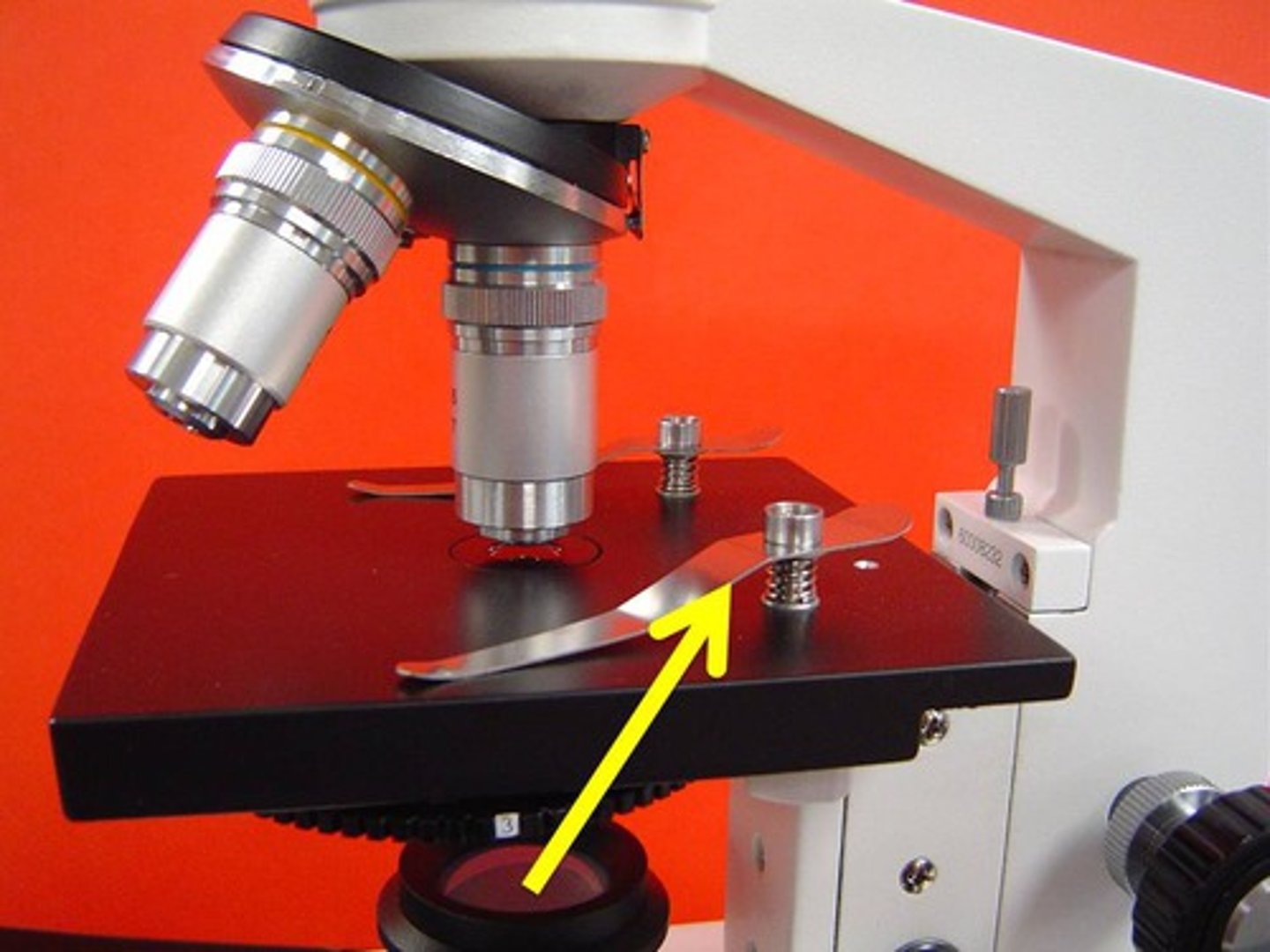

TERM
Stage Clips
DEFINITION
These are used to hold a slide in place on the stage
