Anatomy (Shoulder Girdle/Arm and Hand)

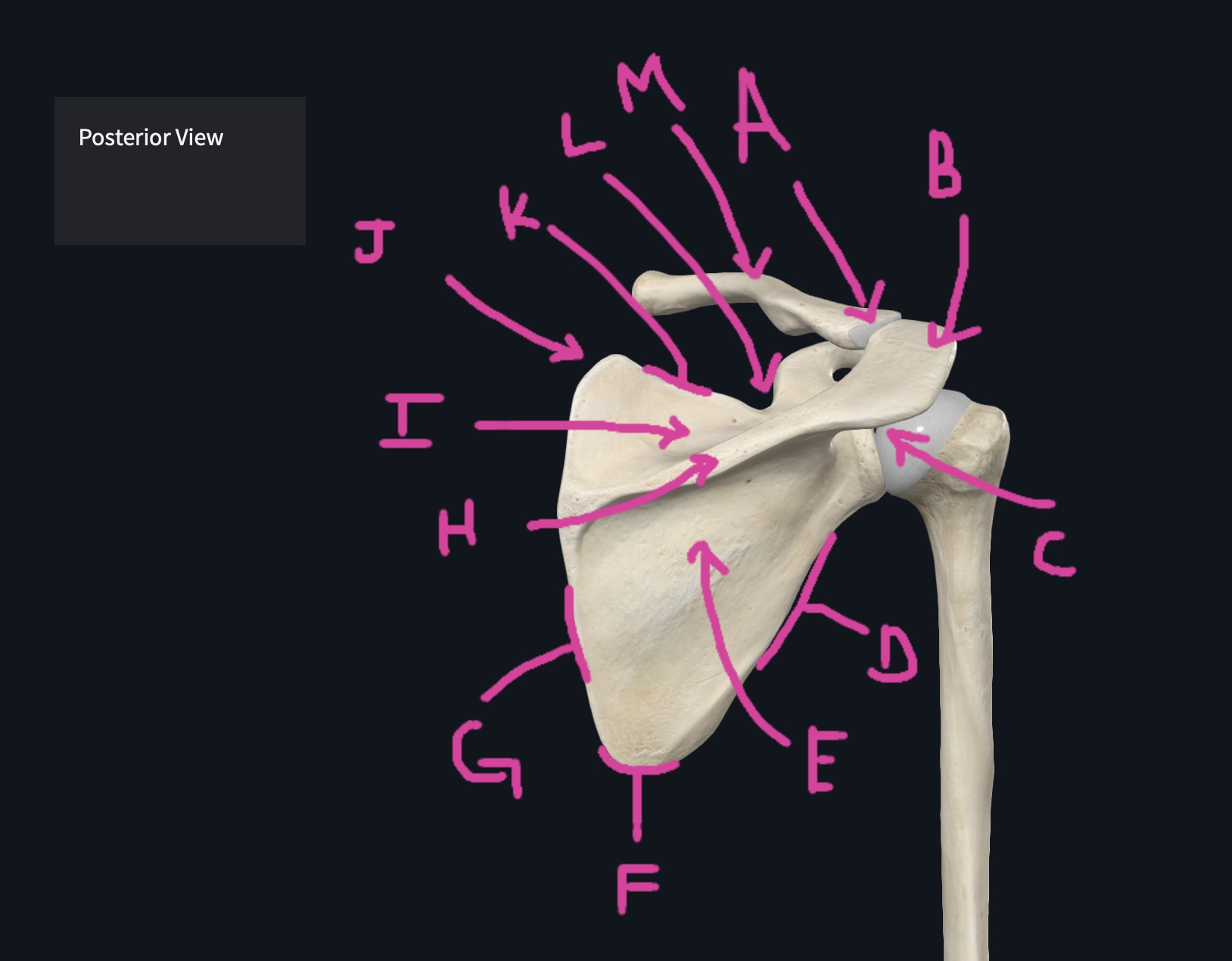

A (Posterior)

Acromioclavicular Joint

B (Posterior)

Acromion Process

C (Posterior)

Glenoid Cavity

D (Posterior)

Lateral Border

E (Posterior)

Infraspinous Fossa

F (Posterior)

Inferior Angle

G (Posterior)

Medial Border

H (Posterior)

Scapular Spine

I (Posterior)

Supraspinous Fossa

J (Posterior)

Superior Angle

K (Posterior)

Superior Border

L (Posterior)

Suprascapular Notch

M (Posterior)

Clavicle

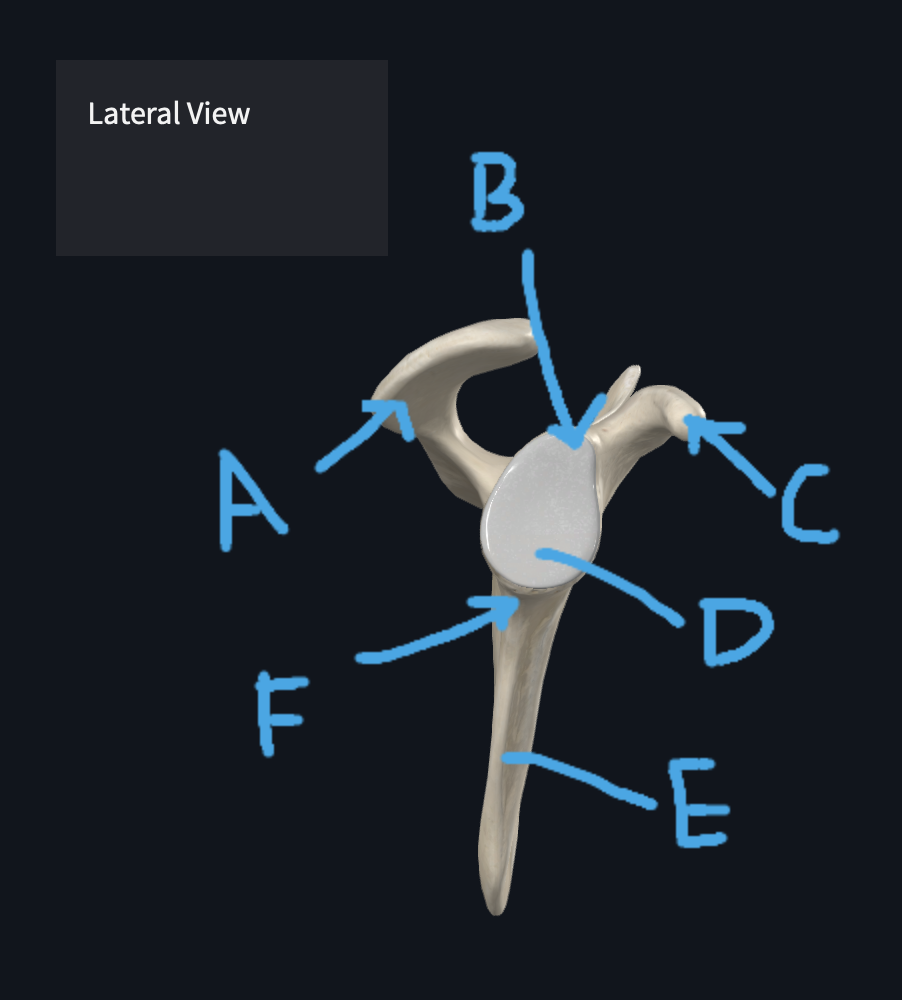

A (Lateral)

Acromion Process

B (Lateral)

Supraglenoid Tubercle

C (Lateral)

Coracoid Process

D (Lateral)

Glenoid Fossa

E (Lateral)

Scapula

F (Lateral)

Infraglenoid Tubercle

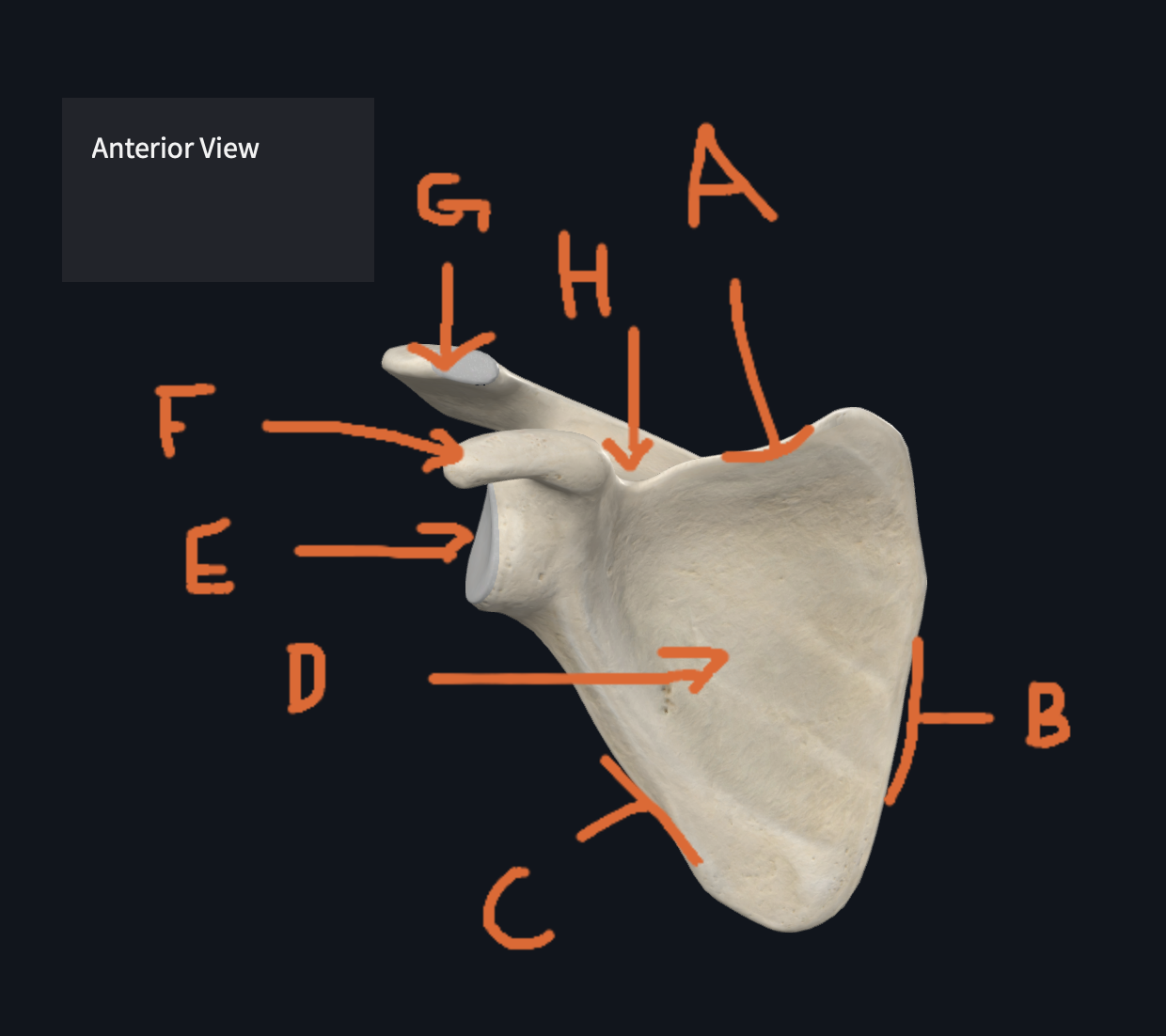

A (Anterior)

Superior Border

B (Anterior)

Medial Border

C (Anterior)

Lateral Border

D (Anterior)

Subscapular Fossa

E (Anterior)

Glenoid Cavity

F (Anterior)

Coracoid Process

G (Anterior)

Acromion

H (Anterior)

Suprascapular Notch

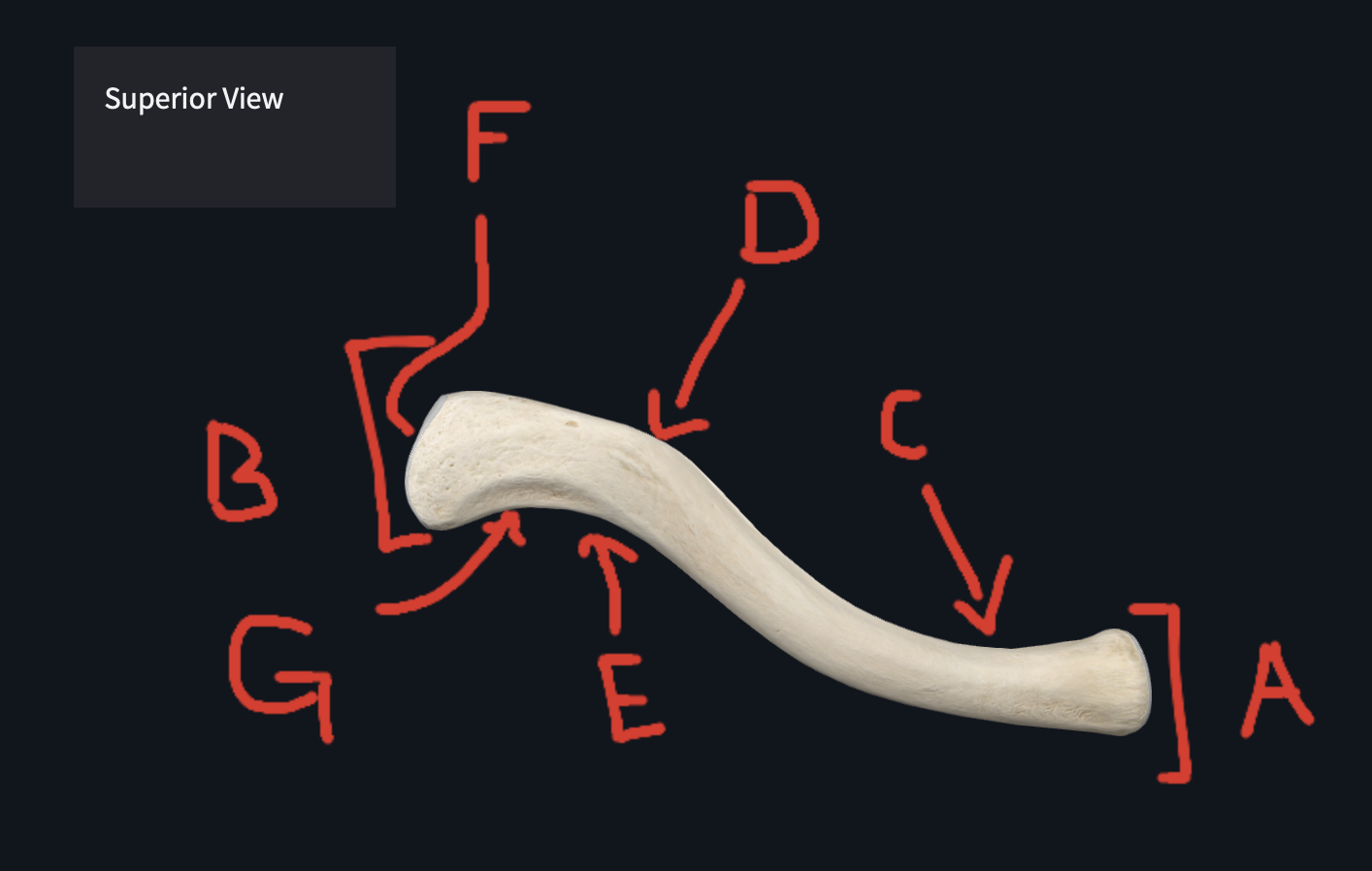

A (Superior of Clavicle)

Sternal End

B (Superior of Clavicle)

Acromial End

C (Superior of Clavicle)

Medial Curvature

D (Superior of Clavicle)

Conoid Tubercle

E (Superior of Clavicle)

Lateral Curvature

F (Superior of Clavicle)

Acromial Facet

G (Superior of Clavicle)

Deltoid Tubercle

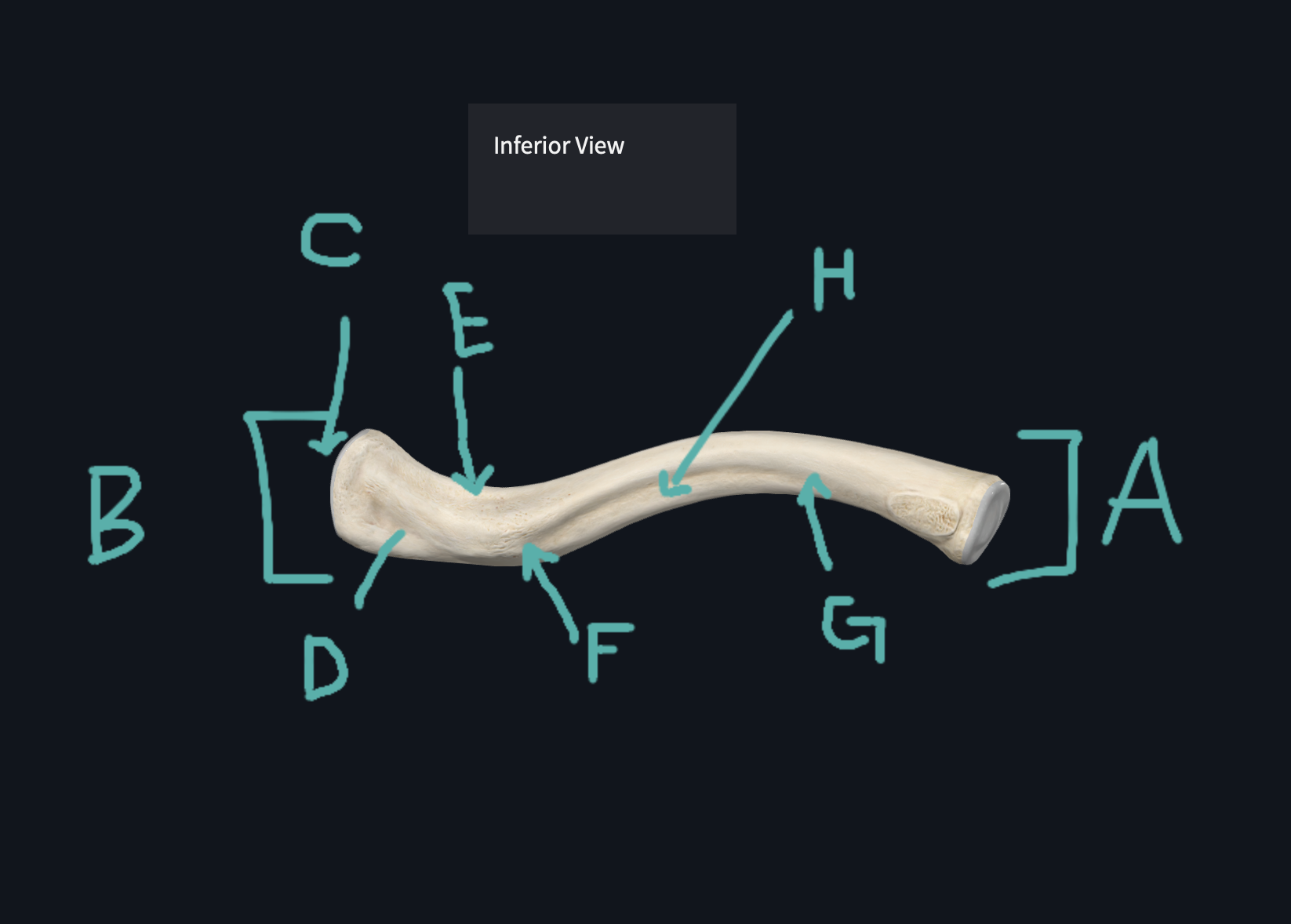

A (Inferior of Clavicle)

Sternal End

B (Inferior of Clavicle)

Acromial End

C (Inferior of Clavicle)

Acromial Facet

D (Inferior of Clavicle)

Trapezoid Line

E (Inferior of Clavicle)

Deltoid Tubercle

F (Inferior of Clavicle)

Conoid Tubercle

G (Inferior of Clavicle)

Costal Tuberosity

H (Inferior of Clavicle)

Subclavian Groove

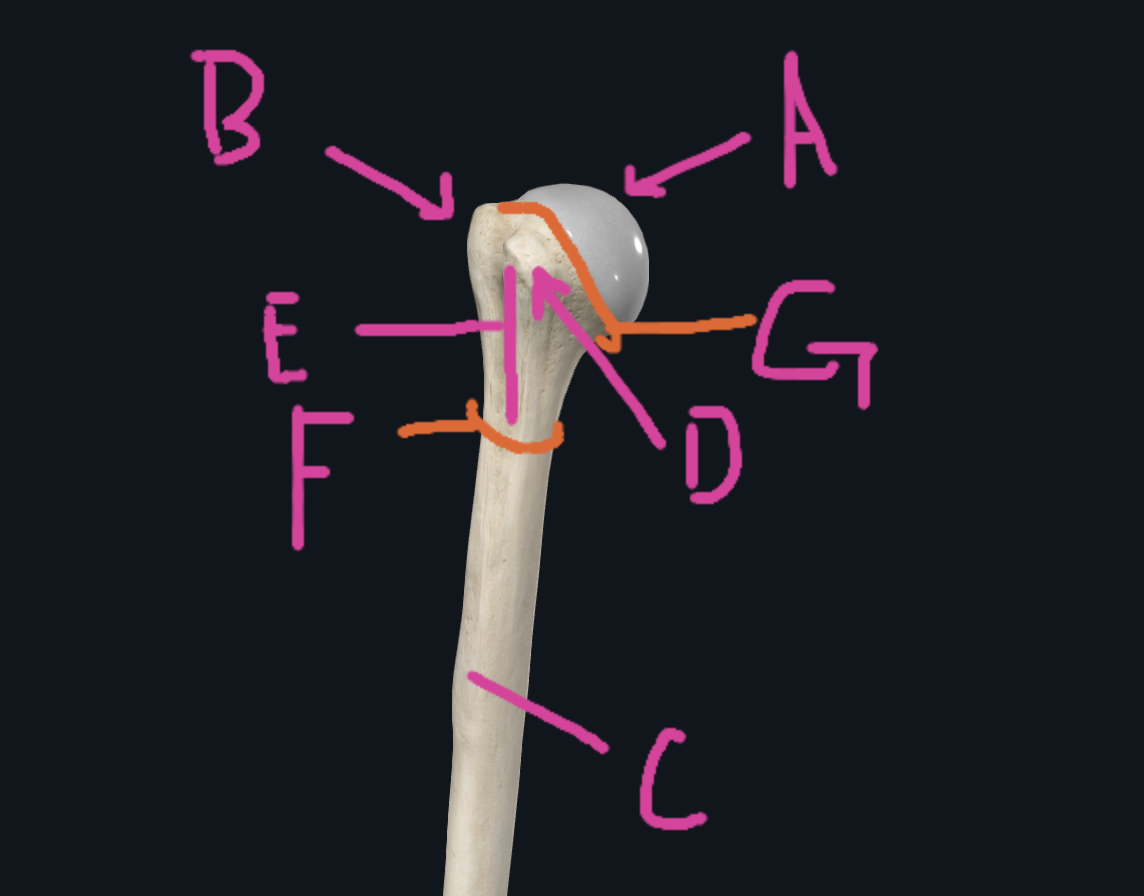

A(Upper Humerus)

Head

B(Upper Humerus)

Greater Tuberosity

C(Upper Humerus)

Deltoid Tuberosity

D(Upper Humerus)

Lesser Tuberosity

E(Upper Humerus)

Intertubercular Groove

F(Upper Humerus)

Surgical Neck

G(Upper Humerus)

Anatomical Neck

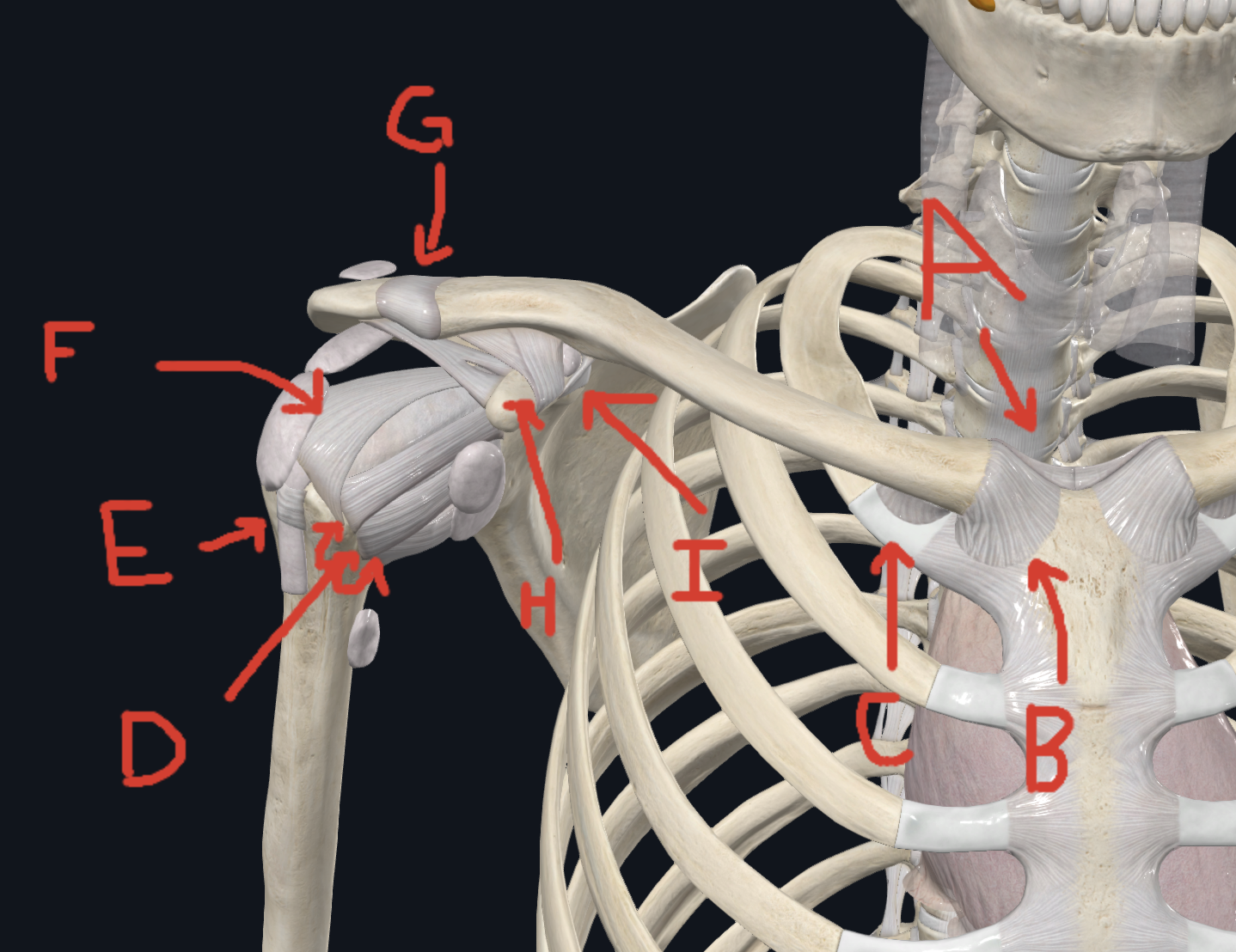

A(Shoulder Ligament)

Interclavicular Ligament

B(Shoulder Ligament)

Anterior sternoclavicular ligament

C(Shoulder Ligament)

costoclavicular ligament

D(Shoulder Ligament)(S,M,I)

Glenohumeral Ligaments

E(Shoulder Ligament)

Transverse Humeral Ligament

F(Shoulder Ligament)

Coracohumeral Ligament

G(Shoulder Ligament)

Acromioclavicular Ligament

H(Shoulder Ligament)

Trapezoid Ligament

I(Shoulder Ligament)

Conoid Ligament

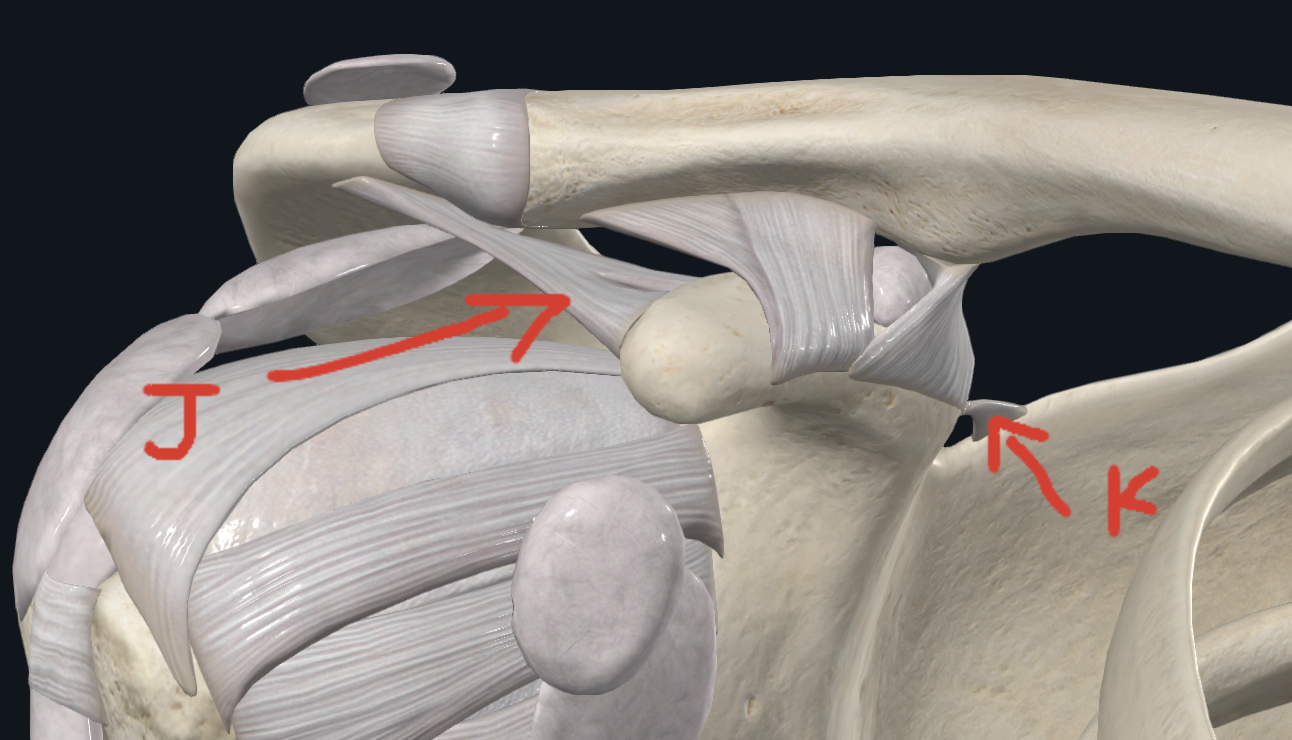

J(Shoulder Ligament)

Coracoacromial Ligament

K(Shoulder Ligament)

Superior Transverse Scapular Ligament

O:3rd and 5th ribs

I:Coracoid process on the scapula

A:Downward scapular rotation

D

Pectoralis Minor

O: Anterior/Lateral aspects of upper 9 ribs

I: Anterior surface of medial scapula border

A: Scapular abduction, upward rotation

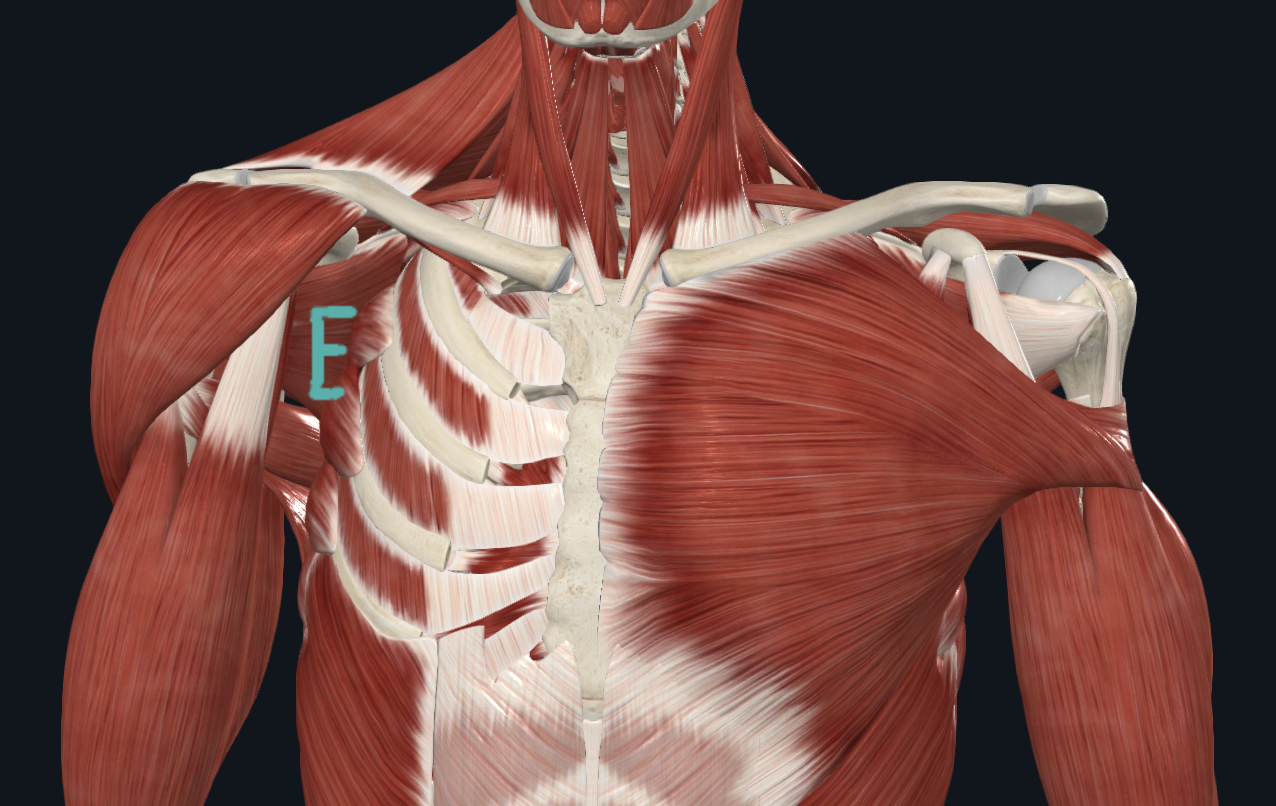

E

Serratus Anterior

O: 1st rib

I: Subclavian groove of clavicle

A: Stabilization of SC joint

P

Subclavis

O: Transverse processes (C1-4)

I: Medial, superior vertebral border of scapula

A: Scapular elevation, downward rotation

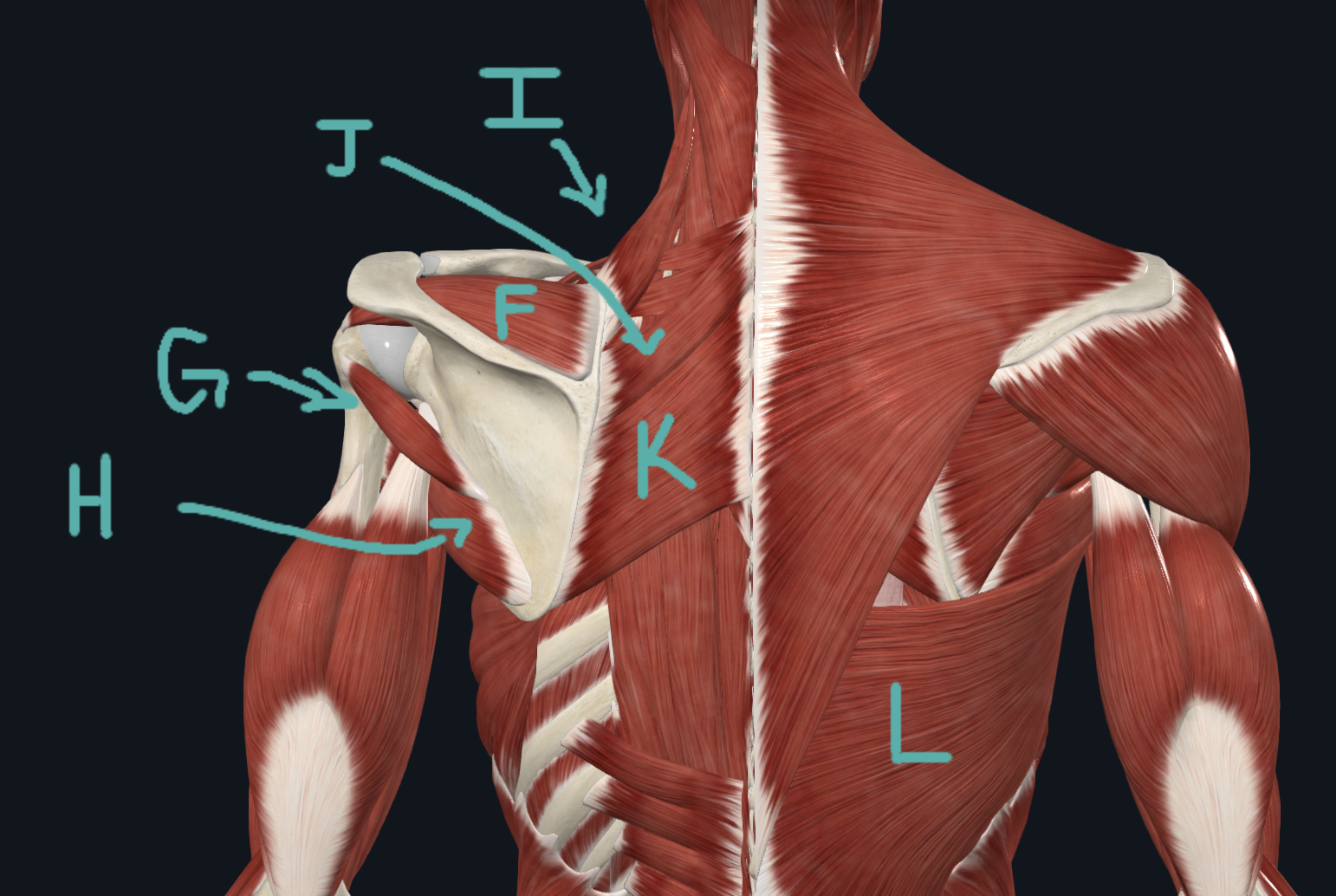

I

Levator Scapulae

O: Spines of C7-T5

I: Medial border of the scapula

A: Scapular elevation, downward rotation

J and K

Rhomboids

O: External occipital protuberance and C7-T12

I: Spine of scapula, acromion process, posterior surface of clavicle

A: Upper and middle do scapular elevation. Lower does scapular depression and upward rotation

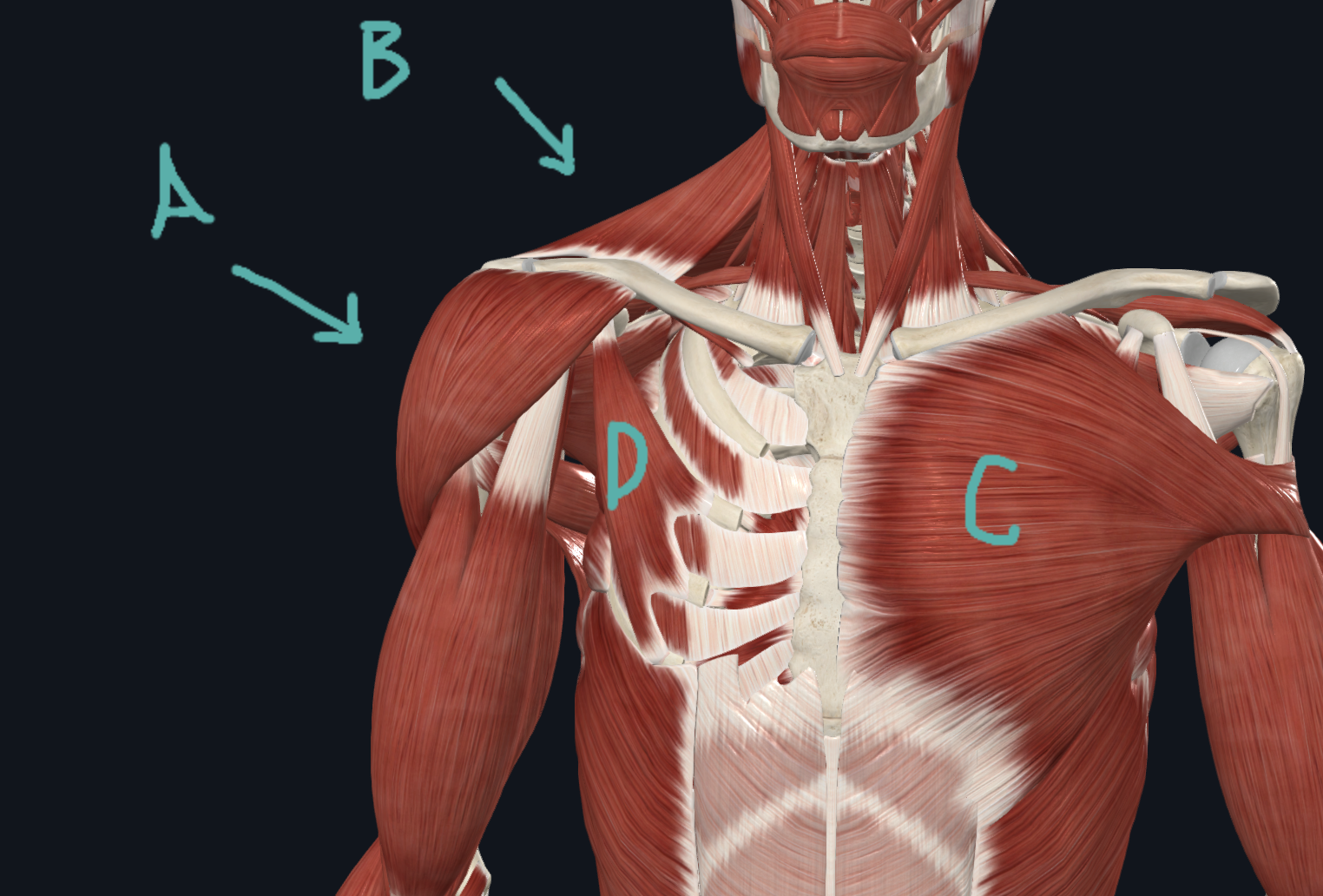

B

Trapezius

O: 1-6 ribs, sternum, medial half of clavicle

I: Anterior area of surgical neck of humerus

A: Shoulder flexion, adduction, internal rotation

C

Pectoralis Major

O: Coracoid process of scapula

I: Medial side of humerus

A: Shoulder flexion , and adduction

O

Coracobrachialis

O: Subscapular fossa of scapula

I: Lesser tubercle of humerus

A: Shoulder internal rotation

anterior of scapula below superior border

Subscapularis

O: Anterior-clavicle, middle-acromion process Posterior-inferior edge of scapular spine

I: Deltoid tuberosity of humerus

A: Entire deltoid- abduction

A

Deltoid

O: Supraspinous fossa of scapula

I; Greater tuberosity of humerus

A: Shoulder abduction

F

Supraspinatus

O: Infraspinous fossa of scapula

I: Middle facet of the greater tubercle of humerus

A: Shoulder external rotation extension

unlabeled right side

Infraspinatus

O: Upper/middle portion of lateral border of scapula

I: Greater tubercle of humerus

A: Shoulder external rotation, extension

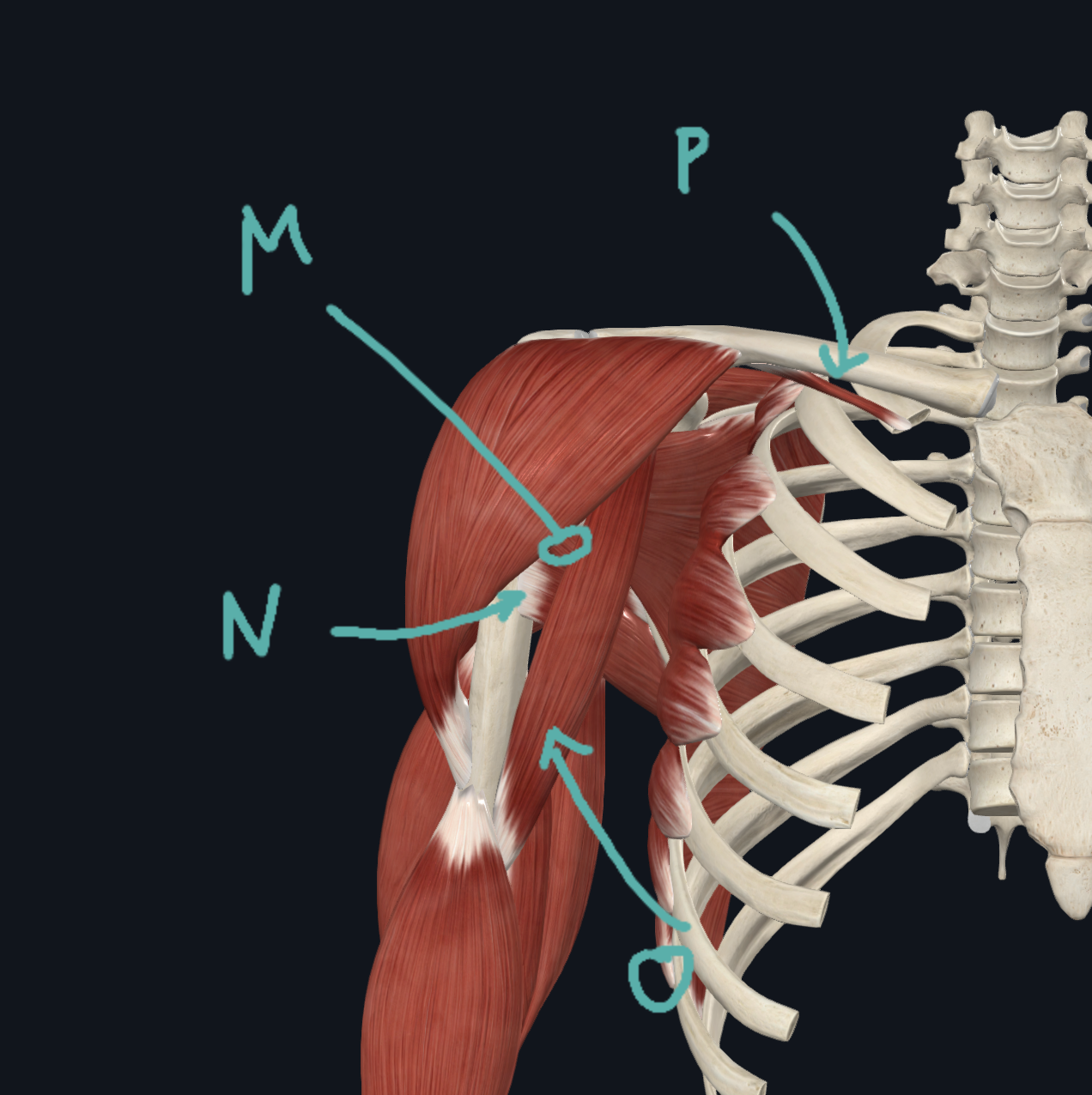

M

Teres Minor

O: Inferior angle of scapula

I: Inferior to the lesser tuberosity on the humerus

A: Shoulder internal rotation, extension, adduction

N

Teres Major

O: Spinous processes of lower 6 thoracic and all lumbar vertebrae, posterior ilium, sacrum, lower 3 ribs, inferior angle of scapula

I: Intertubercular groove of anterior aspect of humerus

A: Shoulder internal rotation, extension, adduction

L

Latissimus Dorsi

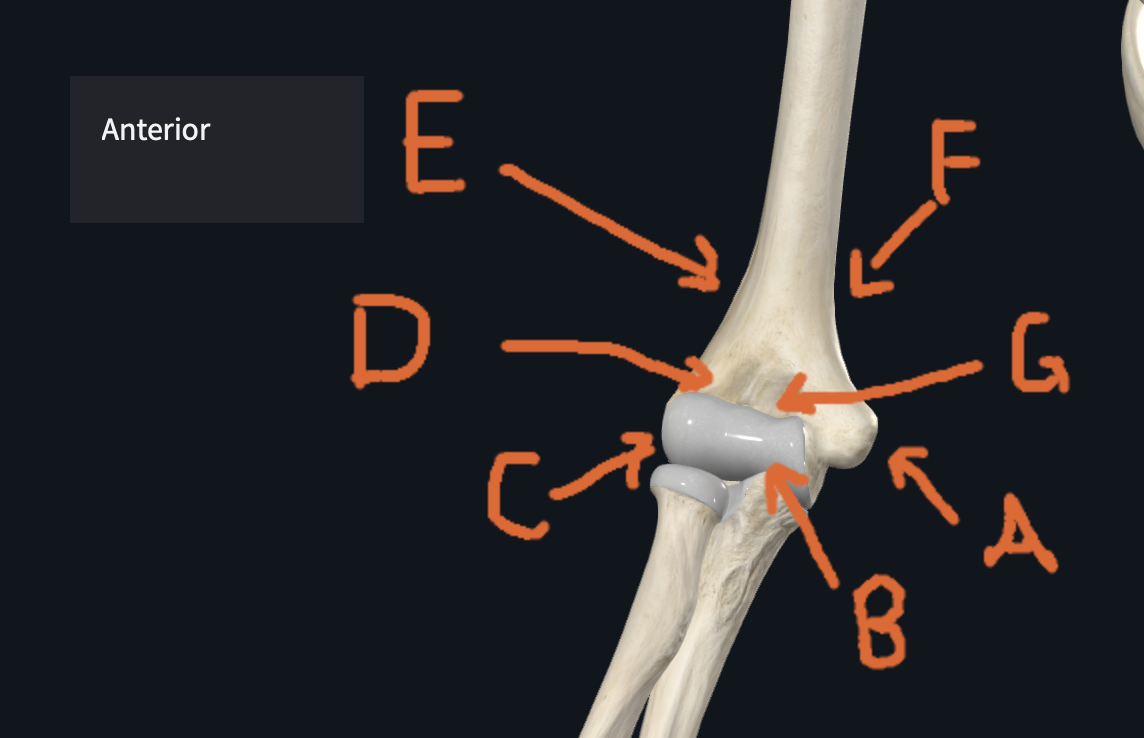

A(Humerus)

Medial Epicondyle

B(Humerus)

Trochlea

C(Humerus)

Capitulum

D(Humerus)

Radial Fossa

E(Humerus)

Lateral Supracondylar Ridge

F(Humerus)

Medial Supracondylar Ridge

G(Humerus)

Coronoid Fossa

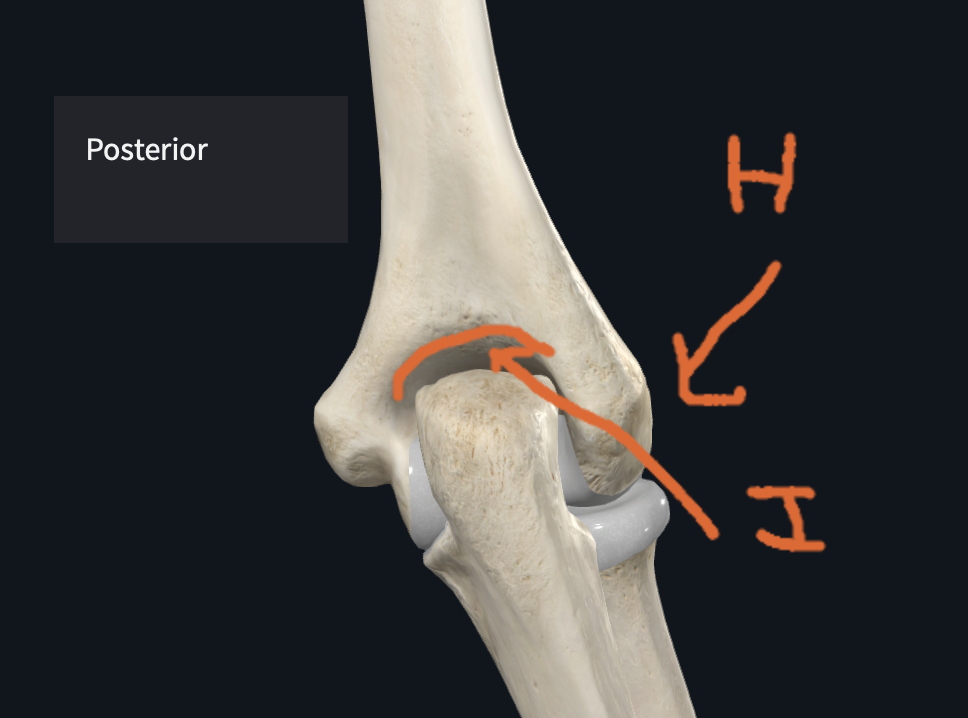

H(Humerus)

Lateral Epicondyle

I(Humerus)

Olecranon Fossa

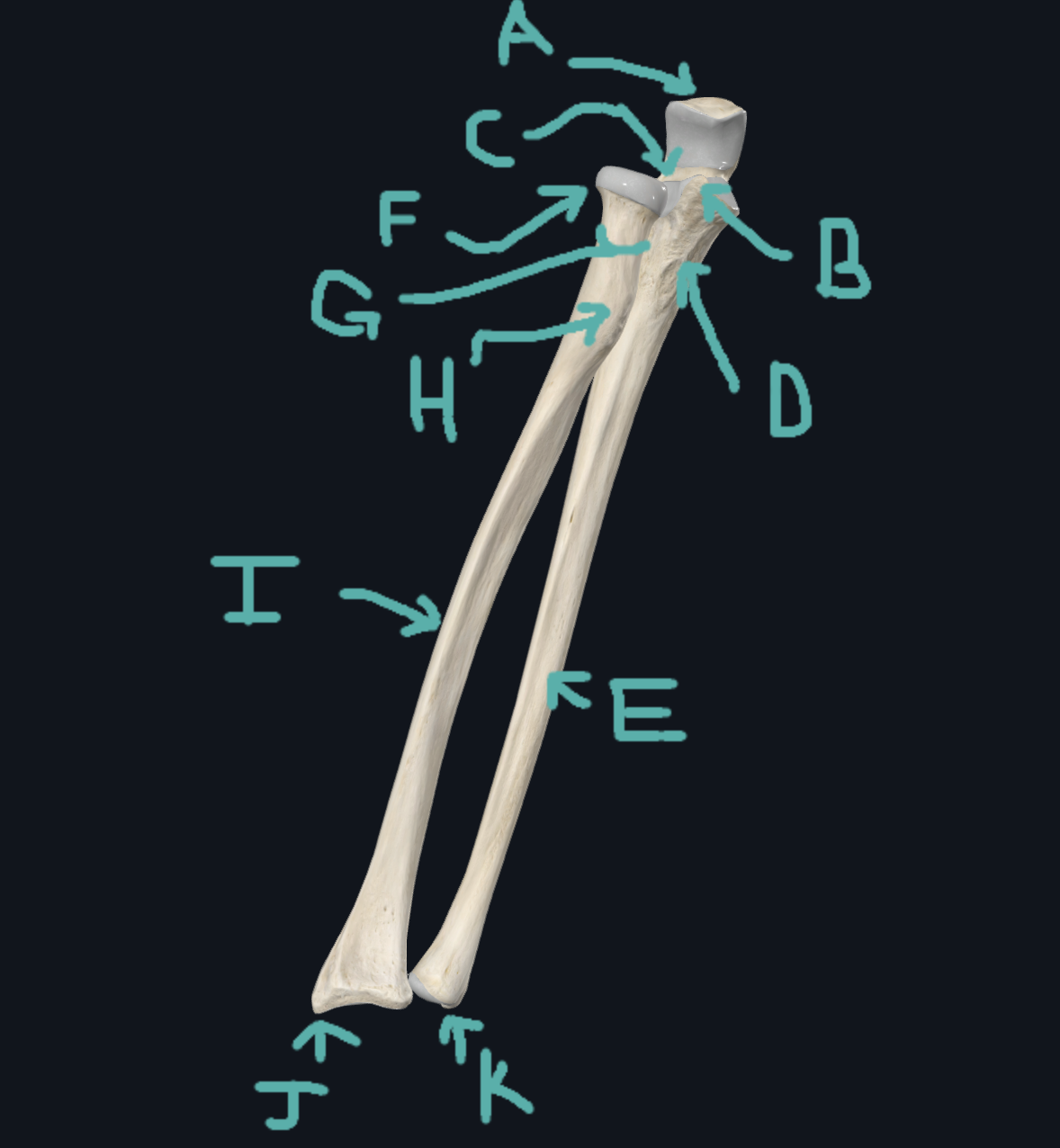

A(Ulna and Radius)

Trochlear Notch

B(Ulna and Radius)

Coronoid Process

C(Ulna and Radius)

Radial Notch

D(Ulna and Radius)

Ulnar Tuberosity

E(Ulna and Radius)

Ulna

F(Ulna and Radius)

Radial Head

G(Ulna and Radius)

Radial Neck

H(Ulna and Radius)

Radial Tuberosity

I(Ulna and Radius)

Radius

J(Ulna and Radius)

Radial Styloid Process

K(Ulna and Radius)

Ulnar Styloid Process

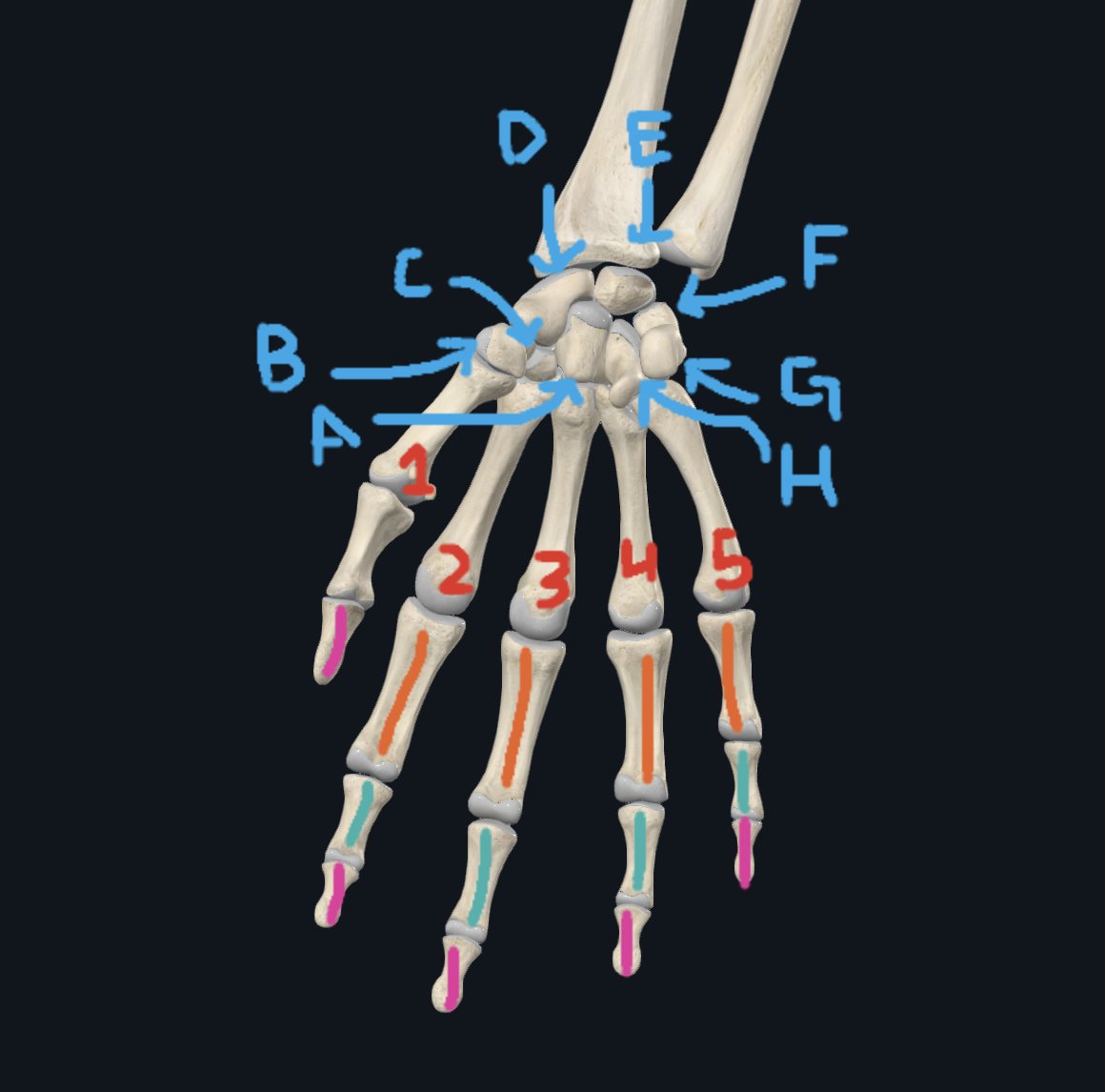

A(Hand)

Capitate

B(Hand)

Trapezium

C(Hand)

Trapezoid

D(Hand)

Scaphoid

E(Hand)

Lunate
