CP 1.6 Flowchart

Terminal - Since we use the START in the opening of our flowchart, for consistency we should use STOP to terminate.

Initialization - The preparation or initialization of memory space for data processing

Input/ Output - Flowchart helps the programmer to define when to ask an input from the user and when to release a value.

Process - The processing symbol is only limited to: (1) assignment of new value to the variables and (2) mathematical computations.

Flowlines - Defines the logical sequence of the program. It points to the next to be performed.

On-Page Connector - Connects to the flowchart to avoid spaghetti connection on the same page.

Off-Page Connector - Connects flowchart on different page to avoid spaghetti connection

Decision - Process conditions using relation operators. Used for trapping and filtering data.

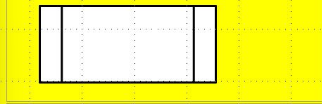

Pre-Defined Process - Function used to represent a group of statements performing one processing task.

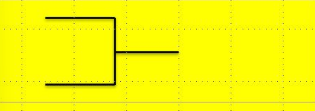

Comment - Note / comment
