Module 7 - Worksheet - Bony, Ligamentous, Vascular, Neural, and Soft tissue structures for Shoulder and Arm

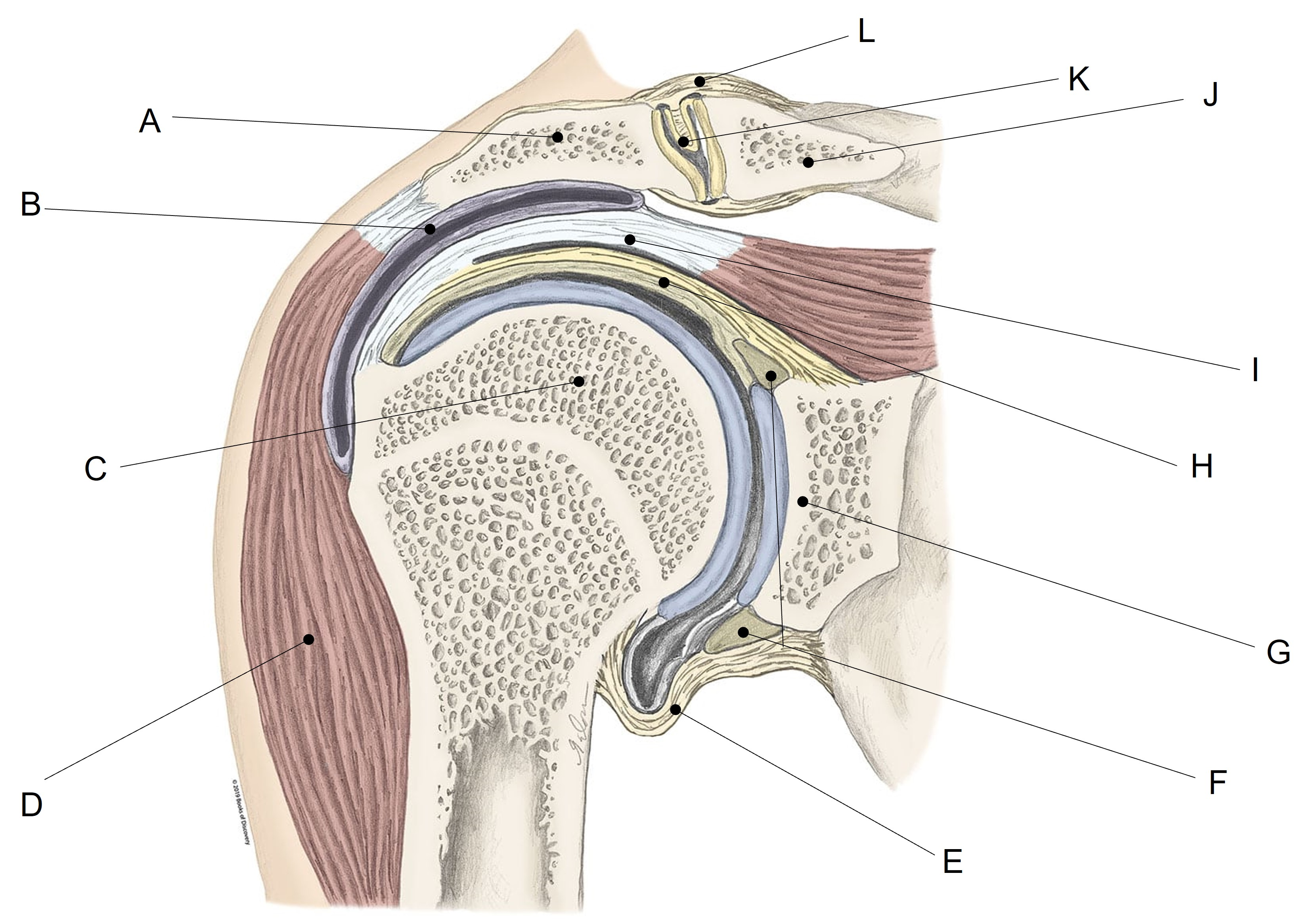

Match the appropriate term with the landmark or structure identified in the picture below. Answers are used once and there are incorrect choices.

Match the appropriate shaded area with the nerve root identified in the picture below. Answers are used once and there are incorrect choices.

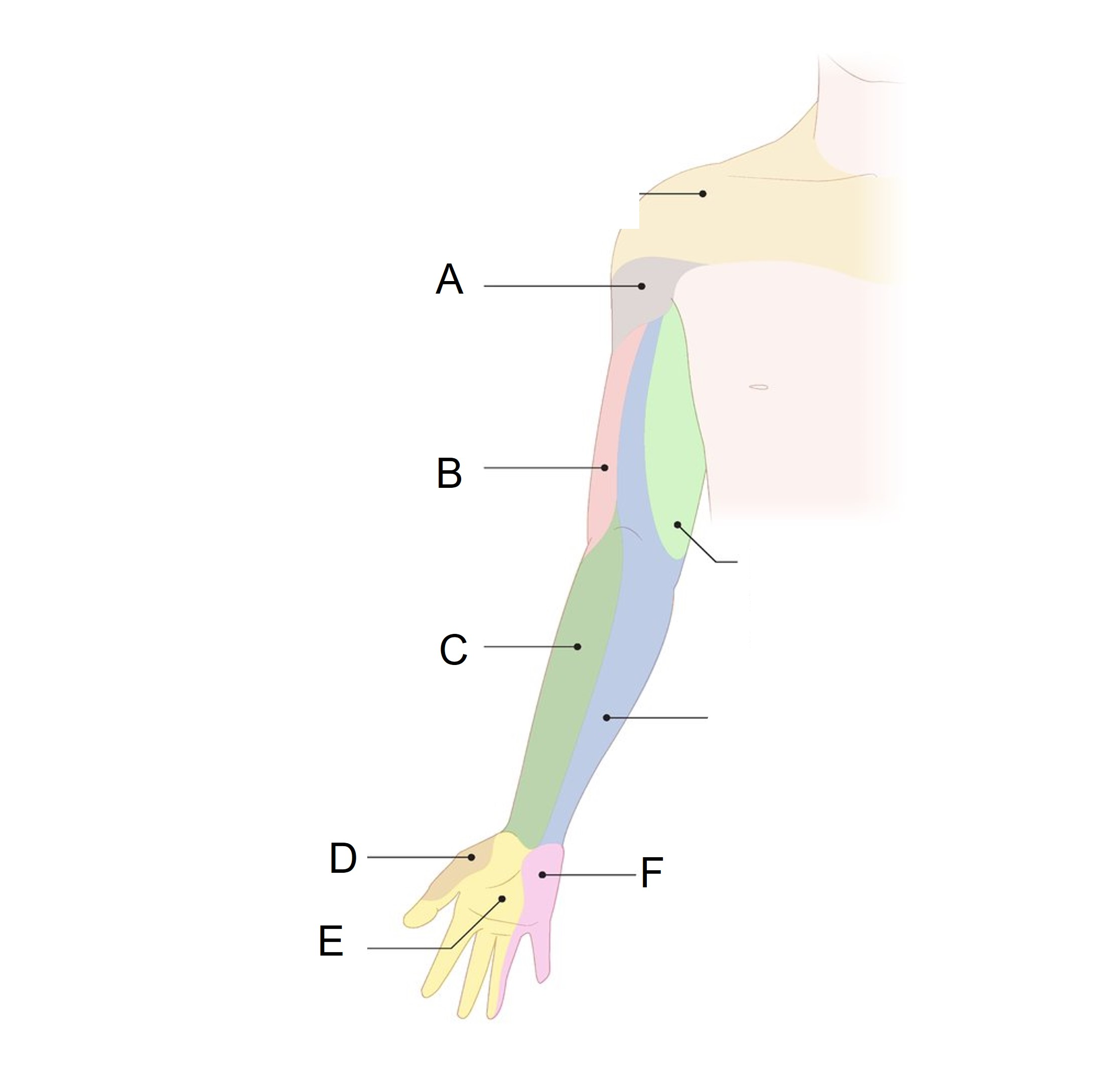

Match the appropriate shaded area with the terminal nerve identified in the picture below. Answers may be used more than once and there are incorrect choices. What is A?

A) Radial

B) Median

C) Axillary

D) Ulnar
E) Musculocutaneous

C) Axillary

Match the appropriate shaded area with the terminal nerve identified in the picture below. Answers may be used more than once and there are incorrect choices. What is B?

A) Radial

B) Median

C) Axillary

D) Ulnar
E) Musculocutaneous

A) Radial

Match the appropriate shaded area with the terminal nerve identified in the picture below. Answers may be used more than once and there are incorrect choices. What is C?

A) Radial

B) Median

C) Axillary

D) Ulnar
E) Musculocutaneous

E) Musculocutaneous

Match the appropriate shaded area with the terminal nerve identified in the picture below. Answers may be used more than once and there are incorrect choices. What is D?

A) Radial

B) Median

C) Axillary

D) Ulnar
E) Musculocutaneous

A) Radial

Match the appropriate shaded area with the terminal nerve identified in the picture below. Answers may be used more than once and there are incorrect choices. What is E?

A) Radial

B) Median

C) Axillary

D) Ulnar
E) Musculocutaneous

B) Median

Match the appropriate shaded area with the terminal nerve identified in the picture below. Answers may be used more than once and there are incorrect choices. What is F?

A) Radial

B) Median

C) Axillary

D) Ulnar
E) Musculocutaneous

D) Ulnar

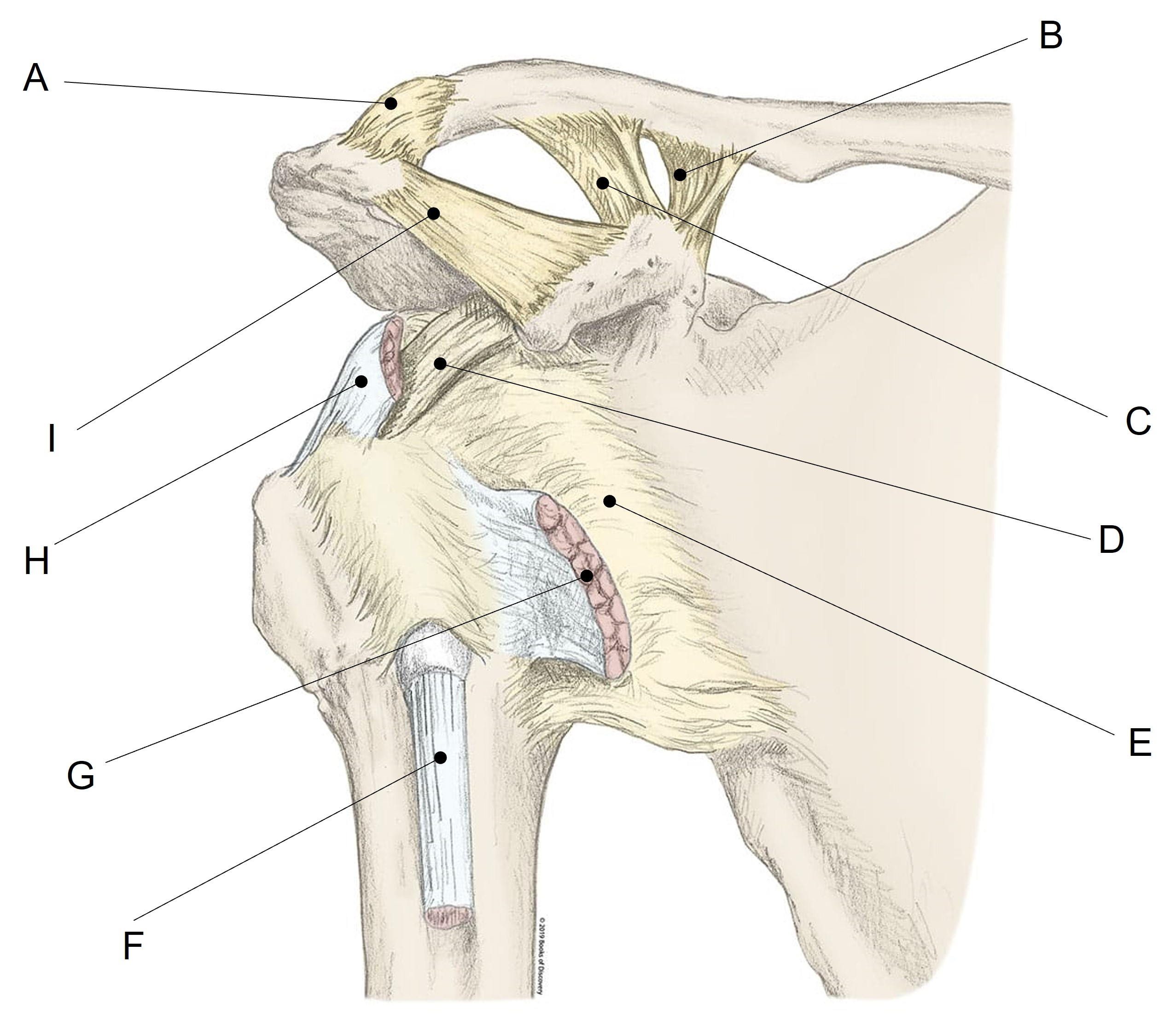

Match the appropriate term with the landmark or structure identified in the picture below. Answers are used once and there are incorrect choices.

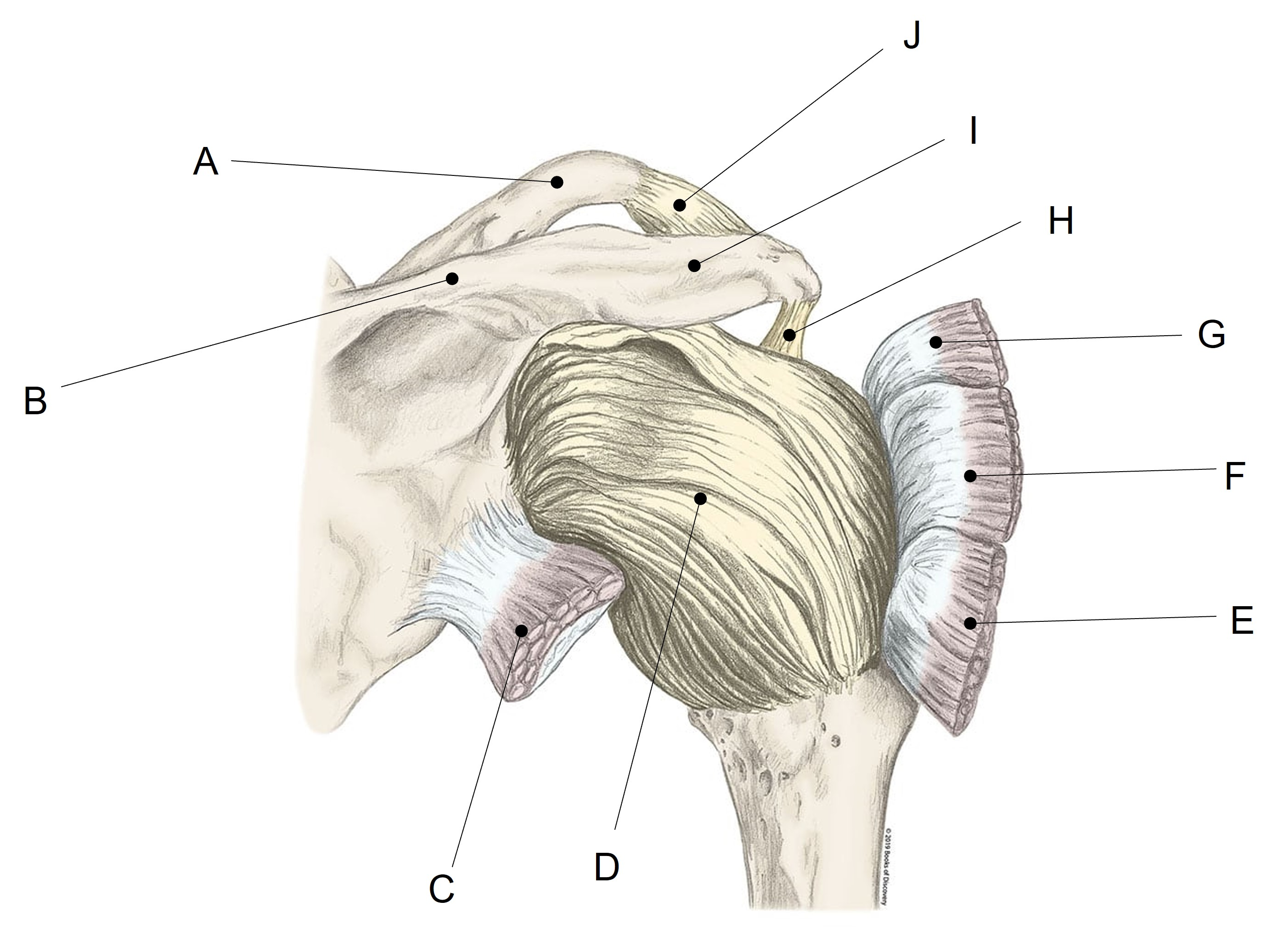

Match the appropriate term with the landmark or structure identified in the picture below. Answers are used once and there are incorrect choices.

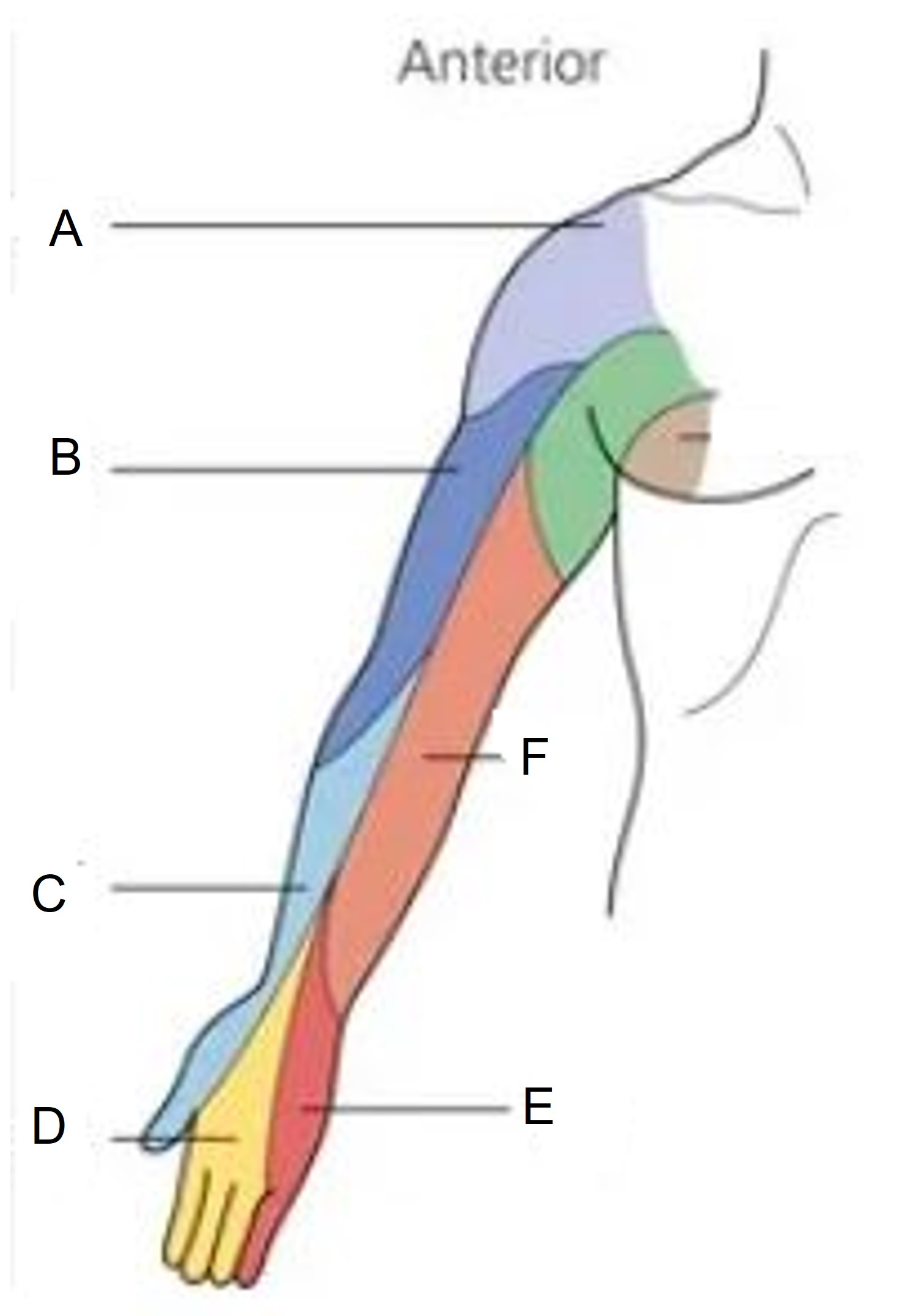

Match the appropriate shaded area with the nerve root identified in the picture below. Answers are used once and there are incorrect choices.

Match the appropriate shaded area with the nerve root identified in the picture below. Answers are used once and there are incorrect choices. What is A?

A) C6

B) C7

C) C5

D) C8

E) C4

F) T1

E) C4

Match the appropriate shaded area with the nerve root identified in the picture below. Answers are used once and there are incorrect choices. What is B?

A) C6

B) C7

C) C5

D) C8

E) C4

F) T1

C) C5

Match the appropriate shaded area with the nerve root identified in the picture below. Answers are used once and there are incorrect choices. What is C?

A) C6

B) C7

C) C5

D) C8

E) C4

F) T1

A) C6

Match the appropriate shaded area with the nerve root identified in the picture below. Answers are used once and there are incorrect choices. What is D?

A) C6

B) C7

C) C5

D) C8

E) C4

F) T1

B) C7

Match the appropriate shaded area with the nerve root identified in the picture below. Answers are used once and there are incorrect choices. What is E?

A) C6

B) C7

C) C5

D) C8

E) C4

F) T1

D) C8

Match the appropriate shaded area with the nerve root identified in the picture below. Answers are used once and there are incorrect choices. What is F?

A) C6

B) C7

C) C5

D) C8

E) C4

F) T1

F) T1

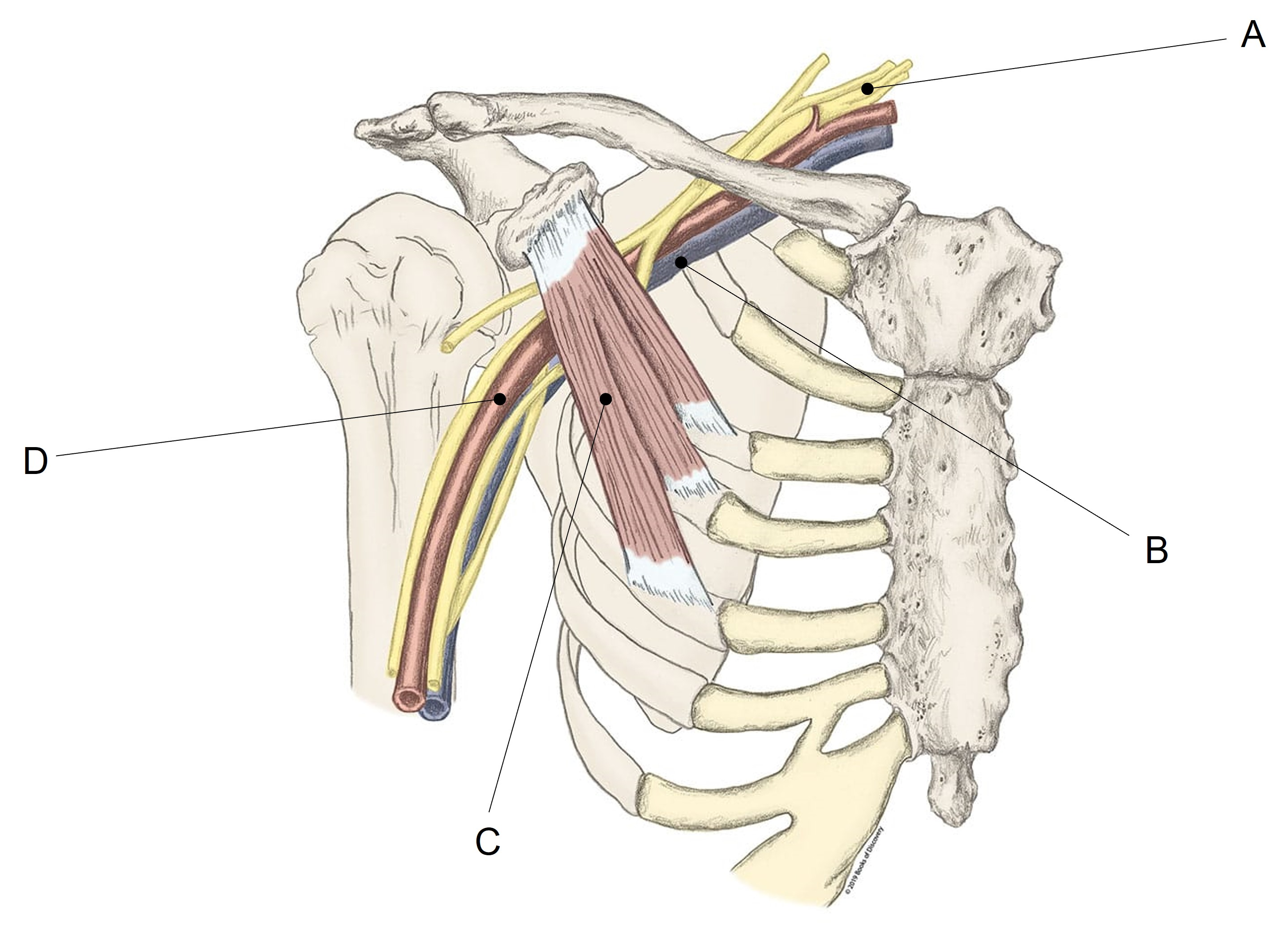

Match the appropriate term with the landmark or structure identified in the picture below. Answers are used once and there are incorrect choices.

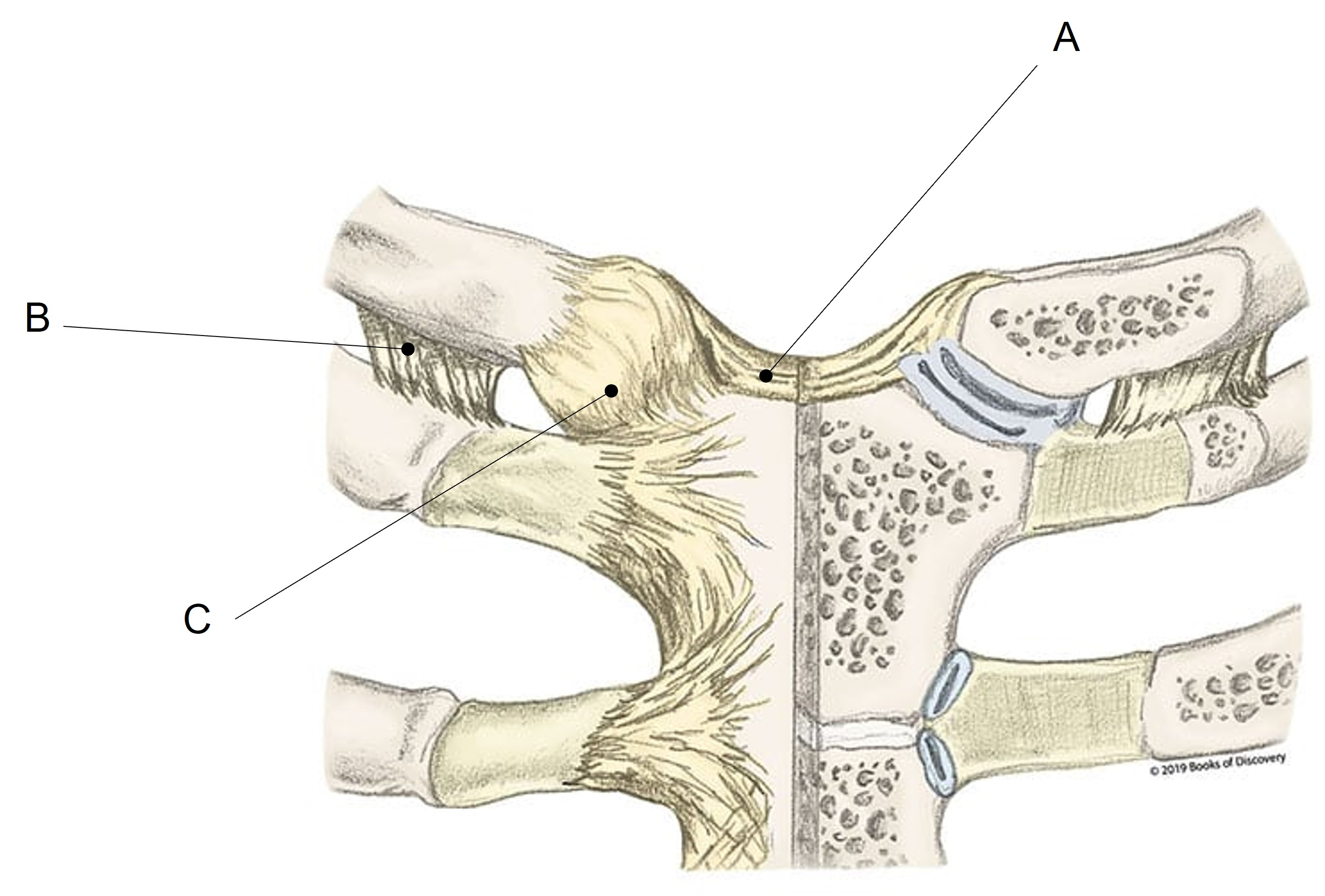

Match the appropriate term with the landmark or structure identified in the picture below. Answers are used once and there are incorrect choices.
