Marking and Sign

What is the difference between “marking” and “sign”?

• Markings = on the road

• Signs = ป้าย

What is the purpose of “mandatory instruction signs”?

• Identify a location beyond which an aircraft taxiing/vehicle shall not proceed unless authorized by the control tower

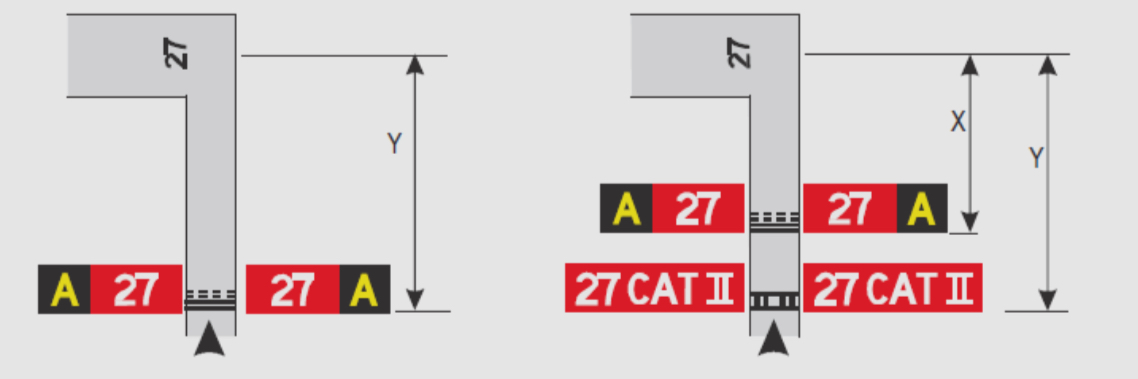

What should a mandatory instruction signs include?

• Runway designation

• CAT I,II,III holding position

• Runway-holding position

• Road-holding position

• “NO ENTRY”

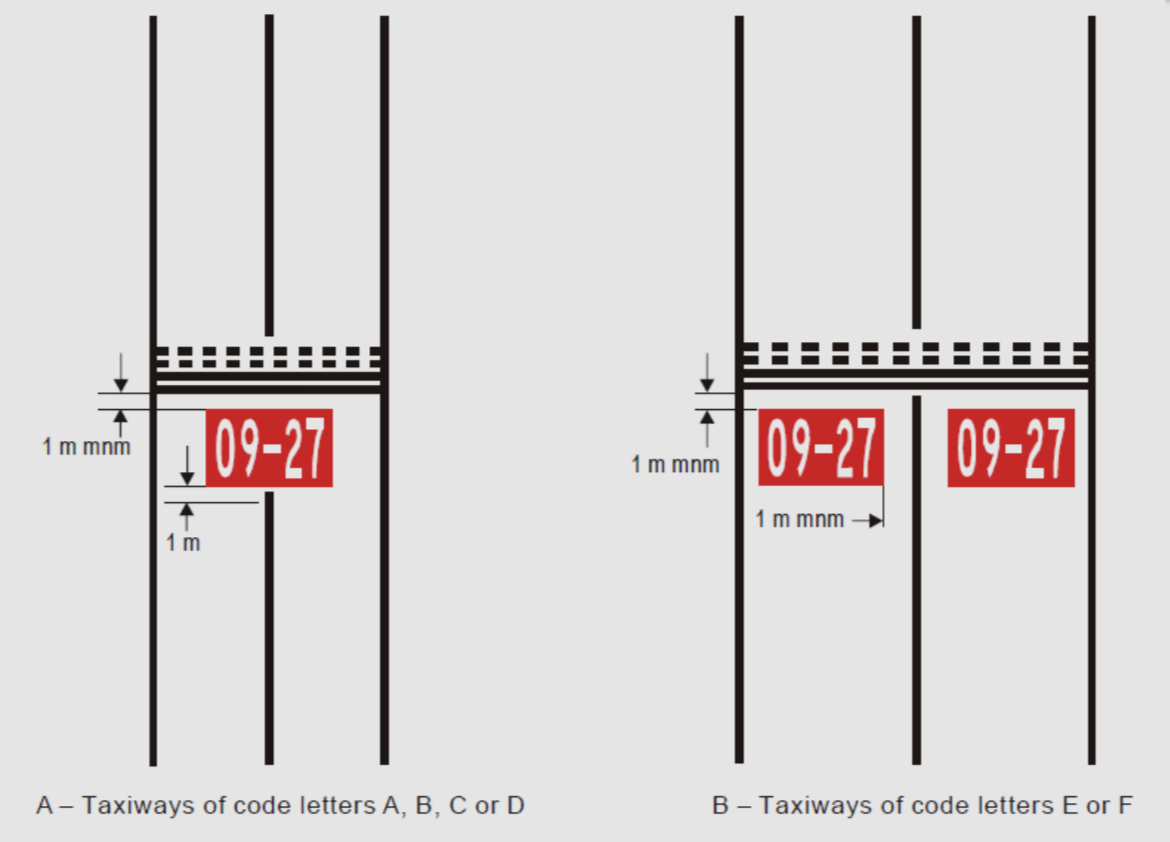

What is the purpose of the “mandatory instruction markings”?

• Provided on the surface of the pavement

• Located:

  • Code A, B, C, D = Across the taxiway equally placed about the taxiway centerline & on the holding side of the runway-holding position markings

  • Code E, F = On both sides of the taxiway centerline marking & on the holding side of the runway-holding position markings.

What should the colour of the mandatory instruction signs and markings be?

• Inscription = White

• Background = Red

• Appropriate border = White/black

Look at the image, which runway is on which side?

Runway 20 = Left

Runway 02 = Right

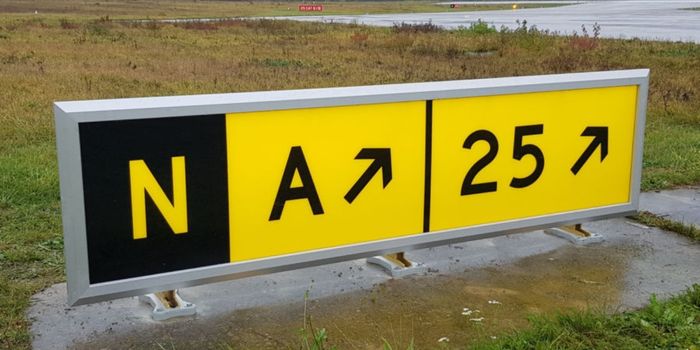

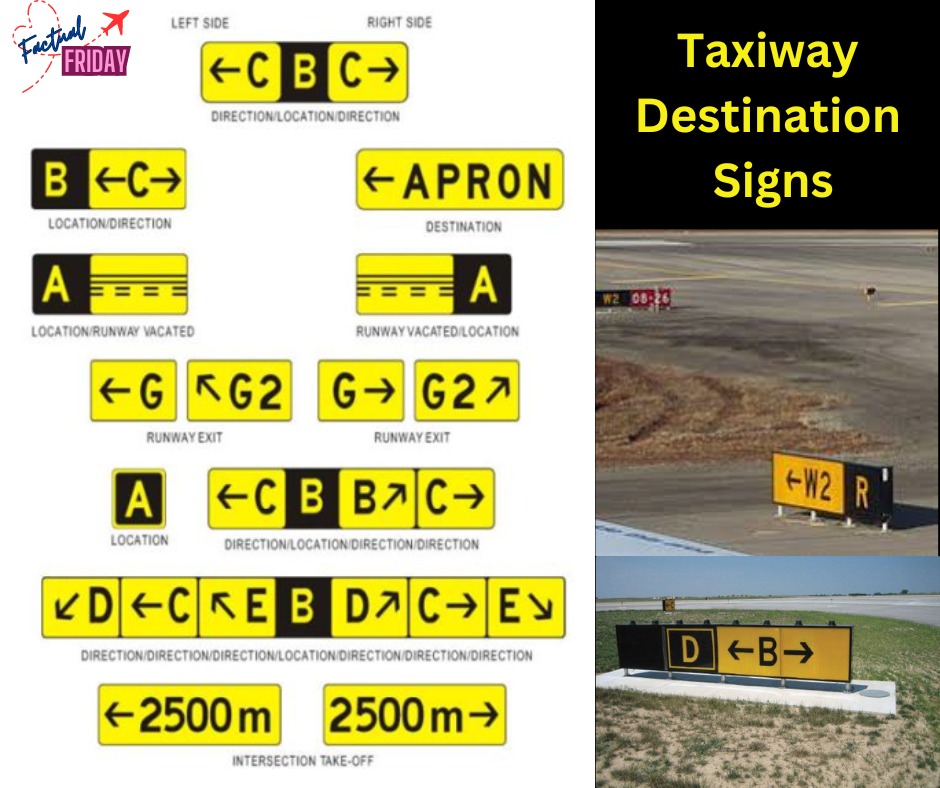

Where should an “information marking” locate? What information does it display?

• Where an information sign would normally be installed

• Displayed on the surface of the pavement (on the left hand side)

• Information displayed = direction and location

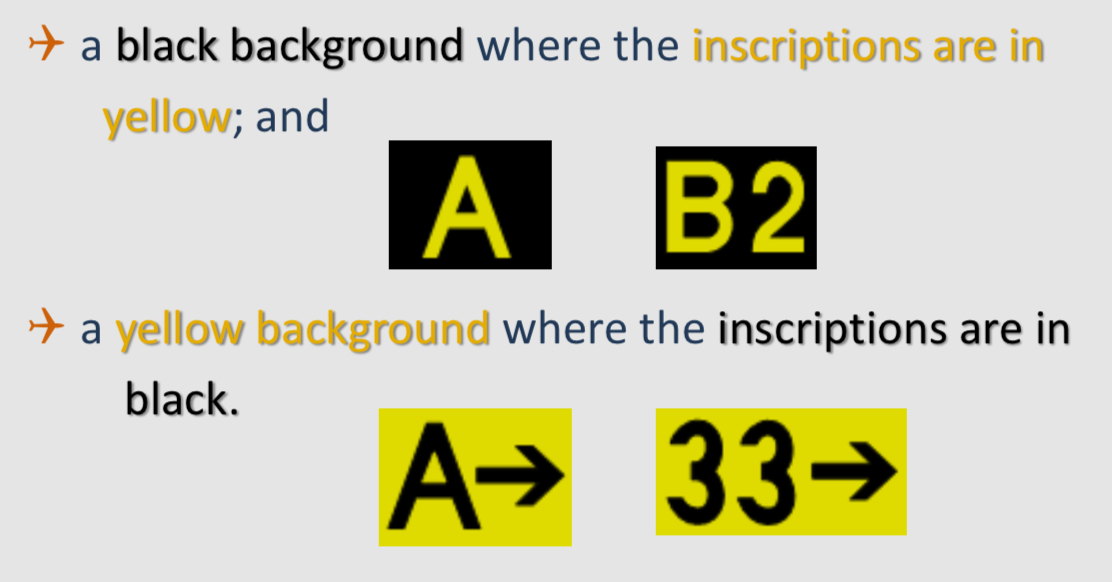

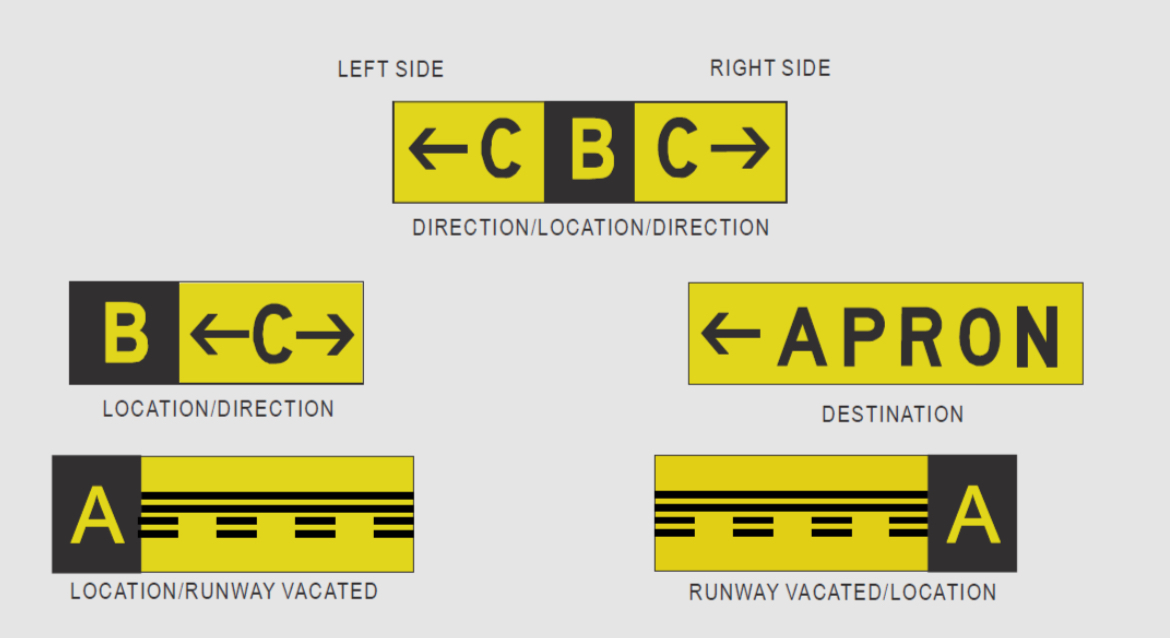

What should an information marking consist of?

• Location sign = Inscription yellow, black background

• Direction/destination sign = Inscription black, yellow background

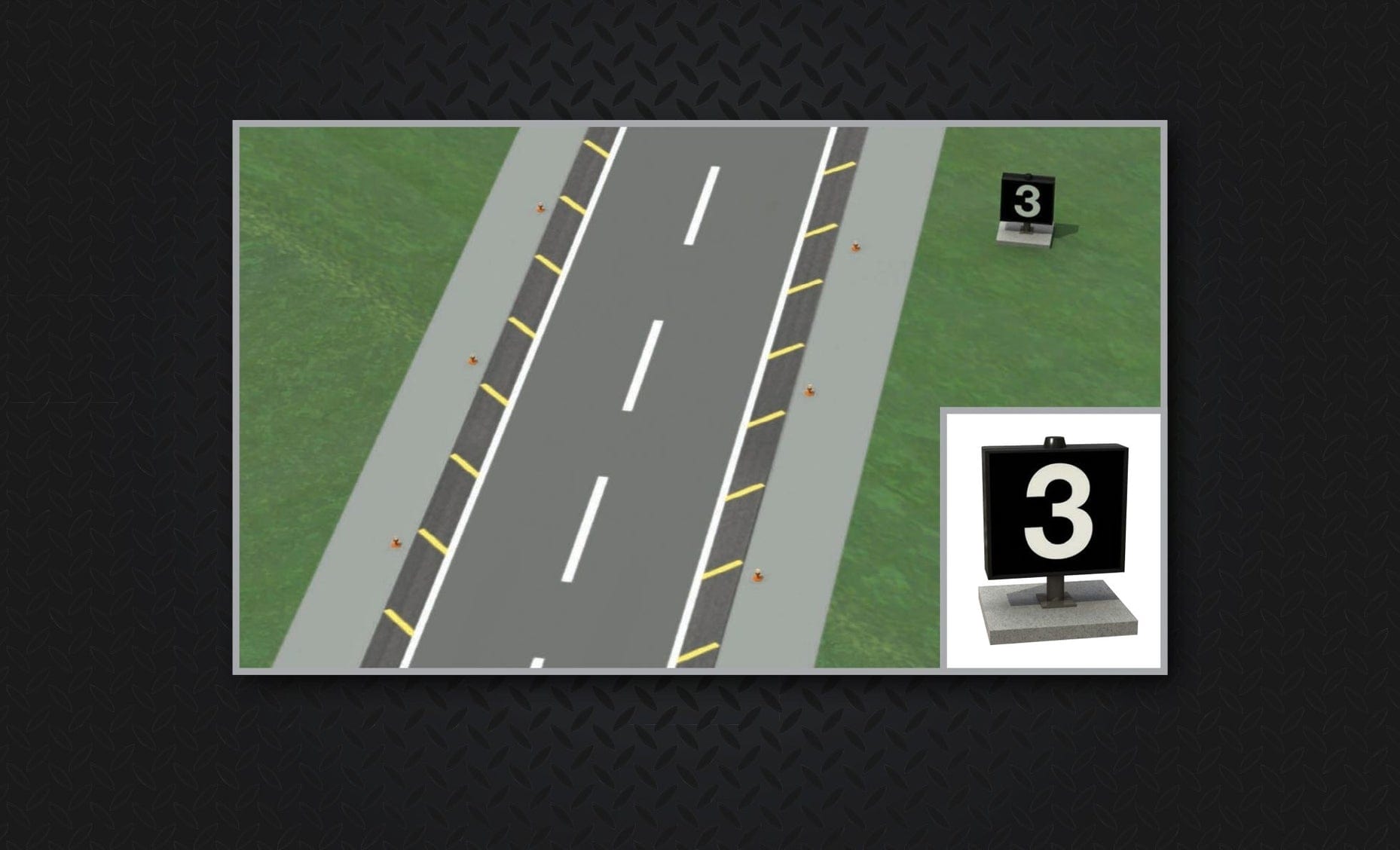

What does “runway distance remaining signs” indicate? What colour is it?

• Indicates the distance (in thousands of feet) of landing runway remaining

• Colour:

  • Background = black

  • Numerical inscription = white

• Example: 2 = 2000 ft of runway remaining

True or false: “An aerodrome shall be equipped with at least one wind direction indicator”

True!

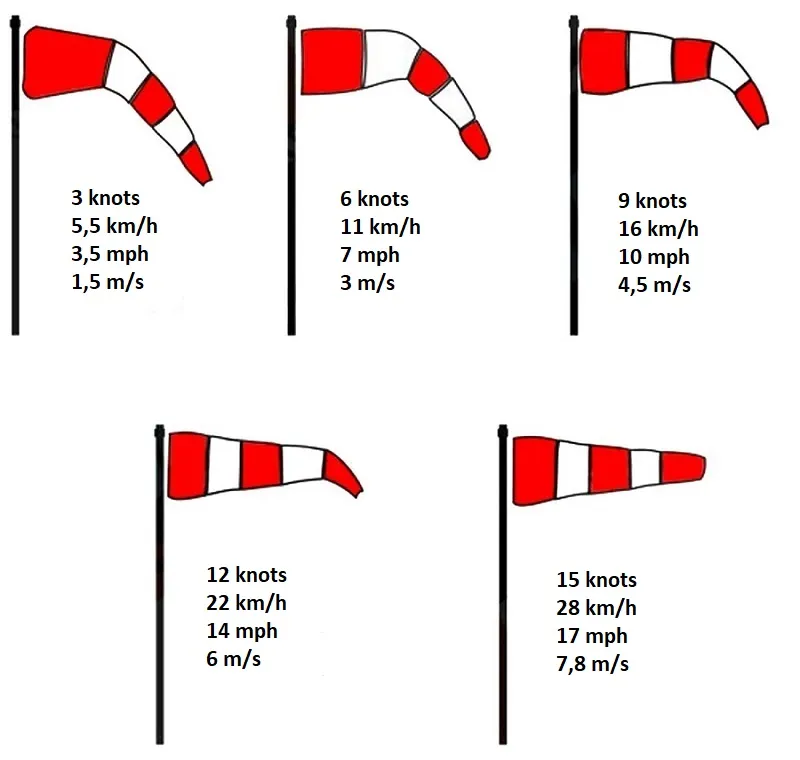

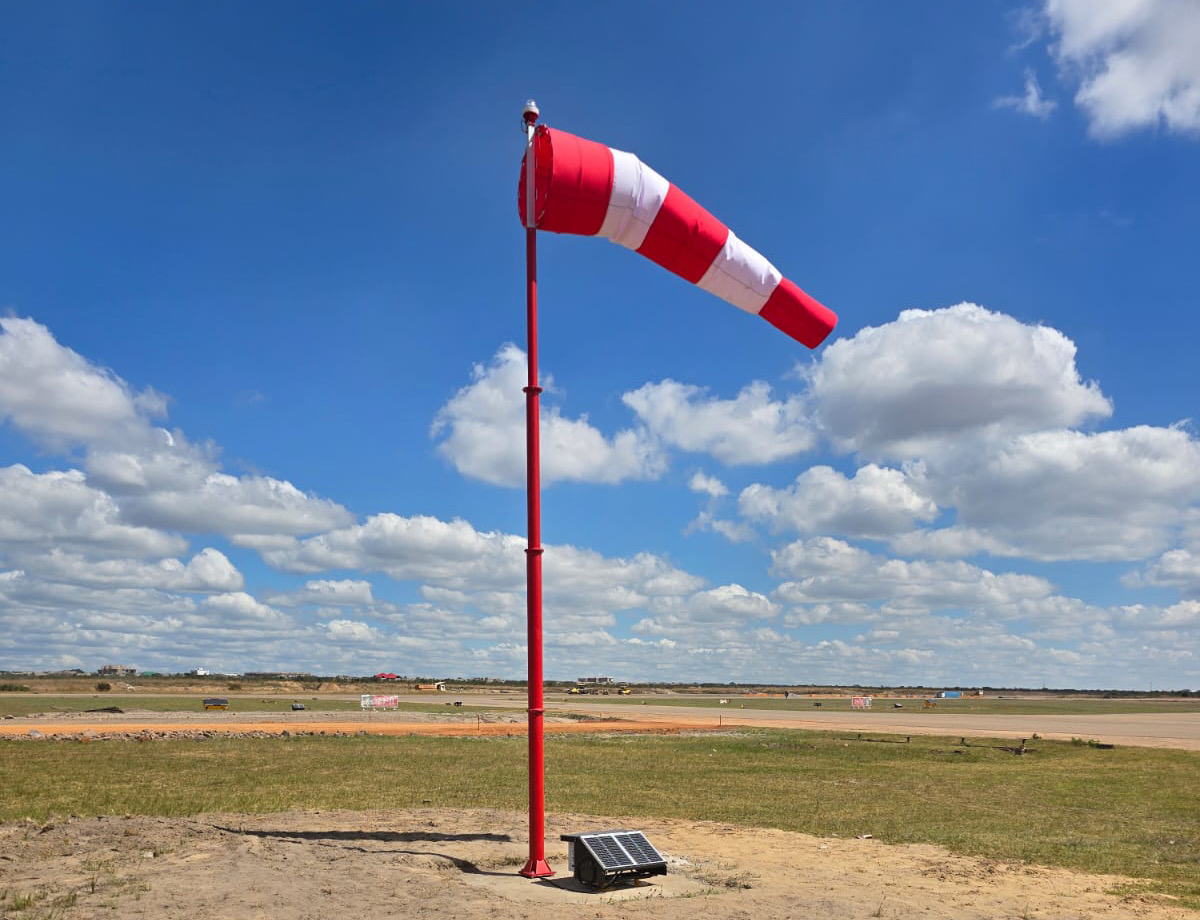

What is the requirement for wind direction indicator?

• Shape = A truncated cone made of fabric

• Need to be visible from aircraft inflight or on the movement area

• Clearly visible and understandable from a height of at least 300m

• If single colour = white/orange

• If 2 colours = orange-white, red-white, black-white

• Need to have 5 alternate bands (first and last band must be darker colour)

• Each band is about 3 knots

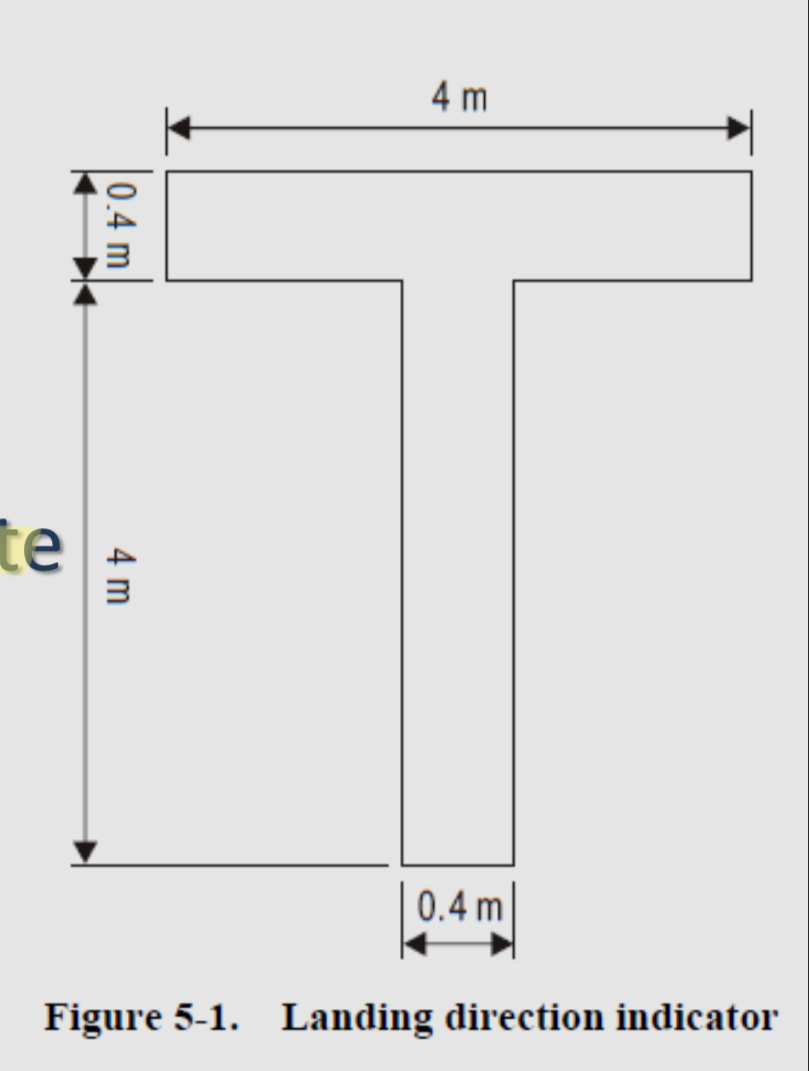

What are some requirements for “landing direction indicator”

• Located in a conspicuous place on the aerodrome

• In the form of a “T”

• Shall be either white or orange

• If used at night, it shall either be illuminated or outlined by white lights
