Upper Limbs

What is included in the Shoulder Girdle?

Clavicle and Scapula

What is included in the Upper Extremities?

Humerus, radius and ulna, 8 carpals, 14 metacarpals, 14 phalanges

What is this structure?

The Scapula

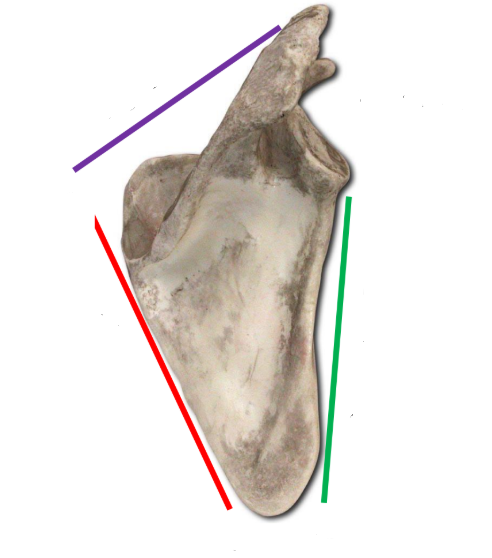

What is the purple line?

Superior Border

What is between the purple and red line?

Superior Angle

What is the red line?

Medial Border

What is between the red and green line?

Inferior Angle

What is the green line?

Lateral Border

What is between the purple and green lines?

Lateral Angle

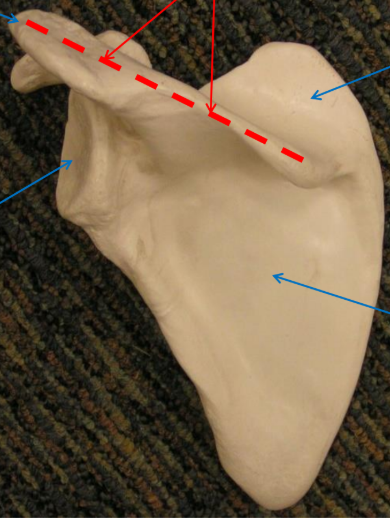

What is the red dashed line?

Spine

What is the left upper arrow pointing to?

Acromion Process

What is the left lower arrow pointing to?

Glenoid Fossa

What is the upper right arrow pointing to?

Supraspinous Fossa

What is the lower right arrow pointing to?

Infraspinous Fossa

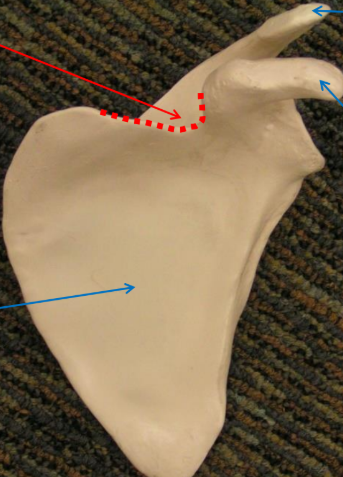

What is the red dotted line?

Suprascapular Notch

What is the lower left blue arrow pointing to?

Subscapular Fossa

What is the upper right blue arrow pointing to

Acromion Process

What is the lower right blue arrow pointing to

Corocoid Process

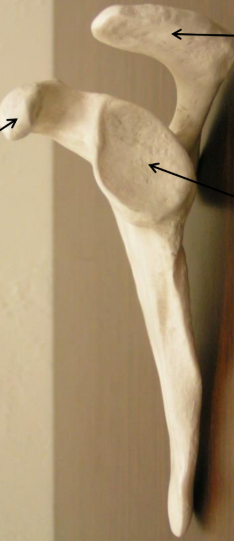

What is the upper right arrow pointing to?

Acromion Process

What is the lower right arrow pointing to?

Glenoid Fossa

What is the left arrow pointing to?

Corocoid Process

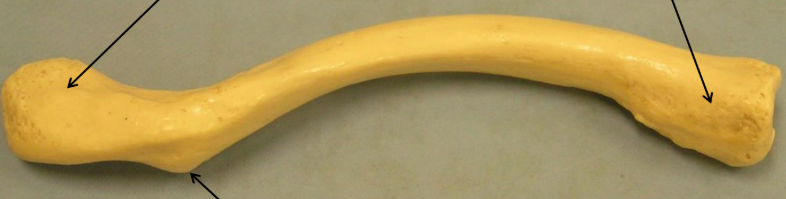

What is this structure?

The Clavicle

What is the upper left arrow pointing to?

Acromial End

What is the upper right arrow pointing to?

Sternal End

What is the lower arrow pointing to?

Conoid Tubercle

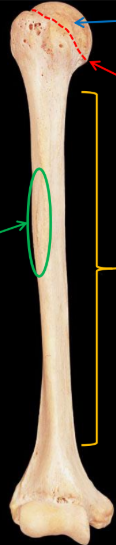

What is this structure?

Humerus

What is the blue arrow pointing to?

Head

What is the red dashed line?

Anatomical Neck

What is the yellow bracket?

Shaft (diaphysis)

What is the green arrow pointing to?

Deltoid Tuberosity

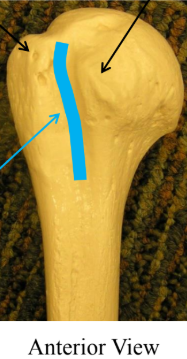

What is the upper right arrow pointing to?

Lesser Tubercle

What is the upper left arrow pointing to?

Greater Tubercle

What is the blue line

Intertubercular Sulcus (groove)

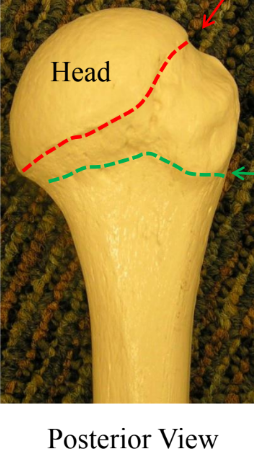

What is the red dotted line?

Anatomical Neck

What is the green dotted line?

Surgical Neck

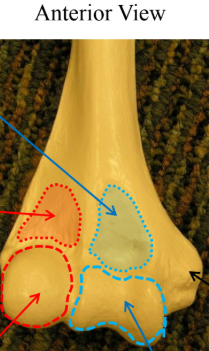

What is the upper blue arrow pointing to?

Coronoid Fossa

What is the upper red arrow pointing to?

Radial Fossa

What is the lower red arrow pointing to?

Capitulum

What is the lower blue arrow pointing to?

Trochlea

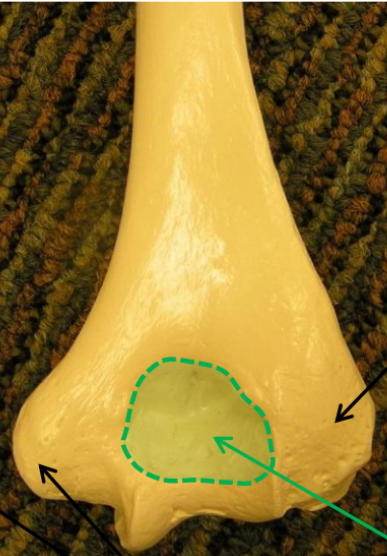

What is the black arrow pointing to?

Medial Epicondyle

What is the right black arrow pointing to?

Lateral Epicondyle

What is the green arrow pointing to?

Olercranon Fossa

What is the left black arrow pointing to?

Medial Epicondyle

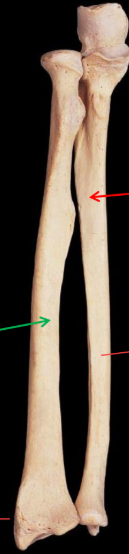

What is this entire structure?

The Antebrachium (radius and ulna)

What is the left bracket?

Proximal radio-ulnar joint: Elbow

What is the red arrow pointing to?

Ulna

What is the green arrow pointing to?

Radius

What is the right bracket?

Distal radio-ulnar joint: Wrist

What is this bone?

The Radius

What is the top left blue arrow pointing to?

Head

What is the top right arrow pointing to?

Neck

What is the red arrow pointing to?

Radial Tuberosity

What is the right lower blue arrow pointing to?

Styloid Process

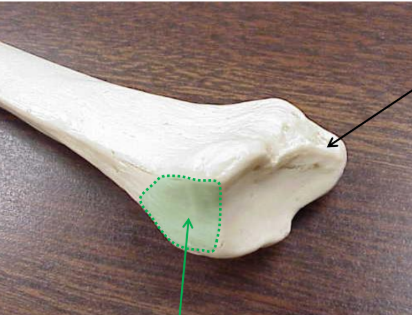

What is the black arrow pointing to?

Styloid Process

What is the green area?

Ulnar Notch

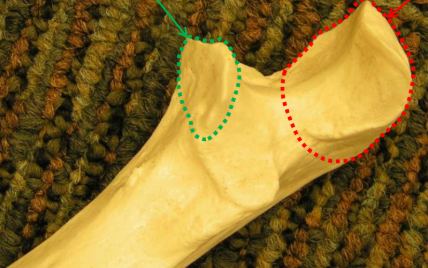

What is the green area?

Coronoid Process

What is the red area?

Olecranon Process

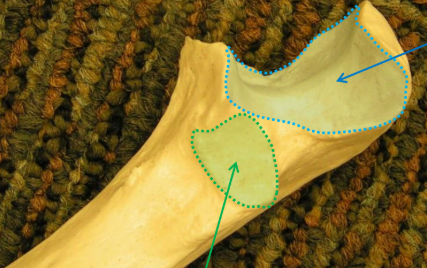

What is the blue area?

Trochlear Notch

What is the green area?

Radial Notch

What is the red circle?

Head

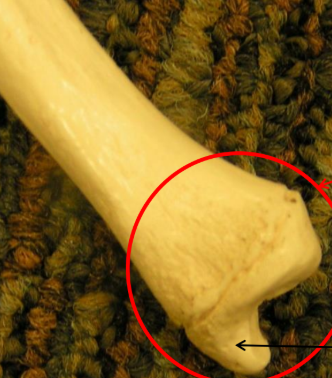

What is the black arrow pointing to?

Styloid Process

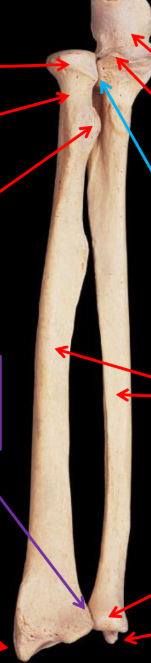

What is the blue arrow pointing to?

Proximal Radioulnar Joint

What is the purple arrow pointing to?

Distal Radioulnar Joint

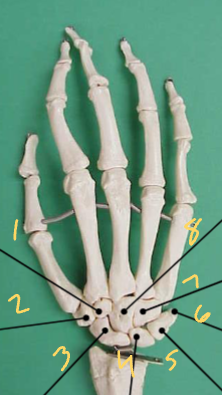

What are all of these an example of?

Carpal Bones

What is number 1?

Trapezoid

What is number 2?

Trapezium

What is number 3?

Scaphoid

What is number 4?

Lunate

What is number 5?

Triquetral

What is number 6?

Pisiform

What is number 7?

Hamate

What is number 8?

Capitate

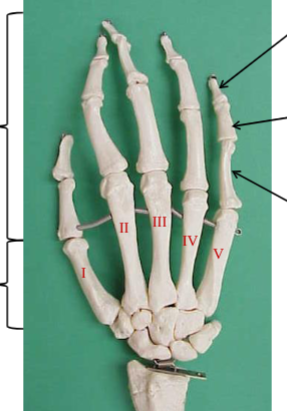

What is the top bracket?

Phalanges (14)

What is the lower bracket?

Metacarpals (5)

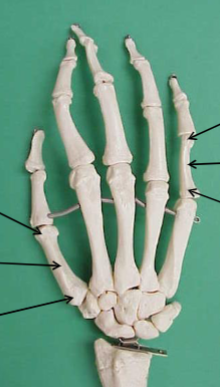

What is the top right black arrow pointing to?

Distal Phalanx

What is the middle right black arrow pointing to?

Middle Phalanx

What is the lower right black arrow pointing to?

Proximal Phalanx

What is the top arrow on the thumb pointing to?

Head

What is the middle arrow on the thumb pointing to?

Shaft

What is the bottom arrow on the thumb pointing to?

Base

What is the top arrow on the pinkie pointing to?

Head

What is the middle arrow on the pinkie pointing to?

Shaft

What is the bottom arrow on the pinkie pointing to?

Base
