Chapter 14 - Diagram Labelling

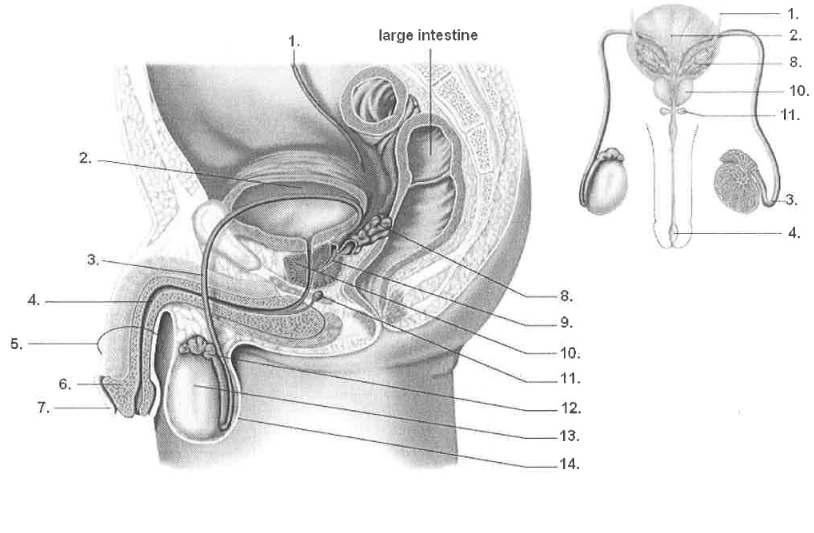

Label all the structures presented:

3.

4.

6.

8.

9.

10.

11.

12.

13.

14.

1. Ureters

2. Urinary Bladder

3. Ductus Deferens

4. Urethra

5. Penis

6. Glans Penis

7. Foreskin

8. Seminal Vesicle

9. Ejaculatory Duct

10. Prostate Gland

11. Cowpers Gland

12. Epididymis

13. Testis

14. Scrotum

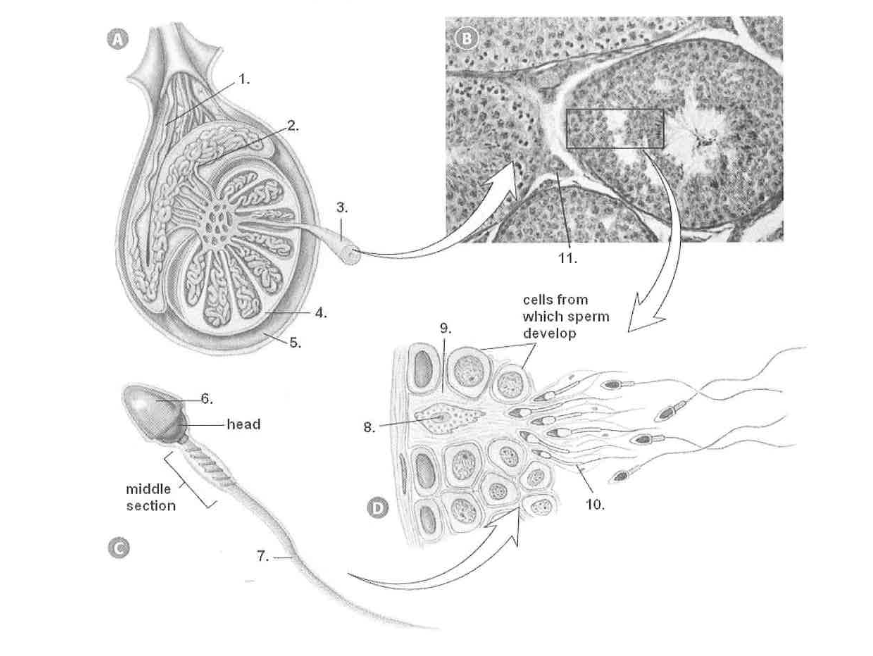

Label all the structures presented:

1. Ductus Deferens

2. Epididymis

3. Uncoiled seminiferous tubule

4. Testis

5. Scrotum

6. Acrosome

7. Tail (Flagellum)

8. Nucleus of Sertoli Cells

9. Sertoli Cells

10. Developing sperm cells

11. Interstitial Cells

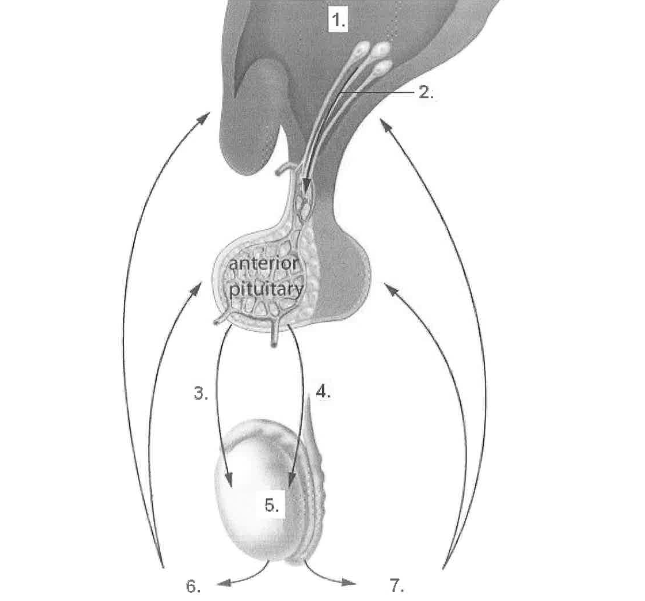

Label the presented hormone feedback above (male reproductive system)

1. Hypothalamus

2. GnRH

3. LH

4. FSH

5. Testes

6. Interstitial cells making testosterone

7. Sertoli cells making sperm and inhibin

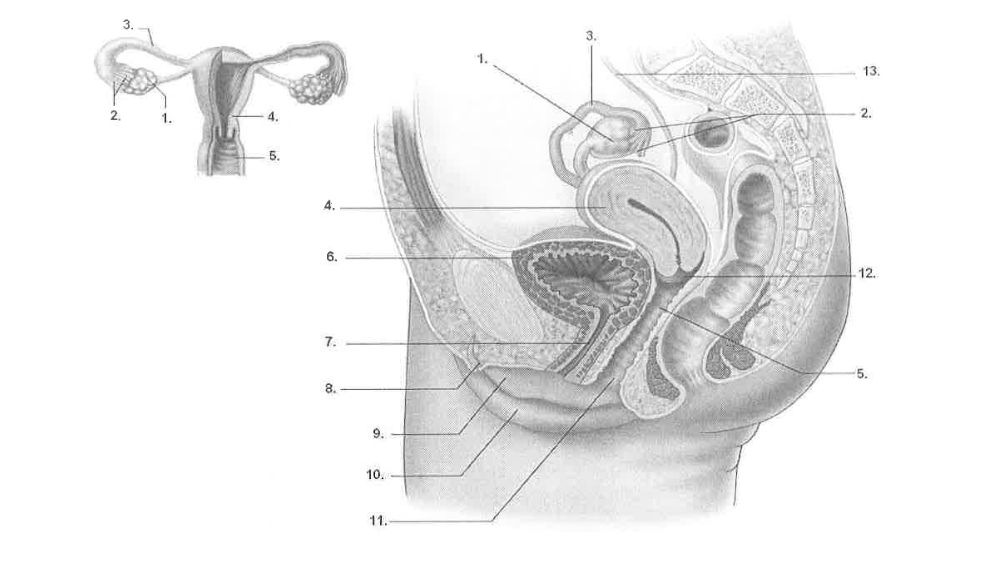

Label the structures presented above:

3.

4.

6.

8.

9.

10.

11.

12.

13.

1. Ovary

2. Fimbriae

3.  Oviduct

4. Uterus

5. Vagina

6. Urinary Bladder

7. Urethra

8. Clitoris

9. Labium Minora

10. Labium Majora

11. Vaginal Oriface

12. Cervix

13. Ureter

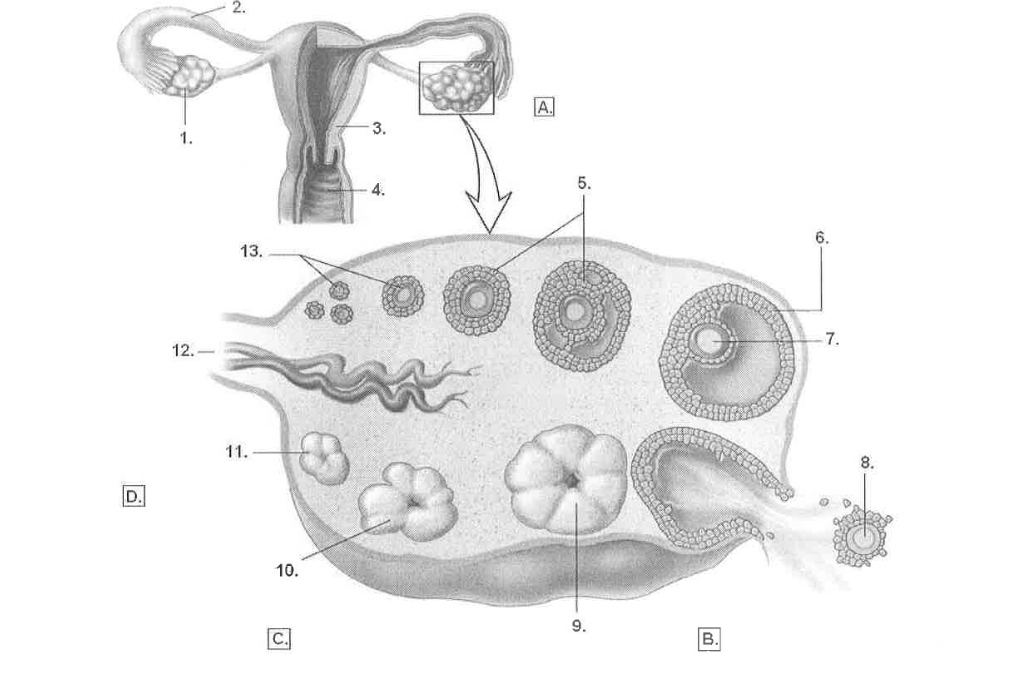

Label the structures presented above:

3.

4.

6.

8.

9.

10.

11.

12.

13.

A)

B)

C)

D)

1. Ovary

2. Oviduct

3. Uterus

4. Vagina

5. Developing Follicles

6. Mature Follicle

7. Ovum

8. Released Ovum

9. Corpus Luteum

10. Degenerating Corpus Luteum

11. Corpus Albicons

12. Blood Vessels

13. Immature Follicles

A) Developing follicles produce estrogen and some progesterone

B) Ovulation; mature follicle releases hormone

C) Corpus Luteum produces progesterone and some estrogen

D) Corpus Luteum disintegrates

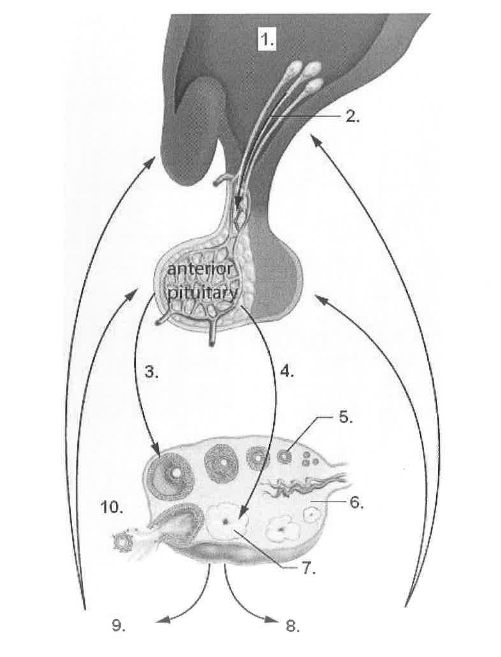

Label the presented hormone feedback above (female reproductive system)

1. Hypothalamus

2. GnRH

3. FSH

4. LH

5. Follicle

6. Ovary

7. Corpus Luteum

8. Progesterone

9. Estrogen

10. Ovum
