38 Terms

1
New cards

First Condition of Equilibrium

The net external force on a system must be zero for it to be in equilibrium.

2
New cards

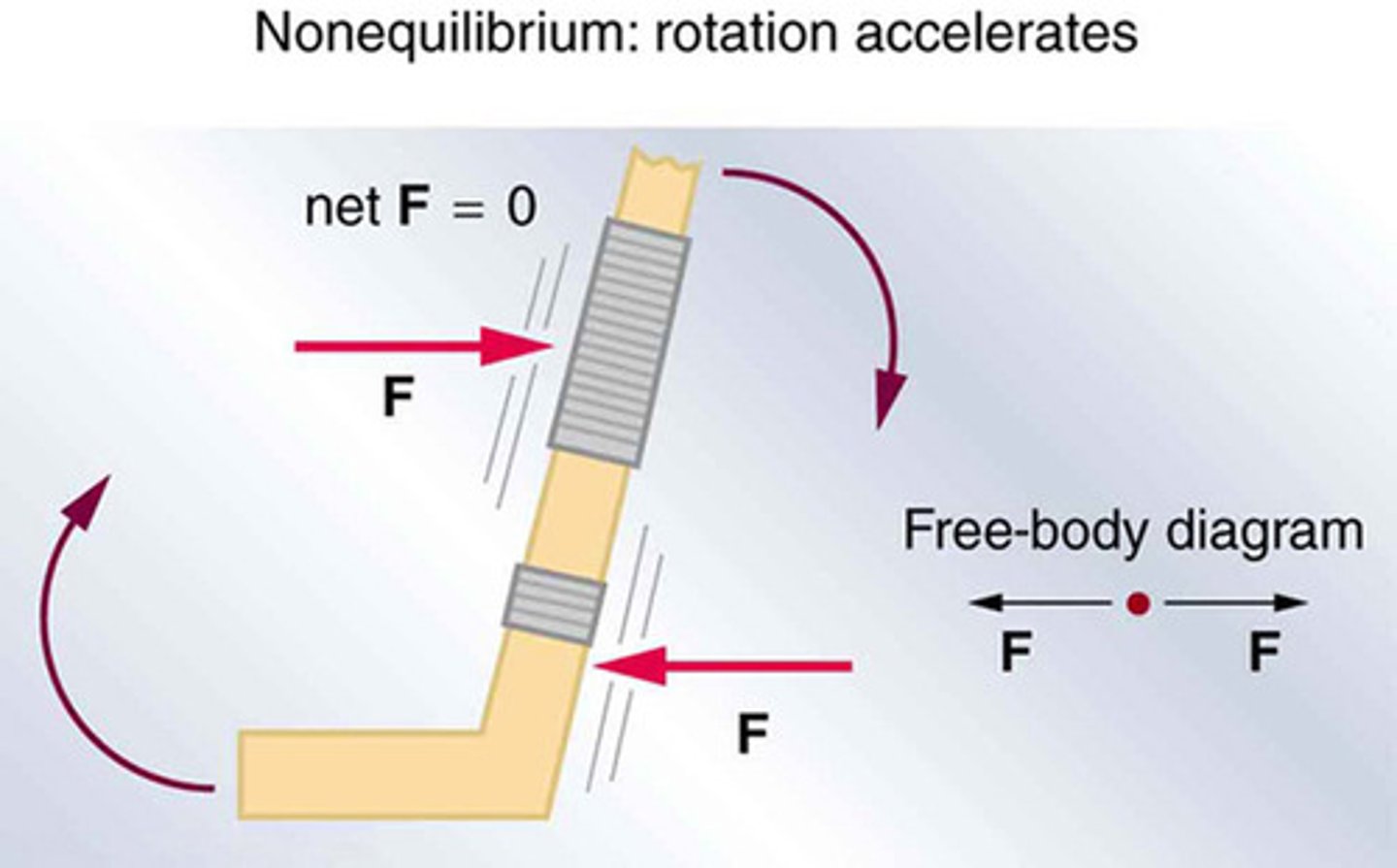

Torque

A measure of the force that can cause an object to rotate about an axis.

<p>A measure of the force that can cause an object to rotate about an axis.</p>
3
New cards

Second Condition for Equilibrium

The net external torque on a system must be zero for the system to be in equilibrium.

4
New cards

Torque

A measure of the effectiveness of a force in changing or accelerating a rotation, defined as τ = rF sin θ, where τ is torque, r is the distance from the pivot point, F is the force magnitude, and θ is the angle between the force and the lever arm.

5
New cards

Perpendicular Lever Arm (r⊥)

The shortest distance from the pivot point to the line along which the force acts, used to calculate torque as τ = r⊥F.

6
New cards

Pivot Point

The point around which torque is calculated; can be any point in or out of the system of interest.

7
New cards

Net Torque

The sum of all torques acting on a system, which must be zero for equilibrium.

8
New cards

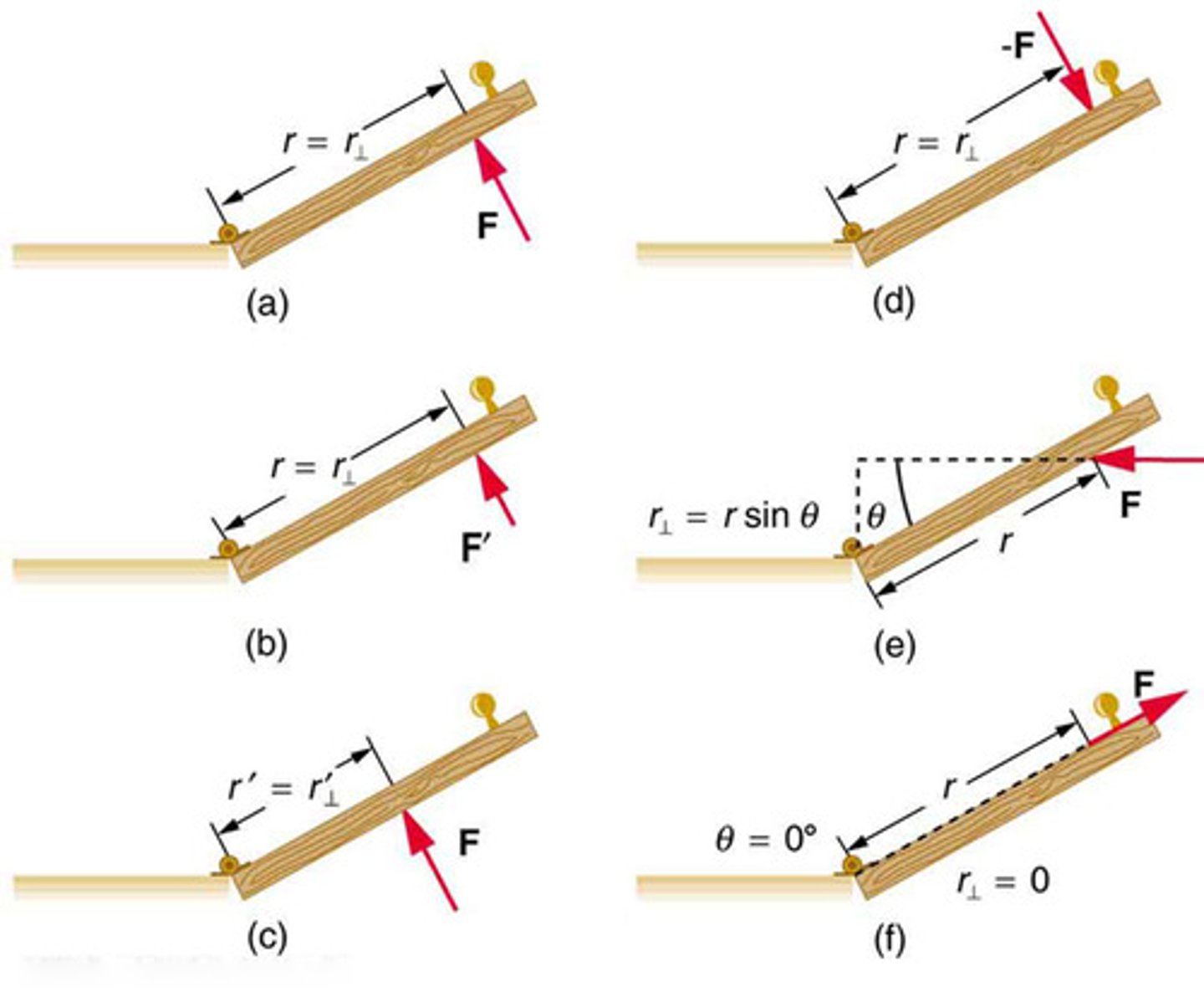

Example of Torque: Door

Illustrates how the magnitude, direction, and point of application of force affect torque when opening a door.

<p>Illustrates how the magnitude, direction, and point of application of force affect torque when opening a door.</p>
9
New cards

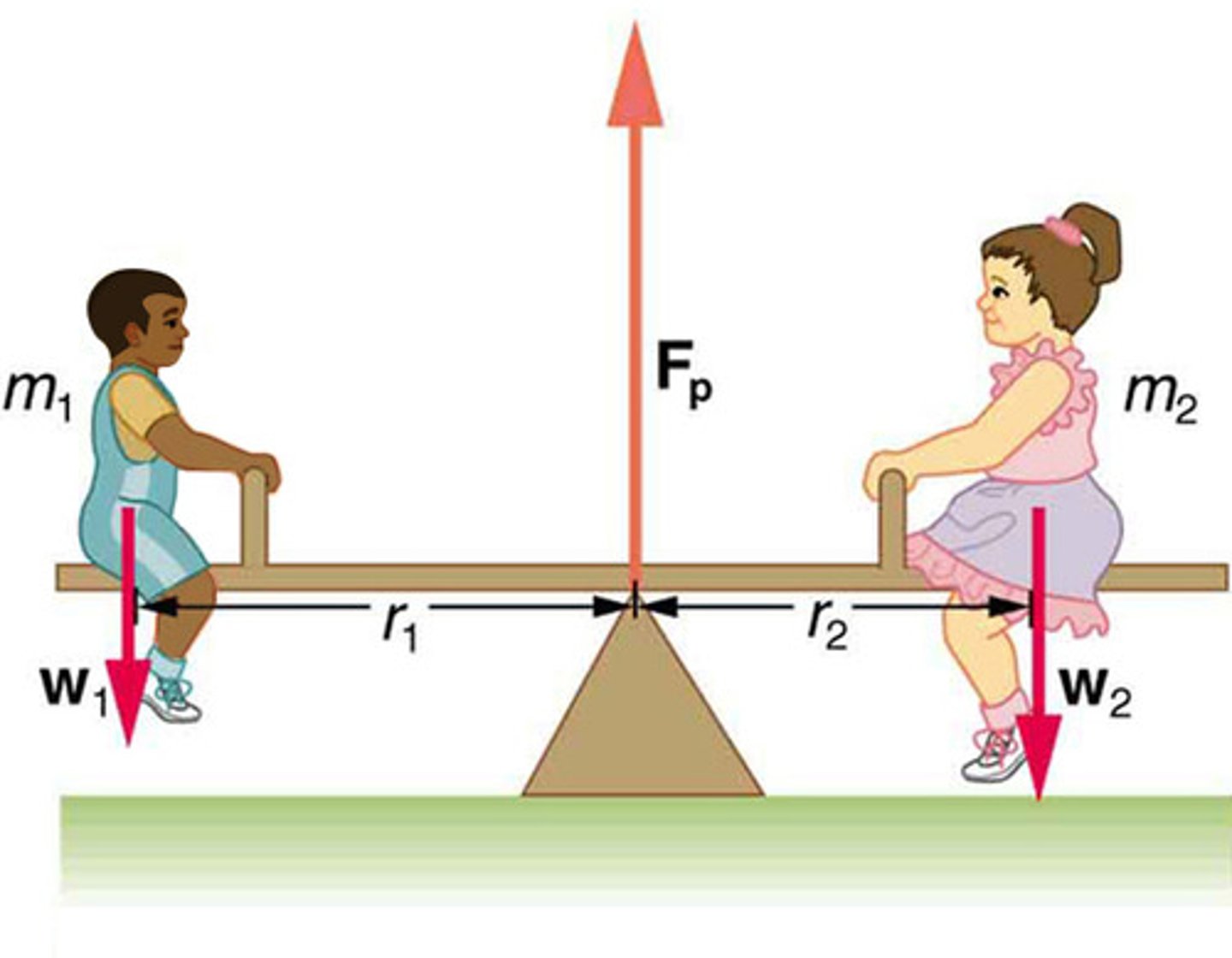

Seesaw Example

Demonstrates the application of torque and equilibrium conditions using a seesaw with two children of different masses.

<p>Demonstrates the application of torque and equilibrium conditions using a seesaw with two children of different masses.</p>
10
New cards

Torque Equation

τ = rF sin θ or τ = r⊥F, used to calculate the torque based on force and lever arm.

11
New cards

Equilibrium

A state in which opposing forces or influences are balanced.

12
New cards

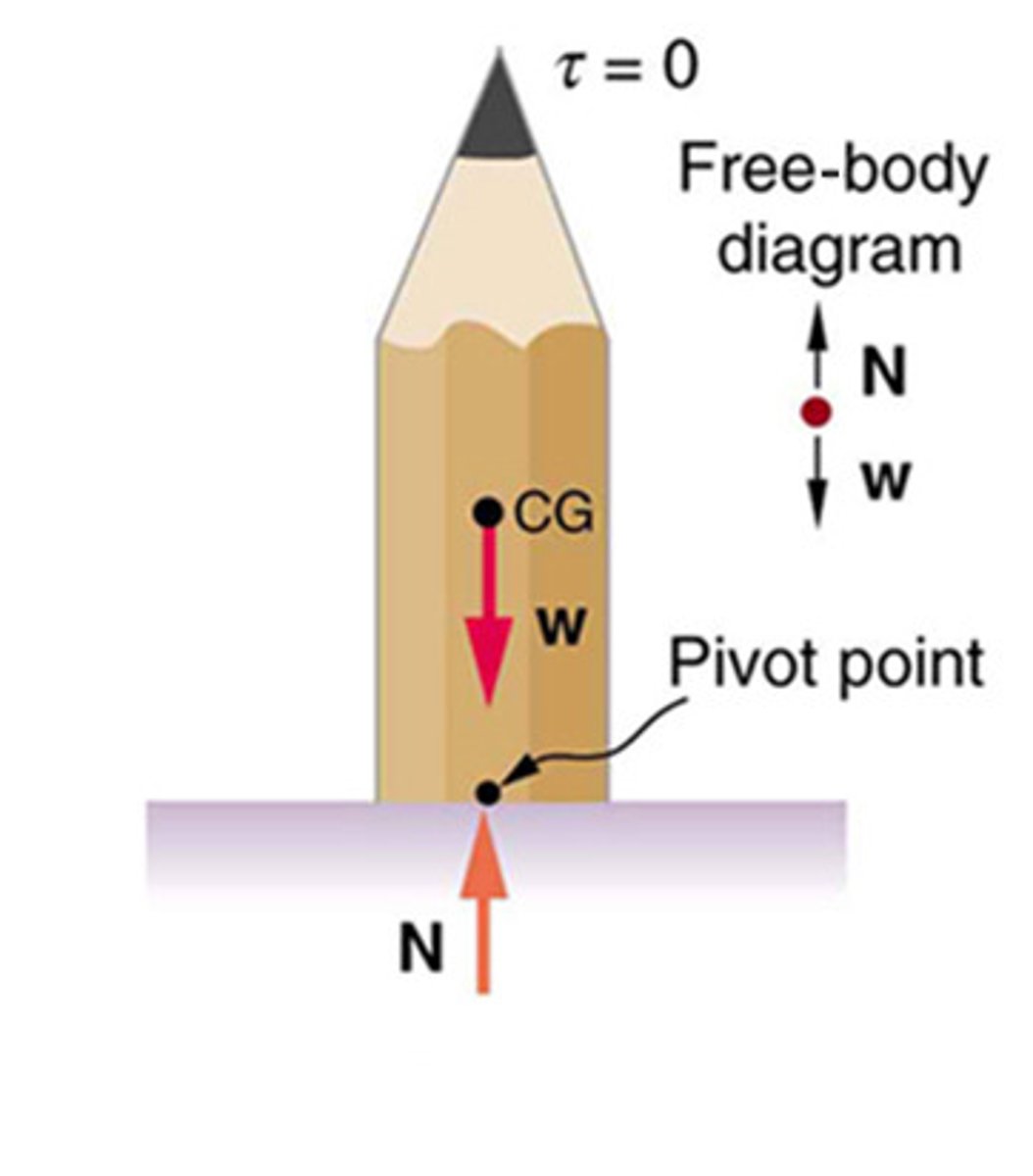

Stable Equilibrium

A condition where a system returns to its original position after being displaced, due to a restoring force or torque.

<p>A condition where a system returns to its original position after being displaced, due to a restoring force or torque.</p>
13
New cards

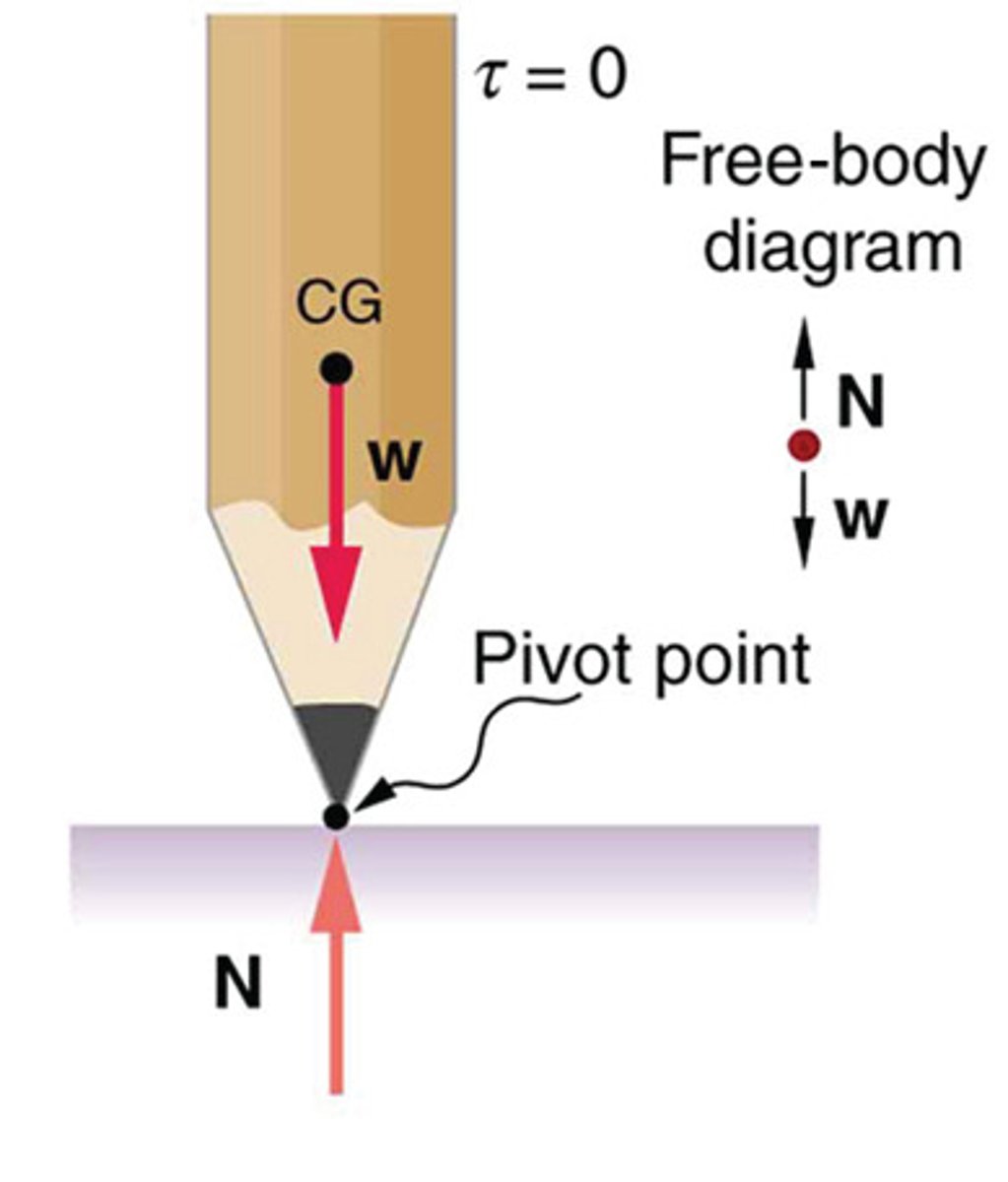

Unstable Equilibrium

A condition where a system moves further away from its original position after being displaced, due to a force or torque in the same direction as the displacement.

<p>A condition where a system moves further away from its original position after being displaced, due to a force or torque in the same direction as the displacement.</p>
14
New cards

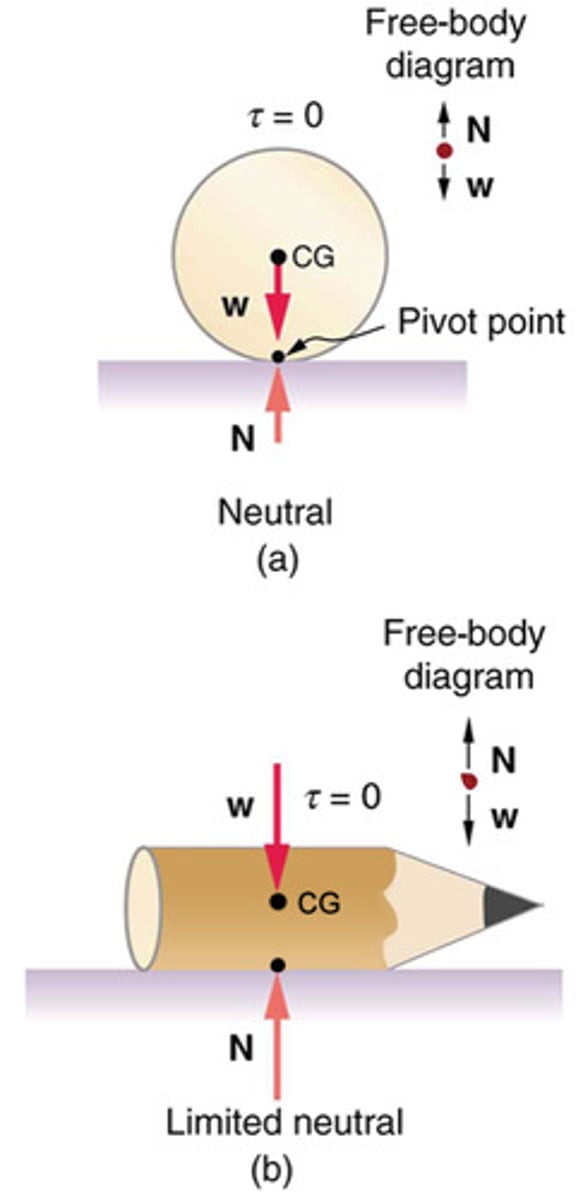

Neutral Equilibrium

A condition where a system's equilibrium is unaffected by displacements from its original position.

<p>A condition where a system's equilibrium is unaffected by displacements from its original position.</p>
15
New cards

Center of Gravity (cg)

The point at which the total weight of a body or system is considered to act.

16
New cards

Critical Point

The point at which a system in stable equilibrium becomes unstable, often when the center of gravity is no longer above the base of support.

17
New cards

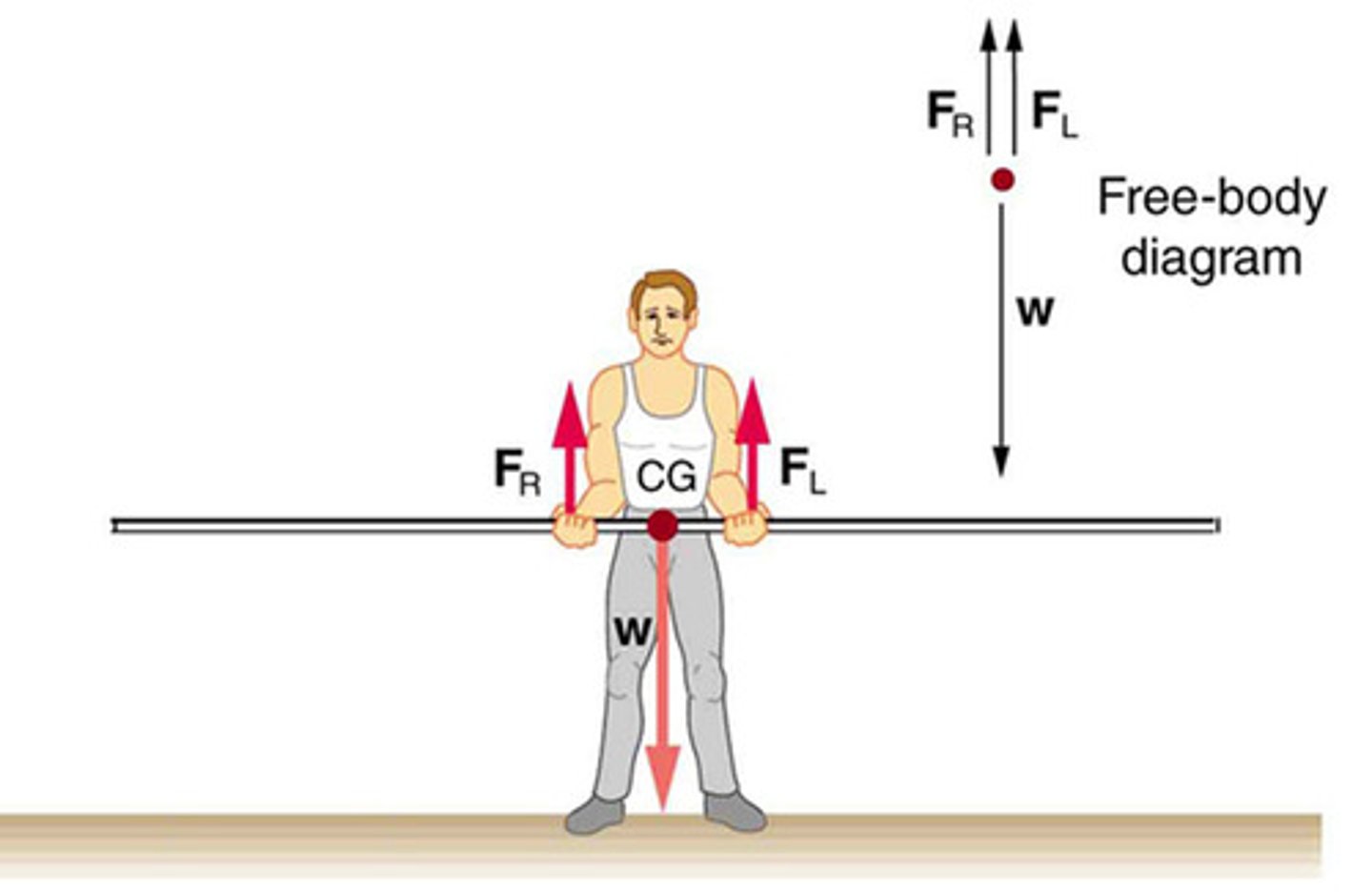

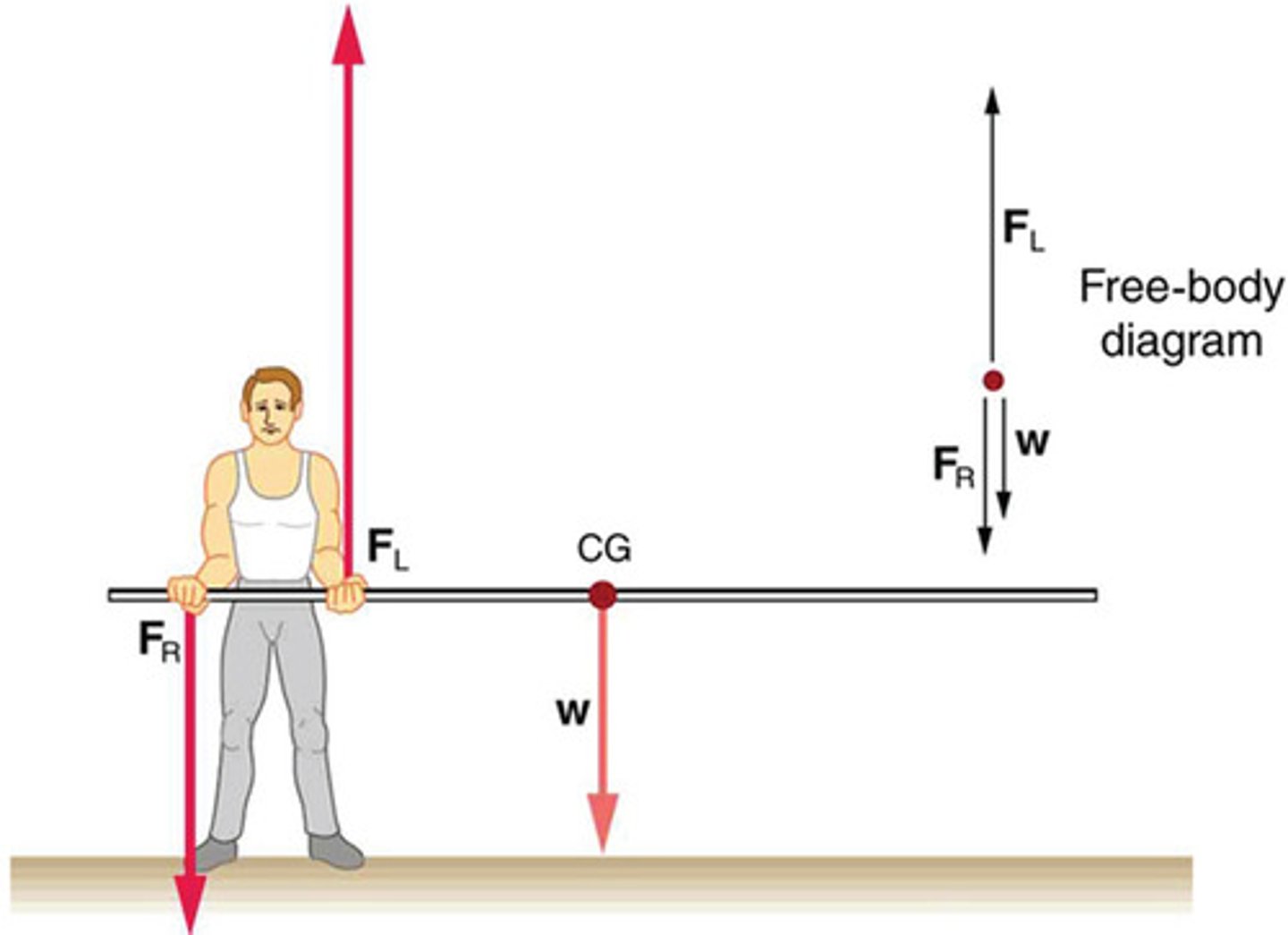

Free Body Diagram

A graphical representation used to visualize the forces acting on a system, showing their relative magnitudes, directions, and points of application.

<p>A graphical representation used to visualize the forces acting on a system, showing their relative magnitudes, directions, and points of application.</p>
18
New cards

Net Force (netF=0)

The sum of all forces acting on a system, which must be zero for the system to be in static equilibrium.

<p>The sum of all forces acting on a system, which must be zero for the system to be in static equilibrium.</p>
19
New cards

Net Torque (netτ=0)

The sum of all torques acting on a system, which must be zero for the system to be in static equilibrium.

<p>The sum of all torques acting on a system, which must be zero for the system to be in static equilibrium.</p>
20
New cards

Problem-Solving Strategy in Statics

A systematic approach involving determining static equilibrium, drawing free body diagrams, applying equilibrium conditions, and checking the solution's reasonableness.

21
New cards

Simple Machines

Devices that multiply or augment a force applied, often at the expense of the distance through which the force is applied. Examples include levers, gears, pulleys, wedges, and screws.

22
New cards

Mechanical Advantage (MA)

The ratio of output force to input force magnitudes for any simple machine, indicating how much a machine multiplies the input force.

<p>The ratio of output force to input force magnitudes for any simple machine, indicating how much a machine multiplies the input force.</p>
23
New cards

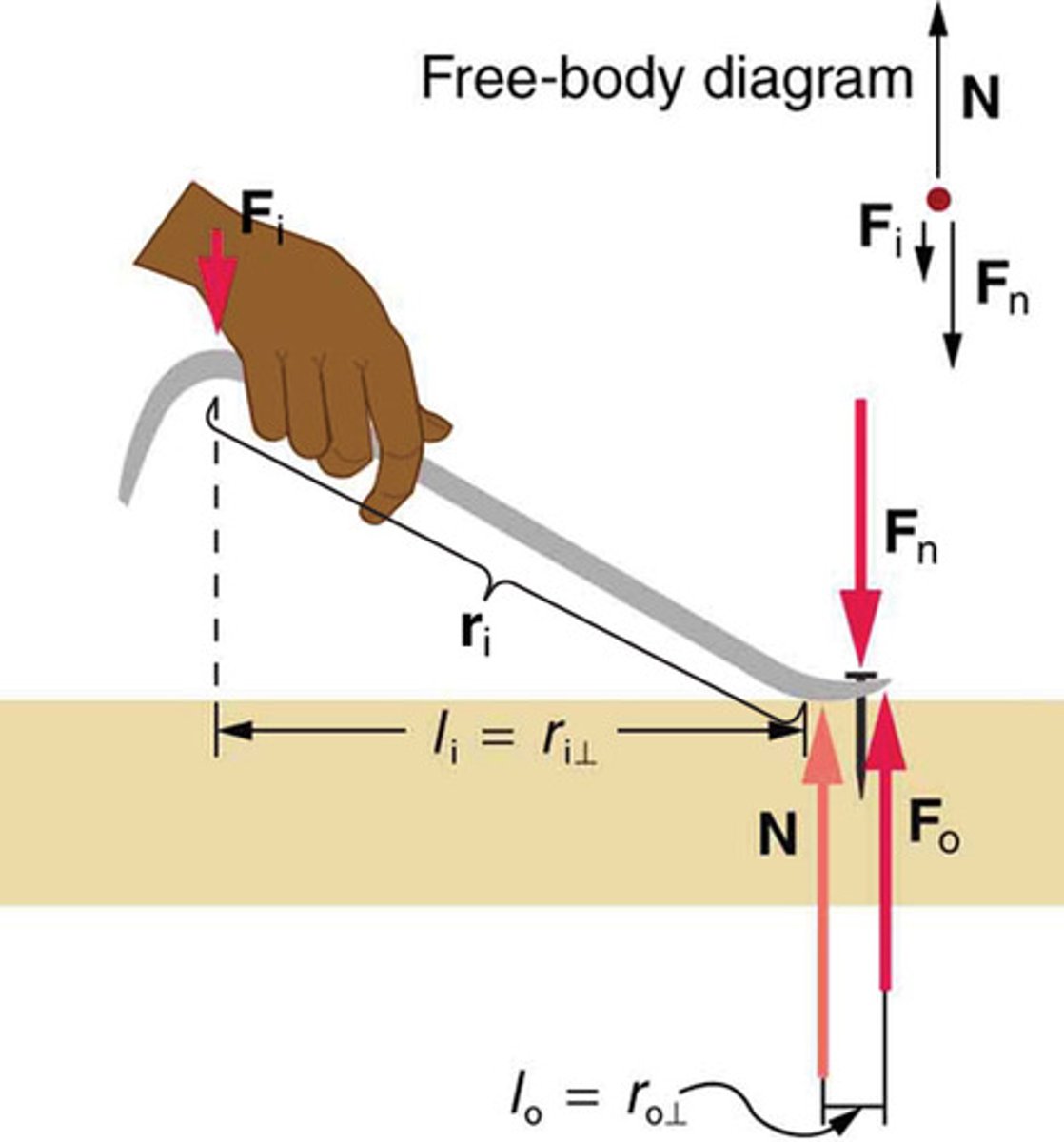

Lever

A simple machine consisting of a rigid bar pivoted at a fixed point called the fulcrum, used to transmit and amplify force by rotation about the pivot.

24
New cards

Fulcrum

The fixed point around which a lever pivots.

25
New cards

Torque

A measure of the force that can cause an object to rotate about an axis. It is the product of force and the distance from the pivot point.

26
New cards

Inclined Plane

A flat surface tilted at an angle to help raise or lower loads with less effort than lifting them vertically.

27
New cards

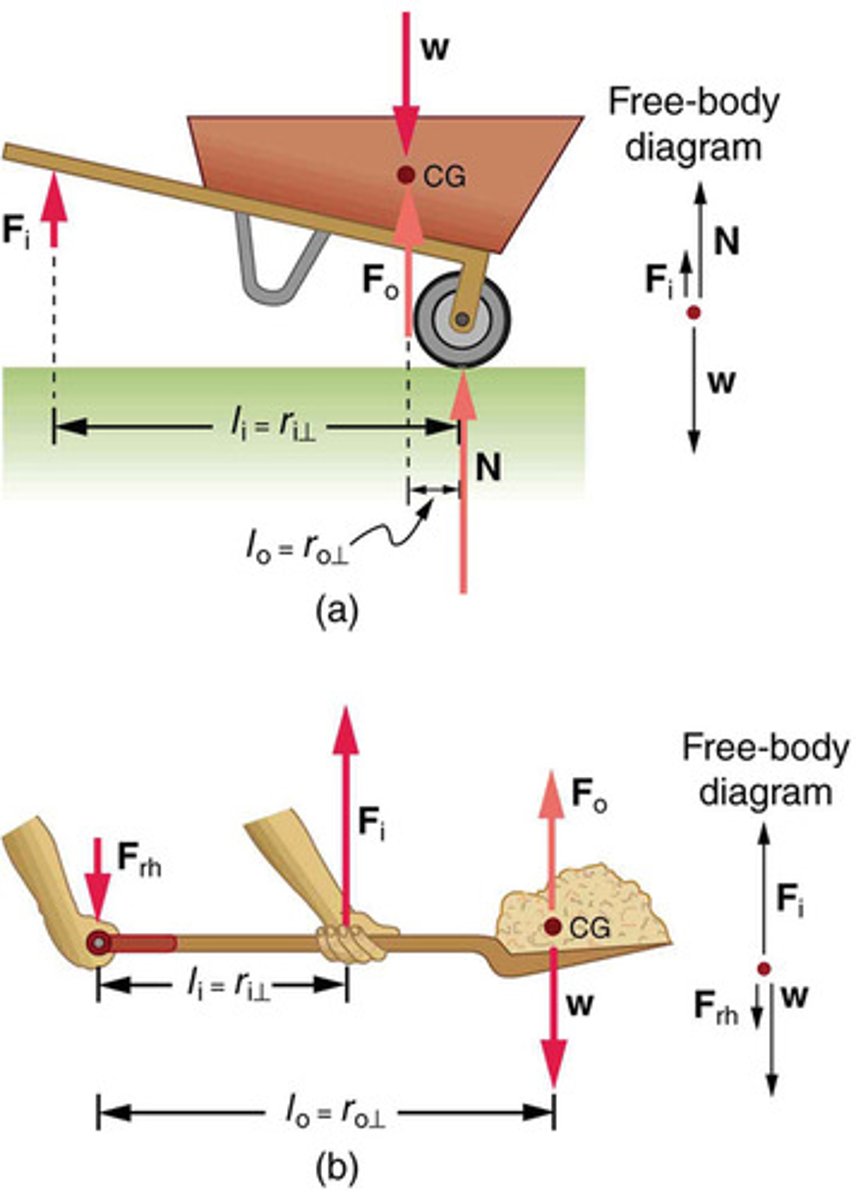

Wheelbarrow

A type of lever where the load is between the pivot (wheel's axle) and the input force, providing a mechanical advantage greater than one.

<p>A type of lever where the load is between the pivot (wheel's axle) and the input force, providing a mechanical advantage greater than one.</p>
28
New cards

Shovel

A type of lever where the input force is between the pivot and the load, often resulting in a mechanical advantage less than one.

<p>A type of lever where the input force is between the pivot and the load, often resulting in a mechanical advantage less than one.</p>
29
New cards

Equation for Mechanical Advantage of a Lever

MA = Fo/Fi = li/lo, where Fo is the output force, Fi is the input force, li is the input lever arm, and lo is the output lever arm.

30
New cards

Example of Mechanical Advantage Calculation

For a wheelbarrow with a load lever arm of 7.50 cm and a hand lever arm of 1.02 m, the MA is 1.02/0.0750 = 13.6.

31
New cards

Muscle Contraction

The process by which muscles exert force by shortening and generating tension.

32
New cards

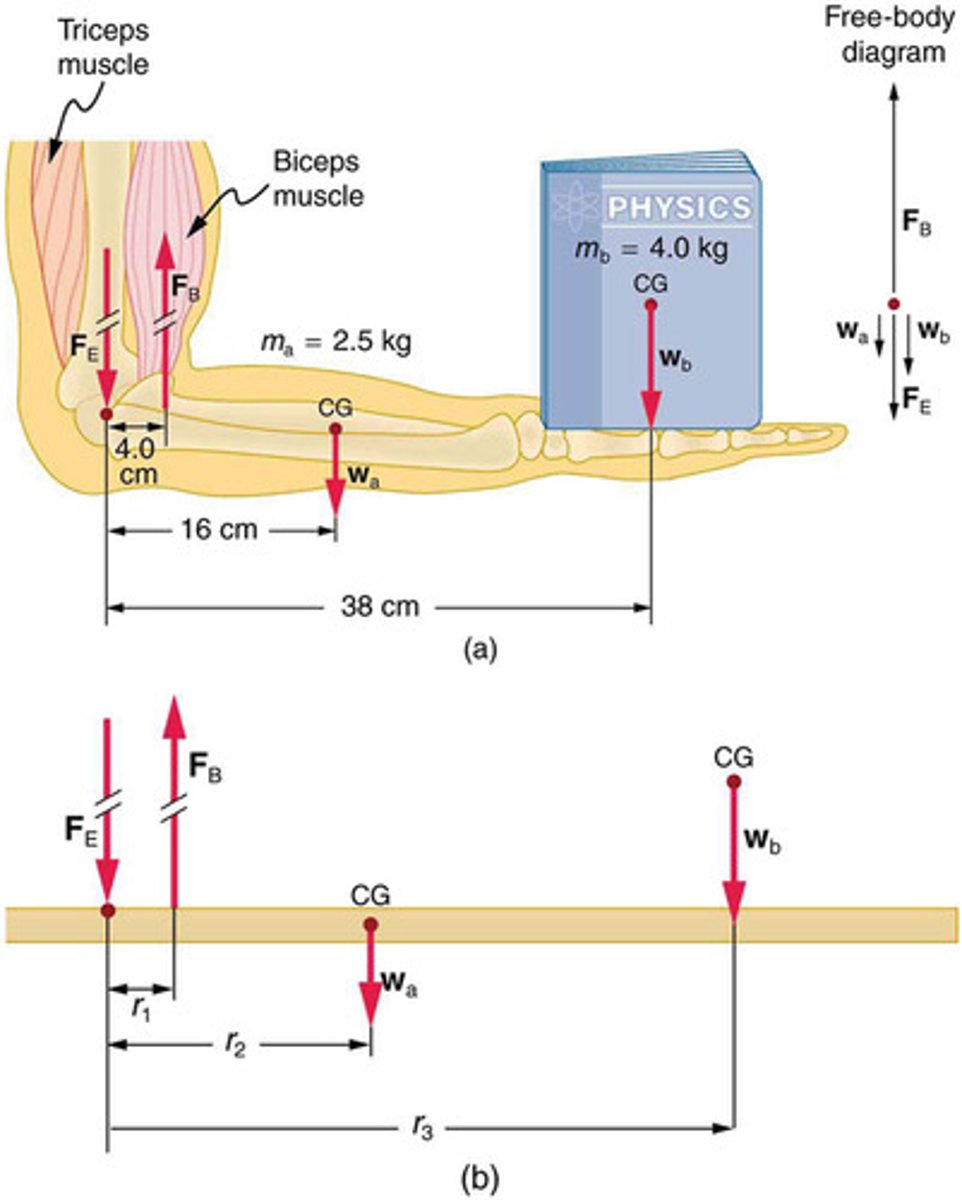

Flexor Muscle

A muscle that decreases the angle between bones on two sides of a joint, such as the biceps in the arm.

<p>A muscle that decreases the angle between bones on two sides of a joint, such as the biceps in the arm.</p>
33
New cards

Extensor Muscle

A muscle that increases the angle between bones on two sides of a joint, such as the triceps in the arm.

34
New cards

Mechanical Advantage

The ratio of the output force to the input force in a system, often less than one in muscle systems.

35
New cards

Center of Gravity (CG)

The point where the total weight of a body or system is considered to be concentrated.

36
New cards

Force Exerted by Muscles

The tension generated by muscles during contraction, often much greater than the force applied externally.

<p>The tension generated by muscles during contraction, often much greater than the force applied externally.</p>
37
New cards

Pivot Point

The point around which rotation occurs in a lever system, such as a joint in the body.

38
New cards

Mechanical Advantage in Jaw

The masseter muscles in the jaw have a mechanical advantage greater than one, allowing large forces to be exerted with the back teeth.
