(FINAL)ITEC3010

Use Case Realization

Process of elaborating the detailed design with interaction diagrams for a particular use case

Interaction Diagram

Shows how objects work together to carry out a use case.
Includes Sequence Diagrams and Communication Diagrams.

Sequence Diagram

An interaction diagram that focuses on the order of messages over time between objects.

Communication Diagram

Structure-focused diagram showing which objects communicate and what messages are sent

Use Case Controller

A designer-created class that links UI to business logic, coordinates tasks, and handles user actions.

Message Flow

The typical path of interaction: Actor → Boundary (UI) → Controller → Entities (data).

Purpose of Controller

To reduce coupling, increase cohesion, and make the system more reusable and easier to modify.

Actor

Represents an external role of the person or thing that initiates the use case by sending the initial message

Object

instantiated class objects that perform actions to help carry out the use case

Link

connectors that illustrate the flow of messages

Messages

primary element of a communication diagram

True/false condition (optional)

if true the message is sent, if false the message is not sent

Sequence number - identifies the order of messages

Sequence number

identifies the order of messages

Return-value

the type of value that the message returns after the completion of the service requested in a forward message. Basically the method return value.

Message-name

usually camelCase. Should be named informatively.

Parameter list

 items of data that are passed to the destination object via the message. Basically the arguments of the method.

Activation lifelines

show the period during which a method of an object is alive and executing

Lifelines

Show the passage of time

Synchronous Message (Synchronous Call)

-       Filled arrow head

-       Message is sent from source lifeline to target lifeline

Asynchronous Message (Asynchronous Call)

Open or Flat Arrowhead

External Systems (Analysis)

Identify all systems your system must connect to or exchange data with.

Technology Architecture (Design)

Specifies message formats, web/network addresses, communication protocols, security, and error handling.

User Interface (UI)

Part of the system users interact with, involving mockups, tools, models, storyboards, and prototypes.

User Experience (UX)

The broader scope of UI design, focusing on how users feel and interact with the system overall.

Centralized vs Distributed

Centralized systems run from one location, while distributed systems operate across multiple locations or servers.

Normalization

Organizing a relational database using normal forms to minimize redundancy and ensure data integrity.

Controls

mechanisms and procedures built into a system to safeguard the system and the information within

Integrity controls

controls that reject invalid data inputs, prevent unauthorized data outputs, protect data and programs against tampering

Input Controls

controls that prevent invalid or erroneous data from entering the system

Value limit controls

controls that check numeric data input to ensure that that value is reasonable, e.g. must be greater than zero

Completeness controls

controls that ensure that all required data values describing an object are present

Data validation controls

controls that ensure that numeric fields that contain codes or identifiers are correct

Field combination controls

controls that review combinations of data inputs to ensure that the correct data are entered

Output controls

controls that ensure that output arrives at the proper destination, which are “Accurate, current and complete”.

Security controls

controls that protect the assets of an organization from all threats

Access controls

control that limits a users ability to access resourses.

Authentication

process of identifying users who request access to access controlled resources

Authorization

process of allowing or restricting a specific authenticated users access to a specific resource based on access controls

CRUD

Create, Read (or Report), Update, and Delete — the 4 basic operations on data. Step 1: Identify all domain classes in the system. Step 2: For each class, ensure there are use cases to Create, Read/Report, Update, and Delete or archive instances. Step 3: Add any missing use cases and identify the stakeholders responsible for them. Step 4: Assign each action to the application or system responsible for carrying it out (e.g., which app handles "create").

Encryption

cryptographically altering data to be undecipherable to those without the key (Requires an algorithm; Requires a key (or multiple keys))

Decryption

convert encrypted data back to its original state

Symmetric key encryption

uses the same key to encrypt and decrypt

Asymmetric key encryption

 uses different keys to encrypt and decrypt

Public key encryption

uses public key to encrypt and private key to decrypt

Digital Certificates

has an institutions name and public key

Technology Architecture

The set of computing hardware, network hardware, and system software employed by an organization

Application Architecture

The set of information systems (including software applications) that an organization needs to support its strategic plan or fulfill its business goals

Distributed Architecture

Distribution of system components (hardware and software) across multiple geographic locations

Client/Server Architecture

server manages system resources and provides access to the resources, client communicates with the server to request resources

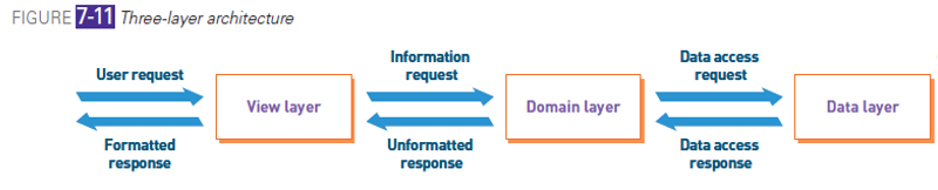

Three-layer Architecture

•       View layer: accepts user input and displays outputs

•       Business logic layer: (aka domain layer) implements the rules and procedures of business processing

•       Data layer: manages stored data, usually in databases

Location Diagram

model that shows the geographic placement of systems components

Network Diagram

Model that shows how locations and hardware components are interconnected

Deployment Diagram

Model that shows how software components are distributed across hardware components

Structure Chart

A hierarchical model (not UML) that shows how software modules relate and break down functions.
