EOP-SDP-3 Response to High Containment Radiation during Shutdown

0.0(0)
studied byStudied by 0 people
learnLearn
examPractice Test
spaced repetitionSpaced Repetition
heart puzzleMatch
flashcardsFlashcards
Card Sorting

1/4

encourage image

There's no tags or description

Looks like no tags are added yet.

Study Analytics
Name
Mastery
Learn
Test
Matching
Spaced

No study sessions yet.

5 Terms

1
New cards

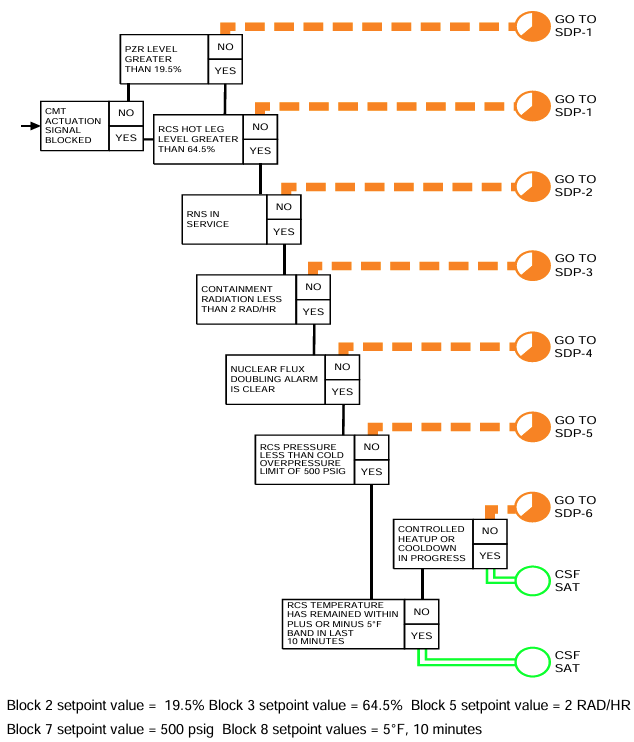

Entry Condition

SDP-3 can only be entered from SDF-0

<p>SDP-3 can only be entered from SDF-0</p>
2
New cards

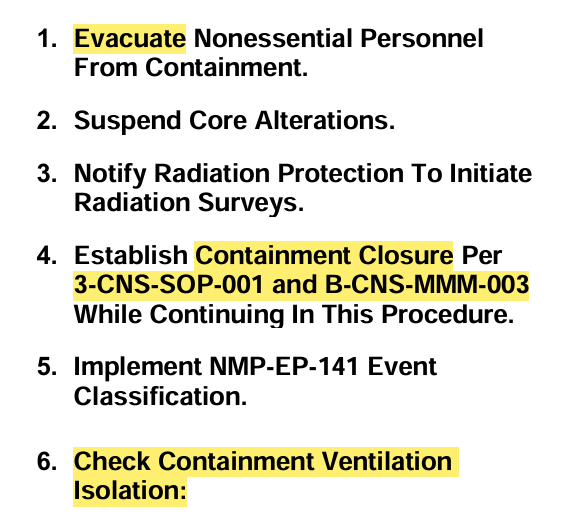

Early actions and how to implement Containment Closure

(Step 1- 5)

knowt flashcard image
3
New cards

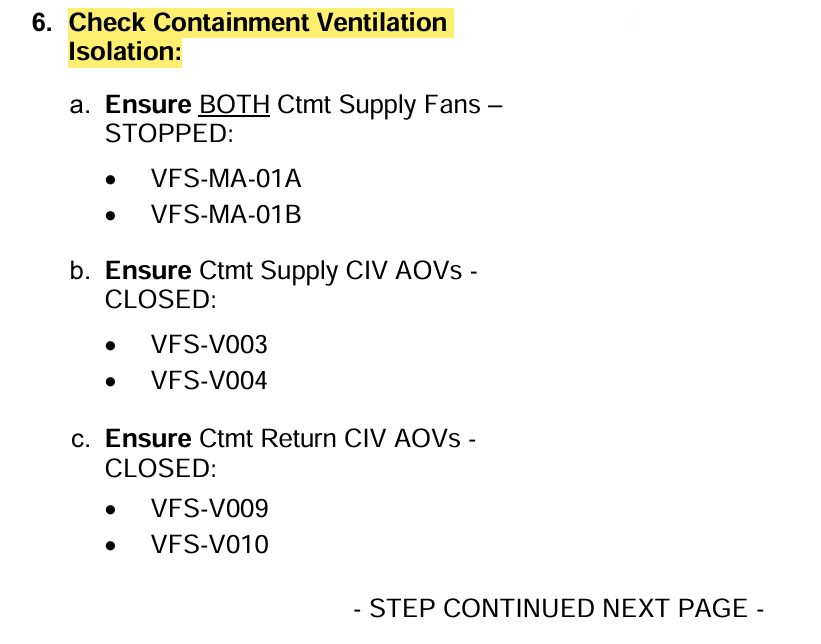

Containment Ventilation Isolation

Continued:

d. Vacuum Reliefs Closed (RNO to reset relief)

e. AFU Isolation dampers D006A/B

f. BOTH Ctmt Exh Fans stopped

<p>Continued:</p><p>d. Vacuum Reliefs Closed (RNO to reset relief)</p><p>e. AFU Isolation dampers D006A/B</p><p>f. <u>BOTH</u> Ctmt Exh Fans stopped</p>
4
New cards

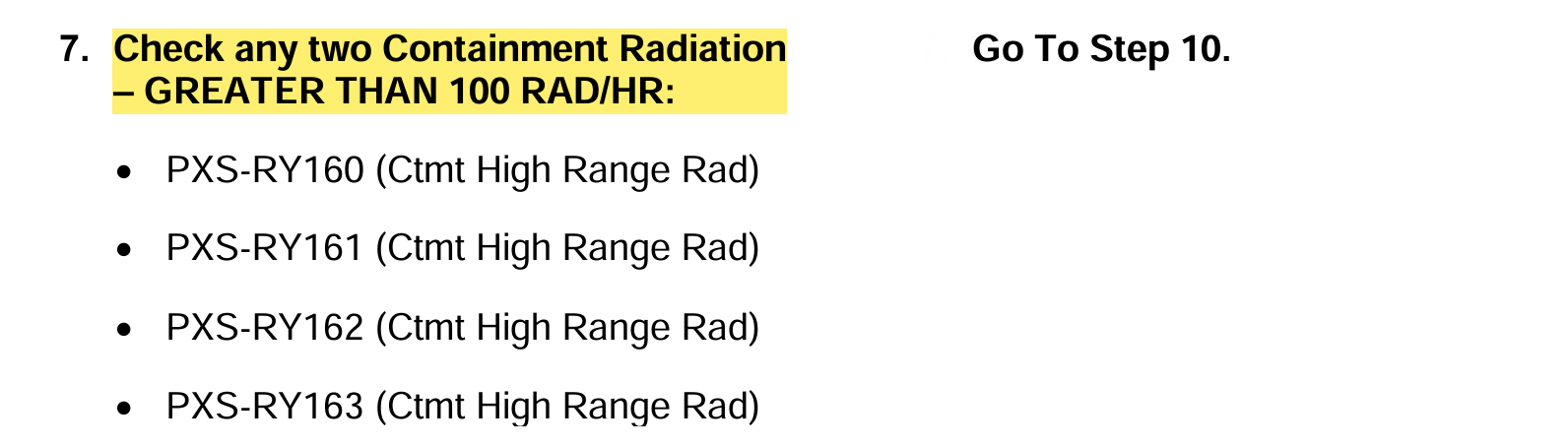

If Containment Radiation >100 Rad/hr

Notice:

Step delineates need of 2/4 instruments exceeded

Step 8: CVS MU Isolation

Step 9: RNS Isolation OFF (ON forces Go To SDP-2)

<p>Notice:</p><p>Step delineates need of 2/4 instruments exceeded</p><p>Step 8: CVS MU Isolation</p><p>Step 9: RNS Isolation OFF (<strong>ON forces Go To SDP-2</strong>)</p>
5
New cards

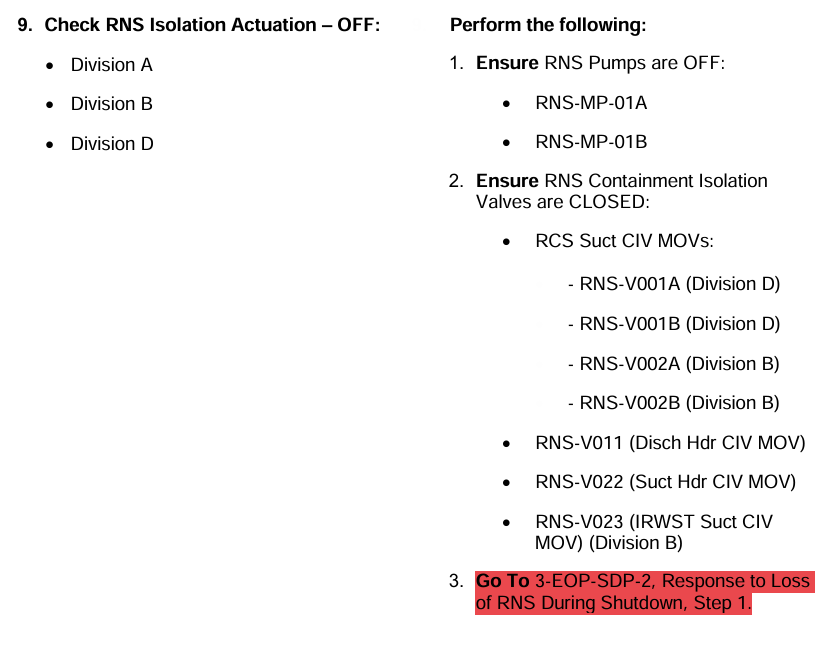

RNS Isolated

(Step 9)

knowt flashcard image
