CCNA 1 v7 Modules 11 – 13: IP Addressing Exam

What is the prefix length notation for the subnet mask 255.255.255.224?

/25

/26

/27

/28

/27

How many valid host addresses are available on an IPv4 subnet that is configured with a /26 mask?

254

190

192

62

64

62

Which subnet mask would be used if 5 host bits are available?

255.255.255.0

255.255.255.128

255.255.255.224​

255.255.255.240

255.255.255.224​

A network administrator subnets the 192.168.10.0/24 network into subnets with /26 masks. How many equal-sized subnets are created?

1

2

4

8

16

64

4

Match the subnetwork to a host address that would be included within the subnetwork. (Not all options are used.)

192.168.1.32/27 - 192.168.1.48

192.168.1.64/27 - 192.168.1.68

192.168.1.96/27 - 192.168.1.121

An administrator wants to create four subnetworks from the network address 192.168.1.0/24. What is the network address and subnet mask of the second useable subnet?

subnetwork 192.168.1.64subnet mask 255.255.255.192

subnetwork 192.168.1.32subnet mask 255.255.255.240

subnetwork 192.168.1.64subnet mask 255.255.255.240

subnetwork 192.168.1.128subnet mask 255.255.255.192

subnetwork 192.168.1.8subnet mask 255.255.255.224

subnetwork 192.168.1.64subnet mask 255.255.255.192

How many bits must be borrowed from the host portion of an address to accommodate a router with five connected networks?

two

three

four

five

three

How many host addresses are available on the 192.168.10.128/26 network?

30

32

60

62

64

62

How many host addresses are available on the network 172.16.128.0 with a subnet mask of 255.255.252.0?

510

512

1022

1024

2046

2048

1022

Match each IPv4 address to the appropriate address category. (Not all options are used.)

192.168.100.161/25 - host address

192.1681.191/26 - broadcast address

10.10.10.128/25 - network address

203.0.113.100/24 - host address

172.110.12.64/28 - network address

10.0.0.159/27 - broadcast address

What three blocks of addresses are defined by RFC 1918 for private network use? (Choose three.)

10.0.0.0/8

172.16.0.0/12

192.168.0.0/16

100.64.0.0/14

169.254.0.0/16

239.0.0.0/8

10.0.0.0/8

172.16.0.0/12

192.168.0.0/16

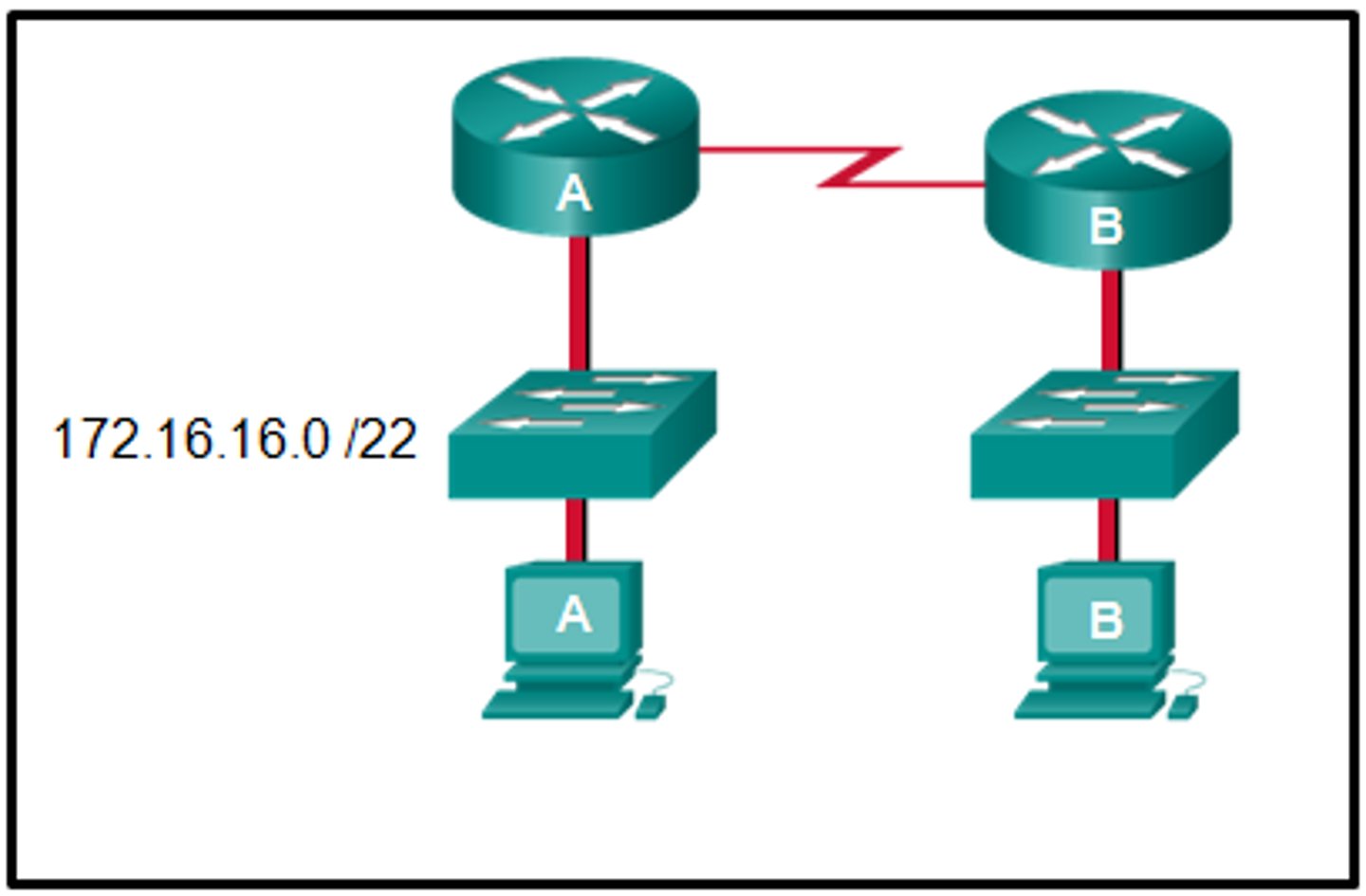

Refer to the exhibit. An administrator must send a message to everyone on the router A network. What is the broadcast address for network 172.16.16.0/22?

172.16.16.255

172.16.20.255

172.16.19.255

172.16.23.255

172.16.255.255

172.16.19.255

A site administrator has been told that a particular network at the site must accommodate 126 hosts. Which subnet mask would be used that contains the required number of host bits?

255.255.255.0

255.255.255.128

255.255.255.224

255.255.255.240

255.255.255.128

Refer to the exhibit. Considering the addresses already used and having to remain within the 10.16.10.0/24 network range, which subnet address could be assigned to the network containing 25 hosts?

10.16.10.160/26

10.16.10.128/28

10.16.10.64/27

10.16.10.224/26

10.16.10.240/27

10.16.10.240/28

10.16.10.64/27

What is the usable number of host IP addresses on a network that has a /26 mask?

256

254

64

62

32

16

62

Which address prefix range is reserved for IPv4 multicast?

240.0.0.0 - 254.255.255.255

224.0.0.0 - 239.255.255.255

169.254.0.0 - 169.254.255.255

127.0.0.0 - 127.255.255.255

224.0.0.0 - 239.255.255.255

Refer to the exhibit. Match the network with the correct IP address and prefix that will satisfy the usable host addressing requirements for each network.

Network A 192.168.0.128/25

Network B 192.168.0.0/26

Network C 192.168.0.96/27

Network D 192.168.0.80/30

A high school in New York (school A) is using videoconferencing technology to establish student interactions with another high school (school B) in Russia. The videoconferencing is conducted between two end devices through the Internet. The network administrator of school A configures the end device with the IP address 209.165.201.10. The administrator sends a request for the IP address for the end device in school B and the response is 192.168.25.10. Neither school is using a VPN. The administr

This is a private IP address.

Which three addresses are valid public addresses? (Choose three.)

198.133.219.17

192.168.1.245

10.15.250.5

128.107.12.117

172.31.1.25

64.104.78.227

198.133.219.17

128.107.12.117

64.104.78.227

A message is sent to all hosts on a remote network. Which type of message is it?

limited broadcast

multicast

directed broadcast

unicast

directed broadcast

A company has a network address of 192.168.1.64 with a subnet mask of 255.255.255.192. The company wants to create two subnetworks that would contain 10 hosts and 18 hosts respectively. Which two networks would achieve that? (Choose two.)

192.168.1.16/28

192.168.1.64/27

192.168.1.128/27

192.168.1.96/28

192.168.1.192/28

192.168.1.64/27

192.168.1.96/28

Which address is a valid IPv6 link-local unicast address?

FEC8:1::FFFF

FD80::1:1234

FE80::1:4545:6578:ABC1

FE0A::100:7788:998F

FC90:5678:4251:FFFF

FE80::1:4545:6578:ABC1

Which of these addresses is the shortest abbreviation for the IP address: 3FFE:1044:0000:0000:00AB:0000:0000:0057?

3FFE:1044::AB::57

3FFE:1044::00AB::0057

3FFE:1044:0:0:AB::57

3FFE:1044:0:0:00AB::0057

3FFE:1044:0000:0000:00AB::57

3FFE:1044:0000:0000:00AB::0057

3FFE:1044:0:0:AB::57

A network administrator has received the IPv6 prefix 2001:DB8::/48 for subnetting. Assuming the administrator does not subnet into the interface ID portion of the address space, how many subnets can the administrator create from the /48 prefix?

16

256

4096

65536

65536

Given IPv6 address prefix 2001:db8::/48, what will be the last subnet that is created if the subnet prefix is changed to /52?

2001:db8:0:f00::/52

2001:db8:0:8000::/52

2001:db8:0:f::/52

2001:db8:0:f000::/52

2001:db8:0:f000::/52

Consider the following range of addresses:

2001:0DB8:BC15:00A0:0000::

2001:0DB8:BC15:00A1:0000::

2001:0DB8:BC15:00A2:0000::

...

2001:0DB8:BC15:00AF:0000::

The prefix-length for the range of addresses is:

/60

What type of IPv6 address is FE80::1?

loopback

link-local

multicast

global unicast

link-local

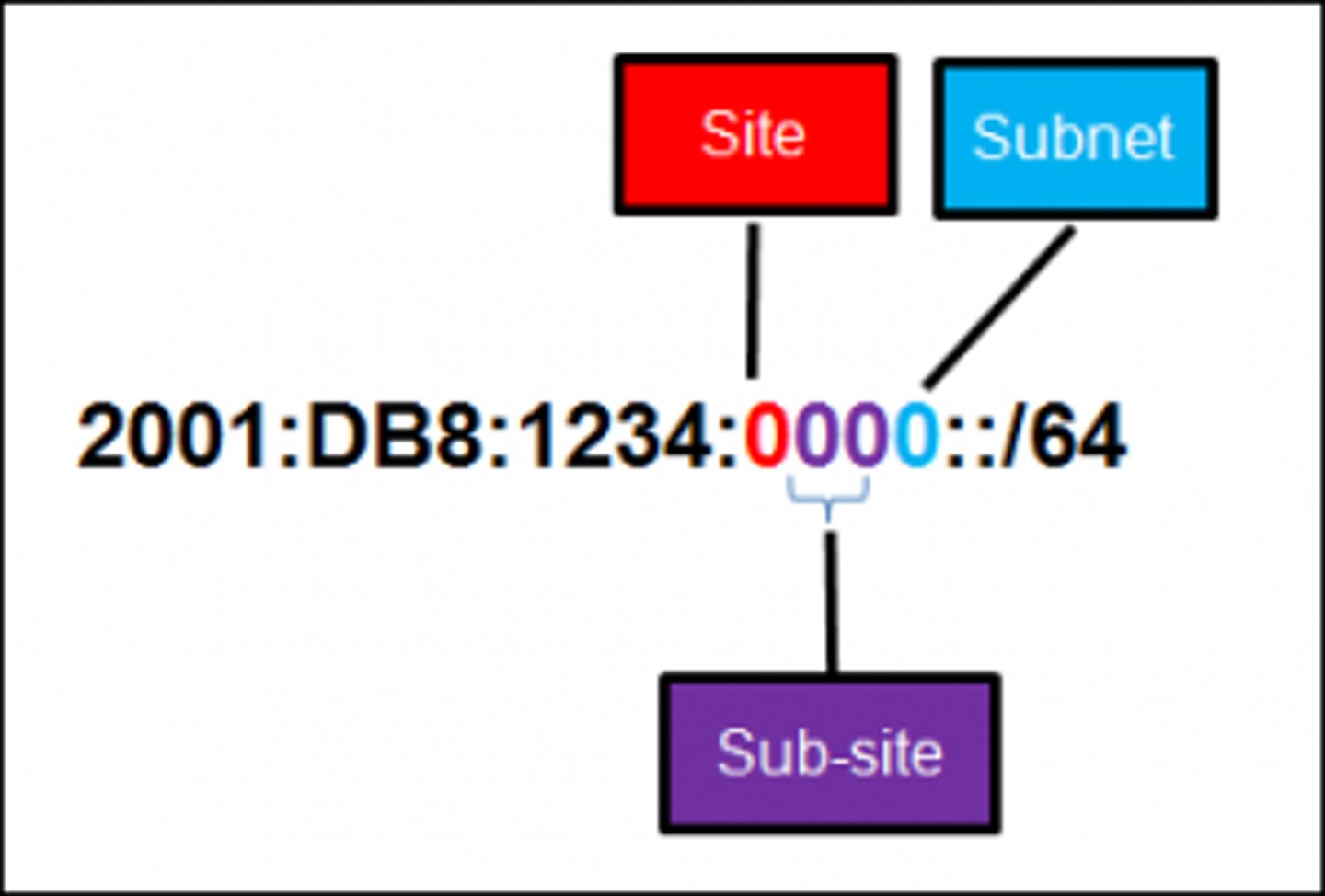

Refer to the exhibit. A company is deploying an IPv6 addressing scheme for its network. The company design document indicates that the subnet portion of the IPv6 addresses is used for the new hierarchical network design, with the site subsection to represent multiple geographical sites of the company, the sub-site section to represent multiple campuses at each site, and the subnet section to indicate each network segment separated by routers. With such a scheme, what is the maximum number of sub

16

What is used in the EUI-64 process to create an IPv6 interface ID on an IPv6 enabled interface?

-the MAC address of the IPv6 enabled interface

-a randomly generated 64-bit hexadecimal address

-an IPv6 address that is provided by a DHCPv6 server

-an IPv4 address that is configured on the interface

the MAC address of the IPv6 enabled interface

What is the prefix for the host address 2001:DB8:BC15:A:12AB::1/64?

2001:DB8:BC15

2001:DB8:BC15:A

2001:DB8:BC15:A:1

2001:DB8:BC15:A:12

2001:DB8:BC15:A

An IPv6 enabled device sends a data packet with the destination address of FF02::1. What is the target of this packet?

-the one IPv6 device on the link that has been uniquely configured with this address

-all IPv6 enabled devices on the local link​ or network

-only IPv6 DHCP servers​

-only IPv6 configured routers

all IPv6 enabled devices on the local link​ or network

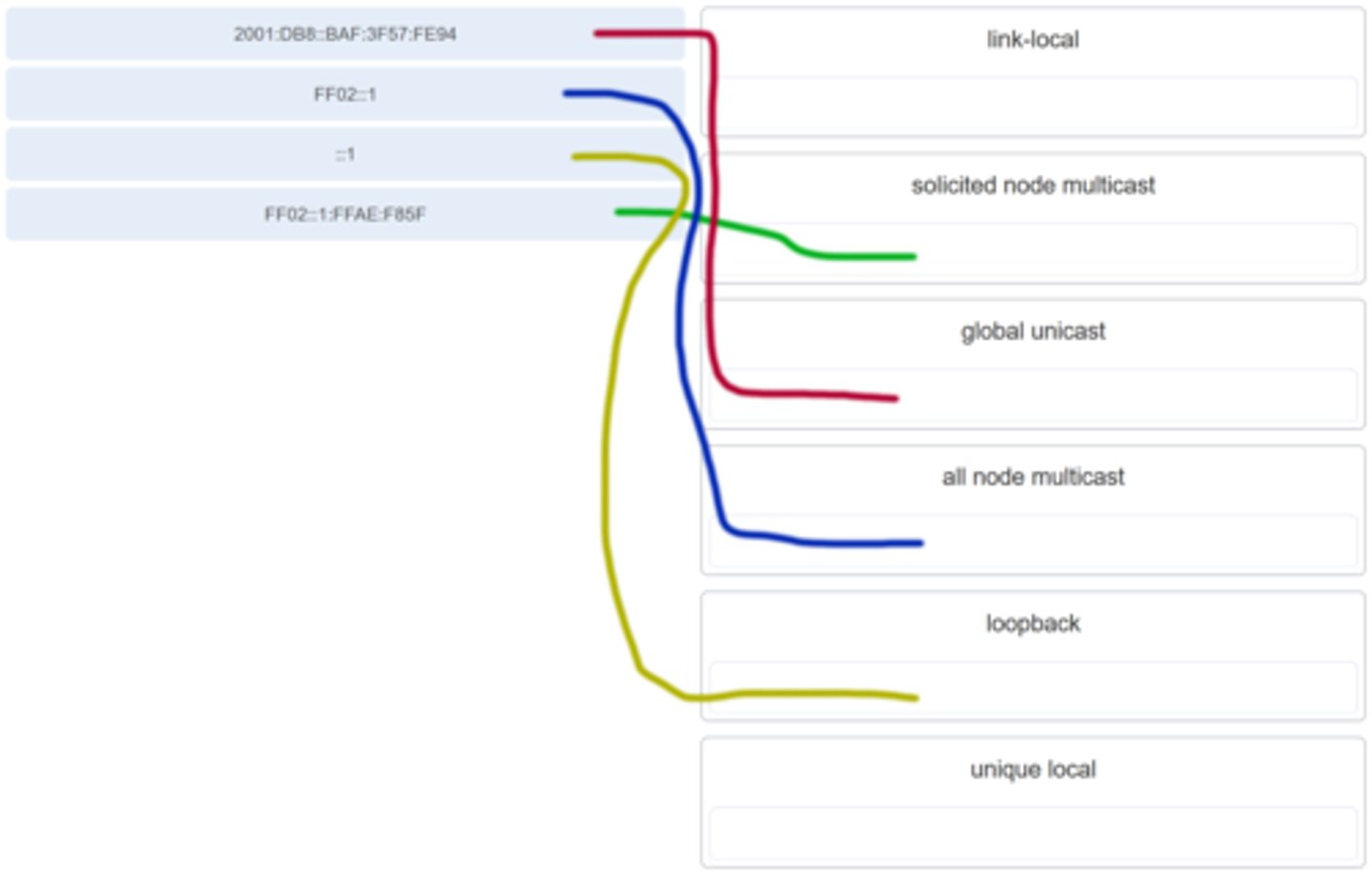

Match the IPv6 address with the IPv6 address type. (Not all options are used.)

Which IPv6 prefix is reserved for communication between devices on the same link?

FC00::/7

2001::/32

FE80::/10

FDFF::/7

FE80::/10

Which type of IPv6 address refers to any unicast address that is assigned to multiple hosts?

unique local

global unicast

link-local

anycast

anycast

What are two types of IPv6 unicast addresses? (Choose two.)

multicast

loopback

link-local

anycast

broadcast

loopback

link-local

Which service provides dynamic global IPv6 addressing to end devices without using a server that keeps a record of available IPv6 addresses?

stateful DHCPv6

SLAAC

static IPv6 addressing

stateless DHCPv6

SLAAC

Which protocol supports Stateless Address Autoconfiguration (SLAAC) for dynamic assignment of IPv6 addresses to a host?

ARPv6

DHCPv6

ICMPv6

UDP

ICMPv6

Three methods allow IPv6 and IPv4 to co-exist. Match each method with its description. (Not all options are used.)

-The IPv4 packets and IPv6 packets coexist in the same network - Translation

-The IPv6 packet is transported inside an IPv4 packet - tunneling

-IPv6 packets are converted into IPv4 packets, and vice versa - translation

A technician uses the ping 127.0.0.1 command. What is the technician testing?

the TCP/IP stack on a network host

connectivity between two adjacent Cisco devices

connectivity between a PC and the default gateway

connectivity between two PCs on the same network

physical connectivity of a particular PC and the network

the TCP/IP stack on a network host

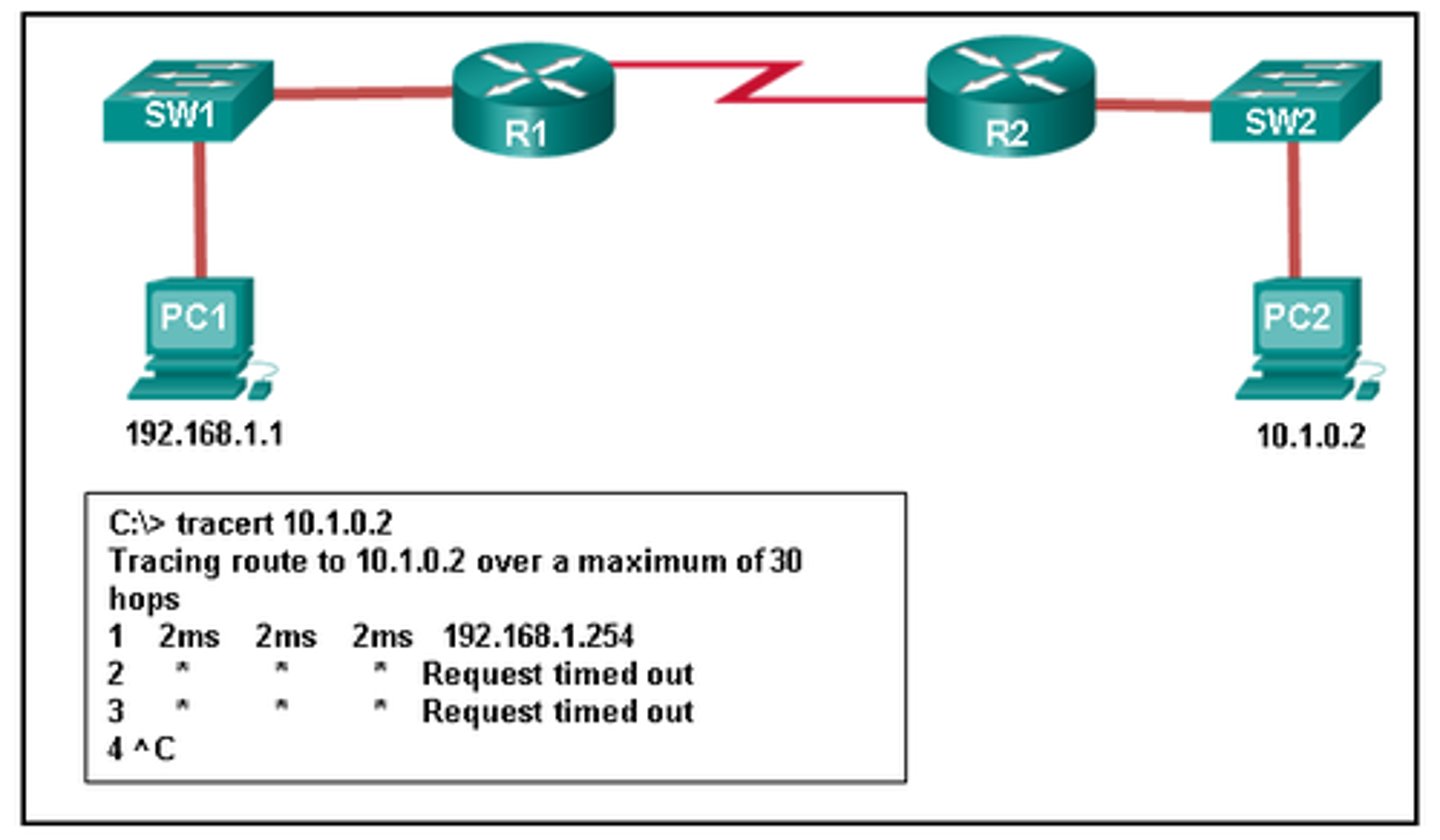

Refer to the exhibit. An administrator is trying to troubleshoot connectivity between PC1 and PC2 and uses the tracert command from PC1 to do it. Based on the displayed output, where should the administrator begin troubleshooting?

PC2

R1

SW2

R2

SW1

R1

Which protocol is used by the traceroute command to send and receive echo-requests and echo-replies?

SNMP

ICMP

Telnet

TCP

ICMP

Which ICMPv6 message is sent when the IPv6 hop limit field of a packet is decremented to zero and the packet cannot be forwarded?

network unreachable

time exceeded

protocol unreachable

port unreachable

time exceeded

A user executes a traceroute over IPv6. At what point would a router in the path to the destination device drop the packet?

when the value of the Hop Limit field reaches 255

when the value of the Hop Limit field reaches zero

when the router receives an ICMP time exceeded message

when the target host responds with an ICMP echo reply message

when the value of the Hop Limit field reaches zero

What is the purpose of ICMP messages?

to inform routers about network topology changes

to ensure the delivery of an IP packet

to provide feedback of IP packet transmissions

to monitor the process of a domain name to IP address resolution

to provide feedback of IP packet transmissions

What source IP address does a router use by default when the traceroute command is issued?

the highest configured IP address on the router

a loopback IP address

the IP address of the outbound interface

the lowest configured IP address on the router

the IP address of the outbound interface

Match each description with an appropriate IP address. (Not all options are used.)

a private address 172.19.20.5

a loopback address 127.0.0.1

an experimental address 240.2.6.225

a TEST-NET address 192.0.2.123

a link-local address 169.254.1.5

A user issues a ping 192.135.250.103 command and receives a response that includes a code of 1. What does this code represent?

host unreachable

protocol unreachable

port unreachable

network unreachable

host unreachable

Which subnet would include the address 192.168.1.96 as a usable host address?

192.168.1.64/26

192.168.1.32/27

192.168.1.32/28

192.168.1.64/29

192.168.1.64/26

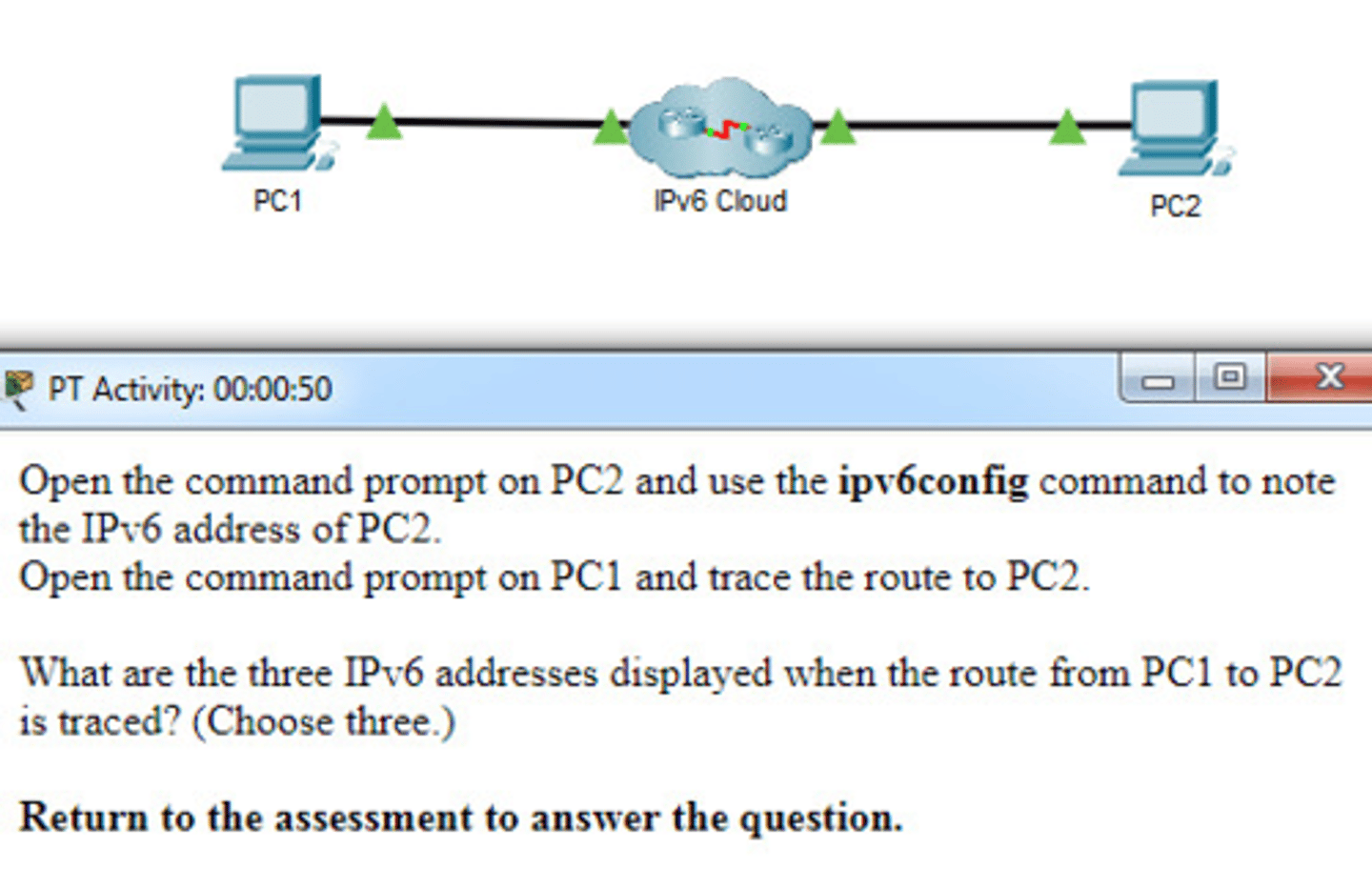

Open the PT Activity. Perform the tasks in the activity instructions and then answer the question.

What are the three IPv6 addresses displayed when the route from PC1 to PC2 is traced? (Choose three.)

2001:DB8:1:1::1

2001:DB8:1:1::A

2001:DB8:1:2::2

2001:DB8:1:2::1

2001:DB8:1:3::1

2001:DB8:1:3::2

2001:DB8:1:4::1

2001:DB8:1:1::1

2001:DB8:1:2::1

2001:DB8:1:3::2

A host is transmitting a broadcast. Which host or hosts will receive it?

all hosts in the same subnet

a specially defined group of hosts

the closest neighbor on the same network

all hosts on the Internet

all hosts in the same subnet

A host is transmitting a unicast. Which host or hosts will receive it?

one specific host

a specially defined group of hosts

all hosts on the Internet

the closest neighbor on the same network

one specific host

A user issues a ping 2001:db8:FACE:39::10 command and receives a response that includes a code of 3. What does this code represent?

address unreachable

network unreachable

host unreachable

protocol unreachable

address unreachable

A host is transmitting a multicast. Which host or hosts will receive it?

a specially defined group of hosts

the closest neighbor on the same network

one specific host

directly connected network devices

a specially defined group of hosts

Which is the compressed format of the IPv6 address 2001:0db8:0000:0000:0000:a0b0:0008:0001?

2001:db8::a0b0:8:1

2001:db8::ab8:1:0:1000

2001:db80:0:1::80:1

2001:db80:::1::80:1

2001:db8::a0b0:8:1

Which is the compressed format of the IPv6 address fe80:09ea:0000:2200:0000:0000:0fe0:0290?

fe80:9ea:0:2200::fe0:290

fe80:9:20::b000:290

fe80:9ea0::2020:0:bf:e0:9290

fe80:9ea0::2020::bf:e0:9290

fe80:9ea:0:2200::fe0:290

Which is the compressed format of the IPv6 address 2002:0042:0010:c400:0000:0000:0000:0909?

2002:42:10:c400::909

200:420:110:c4b::910:0:90

2002:4200::25:1090:0:99

2002:42::25:1090:0:99

2002:42:10:c400::909

Which is the compressed format of the IPv6 address 2001:0db8:0000:0000:0ab8:0001:0000:1000?

2001:db8::ab8:1:0:1000

2001:db8::a0b0:8:1

2001:db8:1::ab8:0:1

2001:db8:0:1::8:1

2001:db8::ab8:1:0:1000

Which is the compressed format of the IPv6 address 2002:0420:00c4:1008:0025:0190:0000:0990?

2002:420:c4:1008:25:190::990

2002:42:10:c400::909

2002:4200::25:1090:0:99

2002:42::25:1090:0:99

2002:420:c4:1008:25:190::990

Which is the compressed format of the IPv6 address 2001:0db8:0000:0000:0000:a0b0:0008:0001?

2001:db8::a0b0:8:1

2001:db8:1::ab8:0:1

2001:db8::ab8:1:0:1000

2001:db8:0:1::8:1

2001:db8::a0b0:8:1

Which is the compressed format of the IPv6 address fe80:0000:0000:0000:0220:0b3f:f0e0:0029?

fe80::220:b3f:f0e0:29

fe80:9ea:0:2200::fe0:290

fe80:9ea0::2020:0:bf:e0:9290

fe80:9ea0::2020::bf:e0:9290

fe80::220:b3f:f0e0:29

Which is the compressed format of the IPv6 address 2001:0db8:0000:0000:0000:a0b0:0008:0001?

2001:db8::a0b0:8:1

2001:db8::ab8:1:0:1000

2001:db80:0:1::80:1

2001:db8:0:1::8:1

2001:db8::a0b0:8:1

Which is the compressed format of the IPv6 address 2002:0042:0010:c400:0000:0000:0000:0909?

2002:42:10:c400::909

2002:4200::25:1090:0:99

2002:420:c4:1008:25:190::990

2002:42::25:1090:0:99

2002:42:10:c400::909

Which is the compressed format of the IPv6 address fe80:09ea:0000:2200:0000:0000:0fe0:0290?

fe80:9ea:0:2200::fe0:290

fe80:9ea0::2020:0:bf:e0:9290

fe80::220:b3f:f0e0:29

fe80::0220:0b3f:f0e0:0029

fe80:9ea:0:2200::fe0:290

A user issues a ping 2001:db8:FACE:39::10 command and receives a response that includes a code of 2 . What does this code represent?

beyond scope of the source address

communication with the destination administratively prohibited

address unreachable

no route to destination

beyond scope of the source address

A user issues a ping 192.135.250.103 command and receives a response that includes a code of 1 . What does this code represent?

host unreachable

beyond scope of the source address

address unreachable

communication with the destination administratively prohibited

host unreachable

A user issues a ping fe80:65ab:dcc1::100 command and receives a response that includes a code of 3 . What does this code represent?

address unreachable

communication with the destination administratively prohibited

beyond scope of the source address

no route to destination

Address unreachable

A user issues a ping 10.10.14.67 command and receives a response that includes a code of 0 . What does this code represent?

network unreachable

protocol unreachable

port unreachable

host unreachable

network unreachable

A user issues a ping fe80:65ab:dcc1::100 command and receives a response that includes a code of 4. What does this code represent?A user issues a ping fe80:65ab:dcc1::100 command and receives a response that includes a code of 4 . What does this code represent?

port unreachable

host unreachable

protocol unreachable

network unreachable

port unreachable

A user issues a ping 198.133.219.8 command and receives a response that includes a code of 0 . What does this code represent?

network unreachable

protocol unreachable

port unreachable

host unreachable

network unreachable

A user issues a ping 2001:db8:3040:114::88 command and receives a response that includes a code of 4 . What does this code represent?

port unreachable

host unreachable

protocol unreachable

network unreachable

port unreachable

A user issues a ping 2001:db8:FACE:39::10 command and receives a response that includes a code of 2. What does this code represent?

beyond scope of the source address

host unreachable

protocol unreachable

network unreachable

beyond scope of the source address
