15 Terms

1
New cards

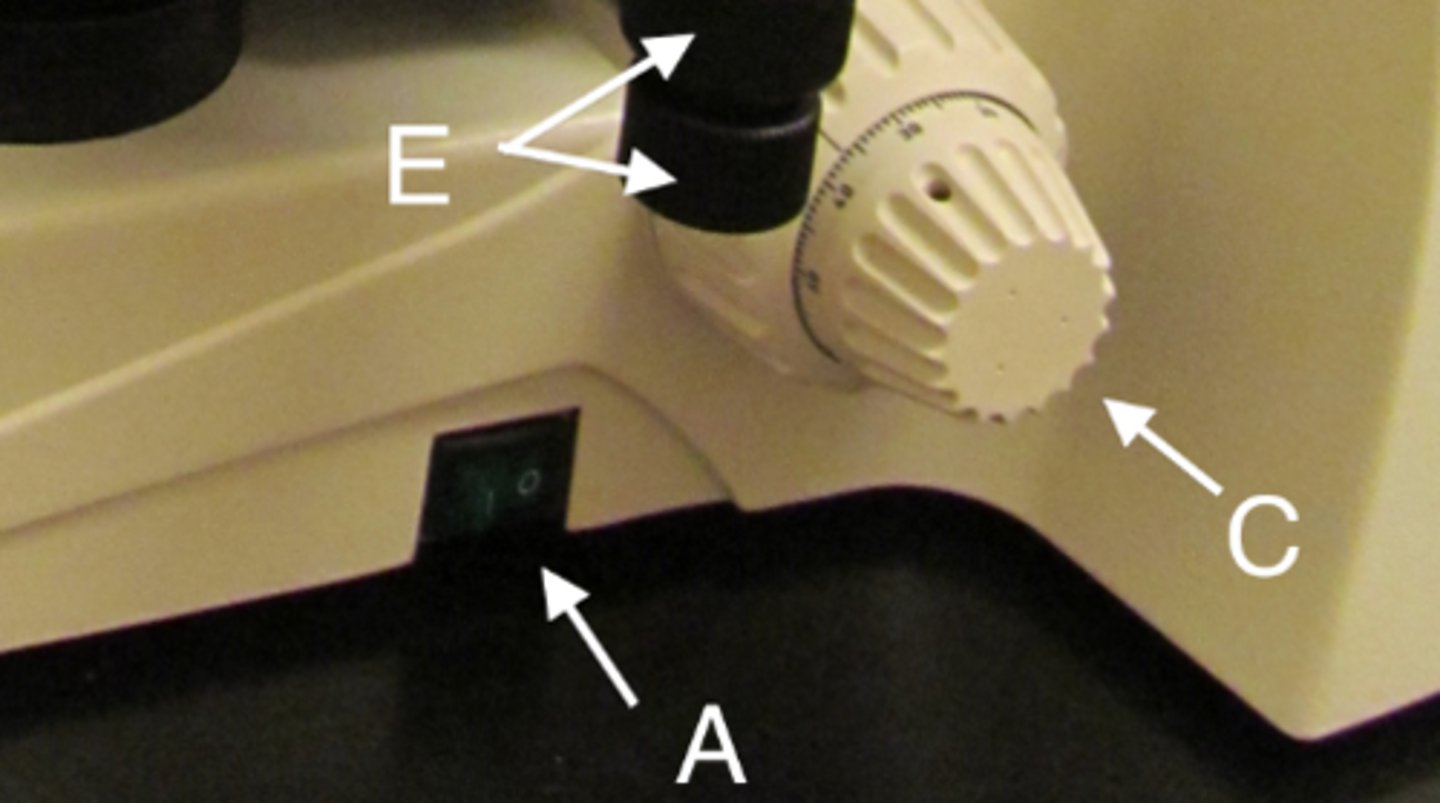

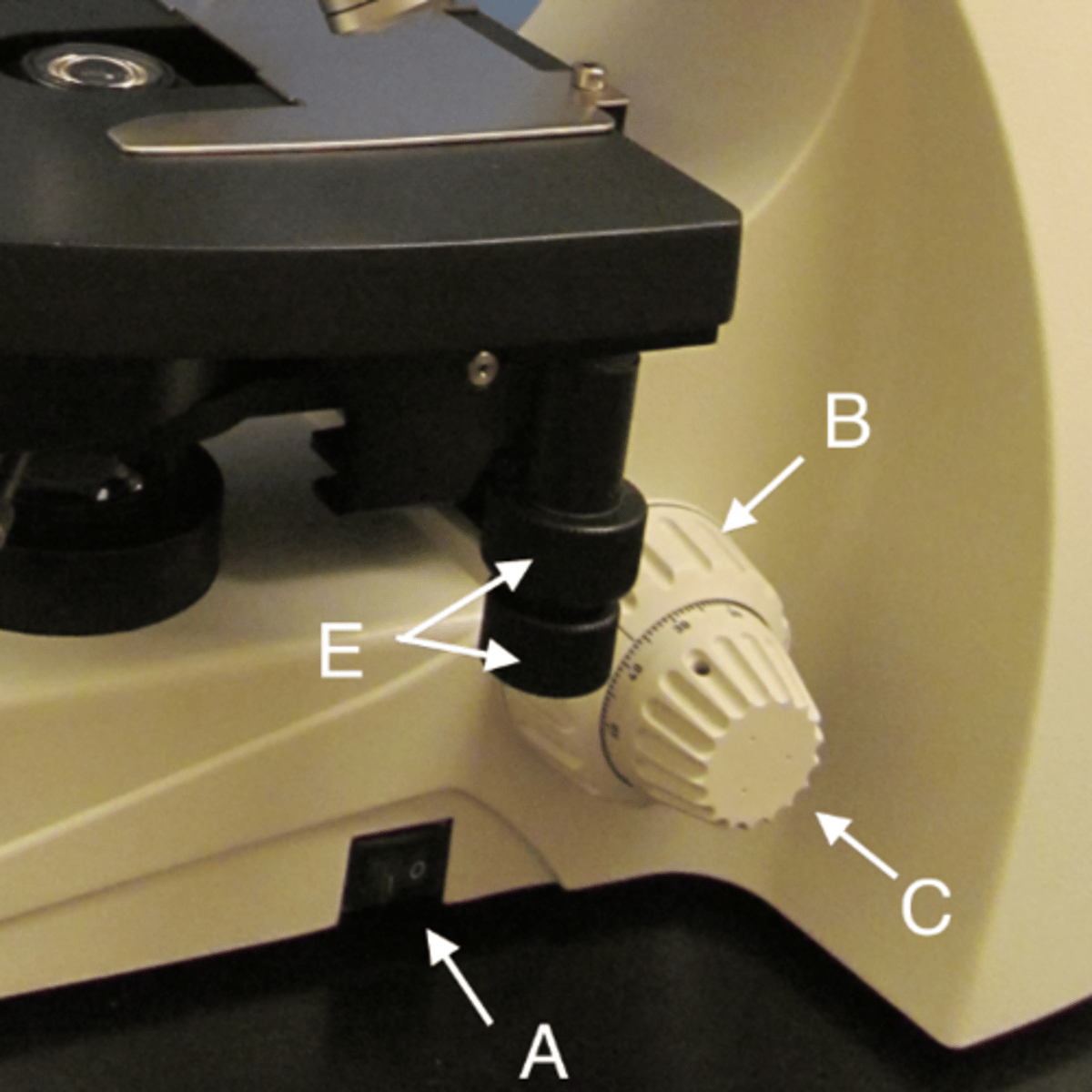

Power Switch

A

<p>A</p>
2
New cards

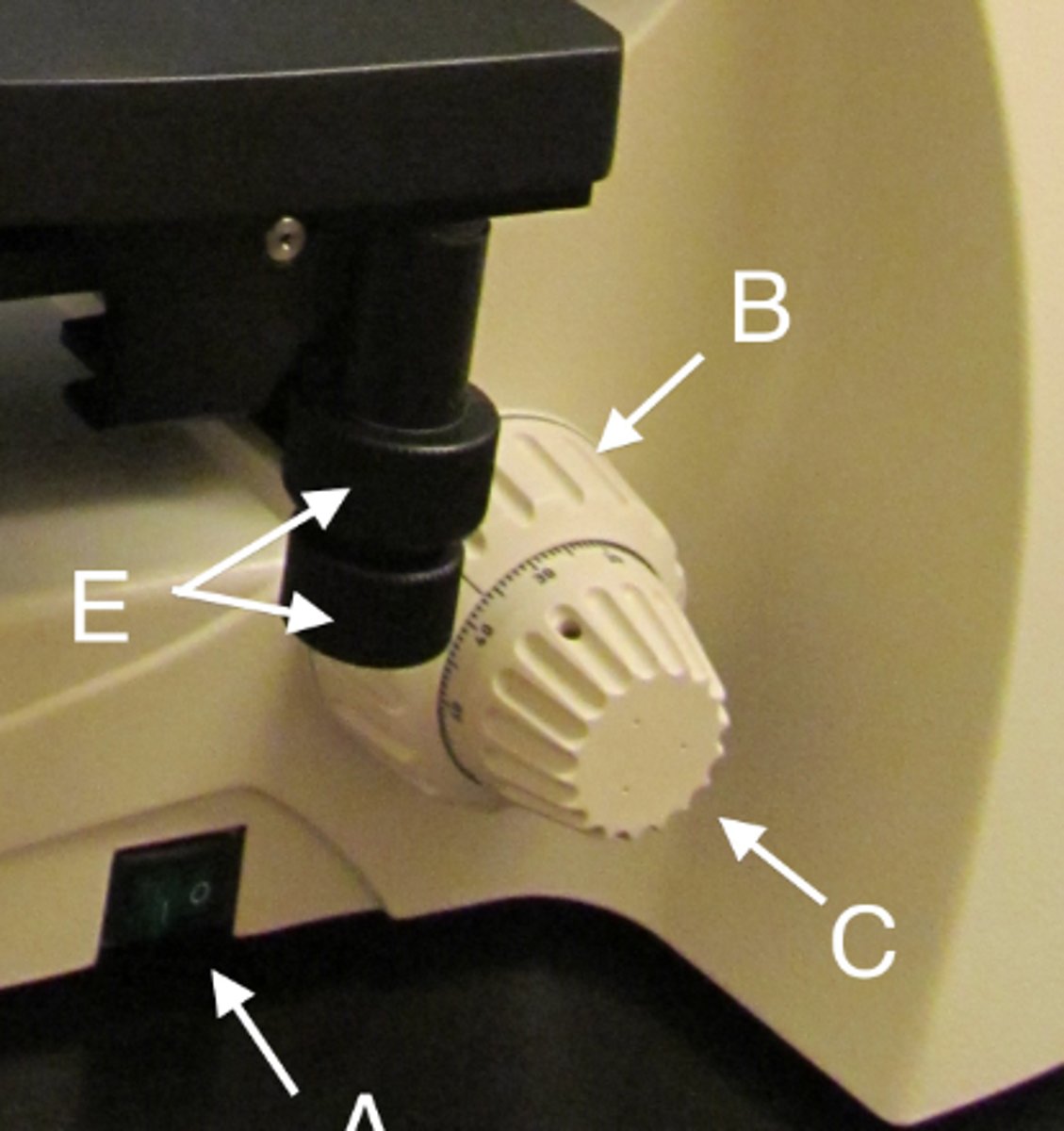

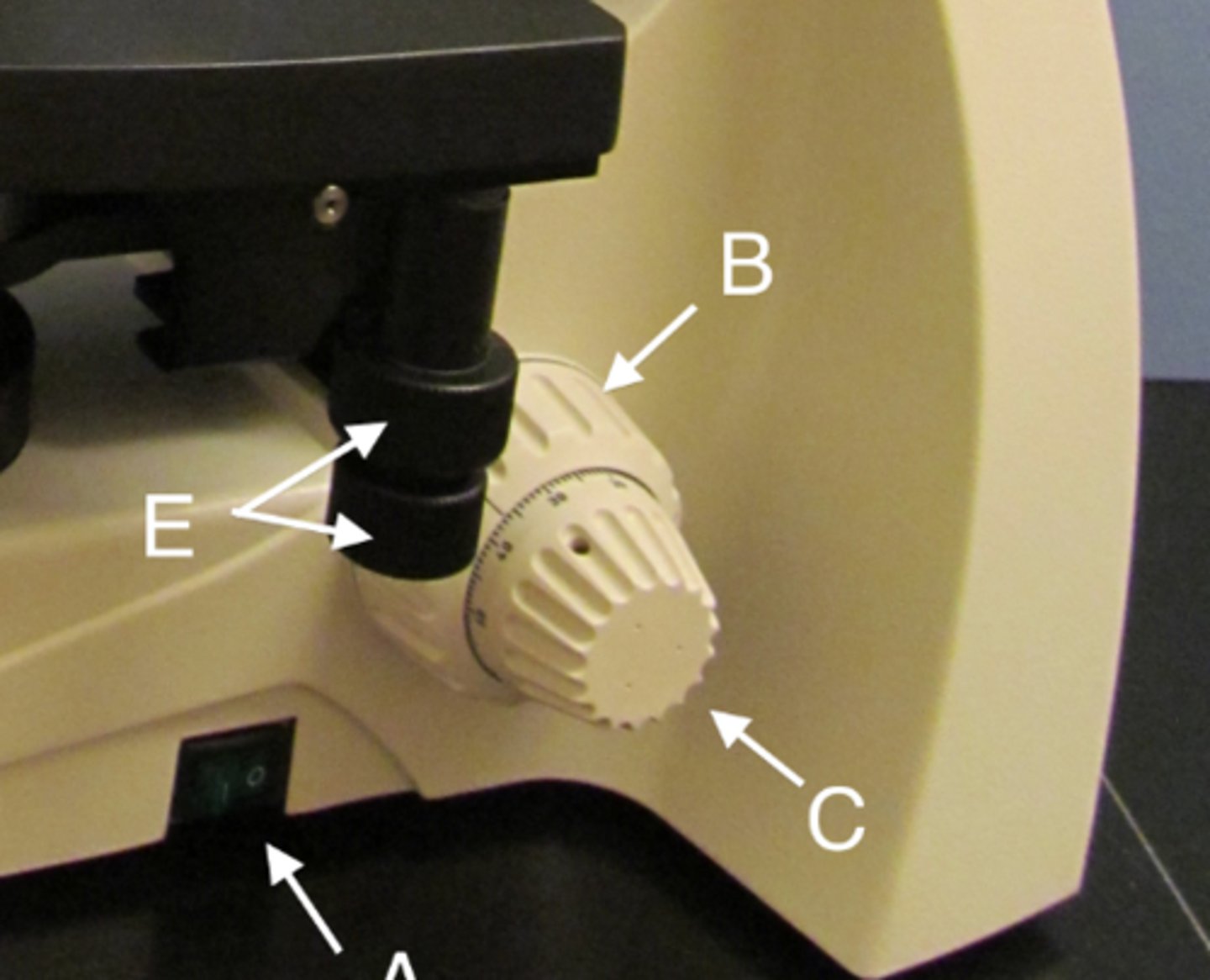

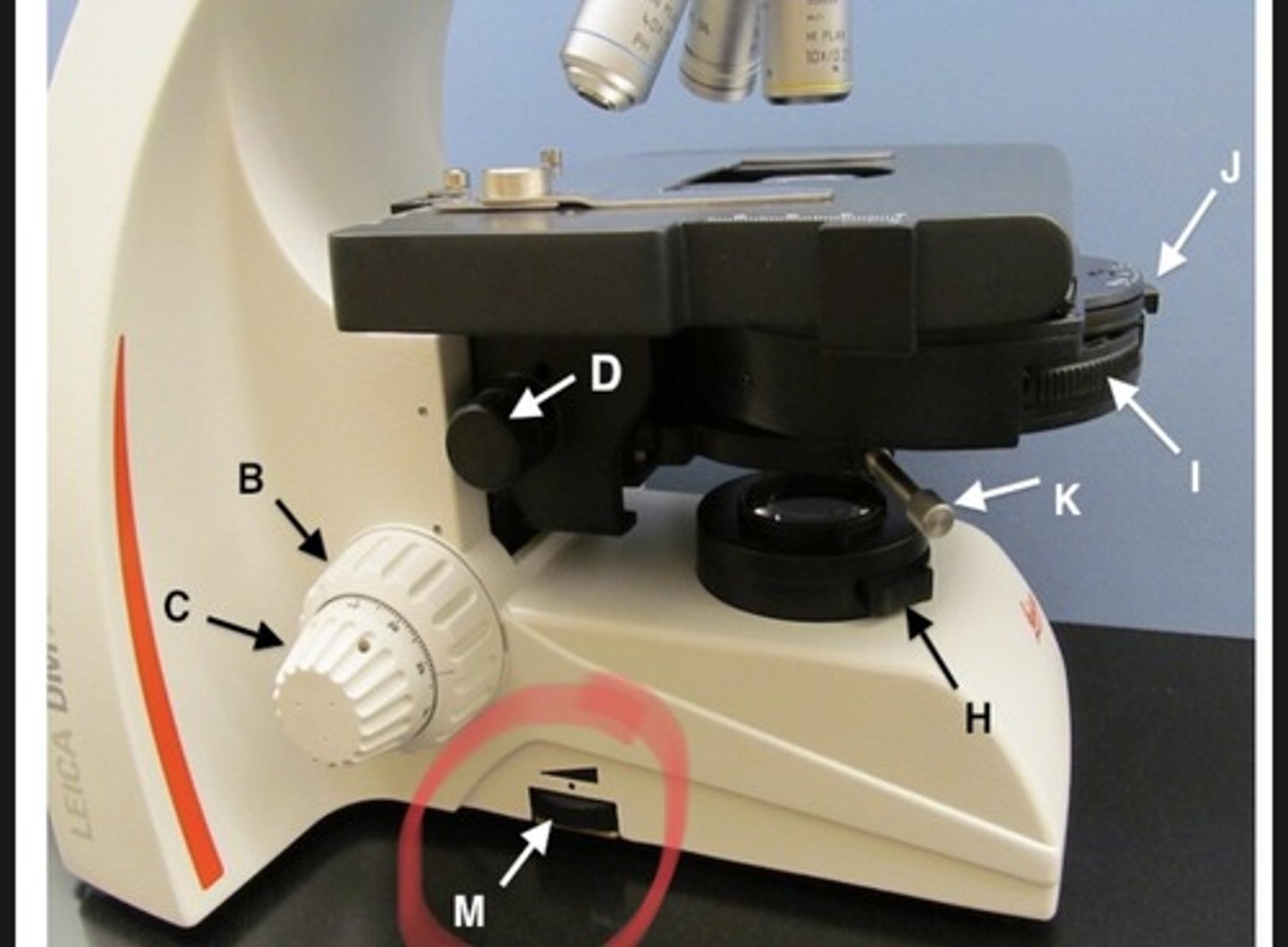

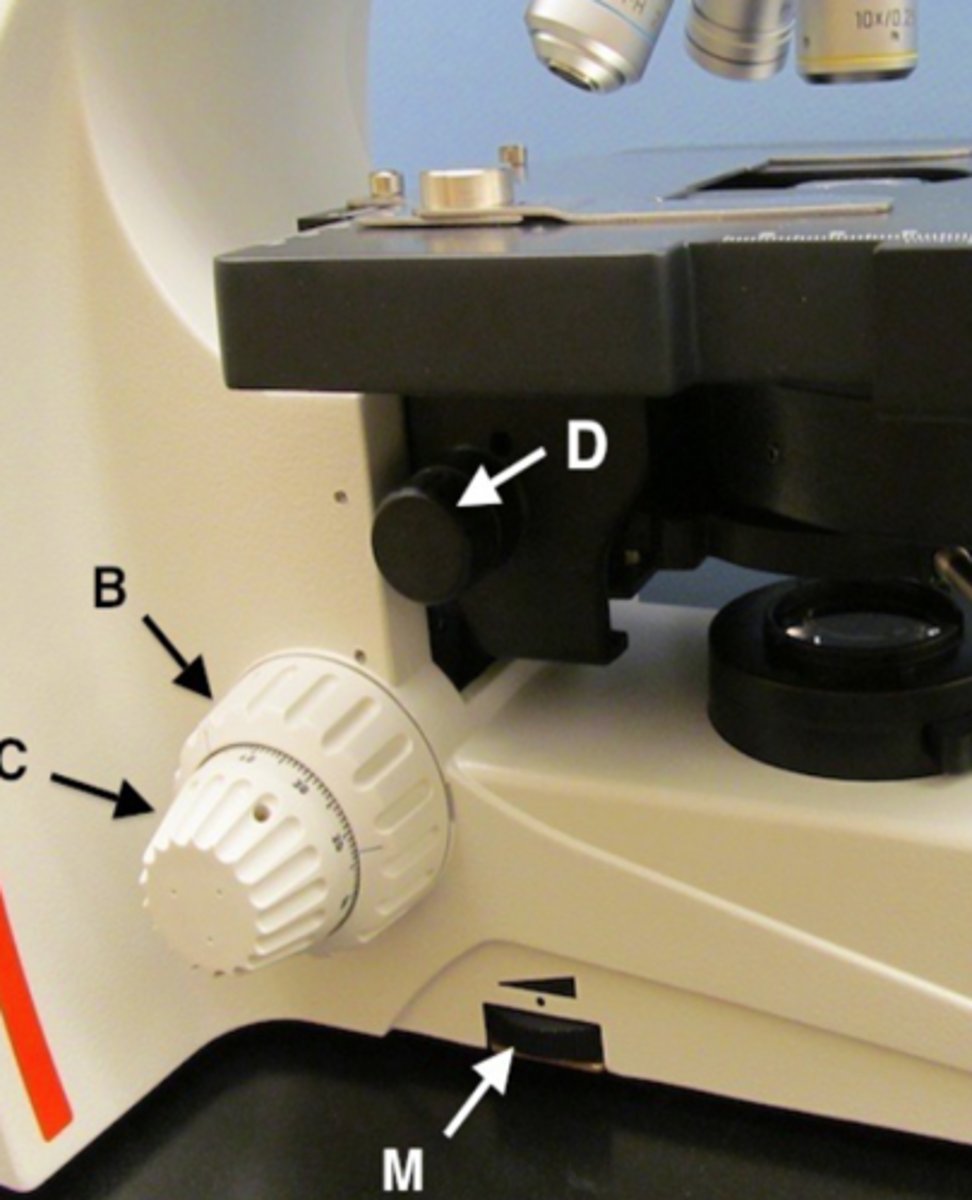

Coarse Focus Knob

B

<p>B</p>
3
New cards

Fine Focus Knob

C

<p>C</p>
4
New cards

Condenser focus knob

D

<p>D</p>
5
New cards

Mechanical Stage Controls (x and y axis)

E

<p>E</p>
6
New cards

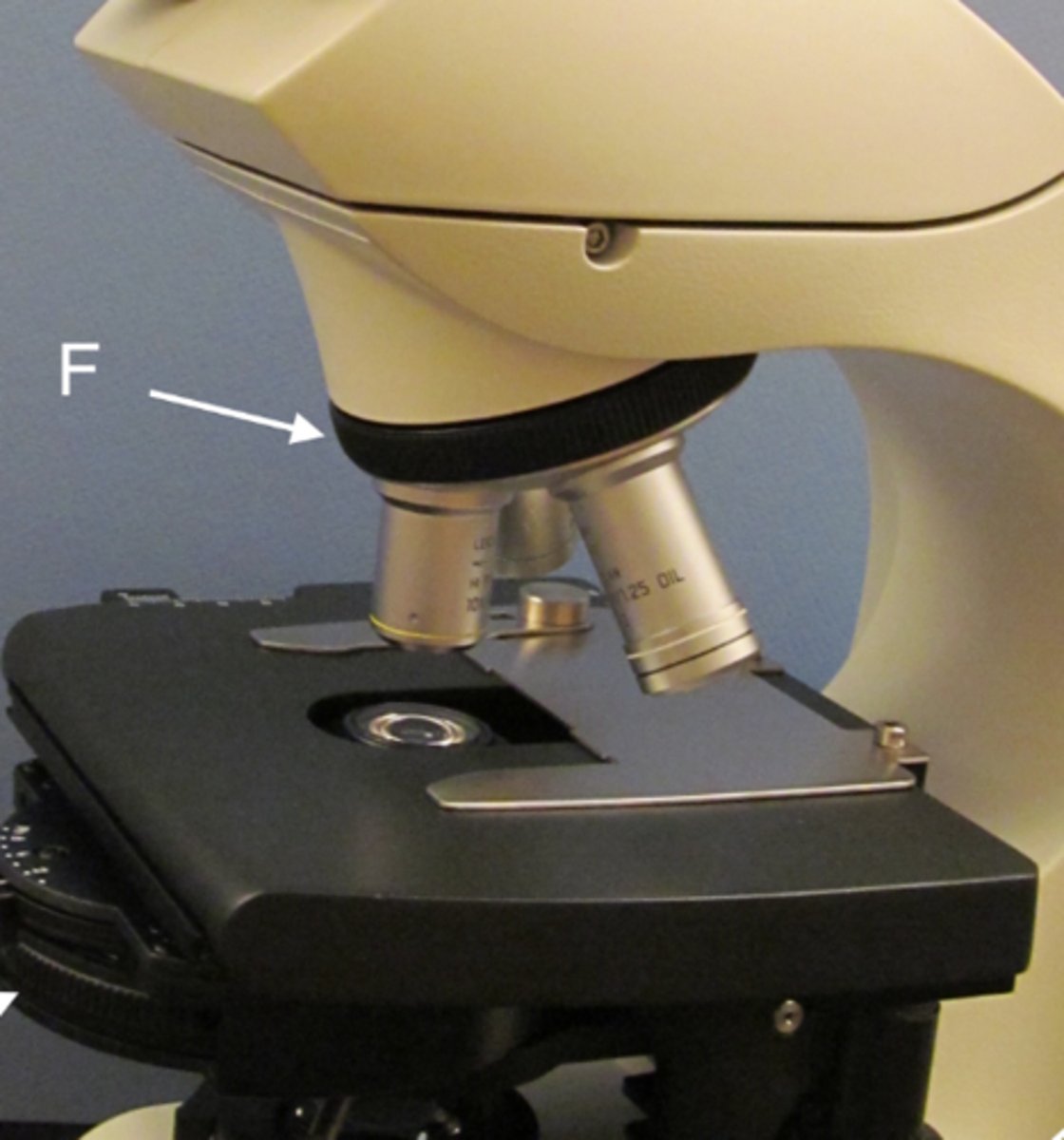

Rotating objective lens turret + objectives

F

<p>F</p>
7
New cards

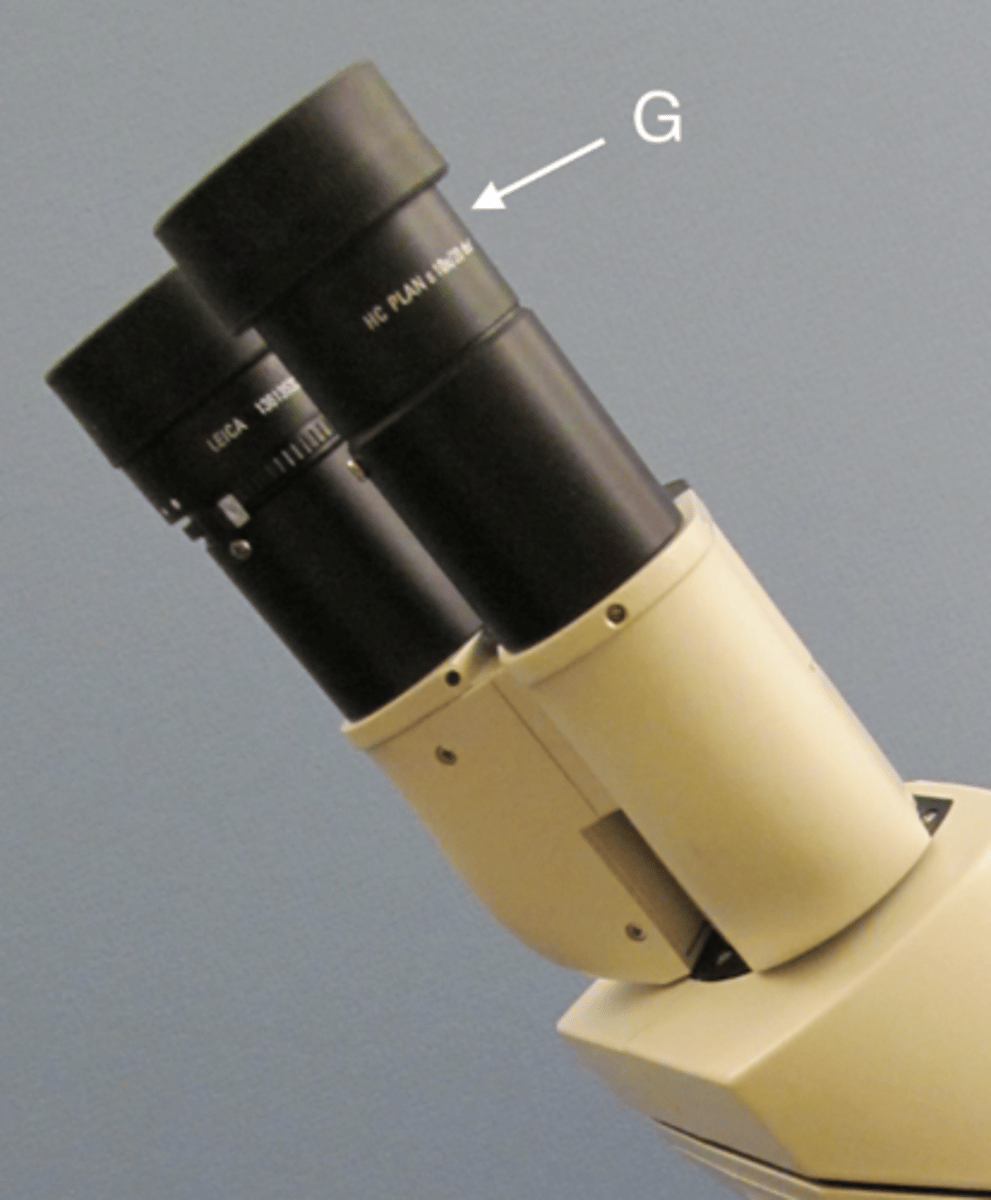

Binocular eyepieces (one has diopter adjustment and one with eyepiece micrometer)

G

<p>G</p>
8
New cards

Lamp (field) diaphragm control

H

<p>H</p>
9
New cards

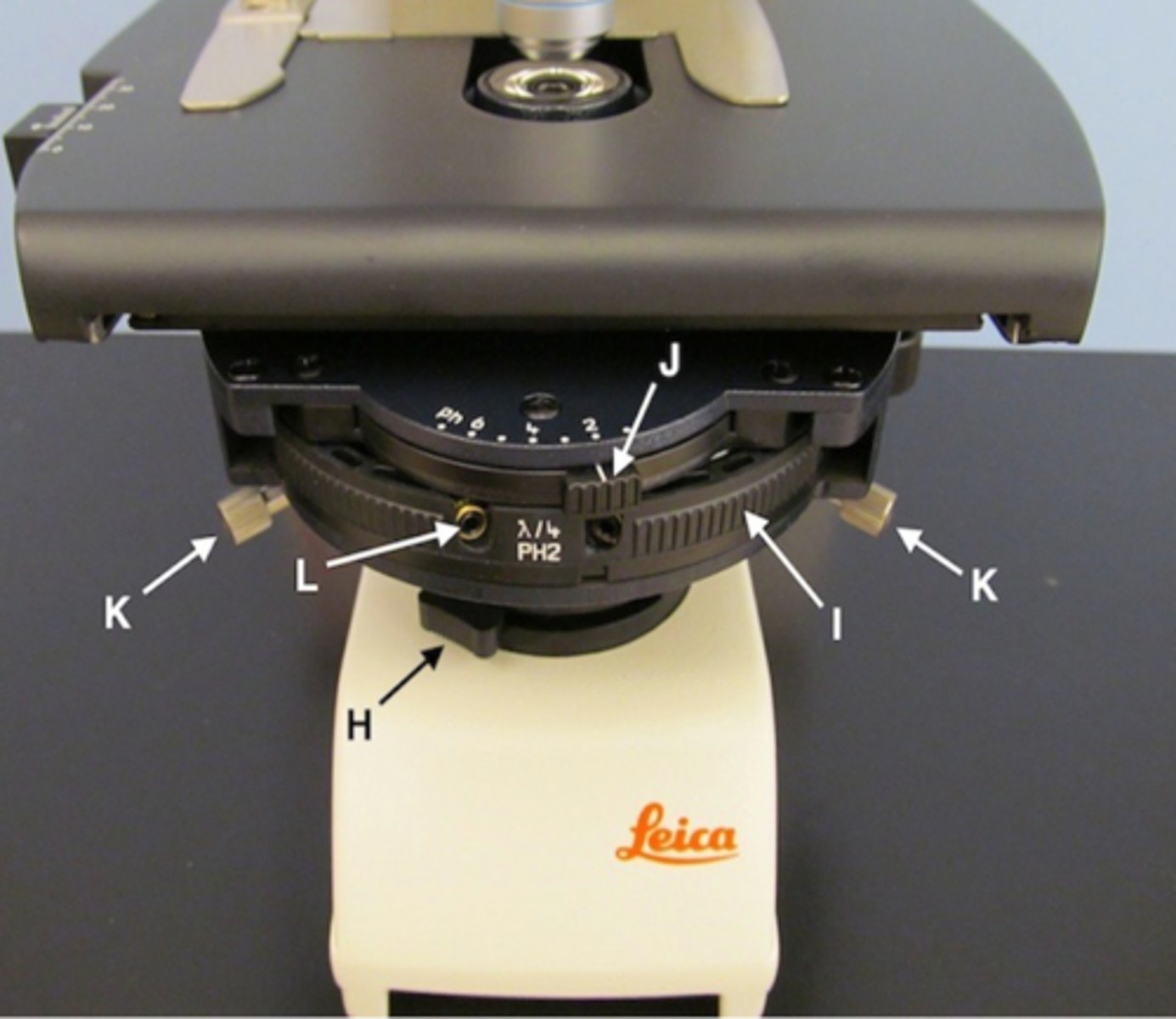

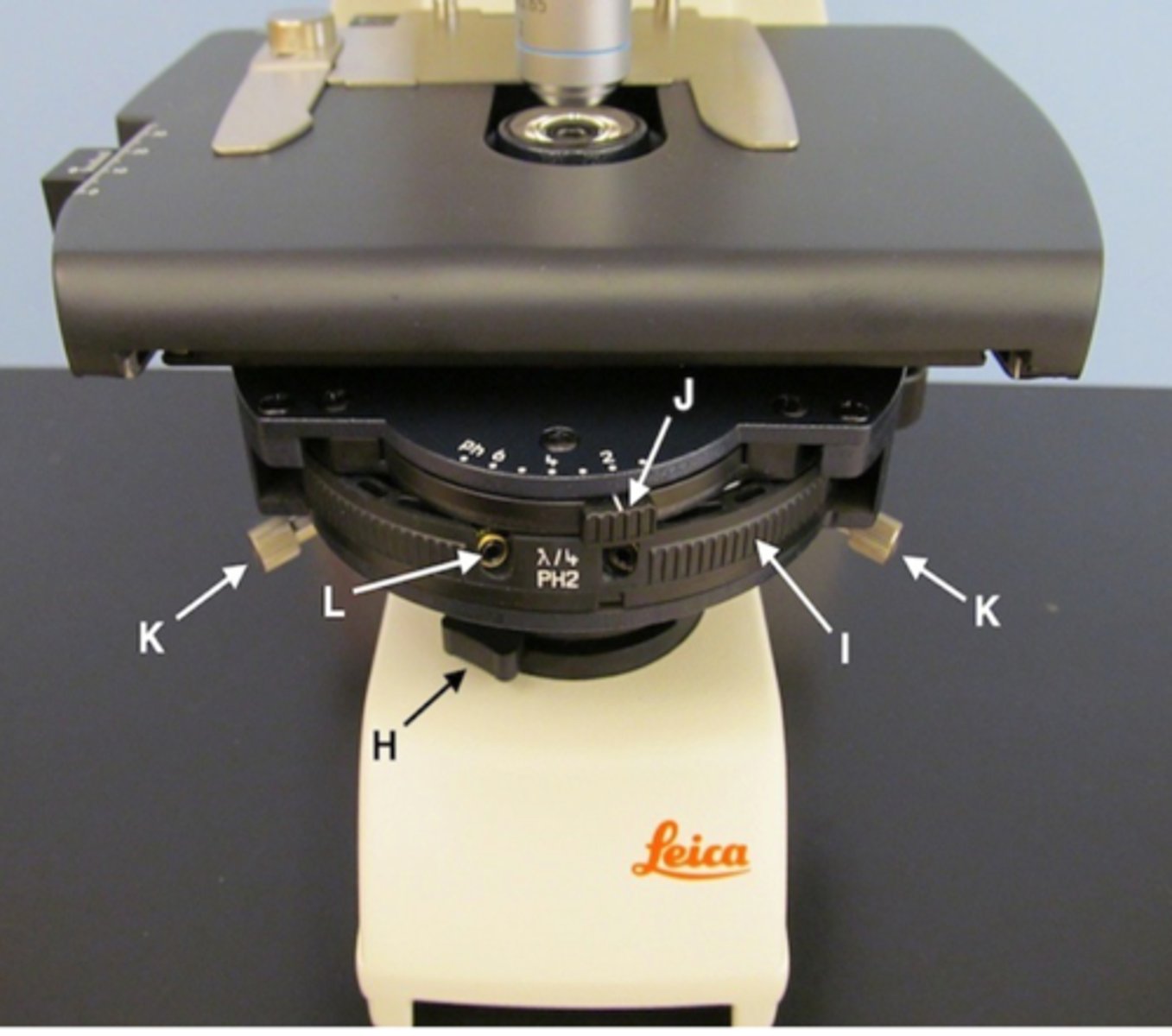

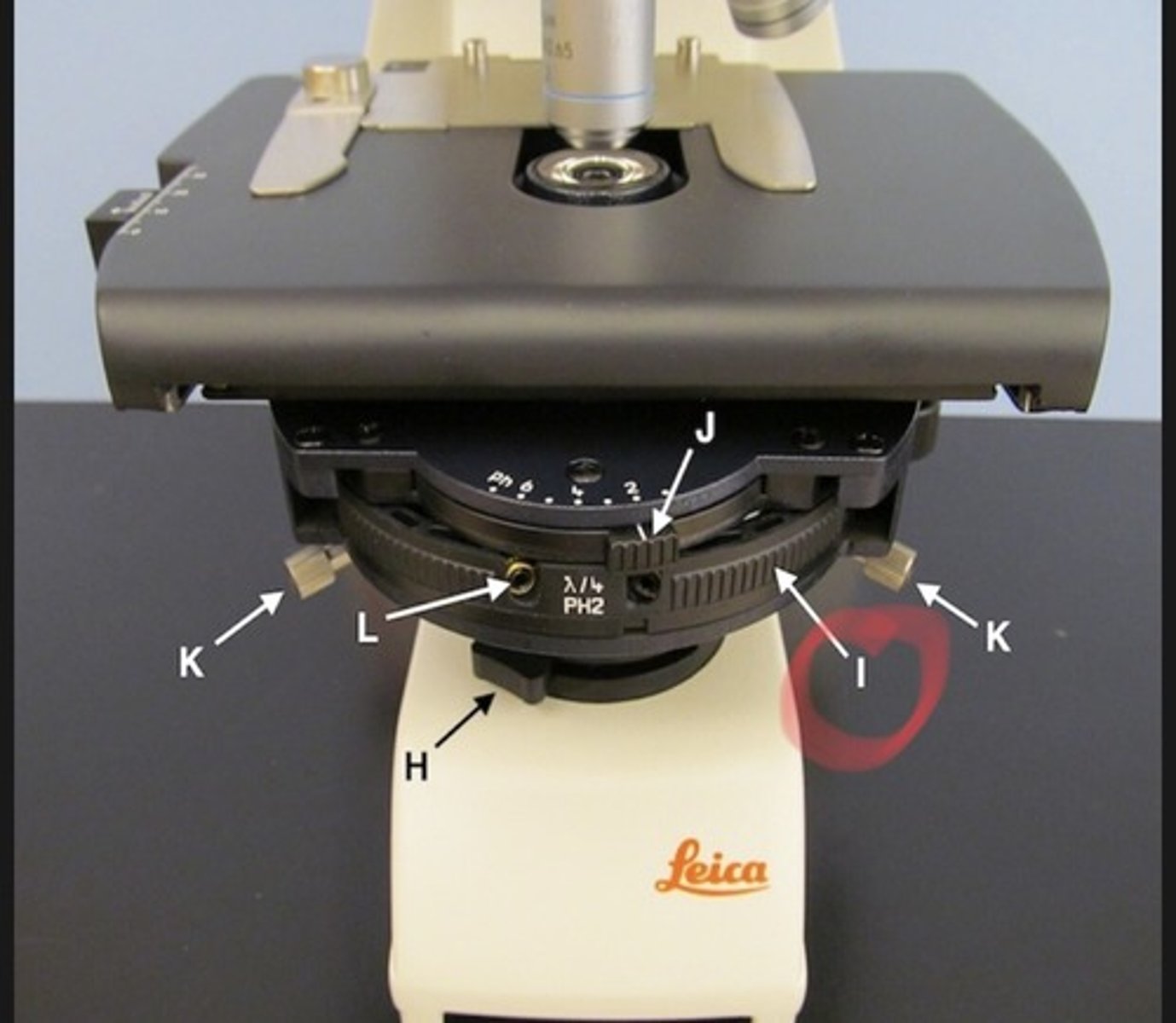

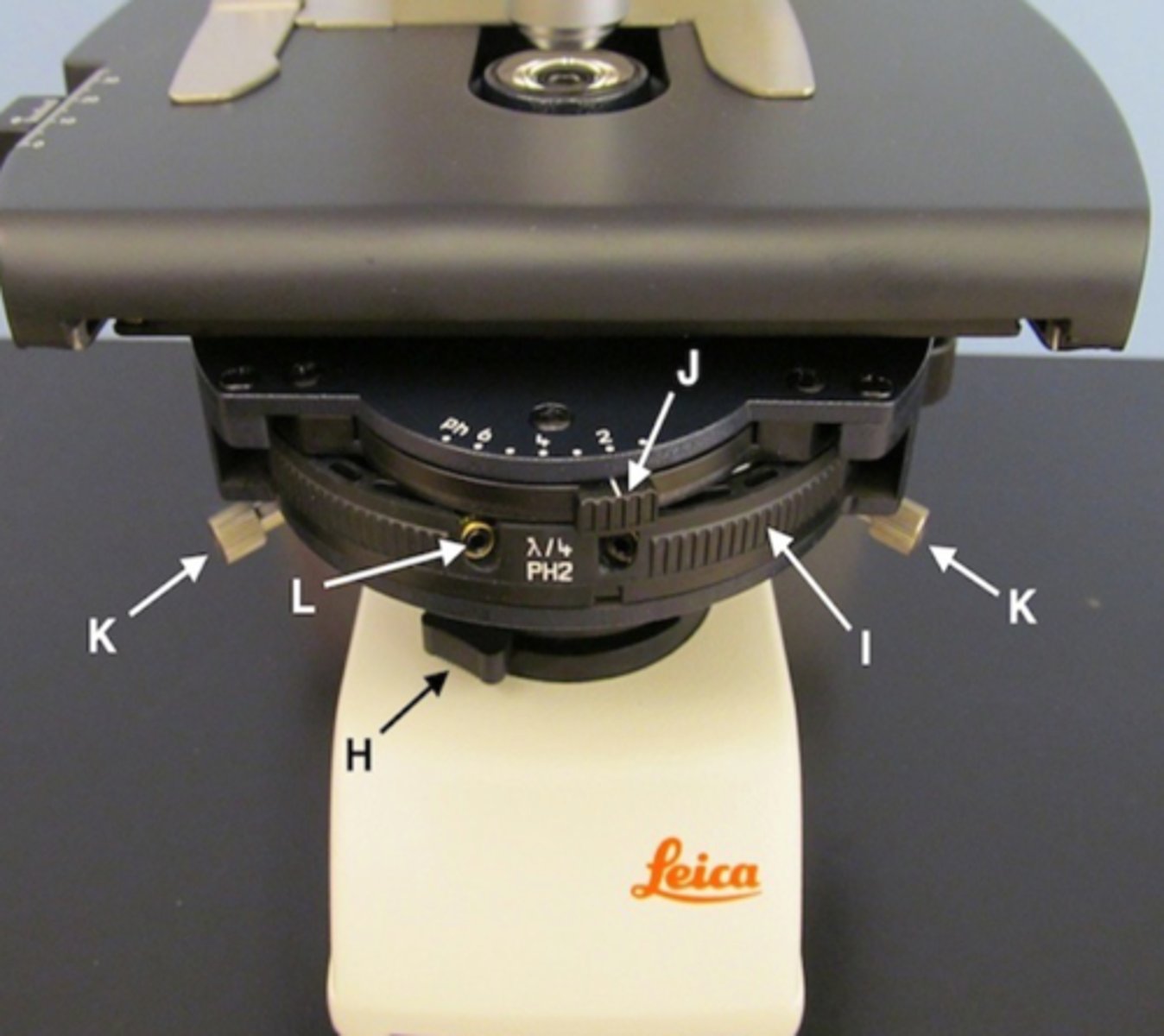

Condenser with revolving condenser disk

I

<p>I</p>
10
New cards

Condenser Diaphragm control (for iris diaphragm)

J

<p>J</p>
11
New cards

Condenser centering screws (Kohler illumination only)

K

<p>K</p>
12
New cards

Phase centering set screw

L

<p>L</p>
13
New cards

Lamp rheostat (light intensity)

M

<p>M</p>
14
New cards

Where to find which condenser setting corresponds to which objective

PH setting for each objective is inscribed on the objective itself

-note: 10x is not equipped for phase contrast microscopy

15
New cards

Diopter control

Allows you to adjust binocular eyepieces to adjust for potential differences in strength between eyes.
