14 Terms

1
New cards

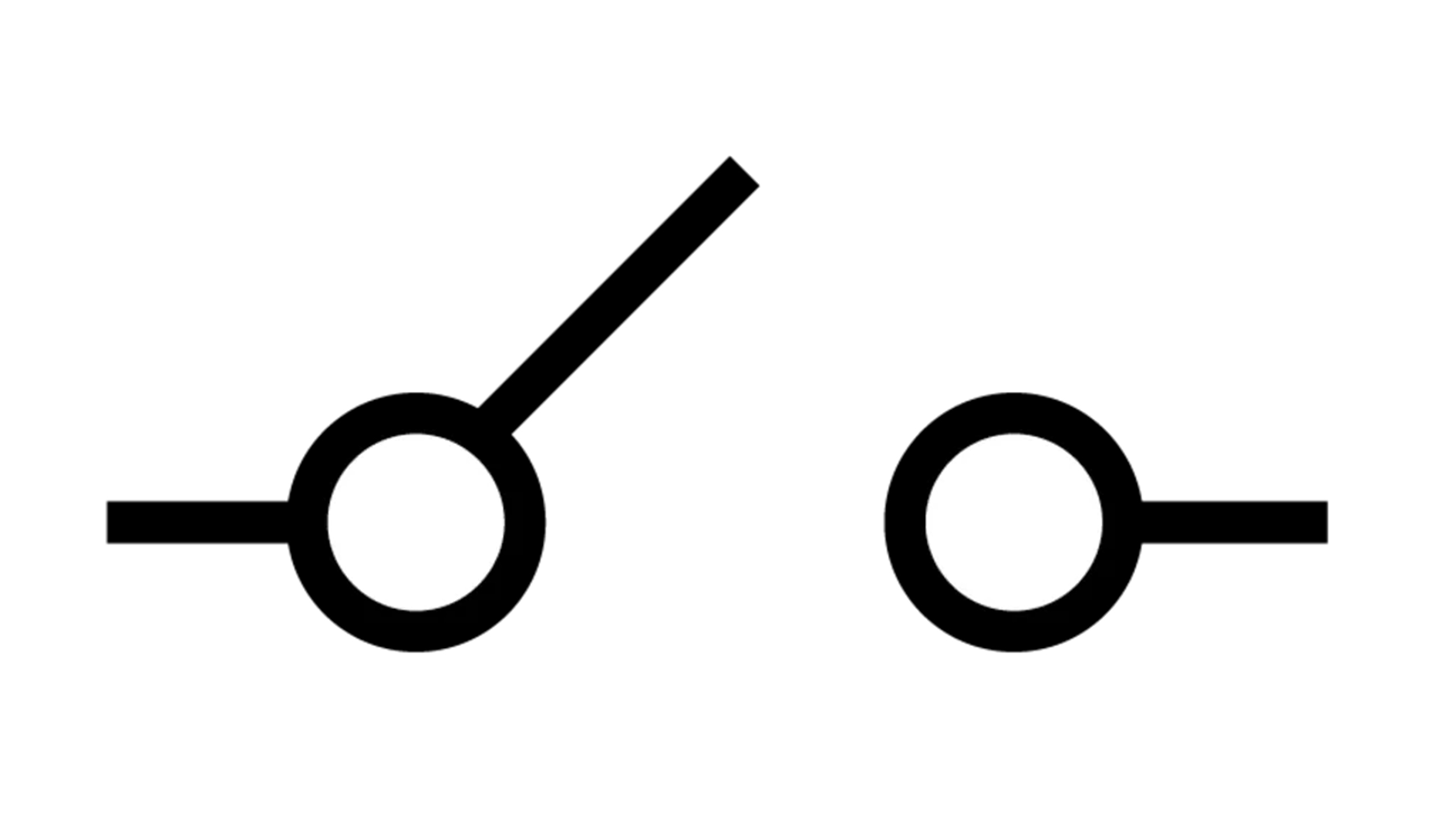

switch

opens or closes an electrical circuit, allowing current to flow through or blocking it off

<p>opens or closes an electrical circuit, allowing current to flow through or blocking it off</p>
2
New cards
cell

provides electrical energy to the charge carriers from stored chemical energy to power the circuit

<p>provides electrical energy to the charge carriers from stored chemical energy to power the circuit</p>
3
New cards
battery

multiple cells connected together to provide a larger amount of energy to the circuit

<p>multiple cells connected together to provide a larger amount of energy to the circuit</p>
4
New cards

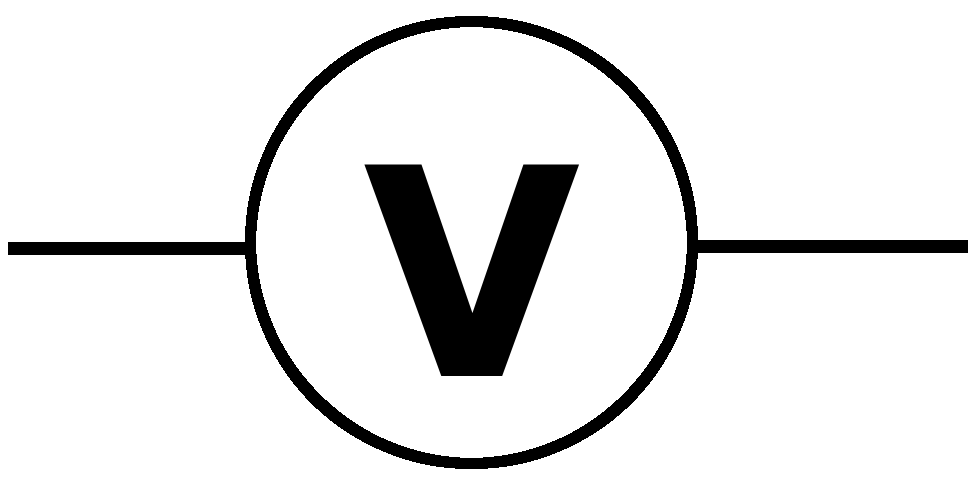

voltmeter

measures the voltage between two points in a circuit

<p>measures the voltage between two points in a circuit</p>
5
New cards
ammeter

measures the current flowing through it

<p>measures the current flowing through it</p>
6
New cards
fixed resistor

provides a set amount of resistance

<p>provides a set amount of resistance</p>
7
New cards

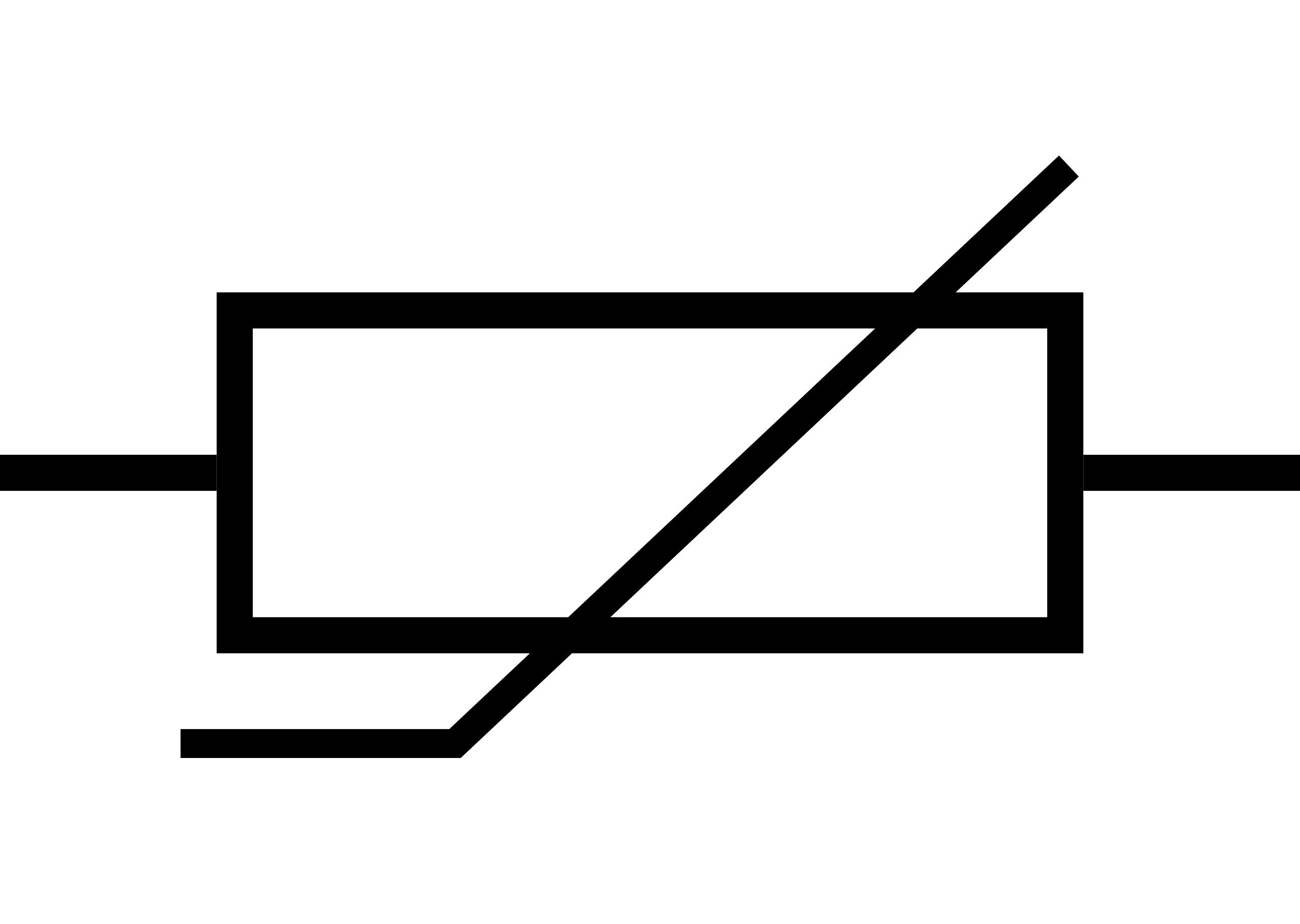

variable resistor

a resistor with an adjustable resistance

<p>a resistor with an adjustable resistance</p>
8
New cards

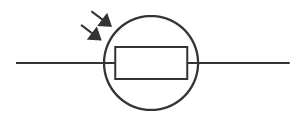

LDR

a resistor with a resistance that decreases when light intensity increases

<p>a resistor with a resistance that decreases when light intensity increases</p>
9
New cards
thermistor

a resistor with a resistance that decreases when temperature increases

<p>a resistor with a resistance that decreases when temperature increases</p>
10
New cards

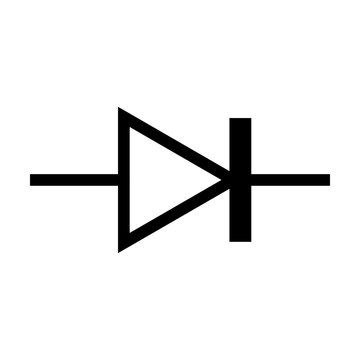

diode

allows current to flow through it one way only

<p>allows current to flow through it one way only</p>
11
New cards
LED

a diode that emits light when enough current passes through it

more energy efficient than filament lamps, but sensitive to high currents so usually used with a resistor

<p>a diode that emits light when enough current passes through it</p><p>more energy efficient than filament lamps, but sensitive to high currents so usually used with a resistor</p>
12
New cards

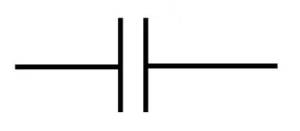

capacitor

stores electrical energy

<p>stores electrical energy</p>
13
New cards
lamp

contains a filament that heats up to the point where it glows when enough current passes through it

<p>contains a filament that heats up to the point where it glows when enough current passes through it</p>
14
New cards
fuse

a safety device that melts, breaking the circuit, if the current exceeds a set level

<p>a safety device that melts, breaking the circuit, if the current exceeds a set level</p>
