10 Terms

1
New cards

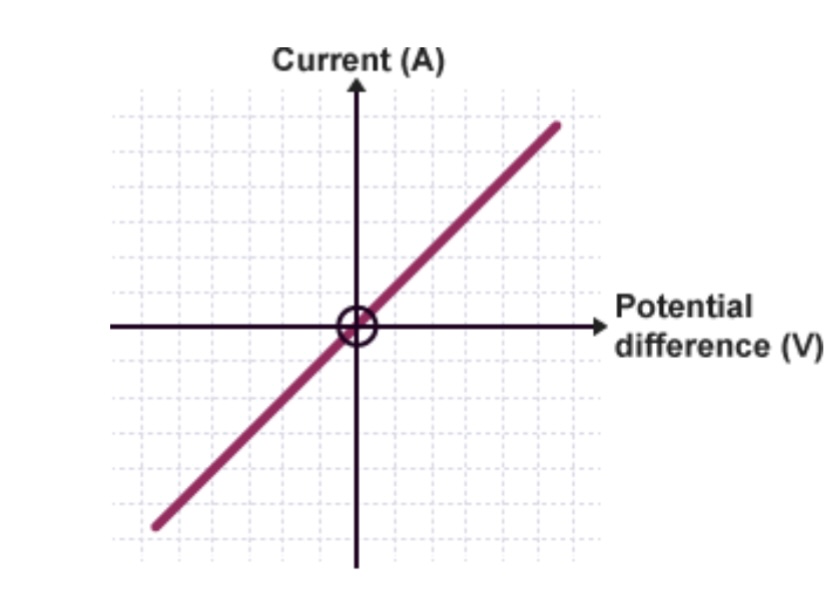

<p>Which electrical component in an IV characteristics practical does this graph show?</p>

Which electrical component in an IV characteristics practical does this graph show?

A fixed resistor

2
New cards

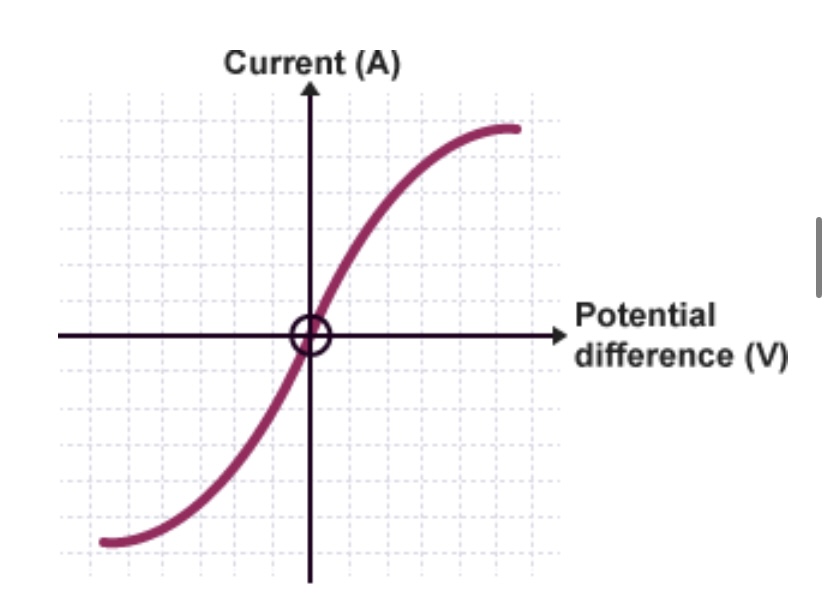

<p>Which electrical component in an IV characteristics practical does this graph show?</p>

Which electrical component in an IV characteristics practical does this graph show?

A filament bulb

3
New cards

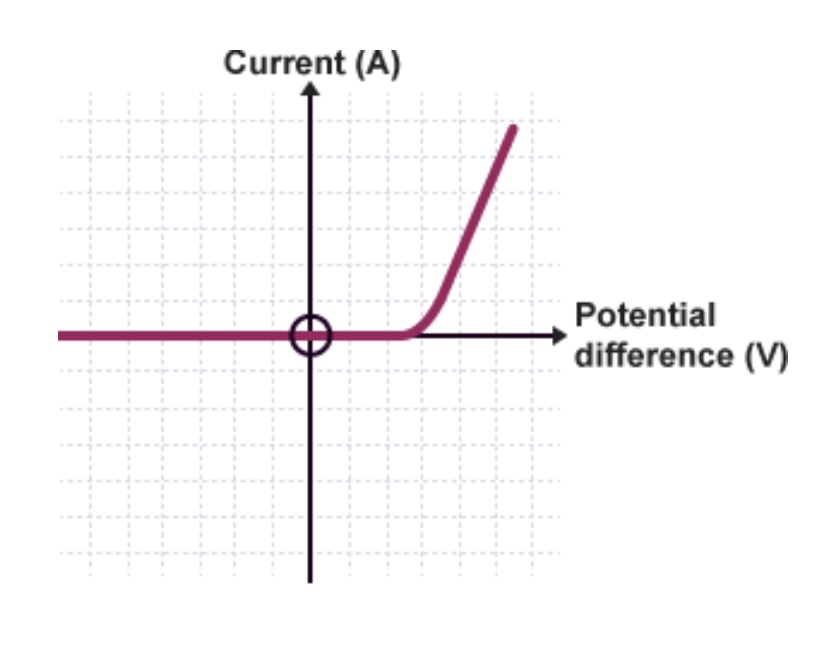

<p>Which electrical component in an IV characteristics practical does this graph show?</p>

Which electrical component in an IV characteristics practical does this graph show?

A diode

4
New cards
<p>In this graph, the current is ___ ___ to the potential difference </p>

In this graph, the current is ___ ___ to the potential difference

Directly proportional

5
New cards
<p>The more energy that is put into the filament bulb, the more ____ there is</p>

The more energy that is put into the filament bulb, the more ____ there is

Resistance

6
New cards
<p>The higher the potential difference put into the bulb the higher the ____ of the filament inside the bulb</p>

The higher the potential difference put into the bulb the higher the ____ of the filament inside the bulb

Temperature

7
New cards
<p>How many directions can the current go in based on this graph?</p>

How many directions can the current go in based on this graph?

One

8
New cards

Name the electrical component that can alter potential difference

A variable resistor

9
New cards

What extra electrical component is used when creating a series circuit for a diode?

A protective resistor

10
New cards

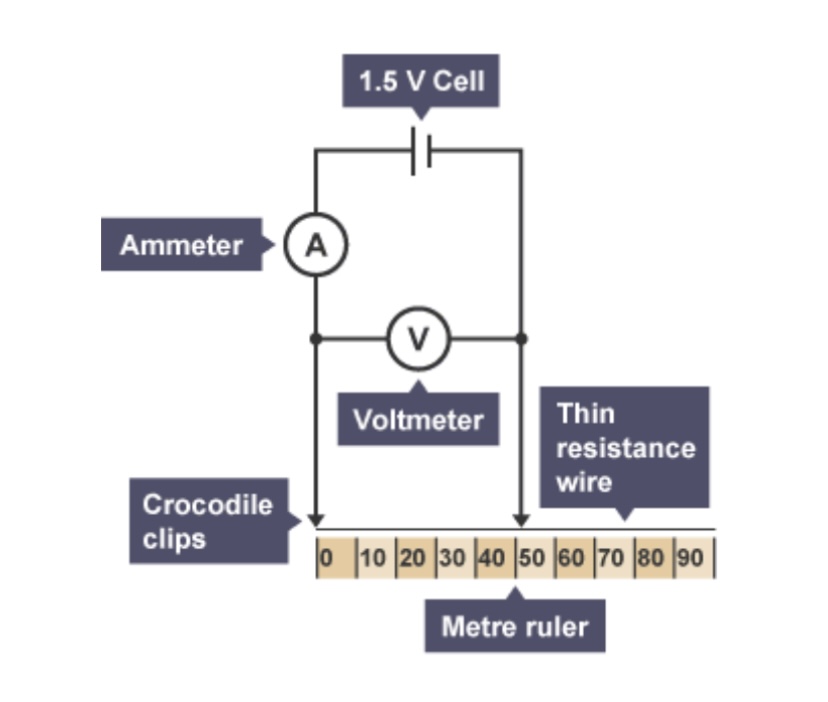

<p>Which required practical uses this set up?</p>

Which required practical uses this set up?

Resistance of a wire
