5 Terms

1
New cards
<p>AND gate</p>

AND gate

Both inputs must be 1 for the output to be 1

2
New cards

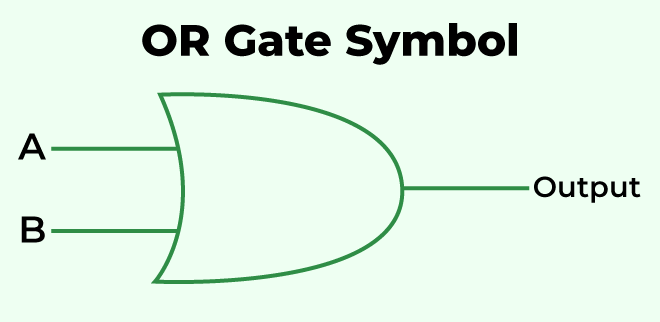

<p>OR gate</p>

OR gate

At least one input must be 1 for the output to be 1

3
New cards

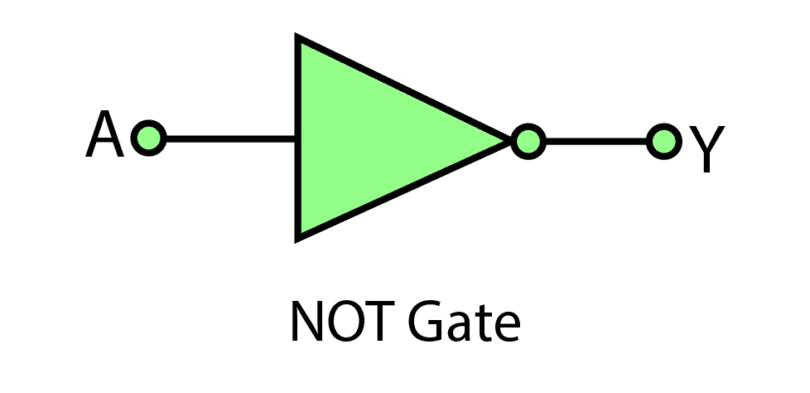

<p>NOT gate</p>

NOT gate

Reverses the input

4
New cards

Binary

base 2 number system that computers use

5
New cards

Boolean

a value that is either true or false
