M1L3 Post translational modifications in DNA damage response

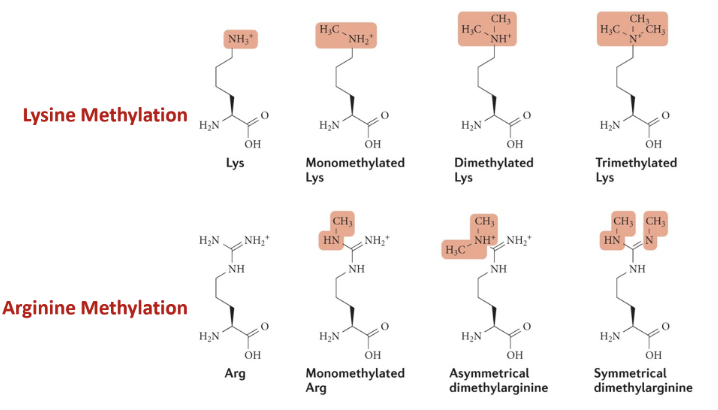

In which ways can lysine and arginine be methylated?

What is the effect of histone methylation?

• Adding methylation is increasing hydrophobicity - compacts chromatin by disfavouring exposure to the aqueous environment, thus burying hydrophobic regions and allowing histone tails to interact strongly via hydrophobic contacts)

• Hydrophobic patches can also act as docking sites for chromatin-modifying proteins and deterring the binding of factors that cause euchromatinisation

• Methylation determines chromatin state (DNA condensation for gene silencing) and generates binding surface for DDR proteins (to remove methylation for damage repair)

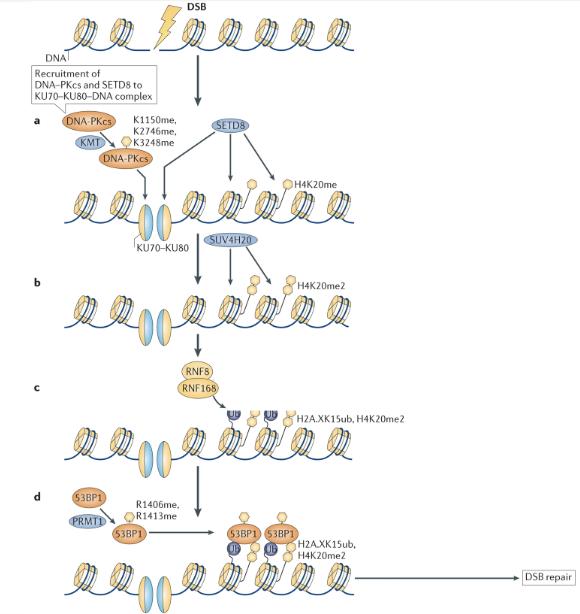

How does methylation work on proteins involved in DNA damage repair?

• When there is a DSB, DNA damage is detected by Ku70-Ku80 complex which binds to the broken ends of the DNA

• DNA-PKcs are recruited to the complex and are methylated at K1150, K2746, and K3248 by lysine methyltransferase (KMT)

• This stabilises the DNA-protein complex and creates binding sites for downstream enzymes

• SET8 (histone methyltransferase) can bind to the site and add a monomethyl group to K20 of H4 (H4K20me)

• SUV4H20 adds another group to produce H420me2

• Methyl groups act as landing pads for DDR proteins

• E3 Ub ligases RNF8/RNF168 ubiquitylate H2A (H2AK15ub)

• H4K20me2 + H2AK15ub define a specialized chromatin environment at DNA breaks which recruits 54BP1

• 53BP1 is methylated (R1406me, R1413me) by the PRMT1, augmenting its histone binding ability and stabilising its binding to the lesion

• 53BP1 initiates DSB repair pathways

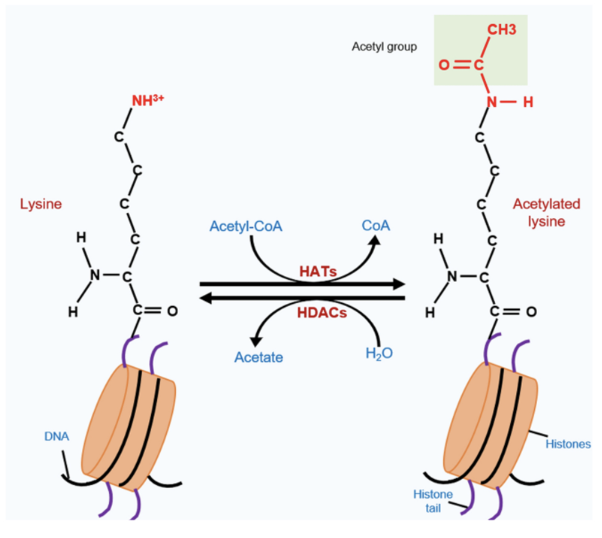

How does lysine get acetylated

Acetyl-CoA acts as a donor, transferring its acetyl group to histone acetylatransferase (HAT) which acetylates lysine (eg. Tip60, CBP/p300, GCNS)

Why is histone acetylation more disruptive than methylation?

• Methylation does not negate the positive charge from protonated amine group in lysine

• Acetylation neutralises positive charge of lysine, thus much more disruptive than methylation and opens up DNA structure

What is the effect of histone acetylation?

Neutralises the positive charge on lysine which minimises the electrostatic attraction between the histone and the negatively charged DNA, thus opening up the structure

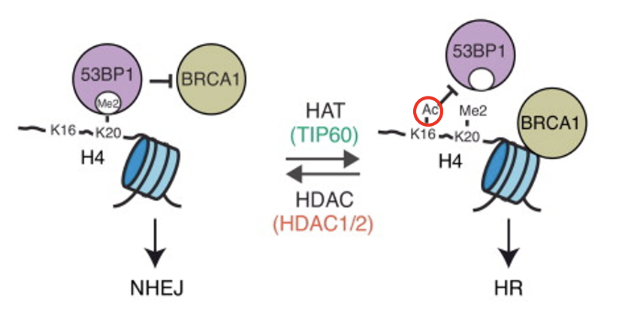

How does acetylation/methylation affect the DDR pathway that is initiated?

• When K20 is dimethylated in histone H4, it recruits 53BP1 to bind to the methyl patch which blocks the activity of BRCA1, triggering NHEJ

• When K16 is of H4 is acetylated by Tip60, 53BP1 can not bind and BRCA1 carries out HR

• Deacetylation of K16 by HDAC1/2 will favour NHEJ once again

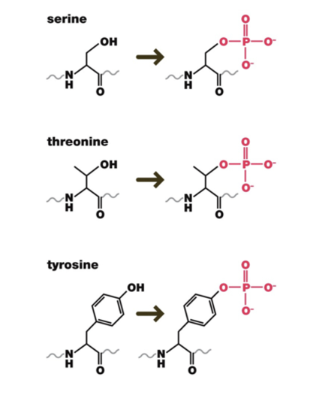

Where can phosphate groups be added on proteins?

Phosphate groups can be added to the hydroxyl group of serine, threonine, or tyrosine (these amino acids are very common on the outer surface of proteins, providing many sides of the protein for kinases to act on)

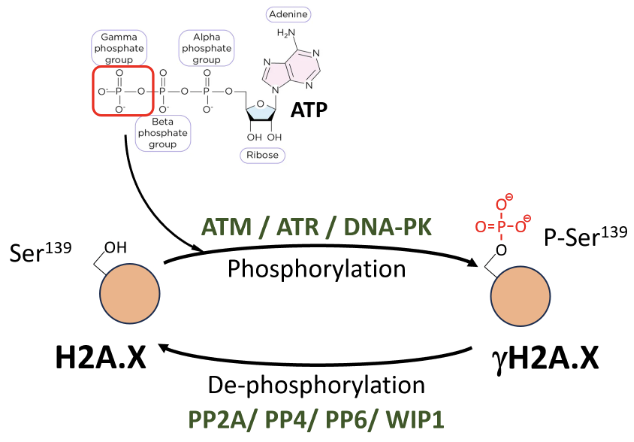

Explain how H2A.X is modified by phosphorylation?

• γH2A.X is formed by P-Ser¹³⁹ modification (by ATM/ATR/DNA-PK) on H2A.X

  • Phosphate is deposited by ATM/ATR/DNA-PK transferring the γ-phosphate group from ATP to the hydroxyl group of the amino acid substrate

• γH2A.X can be dephosphorylated by PP2A, PP4, PP6, WIP1

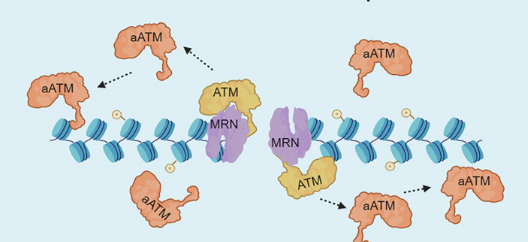

Describe the ATM diffusion-driven spread

• MRN complex (MRE11–RAD50–NBS1) recognises the DNA DSB and recruits ATM kinase

• Upon binding to the MRN-DNA complex, ATM autophosphorylates and gets activated (aATM)

• aATM dissociates from MRN and diffuses along nearby chromatin, phosphorylating H2AX across a domain surrounding the break

What are the steps in the ATM pathway?

• ATM pathway activates by DSBs
  MRN complex (MRE11–RAD50–NBS1) detects and binds to DSB

• MRN recruits ATM and activates it by promoting its monomerisation and autophosphorylation activity

• Active ATM phosphorylates:

  • H2AX - marker for DSB

  • 53BP1, MDC1, BRCA1 → mediate DSB repair and checkpoint signalling

  • CHK2 - checkpoint kinase

• CHK2 phosphorylates p53 which can trigger apoptosis or checkpoint arrest

• If the cell cycle is arrested DNA may be repaired or the cell may senesce if repair does not happen

What are the steps in the ATR pathway?

• Replication stress activates the ATR pathway

• Stalled replication forks are characterised by ssDNA bound by RPA

• ATR binds to RPA-ssDNA via its partner ATRIP

• RAD9-RAD-1-HUS1 is loaded on to the DNA and ATR is activated

• ATR phosphorylates

  • H2AX to mark the DSB

  • BRCA1 and TOBP1 to coordinate repair

  • CHK1 - checkpoint ikinase

• CHK1 phosphorylates CDC25 which arrests the cell cycle, allowing for repair

• If the lesion is unrepaired the cell may senesce

What DDR pathway is DNA-PK involved in?

NHEJ

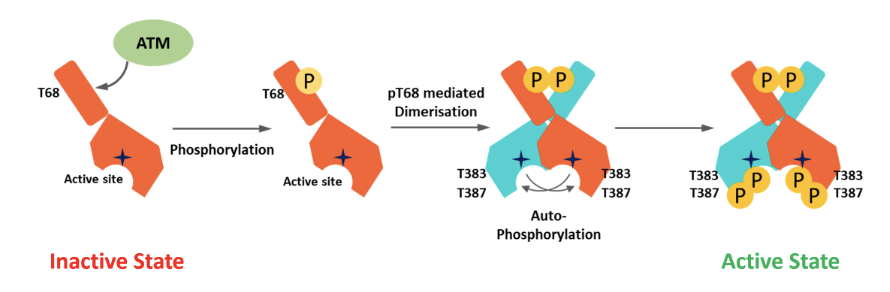

Describe the phosphorylation mediated activation of Chk2

• In the inactive state CHK2 is monomeric and the kinase domain in the C terminus is blocked by the N lobe

• Active ATM phosphorylates at T68, causing pT68 mediated dimerisation and subsequent autophosphorylation

• Active kinase is fully phosphorylated at T383 and T387

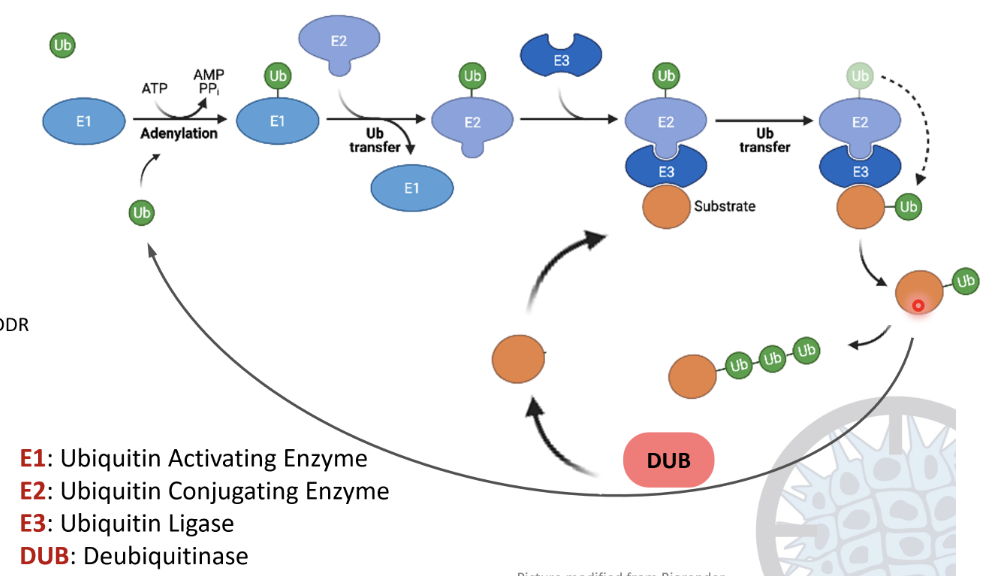

What are the steps in the ubiquitination cascade?

• E1 ubiquitin activating enzyme activates ubiquitin using ATP, forming a Ub-AMP intermediate and releasing PP_i

• Ub forms a strong thioester bond with a cysteine residue on E1

• Ub is transferred from E1 to the E2 ubiquitin conjugating enzyme by forming a thioester bond

• E3 ubiquitin ligase recognises a substrate protein and binds to both the substrate and E2-Ub

• A covalent isopeptide bond forms between the glycine residue at the C-terminus of ubiquitin and the lysine side chain of the substrate

• The process can repeat to form a polyubiquitin chain

• Deubiquitinases (DUBs) can hydrolyse the Ub linkage to recycle the substrate and Ub

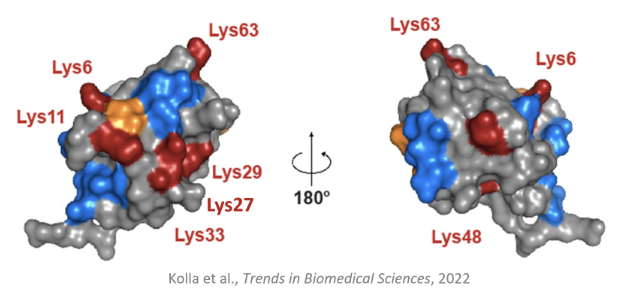

How can polyubiquitin chains be formed?

• A Ub that is already bound to a substrate can bind to another Ub to form a polyubiquitin chain by binding to a lysine on the other Ub

  • Due to 7 functional lysine residues on Ub, there is a diversity of possible polyubiquitinated substrates

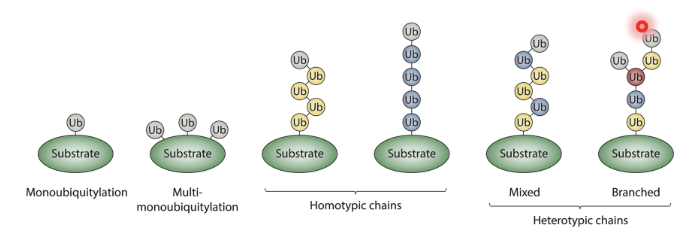

Outline the diverse ways in which substrates can be ubiquitylated

Substrates can be monoubiquitylated, multi-monoubiquitylated, form homotypic chains (chains of the same Ub), mixed or branched heterotypic chains (of different Ubs)

What is the fate of a mono- or multu-monoubiquitylated substrate?

Protein sorting and trafficking, histone modification, and small protein degradation

What is the fate of a substrate with an M1-linked Ub chain?

Regulation of NFκB and IFN signalling

What is the fate of a substrate with a K48-linked Ub chain?

proteasomal degradation

How can the number of ubiquitylation events affect the launch of DDR?

A single monoubiquitination event is usually not enough to trigger DDR, several nucleosomes should be monoubiquitinated to trigger a response

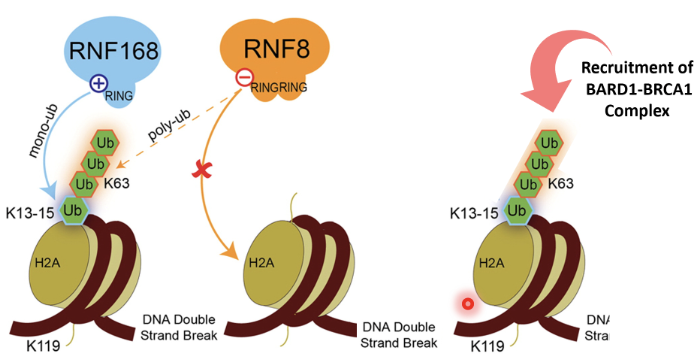

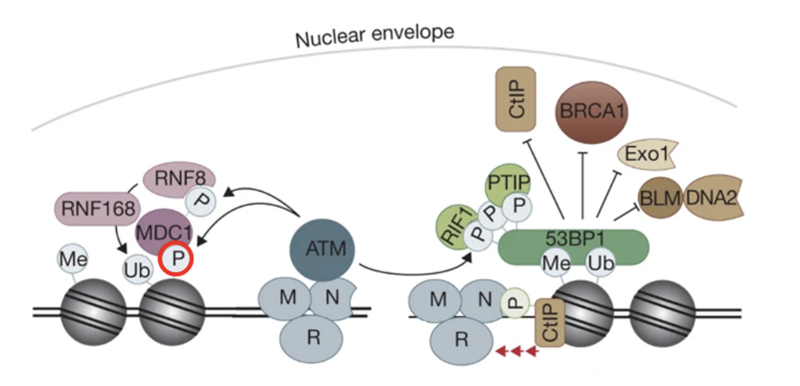

Describe the role of ubiquitination in DNA damage

• RNF8 - bridge between phosphorylation and ubiquitination

  • It is an E3 Ub ligase with a RING domain to identify E2 enzymes

  • It can also recognise phosphorylation sites

• MRN identifies DSB and recruits ATM

• ATM phosphorylates H2AX which recruits MDC1

• MDC1 phosphorylated by ATM

• RNF8 binds to phosphorylated MDC1 as a reader and gets activated

• RNF8 ubiquitinates histones (mainly H2A and H2AX) at lysine residues K13–K15

• Monoubiquitination marks serve as docking sites for RNF168 (another RING-type E3 ubiquitin ligase)

• RNF168 is recruited to RNF8-mediated Ub marks and extends the chains by adding K63-linked polyubiquitin chains on the same histones

• This serves as recognition platforms for repair proteins

• 53BP1 recognizes H2A ubiquitination + methylation marks (H4K20me2) and promotes NHEJ

  BRCA1–BARD1 complex recognizes ubiquitinated chromatin and triggers HR

What is PARylation?

Addition of ADP ribose to substrate

What are the acceptors of PARylation?

DNA, RNA, Glu, Asp, Ser, Thr, Arg, Cys

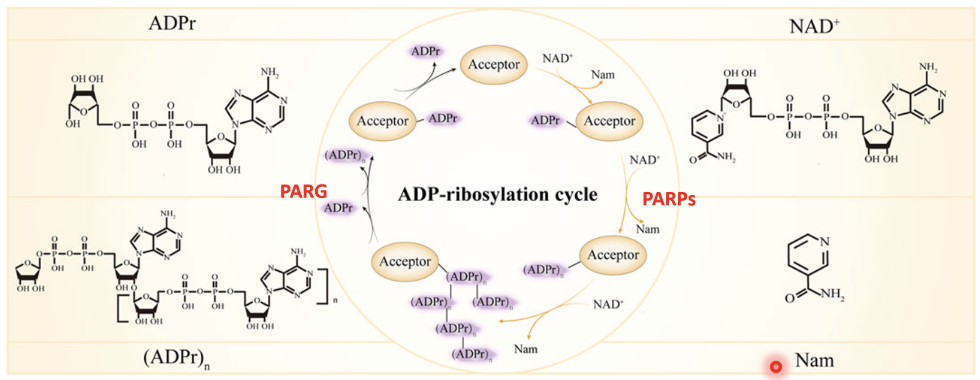

Describe the ADP-ribosylation cycle

• PARPs use NAD⁺ as a cofactor and transfer an ADP-ribose group from NAD⁺ to specific amino acids on target proteins (acceptors), leaving Nam as a byproduct

• The first ADP-ribose added to a protein forms mono-ADP-ribosylation (ADPr)

• PARP enzymes can extend this modification by linking multiple ADP-ribose units together via glycosidic bonds, forming long branched polymers (PAR chains) - (ADPr)_n.

• Once DNA repair is complete, the modification is reversed by PARG (poly[ADP-ribose] glycohydrolase) which hydrolyses the ribose–ribose bonds within the PAR chain, removing ADP-ribose units and returning the protein to its unmodified state

What is the role of PARylation in SSB repair?

• PARP1 detects single-strand breaks (SSBs) and becomes auto-PARylated

• This creates a negatively charged platform to recruit XRCC1, a scaffold protein that coordinates DNA repair

• XRCC1 recruits PNKP (for end processing), LIG3 (ligation), APTX (to remove damaged ends), and FEN1, Pol δ/ε/β, PCNA for gap filling

• LIG1 seals DNA backbone

What is the role of PARylation in aborptive TOP1 cleavage complex repair?

• Topoisomerase I (TOP1) can get covalently trapped on DNA (TOP1cc lesions).

• PARP1 detects these complexes and helps TDP1 remove the trapped TOP1 protein.

• PARP1-driven PARylation also relaxes chromatin, allowing other repair enzymes to access the DNA.

What is the role of PARylation in global genome NER (GG-NER)?

• In nucleotide excision repair, bulky DNA adducts (like UV-induced thymine dimers) are recognised by DDB1–DDB2 and XPC–RAD23B complexes.

• PARP1 PARylates itself and these complexes, promoting chromatin remodelling to allow lesion verification and excision.

• XPB/XPD (helicases) and XPA/RPA (verification) act next, followed by ERCC1–XPF/XPG (nucleases) to remove the damaged strand.

• Finally, DNA polymerases δ, ε, κ, and ligases (LIG1/LIG3) fill and seal the gap

What is the role of PARylation in global genome DSB repair?

• PARP1 acts alongside ATM and the MRN complex (MRE11–RAD50–NBS1) to detect DSBs.

• PARP1 adds PAR chains (PARylation) to recruit and organize downstream repair factors.

• This modification facilitates chromatin relaxation and ATM activation

What is the role of PARylation in HR?

• During HR, PARP1 interacts with MRE11, BRCA1, BARD1, and RPA.

• PARylation promotes DNA end resection, which is necessary for strand invasion.

• However, excessive PARP1 activity can also suppress HR by competing with BRCA1 complexes.

What is the role of PARylation in NHEJ?

• PARP1 facilitates KU70/80 and DNA-PKcs binding to DNA ends.

• This activates chromatin remodeling (via CHD2) and end ligation by LIG4–XRCC4.

• PARylation helps stabilize this complex and coordinate repair of blunt or incompatible DNA ends
