Molecular/Electron Geometry

0.0(0)
studied byStudied by 3 people
0.0(0)
full-widthCall Kai
learnLearn
examPractice Test
spaced repetitionSpaced Repetition
heart puzzleMatch
flashcardsFlashcards
GameKnowt Play
Card Sorting

1/19

encourage image

There's no tags or description

Looks like no tags are added yet.

Study Analytics
Name
Mastery
Learn
Test
Matching
Spaced

No study sessions yet.

20 Terms

1
New cards
<p>What is the electron domain and hybridization</p>

What is the electron domain and hybridization

Electron domain: 2

Hybridization: sp

2
New cards
<p>what is the Electron Geometry and Molecular shape? what is the degree of the angle?</p>

what is the Electron Geometry and Molecular shape? what is the degree of the angle?

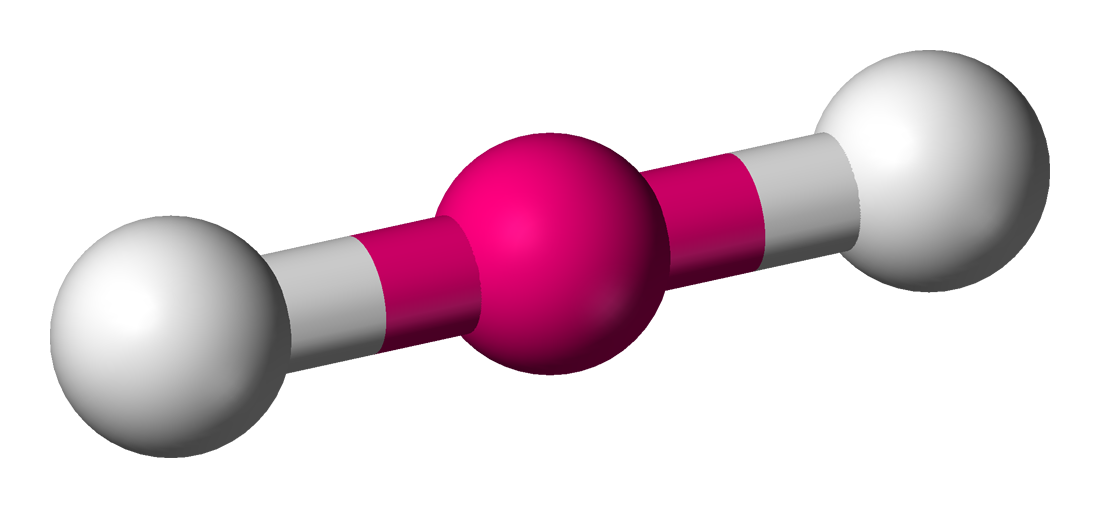

Electron Geometry: Linear

Molecular Shape: Linear
Angle: 180 degrees

3
New cards
<p>What is the electron domain and hybridization?</p>

What is the electron domain and hybridization?

Electron domains: 3

Hybridization: sp²

4
New cards
<p>what is the Electron Geometry and Molecular shape? what is the degree of the angle?</p>

what is the Electron Geometry and Molecular shape? what is the degree of the angle?

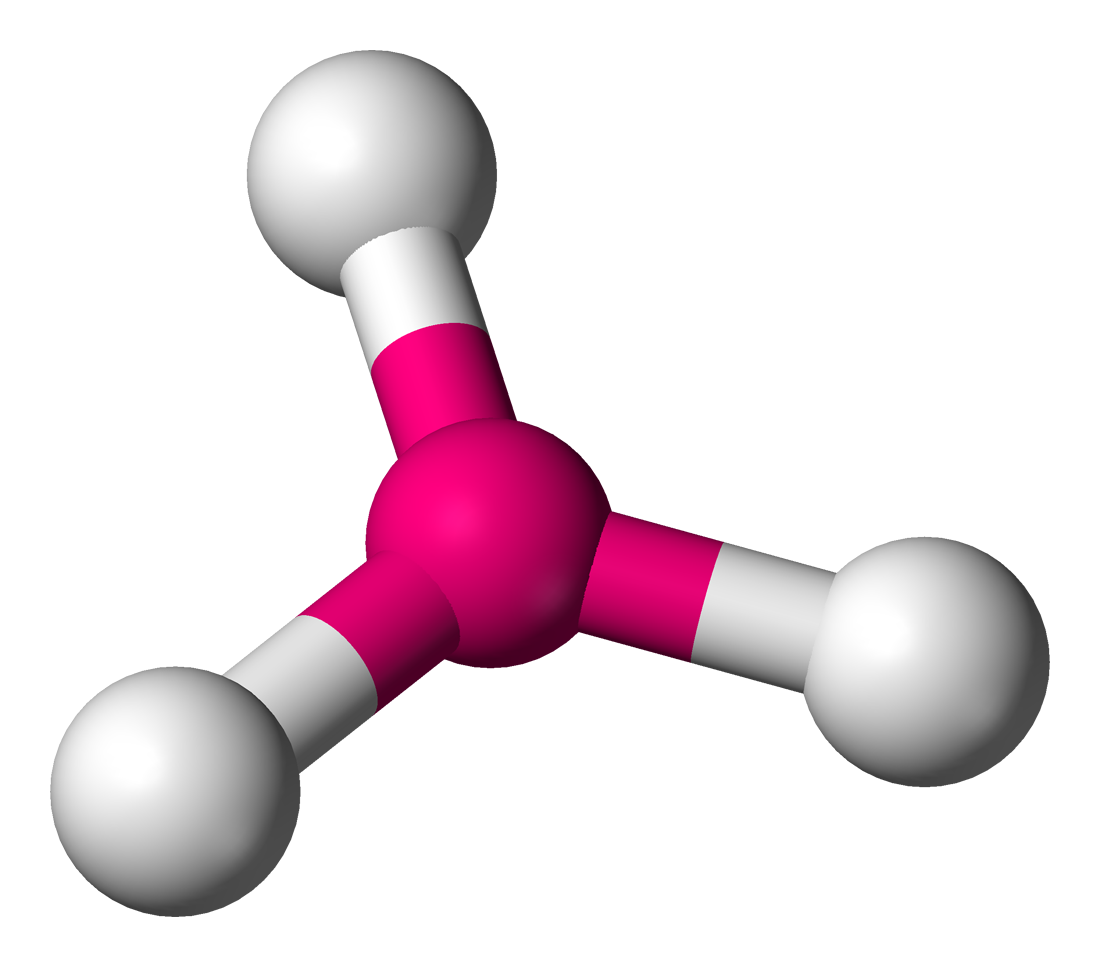

Electron Geometry: trigonal planar

Molecular Shape: trigonal planar
Angle: 120 degrees

5
New cards
<p>What is the electron domain and hybridization? (one lone pair)</p>

What is the electron domain and hybridization? (one lone pair)

Electron domains: 3

Hybridization: sp²

6
New cards
<p>what is the Electron Geometry and Molecular shape? what is the degree of the angle?(one lone pair)</p>

what is the Electron Geometry and Molecular shape? what is the degree of the angle?(one lone pair)

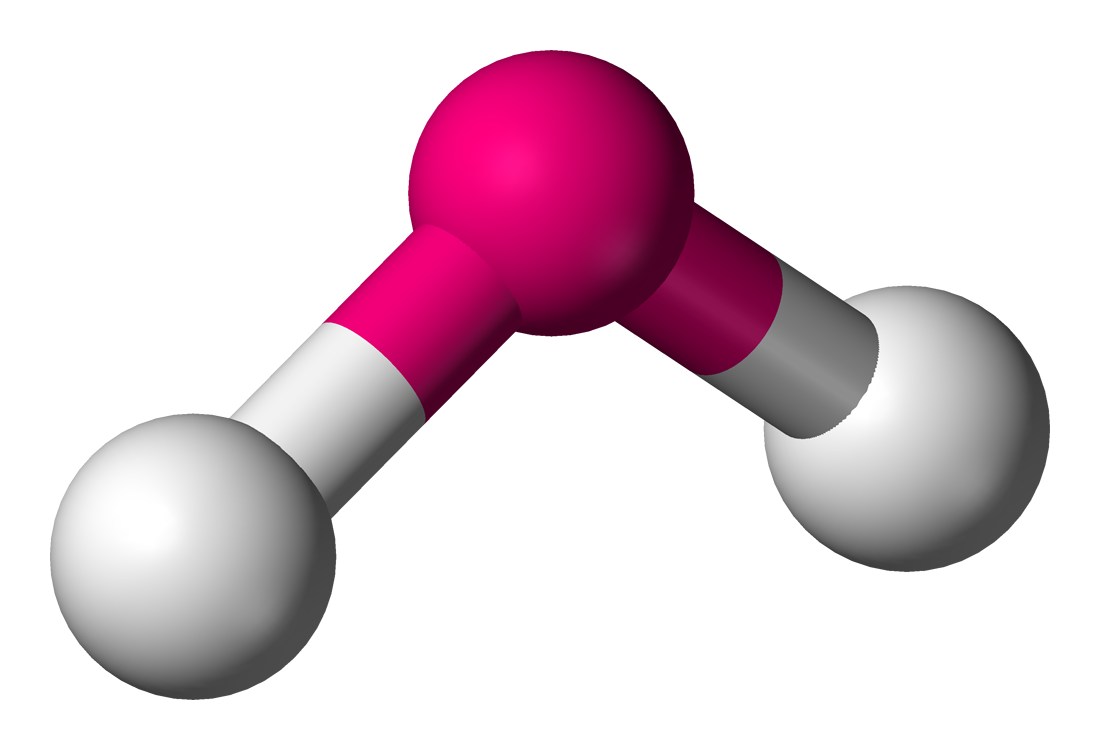

Electron Geometry: trigonal planar

Molecular Shape: Bent
Angle: <120 degrees

7
New cards
<p>What is the electron domain and hybridization?</p>

What is the electron domain and hybridization?

Electron domains: 4

Hybridization: sp³

8
New cards
<p>What is the Electron Geometry and Molecular shape? what is the degree of the angle?</p>

What is the Electron Geometry and Molecular shape? what is the degree of the angle?

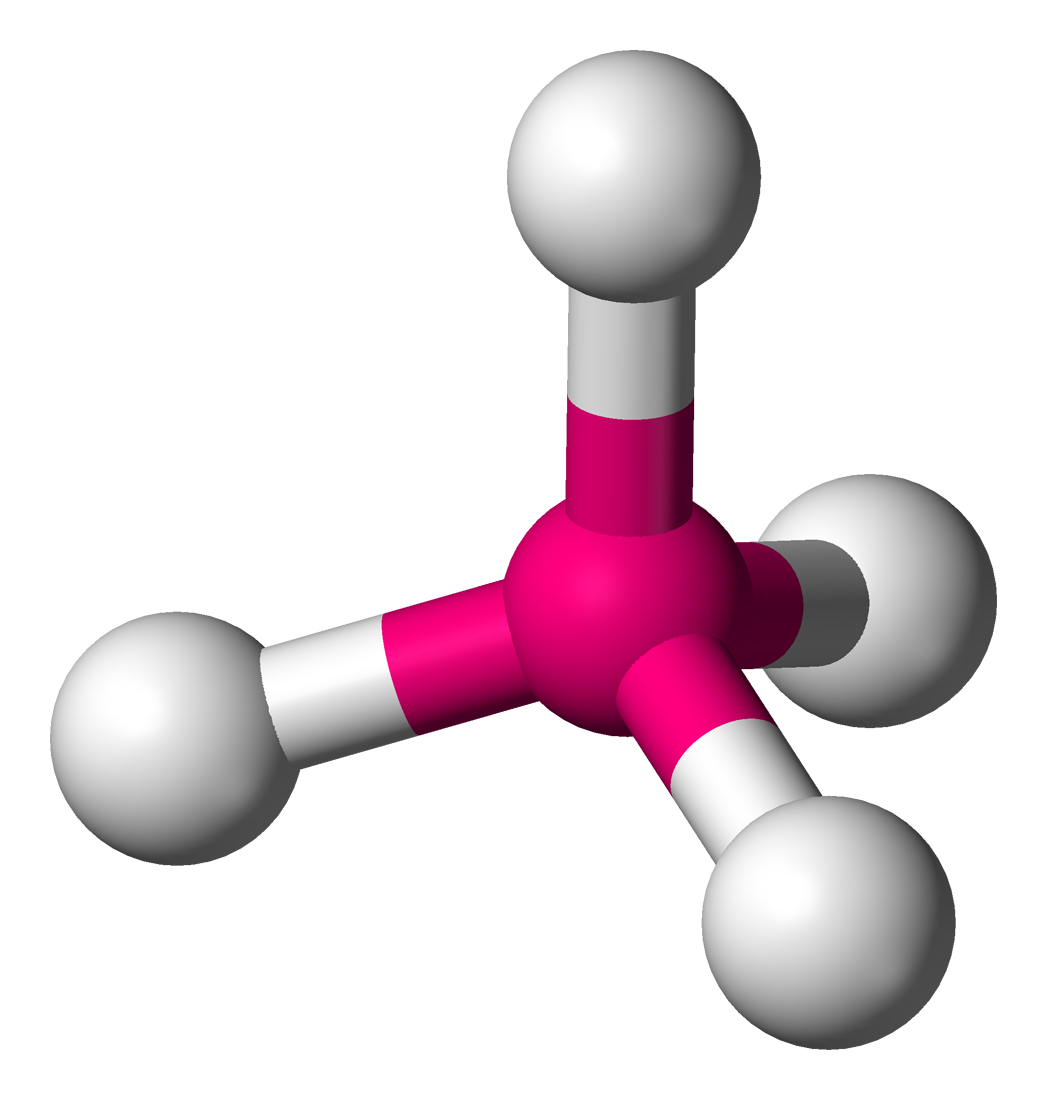

Electron Geometry: tetrahedral

Molecular Shape: tetrahedral
Angle: 109.5 degrees

9
New cards
<p>What is the electron domain and hybridization?</p>

What is the electron domain and hybridization?

Electron Domain: 4

hybridization: sp³

10
New cards
<p>What is the Electron Geometry and Molecular shape? what is the degree of the angle?</p>

What is the Electron Geometry and Molecular shape? what is the degree of the angle?

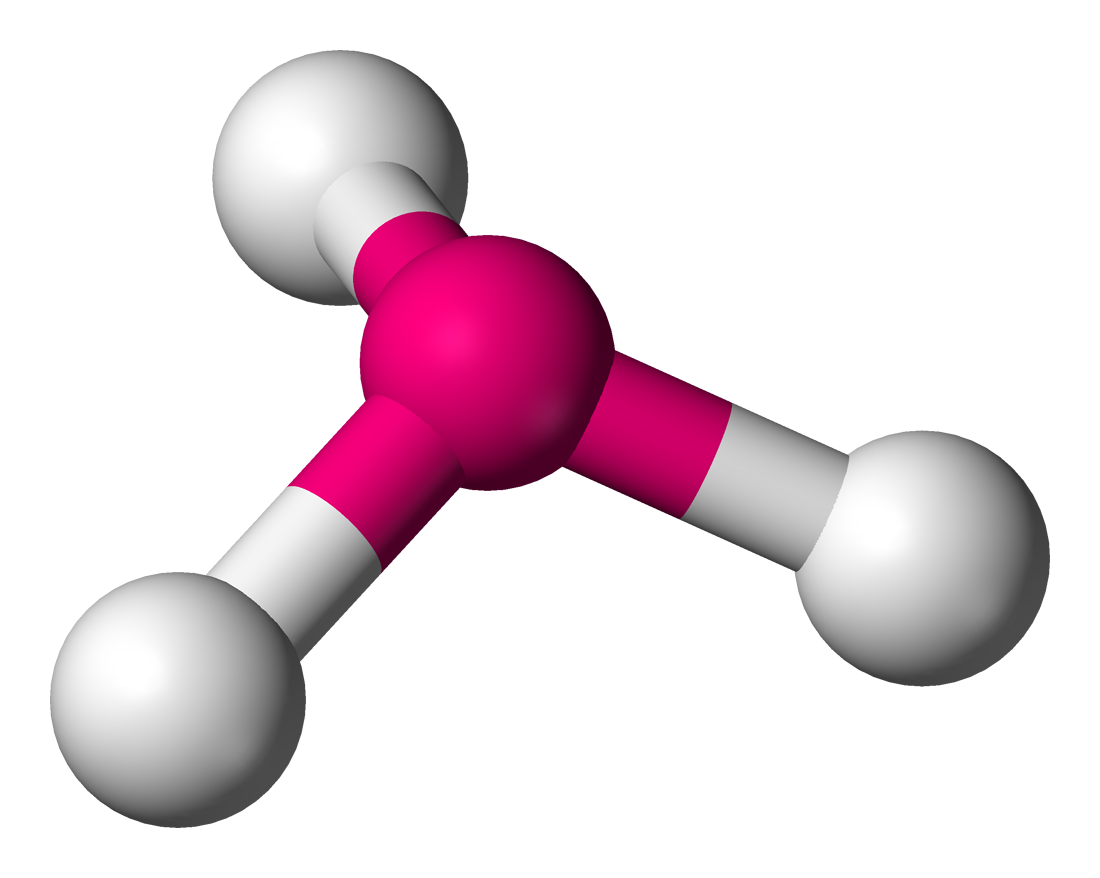

Electron Geometry: Tetrahedral

Molecular Shape: Trigonal Pyramidal

Angle: 107.5 degrees

11
New cards
<p>What is the electron domain and hybridization?(two lone pairs) </p>

What is the electron domain and hybridization?(two lone pairs)

Electron Domain: 4

hybridization: sp³

12
New cards
<p>What is the Electron Geometry and Molecular shape? what is the degree of the angle?(two lone pairs)</p>

What is the Electron Geometry and Molecular shape? what is the degree of the angle?(two lone pairs)

Electron Geometry: Tetrahedral

Molecular Shape: Bent

Angle: 104.5 degrees

13
New cards
<p>What is the electron domain and hybridization?</p>

What is the electron domain and hybridization?

Electron Domain: 5

Hybridization sp³d

14
New cards
<p>What is the Electron Geometry and Molecular shape? what is the degree of the angle?</p>

What is the Electron Geometry and Molecular shape? what is the degree of the angle?

Electron Geometry: Trigonal Bipyramidal

Molecular Shape: Trigonal Bipyramidal

Angle: 120 degrees

15
New cards
<p>What is the electron domain and hybridization?</p>

What is the electron domain and hybridization?

Electron domain: 5

Hybridization: sp³d

16
New cards
<p>What is the Electron Geometry and Molecular shape? what is the degree of the angle?</p>

What is the Electron Geometry and Molecular shape? what is the degree of the angle?

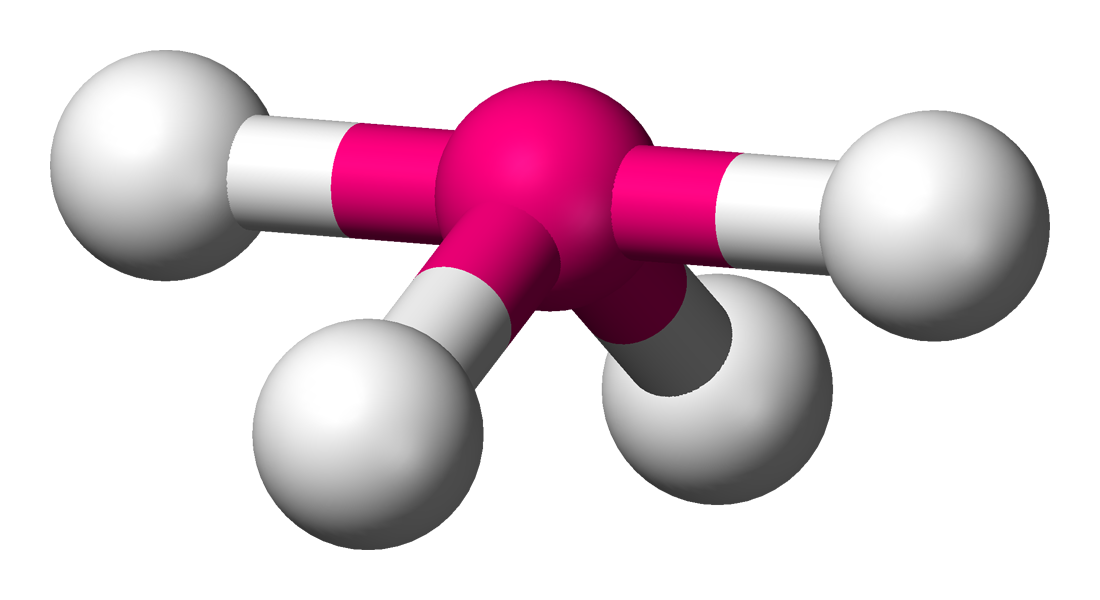

Electron Geometry: Trigonal Bipyramidal

Molecular Shape: Seesaw

Angle: 120 degrees & 90 degrees

17
New cards
<p>What is the electron domain and hybridization?</p>

What is the electron domain and hybridization?

Electron Domain: 5

Hybridization: sp³d

18
New cards
<p>What is the Electron Geometry and Molecular shape? what is the degree of the angle?</p>

What is the Electron Geometry and Molecular shape? what is the degree of the angle?

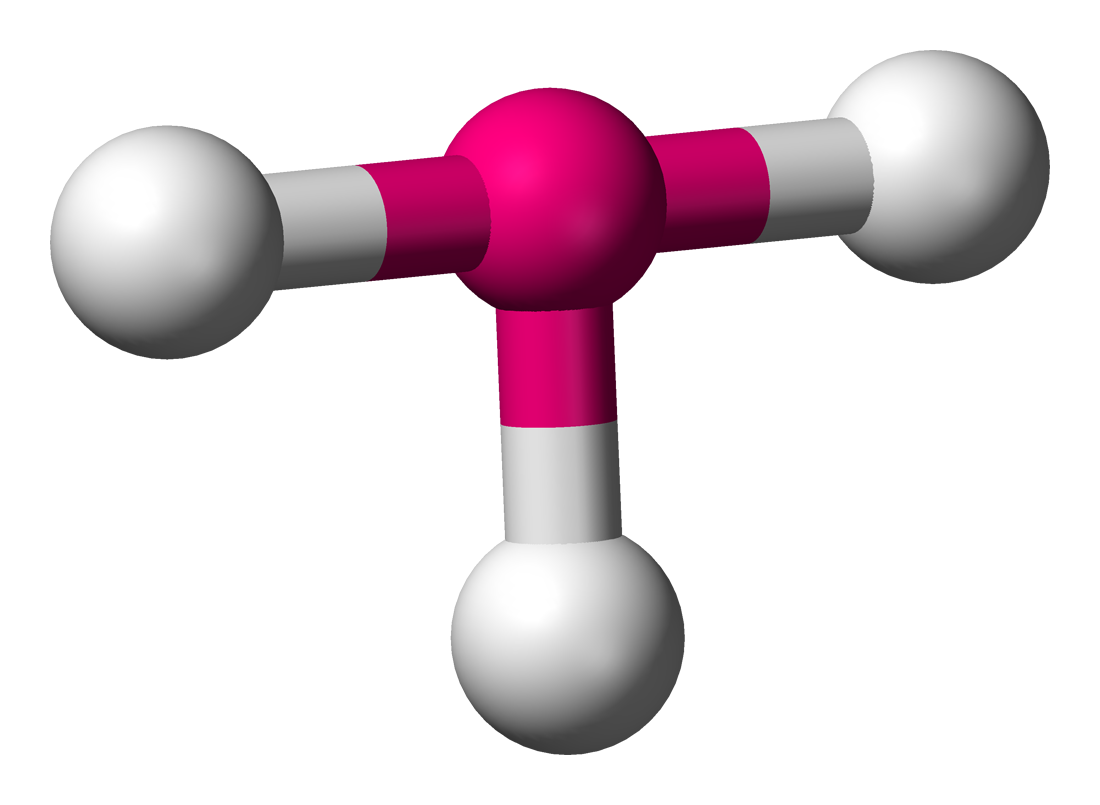

Electron Geometry: trigonal bipyramidal

Molecular Shape: T shape

Angle: 90 degrees

19
New cards
<p>What is the electron domain and hybridization?(3 lone pairs)</p>

What is the electron domain and hybridization?(3 lone pairs)

Electron Domain: 5

Hybridization: sp³d

20
New cards
<p>What is the Electron Geometry and Molecular shape? what is the degree of the angle?(3 lone pairs)</p>

What is the Electron Geometry and Molecular shape? what is the degree of the angle?(3 lone pairs)

Electron Geometry: trigonal bipyramidal

Molecular Shape: linear

Angle: 180 degrees.
