Skeletal Muscle Praticulum: Labeling

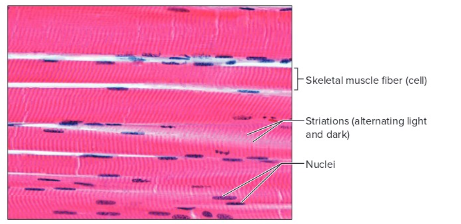

Label the following: Skeletal muscle fibers under a micrograph

Label the following: Fascicle under a microscope

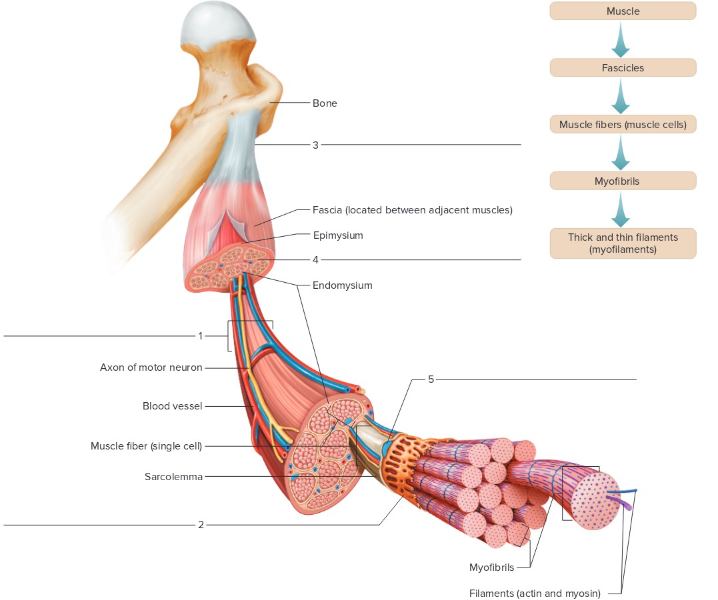

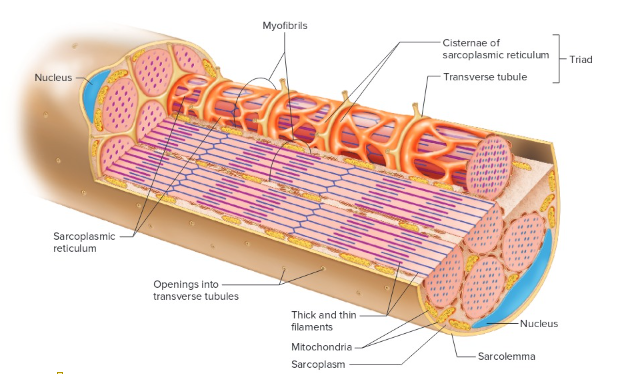

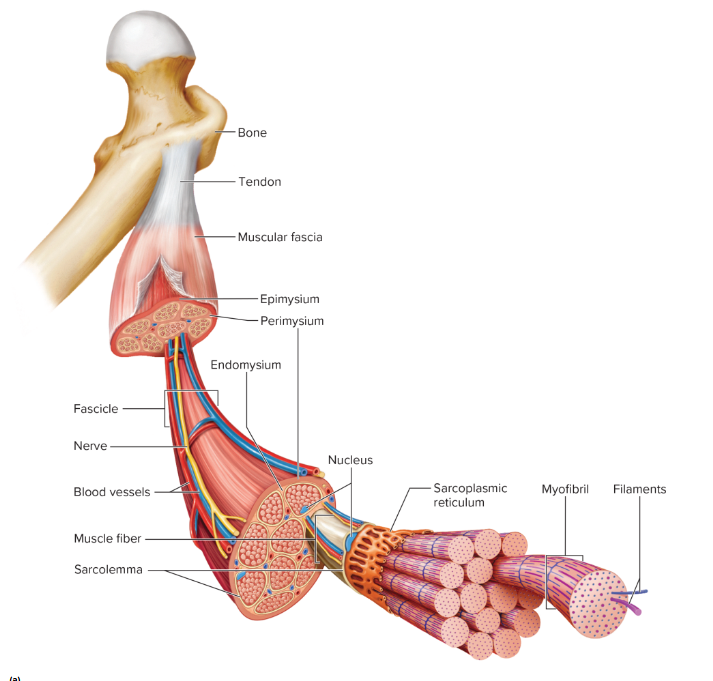

Label the following: Structures of a skeletal muscle

Label the following:

Label the following:

1. sacromere

2. Z lines

3. I bands

4. A bands

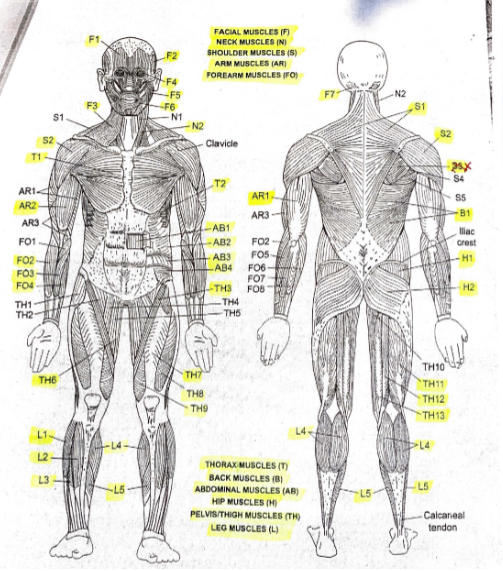

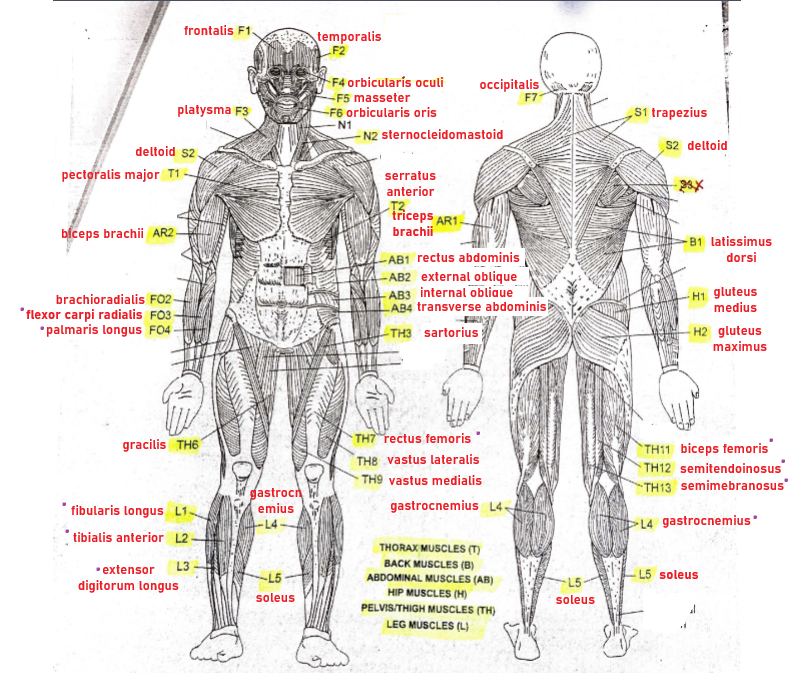

Label the following (F1-F6); what type of muscles are these?

1. frontalis

2. temporalis

3. platysma

4. orbicularis oculi

5. masseter

6. orbicularis oris

→facial muscles

Label the following (L1-L6): What type of muscles are these?

1. fibularis longus

2. tibialis anterior

3. extensor digitorum longus

4. gastrocnemius

5. soleus

→leg muscles

Label the following: N2; What type of muscles are these?

1. sternocleidomastoid

→neck muscles

Label the following: S2; What type of muscles are these?

1. deltoid

→shoulder muscles

Label the following: AR2; What type of muscles are these?

1. biceps brachii

→arm muscles

Label the following (FO2-4): What type of muscles are these?

2. brachioradialis

3. flexor carpi radialis

4. palmaris longus

→forearm muscles

Label the following (T1-2); What type of muscles are these?

1. pectoralis major

2. serratus anterior

→thorax muscles

Label the following (AB1-4): What type of muscles are these?

1. rectus abdominis

2. external oblique

3. internal oblique

4. transverse abdominis

→abdominal muscles

Label the following (H1-H2); What type of muscles are these?

1. gluteus medius

2. gluteus maximus

→hip bone

Label the following (B1); What type of muscles are these?

1. latissimus dorsi

→back muscles

Label the following (TF3, 6-11, 12, 13); What type of muscle is this?

3. sartorius

6. gracilis

7. rectus femoris

8. vastus lateralis

9. vastus medialis

11. bicep femoris

12. semitendinosus

13. semimembranosus

→ thigh muscles

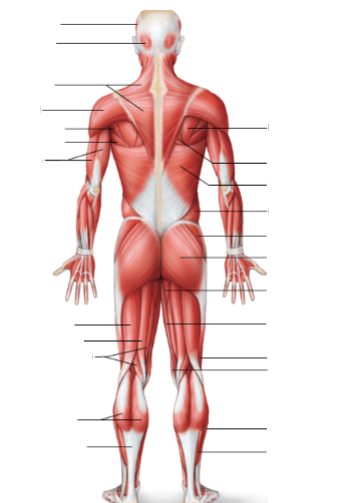

Label the following: ALL highlighted

Label the following:

Label the following:

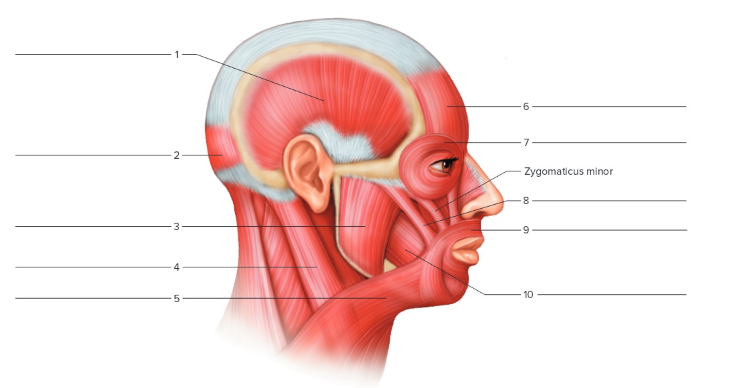

Label the following: Muscle of Facial Expression

1. temporalis

2. occipitalis

3. masseter

4. sternocleidomastoid

5. platysma

6. frontalis

7. orbicularis oculi

(zygomaticus minor)

8. zygomaticus major

9. orbicularis oris

10. buccinator

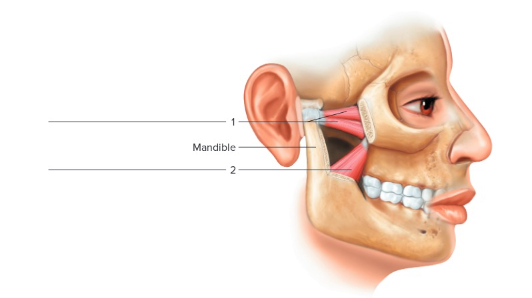

Label the following: muscle of mastication

1. lateral pterygoid

2. medial pterygoid

(masseter + temporalis)

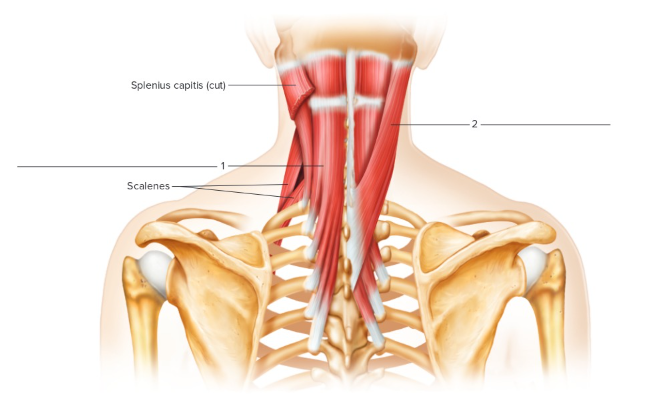

Label the following: Neck

1. semispinalis capitis

2. splenius capitis

Label the following: Facial Expression contractions

1. epicranius/frontalis

2. zygomaticus major

3. orbicularis oculi

4. orbicularis oris

5. platysma

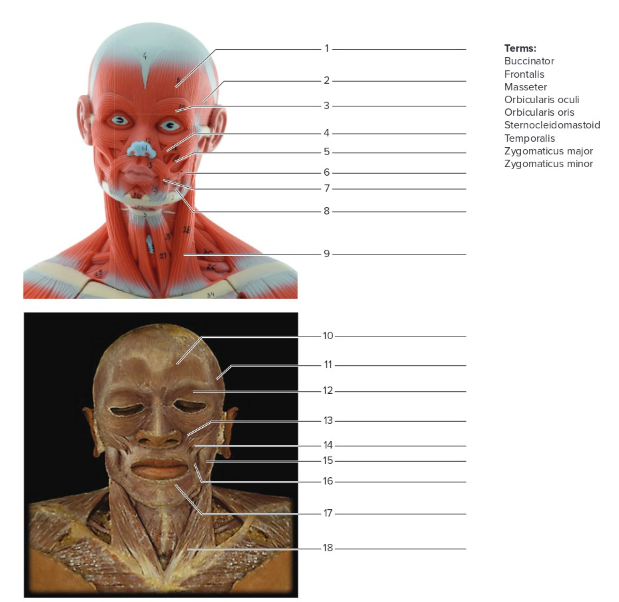

Label the following: Muscles of the head and neck

(Upper photo)

1. frontalis

2. temporalis

3. orbicularis oculi

4. zygomaticus minor

5. zygomaticus major

6. masseter

7. orbicularis oris

8. buccinator

9. sternocleidomastoid

(Lower photo)

10. frontalis

11. temporalis

12. orbicularis oculi

13. zygomaticus minor

14. zygomaticus major

15. masseter

16. buccinator

17. orbicularis oris

18. sternocleidomastoid

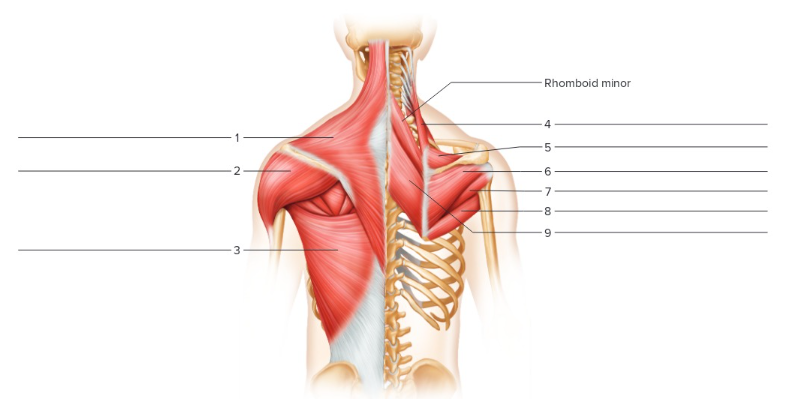

Label the following: Posterior shoulder

1. trapezius

2. deltoid

3. latissimus dorsi

4. levator scapulae

5. supraspinatus

6. infraspinatus

7. teres minor

8. teres major

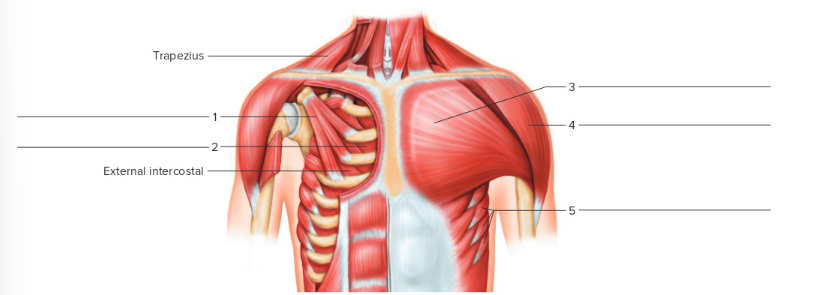

Label the following: Anterior chest

1. pectoralis minor

2. internal intercostal

3. pectoralis major

4. deltoid

5. serratus anterior

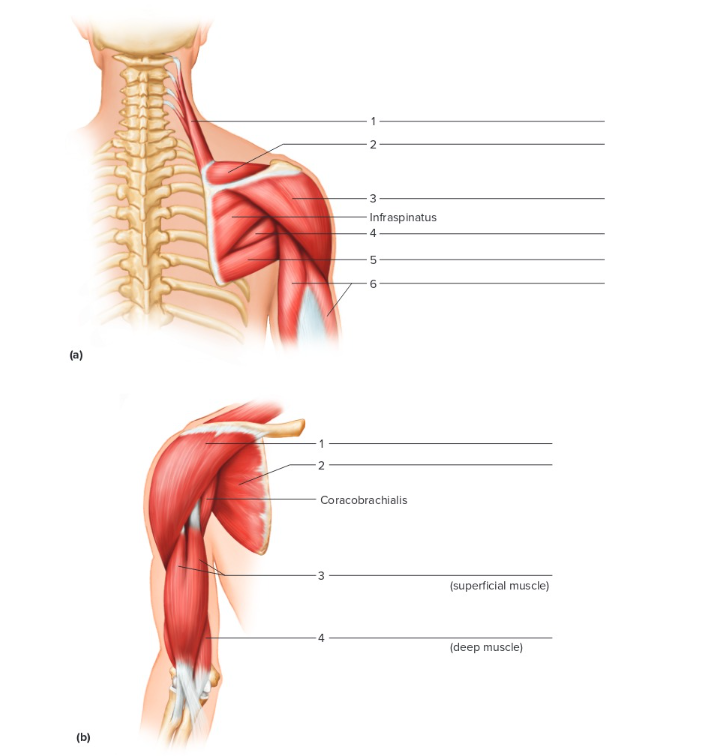

Label the following: posterior and anterior shoulder and arm

(a)

1. levator scapulae

2. supraspinatus

3. deltoid

4. teres minor

5. teres major

6. triceps brachii

(b)

1. deltoid

2. subscapularis

3. biceps brachii

4. brachialis

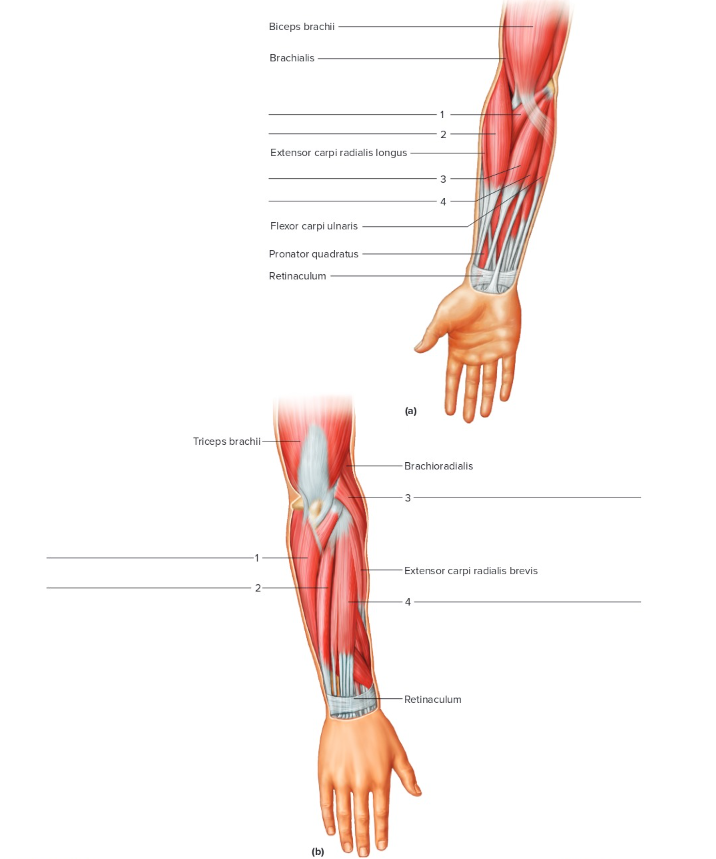

Label the following: Anterior and Posterior forearm

(a)

1. pronator teres

2. brachioradialis

3. flexor carpi radialis

4. palmaris longus

(b)

1. flexor carpi ulnaris

2. extensor carpi ulnaris

3. extensor carpi radialis longus

4. extensor digitorum

Label the following: muscles

(a)

1. trapezius

2. deltoid

3. pectoralis major

4. rectus abdominis

5. sternocleidomastoid

6. biceps brachii

7. serratus anterior

8. external oblique

(b)

9. deltoid

10. trapezius

11. teres major

12. biceps brachii

13. triceps brachii

14. infraspinatus

15. latissimus dorsi

Label the following: Muscle

16. pectoralis major

17. serratus anterior

18. biceps brachii

19. trapezius

20. deltoid

21. triceps brachii

22. brachioradialis

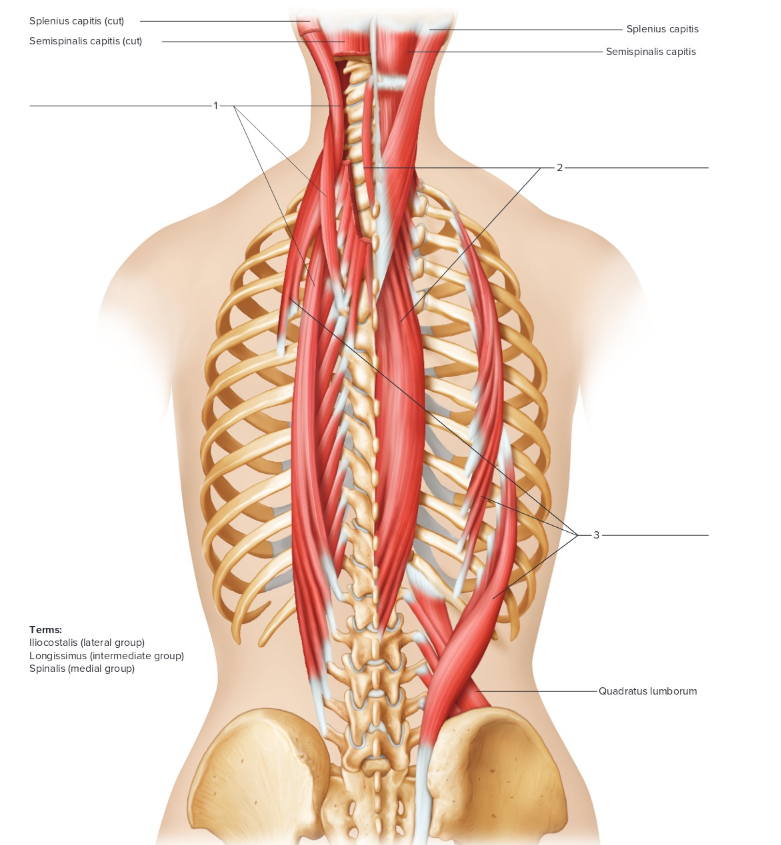

Label the following: Deep back muscles

1. longissimus (intermediate group)

2. spinalis (medial group)

3. iliocostalis (lateral group)

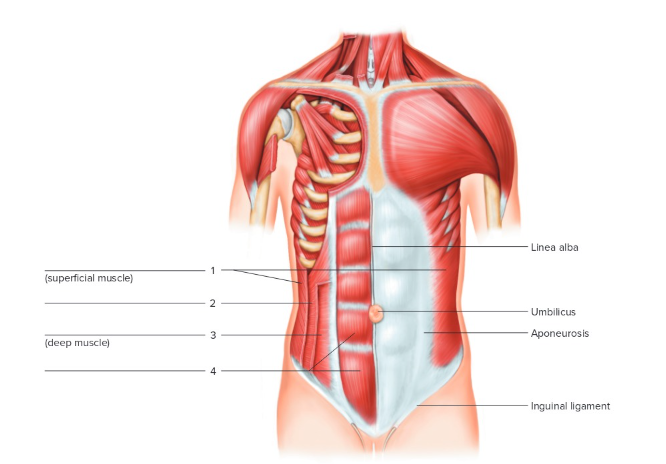

Label the following: abdominal wall

1. external oblique

2. internal oblique

3. transverse abdominis

4. rectus abdominis

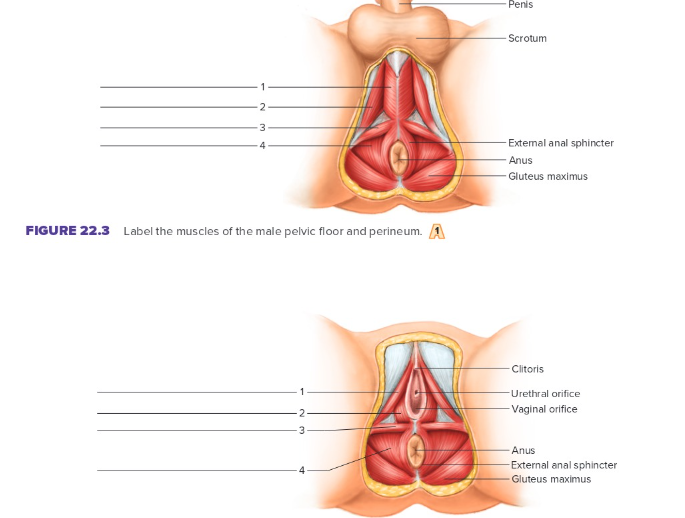

Label the following: male/female pelvic floor and perineum

(a)

1. bulbosponglosus

2. ischiocavernosus

3. superficial transversus perinei

4. levator ani

(b)

1. ischiocavernosus

2. bulbosponglosus

3. superficial transverse perinei

4. levator ani

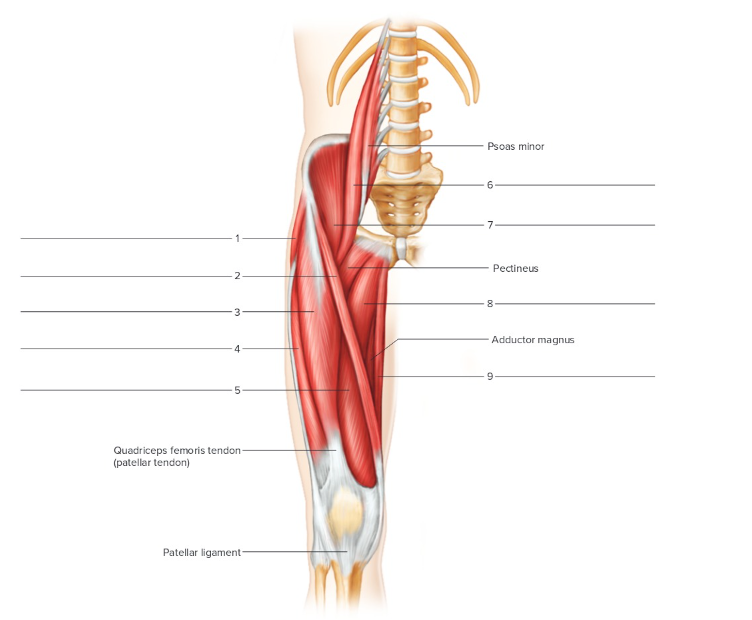

Label the following: anterior hip and thigh

1. tensor fasciae latae

2. sartorius

3. rectus femoris

4. vastus lateralis

5. vastus medialis

6. psoas major

7. iliacus

8. adductor longus

9. gracilis

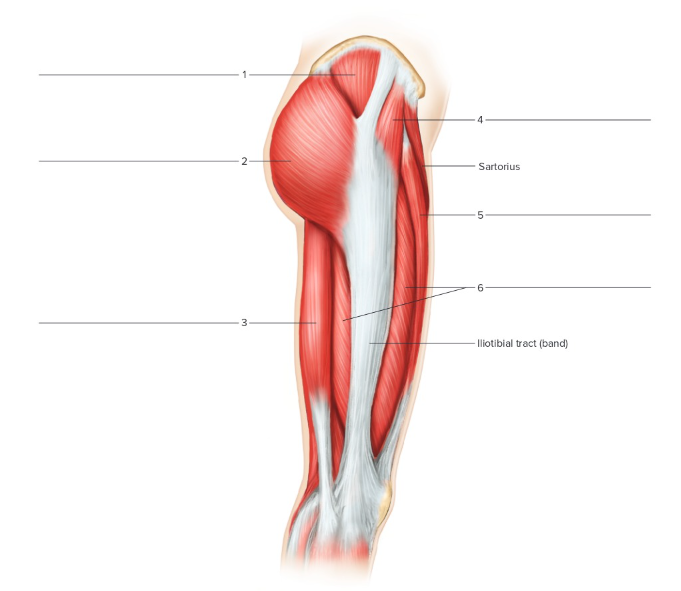

Label the following: lateral right hip and thigh

1. gluteus medius

2. gluteus maximus

3. biceps femoris

4. tensor fasciae latae

5. rectus femoris

6. vastus lateralis

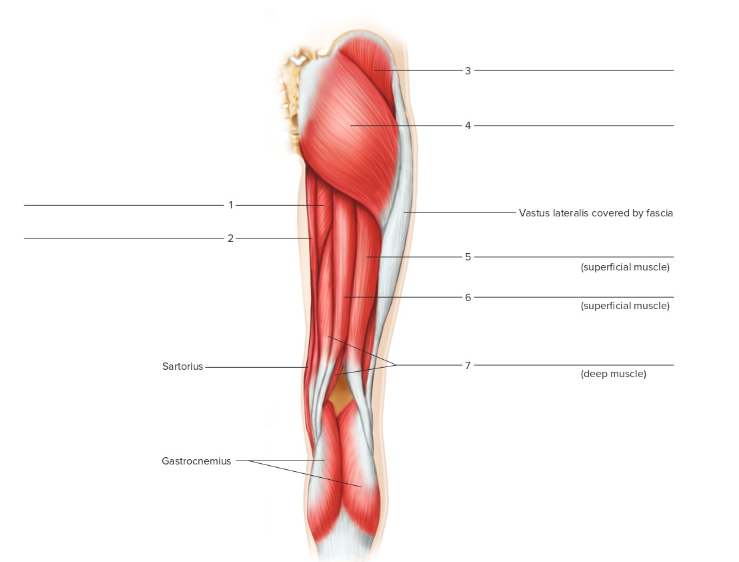

Label the following: Posterior right hip and thigh

1. adductor magnus

2. gracilis

3. gluteus medius

4. gluteus maximus

5. biceps femoris

6. semitendinosus

7. semimembranosus

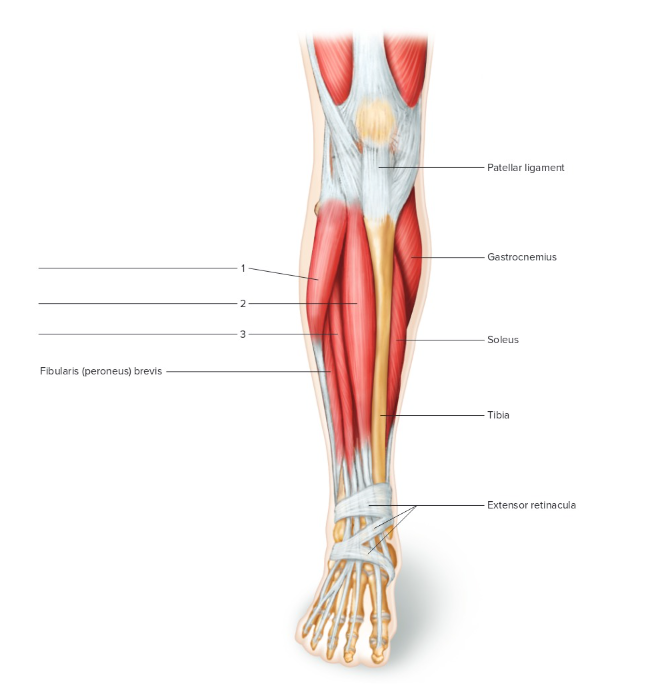

Label the following: Anterior right leg

1. fibularis longus

2. tibialis anterior

3. extensor digitorum longus

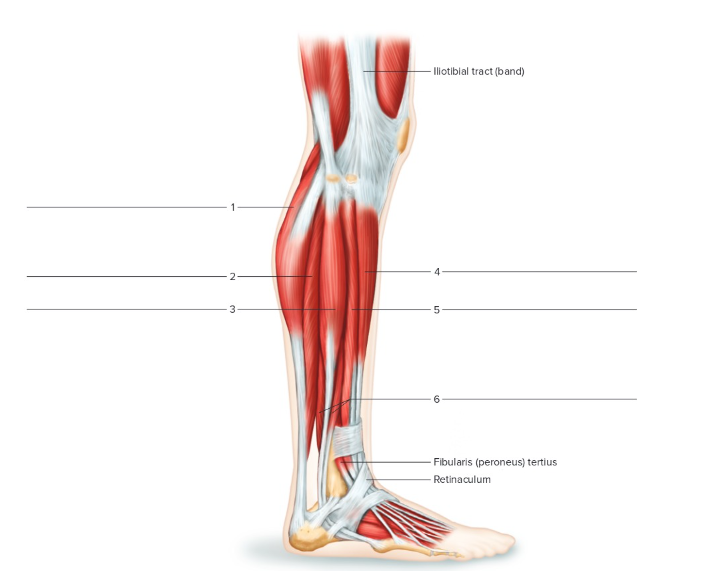

Label the following: Lateral right leg

1. gastrocnemius

2. soleus

3. fibularis longus

4. tibialis anterior

5. extensor digitorum longus

6. fibularis brevis

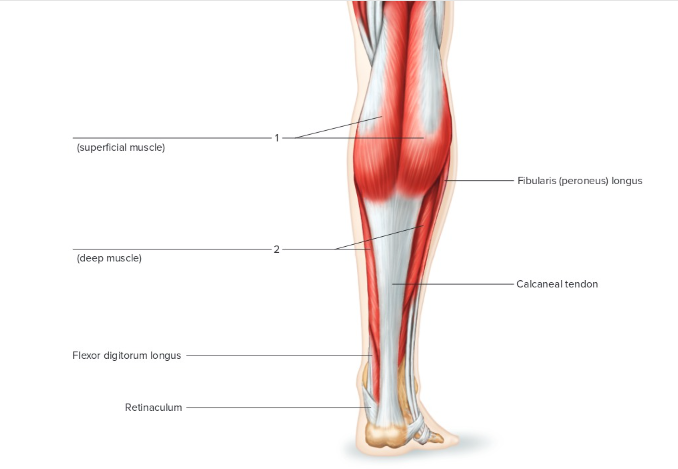

Label the following: posterior right leg

1. gastrocnemius

2. soleus

Label the following: Lower limb

1. rectus femoris

2. vastus medialis

3. vastus lateralis

4. sartorius

5. tibialis anterior

6. gastrocnemius

7. soleus

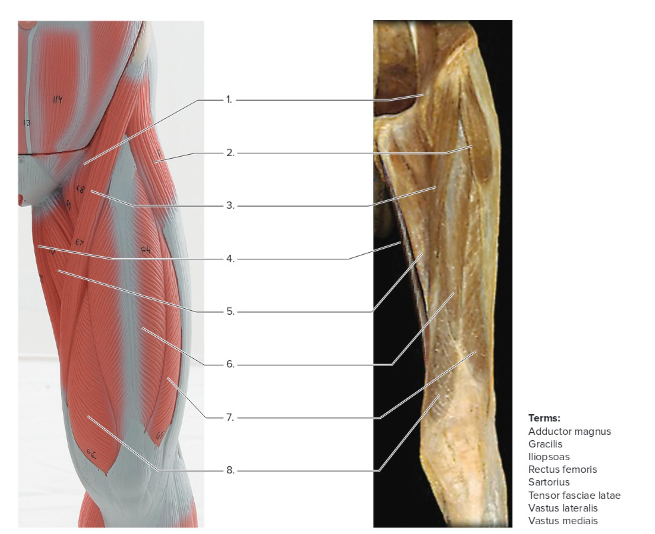

Label the following: Muscle model

1. Iliopsoas

2. tensor fasciae latae

3. sartorius

4. gracilis

5. adductor magnus

6. rectus femoris

7. vastus lateralis

8. vastus medialis

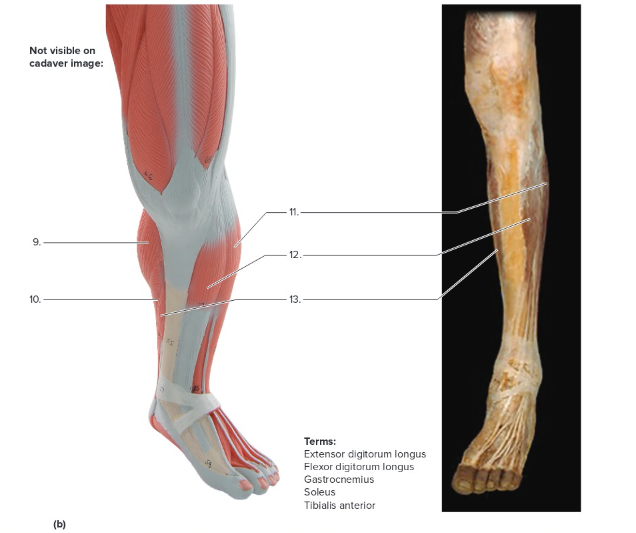

Label the following

9. -

10. -

11. -

12. -

13. -

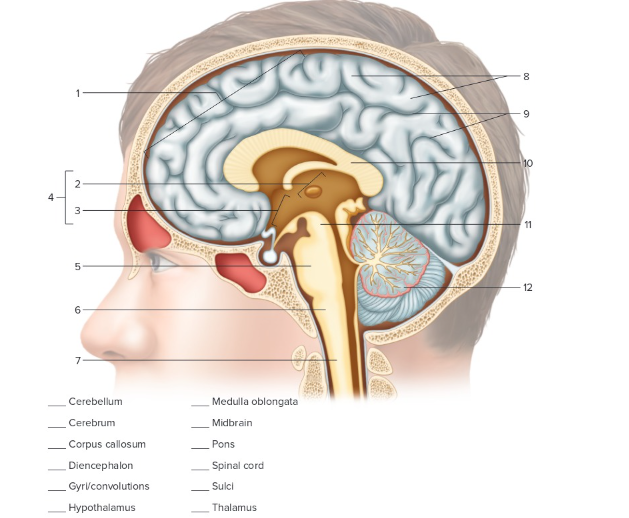

Label the following: Meninges

1. cerebrum

2. thalamus

3. hypothalamus

4. diencephalon

5. pons

6. medulla oblongata

7. spinal cord

8. gyrus

9. sulcus

10. corpus callosum

11. midbrain

12. cerebellum

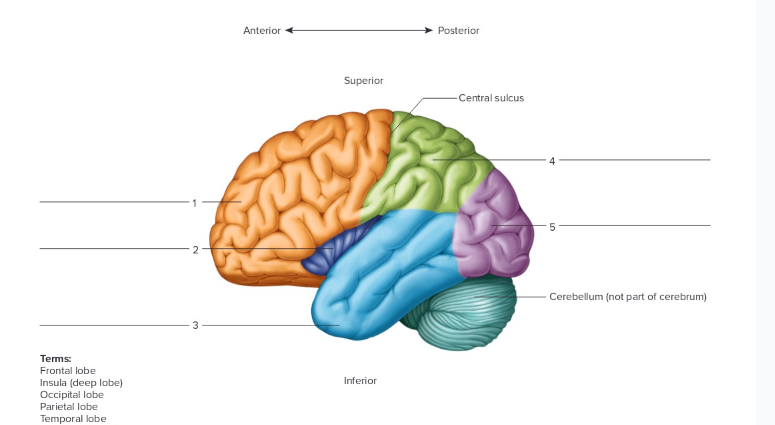

Label the following: 5 lobes

1. frontal lobe

2. insula

3. temporal lobe

4. parietal lobe

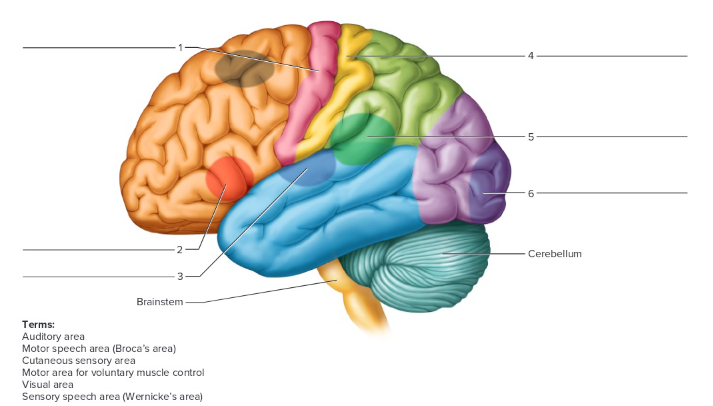

Label the following: Functional areas of the cerebrum

1. motor area for voluntary muscle control

2. broca’s area

3. auditory area

4. cutaneous sensory area

5. wernickes area

6. visual area

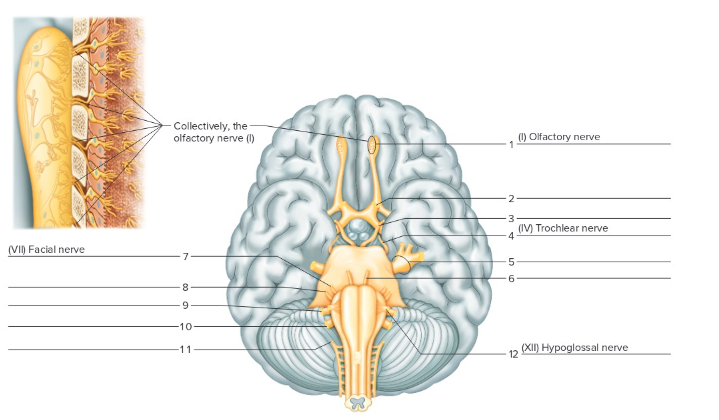

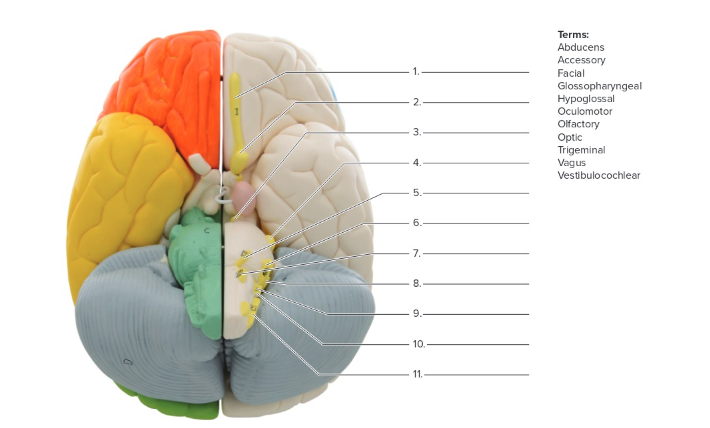

Label the following: Cranial nerve

1. olfactory nerve

2. optic nerve

3. oculomotor nerve

4. trochlear nerve

5. trigeminal nerve

6. abducen nerve

7. facial

8. vestibulocochlear

9. glossopharyngeal

10. vagus

11. accessory

12. hypoglossal

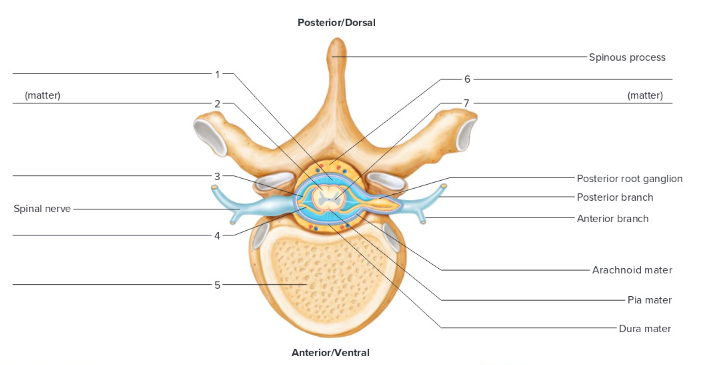

Label the following: Spinal cord

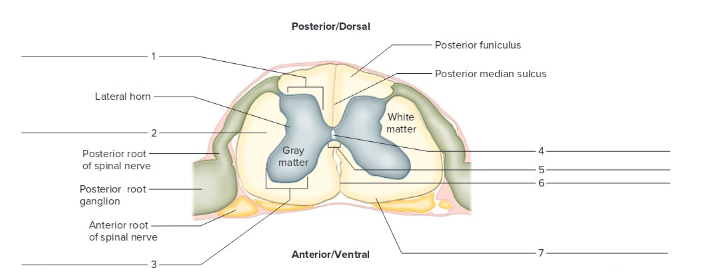

Label the following: Cross section of the spinal cord

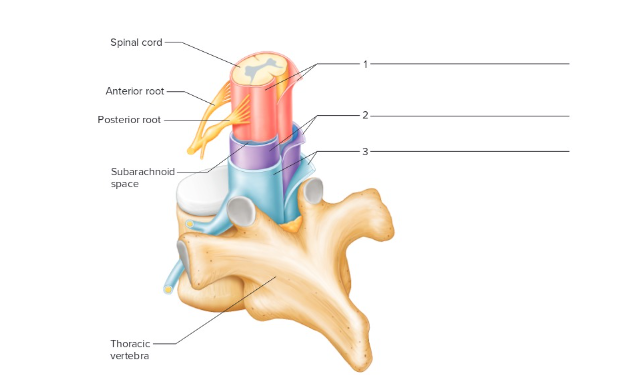

Label the following: Meninges

Label the following: cross section with spinal nerve roots

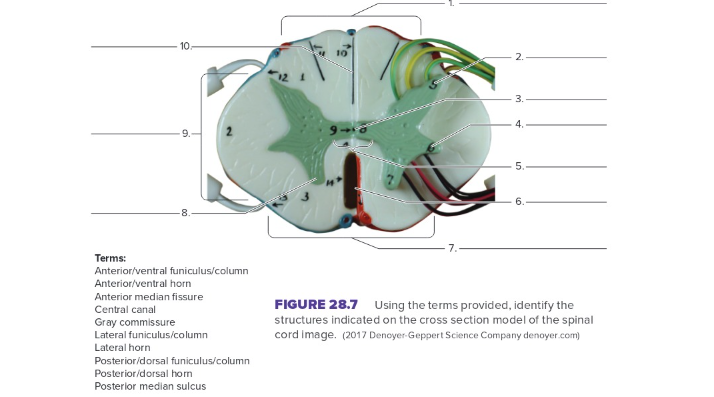

Label the following: cross section model of the spinal cord

Label the following: Sagittal section of the human brain

Label the following:

Label the following:
