6 Terms
1
New cards

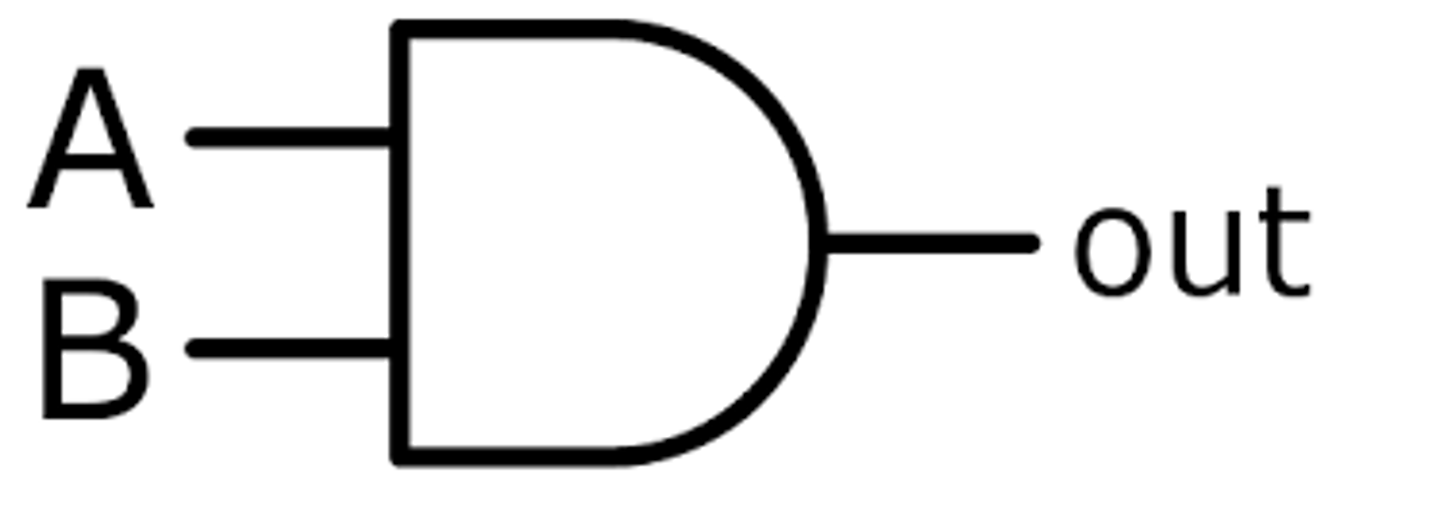

AND Gate
ALL inputs need to be 1 for the output to be 1
2
New cards

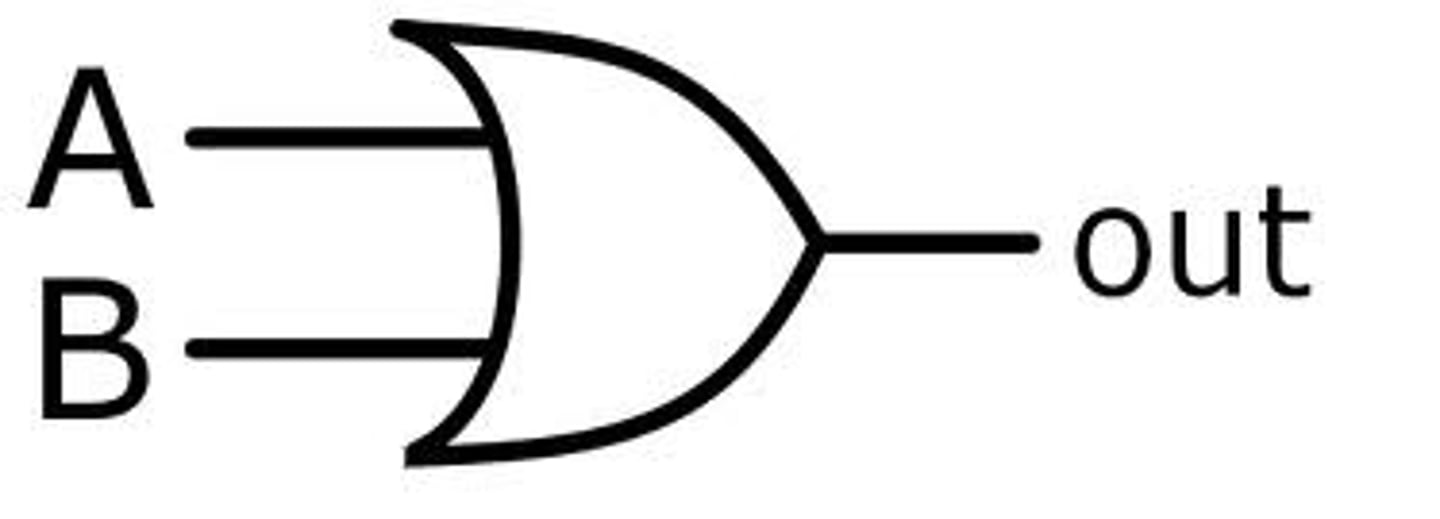

OR Gate
At least one input needs to be 1 for the output to be 1
3
New cards
NOT Gate
Inverses the input
4
New cards

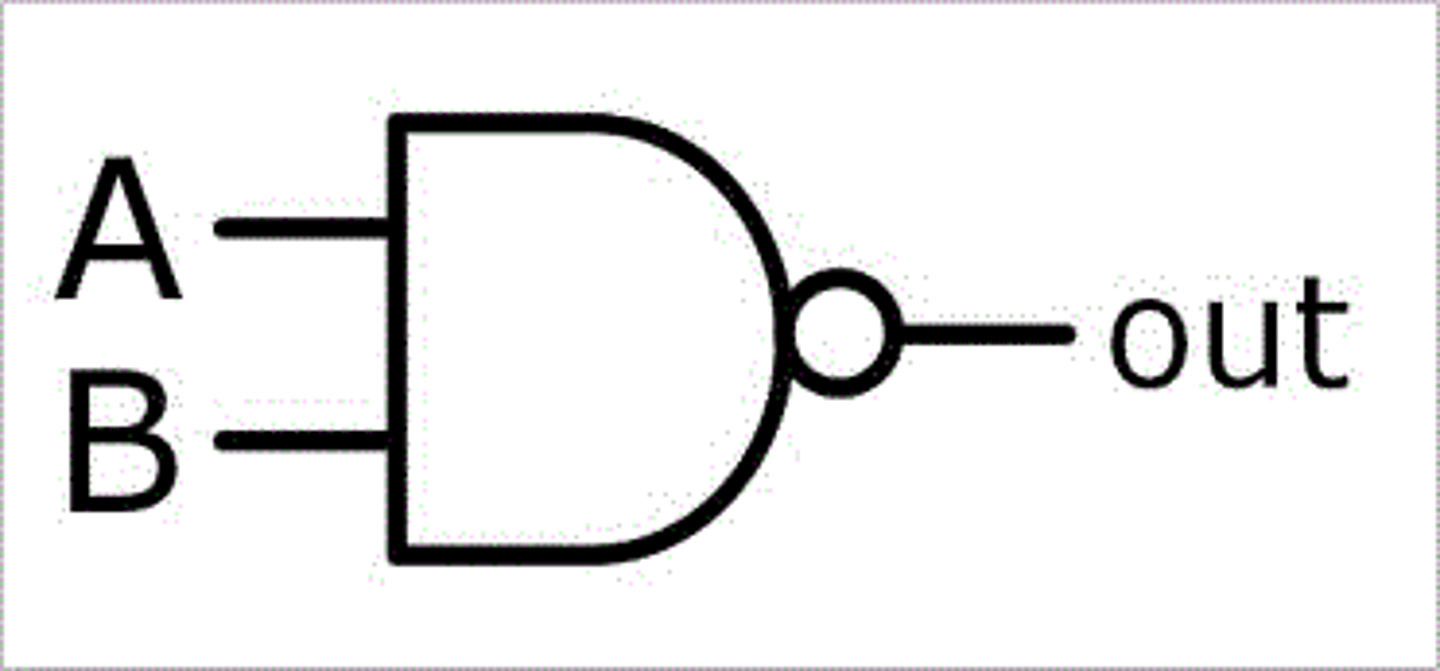

NAND Gate
The inverse of the AND Gate
5
New cards

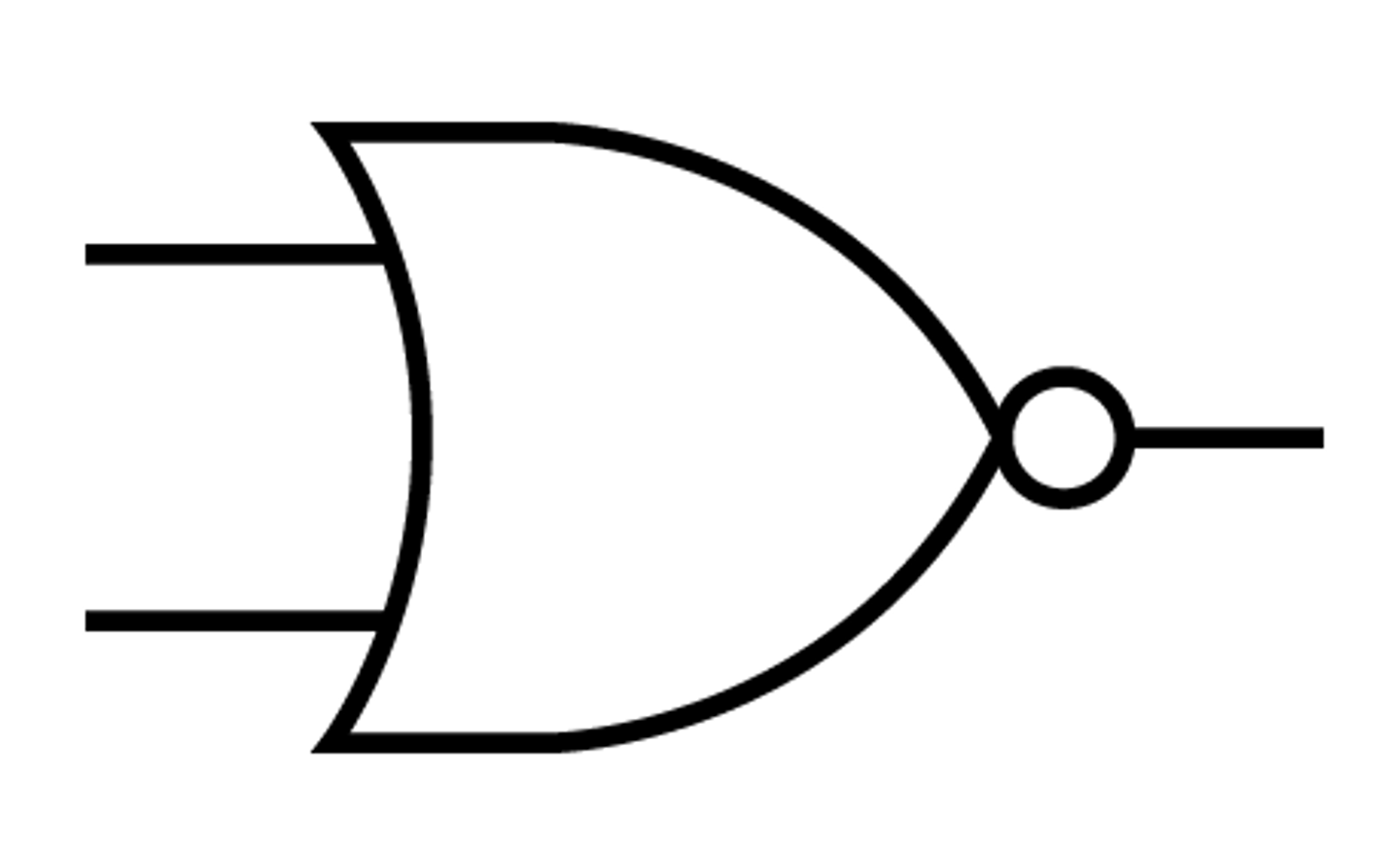

NOR Gate
The inverse of the OR Gate
6
New cards

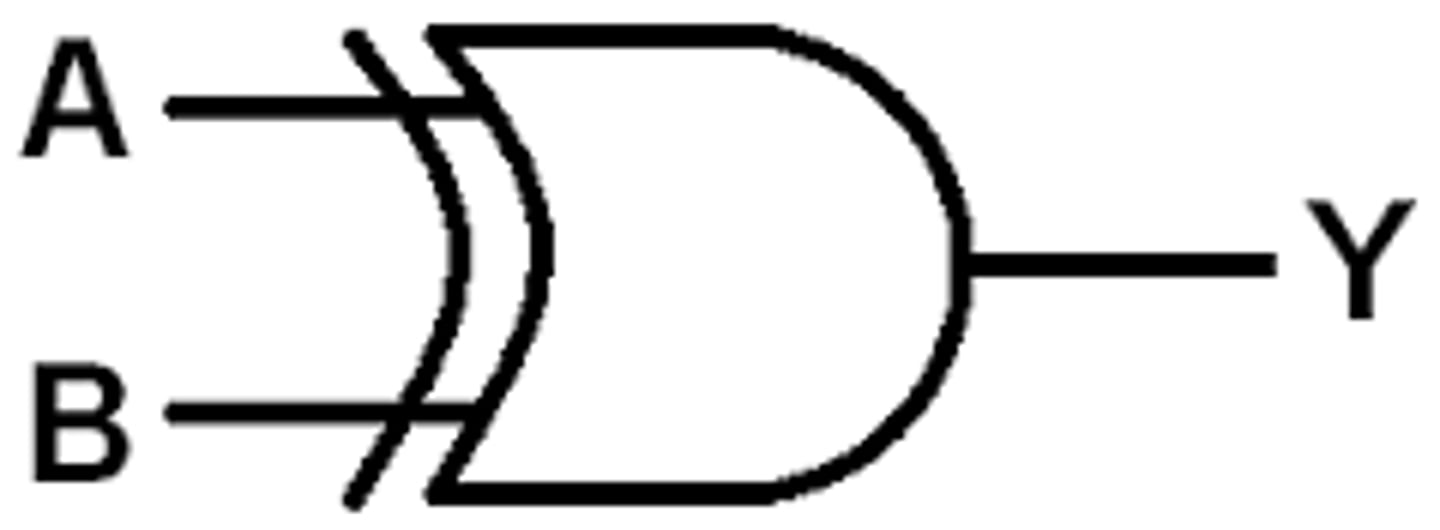

XOR Gate
Only ONE input can be 1 for the output to be 1
