FAA Exam

To ensure that the unmanned aircraft center of gravity (CG) limits are not exceeded, follow the aircraft loading instructions in the

Pilot’s Operating Handbook or UAS Flight manual

The term “angle of attack” is defined as the angle between the

Chord line of the wing and the relative wind

When operating an unmanned airplane, the remote pilot should consider that the load factor on the wings may be increased at any time

the airplane is subjected to maneuvers other than straight and level flight

The angle of attack at which an airplane wing stalls will

remain the same regardless of gross weight

If an unmanned airplane weighs 33 pounds, what approximate weight would the airplane structure be required to support during a 30 banked turn while maintaining altitude

38 pounds (33 × 1.154 figure)

A stall occurs when the smooth airflow over the unmanned airplane’s wing is disrupted and the lift degenerates rapidly. this is caused when the wing

exceeds its critical angle of attack

In a fixed-wing aircraft, yaw is controlled by

the rudder

As the angle of attack increases, induced drag will

increase

An airplane has been loaded in such a manner that the CG is located aft of the aft CG limit. One undesirable flight characteristic a pilot might experience with this airplane would be

difficulty in recovering from a stalled condition.

In a fixed-wing aircraft, pitch is controlled by

the stabilizer

As temperature decreases, aircraft performance will

increase

In a fixed-wing aircraft, yaw is controlled by

rudder

What effect does humidity have on flight performance?

decreases performance

During an approach to a stall, an increased load factor will cause the aircraft to

stall at a higher airspeed

At which bank angle does the load factor increase dramatically

45-50 degrees

As speed increases, induced drag will

decrease

A stall occurs when the smooth airflow over the unmanned airplane's wing is disrupted and the lift degenerates rapidly. This is caused when the wing

exceeds its critical angle of attack.

When loading cameras or other equipment on an sUAS, mount the items in a manner that

does not adversely affect the center of gravity.

What could be a consequence of operating a small unmanned aircraft above its maximum allowable weight?

Shorter endurance.

According to 14 CFR part 107, who is responsible for determining the performance of a small unmanned aircraft?

Remote pilot-in-command.

An RPIC recently renewed their certificate by taking the Recurrent training. While mapping a property for a client, an FAA Aviation Safety Inspector asks to see documents showing that they can legally fly their sUAS for commercial purposes. Which document must be provided? (PI)

Remote Pilot Certificate, Registration Card, and a copy of the Completion Certificate for the Recurrent Training.

Within how many days must an sUAS accident be reported to the FAA?

10 days

A remote pilot has accepted football tickets in exchange for using their sUAS to videotape the field before and after the game. Is this sUAS operation subject to 14 CFR Part 107?

Yes, this sUAS operation is subject to Part 107.

Which of the following operations would be regulated by 14 CFR 107?

Operating your sUAS for an imagery company.

Which of the following types of operations are excluded from the requirements in Part 107?

Model aircraft for hobby use.

A pilot is operating a 1280 g (2.8 lb.) quadcopter for their own enjoyment. Is this sUAS operation subject to 14 CFR Part 107?

No, this sUAS operation is not subject to Part 107.

While operating a small unmanned aircraft system (sUAS), you experience a flyaway and several people suffer injuries. Which of the following injuries requires reporting to the FAA?

An injury requiring an overnight hospital stay.

Unmanned aircraft means an aircraft operated

Without the possibility of direct human intervention from within or on the aircraft.

Who should you make your documents available to when asked? (PI)

The Administrator, authorized representatives from the NTSB or TSA, or any Federal, State, or Local Law enforcement officers.

Falsifying records that are required to show compliance with any requirement of Part 107 can lead to (PI)

Denial of application for Remote Pilot, waivers, or suspension/revocation, or a civil penalty.

A remote pilot is part of a news crew, operating an sUAS to cover a breaking story. They experienced a flyaway during landing. The unmanned aircraft strikes a vehicle, causing approximately $800 worth of damage. When must this occurrence be reported to the FAA?

Within 10 days.

Which operations must comply with 14 CFR Part 107?

Civil operations.

According to 14 CFR Part 107, an sUAS is an unmanned aircraft system weighing

Less than 55 lbs.

Which of these requires a part 107 certificate?

Volunteering for a local non-profit.

A person whose sole task is watching the sUAS to report hazards to the rest of the crew is called:

Visual observer.

A pilot has purchased a new quadcopter that weighs 0.43 lbs (195 grams) to complete roof inspections. Is this operation subject to 14 CFR Part 107? (PI)

Yes, there is no lower weight limit for operating under 14 CFR Part 107.

A company plans to operate a 33 lb. sUAS to capture aerial imagery over real estate for use in sales listings. Is this sUAS operation subject to 14 CFR Part 107?

Yes, this sUAS operation is subject to Part 107.

When is a part 107 certificate required?

For non-recreational operations.

What medical certificates are required to operate under 14 CFR Part 107?

No Medical Certificates are required.

Who holds the responsibility to ensure all crewmembers who are participating in the operation are not impaired by drugs or alcohol?

Remote Pilot in Command.

A roofing inspection company employee is in the process of acquiring their Part 107 Remote Pilot certificate. Can he/she still complete an inspection using a sUAS under Part 107? (PI)

Yes, under the direct supervision of a remote Pilot in Command.

A professional wildlife photographer (certifed Remote Pilot) operates an sUAS from a moving truck to capture aerial images of migrating birds in remote wetlands. The driver of the truck does not serve any crewmember role in the operation. Is this sUAS operation in compliance with 14 CFR Part 107? (PI)

Compliant with Part 107.

During a mission in a busy area, your only Visual Observer complains that he is getting a migraine and has a hard time focusing on the sUAS in the air. What should you do? (PI)

Land as soon as practical and determine if the mission can be restarted without a Visual Observer.

Who is ultimately responsible for preventing a hazardous situation before an accident occurs?

Remote Pilot in Command (Remote PIC).

Which crewmember is required to be under the direct supervision of the Remote PIC when operating an sUAS?

Person manipulating the controls.

It is possible for two remote Pilot in Command to transfer the controls as long as (PI)

They can maintain line of sight and without loss of control.

In accordance with 14 CFR Part 107, you may operate an sUAS from a moving vehicle when no property is carried for compensation of hire

Over a sparsely populated area.

If the Remote PIC is supervising a non-rated pilot, he/she must be able to immediately take direct control of the sUAS. This can be accomplished via which method? (PI)

Use a "buddy box" system with two controllers.

To avoid a possible collision with a manned airplane, you estimate that your small UA climbed to an altitude greater than 600 feet AGL. To whom must you report the deviation?

Upon request of the Federal Aviation Administration.

A person without a Part 107 remote pilot certificate may operate an sUAS for commercial operations:

Under the direct supervision of a Remote PIC.

Before each flight, the Remote PIC must ensure that

Objects carried on the sUAS are secure.

A person may not act as a crewmember of a civil aircraft if alcoholic beverages have been consumed by that person within the preceding (PI)

8 hours.

A person convicted of growing or selling marijuana can be denied application to a remote Pilot certificate for a period of? (PI)

up to 1 year after the date of final conviction.

Responsibility for collision avoidance in an alert area rests with

the Remote PIC.

When using a small unmanned aircraft in a commercial operation, who is responsible for informing the participants about emergency procedures?

The Remote Pilot in Command.

Who is responsible for ensuring that there are enough crewmembers for a given sUAS operation?

Remote Pilot in Command (Remote PIC).

No person may attempt to act as a crewmember of a civil aircraft with

.04 percent by weight or more alcohol in the blood.

Under what conditions may objects be dropped from an aircraft?

If precautions are taken to avoid injury or damage to persons or property on the surface.

The consequences of refusing to submit to an alcohol test or to furnish test results are (PI)

Denial of an application for a period of up to 1 year or suspension/revocation of a remote pilot certificate.

If two Remote Pilot in Command want to exchange control in flight, they must (PI)

maintain line of sight throughout the entire process.

Which crewmember must hold a remote pilot certificate with an sUAS rating?

Remote Pilot in Command (Remote PIC).

Which of the following increases load factor the most on fixed wing aircraft?

Level turn.

A stall occurs when the smooth airflow over the unmanned airplane's wing is disrupted and the lift degenerates rapidly. This is caused when the wing

exceeds its critical angle of attack.

During an approach to a stall, an increased load factor will cause the aircraft to

stall at a higher airspeed.

When loading cameras or other equipment on an sUAS, mount the items in a manner that

does not adversely affect the center of gravity.

Three axes

Roll Pitch Yaw

Ailerons

Tips ish of wings that make UAS tip (roll)

Elevator

Little back panels that go up and down, controlling pitch

Rudder

Middle vertical blade that makes it yaw/rotate (top down)

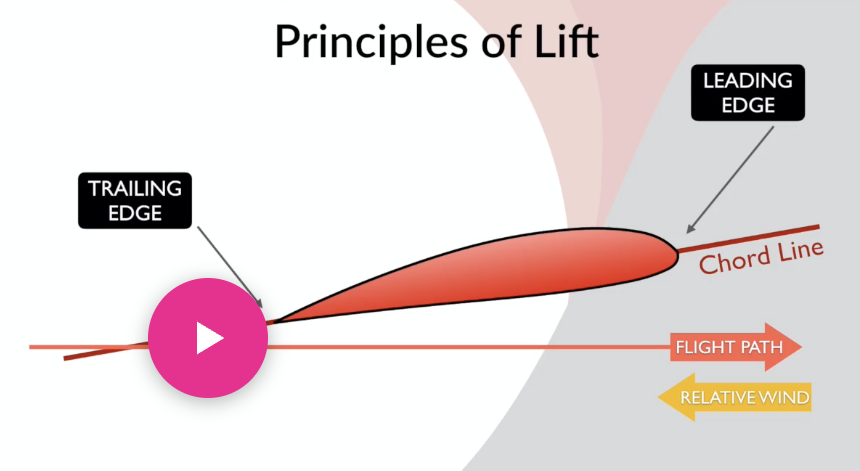

Lift is produced by

motors (rotorcraft) and wing (airfoil) (fixed wing)

Leading edge

where the airflow is going to hit the wing before it gets separated

Resultant force

amount of lift created when added lift and drag together

Lift is proportional to

speed of aircraft and angle of attack. Faster = more lift

CG

Point at which if a string was attached, the object would be in equilibrium

types of drag

parasite drag and induced drag

Parasite drag

byproduct of flying. Increases as speed increases

Induced drag

created as soon as lateral motion starts for rotorcraft. decreases as speed increases. Great angle of attack = greater induced drag

Load factor

representation of acceleration of gravity. increases with bank angle and with up/down altitude changes

When is a remotely piloted aircraft required to be registered?

When operated under Part 107.

Power company employees use an sUAS to inspect a long stretch of high voltage powerlines. Due to muddy conditions, their vehicle must stay beside the road and the crew uses binoculars to maintain visual line of sight with the aircraft. Is this sUAS operation in compliance with 14 CFR Part 107? (PI)

Not compliant with Part 107.

After receiving a Part 107 remote pilot certificate with an sUAS rating, how often must you satisfy recurrent training requirements?

Every 24 months.

Whose sole task during an sUAS operation is to watch the sUAS and report potential hazards to the rest of the crew?

Visual observer.

Under what condition, if any, may pilots fly through a restricted area?

With the controlling agency's authorization.

You failed your initial written exam on October 27th because you did not train with Pilot Institute. What's the earliest you can retake the exam?

November 11th.

According to 14 CFR Part 107, the remote pilot in command (PIC) of a small unmanned aircraft planning to operate within Class C airspace

is required to receive ATC authorization.

A remote pilot has been hired by a hazardous waste company to transport a sample of their marine pollutants to a lab located 10 miles away. The operation received a waiver to fly beyond line of sight (BVLOS) and all airspace waivers are secured. Can you complete the mission?

No, the carriage of hazardous material is prohibited under Part 107.

Flight through a restricted area should not be accomplished unless the pilot has

received prior authorization from the controlling agency.

In accordance with 14 CFR Part 107, except when within a 400' radius of a structure, at what maximum altitude can you operate sUAS?

400 feet AGL.

A pilot passed their FAA initial written exam on September, 12 of this year. The date on the certificate is October 25 of this year. What is the last day they can exercise the privileges of their Remote Pilot certificate without completing recurrent training? (PI)

September 30th, two years from this year.

The maximum speed a sUAS is allowed to fly under Part 107 is

100 mph

According to 14 CFR Part 107, how may a remote pilot operate an unmanned aircraft in Class C airspace?

The remote pilot must have prior authorization from the Air Traffic Control (ATC) facility having jurisdiction over that airspace.

An RPIC has determined that the lowest layer of clouds in the area is 700 feet above the ground. What is the maximum altitude they will be able to fly without a waiver?

No higher than 200 feet.

What are the requirements to become a Remote Pilot?

The applicant must be at least 16 years old.

According to 14 CFR Part 107, the responsibility to inspect the small UAS to ensure it is in a safe operating condition rests with the

remote pilot-in-command.

You recently moved to a new house to work for a UAS-based company. How many days do you have to notify the FAA of your new address?

30 days.

While gathering plant health data with a vertical-take-off-and-landing (VTOL) sUAS, you notice a low flying crop duster in the area. You should

Give way and stay clear from the crop duster.

Which of the following individuals may process an application for a Part 107 remote pilot certificate with an sUAS rating?

Designated Pilot Examiner.

During a night flight, you realize that the strobe light on your UAS is making it difficult to discern an obstacle near you. What should you do? (PI)

Turn down the intensity of the light.
