1
New cards

HTML is the abreviation of…

abreviation of hypertext markup language

2
New cards

Describe Hypertext markup language (HTML)

  • The language that web pages are written in.

  • HTML allows a browser to interpret and render a webpage for the viewer by describing the structure and content of the webpage.

  • Uses tags written in angle brackets (e.g. <title>)

  • HTML is not a programming language as it cannot perform computation

3
New cards

What is the purpose of html?

HTML defines the structure and content of a web page.

4
New cards

The two sections of an HTML webpage

  • Head

  • Body

5
New cards

What the head section of the HTML page contains

  • Contains things that the browser pre-processes and isn’t displayed on the page itself.

  • Contains the <title> which sets the browser tab title

  • Embedded CSS or links to style sheets

  • Often holds any <script> that you will use in the page (although script tags can be used in the body section as well)

6
New cards

What the body section of the HTML page contains

Contains the main content of the page - it defines the text, images and hyperlinks.

7
New cards

<html>

Tag that encloses all content of an HTML page. All code within these tag is interpreted as HTML.

8
New cards

<head>

HTML tag that defines the browser tab or window heading area

9
New cards

<body>

HTML tag that defines the main content of the webpage

10
New cards

<title>

HTML tag that defines the text that appears with the browser tab or window heading area

11
New cards

<link>

  • HTML tag used to link to additional files, such as a CSS stylesheet.

  • Does not create a hyperlink

12
New cards

<h1>, <h2>, … , <h5>, <h6>

Heading tags decreasing in level of priority and size.

13
New cards

Number of levels of heading tags

There are 6 levels of HTML heading tags, but you will only ever need ot use the h1, h2 and h3 heading tags in the exam

14
New cards

Number of times the h1 tag should be used on each webpage

The h1 tag should only be used once on each web page.

15
New cards

Number of times the <h2> to <h6> tags should be used on each webpage

____ HTML tags can be used as many times as needed

16
New cards

<img>

HTML tag that adds an image to a webpage. Has an attribute for the source of an image, in addition to a number of optional attributes including alt, height, width

17
New cards

alt attribute for <img> HTML tag

  • Alternative text

  • Describes the image and can help make a website more accessible

  • For example, it can help people using screen readers to understand what the image shows

18
New cards

<a>

  • Hyperlink HTML tag.

  • Stands for anchor.

  • Must have the href attribute which specifies the target of the link.

  • The piece of text between the __ tags will appear on the page as the link

19
New cards

<ol>

HTML tag used to define an ordered list. Each item of the list is numbered, starting with 1 for the first item.

20
New cards

<ul>

HTML tag used to define an unordered list. Each item has a bullet point next to it.

21
New cards

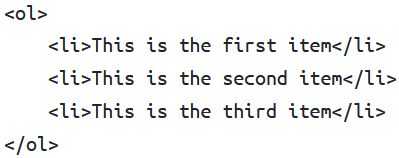

<li>

HTML tag used to add individual items to a list. Must be enclosed within <ol> or <ul> tags.

<p>HTML tag used to add individual items to a list. Must be enclosed within &lt;ol&gt; or &lt;ul&gt; tags.</p>
22
New cards

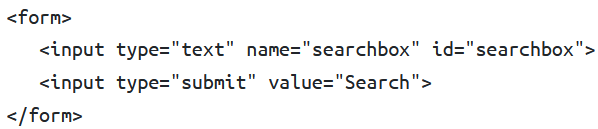

<form>

  • The HTML tag that defines a form that can be used to gather data

  • Each form can contain a number of form controls (components of the form), such as a textbox and submit button as shown in the image

<ul><li><p>The HTML tag that defines a form that can be used to gather data</p></li><li><p>Each form can contain a number of form controls (components of the form), such as a textbox and submit button as shown in the image</p></li></ul><p></p>
23
New cards

<input>

HTML tag used to define a form control. Has a type attibute.

24
New cards

What HTML code do you use to create a text box in a form?

You add a form control with type “text” and a name that identifies it:

<input type="text" id="myID" name="myID">

You don’t need </input>

25
New cards

What HTML code do you use to create a submit button in a form?

You use a form control with type “submit” and a optional value attribute for the text that will appear on the button:

<input type="submit" value="buttonName">

26
New cards

Why all form controls that collect data must have the name attribute

The name attribute is needed because data is submitted to web servers as a name-value pair

27
New cards

id attribute of a form control

  • Often given the same identifier as the name attribute, but doesnt have to be

  • The id is used client-side, unlike the name attribute which is used server side

  • Javascript can target elements by their id so that they can be manipulated

28
New cards

<p>

  • HTML tag used to define a paragraph

  • Paragraphs are seperated by a blank line above and below

29
New cards

<div> tag is used to create…

…page divisions

30
New cards

HTML page divisions

  • Containers or boxes that contain other elements of the page like text, images, forms etc.

  • They must have a unique id attribute

  • Can be used to group content together

  • Used to split pages up into sections / areas

31
New cards

<script>

HTML tag used to embed a client-side script (Javascript) or to point to an external script file through the src attribute

32
New cards

What is CSS the abreviation of?

Abreviation of cascading style sheets

33
New cards

What is cascading style sheets (CSS)?

A language which is used to describe the style of a web page. It is used alongside HTML.

34
New cards

What is the purpose of CSS, and what are the different ways of using it?

  • CSS defines the appearance / style using selectors such as classes and IDs

  • CSS can be inline, embedded or stored externally in a file

  • Multiple pieces of CSS can be combined, with the more local instances overriding others

35
New cards

HTML vs. CSS

HTML tells the browser what content, and the structure of the content, to display on a page. CSS tells the browser how each element should appear.

36
New cards

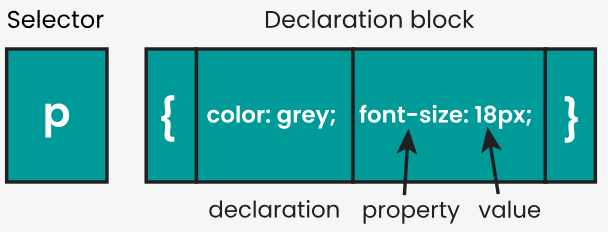

CSS syntax for a rule or rule set

  • Consists of selector(s) followed by declaration block.

  • The example image shows a CSS rule set for p (paragraph) elements that states their (text) colour should be grey and the font size should be 18 pixels.

<ul><li><p>Consists of selector(s) followed by declaration block. </p></li><li><p>The example image shows a CSS rule set for p (paragraph) elements that states their (text) colour should be grey and the font size should be 18 pixels.</p></li></ul><p></p>
37
New cards

CSS element selector

  • Targets the element that you want to style.

  • If the value of a property has not been specified (e.g. font type), the default browser value will be used (e.g. default browser font)

38
New cards

CSS declaration block

Curly brackets containing one or more CSS declarations separated by semicolons

{
  color: grey;
  font-size: 12px
}

39
New cards

CSS declaration

  • Made up of a CSS property and a value, separated by a colon.

  • For example, color: orange is a CSS declaration.

40
New cards

CSS properties

Particular thing which can be changed (e.g. background colour, font size)

41
New cards

background-color CSS property

  • Changes the colour of the background.

  • Example usage: background-color: grey

42
New cards

border-color CSS property

  • Changes the colour of the border around an element.

  • Must be spelt color

  • Example usage: border-color: blue

43
New cards

border-style CSS property

  • Change the style of the border.

  • Can be dotted, dashed, solid, or double.

  • Example usage: border-style: solid

44
New cards

border-width CSS property

  • Changes the width of the border.

  • Can be set to either thin/medium/thick, or a width value in pixels.

  • You should always declare the style of the border before the width.

  • Example usage: border-width: 12px

45
New cards

color CSS property

  • Changes the colour of text.

  • Can be specified as a word for more common colours, or a hashtage followed by a hex value.

  • Example usages: color: orange, color: #1212ef

  • There is a ‘web safe’ pallete of colours which will display consistently on all major browsers

46
New cards

font-family CSS property

  • Changes the font.

  • Multiple font names separated by commas can be specified so that if the browser does not support the first font, it tries the next font and so on.

  • Example usage: font-family: Roboto, Arial, sans-serif

47
New cards

font-size CSS property

  • Changes the size of the text

  • Example usage: font-size: 12px

48
New cards

height CSS property

  • Changes the height of the element, e.g. the height of an image, or the height of a <div>

  • Example usage: height: 240px

49
New cards

width CSS property

  • Changes the width of the element, e.g. the width of an image

  • Example usage: width: 120px

50
New cards

CSS element selector

  • Applies a CSS rule-set to a standard HTML tag

  • Name of selector is name of element

51
New cards

CSS id selector

  • Selector used to target elements that are unique (appear once only) on an HTML page

  • Used to style a single element

  • Begins with a # to show it is an id selector, followed by the name of the targeted element’s id

52
New cards

CSS class selector

  • Applies a CSS rule-set to a defined group of elements.

  • Begins with . to show its a class selector

  • Can be applied multiple times on a page and to different HTML elements (e.g. heading and paragraph)

  • Name of class is the class identifier that you chose

53
New cards

How to apply a CSS class selector to an element of a webpage

Set class attribute to the name of the class (without the . ). For example: <p class="funky_neon_text"> This looks weird </p>

54
New cards

What are external CSS style sheets? What are their advantages?

  • A file that contains the CSS rules you have written. You link it to your HTML file, using a link tag in the head section: <link rel="stylesheet" type="text/css" href="styleSheetName.css">

  • Can be linked to multiple web pages on a website, giving a consistent look.

  • Changing the one style sheet will change the look of all the linked pages, instead of having to change each individual one. This makes editing / maintaining / updating the website much easier.

55
New cards

Inline style

  • Allows you to add a style rule-set within a HTML tag by using the style attribute

  • For example: <h1 style="color:orange; font-size:12px"> Styled heading </h1>

  • Overides any other styling information (e.g. information from an external style sheet)

56
New cards

Three forms of using CSS

  • In-line CSS

  • Embedded CSS

  • External CSS

57
New cards

Embedded CSS

When the styles are defined within the HTML document in the top <head> section of the page in <style> tags

58
New cards

External CSS

CSS written in a separate style sheet that a HTML file can then link to.

59
New cards

In-line CSS

When the style of an element is defined with the style attribute in its tag. This overrides any other styling.

60
New cards

Javascript

An interpreted programming language that can be used to add interactivity to webpages

61
New cards

Defining a variable in javascript

  • Use the var keyword, but don’t specify the data type

  • For example: var bestNumber = 12;

62
New cards

Selection and iteration in javascript

Same syntax as C

63
New cards

Defining arrays in Javascript

  • Use square brackets arround the arrays elements

  • For example: var colours = ["blue", "orange", "green"];

64
New cards

What code do you use to add a new element to an array in Javascript?

myArray.push(newElement);

65
New cards

How to write procedures in javascript

  • Use the function keyword, parenthesis containing the parameters, braces containing the code.

  • There should be no return statement or return with no value

function procedureName(parameter1, parameter2, ...) {
  // Code block to perform actions
  // No return statement or return with no value;
}

66
New cards

Output methods using Javascript

  • Alert boxes

  • Document write

  • Changing the value of an element

67
New cards

Alert boxes using javascript and its usage

  • Use the built in alert() procedure.

  • Not often used on live web pages as can be very annoying, but can be useful during developement (e.g. display the value of a variable)

alert("Hello!");

68
New cards

Document write using Javascript

  • Writes the result of processing directly onto the web page.

  • The result will appear in the position on the page where the script is embedded within the HTML.

  • Tags can be used to mark-up the content written

<script>
var result = 12 + 21;
document.write("<h1>",result,"</h1>");
</script>

69
New cards

Changing the value of an element using Javascript

  • Likely the most useful output method on the A-level course.

  • innerHTML is the HTML between the tags

<h1 id="example">page heading</h1>

<script>
chosen_element = document.getElementById("example");
chosen_element.innerHTML = "Hello World";
</script>

70
New cards

Getting the value of an element using Javascript

var contents = document.getElementById("example").value;

71
New cards

Input method(s) using javascript

  • HTML forms are commonly used to collect data from the user

  • Javascript can then be used to retrieve the input and process it (e.g. validate it)

72
New cards

Responding to events using Javascript

  • Events are detected by the browser

  • When an event occurs, an event handler (a subroutine written in javascript) can be called. This can then respond to the event

  • Example: <button onclick="say_hello()">Press me!</button>. In this example onclick is the event and say_hello() is the event handler.

73
New cards

How to store Javascript code in a seperate file

Must link to the Javascript file using a <script> tag within the <head> section of the HTML page. The name of file must be specified as the source attribute within the <script> tag. For example:

<head>
<script src="my_script.js"></script>
</head>

74
New cards

Advantages of storing Javascript code in a seperate file

  • You can link the same file to multiple pages if they all need access to the same functions

  • The HTML document is less cluttered and easier for the developer to read because the scripts are held separately

  • The web page may be faster to load because the linked file can be cached

  • Common misconception: the contents of the file will not be secret because the file can be opened and examined using developer tools by a knowledgable user (this is a not an advantage)

75
New cards

Advantages of using Javascript

Local computer can deal with invalid data before it is sent off to the servers, so:

  • Can ease the load on servers

  • Reduces web traffic

76
New cards

Client-side processing (aka client side scripting)

When the client processes data on their local device. This uses languages such as Javascript

77
New cards

Server side processing (aka server side scripting)

When a client sends data to a server for it to be processed. This means the information is not processed on the client computer. Common server side scripting languages are SQL or PHP.

78
New cards

Advantages of client-side processing

  • Webpage can immediately respond to user actions because there is no need to submit to server and wait for a response

  • Executes quickly

  • Reduces the load on the server

    • Will need to spend less on processing power and bandwidth

  • Gives developers more control over the behaviour and look of the website

79
New cards

Disadvantages of client-side processing

  • Client side processing could be altered

  • Browser may not support client-side language / scripting could be turned off

80
New cards

Advantages of server-side processing

  • Can perform large calculations much faster than clients

  • Scripts are hidden on the server

    • Better protects intellectual property

    • Helps prevent anyone from tampering with the code

  • Can be used to dynamically generate HTML for a webpage

    • Allows content of website to be customised for user

    • Script to do this may do calculations and/or look things up in a database to build the HTML etc.​ Then it sends this to the client.

  • Not browser dependent - more control over the environment in which the scripts are be executed

81
New cards

Disadvantages of server-side processing

  • Server hardware will (generally) need to be specialised with large processing power and other capabilities, which makes them very expensive

82
New cards

JSON is the abreviation of …

… abreviation for Javascript object notation

83
New cards

JavaScript Object Notation (JSON)

  • A standard for interchange of data

  • Text based (i.e. readable by humans)

  • Built on two structures:

    • An ordered list of values

    • A collection of name/value pairs

  • Easy for computers to parse and therefore quick to process

  • JSON is open source and language independent

84
New cards

Disadvantage of JSON

JSON supports a limited number of data types

85
New cards

XML is the abreviation of …

… abreviation of extensible markup language

86
New cards

Extensible markup language (XML)

  • An alternative format to JSON for the interchange of data.

  • An XML file is longer than its JSON equivelent

  • Allows a schema to be written, which specifies the structure of the XML file, ensuring the data contained in the file is in the correct format and of the right data types.

87
New cards

XML schema

A type of metadata which specifies the structure of the XML file, ensuring the data contained in the file is in the correct format and of the right data types.

88
New cards

Search engine

a program that searches through a database of internet addresses looking for resources matching criteria set by the client.

89
New cards

Factors that determine the page rank of a page

  • Number of incoming links from other webpages

  • The page rank of the pages that link to it

  • (Damping factor)

90
New cards

Page rank algorithm

An algorithm used to determine the order used when showing web results for a search engine query.

91
New cards

Software used by search engines for web indexing

Web crawlers

92
New cards

What web crawlers do

They travel across the internet collecting keywords and phrases from web pages and adding them to an index of web resources.

93
New cards

How do search engines index websites?

  • Web crawler visits sites…

  • … either by selecting them from an existing list or by following links

  • Records information about each page, like:

    • the position of words within the page, including the tags they are between

    • Information in metatags

  • Storing them in a database

  • Follows links to other sites

94
New cards

Damping factor

A value between 0 and 1 that is the probability that a user will continue following links

95
New cards

Disadvantage of using inline styling for a website’s owner

  • Formatting code has to be rewritten for every page

  • To change the style of the website, changes have to be made to every page

  • It is a lot of work to keep the look of the site consistent

96
New cards

Disadvantage of using inline styling for a website’s visitors

  • The site may be slower to access as the formatting information cannot be cached so must be reloaded for every page

  • The site is unlikely to have formatting specific to their device/needs

97
New cards

What are 3 methods of exchanging data with other computer systems?

  • CSV

  • JSON

  • XML

98
New cards

What does CSV stand for?

Comma separated values
