Muscle Cell and Nerve Cell Anatomy: Key Structures and Functions

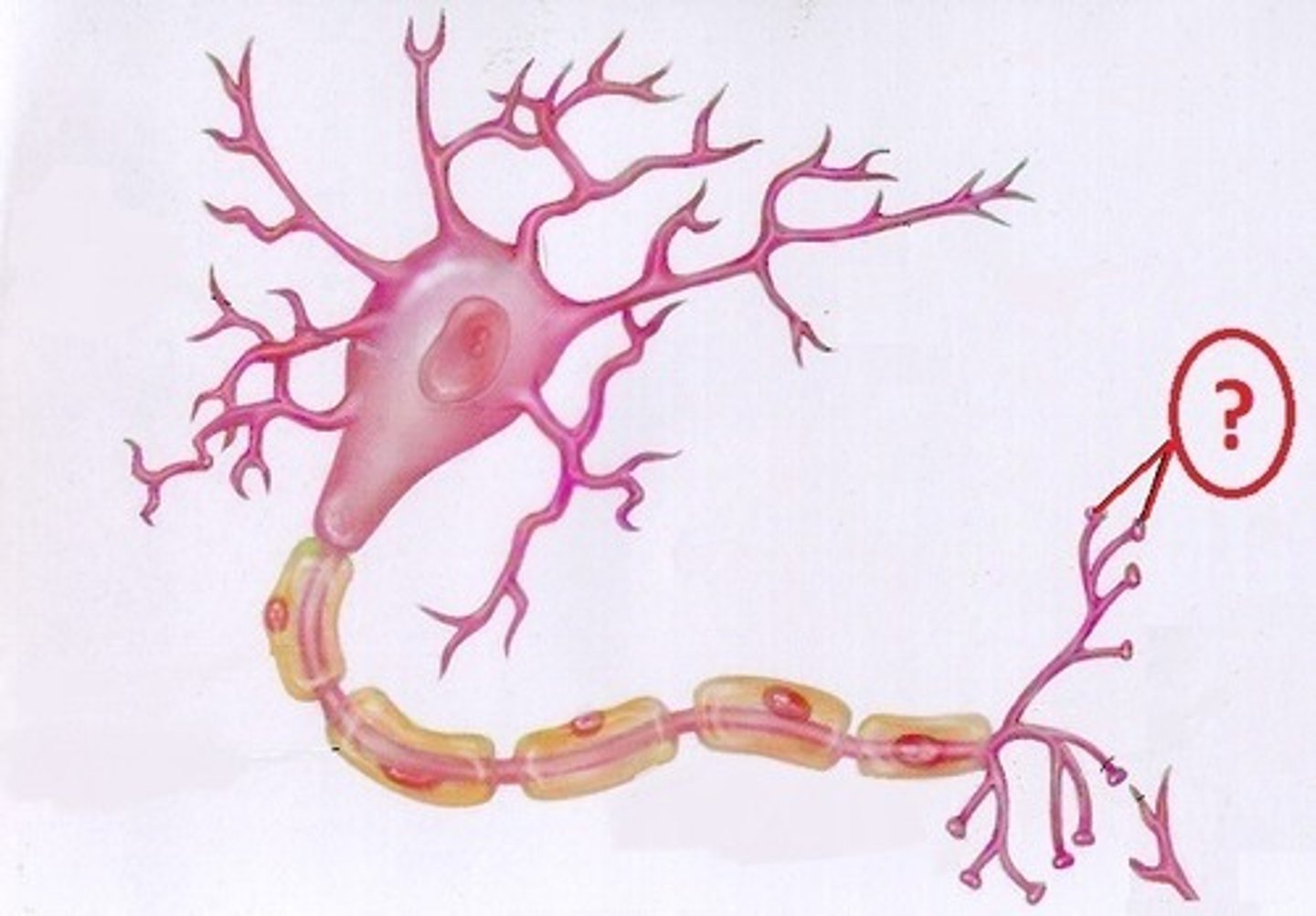

cell body of nerve cell

The cell body of a nerve cell, also known as the soma, contains the nucleus and organelles, playing a crucial role in maintaining the cell's functions and integrating signals received from the dendrites.

dendrite of nerve cell

The part of a nerve cell that receives signals from other neurons and transmits them towards the cell body.

axon of nerve cell

The long, slender projection of a nerve cell that conducts electrical impulses away from the cell body. It is essential for transmitting signals to other neurons, muscles, or glands.

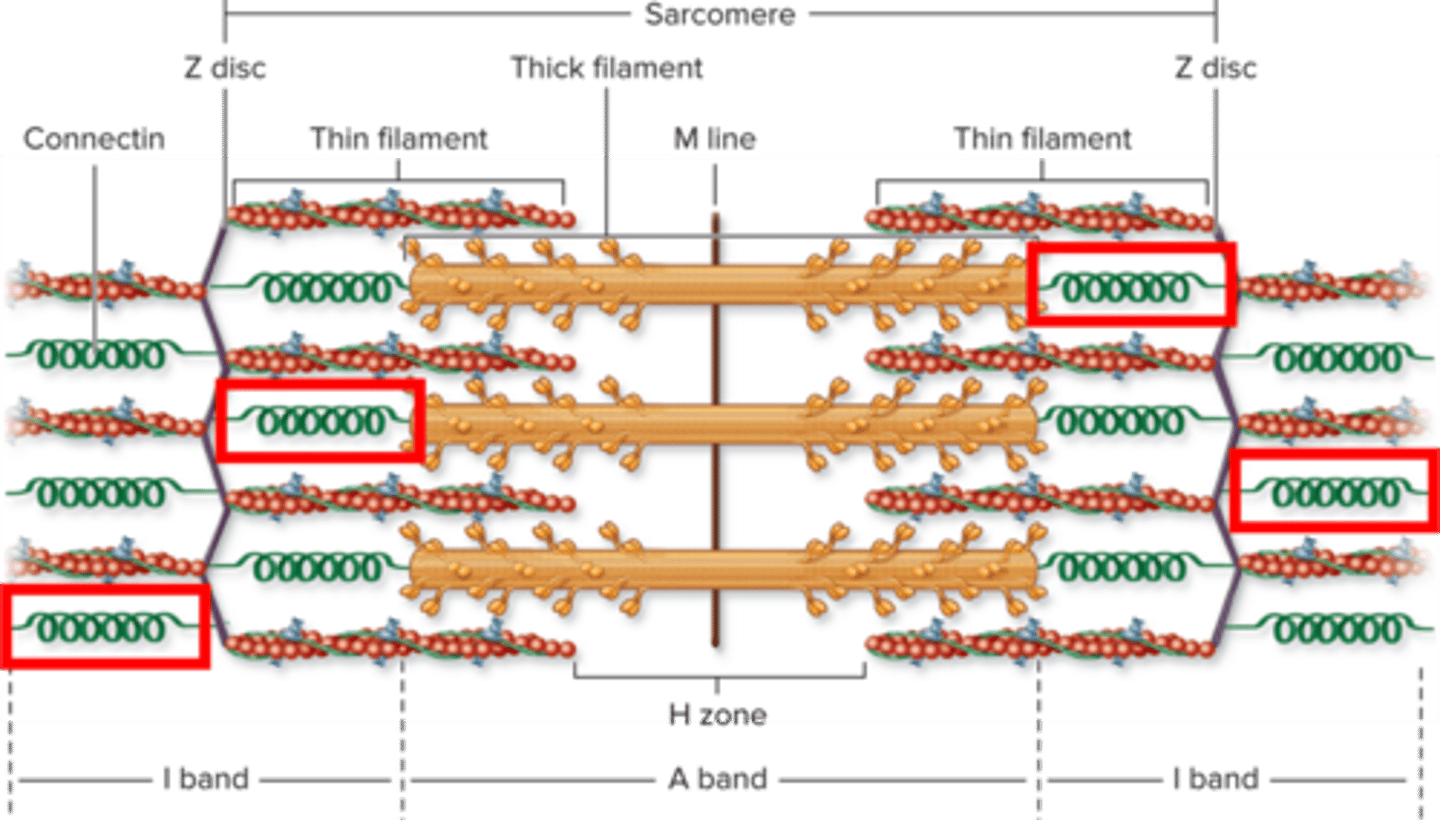

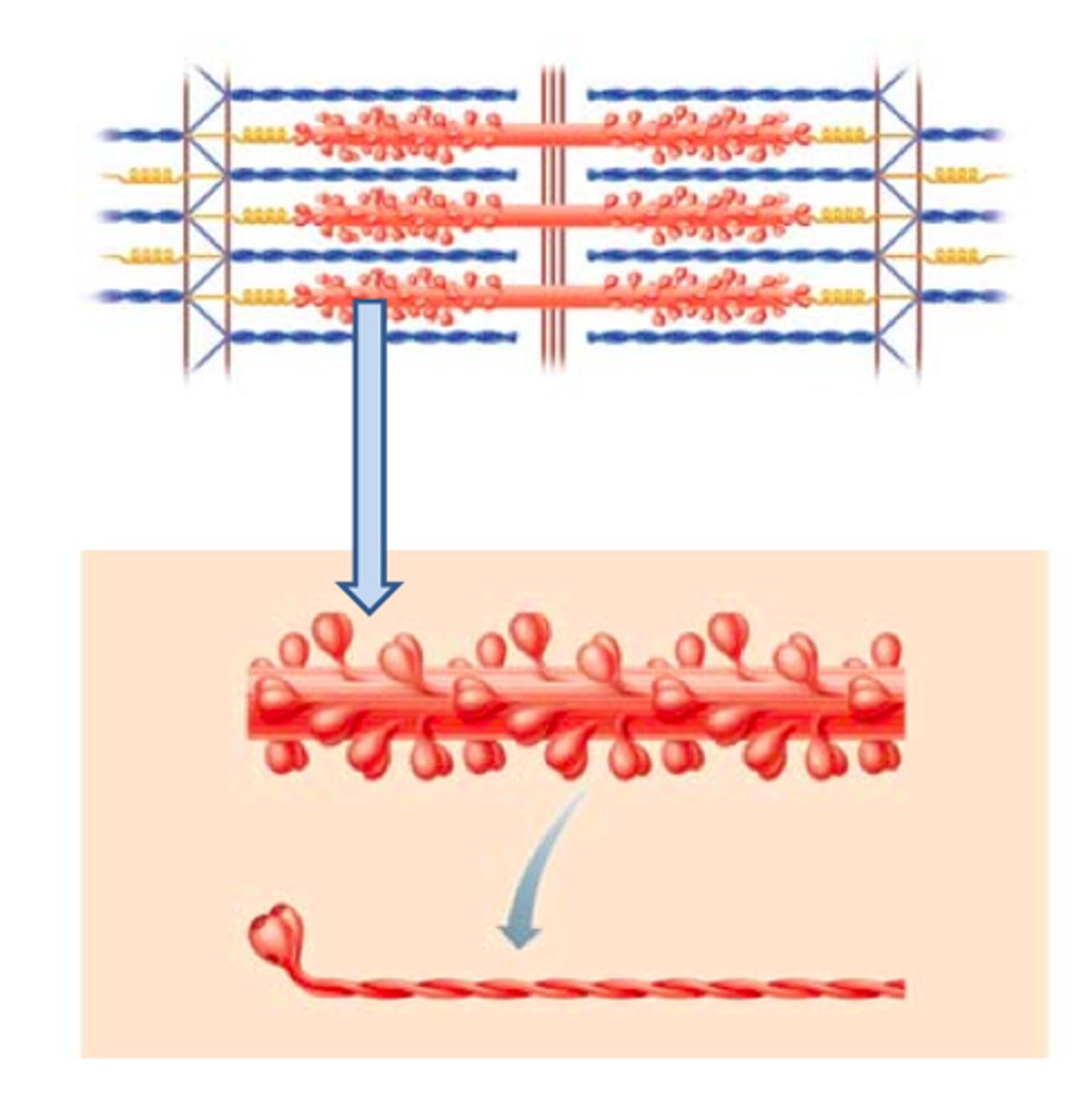

connectin

z disc

thin filament

thick filament

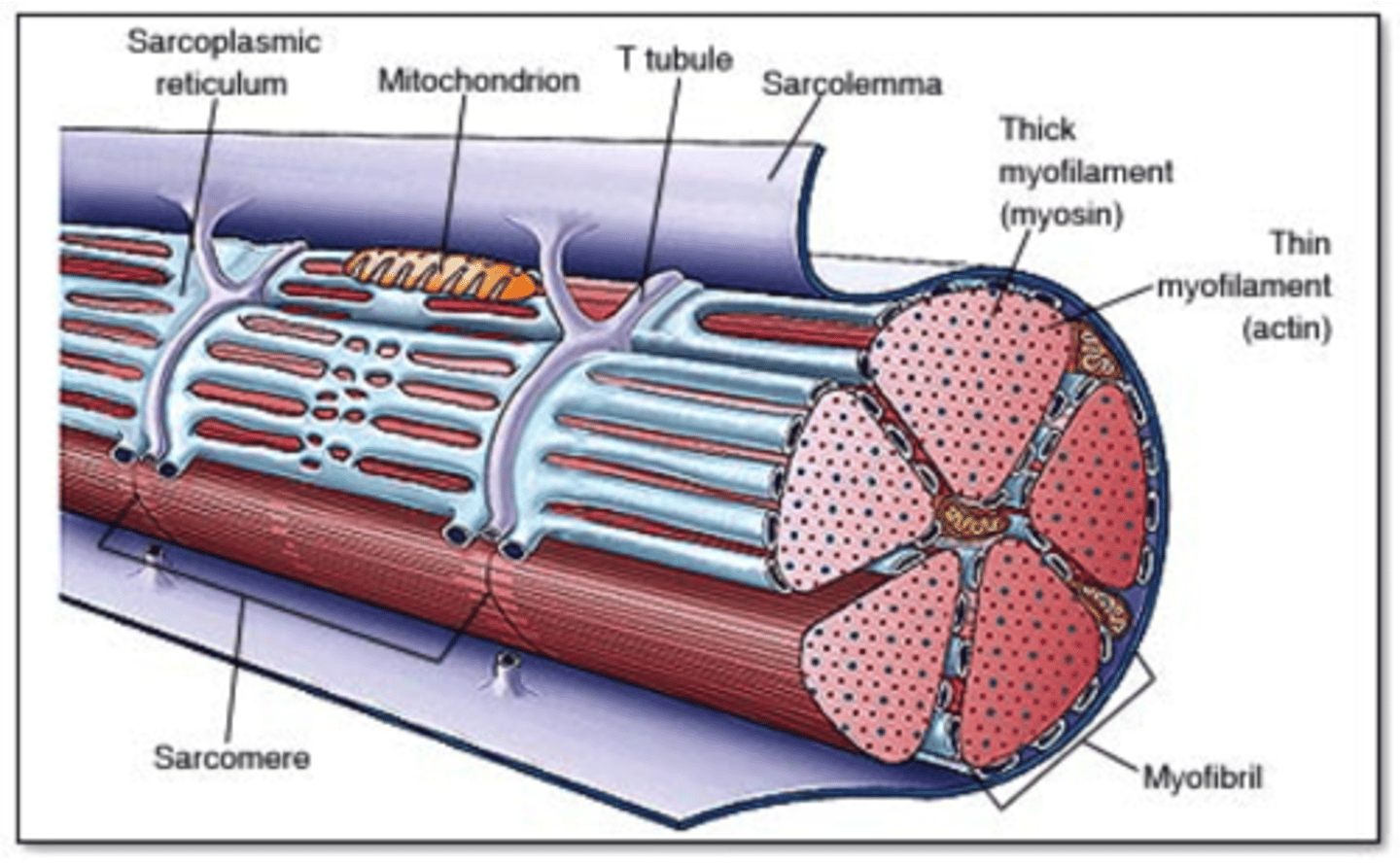

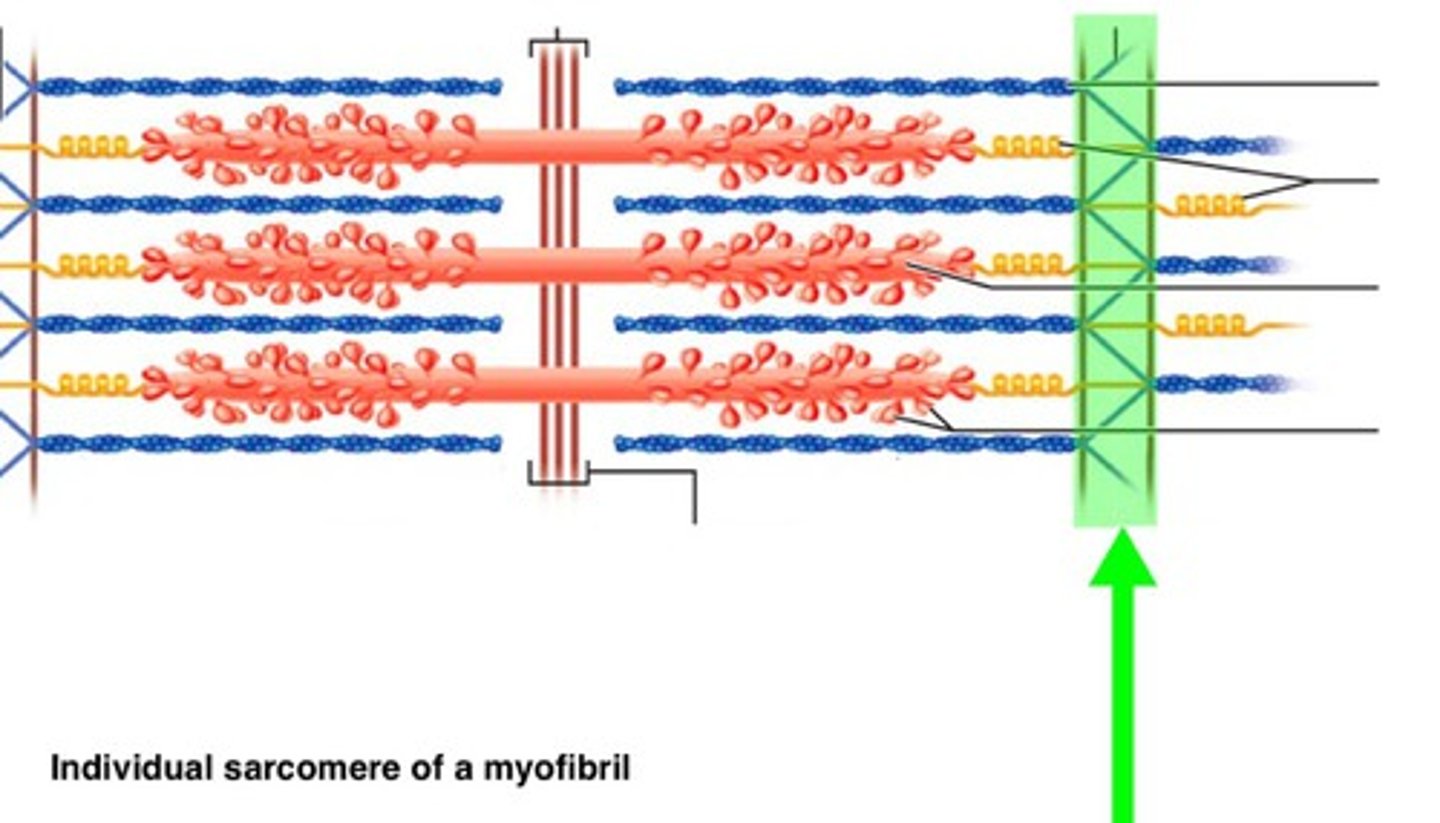

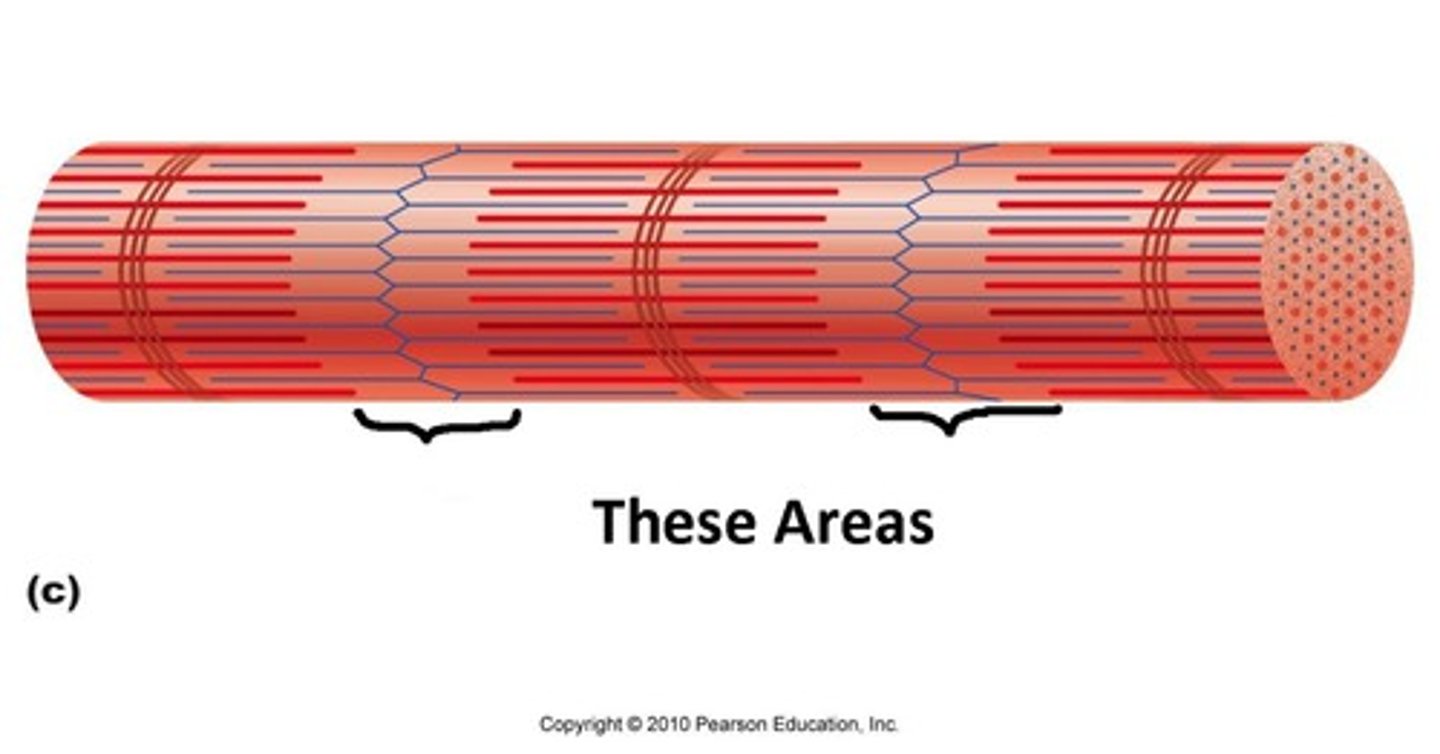

sarcomere

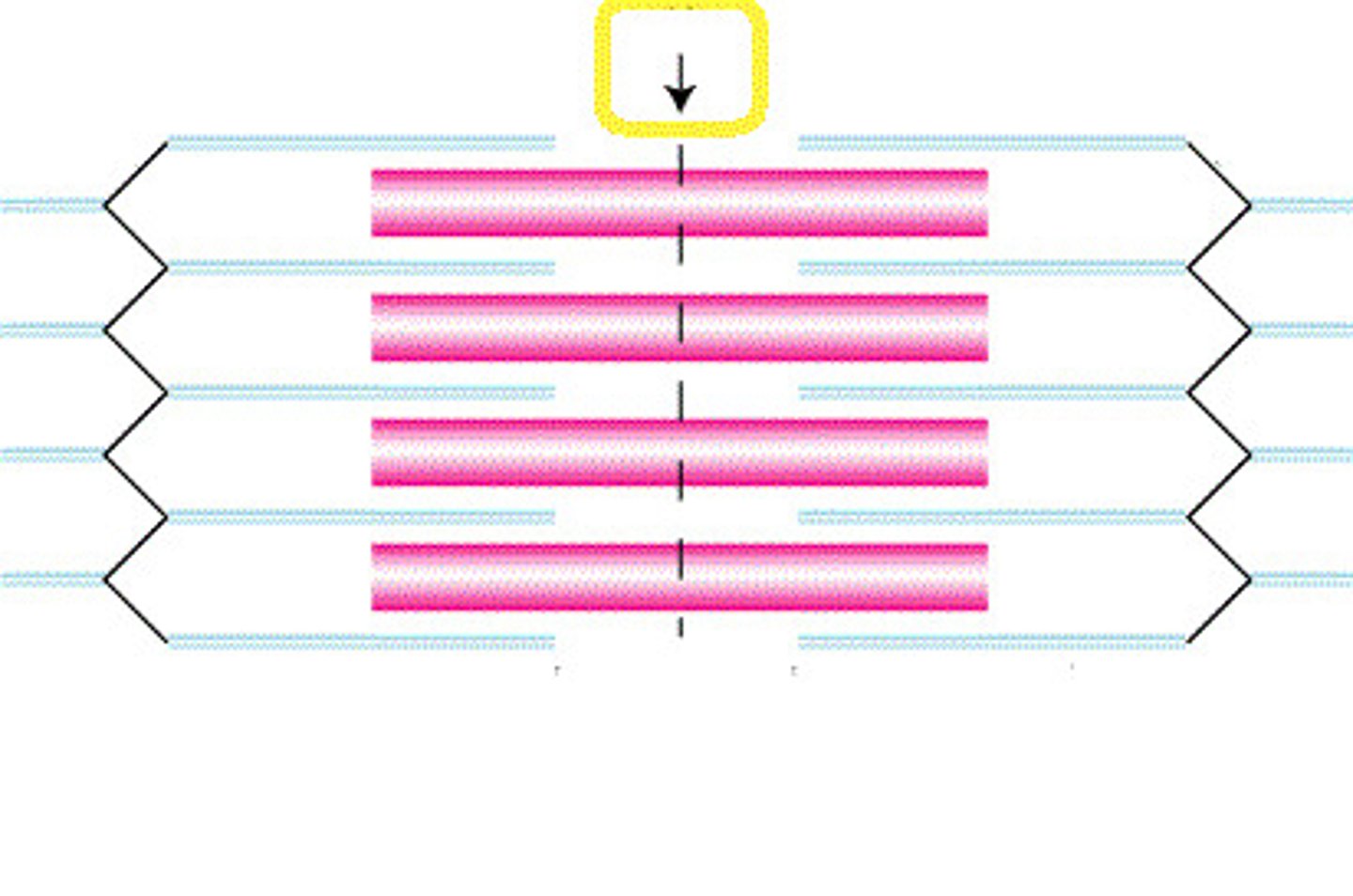

m line

i band

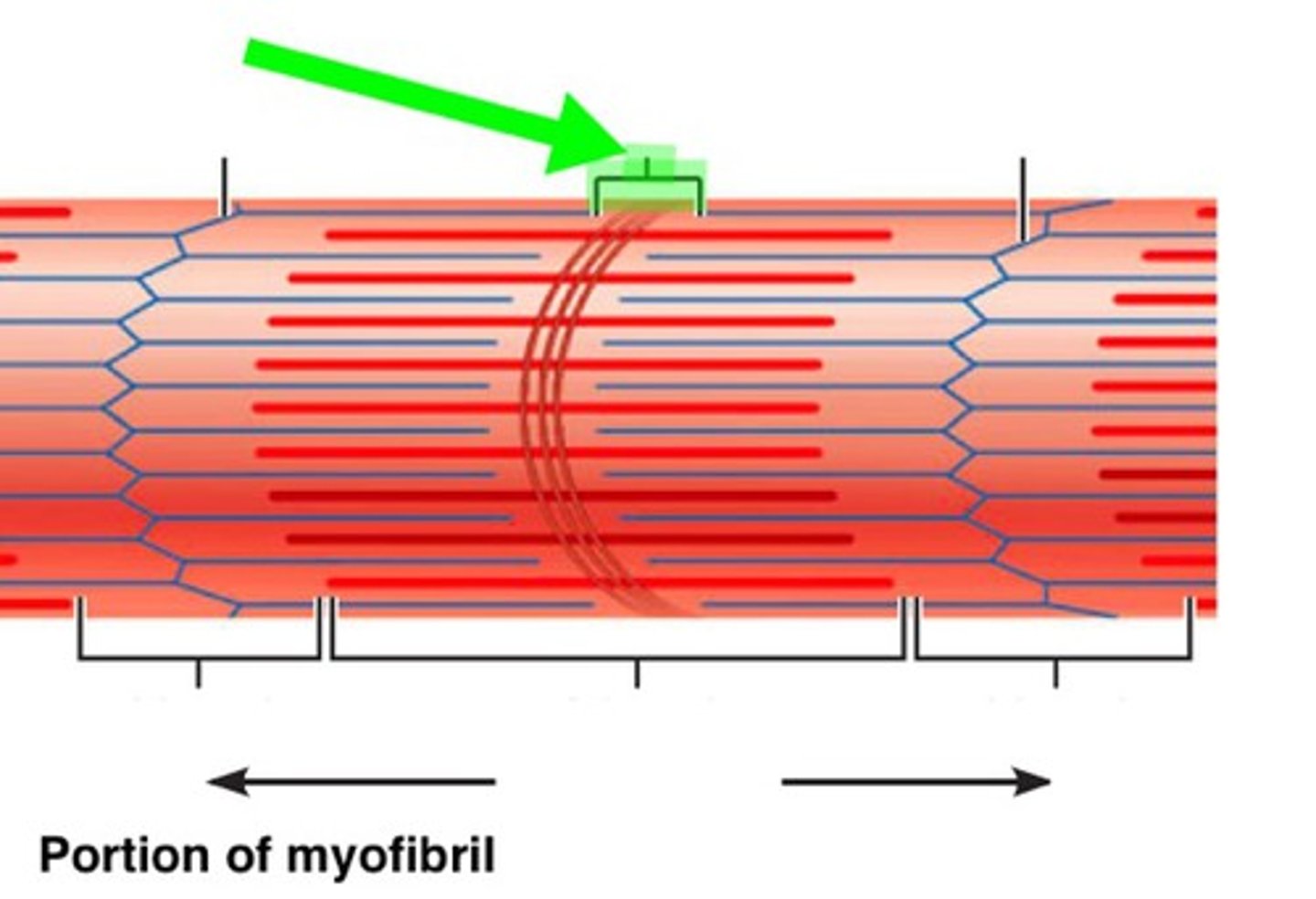

h zone

a band

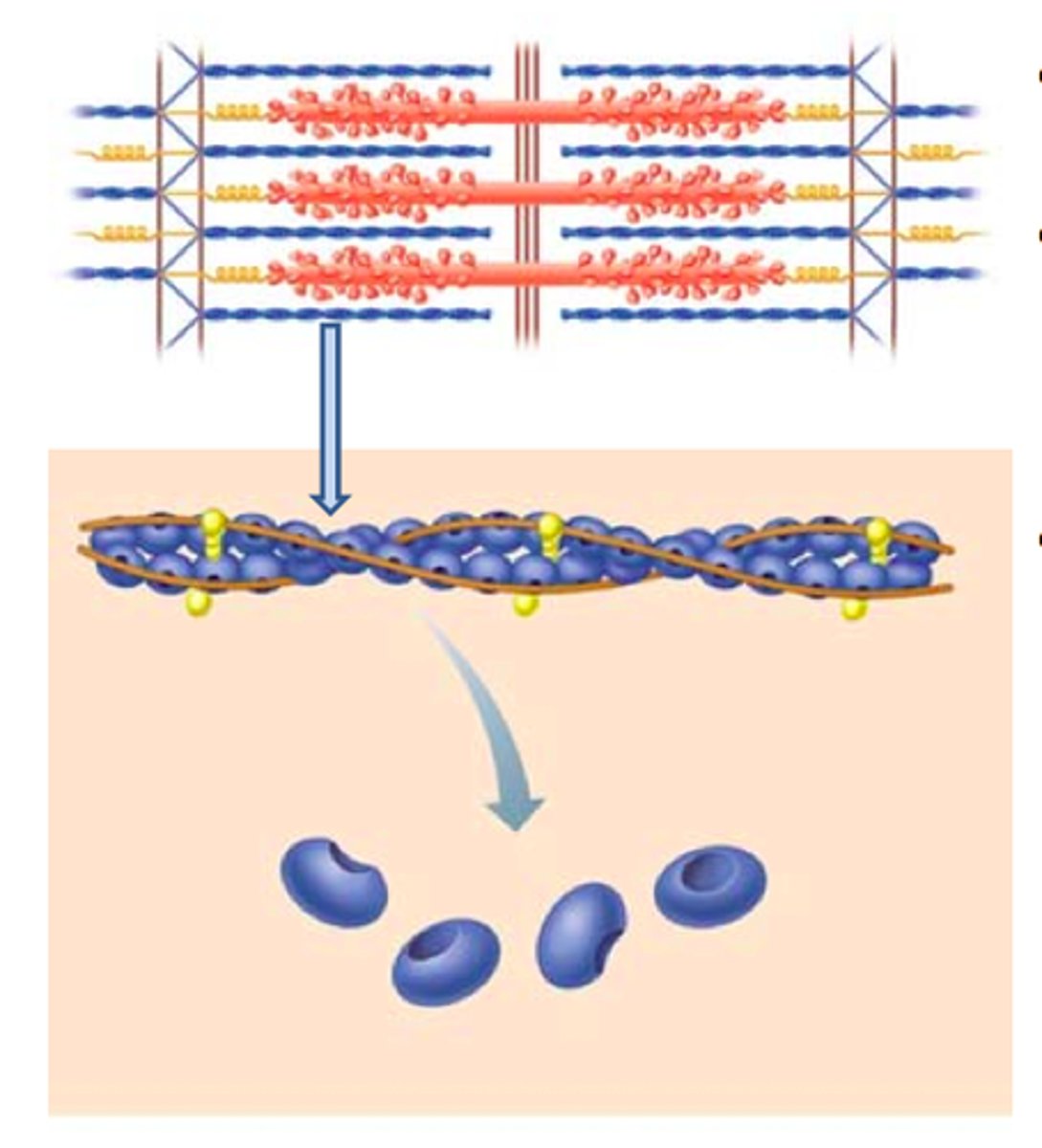

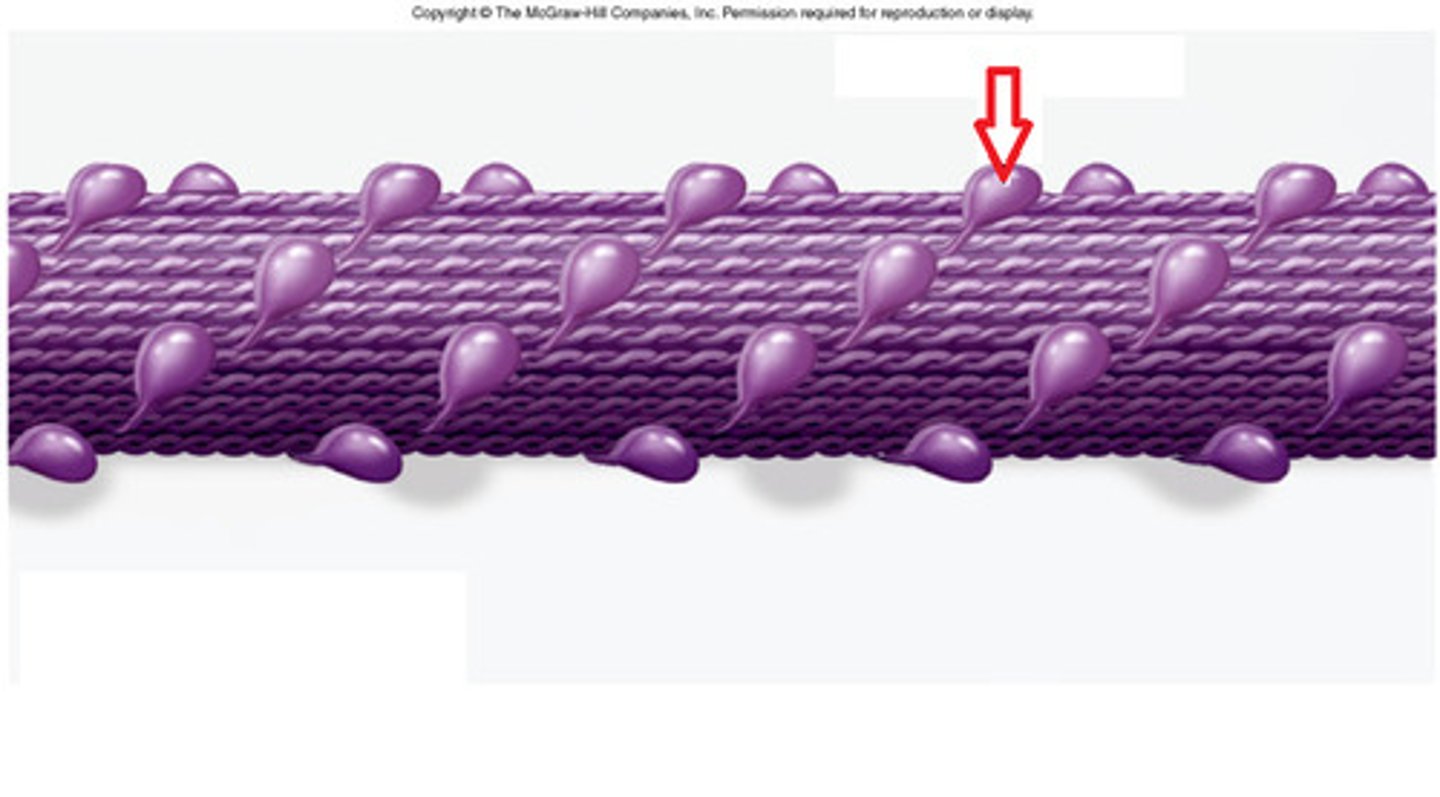

head of myosin

actin binding sites

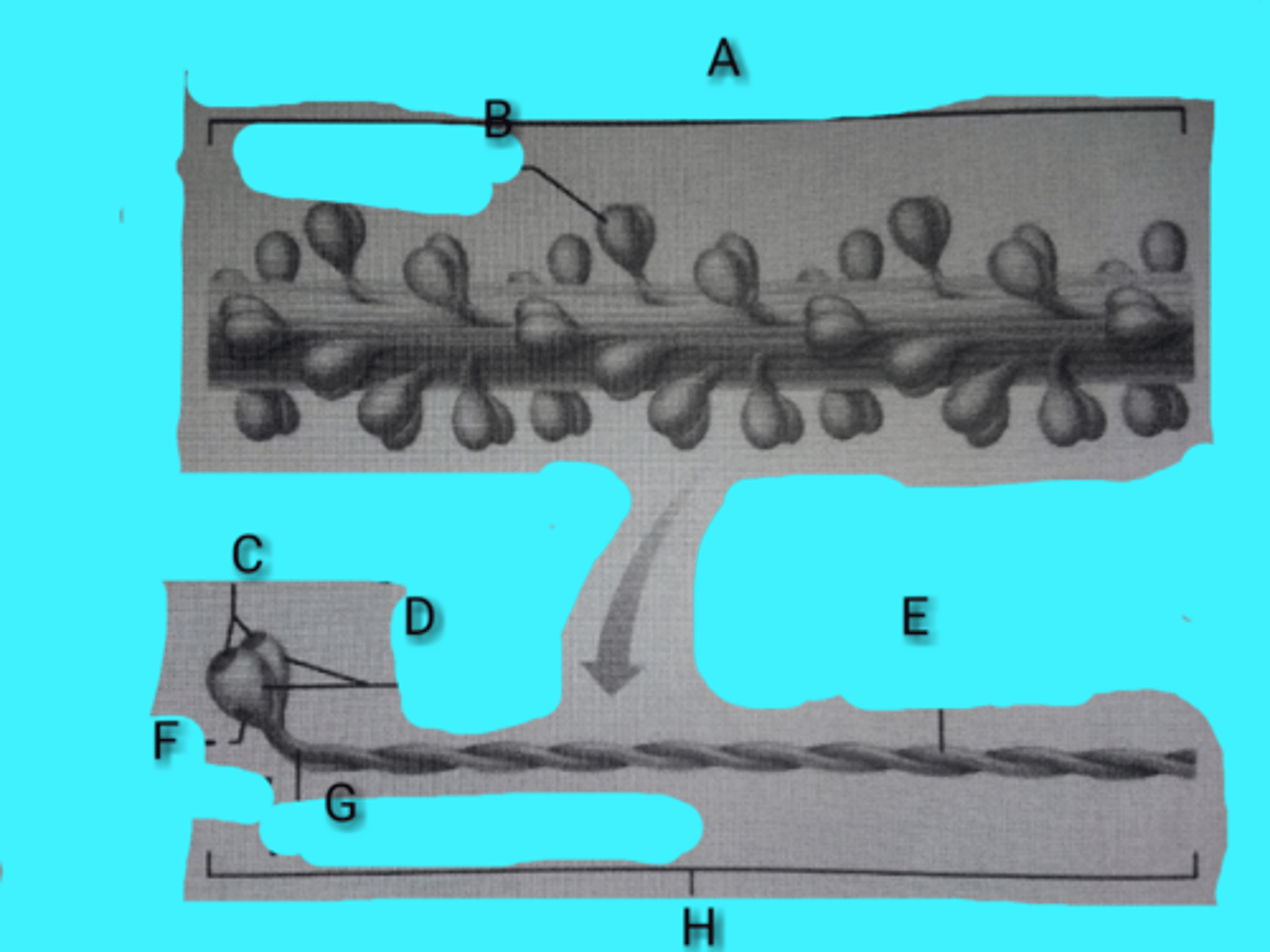

sites allow myosin heads to physically attach to actin filaments (forming cross-bridges)

ATP & ATPase binding site

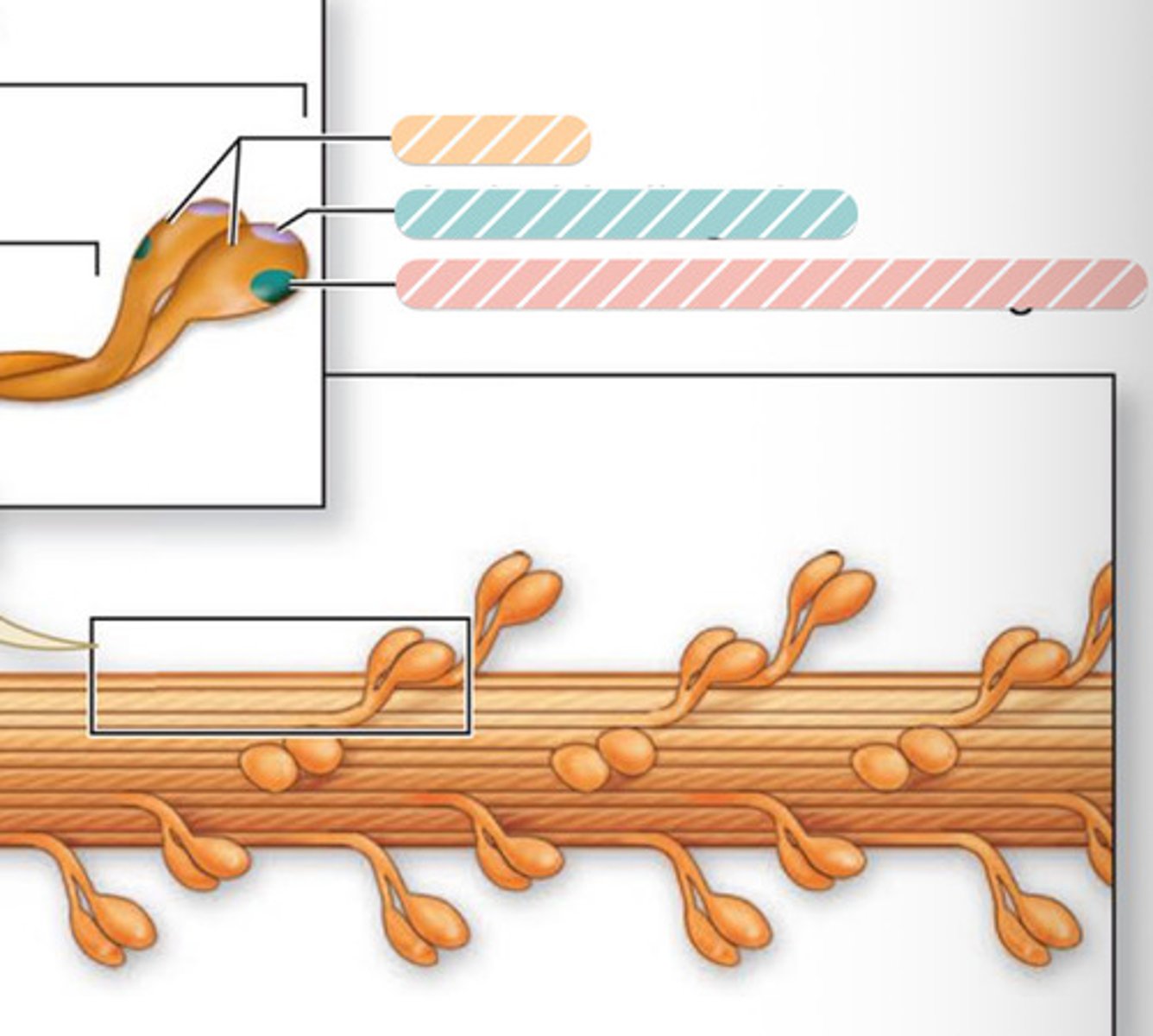

on myosin serves as the motor's engine

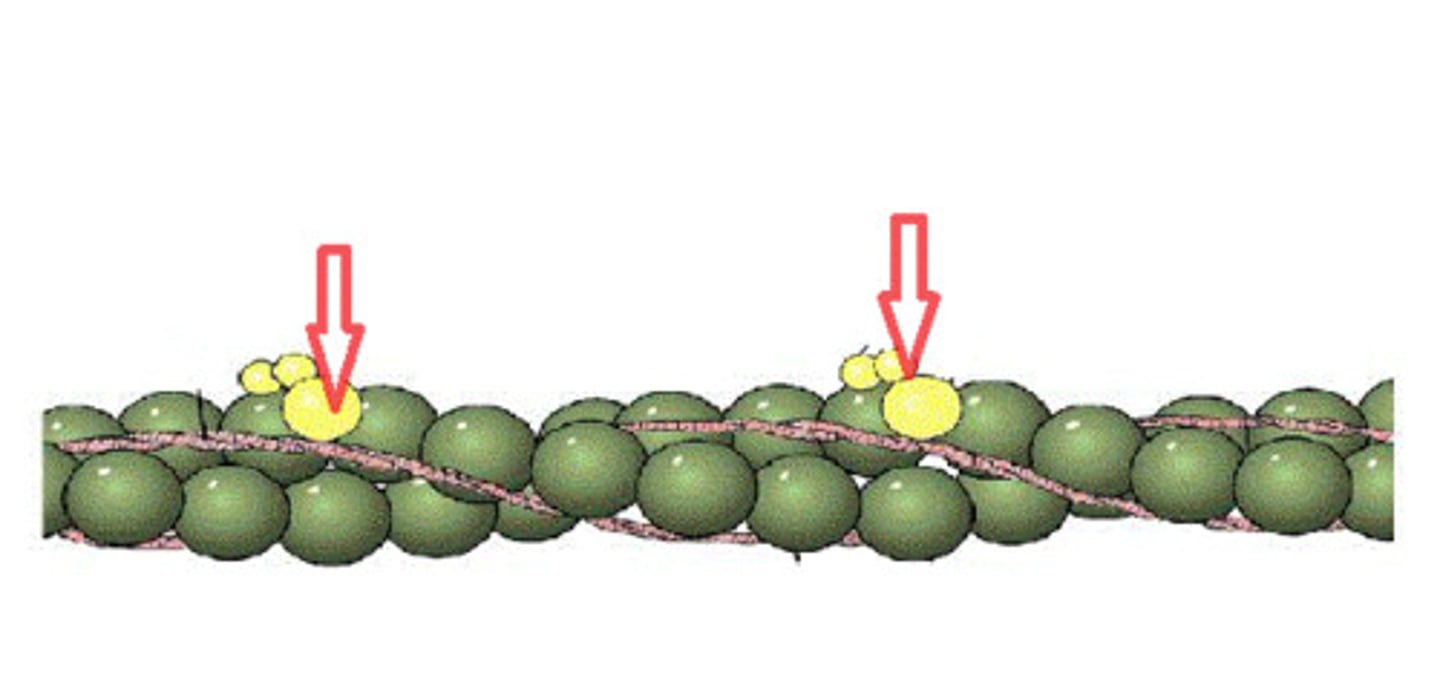

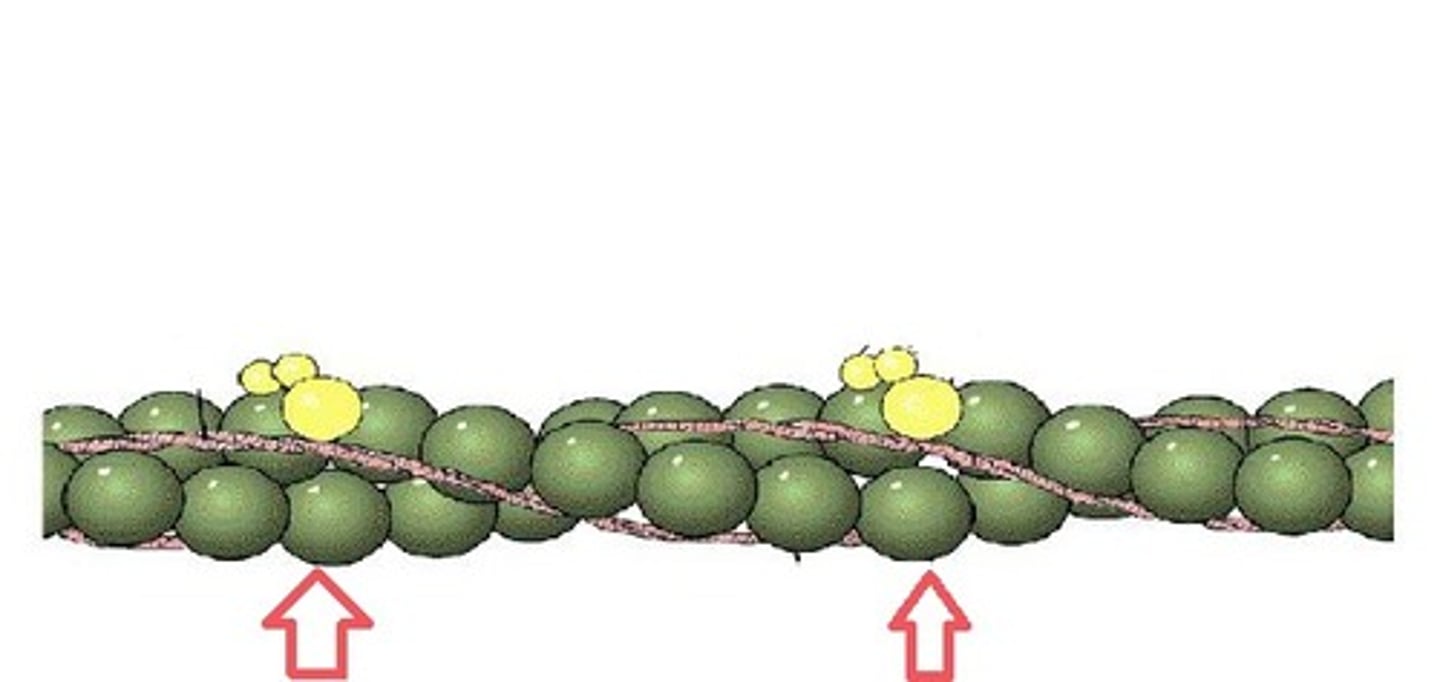

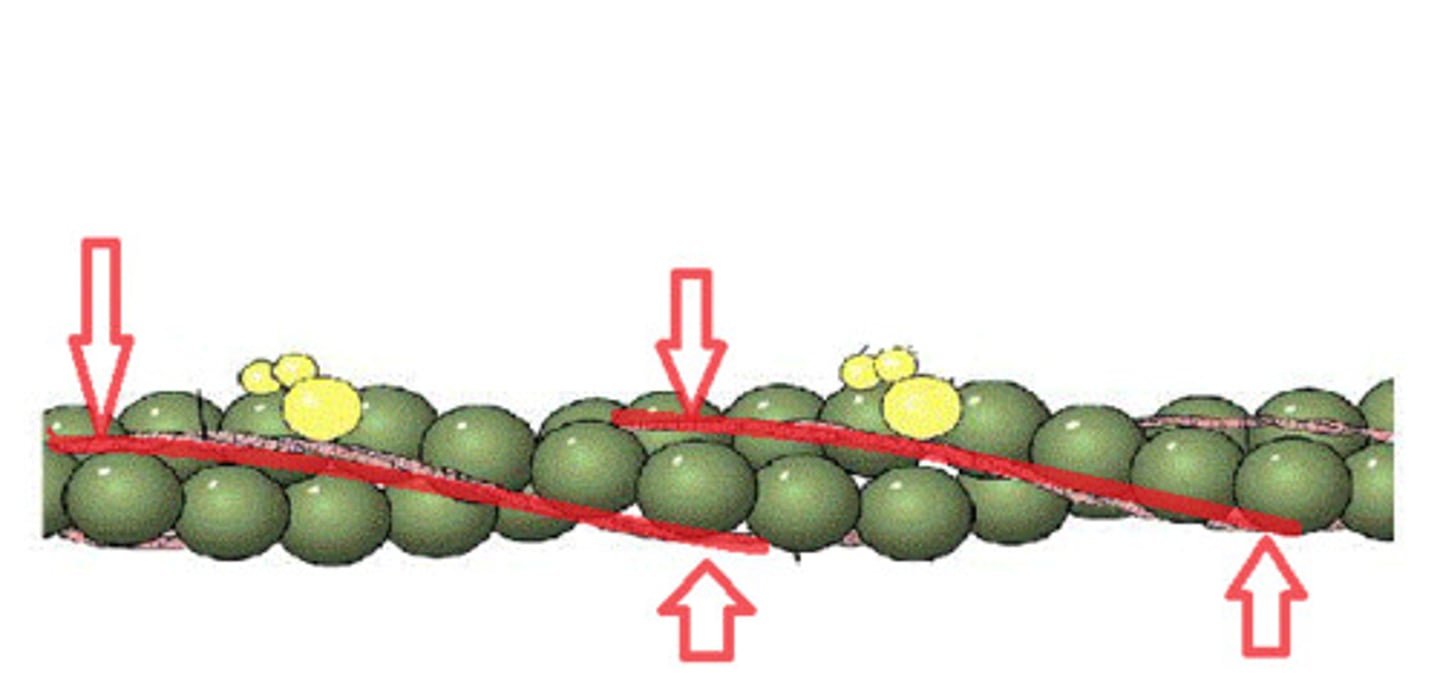

tropomyosin

troponin

actin

myosin

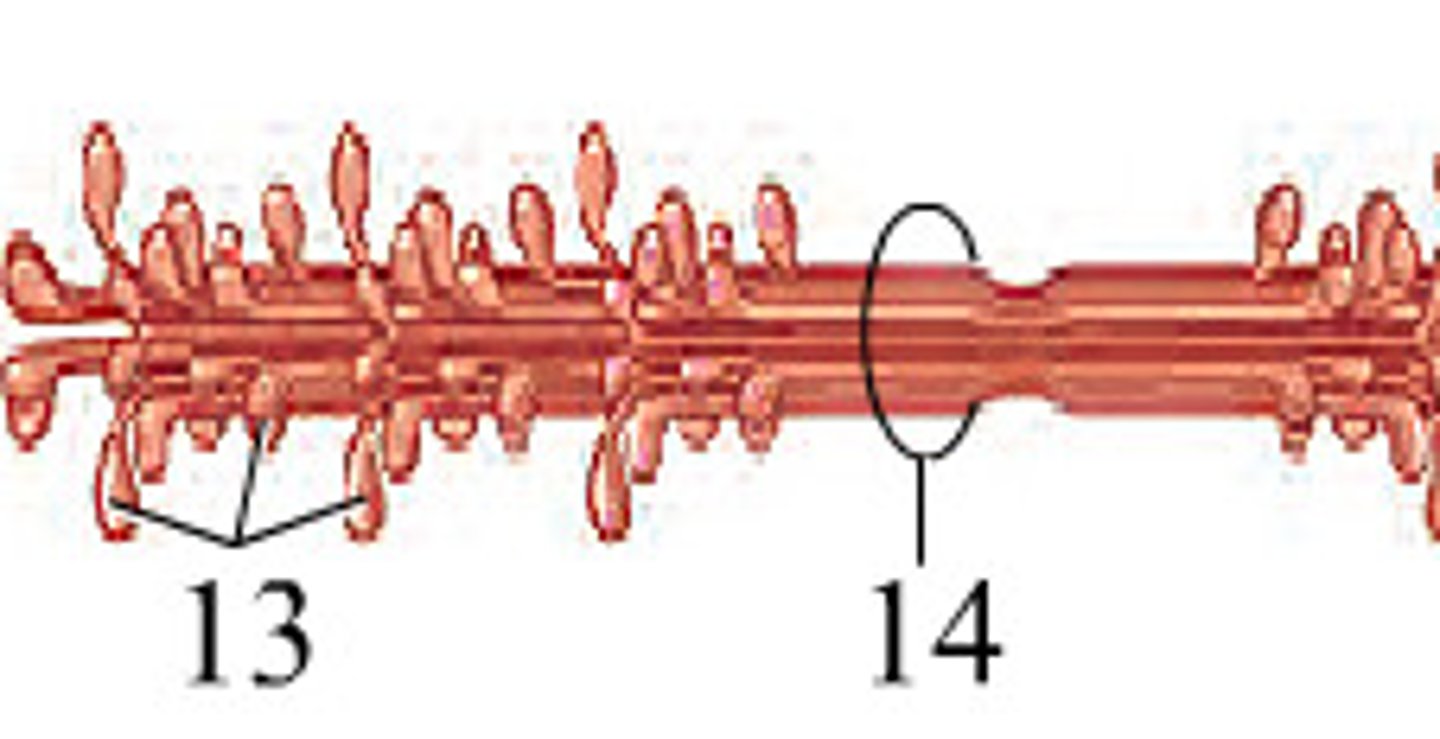

13

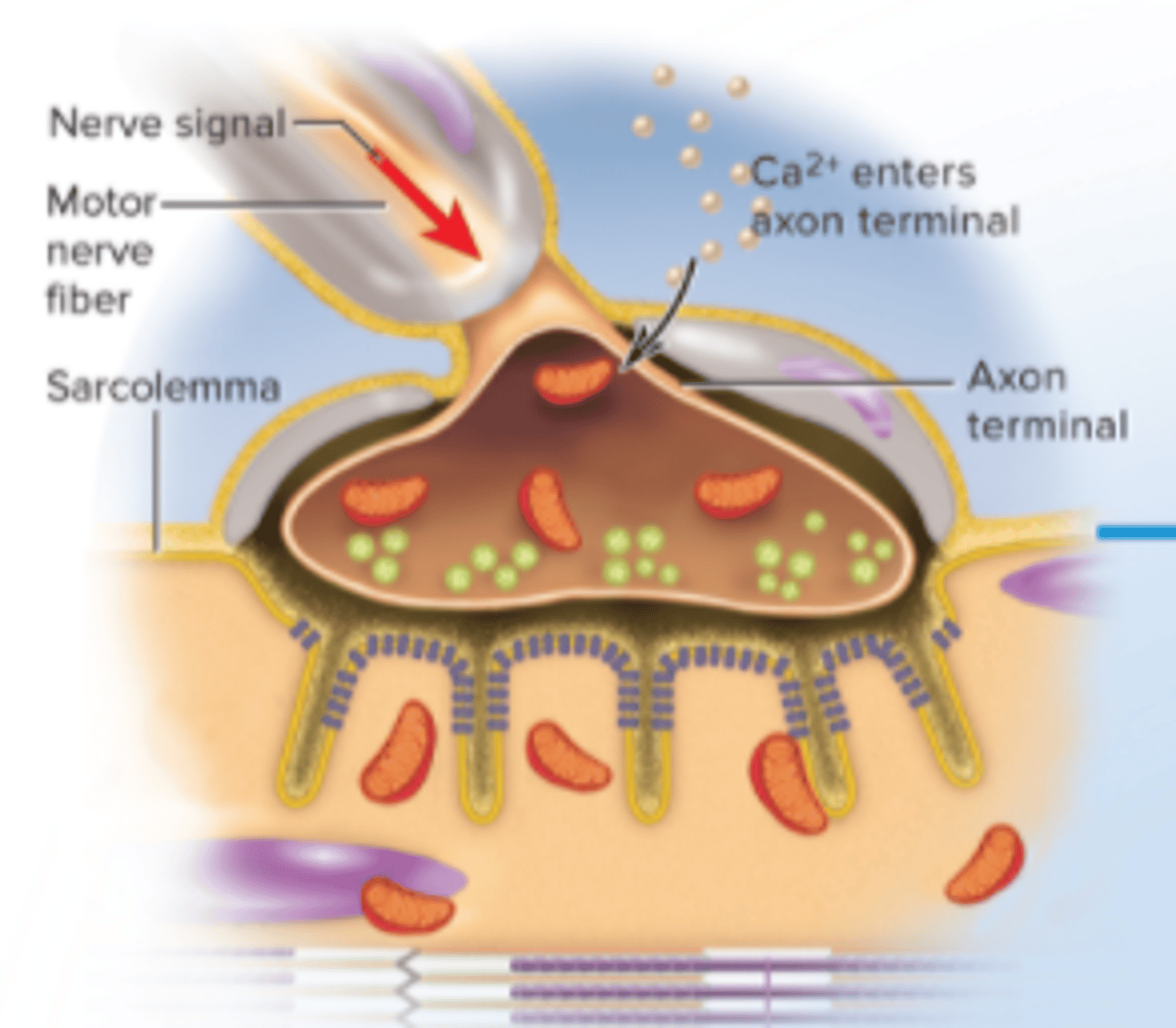

nerve signal

red arrow

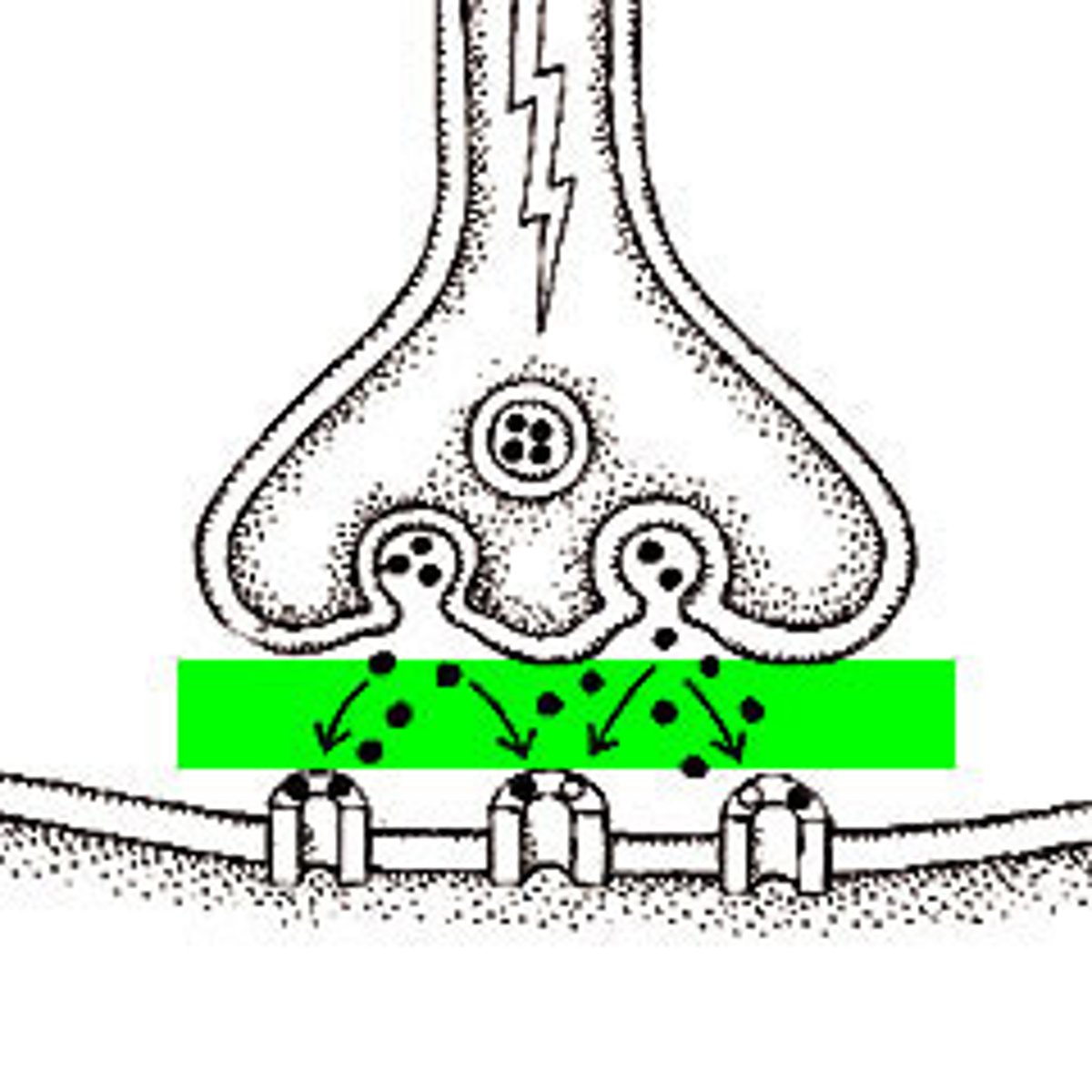

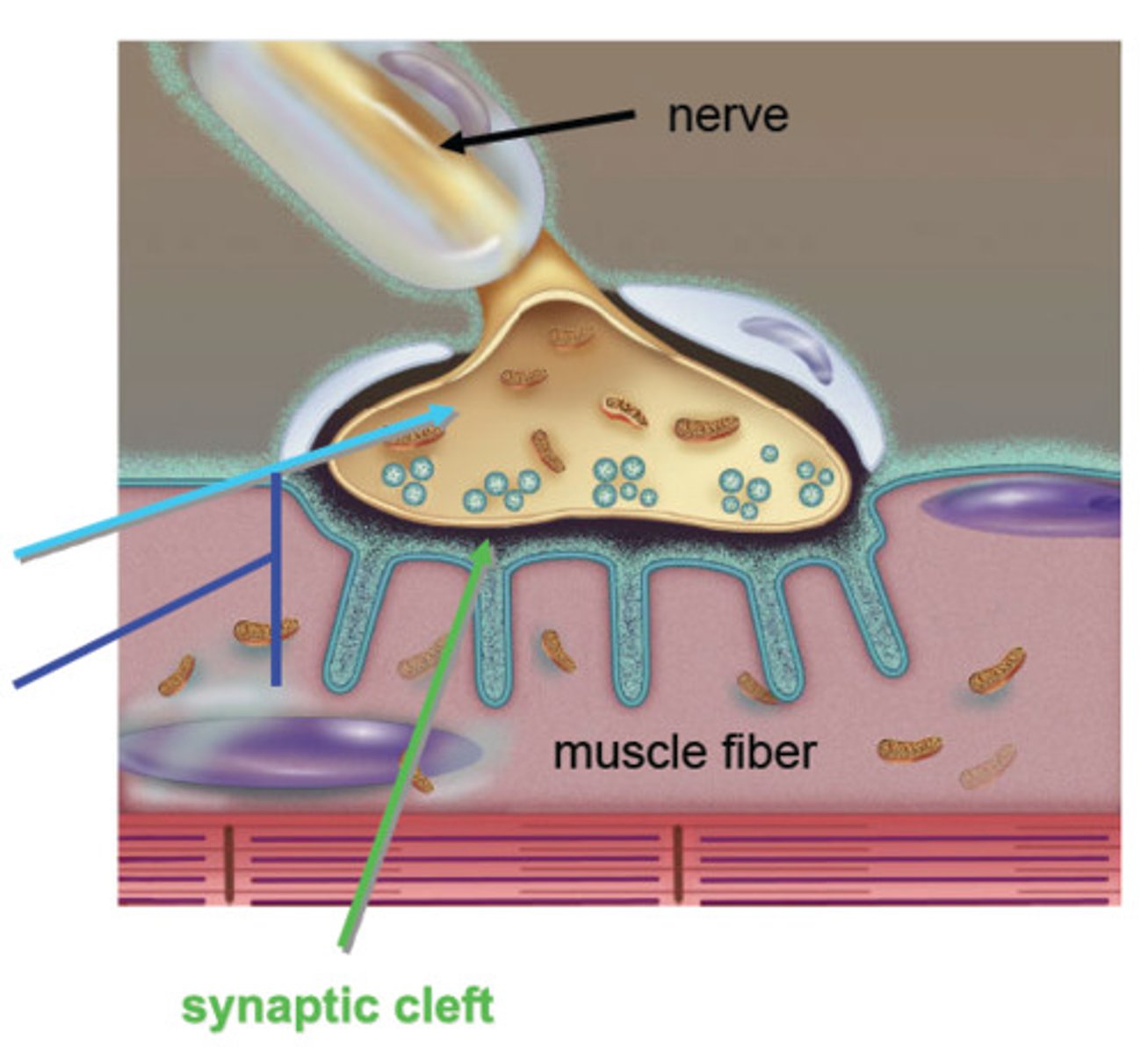

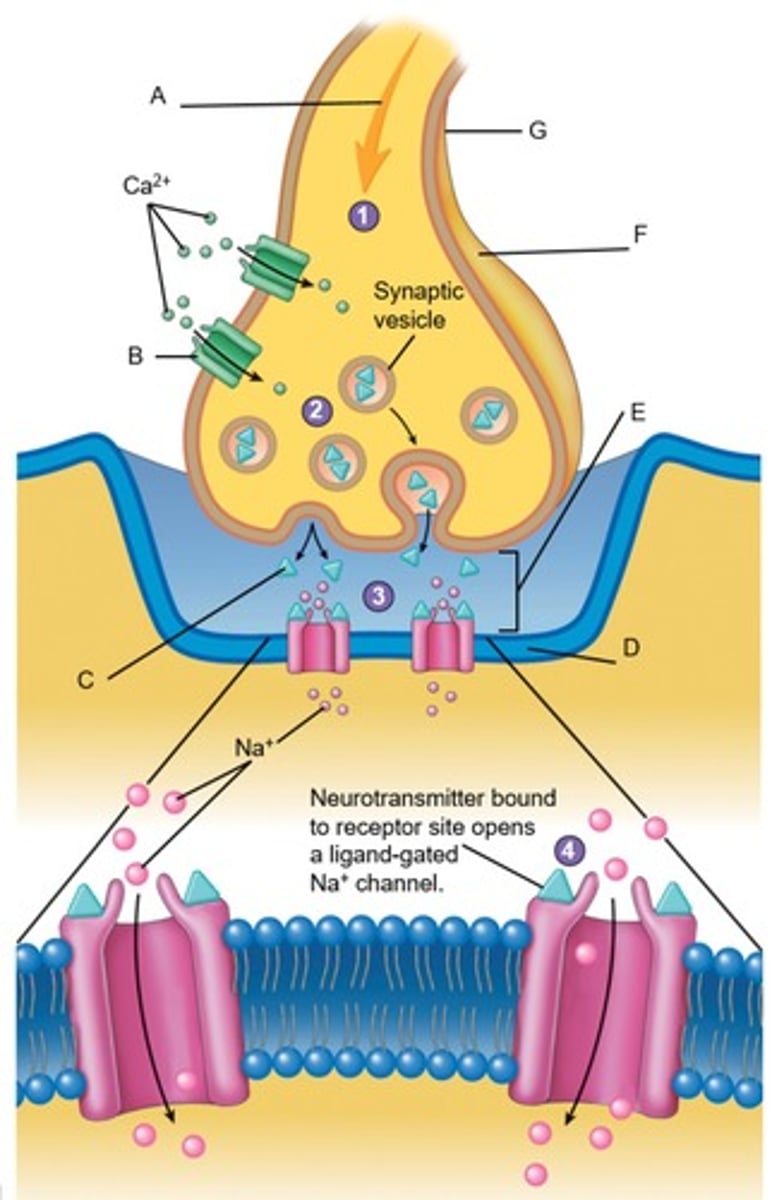

synaptic cleft

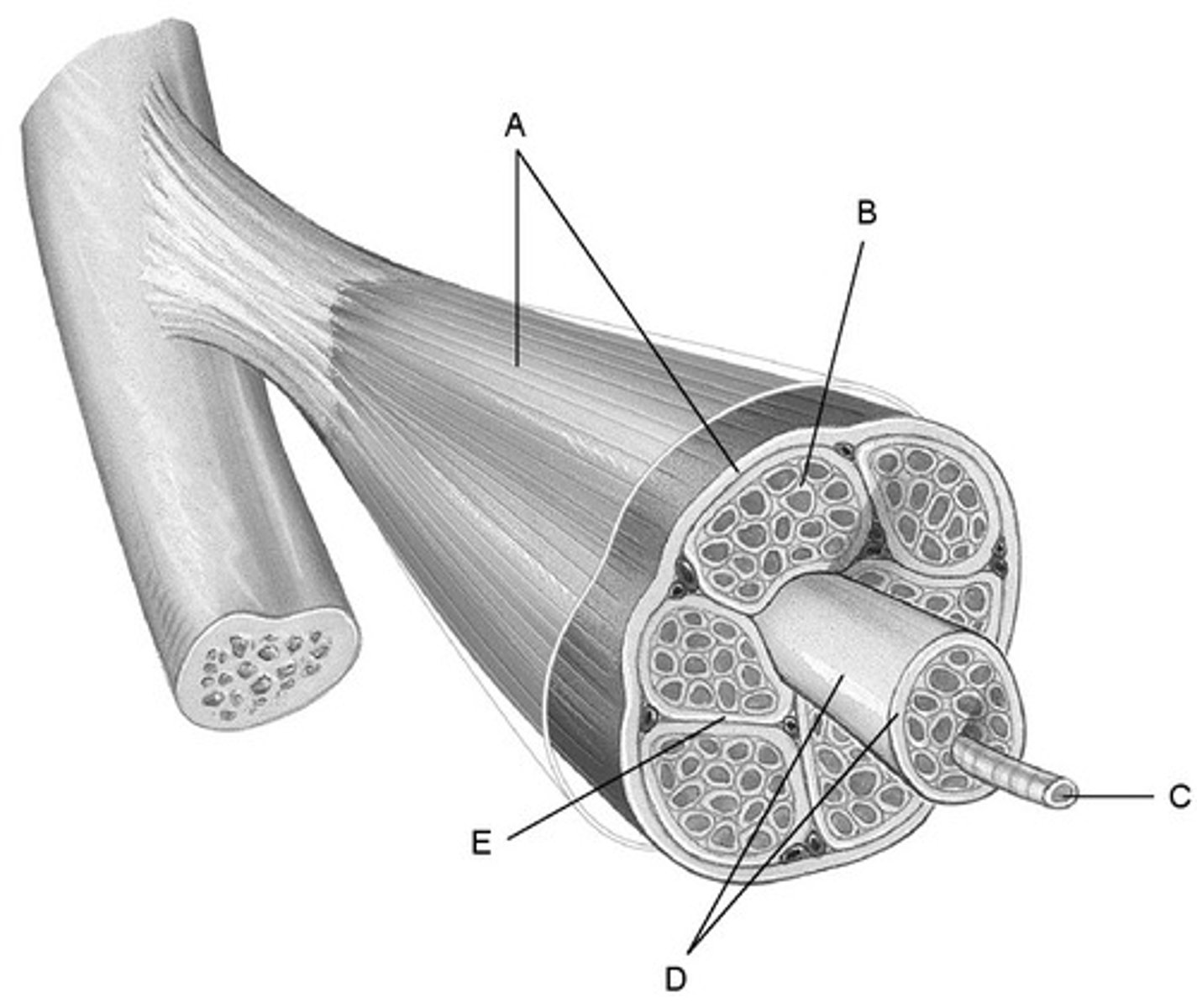

endomysium

A

sarcolemma

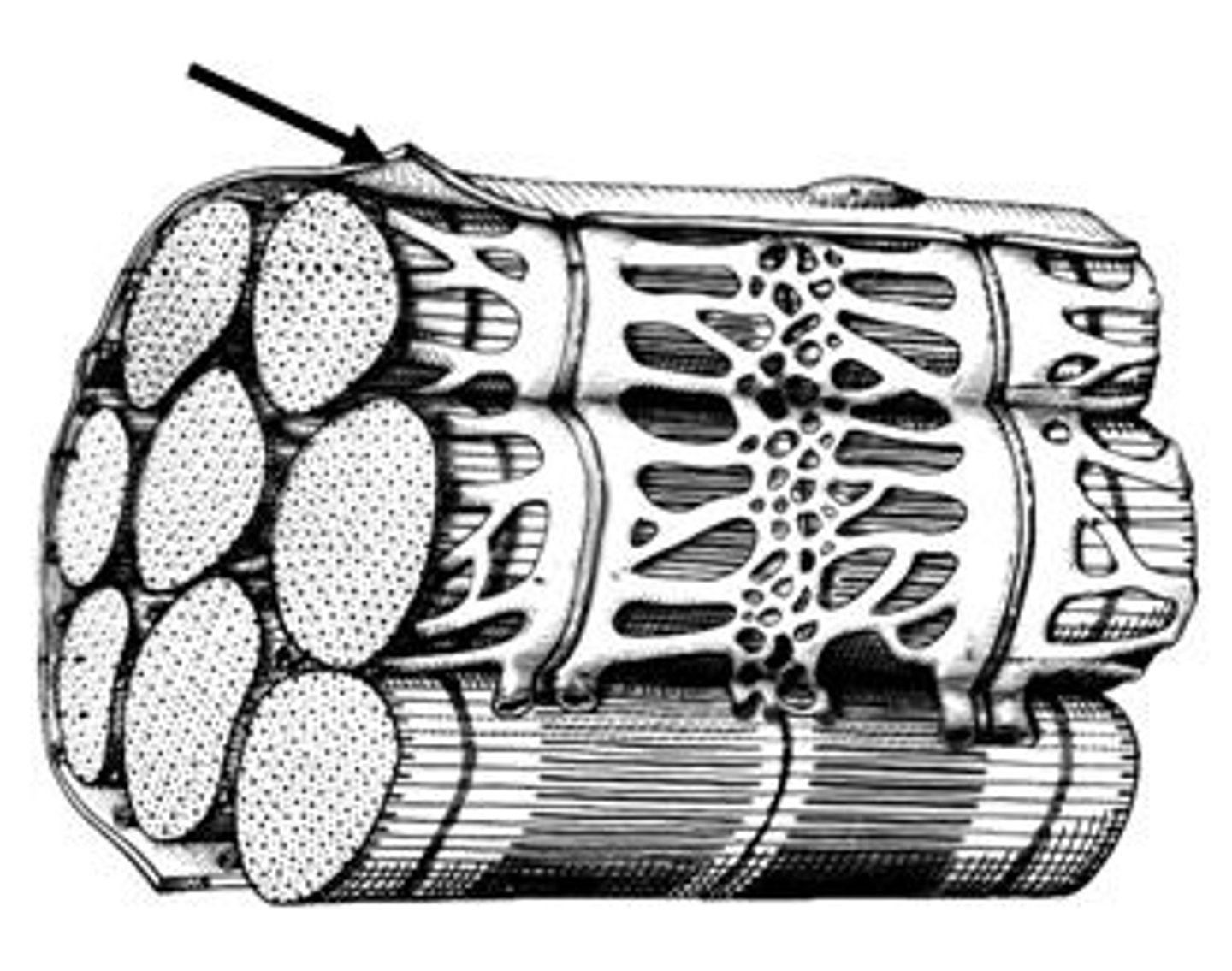

under the endomysium

motor end plate

myofilament

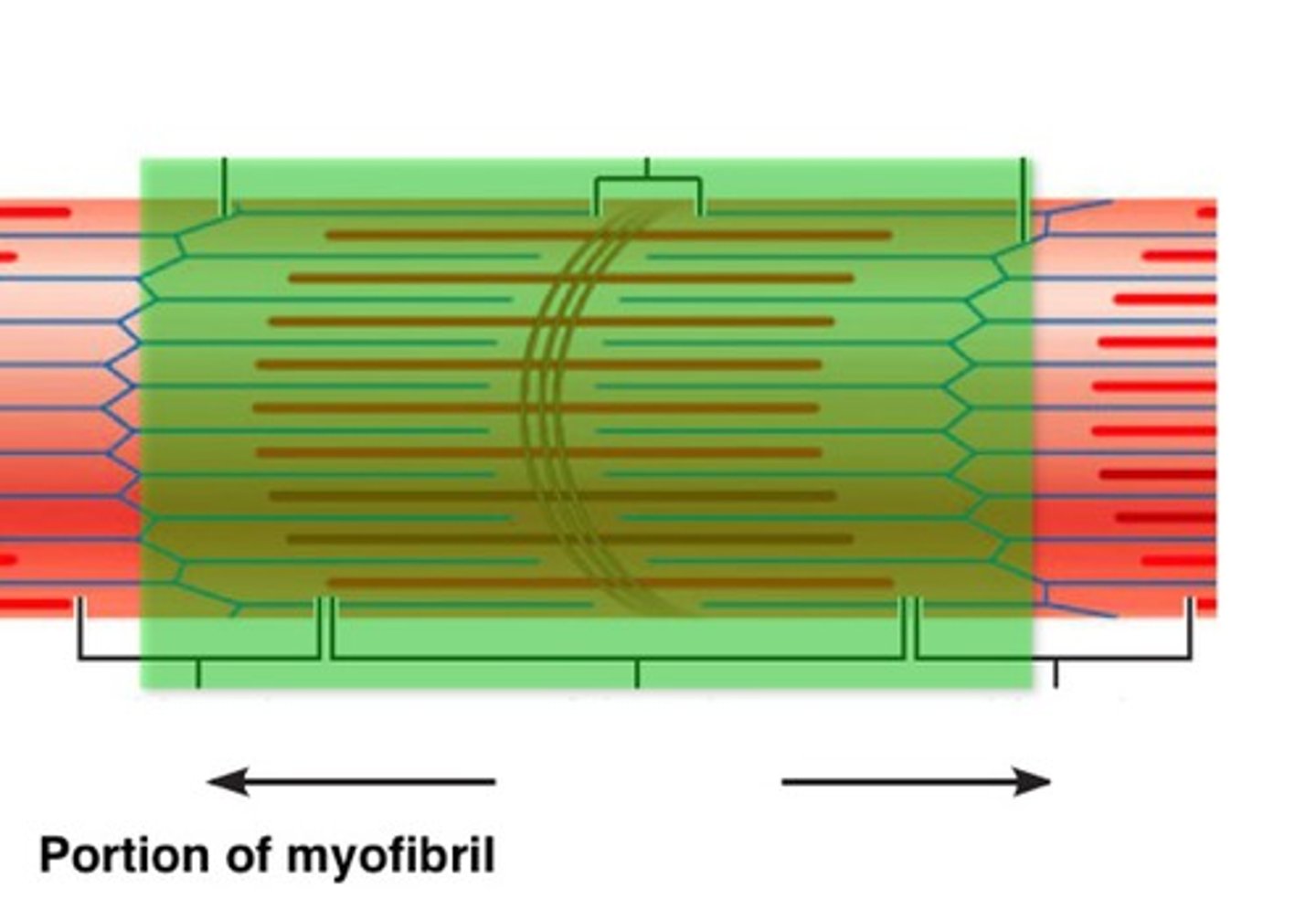

myofibril

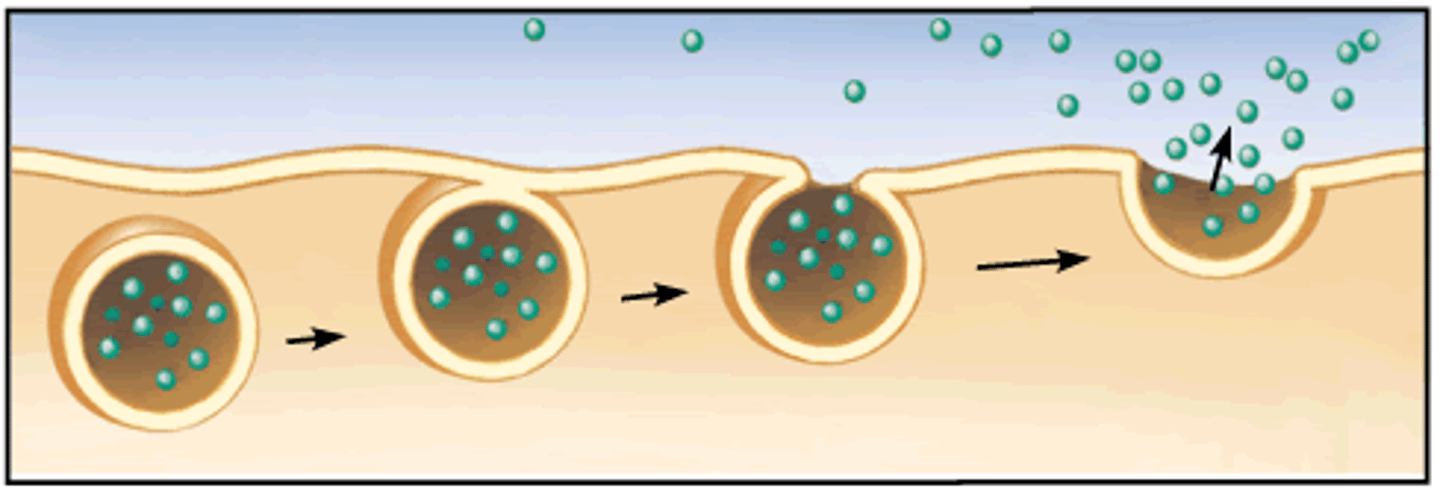

vesicle

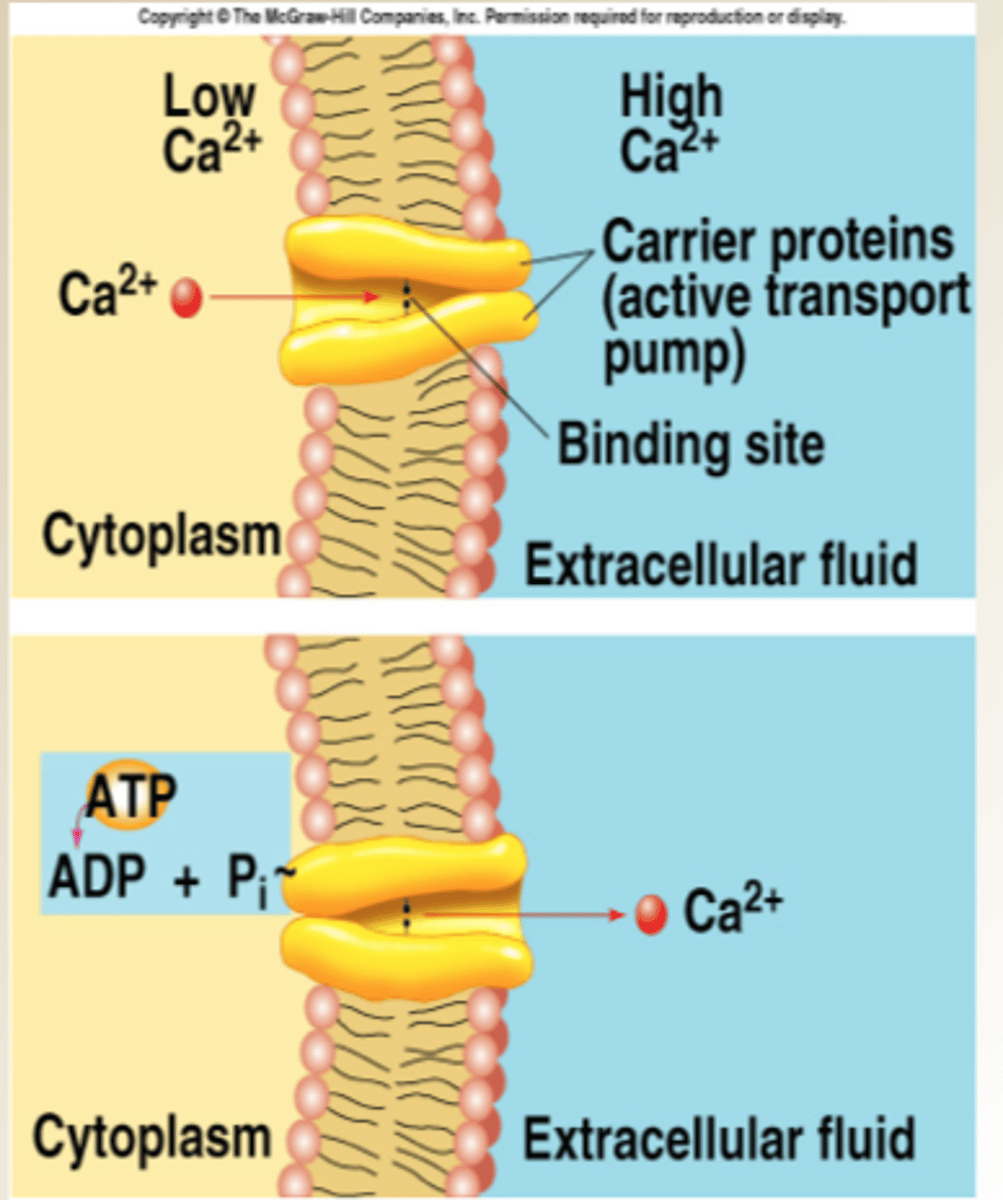

Ca2+ pump

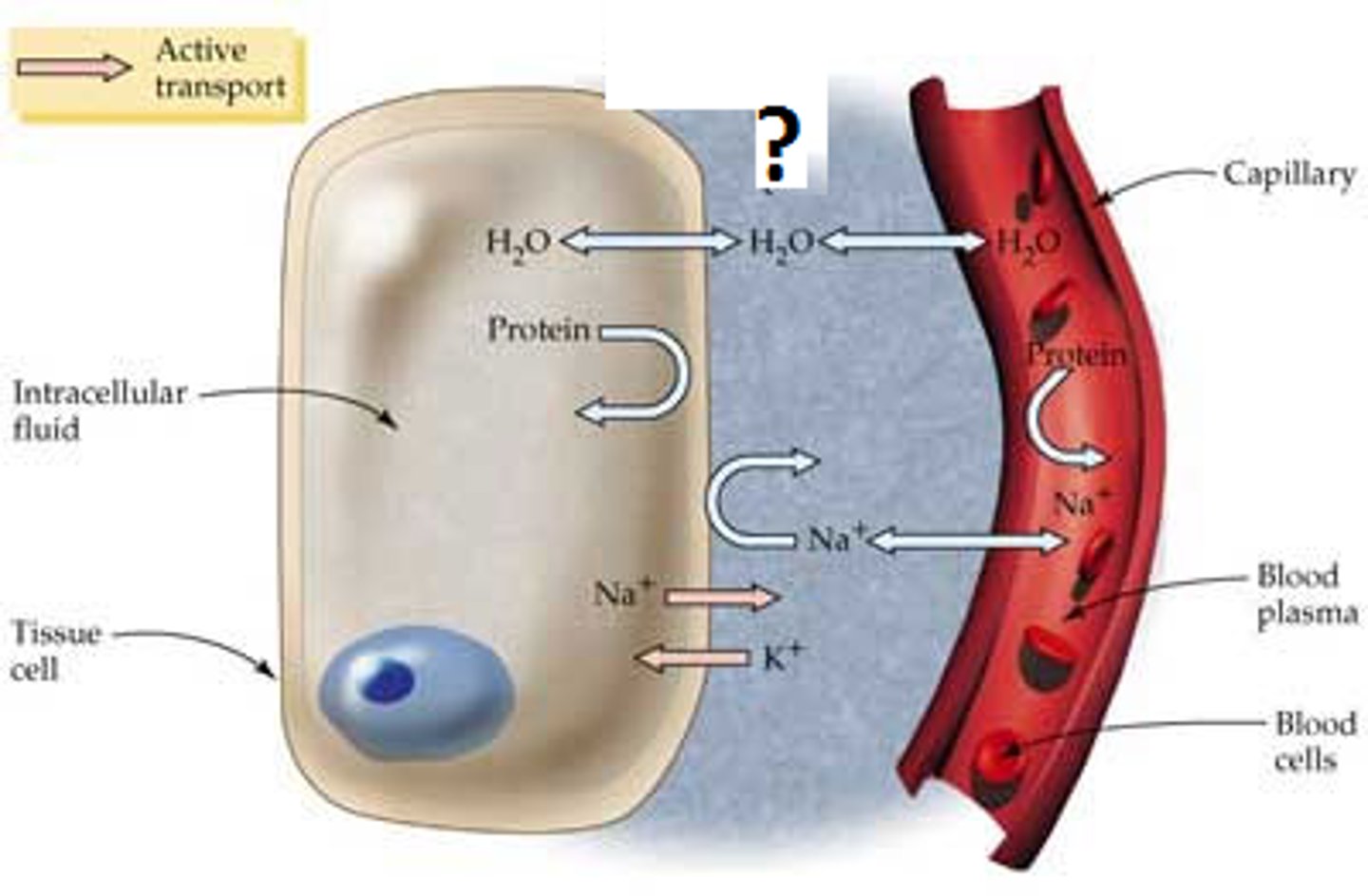

interstitial fluid

Voltage-gated Ca2+ channels

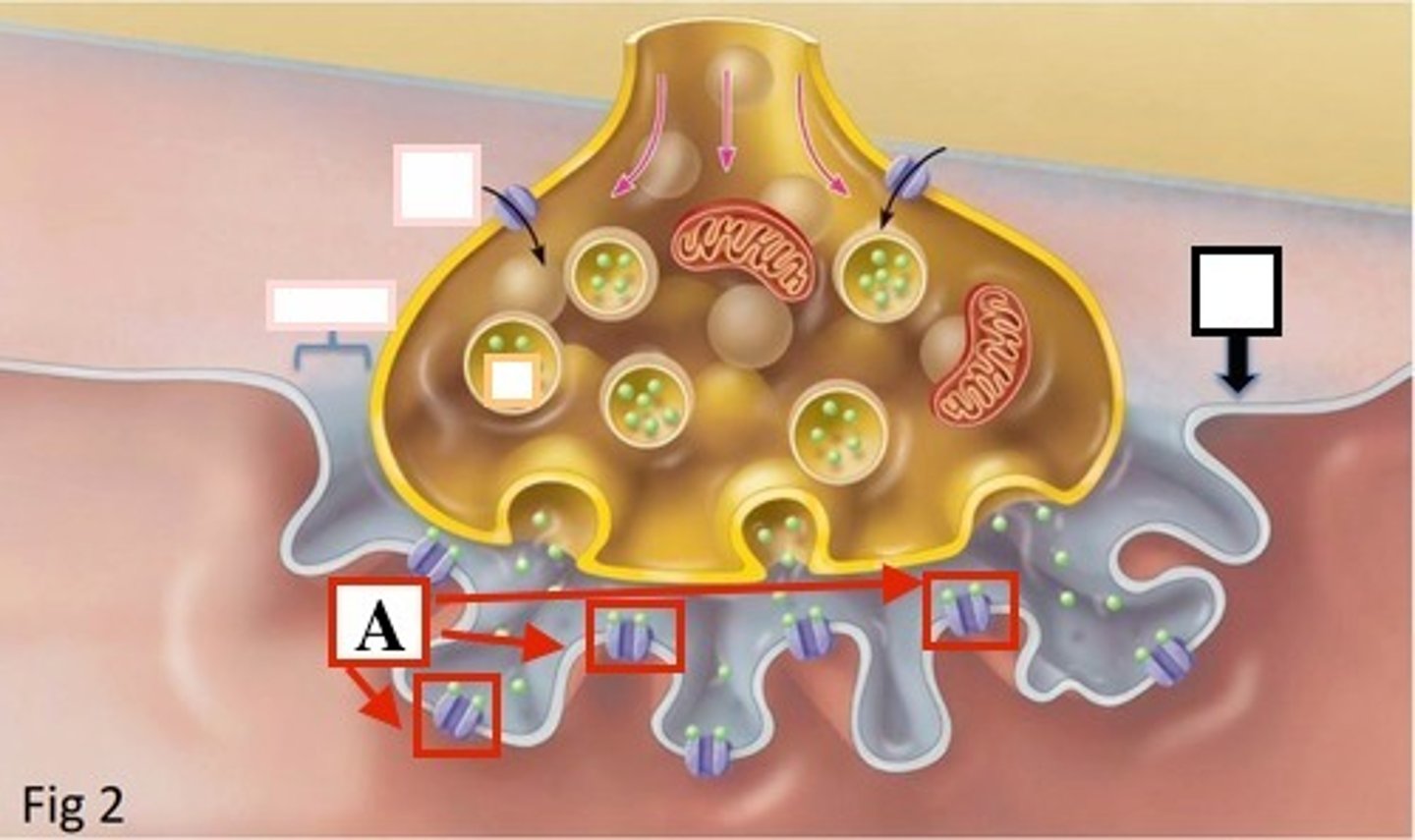

synaptic knob

Ach receptor

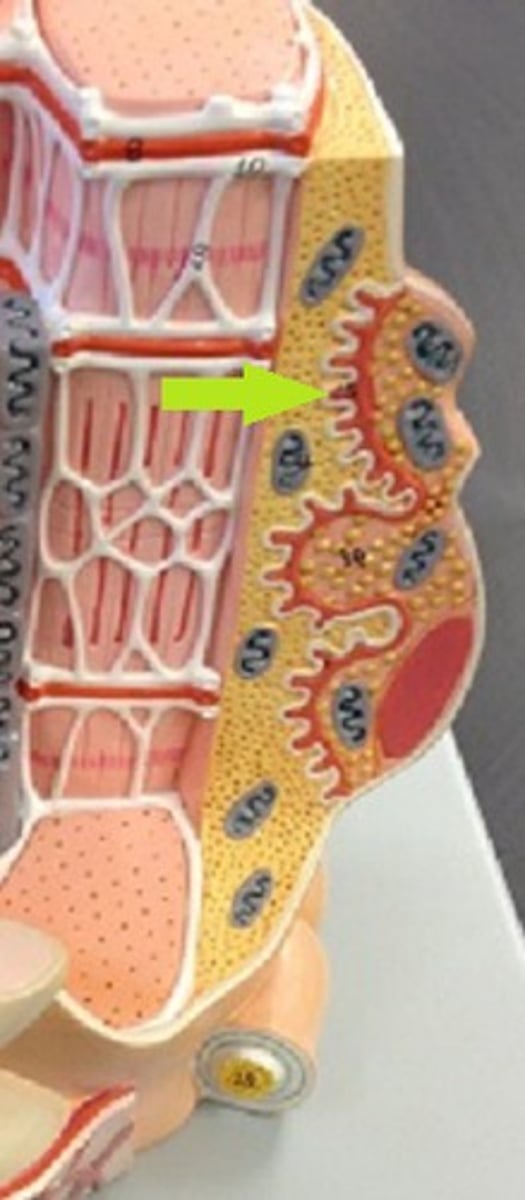

junction fold

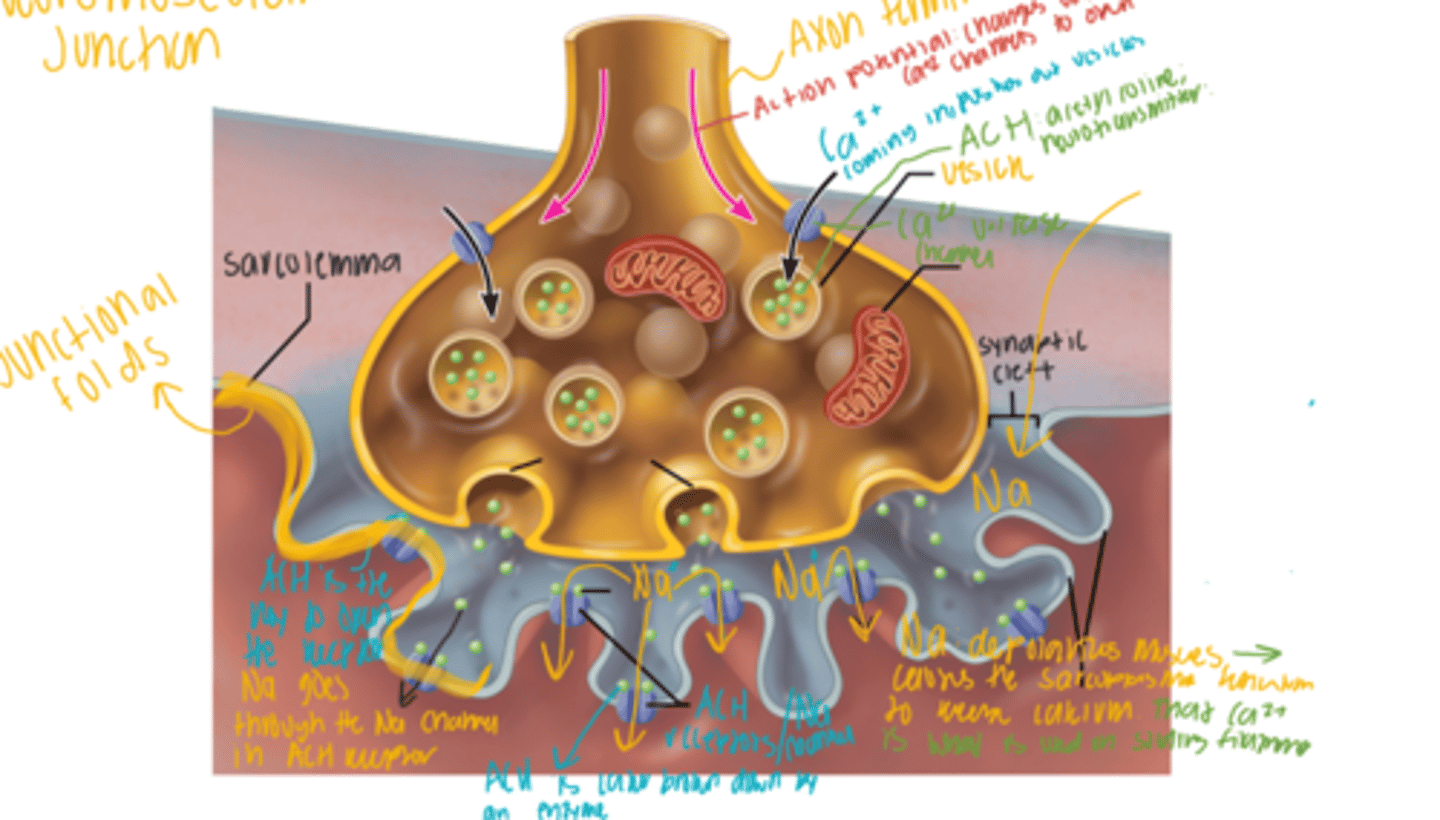

in orange

axon terminal

endomysium (microscope)

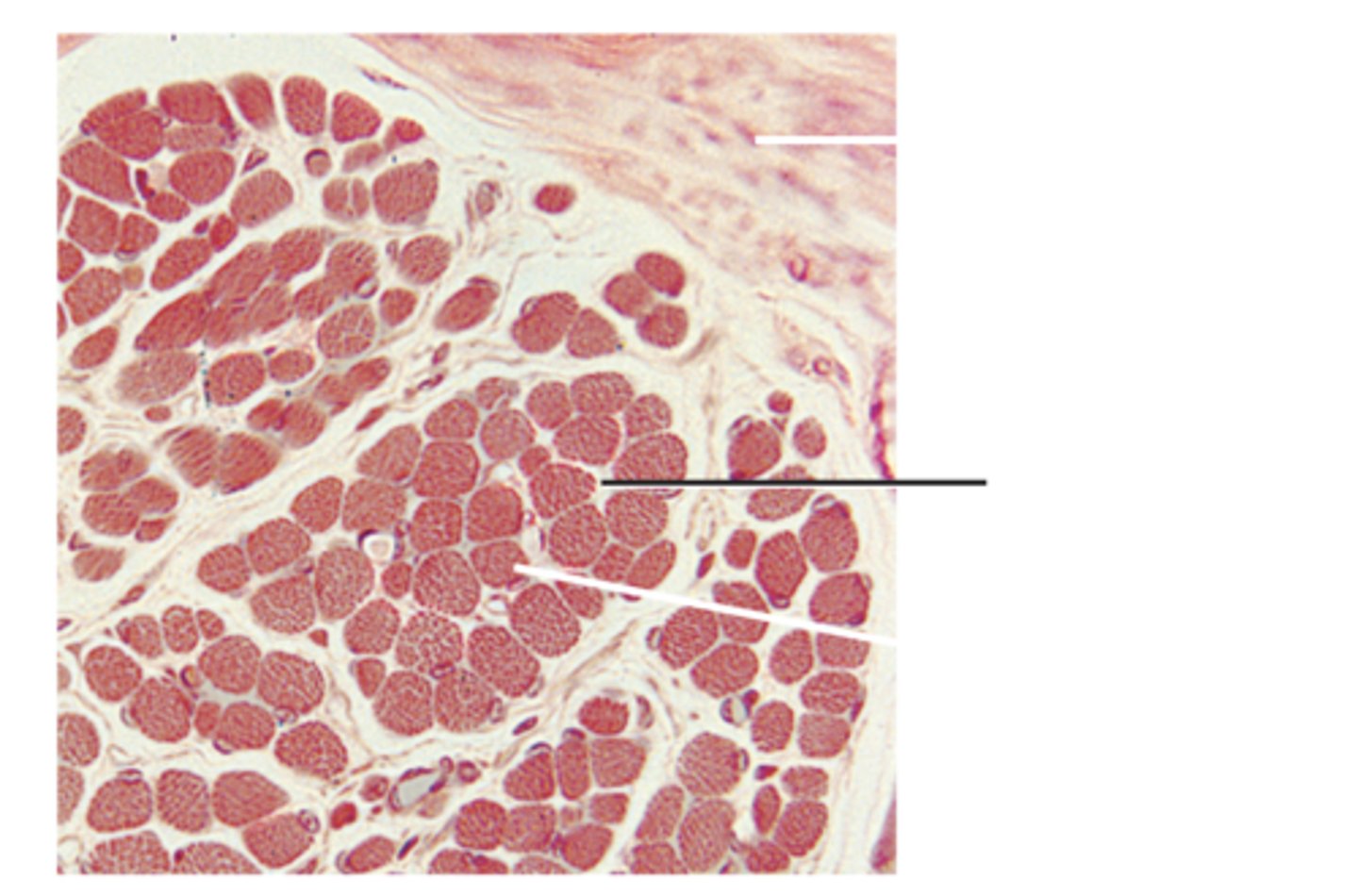

thin connective tissue surrounding each individual muscle fiber

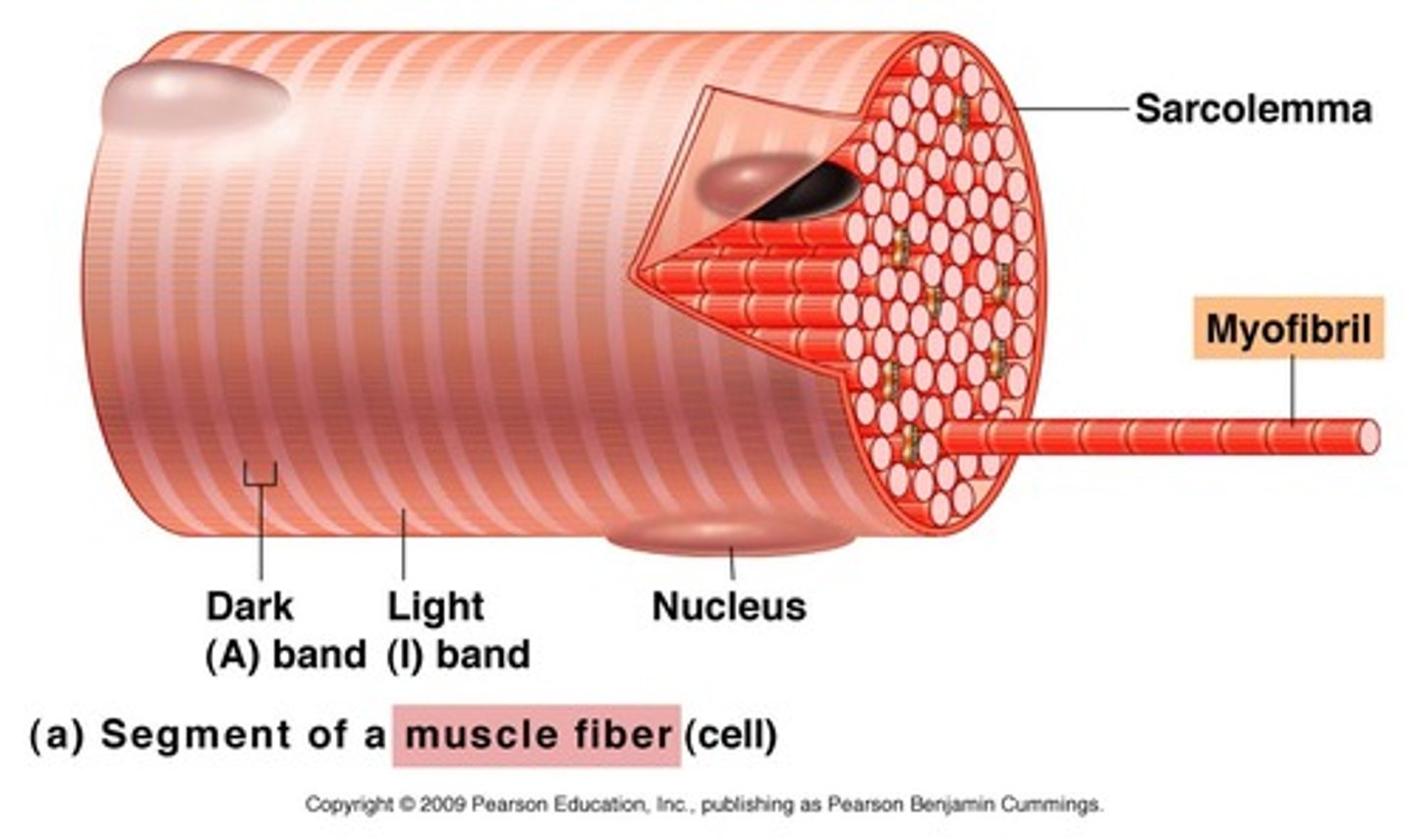

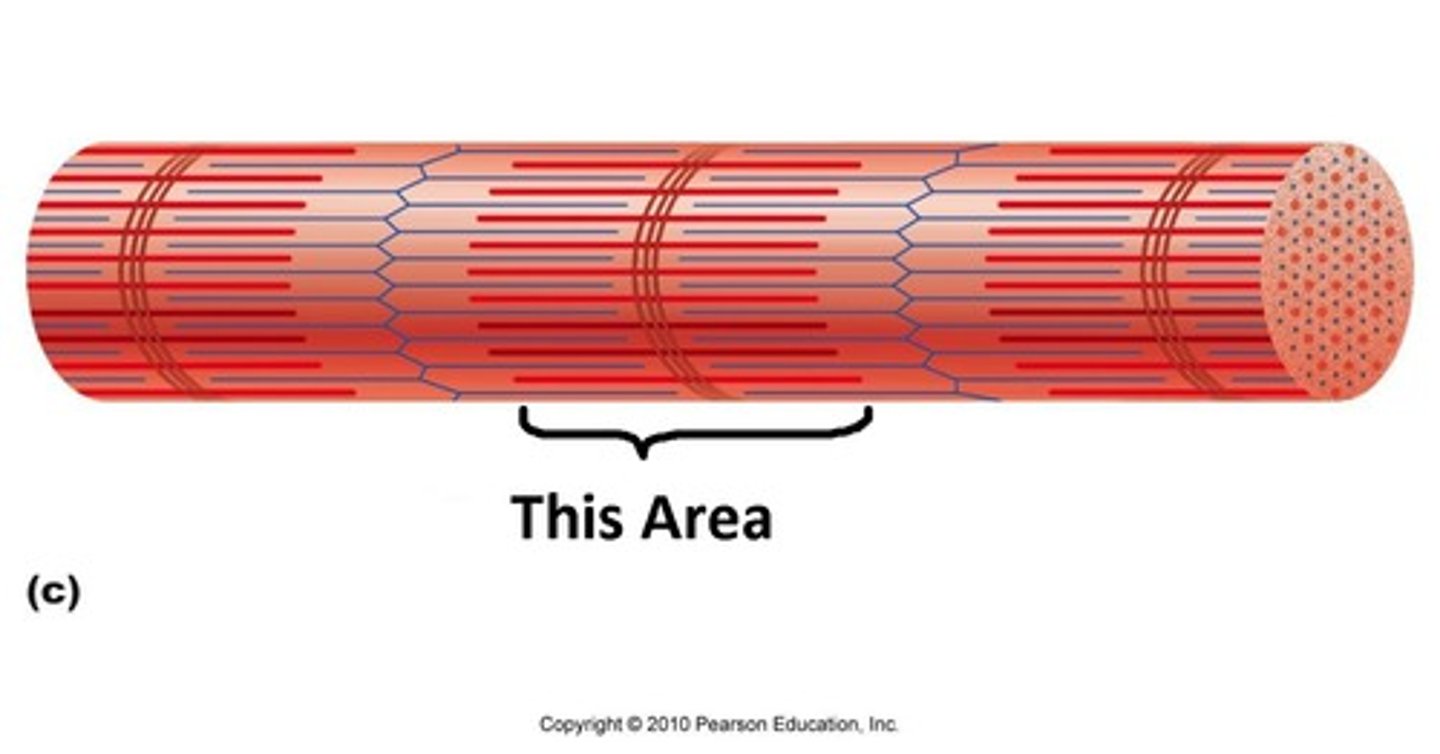

muscle fiber (microscope)

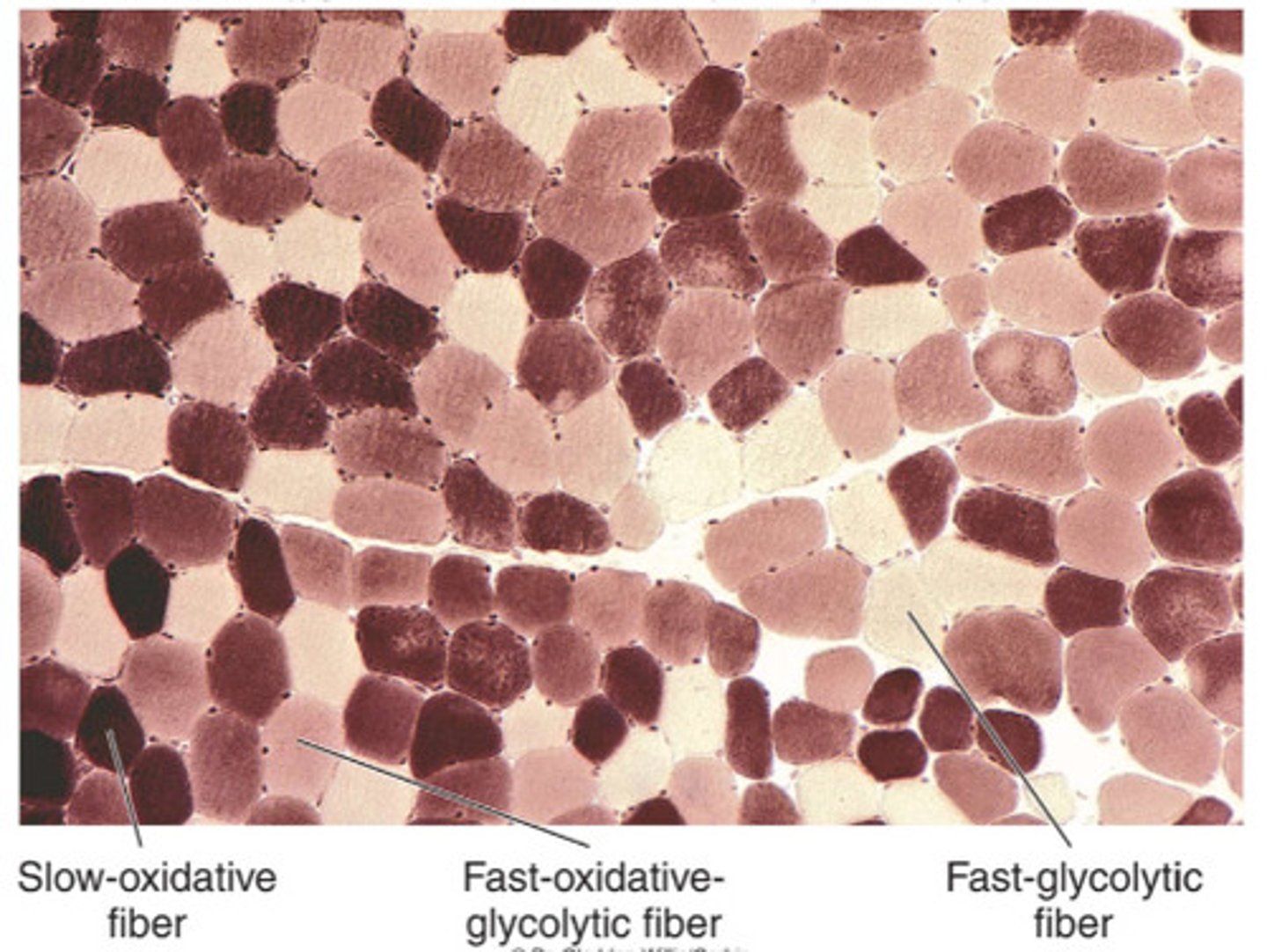

muscle cell, one entire polygon-shaped cell

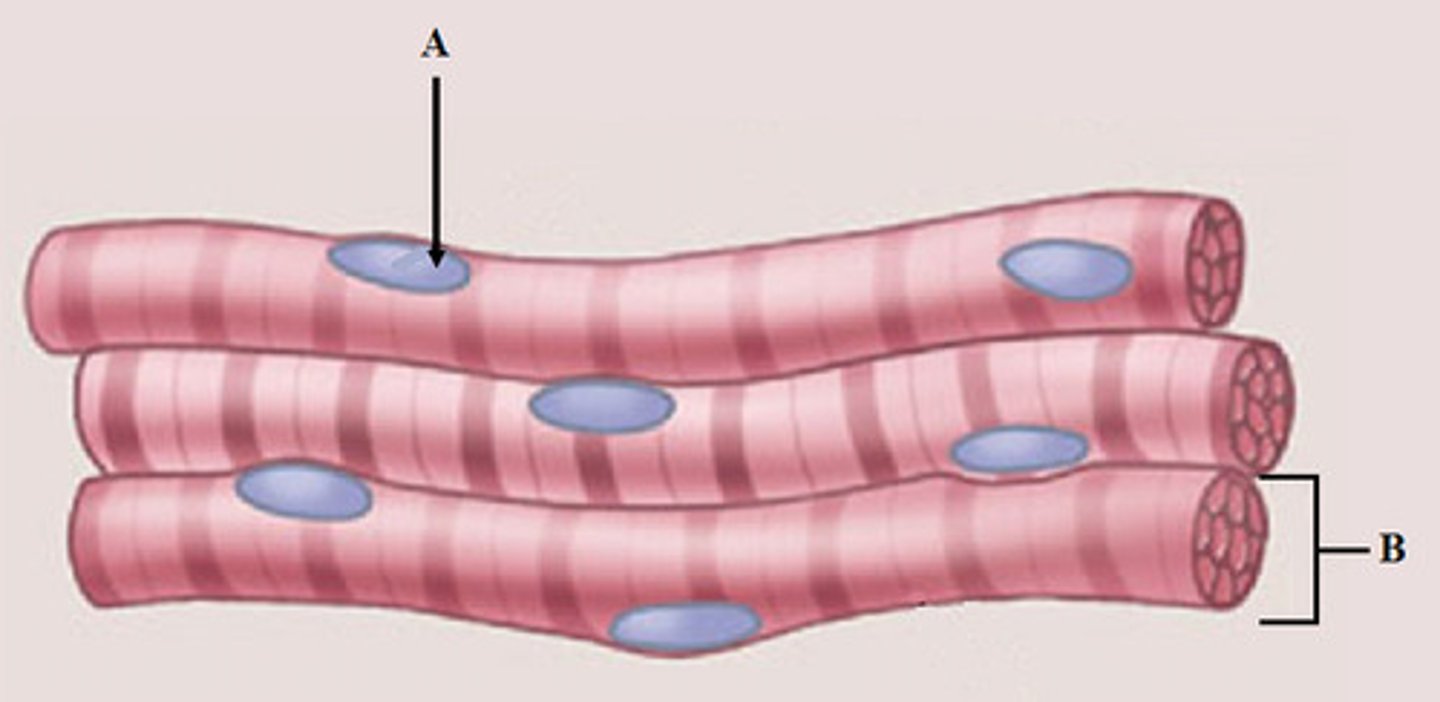

Nucleus of muscle cell (microscope)

the dark oval located at the edge of a muscle fiber
