SACA 101 Freshman

What is the pressure shown on this gauge?*

500 kPa

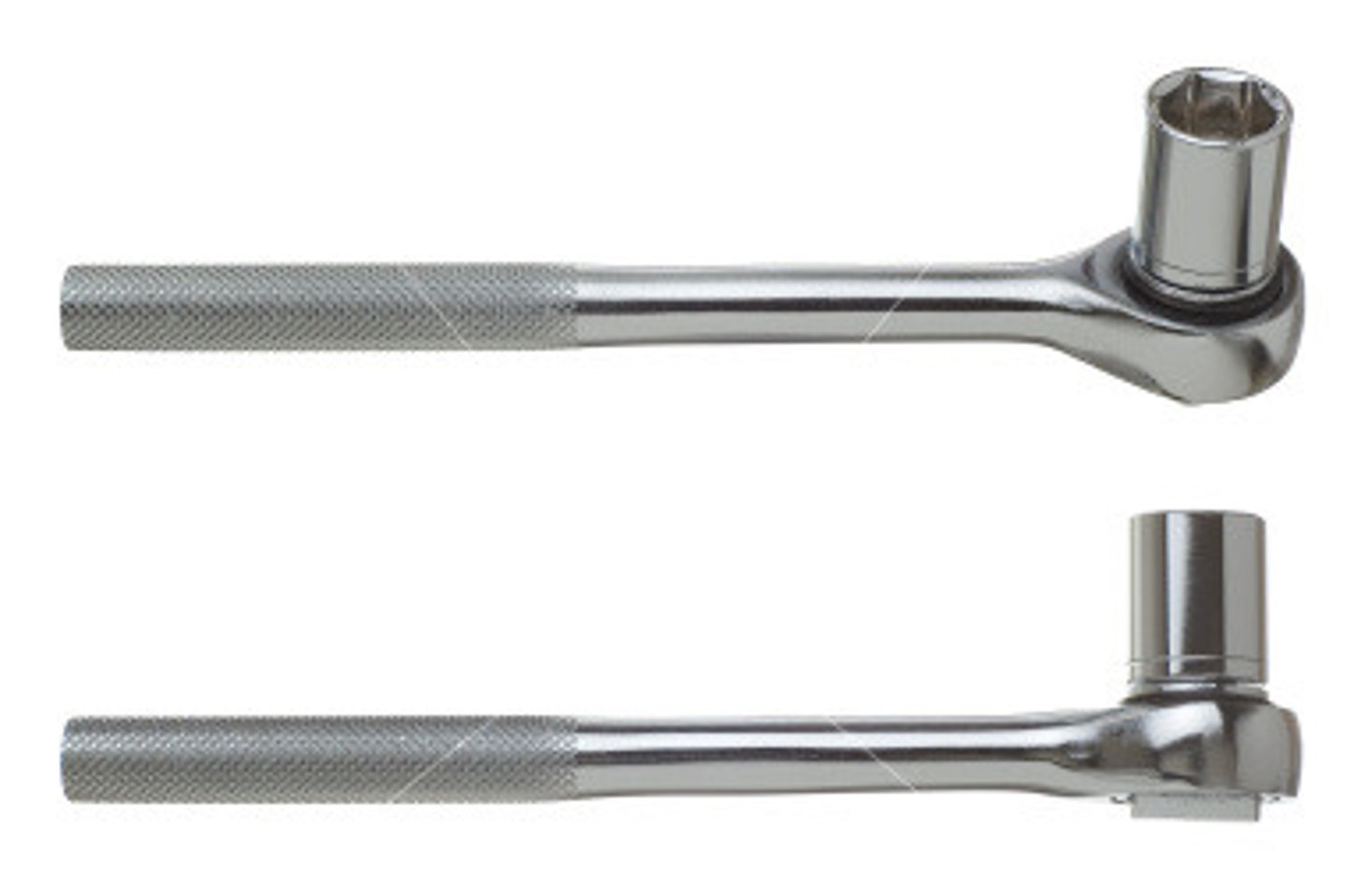

What type of wrench is shown?*

Ratchet

What amount of power is used in this circuit?*

96W

What type of geometric tolerance is shown in the feature control frame on this drawing?

Circularity

A company's Emergency Action Plan (EAP) should include ALL of the following except?

Machine operation procedures

What action must be taken to correctly position a dial caliper?

Sweep and rock to the jaws

What type of hand tool has a cross-shaped head to engage and tighten a fastener?*

Phillips head screwdriver

Which of these activities is considered non-value added activity in a lean manufacturing environment?*

0/4

Moving a product from one station to another

What is the tolerance of the width of this part?*

+/-0.1

What do SDS sheets do?*

Specify material hazards.

When a click-type torque wrench clicks at the set point, what do you do to apply the proper torque?

Stop turning the wrench

What type of hole is identified by the arrow labeled A?*

Blind

What component does the schematic represent?*

Pneumatic motor

What type of information would not normally be found in a drawing's title block?*

0/4

General notes

What machine can be programmed to perform tasks in many different operations?

Robot

What could affect an inductive sensor's operation if it is mounted near the sensor?*

4/4

metal

Which of these is NOT a primary goal of a lean manufacturing system?

Greater production volume

In the bolt designation shown, what is the pitch?

2.5

What air pressure should be used when compressed air is used to clean or blow parts?

Below 30 psi

If a machine stops unexpectedly due to a fault, which message tells you only that the machine has a fault?

Warning message

What material condition does LMC define?*

Condition with the smallest amount of material

What method do most small air compressors use to compress air

Piston movement

If an electronic sensor has a PNP type transistor, what effect does that have on the sensor's operations?

Output signal goes high when the sensor is triggered.

What is used to calibrate a precision measuring instrument?*

Gauge block

What is the scale of the drawing if the actual length of this part is 300 mm and dimension shown by X measures 50 mm on the drawing?

1:6

What is the measurement shown on this SI dial caliper, in millimeters?

22.68 mm

What is NOT a step in an electrical Lockout/Tagout procedure?*

Write safety officer initials on tag

What type of technical drawing shows the features of a 3-dimensional object in 2 dimensions as seen from different sides of the object?

Multiview drawing

What is the measurement shown on this micrometer in millimeters?

39.21

What type of logic does this schematic represent?

AND

Which of these components is used to keep the motor turned on after the start pushbutton is momentarily activated?

CR1A

In addition to a material block, what is another way a technical drawing can identify the type of material used to make the drawn object?

Local note

What is the hazardous material classification system that uses pictograms to identify the danger of a material?

GHS

In what position should a pneumatic lockout valve be placed to perform a lockout?

Closed

What type of semi solid lubricant is created by adding an additive and thickener to a liquid lubricant?

Grease

What feature should safety glasses have when used with a welding mask?

Side shields

A Class B (flammable and combustible liquids) fire extinguisher is used to put out fires involving ALL of the following material EXCEPT?

Magnesium

Which pushbuttons must be activated to turn ON lamp 1 and turn OFF lamp 2?

A, B, and C

Which of these devices includes a display screen and software to display graphical representations of push buttons and selector switches, which an operator can press to send input signals to controllers?

HMI

From what points or surface are baseline dimensions measured?

The front surface

What type of circuit breaker is used when changes in circuit current occur slowly?

Thermal

What is the main purpose of an oil sight glass?

Determine oil reservoir level

At which two points would you measure the supply voltage?

A and C

What is the pressure in the cylinder if a 1000 Newton force is applied to the rod/piston assembly as shown?

500 Pa

What does the smallest graduation on a measuring instrument represent?

Resolution

After fixing a problem, what screen should be checked to verify that there are no problems before starting the machine?

Alarm

What does the green color on the DOT label signify?

Non-flammable

What type of computer is designed to wire directly to input and output devices to control different types of industrial machines and processes?

PLC

What type of wrench is shown?

Hex key

Which of these is NOT one of the eight types of waste in Lean Manufacturing?

Underproduction

What cylinder action occurs if the directional control valve is shifted to the left flow block identified in the figure?

Cylinder rod could extend or retract depending on pressure

What is the first step of the 5S process?

Sort

Which type of machine stop function requires a power-up procedure to restart the machine's operation?

Emergency stop

What type of gloves should be used when they are required to operate a process with moving machine parts?

All leather

What action does pushing the manual override on a solenoid-operated pneumatic directional control valve cause?

Prevents the solenoid from operating

What is the normal mode for most automated industrial machines?

What is the normal mode for most automated industrial machines?

An employee should be retrained if they do not perform which of these tasks after a lockout tagout is removed?

Test the machine

A hex key wrench is used to tighten which type of fastener?

Socket head cap screw

What are the upper and lower limits of a part with a length of 8.5 mm and tolerances of +0.05, -0.02?

8.55, 8.48

In the control frame shown, what is the information given in the block identified by the arrow labeled ITEM?

Datum reference

What is the range by which a part dimension may vary called?

Tolerance

What should you do if a machine safety guard has been bypassed?

Lock out the machine and call the supervisor

What indicator on an operator panel will likely be on when the machine is in normal production?

Single step

The highlighted area in the figure shown shows which type of view of the part?

Sectional

What is the robot component shown?

Teach pendant

In addition to Medical and Environmental what is another category of emergency in a company?

Hostile threats

What type of file determines the order in which a robot moves to points in the work envelope?

Program

In this drawing of a two-part assembly, what is the type of fit if the shaft diameter is slightly larger than the hole diameter?

Interference

What technology element differentiates Industry 4.0 from Industry 3.0?

Smart sensors connected to network

What type of manufacturing process to 3D printers perform?

Additive

What is the type of robot shown here?

SCARA

What is the proper operation sequence of the fire extinguisher?

Pull, aim, squeeze, sweep

In this drawing of a part, what type of line is identified by the arrow labeled A?

Hidden

If a worker gets a chemical in an eye, what is the FIRST action he/she should take?

Go to an eyewash station

What is the measurement shown on this ruler?

26
