FE Chemical Ch55 Computer Software

Alphanumeric data

characters that can be displayed or printed, including numerals and symbols ($,%,&,etc.) but excluding control characters (tab, carriage return, form feed, etc.)

Coding

manner in which alphanumeric data and control characters are represented by sequences of bits

American Standard Code for Information Interchange (ASCII)

seven-bit code permitting 128 (2^7) different combinations

Extended Binary Coded Decimal Interchange (EBCDIC)

widespread use in IBM mainframe computers, allowing a maximum of 256 (2^8) different characters

Hexadecimal

or “packed” format, used to simplify working with EDCDIC data. Each byte is converted into two strings of four bits each. The two strings are then converted to hexadecimal. Largest possible EBCDIC character is coded FF in hexadecimal.

program

sequence of computer instructions that performs some function

algorithm

procedure consisting of a finite set of well-defined steps. each step in the algorithm usually is implemented by one or more instructions (e.g. READ, GOTO, OPEN, ETC.) entered by the programmer.

source code statements

the original “human-readable” instructions

declaration

defines a variable, specified the type of data a variable can contain (e.g. INTEGER, REAL, etc.) and reserves space for the variable in the program’s memory.

assignments

give values to variables (e.g. X=2)

commands

instruct the program to take a specific action, such as END, PRINT, or INPUT

Functions

specific operations (e.g. calculating the SUM of several values) that are grouped into a unit that can be called within the program.

software

if the executable program is kept on disk or tape

firmware

if the program is places in ROM (read-only memory) or EPROM (erasable programmable read-only memory)

hardware

computer mechanism itself

flowchart

step-by-step drawing representing a specific procedure or algorithm

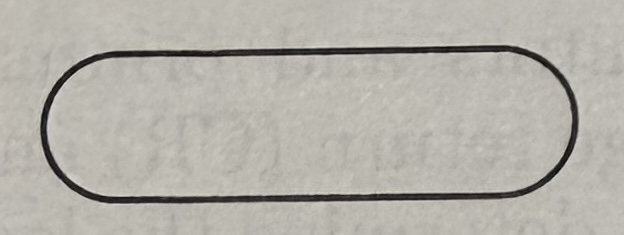

terminal symbol: begins and ends a flowchart

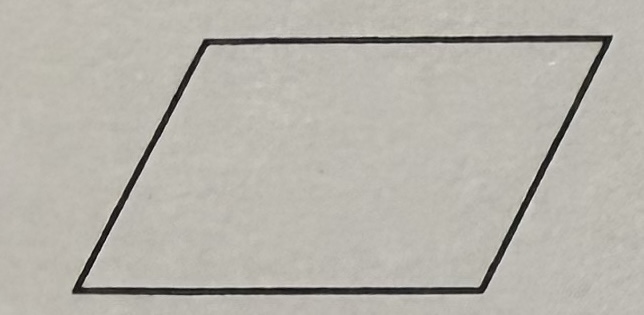

input/output symbol: defines an I/O operation, including those to and from keyboard, printer, memory, and permanent data storage

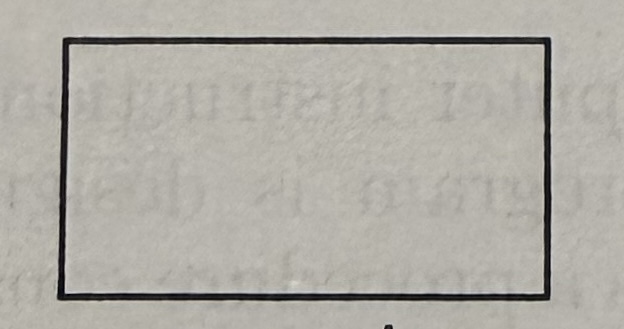

processing symbol: refer to calculations or data manipulation

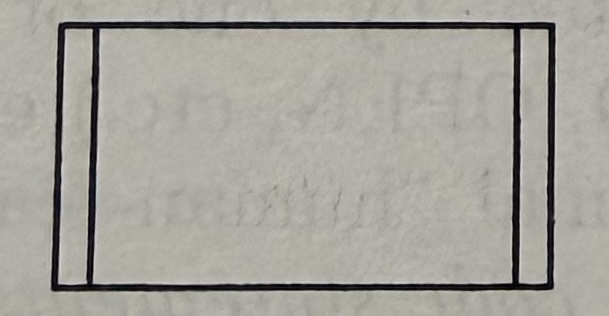

predefined process symbol: refer to calculations or data manipulation

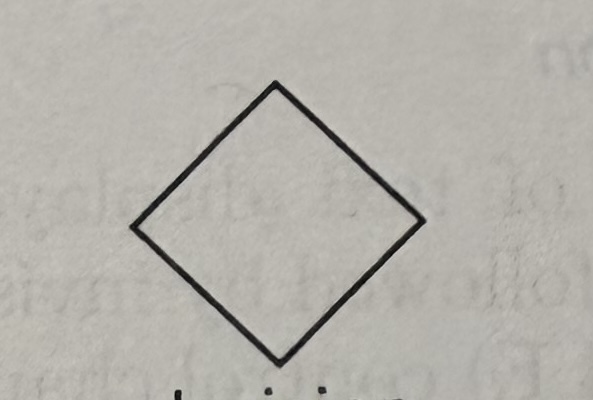

decision symbol: indicates a point where a decision must be made or two items are compared

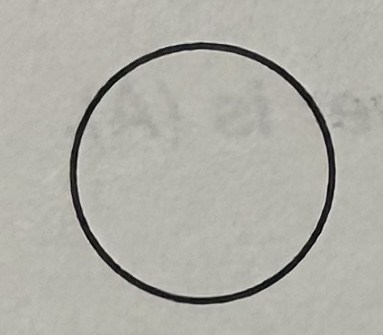

connector symbol: indicates that the flowchart continues elsewhere

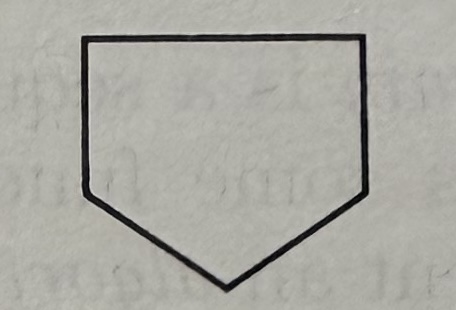

off-page symbol: indicates that the flowchart continues on the following page

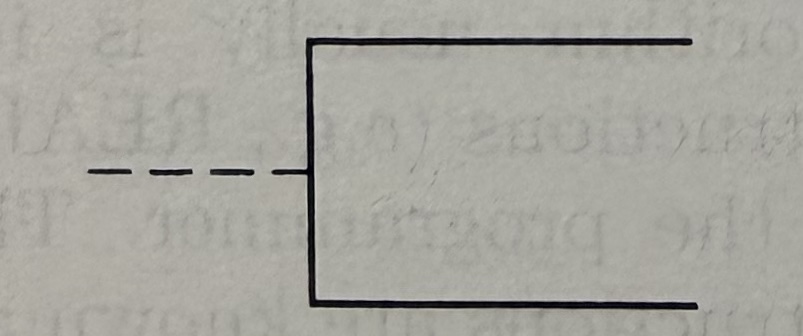

annotation symbol: comments added

machine laguage instructions

intrinsically compatible and understood by the computer’s central processing unit (CPU). They are the CPU’s native language
