ALE - BTECH (Construction Tools & Equipment)

A tool used for boring or drilling holes.

Auger

A large machine that moves earth.

Bulldozer

A motorized vehicle used to pick up, transport, slack and unstuck loads of materials.

Forklift

Used for removal of soft dentin, debris, and decay from the tooth (360 degrees turn).

Excavator

A large machine that digs into the ground with a metal scoop (180 degrees turn).

Backhoe

Earth movers

Dump Truck

Loader

Road Roller Compactor

Chain Trencher

A hydraulic crane with a railed platform at the end for raising and lowering people, for instance to work on overhead cables.

Man Lift (Cheery Picker)

Grader

A machine having a revolving drum, often motor driven, for mixing cement, aggregate and water to produce concrete.

Concrete Mixer

A truck equipped with a rotating drum and a separate water tank for mixing concrete en route to a construction site.

Truck Mixer

A truck equipped with a rotating drum to prevent segregation or loss of plasticity of the ready mixed concrete being delivered to a construction site.

Agitator Truck

Wrecking Ball

Concrete Batch Plant

Type of handsaw that cuts against the grain of the wood.

Hand saw

A narrow saw stretched like a bowstring on a light frame.

Bow saw

Type of handsaw that's used to cut curved lines or shapes.

Coping saw

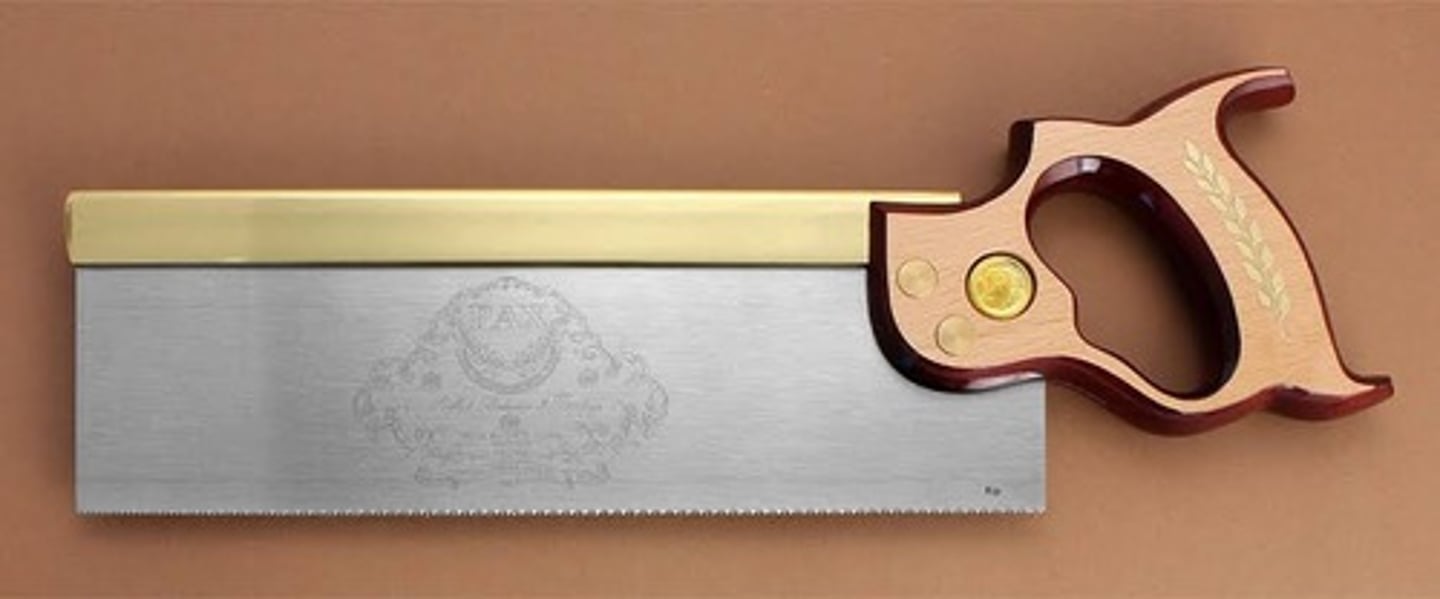

Used for small accurate work such as dovetail joints.

Dovetail saw

A saw with a very fine toothed blade used for delicate cuts in thin material.

Fret saw

A saw used for cutting metal.

Hack saw

A saw designed to cut circles in wood for keyholes.

Keyhole saw

A tool used to heat metal.

Blowtorch

This drill is mostly used in aircraft construction and uses compressed air to make it spin.

Pneumatic Drill

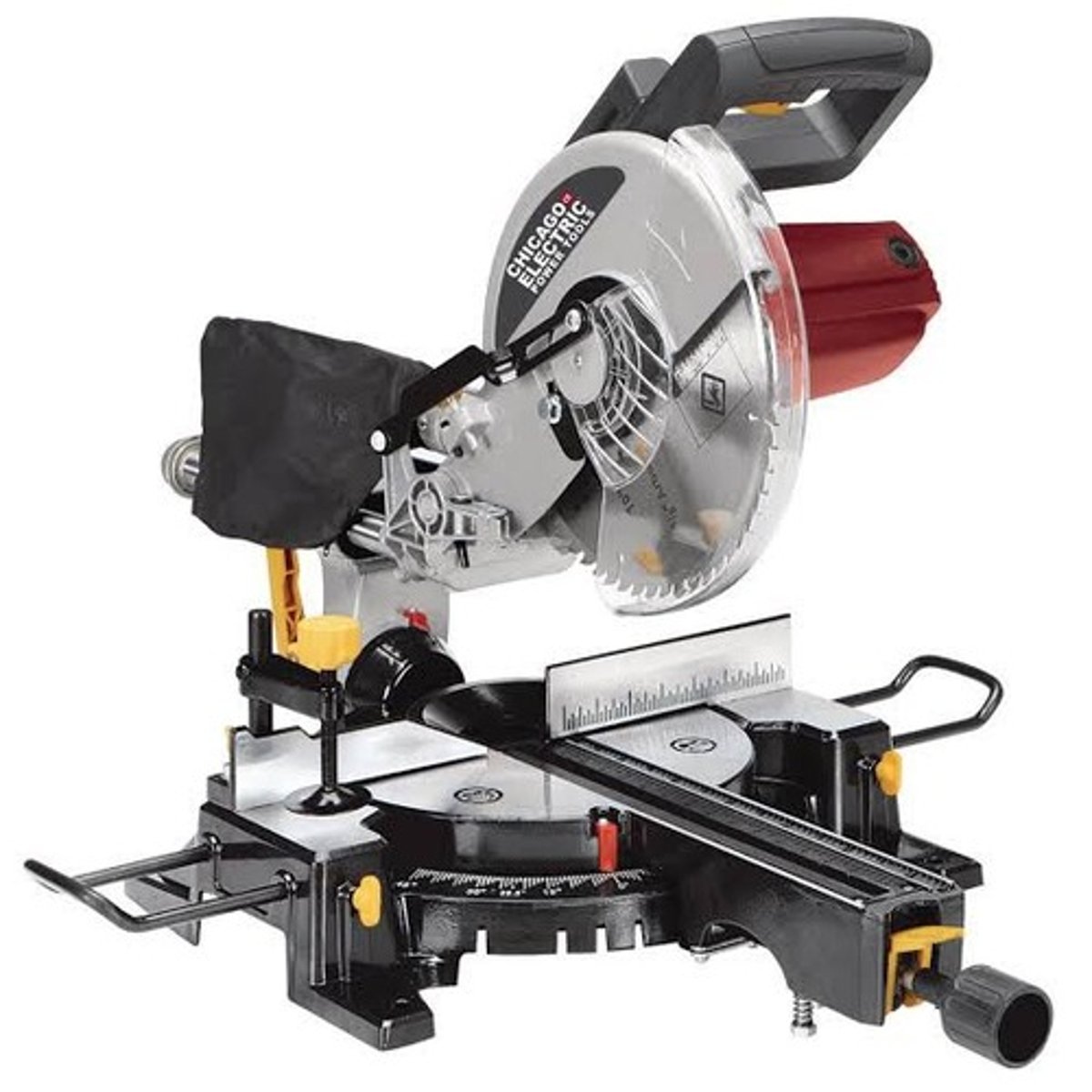

Saw also known as the chop box that can cut compound angles.

Miter saw

A power saw with a rapidly rotating toothed disk.

Circular Saw (Skill Saw)

A circular saw mounted under a table or bench so that the blade projects up through a slot.

Table saw

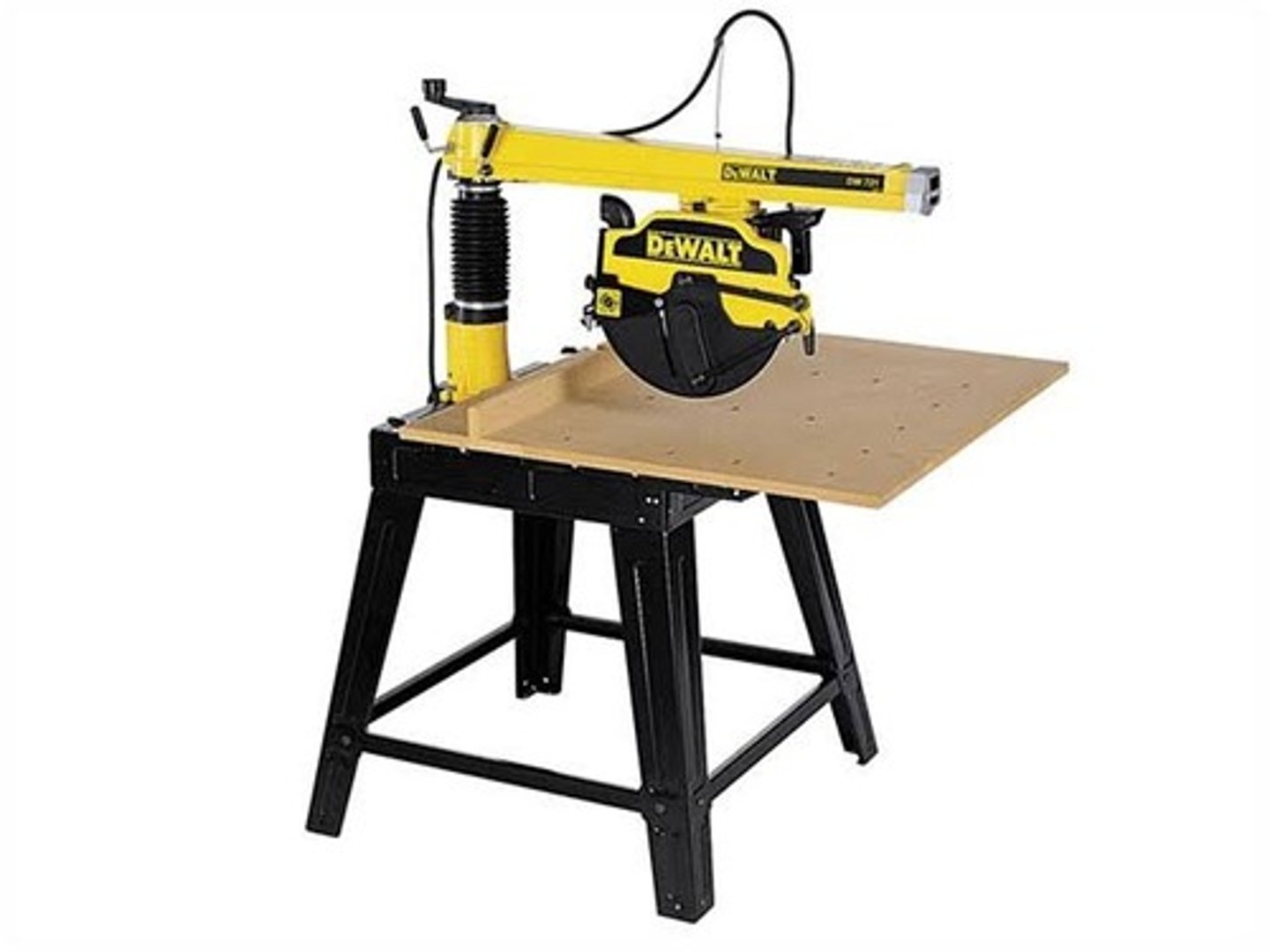

A cutting machine consisting of a circular saw mounted on a sliding horizontal arm.

Radial arm saw

Concrete saw

Nylon String (Tansi)

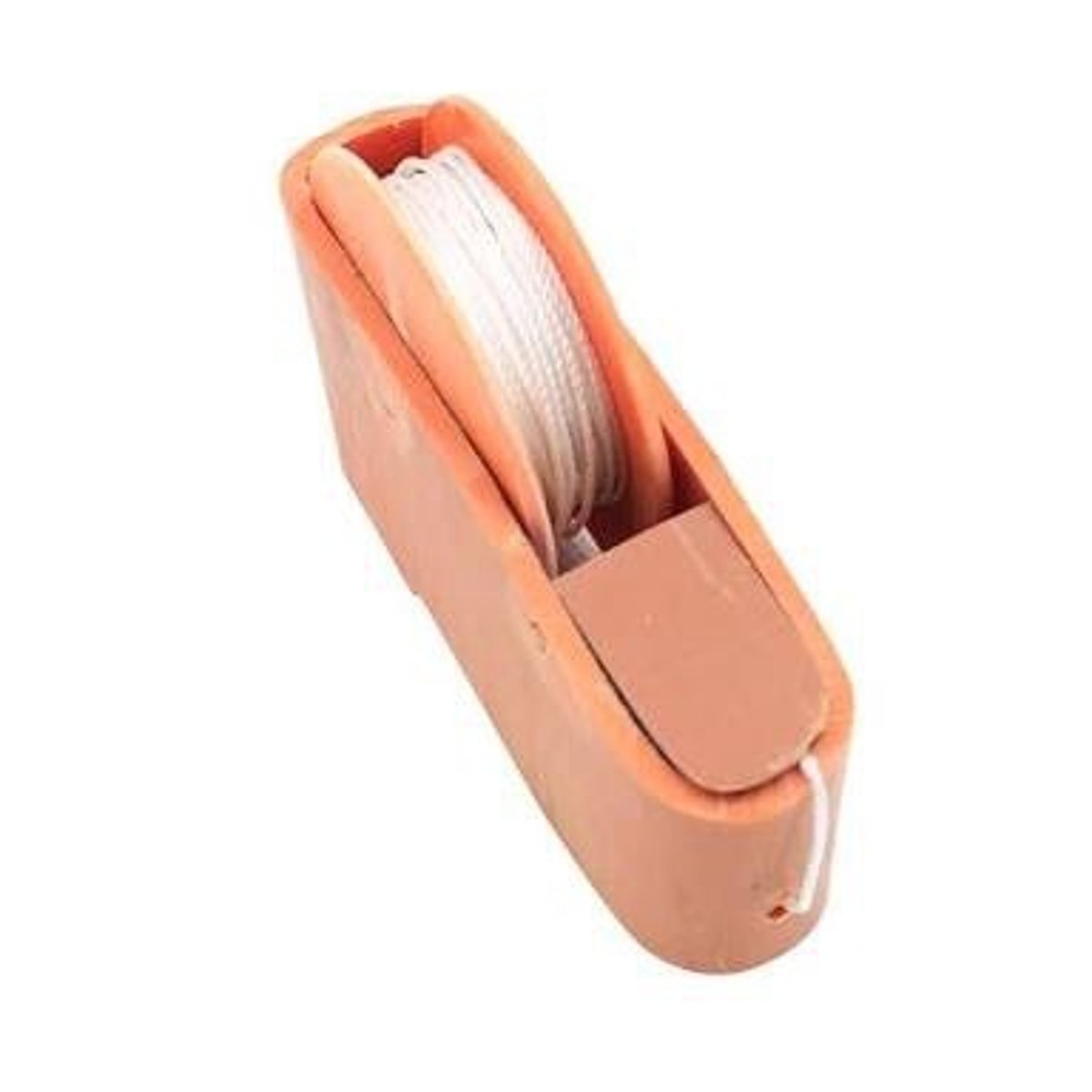

Chalk Line Reel (Pitik)

A heavy weight that is suspended from a line; it indicates vertical trueness.

Plumb Bob (Hulog)

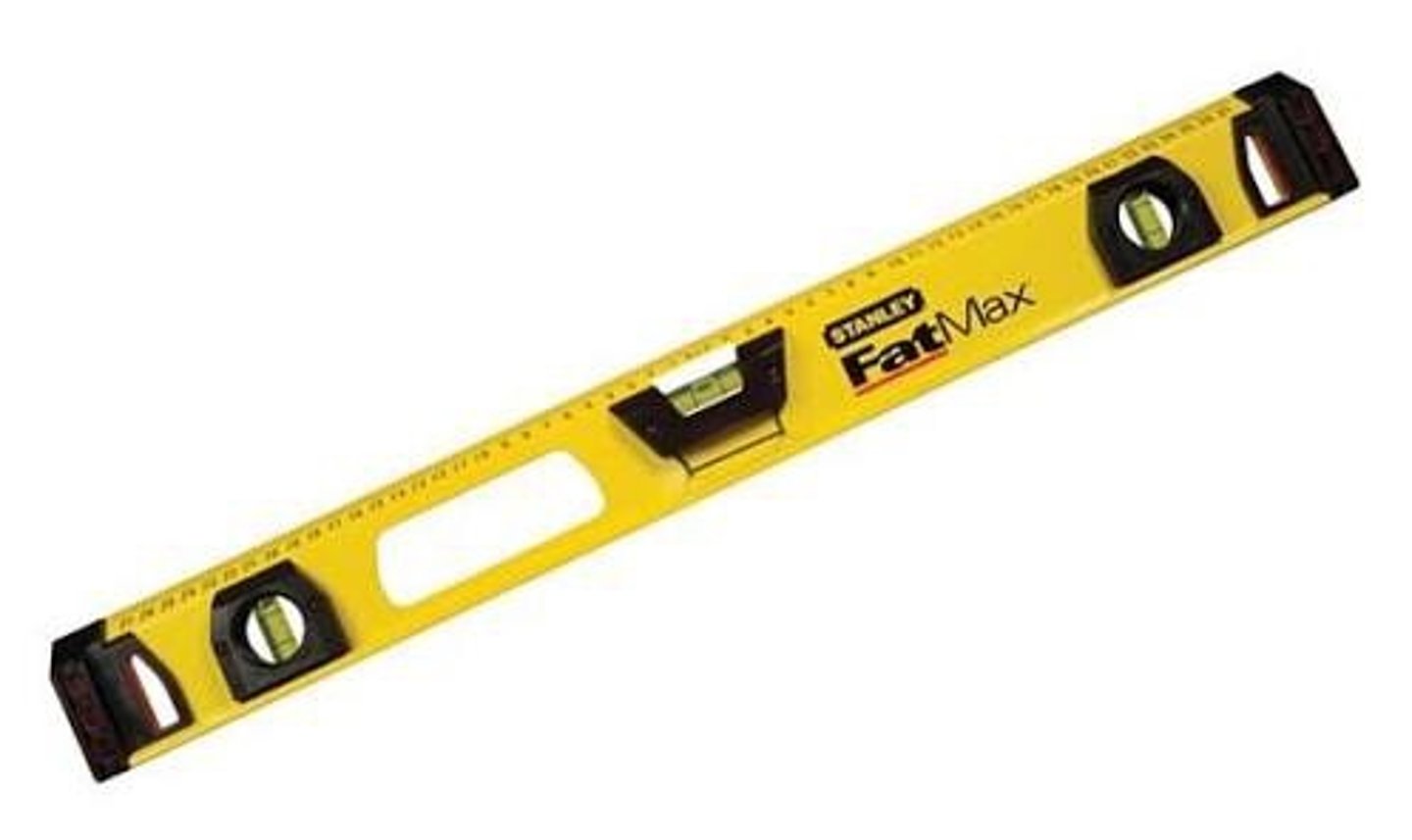

Used to determine if the horizontal or vertical is exact.

Level/Spirit Bar (Lebel)

Tape Measure

Long Tape Measure

Folding Ruler

Laser Measure

Veneer Caliper

Carpenter's Square (Scuala)

A hammer with a flat striking face. The other end of the head is curved and divided into two claws to remove nails.

Claw Hammer

Ballpin Hammer

One end of the head is shaped with a blunt point, and the other end is shaped like a cold chisel.

Chipping/Slag Hammer

A tool resembling a hammer but with a large head.

Mallet

Stretch Hammer

Used for bending, holding and manipulating terminals of components and wires.

Long Nose Pliers

A screwdriver that has a blade shaped like a cross; this blade fits into a cross-shaped Phillips screw head.

Phillips Screwdriver

A screwdriver that relies on a pushing force rather than a twisting force.

Spiral Ratchet Screwdriver

Crowbar (Bareta de cabra)

Prybar (Bareta)

Planer (Katang)

Used by old blacksmith and wagon maker for shaping spokes for wooden wheel.

Spoke Shave

Carpenter's File (Kikil)

Used to gouge wood.

Wood Chisel (Paet)

A hand tool made of hardened steel for cutting metal by striking with a hammer.

Cold Chisel

Make Shift Chisel

Carpenter's Awl

Nail Setter

Float

Point trowel

A metal-bladed tool used in the final stages of finishing of a concrete slab.

Steel Trowel

What is used to apply tile adhesives?

Notch Trowel

Manual Sand Blasting

A ruler with no markings on it.

Straight Edge

A long-handled tool used for the initial floating of a freshly poured concrete slab.

Bull Float

Used to fasten metal sheets or light metal sections together.

Blind Riveter

A pneumatic hammer used with a rivet set to form the second head of a rivet.

Pneumatic Riveter

A cutting tool used to cut through thick metal objects, such as bolts, locks, and wire fences.

Bolt Cutter

Used to cut thin sheets of metal, works the same as regular scissors it can cut straight, right and left.

Tin Snips

Aviation Snips

Scoring Knife

Used to mine cobblestone (you will need a stone pickaxe to mine iron. Iron pickaxe to mine gold, diamond, And a diamond pickaxe to mine obsidian.

Pickaxe

Utility Cutter

Used to cut glass.

Diamond Cutter

Used to sharpen a knife.

Carborundum Stone

A tool for injecting sealant into a joint.

Sealant Gun

Paint Brush (Hagod)

It is used to remove rust in rebars.

Steel Brush

Roller Brush

Pencil Brush

For painting very large surface areas (smooth finish).

Spray Gun

Paint tool used to apply a textured paint.

Mortar Gun

Paint Pan

It is used to determine the Horizontal Alignment of windows and door jambs.

Level Hose

Applying and smoothing putty.

Putty Knife

Broad-bladed instrument used for spreading or mixing.

Spatula

Sandpaper (Liha)
#33 - Rough
#4000 - Smooth

Spade Shovel

Glass Suction Cap

Broad Shovel

Tie Wire Twister (Gunchaw)

Hand tool for driving screws; has a tip that fits into the head of a + shaped screw.

Phillips Screwdriver

Bar Cutter

Chain Block

Pulley Block

A machine or device for grinding.

Grinder

Diamond Disk

Turbo Rim

Used to round polished granite stone (patay-
kanto).

Diamond Pad

Used to smoothen surfaces of wood.

Power Sander
