4 Terms

1
New cards

Question

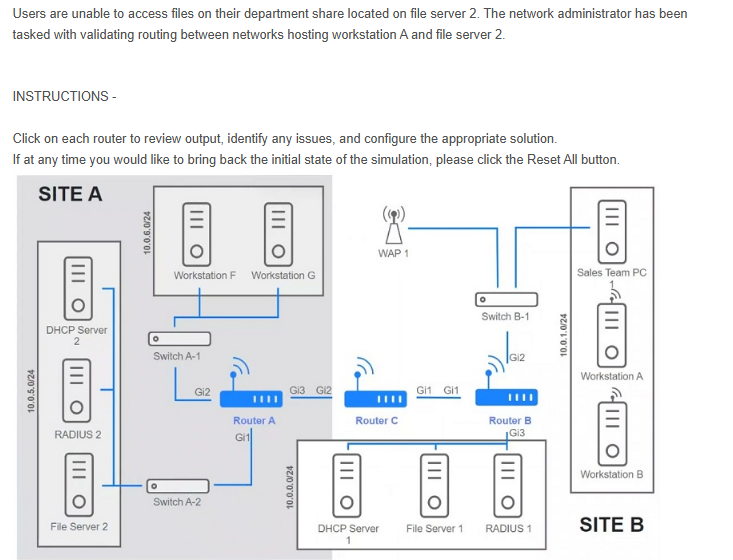

Users are unable to access files on their department share located on file server 2. The network administrator has been tasked with validating routing between networks hosting workstation A and file server 2.

<p><span>Users are unable to access files on their department share located on file server 2. The network administrator has been tasked with validating routing between networks hosting workstation A and file server 2.</span></p>
2
New cards
<p>Problem with router A?</p><p>Destination prefix:</p><p>Destination prefix mask:</p><p>Interface:</p>

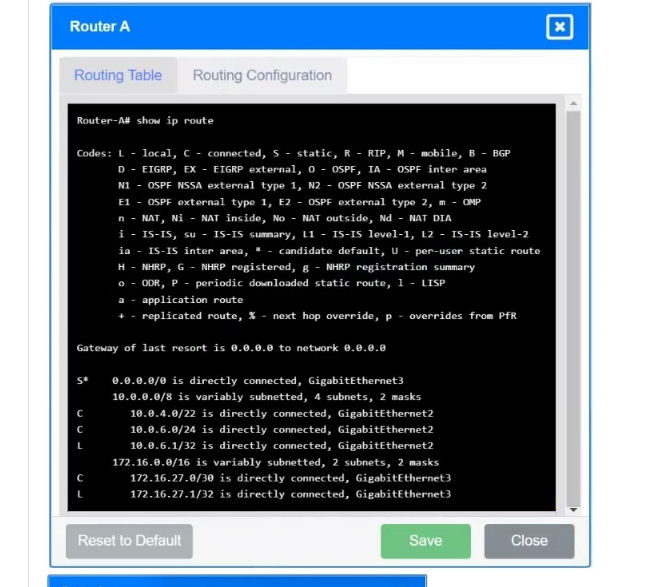

Problem with router A?

Destination prefix:

Destination prefix mask:

Interface:

10.0.5.0/24

255.255.255.0

Gi1

3
New cards

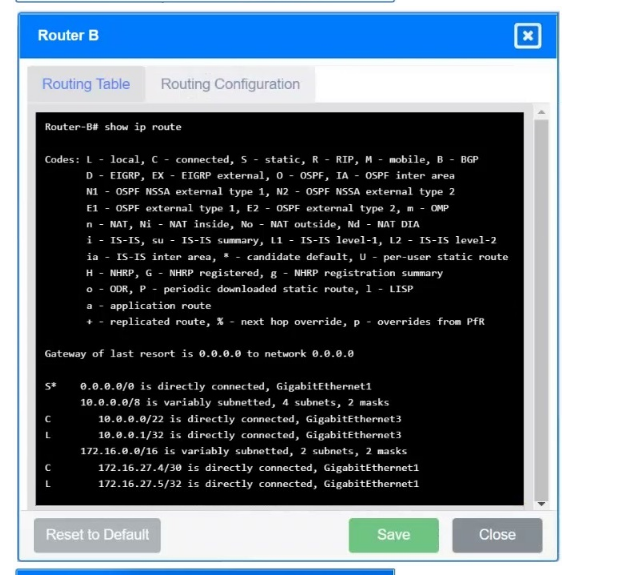

Problem with router B?

Destination prefix:

Destination prefix mask:

Interface:

10.0.1.0/24

255.255.255.0

Gi2

<p>10.0.1.0/24</p><p>255.255.255.0</p><p>Gi2</p>
4
New cards
<p>Problem with router C?</p><p>Destination prefix:</p><p>Destination prefix mask:</p><p>Interface:</p>

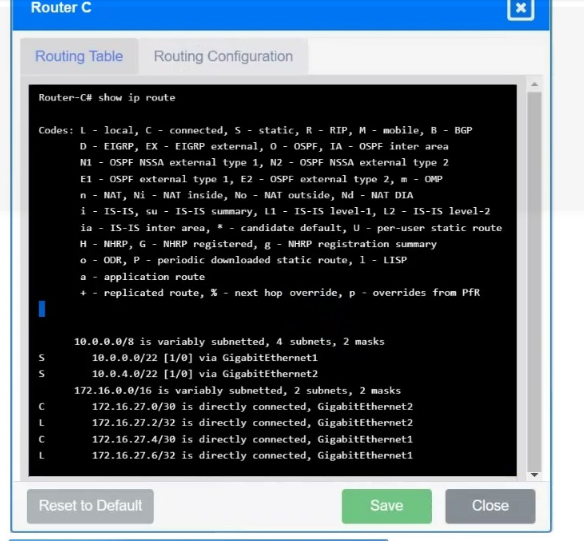

Problem with router C?

Destination prefix:

Destination prefix mask:

Interface:

Nothing
