CompTIA Data+ DA0-002

Data

- Raw facts that our systems and processes generate and collect

Information

- Data that has been processed, analyzed, and put into context

- Allows us to make data-driven business decisions

Steps:

1. Data Capture and Collection

2. Data Correlation

3. Reporting and Communication

Spreadsheets

- Data analysis tool that organizes data in tabular form (rows and columns)

- Quickly and easily perform mathematical calculations; sum, min, max, mean, median

- Lack constraints of a relational database

- Microsoft Excel is the most common type of spreadsheet used

Structured Data

- Organizes data into well-defined tables

- Highly organized in a predefined format with a fixed schema

- Database tables

- Uses RDBMS and Data Warehouses

Semi-Structured Data

- uses tags and markers to provide some organization, but lacks a strict relational model

- JSON

- Nested structures

- Uses RDBMS with some adaptation and Data Lakes

Unstructured Data

- Is not easily organized into tables

- Has no predefined format or model and is the most free-form

- Video files, emails

- Uses Data Lakes and file systems

Machine Data

- Common source of unstructured data

Database

- Extend the tabular model used by spreadsheets to the relational model

Column

Synonyms: Column, Field, Attribute

- Contains information about a single characteristic (entity)

Row

Synonyms: Row, Tuple, Record

- Contains information about a single instance of the table subject

Table

Synonyms: Table, File, Relation

- Fundamental structure for organizing data into rows and columns

Key/Value Pairs

- Provide a simple way to store data values indexed by a key value

- Key: Value

- Appear in JSON files

Key/Value Stores

- Databases that provide efficient storage and fast retrieval of key/value pairs

Data Types

- Describes the nature of the data stored in a database or application

Types:

- Numeric: INT, DECIMAL, FLOAT

- Boolean: TRUE/1, FALSE/0

- Strings: CHAR, VARCHAR, NVARCHAR

- NULL values: NULL

- Spatial: GEOMETRY, GEOGRAPHY

- Date values: DATE, DATETIME, TIMESTAMP

- Large: objects Binary Large Objects - BLOB & Character Large Objects - CLOB

- GUID: Globally Unique Identifier

- UUID: Universally Unique Identifier

Numeric Data Type

- Stores quantitative data

Includes:

- INT

- DECIMAL

- FLOAT

Integer Values

- Whole numbers that do not have decimal places

- Include positive or negative values

Decimal Values

- Contain decimal places

- Used for exact values

DECIMAL(8,2): Holds 8 numbers, with 2 of those numbers after the decimal point

Floating Point Values

- Contain decimals

- Use less storage and store approximate values

Currency Values

- Provide a better option than floating point data types for storing information about money

- Usually stored using integer or decimal values

Boolean Value

- Either 0 or 1 (a single bit)

- 0 represents FALSE

- 1 represents TRUE

- Often refer to boolean values as flags

String Values

- Text data is stored in character strings

- May contain alphanumeric data, mixing alphabetic characters, symbols, and digits

CHAR(3) - fixed character length ASCII code. Contains exactly 3 characters

VARCHAR(12) - variable character length ASCII code. Contains up to 12 characters

NCHAR() - fixed length unicode data, like state abbreviations

NVARCHAR() - variable length unicode

NCHAR & NVARCHAR takes up twice as much storage space, so use only when needing Unicode support

ASCII Encoding

- Transforms alphanumeric characters into binary form

Unicode

- Provides extended character sets, including non-English characters

- Universal character encoding standard that assigns a unique numerical code point to every character in every language, symbol, and emoji

Character Large Objects (CLOB)

- Used to store large amounts of character-base text

- Designed to handle data that exceeds the size limits of traditional string types

- Often stored separately from main table with a reference, or 'locator', pointing to the data's location

- Store documents elsewhere on disk

Discrete Data

- Takes on values from a limited set of possibilities

- May be numeric or text-based

- Counting things

Continuous Data

- Takes on any possible value from a range

- Continuous data is numeric

- Measuring things

Categorical Data

- Text data that is discrete, grouping items into a limited number of categories

- Grouping things into buckets

- Limited set of values from which we can choose

Date & Time Data Types

- Date data types store values independent of display format (stores only date)

- Time data types store values with an optional time zone

- Datetime data types store a date and time value in a timestamp

DATE - typically in format of 'YYYY-MM-DD'

DATETIME - typically in format of YYYY-MM-DD HH:MM:SS

TIMESTAMP - stores both data and time, similar to datetime, but includes timezone awareness, typically stored in UTC in the format of YYYY-MM-DD HH:MM:SS

Binary Large Objects (BLOB)

- Multimedia Data

- Images are commonly stored in GIF, JPG, and PNG formats

- Useful in storing medical imaging, audio recordings, photos, emails, video data

- This is unstructured data that will be compressed when stored

- Stored separately from main table with a reference, or 'locator', pointing to the data's location

Spatial Data

- Data type that stores geometric and geographic information

- Geometric data describes 2-D and 3-D shapes and objects (layout of a building or the boundaries of a piece of land)

- Geographic data describes locations on the Earth's surface (Latitude and Longitude coordinates & used for mapping, navigation, geospatial analysis)

Globally Unique Identifier (GUID)

- Microsoft Implementation

- 128-bit value designed to be unique across all environments and timespans

- Commonly used as Primary Keys for database tables

- Requires more storage space

- Can affect DB index performance

- Less efficient for queries that require sequential order

- Length and complexity make it difficult to read and work with manually (difficult to debug/troubleshoot)

Universally Unique Identifier (UUID)

- Open Standard

- 128-bit value designed to be unique across all environments and timespans

- Commonly used as Primary Keys for database tables

- Requires more storage space

- Can affect DB index performance

- Less efficient for queries that require sequential order

- Length and complexity make it difficult to read and work with manually (difficult to debug/troubleshoot)

File Extension

Flat file format - refers to simple plain text file for data storage; single table in plaintext, where each line is a record and fields are separated by delimiters like commas or tabs

- .csv

- .xlsx

- .json

- .txt

- .jpg

- .dat

CSV Files (Comma Separated Values) .csv

- Flat-file, comma-separated values delimit fields with commas

- Simple plain text file used to store tabular data like a spreadsheet

- Allow limited structure

- Each line corresponds to a single row, or data observation

- Text files don't have columns, so CSV file uses commas to separate data that would appear in different columns

- Recognize by presence of commas in the file

- One of most common ways to exchange data

JPG/JPEG Files (Joint Photographic Experts Group) .jpg/.jpeg

- Image file with lossy compression, making image sizes smaller

- Opens in any image program

PNG File (Portable Network Graphics) .png

- Lossless image file

- No quality is lost during compression

- Larger image size that supports transparency

XLSX File (Microsoft Excel) .xlsx

- Default file format for Microsoft Excel

- Earlier versions used .xls extension

- .xlsm enables Excel to store and run macros (.xlm is legacy extension)

- .xltx - enables Excel templates (.xlt is legacy extension)

TSV Files (Tab-Separated Values) .tsv

- Flat file, tab-separated values delimit fields with tabs

- Similar to CSV files but use tabs instead of commas

- Allow limited structure

- Recognize by presence of whitespace in the file

- Common way to exchange data

TXT Files (Text Files) .txt

- Commonly used for unstructured text

JavaScript Object Notation (JSON) .json

- Allows data structures with key-value pairs

- {"key": value}

- Each JSON object represents a single observation

- Contain a variety of data types (String, Numeric, Boolean, Arrays, Objects

- * Recognize JSON objects by the presence of curly brackets and a colon-separated key: value pairs *

HyperText Markup Language (HTML) .html

- Provides formatting for web pages

- Uses Tags

- tag is used for bold text

- tag is used for italics

- tag is used for hyperlinks in a document

- Tag is used between < > signs; is the beginning, or opening for the bolded portion of text and ends, or closes the bolded portion.

- This is bold text

- 'bold text' would be the only portion that displays as bolded

- Commonly used to exchange data over the Internet

- * Recognize HTML documents by the use of standard formatting tags contained wtihin < > symbols *

eXtensible Markup Language (XML) .xml

- Uses tags to define key-value pairs

- Like JSON, uses tags < > to open and to close

- Commonly used to exchange data over the Internet

- * Recognize XML documents by noticing highly structured text all contained within < > tags *

Binary Files .dat

- Generic data file

- Store data in a computer-readable format

- Often use .dat file extension

- Look like nonsense when opened in a text editor

- Need to know the correct application that created the file in order to open the file

- * Recognize binary data files by looking for .dat files and unreadable text *

Relational Databases

- Databases extend to the tabular model used by spreadsheets

- Allow for the storage of data as well as the relationships between the data elements

- Contain special keys (Primary, Foreign, Composite, Candidate, Superkey, Alternate, Unique, Surrogate)

Keys

- Special-purpose database fields that help organize tables and define relationships

Primary Key

- Uniquely identify rows in a table

- Must be:

- Unique

- Never change

- Not NULL

Constraints

- Business rules enforced by the database

Artificial Key

- Primary key that is artificially generated by the DBMS, like a unique ID number

- Designed to guarantee a unique identifier for each row in a table

- Used when no suitable natural key exists or a natural key is too complex

Foreign Key

- Relationship between two tables

- Column or set of columns in a child table that refers to the primary key in the parent table

- Establishes a link, or relationship, between the two tables

- Crucial for maintaining referential integrity in a RDBMS

Normalization

- Organizing data in a database to reduce data redundancy and improve data integrity

- Data structured for optimal storage and use within a program

Denormalization

- Intentionally introducing redundancy into a database

- Often done by combining data from multiple normalized tables into a single, larger table

First Normal Form (1NF)

- Each column holds a single atomic value and each row is unique with a primary key

Second Normal Form (2NF)

- Must be 1NF plus all non-key attributes must be fully depending on the entire primary key

- Uses foreign keys

Third Normal Form (3NF)

- Must be 2NF plus no transitive dependencies (every non-key attribute must directly depend on the primary key, and not indirectly through another non-key attribute)

Online Transaction Processing (OLTP)

- Databases that support day-to-day business operations

- High-volume, real-time transactions

- DB is update in real-time with details of each transaction

- Transactional data types, simple query types, frequent data modification, normalized schema, fast response times

Online Analytical Processing (OLAP)

- Databases that support reporting and analytics

- Analyze large datasets for insights

- Complex data analysis and reporting over large historical datasets

- Analytic data types, complex query types, infrequent data modifications, denormalized schema, slow response times

Data Warehouse

- Schema-on-write

- Company-wide database aggregating data from many OLAP databases

- Structured, cleaned, and processed data

- Provide a single source of truth

- Purpose: enterprise-wide reporting and business intelligence

Data Mart

- Schema-on-write

- Subset of a data warehouse serving a specific part of the organization

- Data is secure and accessible only to the users who should have access to that data

- Structured, processed data, often summarized

- Purpose: department-specific analysis and reporting

Data Lake

- Schema-on-read

- Stores raw, unstructured data in its native format and is complex to use

- Data that's been collected but not yet ready for cleaning or analysis

- Purpose: large-scale data exploration, big data analytics, and machine learning

Lakehouse

- Combines elements of data lakes and data warehouse

- Flexible and scalable solution for managing structured and unstructured data

- Provides a unified platform that supports both real-time transactional workloads and analytical processing

- Allows for efficient data ingestion, transformation, and querying while maintaining governance and security controls

Data Silo

- Collection of information that is isolated from other systems and departments within an organization, making it inaccessible to others

- Prevent data sharing and can lead to inconsistencies

Non-relational Database

- Used for big data

- Key-value pairs

- Graph databases - model relationships between objects

- Document stores - optimized for storage of large documents in JSON, XML, and similar formats

- Gain efficiency by reducing overhead

Schemas

- Different ways to organize data

Star Schema

- Contains a fact table at its center, storing mostly numeric facts

- Dimension tables form the outer edges of the star, and contain supplemental information. Directly connect to fact table

- Dimension tables are generally denormalized data for performance and simplicity

- Fast query performance due to fewer joins

Snowflake Schema

- Has a fact table and dimension tables, but differs from Star in how it handles dimensions

- Dimension tables are normalized into smaller, hierarchical sub-dimension tables

- Slower query performance due to more complex joins across multiple tables

- Bridge table - aka Junction table - intermediary to handle many-to-many relationships by breaking them into two one-to-many relationships

Fact Table

- Central table in a star or snowflake schema

- Stores quantitative data, or facts (primarily numerical data)

- Foreign keys link to associated dimension tables

Dimension Table

- Provide descriptive context for the numerical facts in the fact table

- Describe who, what, where, when, why, how

- Use descriptive attributes

- Smaller than fact tables

Bridge Table

- AKA Junction Table

- Special construct used to manage complex relationships that cannot be handled by a direct Foreign Key link between a fact and dimension table

- Resolves many-to-many relationships

- Contains only Foreign Keys

- Sits between fact and dimension tables

Application Programming Interface (API)

- Allows for the access of data stored on websites

- Serves as a standardized interface that allows other applications to interact with a DBMS

- Acts as a middleman providing a defined set of rules and protocols for how applications can request and receive data or functionality from the DB

- Uses HTTP protocol

- Request actions or information

- Return in the format of XML or JSON

Web Scraping

- Writes code that automatically extracts data from websites and parses them to obtain desired information

- Uses HTML

- Systematically collects info from web pages and converts it into a structured, analyzable format

- Performance is impacted when scraping

- Generally not illegal, but site owners may not want this done

- Consider intellectual property implications when scraping

- Minor website changes can break scraping code

Logs

- Typically contained within an organization

- Provide insight into internal operations, security events, user behavior

- Web server logs contain details like timestamps, IP addresses, requested pages, referral sources

- Firewall & Network logs help security teams monitor and respond to potential threats. Record network traffic patterns, access attempts, anomalies

- System & Application logs capture events related to user authentication, system errors, software performance & are used to track system crashes and monitor for unauthorized login attempts

Files

- Structured

- Used for storing and exchanging data

- Stored as .csv, .json, .xml, etc

On-Premise Database

- Database hosted on an organizations server; located physically on-site or off-site

- Organization hosts their own environments and have total control over architecture

Cloud-Based Database

- Database hosted by a cloud vendor who installs, configures, and manages server and system infrastructure

Cloud Computing

- Delivering computing resources to a remote customer or user(s) over a network

- A model for enabling ubiquitous, convenient, on-demand network access to a shared pool of configurable computing resources that can be rapidly provisioned and released with minimal management effort or service provider interaction (NIST definition)

- Offers on-demand self-service

- Scalable

- Offers elasticity

- Metered services; pay for what you consume

Cloud Providers

- AWS (Amazon Web Services)

- Azure

- Google

- Each offer a borad range of services including. computing, power storage, networking databases, and security solutions

AWS

- Amazon Web Services

- Largest and most widely adopted cloud provider

- Launched 2006

- Offers vast selection of services from VMs in EC2 to scalable storage in S3

- Known for extensive global infrastructure with data centers in many different regions to ensure high availability and disaster recovery

- Leads market share & global infrastructure

Azure

- Microsoft counterpart to AWS

- Strong among business users already using Microsoft products

- Integrates seamlessly with tools like Active Directory, M365, and Windows Server

- Offers VMs, AI tools, hybrid cloud solutions

- Excels in enterprise integration

Google Cloud Platform (GCP)

- Known for expertise in data analytics, machine learning, container-based services

- Pioneered Kubernetes, container orchestration & BigQuery analytics tools

- Businesses focused on AI, data science, and scalable app development

- Stands out in AI and data analytics

National Institute for Standards and Technology (NIST)

- US government agency within the Dept of Commerce that promotes innovation and industrial competitiveness

- Known for its work in cybersecurity through guidelines and frameworks

Horizontal Scaling

- Adding more machines to your systems or servers to your pool to meet increased demand

- Usually utilizes load balancers to distribute requests across available servers

- Avoids single-points of failure as load can be distributed across multiple servers

- Highly scalable and flexible

- Complex to manage

Vertical Scaling

- AKA 'Scaling up'

- Adding more resources to existing servers/machines like CPU or RAM

- Simple to manage

- Hardware limitations on capacity

- Single-point of failure

Cloud Deployment Models

- Private Cloud

- Public Cloud

- Hybrid Cloud

- Community Cloud

- No cloud model is inherently superior to the other

- Depends on the context, approach, and needs of the user/company

Private Cloud

- Organization uses a dedicated cloud infrastructure

- Hardware is often on-premises, however can be cloud-based

- Dedicated to a single organization

- Greater control and security over infrastructure and ideal for stringent compliance requirements

Public Cloud

- Cloud provider owns and operates infrastructure

- Services are available to general public over network

- Scalable - scale up or down quickly

- Shared services with multiple others; hardware is not dedicated to one user or organization (multi-tenancy)

- Pay-as-you-go options; sometimes free low-tier services

- Can introduce performance and security risks since it's a shared service

Hybrid Cloud

- Combination of public and private cloud environments

- Allows data and apps to move between them

- Enables orgs to use the public cloud for less-sensitive tasks while keeping sensitive data secure in private cloud

Community Cloud

- Serves a specific community with common business models, security requirements, and compliance considerations

- Shared pool of resources used by multiple organizations with similar needs and interests

- Can be configured to meet specific security and compliance needs of the group

- Not open to general public

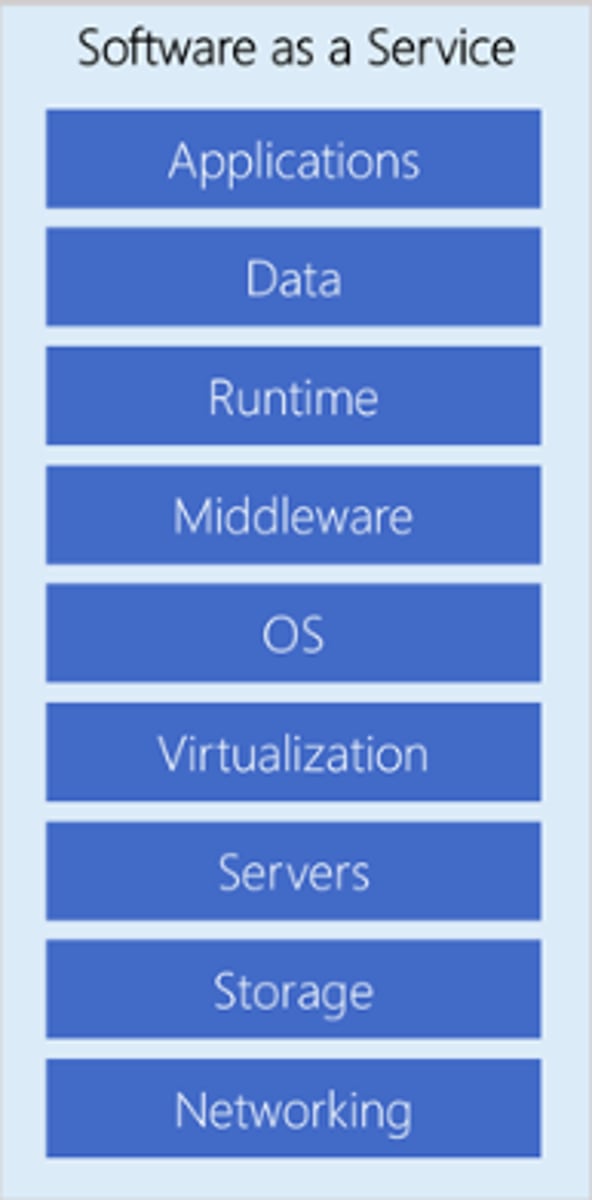

Software as a Service (SaaS)

- Service provider manages all development delivering ready-to-use applications via web browser

- Offerings Include:

- Salesforce

- Microsoft 365

- PowerBI

- Google Drive

- Netflix

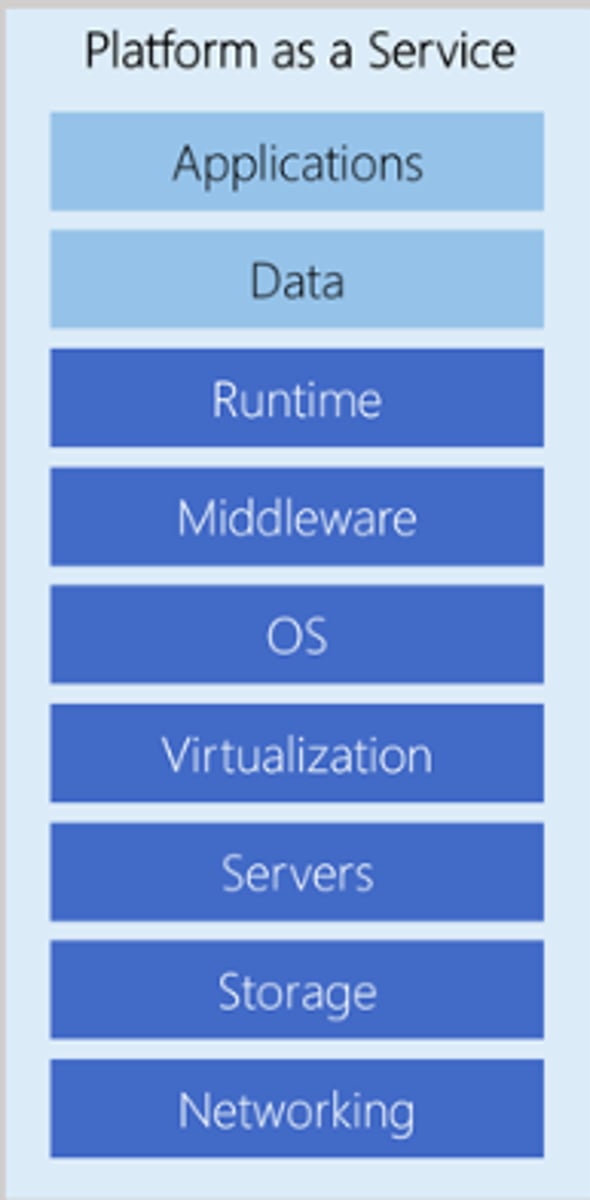

Platform as a Service (PaaS)

- Service provider handles creation and maintenance of the infrastructure including OS and software

- Leverages Database as a Service (DBaaS) providing backups and routine maintenance

- Generally used for:

- Application Development

- Business Intelligence (BI) Development

- Internet of Things (IoT)

- Providers Include:

- MS Azure

- AWS

- Oracle Cloud

- Google Cloud

- SAP Cloud

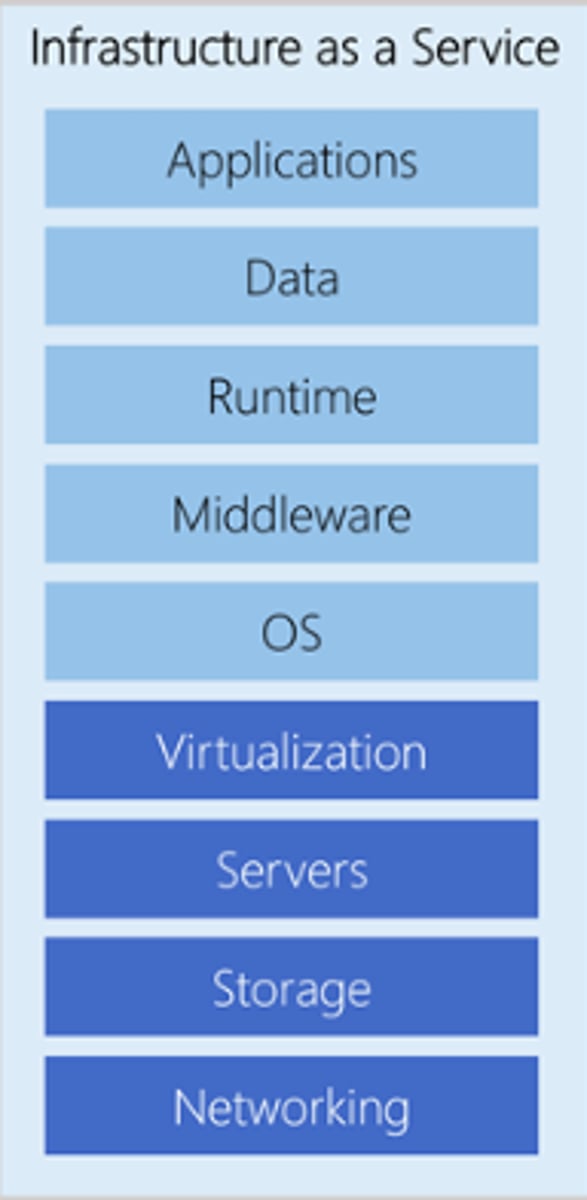

Infrastructure as a Service (IaaS)

- Virtualized computing resources (servers, storage, networks) over the internet

- Organization, not the cloud provider, manages the OS, middleware, runtime, applications, and data

- Offers more flexibility for custom setups and developing

- Providers Include:

- AWS EC2

- Azure VMs

- Google Compute Engine

Virtualization

- Host machines run on physical hardware

- Host machines provide services to several virtualized guest machines

- Hardware is shared among many virtual machines

- Hypervisor tricks each guest into thinking it's running on dedicated hardware

- Two types of hypervisors - Type 1 & Type 2

Type 1 Hypervisor

- Bare metal

- Install directly on physical hardware/server

- High performance; has direct hardware access

- More secure due to smaller attack surface

- VMware ESXi, Microsoft Hyper-V, KVM, Xen

- VM Sprawl: uncontrolled growth of VMs often due to easy creation and lack of proper management; not decommissioned properly and misconfiguration

Type 2 Hypervisor

- Run on top of existing Operating System

- Lower performance due to layers of host OS

- Less secure relying on security of host OS

- Desktop virtualization software like Oracle VM Virtualbox, VMware Workstation, Parallels Desktop

- VM Escape: vulnerability that allows a program running inside a VM to break out and interact with the host OS

Containerization

- Runs multiple applications on a single host OS by packaging them into lightweight, isolated containers that share the host's kernel, making them faster and more resource-efficient

- Isolated user spaces for apps

- Containers function regardless of the OS and hardware

- Highly secure

Cloud Storage Types & Locations

Types:

- Object

- File

- Block

Locations:

- Local

- Shared

Block Storage

- Stores data in fixed-size chunks called blocks, each with a unique identifier

- Partitioned into volumes

- High performance, low-latency

- Ideal for Databases, VMs and applications requiring frequent, fast access to data

- Typically presented to a server as a raw disk, requiring a file system to be installed on top

File Storage

- Organizes data in a hierarchical structure of files and folders

- Intuitive for humans and supports features like permissions and locking for collaborative work

- Commonly used for shared documents, home directories, and general-purpose file sharing

- NAS functionality

- Mechanical or Solid State Disks

Object Storage

- Stores data as self-contained units called objects, each containing the data itself, a unique identifier, and metadata

- Highly scalable and cost-effective for unstructured data like backups, archives, media files, large datasets for analytics, or AI/ML applications

- Accessed via APIs and typically used in cloud environments

- Premium (immediate) or archival storage

Programming Languages

- Allow developers to write their own code and software

- Coding environments Include R, Visual Studio (VS), Text editors, Notebooks

- Coding Languages include SAS, Python, R, Scala

R & RStudio

- R is a popular programming language dedicated to analytics

- Focused on creating analytics applications

- Appeared in 1990's as a statistical programming language

- Open source

- CRAN is a repository of popular R code

- Tidyverse is a collection of R packages

- RStudio is a popular IDE used in conjunction with R
