Chapter 13 - Network and Decision Mathematics

0.0(0)
studied byStudied by 0 people
learnLearn
examPractice Test
spaced repetitionSpaced Repetition
heart puzzleMatch
flashcardsFlashcards
Card Sorting

1/25

flashcard set

Earn XP

Description and Tags

Network and Decision Mathematics explained in a NUTSHELL.

Study Analytics
Name
Mastery
Learn
Test
Matching
Spaced

No study sessions yet.

26 Terms

1
New cards

Network Key Terms

  • Graph: Diagram with points (vertices) connected by lines (edges).

  • Vertices/Nodes: Dots representing points on a graph.

  • Edges: Lines connecting vertices (can loop to itself).

  • Loops: Edges that connect a vertex back to itself.

2
New cards

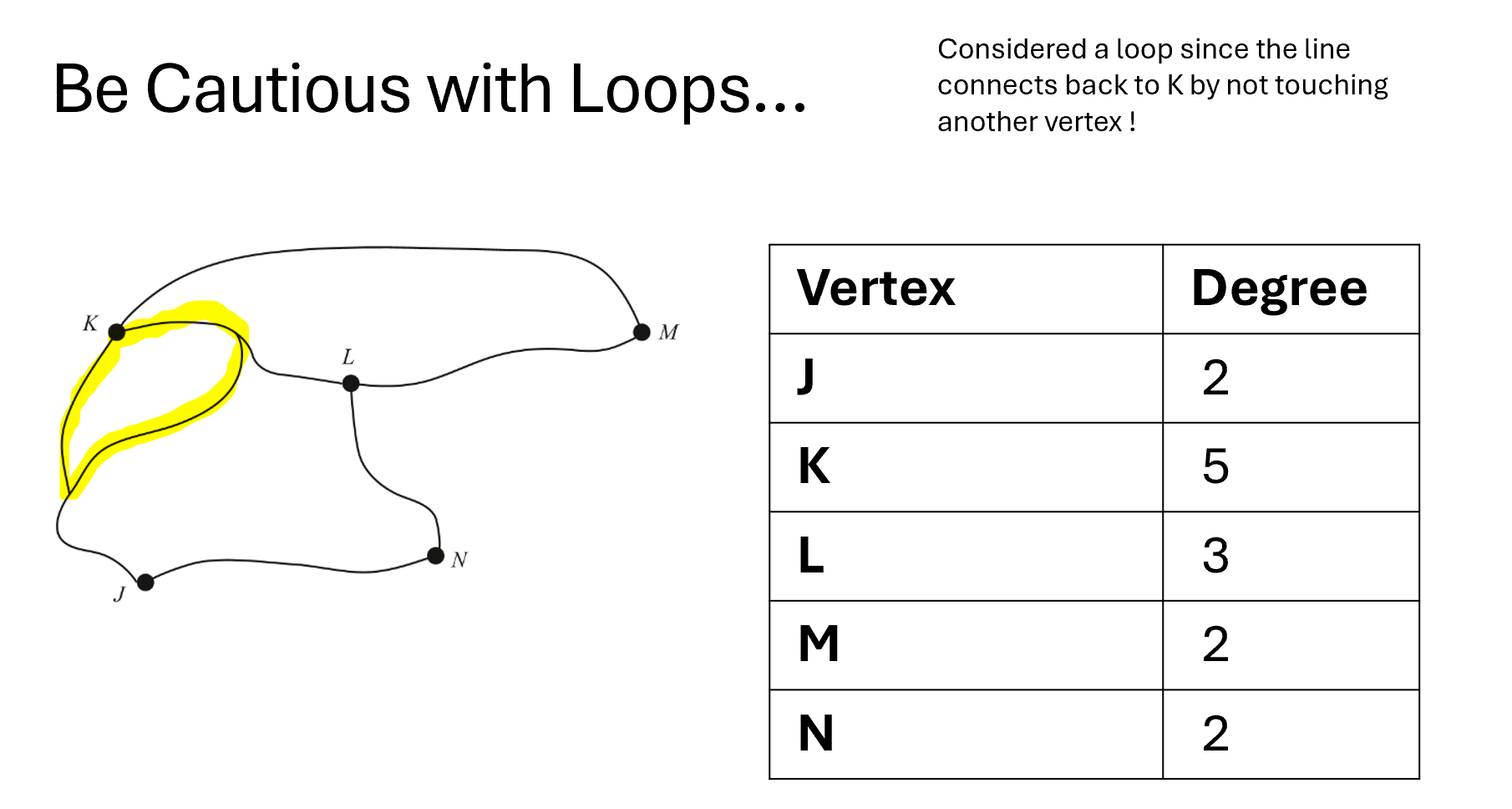

Degree of a Vertex

  • Degree of a vertex: the number of edges attached to a vertex.

  • Note: degree of a loop is 2 as the edge is attached twice to the vertex.

<ul><li><p><strong>Degree of a vertex:</strong> the number of edges attached to a vertex.</p></li><li><p><strong>Note: </strong>degree of a loop is 2 as the edge is attached twice to the vertex.</p></li></ul><p></p>
3
New cards

Types of Graphs

Type of Graph

Details

Example / Notes

Simple Graph

No loops or multiple edges.

Sum of degrees = 2 × (number of edges)

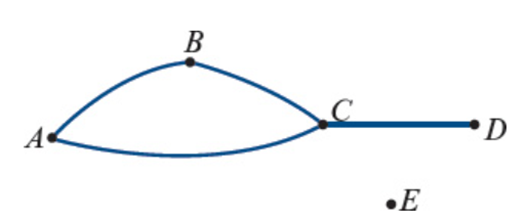

Isolated Vertex

A vertex with no connections.

Degree of Vertex = 0

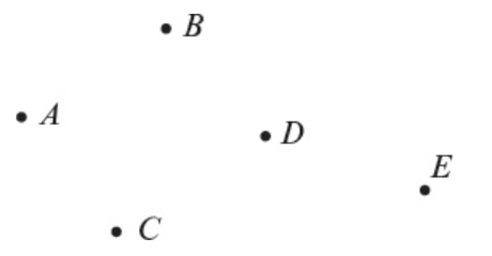

Degenerate Graph

All vertices are isolated (no edges at all).

Every vertex has degree 0

4
New cards

Further Types of Graphs

Type of Graph

Details

Formula (FYI only)

Notes / Examples

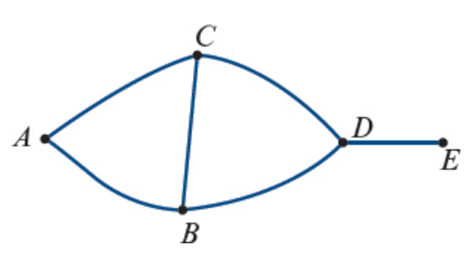

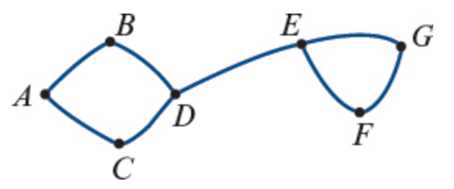

Connected Graph

All vertices are connected directly or indirectly.

Max edges = (n(n−1))/2

A bridge connects two separate parts.

Complete Graph

Every vertex is connected to every other vertex.

Edges in Kₙ = (n(n−1))/2

Notation: Kₙ, where n is number of vertices.

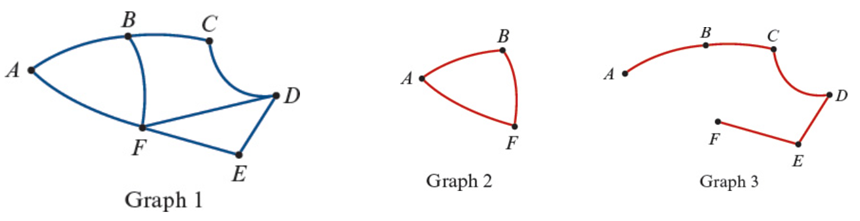

Subgraph

A smaller graph within a larger one.

Must include endpoints of chosen edges.

5
New cards

Even Further Types of Graphs

Type of Graph

Description

Example

Undirected Graph

Edges work both ways between vertices (no arrows).

A–B is same as B–A

Directed Graph (Digraph)

Edges go one way only, shown with arrows.

A → B ≠ B → A

Circuit

A path that starts and ends at the same vertex.

K–L–M–N–K or K–N–L–K

6
New cards

Equivalent (isomorphic) graphs

  • Isomorphic graphs: same structure, different layout.

  • Must have equal vertices and equal edges.

  • Matching vertex degrees is essential.

  • 🔍 Tip: Write down degrees, then try redrawing to check!

7
New cards

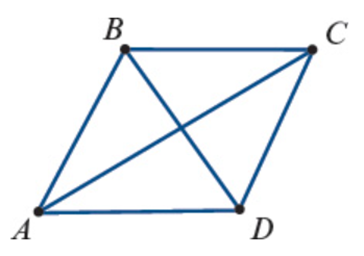

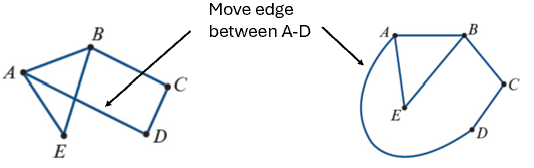

Planar graphs

  • Planar graph: can be drawn without edges crossing.

  • Loops and multiple edges don’t affect planarity.

  • If not possible → it’s a non-planar graph.

<ul><li><p><strong>Planar graph</strong>: can be drawn without <strong>edges crossing</strong>.</p></li><li><p><strong>Loops</strong> and <strong>multiple edges</strong> don’t affect planarity.</p></li><li><p>If not possible → it’s a <strong>non-planar graph</strong>.</p></li></ul><p></p>
8
New cards

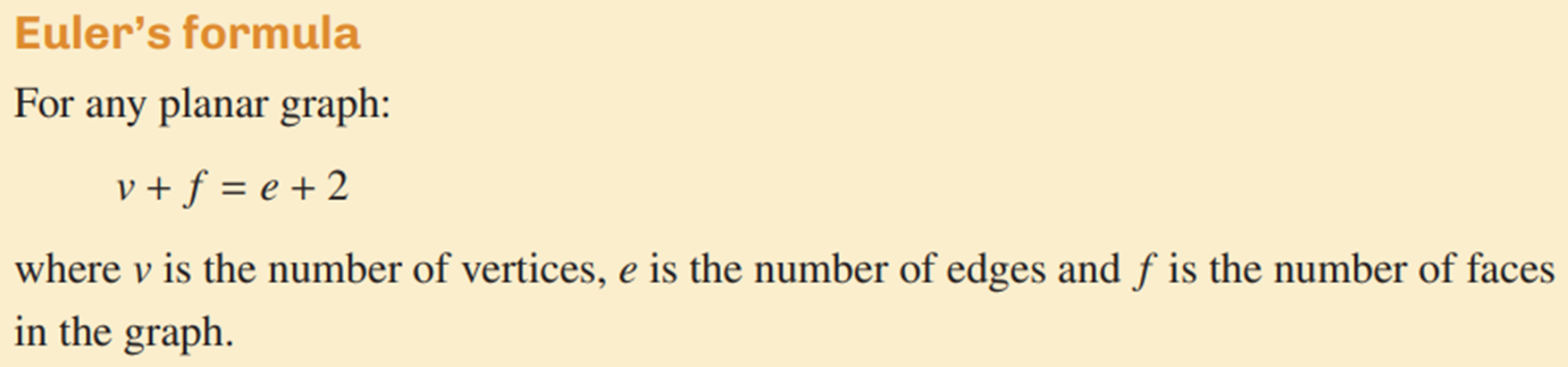

Euler's formula (ONLY FOR PLANAR GRAPHS)

9
New cards

Faces

  • Faces: enclosed regions in a graph.

  • A loop counts as a face.

  • The outside space also counts as a face.

  • Must draw graph without crossing edges to spot faces

10
New cards

Adjacency Matrix

  • Adjacency matrix: n×n square matrix representing graph connections.

  • n = number of vertices.

  • 0 = no edge between vertices.

  • 1 = one edge; 2 = two edges, etc.

  • Loop: ‘1’ on the diagonal (vertex connected to itself).

11
New cards

Planar Graphs Summary

knowt flashcard image
12
New cards

Describing and analysing planar graphs

Term

Definition

Key Rule

Example Idea

Walk

Sequence of edges connecting vertices (repeats allowed)

  • Edges/vertices can repeat

  • Connected graph → walk between all pairs

  • Non-connected → not always

Roaming a city; some places unreachable if not connected

Exploring

Walk (trail or circuit) that travels every edge exactly once

Must use all edges once

Tracing every road once with no repeats

Trail

Walk with no repeated edges; vertices can repeat

Don’t reuse edges

Walking streets without reusing roads

Circuit

Trail that starts and ends at the same vertex

No edge repeats, same start/end

A loop that returns to the starting point

13
New cards

Describing and analysing planar graphs: Exploring

Term

Definition

Rules (Conditions)

Example

Eulerian Trail

A trail that uses every edge exactly once

• Graph is connected
Exactly 2 vertices of odd degree
• Must start at one odd-degree vertex and end at the other
• If all vertices even → Eulerian circuit exists

Walking all streets once, starting at one odd-degree point and ending at the other

Eulerian Circuit

An Eulerian trail that starts and ends at the same vertex

• Graph is connected
All vertices have even degree
• Cannot exist if any vertex has odd degree

Mail loop covering every edge, returning to depot

14
New cards

Fleury's Algorithm for Eulerian Trails or Circuits

  • Start:
    If 2 odd-degree vertices, pick one of them.
    If all even, pick any vertex.

  • Travel:
    Move along edges not bridges (unless forced).
    Mark edges as you go.

  • Repeat:
    Keep traveling & marking until all edges are covered.

15
New cards

Describing and analysing planar graphs

Term

Definition

Example

Travelling

Determining a walk (path/cycle) that visits each vertex exactly once.

Hamiltonian Path visiting all nodes

Path

A walk with no repeated edges and no repeated vertices.

A → B → C without revisits

Cycle

A path that starts and ends at the same vertex, no repeats.

A → B → C → A round trip

16
New cards

Term

Definition

Condition (Rule)

Example

Hamiltonian Path

A path that visits every vertex of a graph exactly once.

Not every edge has to be part of the path.

Max two dead-end vertices (degree 1), which become start/end points.

More than two dead ends? No Hamiltonian path.

Vertices with degree 2 must use both their edges in the path or cycle.

Example Path: A → B → C → D

Hamiltonian Cycle

A Hamiltonian path (visits every vertex once) that starts and ends at the same vertex

•Not all edges need to be used in a Hamiltonian cycle

Example Cycle: A → B → C → A

17
New cards

Eulerian vs. Hamiltonian—Focus

  • Eulerian - Focus on EDGES

  • Hamiltonian - Focus on VERTICES

18
New cards

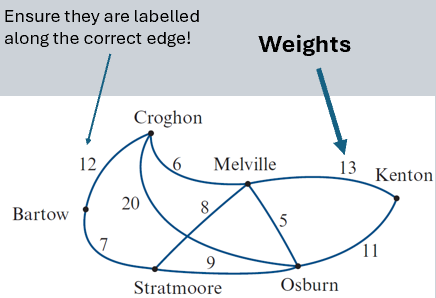

Weighted Graphs and Networks

Key Word

Definition

Example

Weighted Graph

A graph where each edge has a number (weight) representing size of some quantity.

Weights can be distances, costs, or other measures.

Network

A weighted graph where weights represent physical quantities like distance, time, or cost.

Distances in km between towns (vertices) in the graph.

<table style="min-width: 75px"><colgroup><col style="min-width: 25px"><col style="min-width: 25px"><col style="min-width: 25px"></colgroup><tbody><tr><th colspan="1" rowspan="1"><p><strong>Key Word</strong></p></th><th colspan="1" rowspan="1"><p><strong>Definition</strong></p></th><th colspan="1" rowspan="1"><p><strong>Example</strong></p></th></tr><tr><td colspan="1" rowspan="1"><p>Weighted Graph</p></td><td colspan="1" rowspan="1"><p>A graph where each edge has a number (weight) representing size of some quantity.</p></td><td colspan="1" rowspan="1"><p>Weights can be distances, costs, or other measures.</p></td></tr><tr><td colspan="1" rowspan="1"><p>Network</p></td><td colspan="1" rowspan="1"><p>A weighted graph where weights represent physical quantities like distance, time, or cost.</p></td><td colspan="1" rowspan="1"><p>Distances in km between towns (vertices) in the graph.</p></td></tr></tbody></table><p></p>
19
New cards

Shortest Path Problems

  • Goal: Find shortest path between two vertices.

  • Shortest path: Path with minimum total weight (sum of edges).

  • Method: List all possible paths from start to target vertex.

  • Shortcut: Ignore obviously long routes to save time.

20
New cards

Dijkstra’s Algorithm Overview

  • Finds shortest path with least total weight between two vertices.

  • Update vertex numbers only if smaller distance is found.

  • Once a vertex is circled (finalised), its number is locked forever.

  • No need to circle every vertex — stop when target’s reached or no better path exists.

21
New cards

Steps of Dijkstra's Algorithm

  1. Assign starting vertex 0 and circle it.

  2. For connected vertices, add edge weights to current number and write new values.

  3. Circle the vertex with the lowest number.

  4. Repeat steps 2–3 from newly circled vertex until destination is reached.

  5. Backtrack from destination: find circled vertices where
    current number = next number − edge weight.

  6. Repeat backtracking until you reach the start.

22
New cards

Dijkstra’s Method 2 - Optional (1-4)

  1. Set up table:

    • Start vertex = first row.

    • Other vertices = columns.

  2. Fill first row:

    • Put distances from start to each vertex.

    • Mark ✗ if no direct edge.

  3. Find smallest number in row:

    • Circle/square it.

    • That column vertex becomes new row vertex.

  4. Fill next row:

    • Add circled number + edge to column vertex.

    • If new sum ≤ number above, write it; else copy above.

    • If no connection, copy above or mark ✗.

  5. Find smallest unmarked number:

    • Circle it.

    • That column vertex becomes new row vertex.

    • Copy circled numbers down.

  6. Repeat steps 4 & 5 until destination column has a circle.

  7. Shortest path length = circled number in destination column.

  8. Find shortest path:

    • From destination, trace upward to same value in column.

    • Find corresponding row vertex, draw line to its column.

    • Repeat until start vertex row reached.

    • The horizontal lines = route.

23
New cards

Keyword

Details

Key Notes

Example

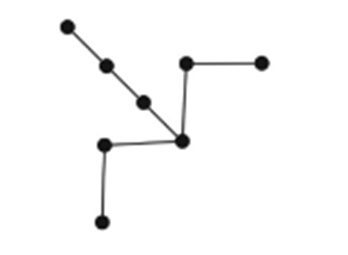

Tree

A connected graph with no circuits (no loops, multiple edges, or cycles).

If it has n vertices, edges e = v - 1.

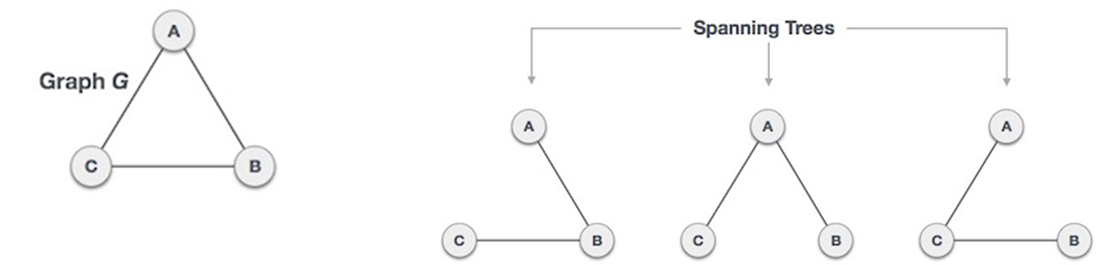

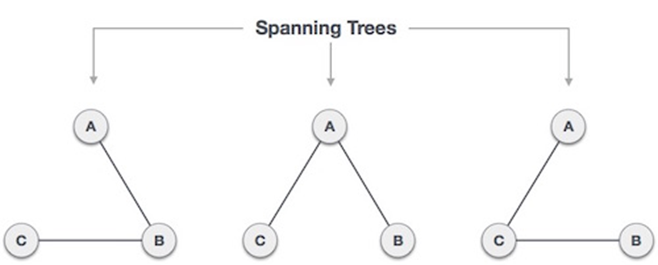

Spanning Tree (Subgraph)

A subgraph that is a tree connecting all vertices of the original graph.

Connects all vertices; no cycles.

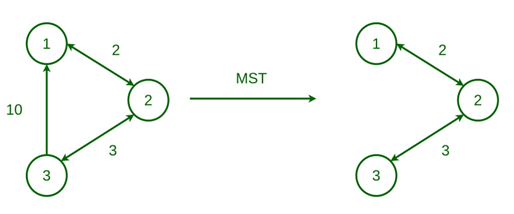

Minimum Spanning Tree

A spanning tree with the smallest possible sum of edge weights.

More than one MST can exist for a graph.

24
New cards

Finding the minimum spanning tree—Method 1: Greedy Algorithm (By Inspection)

  • Pick the smallest edges one by one.

  • Avoid edges that form a cycle.

  • Stop when all vertices are connected.

25
New cards

Finding the minimum spanning tree—Method 2: Prim’s Algorithm

  1. Pick the smallest edge in the whole graph.

  2. From connected vertices, pick the smallest edge leading out.

  3. Keep picking the smallest edges from connected vertices that reach new vertices.

  4. Repeat 3 until all vertices are connected.

26
New cards

Example Question:

A graph has five vertices: A, B,C, D and E. It has no duplicate edges and no loops. If this graph is complete, write down the adjacency matrix for the graph.

Adj(K5​)=​

0 1 1 1 1

1 0 1 1 1

1 1 0 1 1

1 1 1 0 1

1 1 1 1 0
