CPSC 253 Week 2 - Introduction

Smart Cards(Chip cards)

- By the end of 2006 SCs were common in Western Europe

- Some applications include voting in Swedan(Non-repudiation device), phones with smart cards exported to the US

- British Air's oyster card was used for trains and planes for connections.

- In 2006, ~27M contactless cards were in circulation in US,

the number is estimated to top 100M by 2020

- e.g., homeland security has required the port workers to have

smart ID cards (Jan, 2007)

- Entertainment: Most DSS dishes in the U.S. have smart cards

VSLI (Very Large-Scale Integration)

- 100K-1M components per chip

- A complex logical circuit with billions of transitors

ULSI (Ultra Large Scale Integration)

- More than 1M components per chip

- Trillons of transistors

- Used for GPUs, chips

Integrated Circuit Package

Single package containing multiple electronic components such as a CPU.

RFID (radio frequency identification)

Uses a chip in a tag or label to store information, and information is transmitted from, or written to, the tag or label when the chip is exposed to the correct frequency of radio waves. Used for tracking and iding animals, products, people, etc. Radio waves are sinusoidal waves

RFID parts

- Integrated Circuit to store and process info, modulating and demodulating a radio freq(rf) signal and more

- An antenna for receiving and transmitting

- Some are active (battery-powered), while others are passive

Business Model

RFID applications

- Inventory Control Container / Pallet Tracking

- ID Badges and Access Control

- Fleet Maintenance Equipment/Personnel Tracking in

Hospitals

- Parking Lot Access and Control

- Car Tracking in Rental Lots

- Product Tracking through Manufacturing and

Assembly

Cryptography

- The science that studies encryption, which is the hiding of messages so that only the sender and receiver can read them.

- Crypto(secret)+graph(writing)

- Science/math of locks and keys

- Underlying every security mechanism

- HW-based secret is new

HW Threats chart(Slide 9-12)

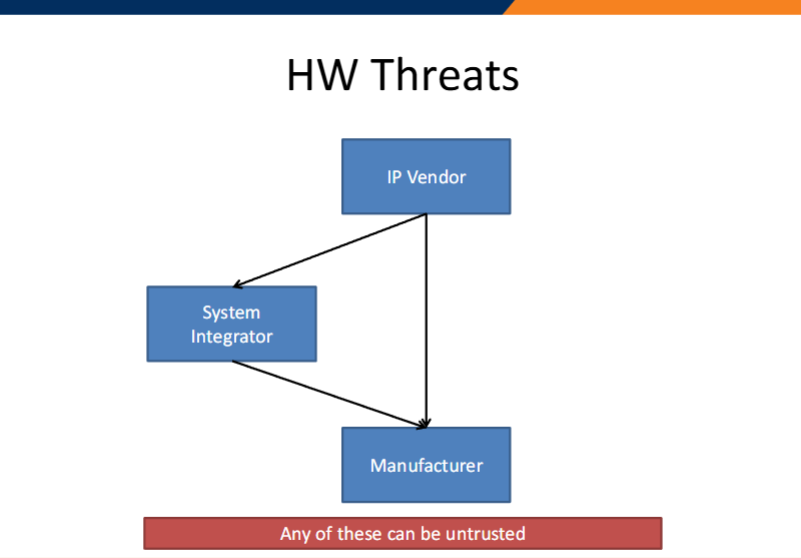

IP Vendors: IP Trust

System Integrator: IP Piracy System Trust

Manufacturer: IC Trust, IC Piracy, Secure Manufacturing Test

AES(Advanced Encryption Standard)

-Asymmetric encryption standard?

- Recent form of cryptography

Computer Security

- Hardware and software

- Input/output modules

- Data

- Storage

- Network interconnections

Embedded System

- A computer system with a dedicated function within a larger electrical or mechanical system.

- Security is challenging due to size, power, and environmental constraints, as well as the other system aspects.

- Can have its own microprocessor, memory, network capabilities and I/O

Secure

- Asset must have a value, no set def

- Sophisticated and no methods for protection exist

Cycle for securing a system

1) Predict potential breaches

2) Consider controls or countermeasures

3)Identify a breach or wait for it

4) Once identified work out a protected system

Computer Security

- No matter the sophistication of the system, simple breaches are still possible

- A computer system has data, storage media, storage media, human interactions

- Many breaches come from social engineering(people)

HW/SW Security

- Manufactured ICs are obscure

- HW is the platform running SW, storage and data

- Tampering can be conducted at many levels

- Easy to modify because of its physical nature

Vulnerability

A flaw or weakness that allows a threat agent to bypass security.

Threat

Set of circumstances with the potential to cause loss or harm

Attack

Human exploiting a system's vulnerability.

Computer security aspects

- Confidentiality: the related assets are only accessed by authorized parties

- Integrity: the asset is only modified by authorized parties

- Availability: the asset is accessible to authorized parties at appropriate times

Hardware Vulnerabilities

- Phys attack

- Trojan Horse(HW, SW)

-IP Piracy/IC Piracy and counterfeit

- Backdoors, Often left on purpose

- EX: For testing(default account), web shell(SSH, SFIP is a good example)

-Non-Tamper Resistant

- Backtrack-> Kali-Linux(Scans for vulnerabilities) Good to use in a sandbox like VirtualBox or VMware to reduce system compromisation

Adversaries(Individuals, group, gov)

- Pirate IPs

- Trojan horses

- Reverse engineer ICS

- Spying by exploiting IC vulnerabilities

Adversaries(System integrators, farbrication facilities, counterfeit)

• System integrators

  • Pirating the IPs

• Fabrication facilities

  • Pirating the IPs & ICs

• Counterfeiting Parties

  • Recycling, cloned, etc.

Hardware Controls

- Hardware implementations of encryptions

= Encryption and scrambling: Transmitting important messages are scrambled/Permutation/transposition

- Design or physical lock

- Devices to verify user

- Hide signatures in design files

- Intrusion detection

- Hardware board limit memory access

- Tamper-resistant

- Policies and procedures

Embedded Systems security

- Security processing adds overhead

- Size, space, power, volume constraints in harsh environments

- May affect the main job

- When designing security think about cost, power, area

Secret

- Underlying most security mechanisms or protocols

- Lock and keys

- Passwords

- Hidden signs and

procedures

- Physically hidden

Cryptography History, Pencil and paper era

- Over 2000 years old and predates computers, electronics or any technology.

Early cryptography relied on methods to simply scramble text - otherwise known as cipher.

- 513 B.C. Histiaeus of Miletus shaved his slave's head and tattooed a message on it

Caesar's cipher: Shift each letter of the alphabet by a fixed amount, easy to break

Cryptoquote

- Plain text to Ciphertext

- Permutations of 26 letters, substitution cipher

- Can be broken with dictionary and frequencies

Cryptography - Mechanical Era

- 1900 is when people realized the math and stat roots

- Germans developed the Enigma machine, Tunny to encrypt messages

- Some Polish mathematicians obtained one, sold it to Britain

- Over 10,000 worked to solve it, helped to interpet German's messages during wars and shorten it by a year

- ks: Keystream from a pseudo random # generator

- p: Plain text

- c: Cipher

- XOR: Or statement

- Key stream or statement with p to make cipher c (𝑐 = 𝑝 ⊕ 𝑘𝑠)

Tunny

- German made

- Use a pseudorandom number gen, a seed to make a keystream("ks")

- Key stream XOR'd with plain text to produce cipher(add equ here)

- Solved by cryptographer at Bletchley park in 1942

Shannon's Information Theory

Evaluates the effectiveness of communications systems. Elements include:

- Signal-to-noise (S/N) ratio

-Channel capacity (max information transmitted

with minimal error)

-Entropy (amount of energy, code, or bits needed

for storage or communication of one

signal)

- More valuables you have, the more complex you can get

- Let's say x and y is 0 or 1. So that means 2*2 = 4 possibilities; more variables mean an exponential increase

- Shannon created 1-time pad and theoretical analysis of code

- Started in 1970s

- Developed for banks and military systems(GPS is an example, so is the internet)

- NIST developed a set of standards for banks called DES, now standard is AES

Design Process - Old Way(Photo on slide 13)

- DFT - Design For Test

- GDSII - Graphic Database

System II

- GL - Gate Level

- RTL - Register Transfer

Level

- STA - Static Timing

Analysis

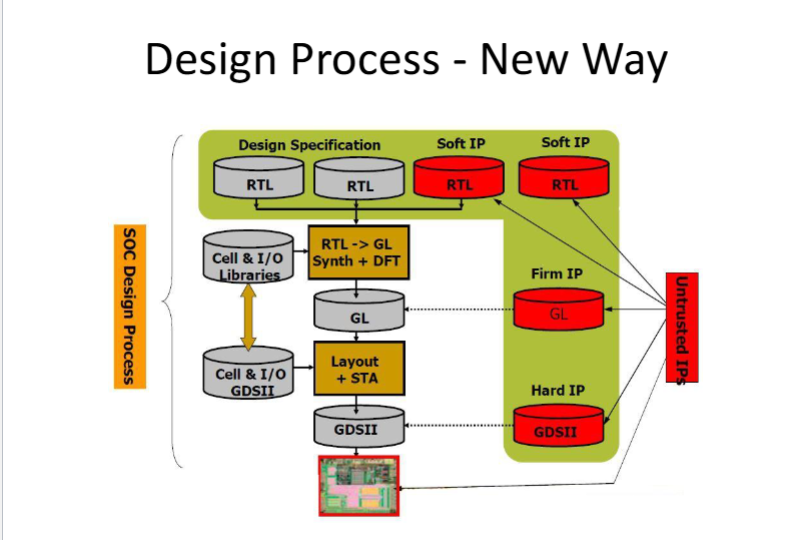

Design process - New Way(Slide 14)

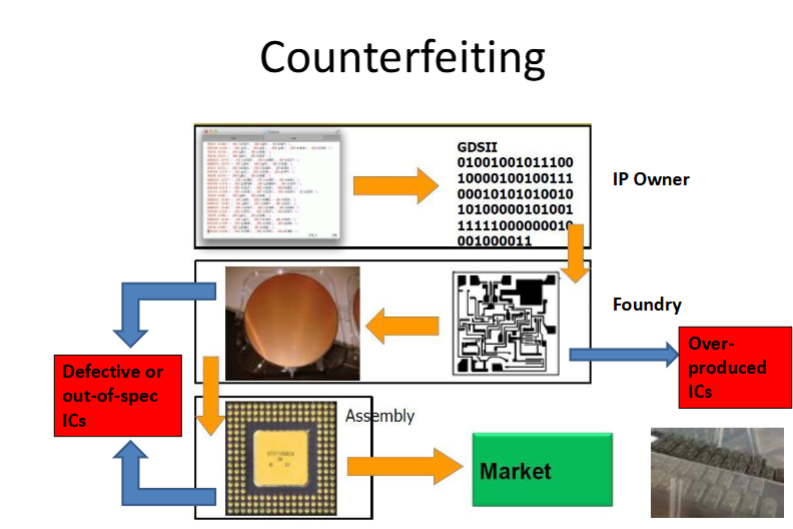

Counterfeiting(Slide 18)

IC Counterfeiting

- Most prevalent attack today

• Unauthorized production

of wafers

• It is estimated that

this is costing

semiconductor industry

several billion dollars per

year

IC(Integrated circuit) Recycling(Slide 20)

1) Recycling center

2) Printed circut boards(PCBS) taken off electronic systems

3) ICs extracted from PCBS

4) Refine the recycled ICS

5) Resell them as new

6) The recycled ICs may be used in critical applications like helicopters and may fail

- Are often identical to an unrecycled IC in looks, function, and specification

- More ewaste as consumers use electronics for shorter times

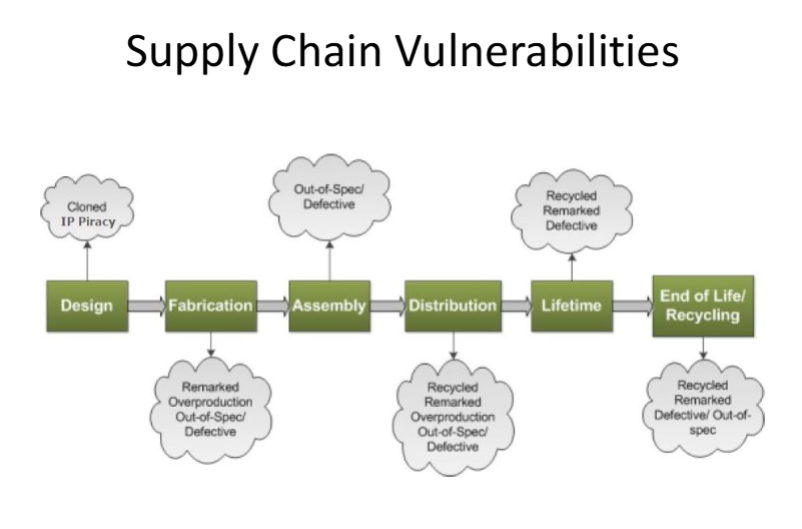

Supply Chain Vulnerabilities(Slide 21)

Chen Jin and piracy

• In 2000 he finished his Ph.D. in computer

engineering at UT Austin

• He went back to China, first to Motorola research and then to Jiaotong University as a faculty

• In 2003, he supervised a team that created one of

China's first homegrown DSP ICs

• Was named one of China's brightest young

scientists, funded his own lab, got a huge grant from

the government

• In 2006, it was revealed that he faked the chip, stealing the design from Texas Instruments!

The Athens Affair

• In March 8, 2005, Costas Tsalikidis, a 38-year-old

Engineer working for Vodafone Greece committed

suicide - linked to the scandal!

• The next day, the prime minister got notified that his

cell phone - and those of many other high-ranking

officials - were hacked!

• Earlier in Jan, investigators had found rogue software

installed on Vodafone Greece by parties unknown

• The scheme did not depend on the wireless nature

• A breach in keeping keys in a file - Vodafone was fined

€76 million in December 2006!

Intellectual Property

A product of the intellect, such as an expressed idea or concept, that has commercial value.

Patent

When you register your invention with the

government, you gain the legal right to exclude anyone

else from manufacturing or marketing it.

Trademarks

A a name, phrase, sound or

symbol used in association with services or products.

Copyrights

Laws protect written or artistic expressions fixed in a tangible medium

Trade secrets

A formula, pattern, device or compilation of

data that grants the user an advantage over competitors.

Cryptography: Modern Era

• First major theoretical development in crypto

after WWII was Shannon's Information Theory

• Shannon introduced the one-time pad and

presented theoretical analysis of the code

• The modern era really started around 1970s

• The development was mainly driven by banks and

military system requirements

• NIST developed a set of standards for the banks,

- DES: Data Encryption Standard

Security Requirements

- Basic functions

- Tamper resistance

- User Identification

- Content Security

- Secure Network Access

- Availability

- Secure Storage

Threats to messages

• Interception: Confidentiality

• Interruption Blocking messages: Availability

• Modification and fabrication: Integrity
