GNG Centroid Equations

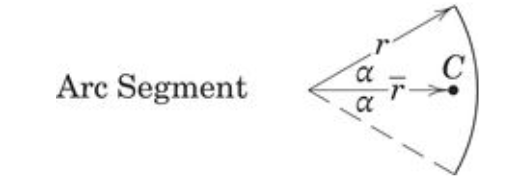

Arc Segment

r = rsinalpha/alpha

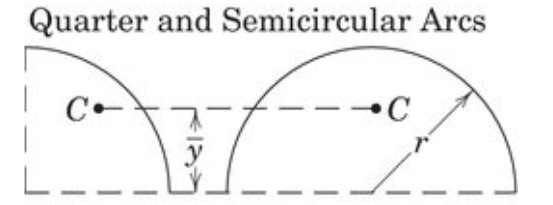

Quarter and Semicircular Arcs

y = 2r/pi

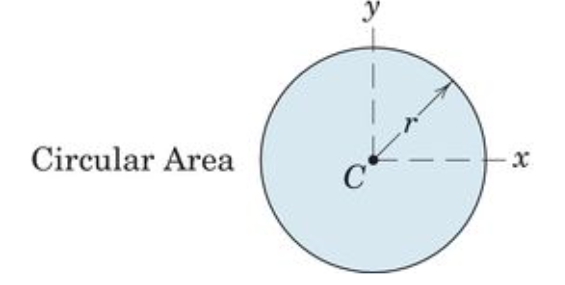

Circular Area

r = r

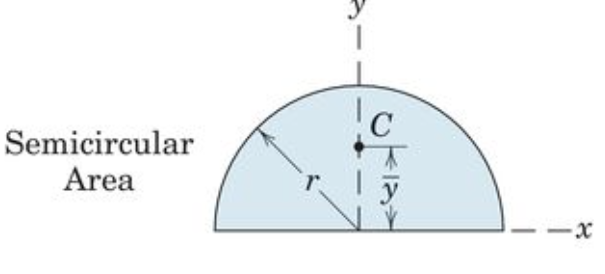

Semicircular Area

y = 4r/3pi

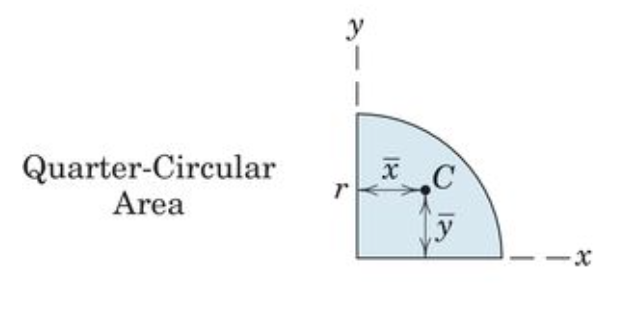

Quarter Circular Area

x = y = 4r/3pi

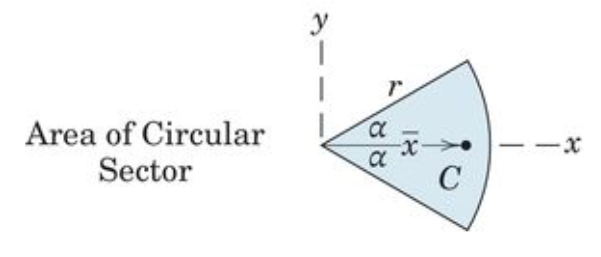

Area of Circular Sector

x = (2/3)(rsinalpha/alpha)

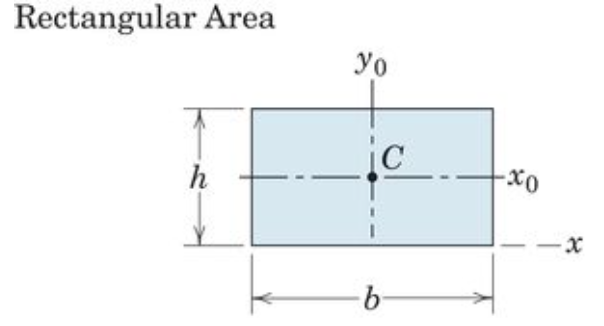

Rectangular Area

x = 1/2(x) and y = 1/2(y)

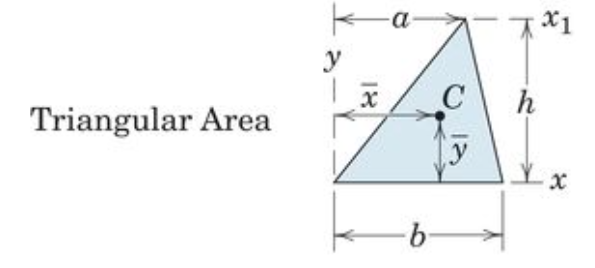

Triangular Area

x = (a+b)/3 y = h/3

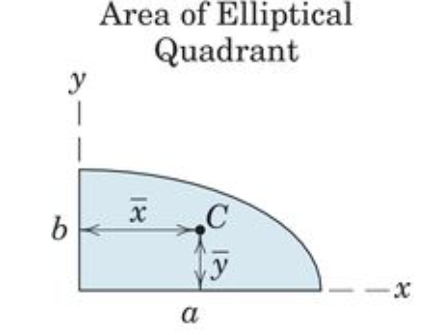

Area of Ellipitical Quadrant

x = 4a/3pi y = 4b/3pi

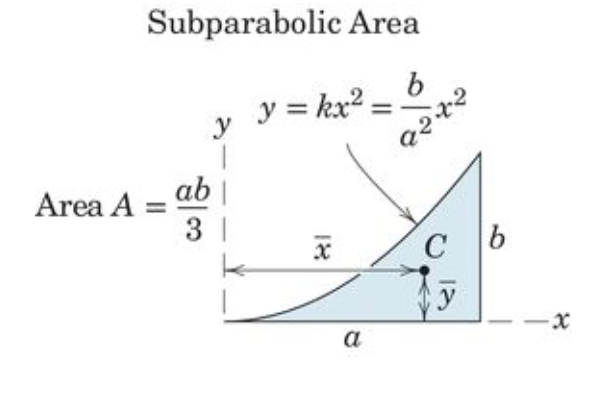

Subparabolic Area (A= (ab)/3)

x = 3a/4 y = 3b/10

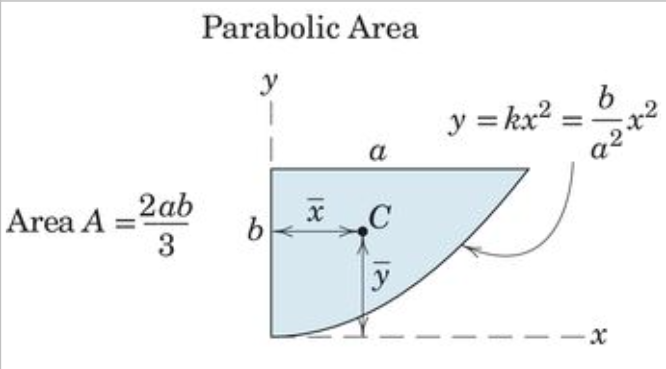

Parabolic Area (A=(2ab)/3)

x = 3a/8 y =3b/5

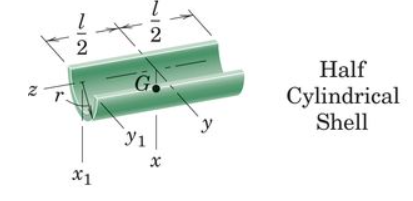

Half Cylindrical Shell

x = 2r/pi

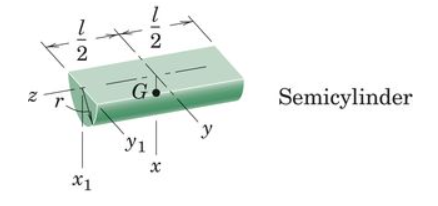

Semicylinder

x = 4r/3pi

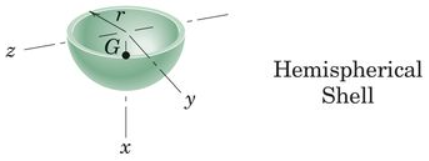

Hemispherical Shell

x = r/2

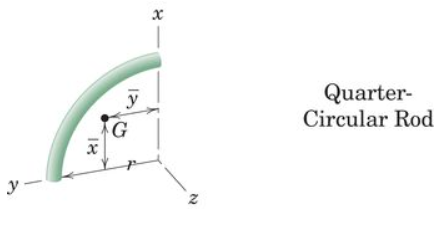

Quarter Ciruclar Rod

x = y = 2r/pi

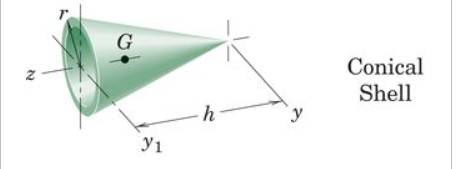

Conical Shell

z = 2h/3

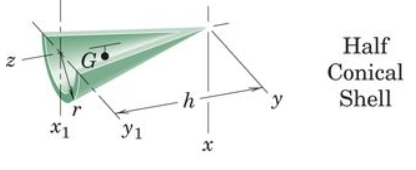

Half Conical Shell

x = 4r/3pi y = 2h/3

Right Cirular Cone

z = 3h/4

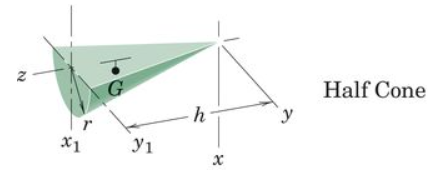

Half Cone

x = r/h z = 3h/4

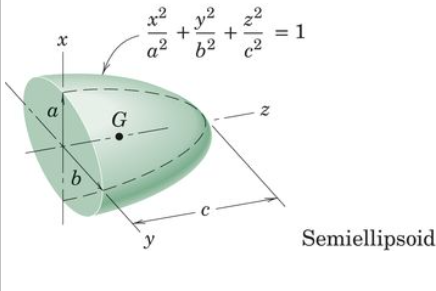

Semiellipsoid

z = 3c/8

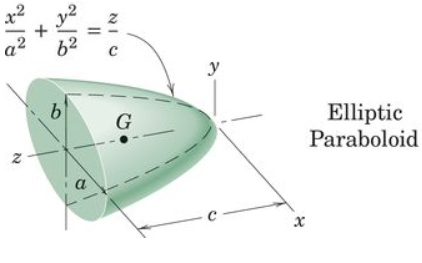

Ellpitic Paraboloid

z = 2c/3

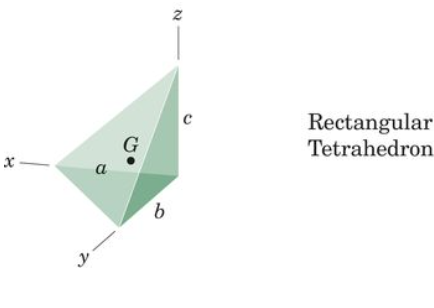

Rectangular Tetrahedron

x = a/4 y = b/4 z = c/4

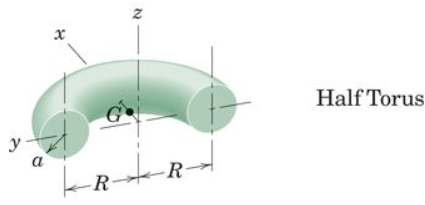

Half Torus

x = (a² + 4R²)/(2piR)
