14 Terms

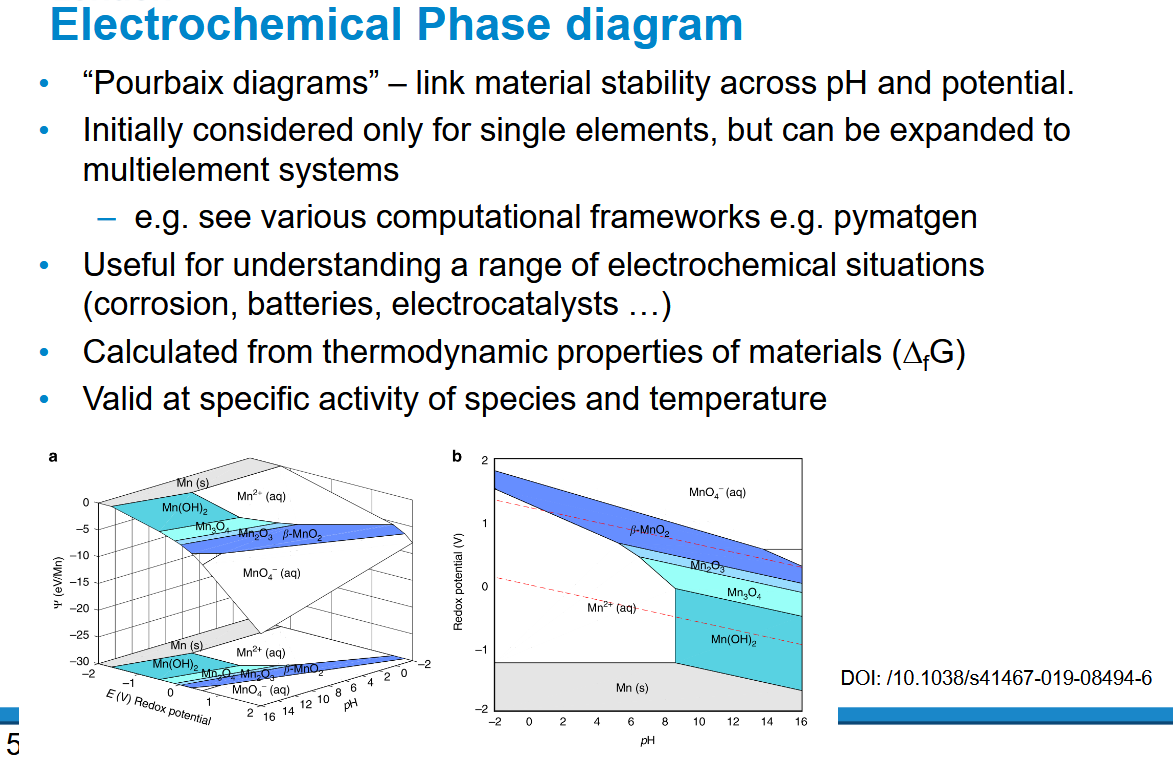

Electrochemical phase diagrams

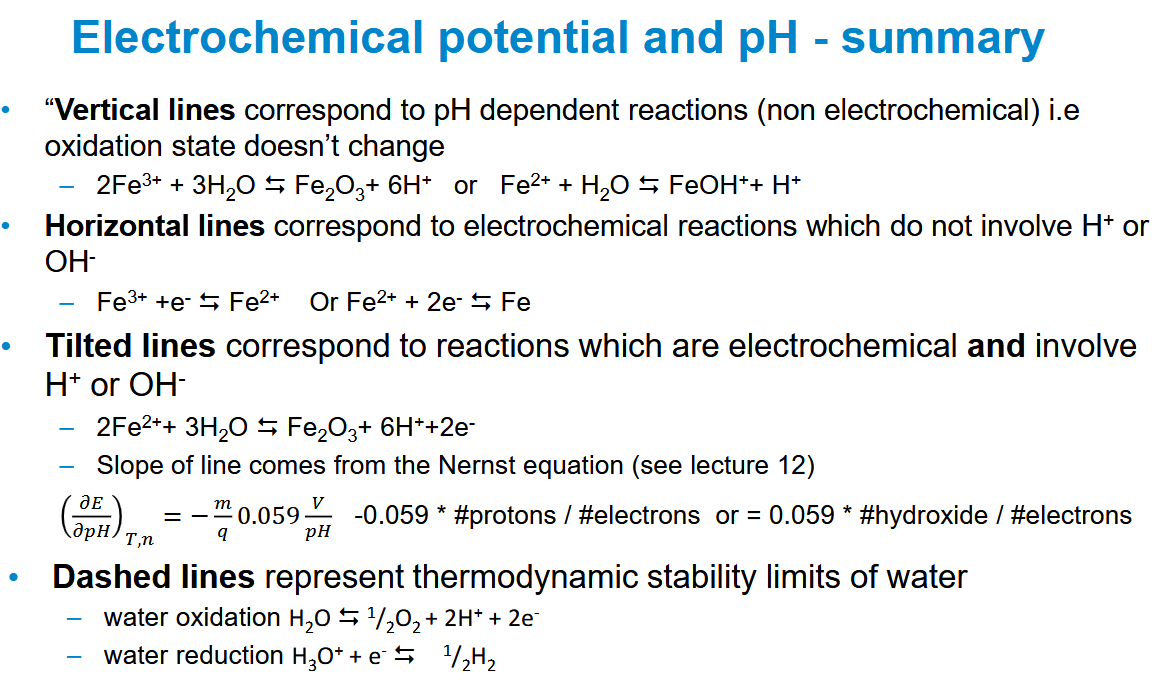

Electrochemical potential and pH - features of different types of lines on the diagram

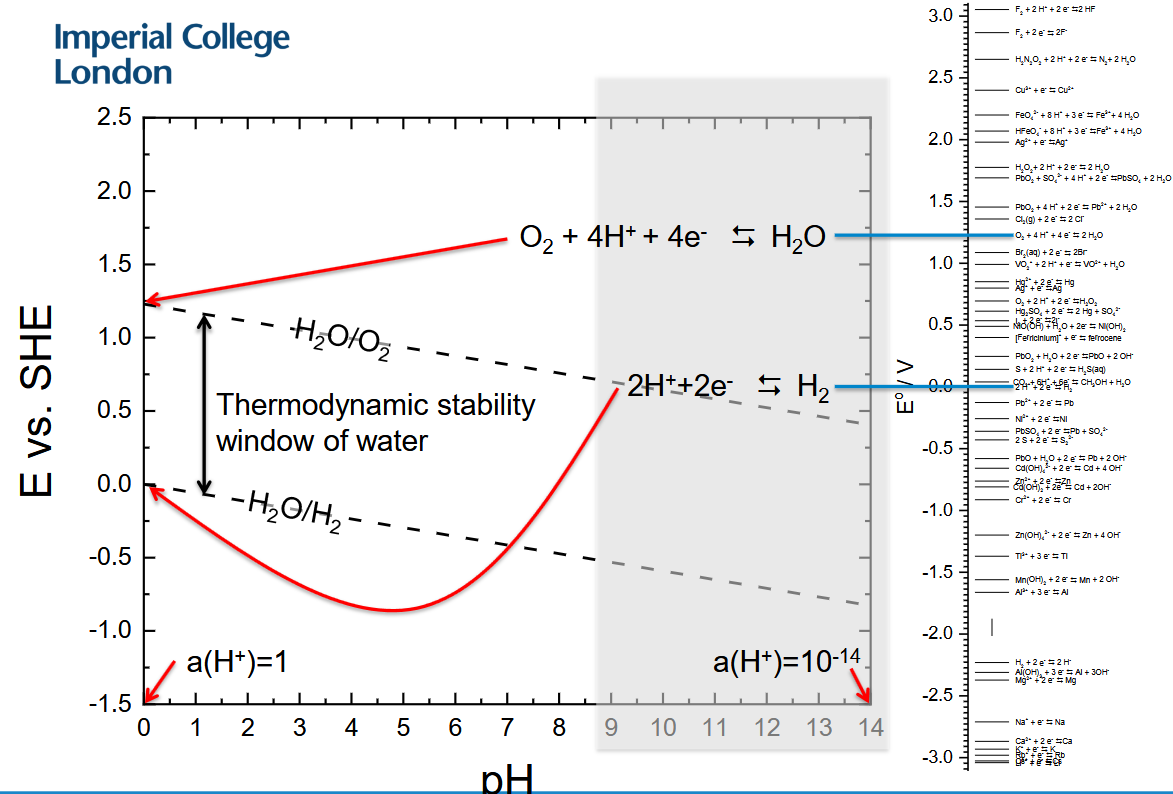

Thermodynamic stability window of water
Water is stable between the two dashed lines

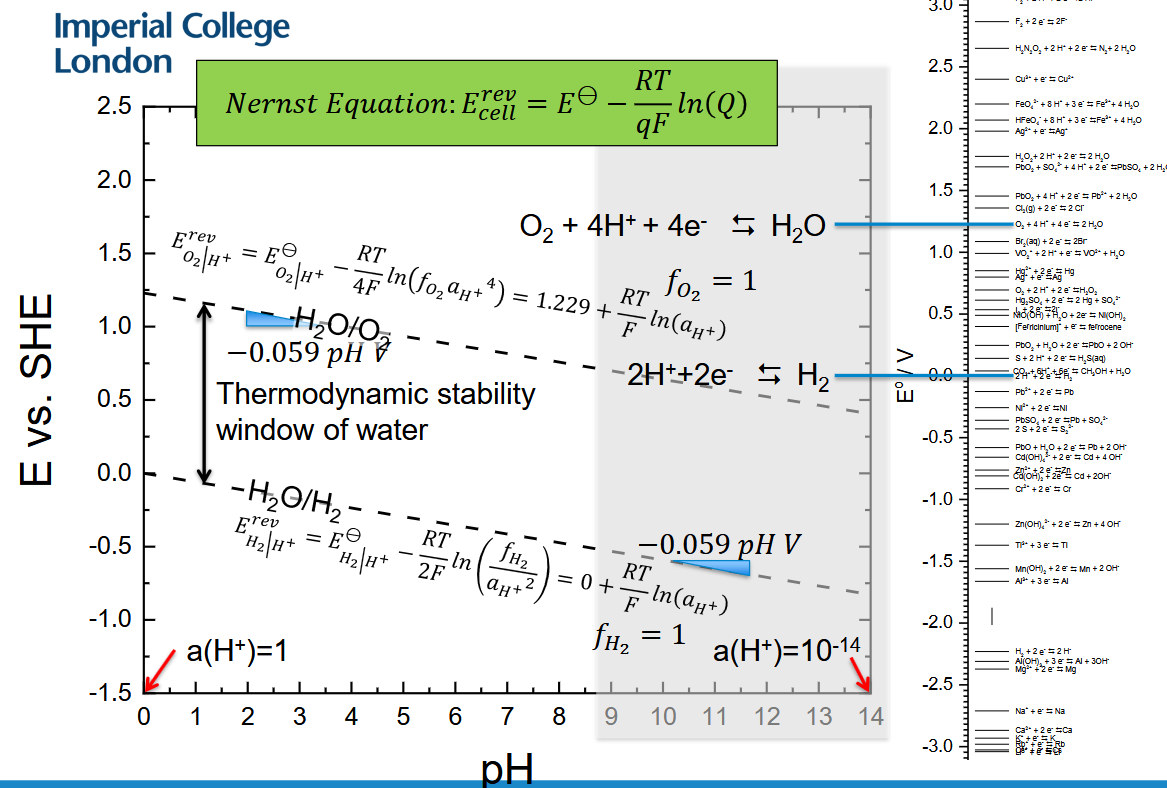

Nernst equation and the stability of water
Changing the stable Fe oxidation state by varying potential

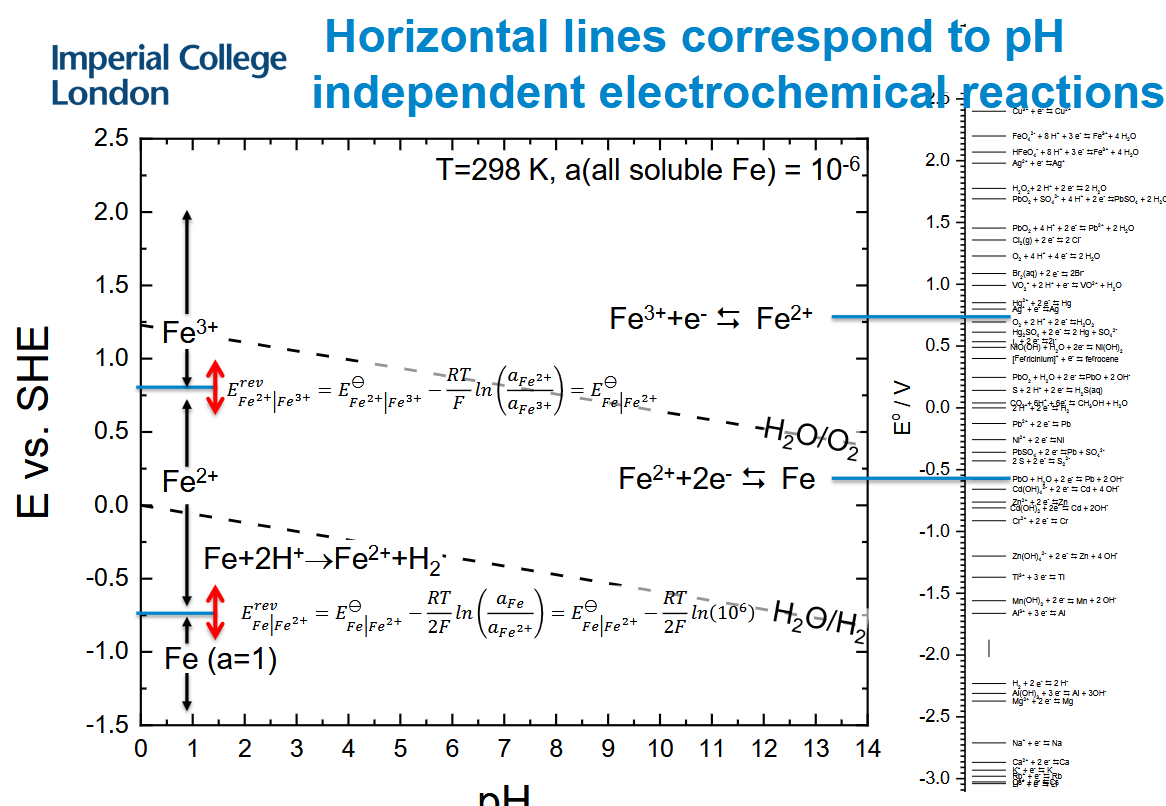

Stability can be discussed with respect to water. Regions outside the stable region for water are not stable in the presence of water. These lines are pH independent

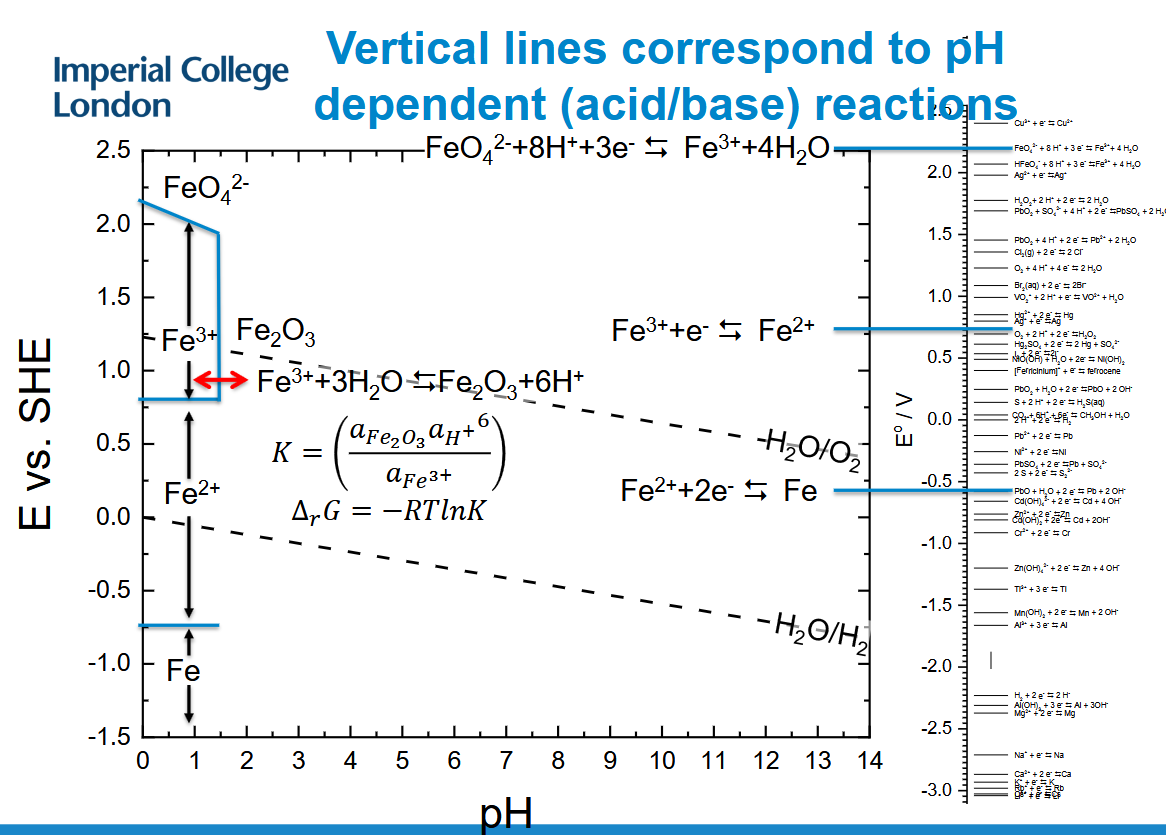

vertical lines for pH dependent reactions

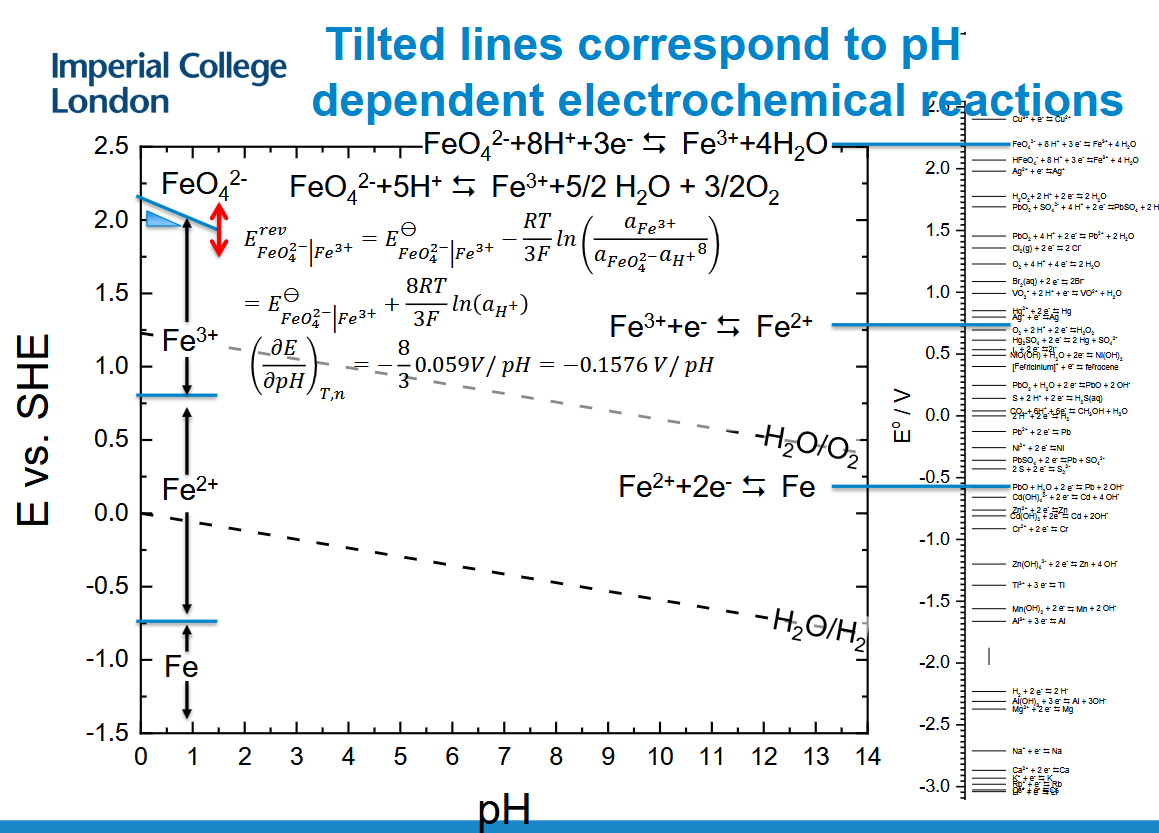

tilted lines for pH dependent electrochemical reactions

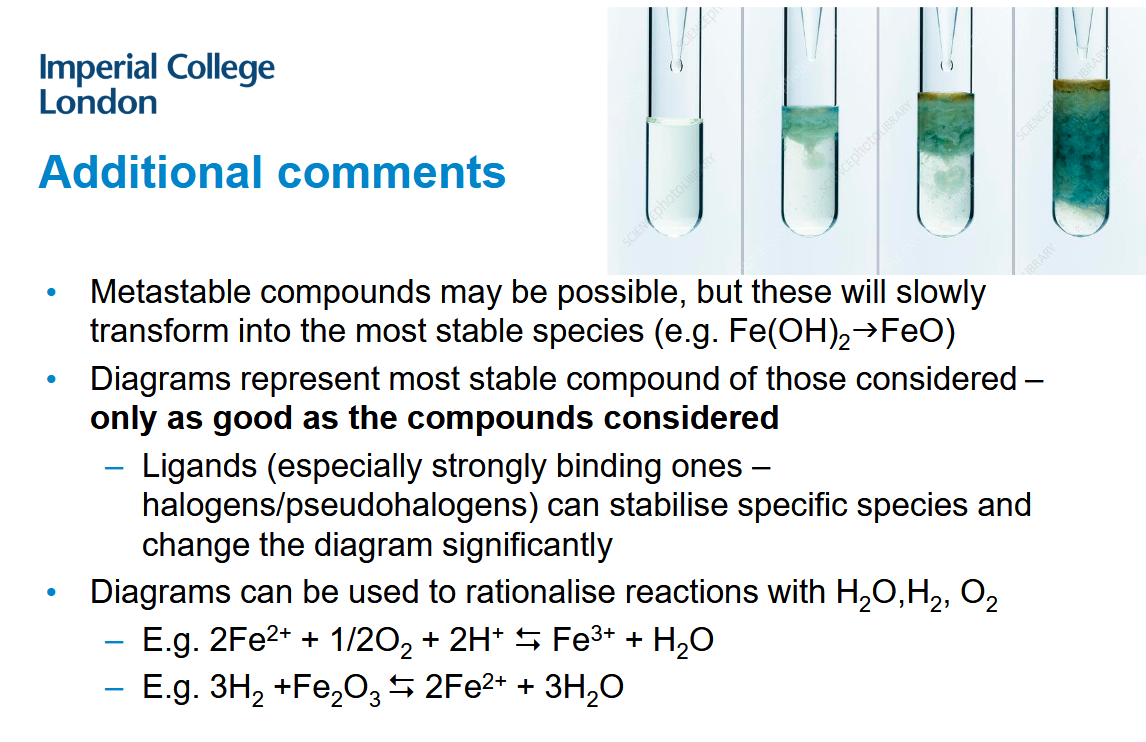

Limitations and comments on these diagrams

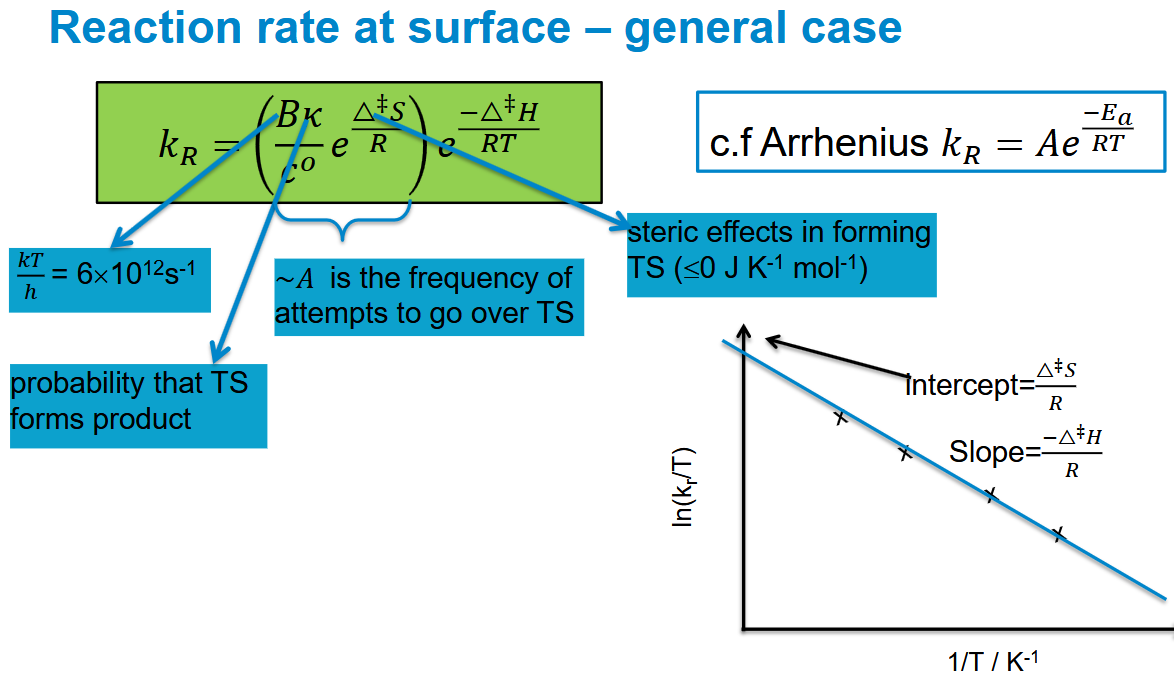

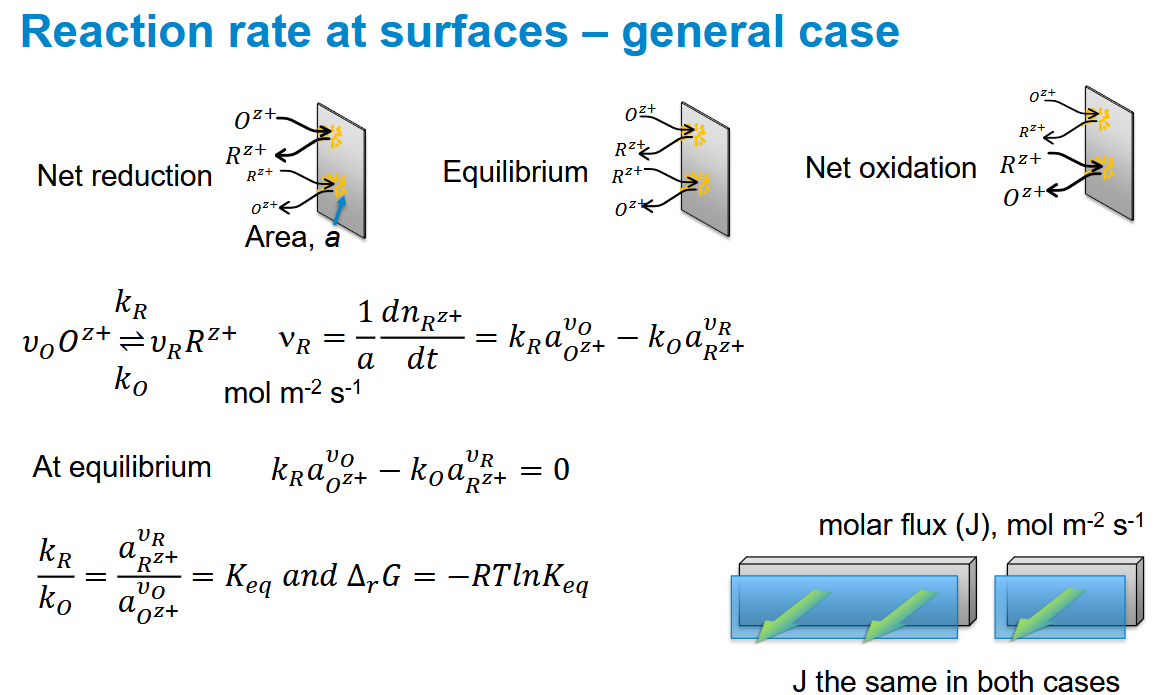

Reaction rate at surfaces – general case

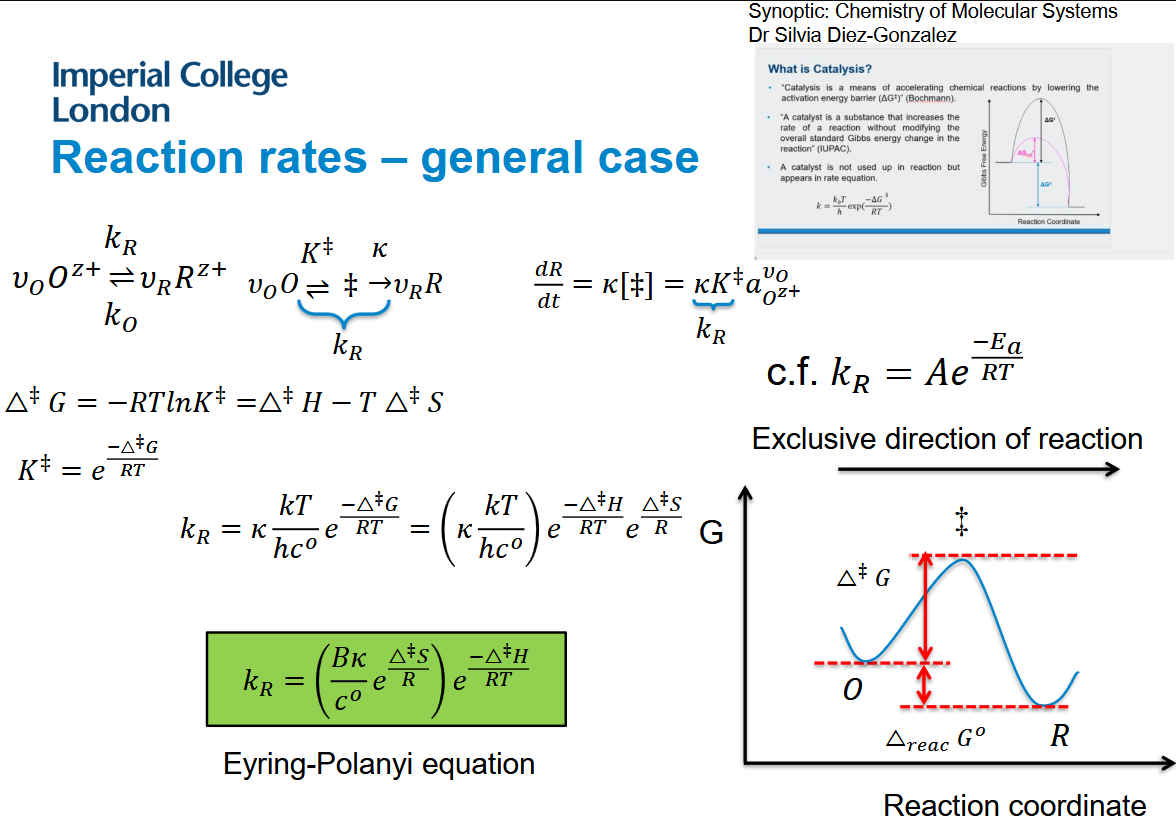

Unidirectional reaction rates - general case and the Eyring-Polanyi equation
details of the Eyring-Polanyi equation

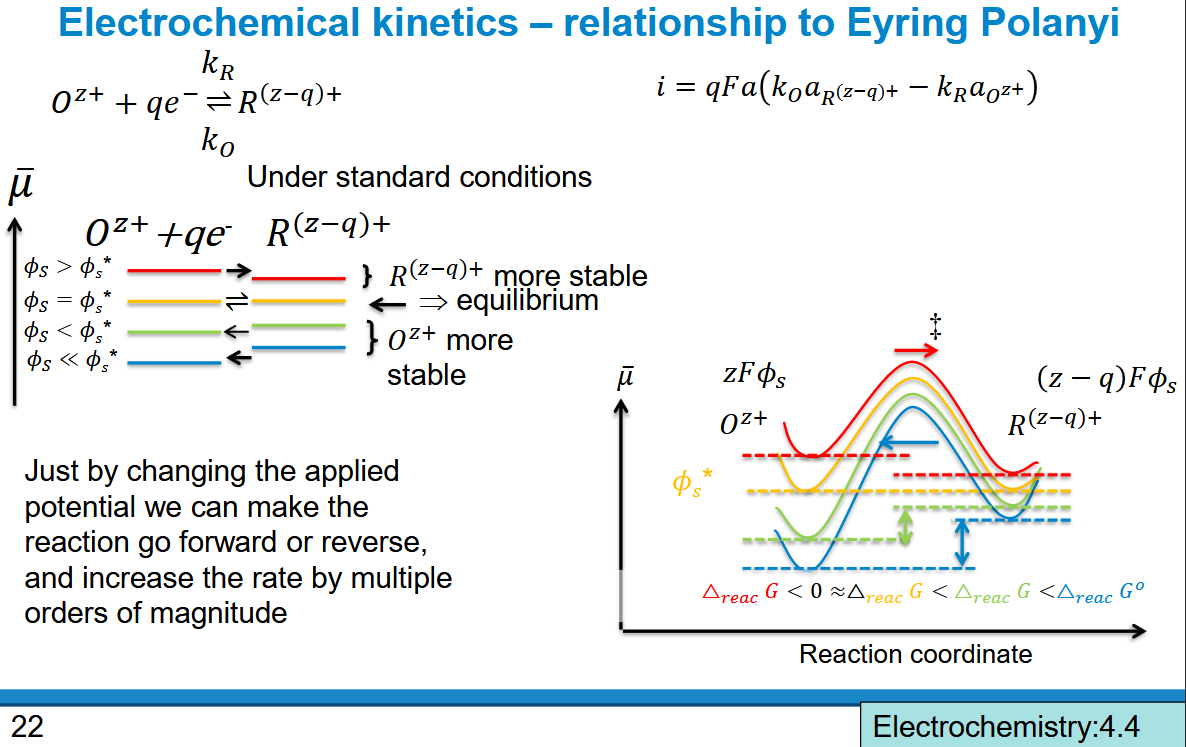

Electrochemical kinetics – relationship to Eyring Polanyi

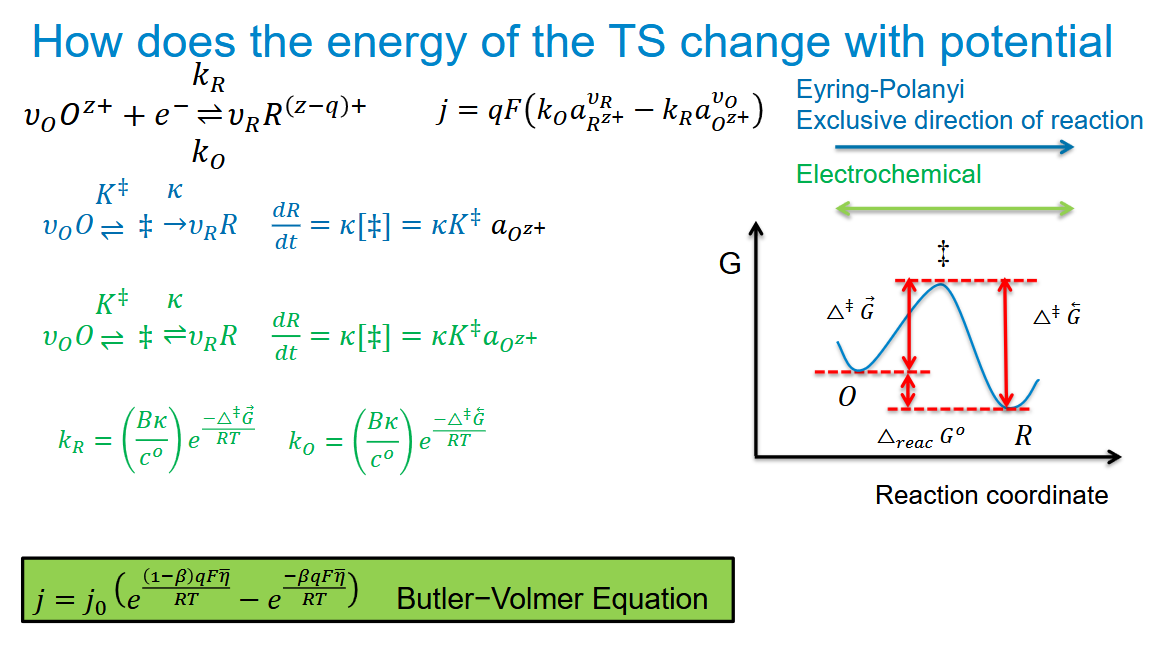

How does the energy of the TS change with potential

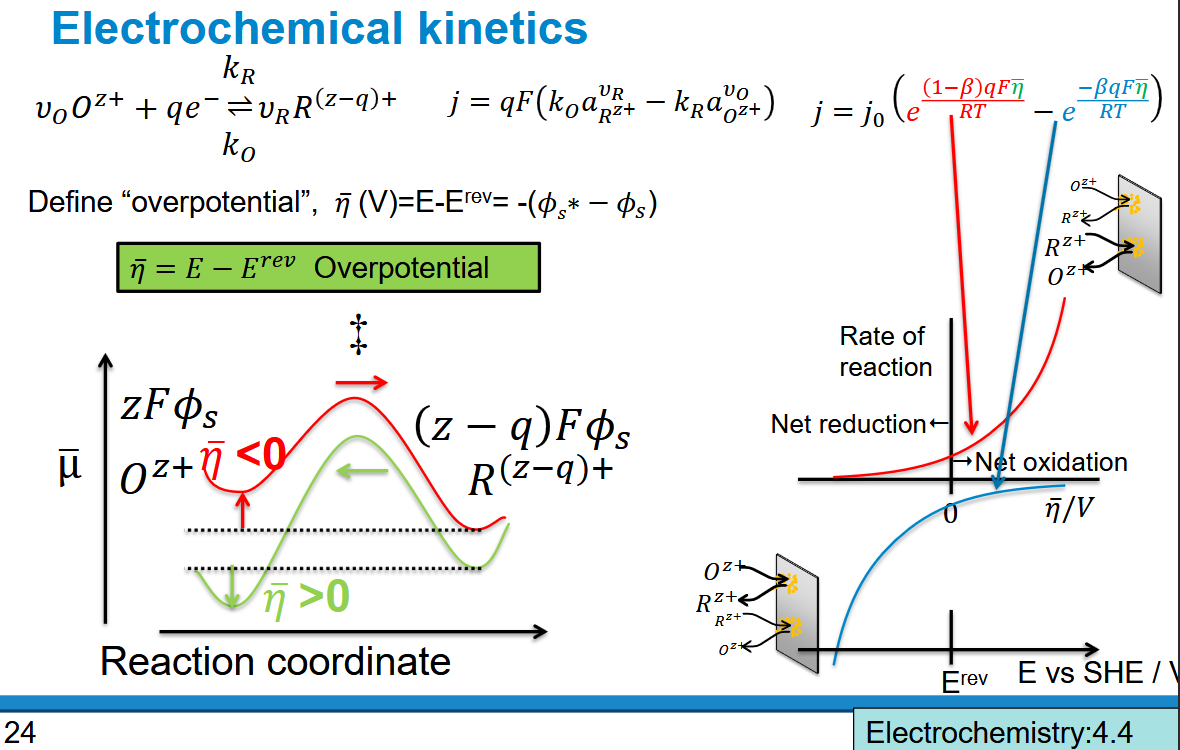

Electrochemical kinetics
