molecular geometry

2 bonding groups, 0 lone pairs

linear

linear angle

180

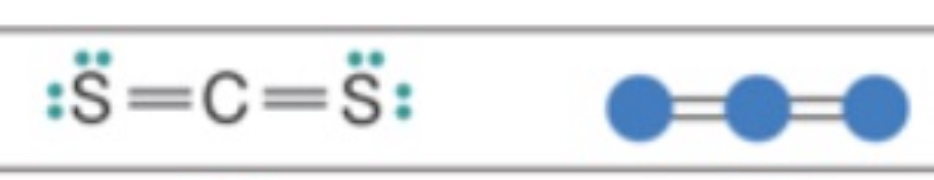

linear drawing

3 bonding groups, 0 lone pairs

trigonal planar

trigonal planar angle

120

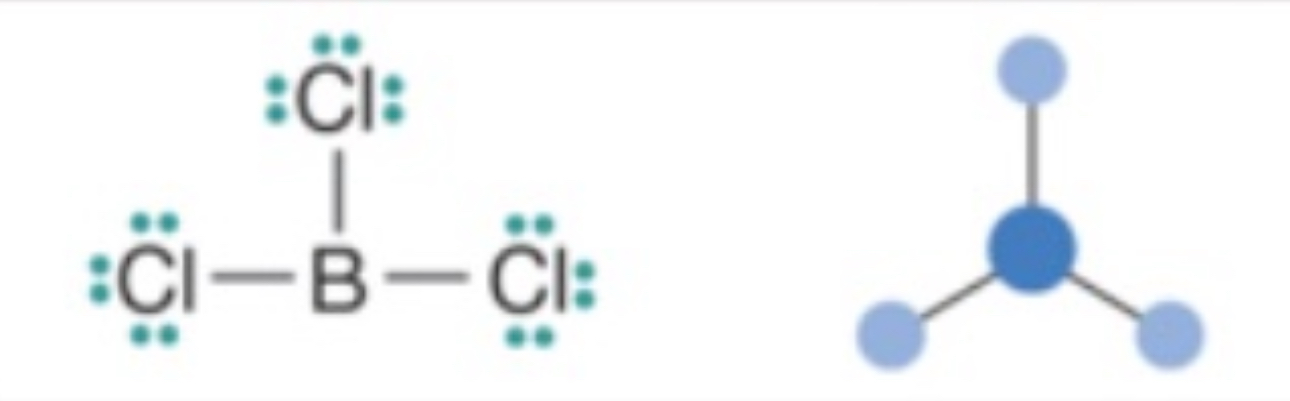

trigonal planar drawing

2 bonding groups, 1 lone pair

bent

bent angle w/ 2 + 1

<120

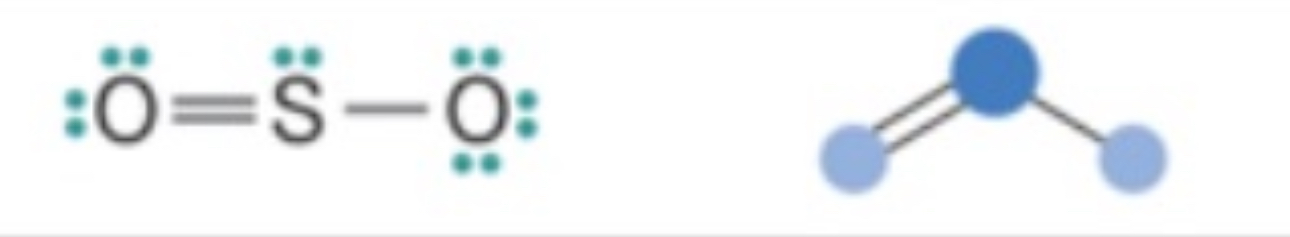

bent drawing w 2 + 1

4 bonding groups, 0 lone pairs

tetrahedral

tetrahedral angle

109.5

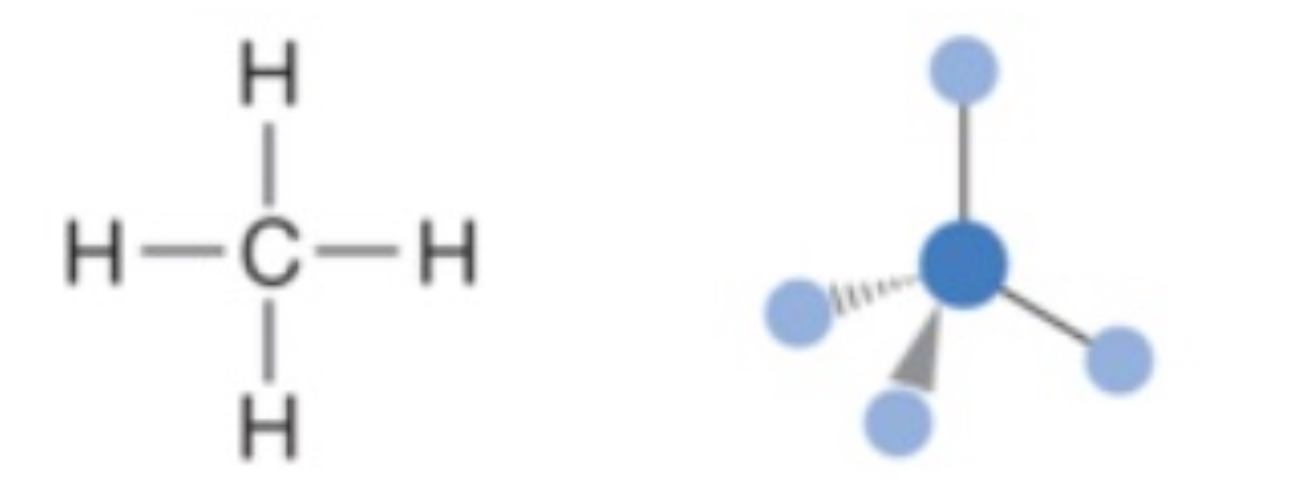

tetrahedral image

3 bonding groups, 1 lone pair

trigonal pyramidal

trigonal pyramidal angle

<109.5

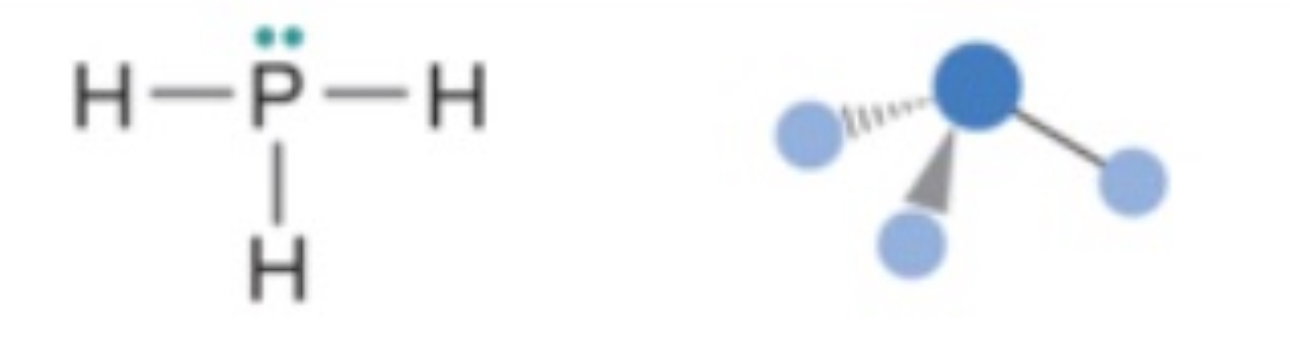

trigonal pyramidal image

2 bonding groups, 2 lone pairs

bent

bent angle w 2 + 2

<<109.5

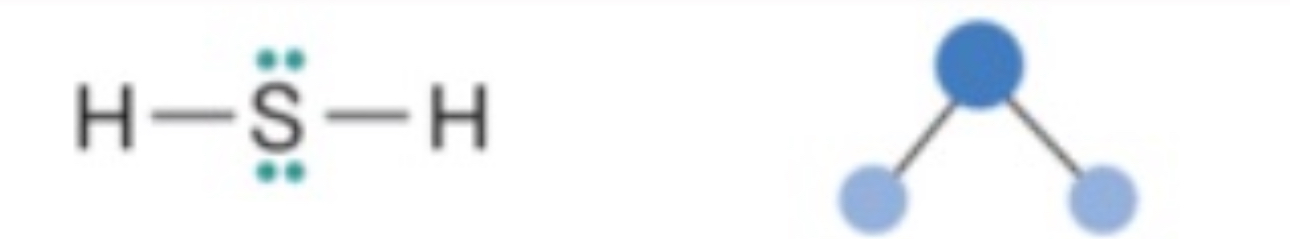

bent drawing w 2 + 2

5 bonding groups, 0 lone pairs

trigonal bipyramidal

trigonal bipyramidal angle

120, 90

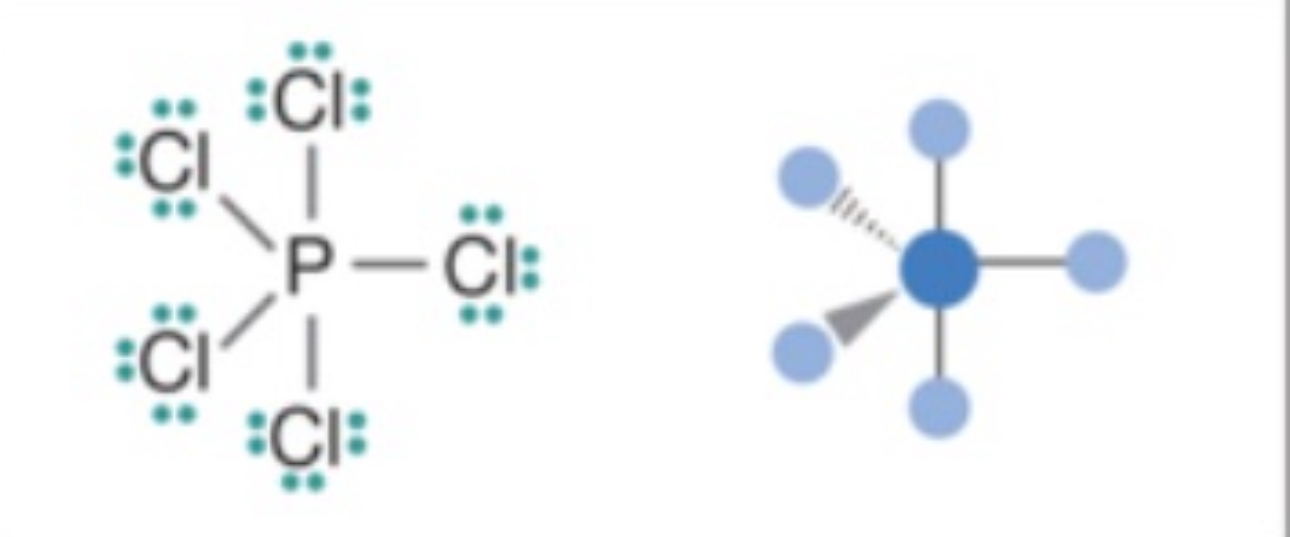

trigonal bipyramidal drawing

4 bonding groups, 1 lone pair

seesaw

seesaw angle

<120, <90

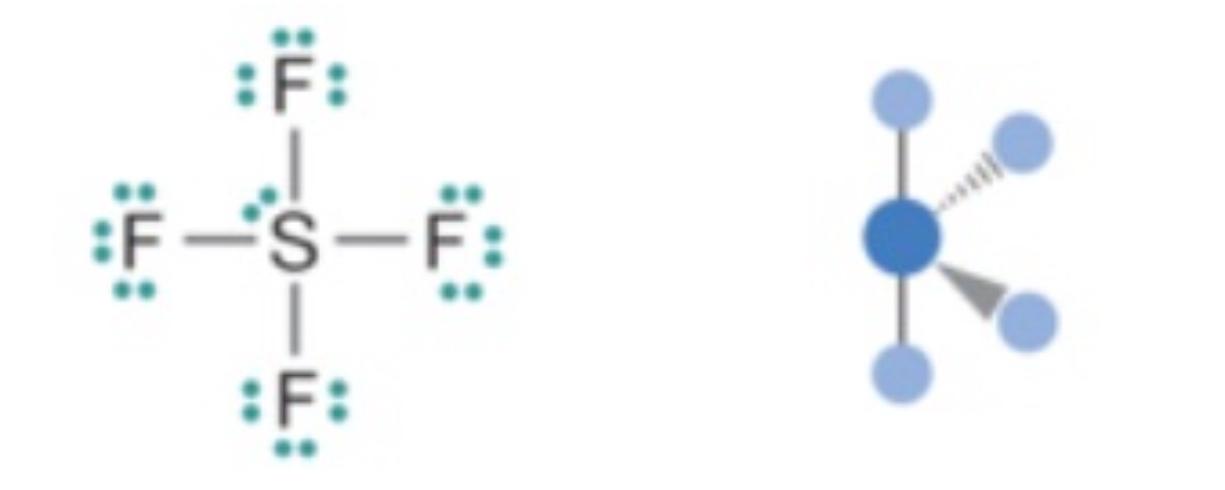

seesaw drawing

3 bonding groups, 2 lone pairs

t-shaped

t-shaped angle

<90

t-shaped drawing

2 bonding groups, 3 lone pairs

linear

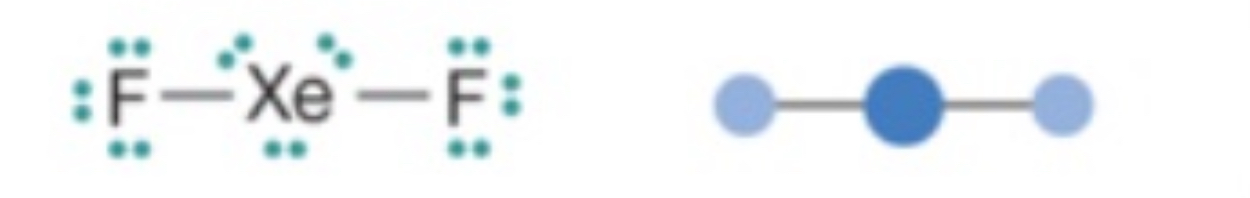

l

linear drawing w 2 + 3

6 bonding groups, 0 lone pairs

octahedral

octahedral angle

90

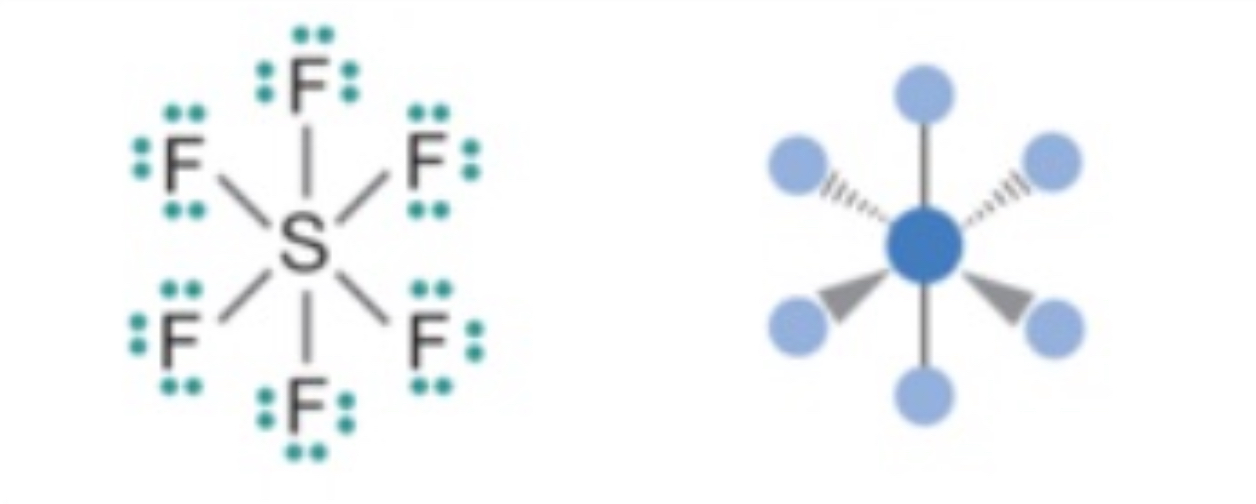

octahedral drawing

5 bonding groups, 1 lone pair

square pyramidal

square pyramidal angle

<90

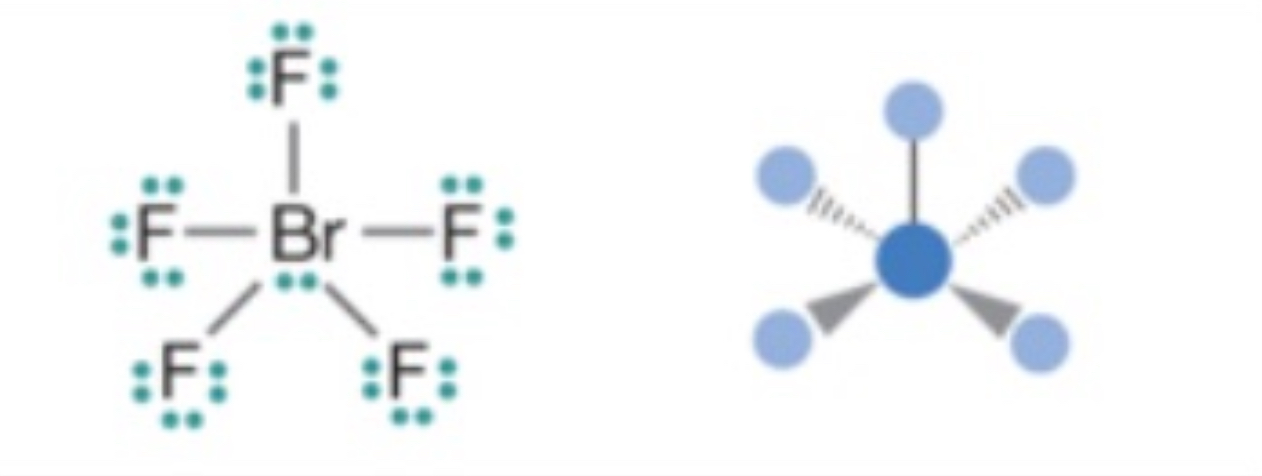

square pyramidal drawing

4 bonding groups, 2 lone pairs

square planar

square planar angle

90

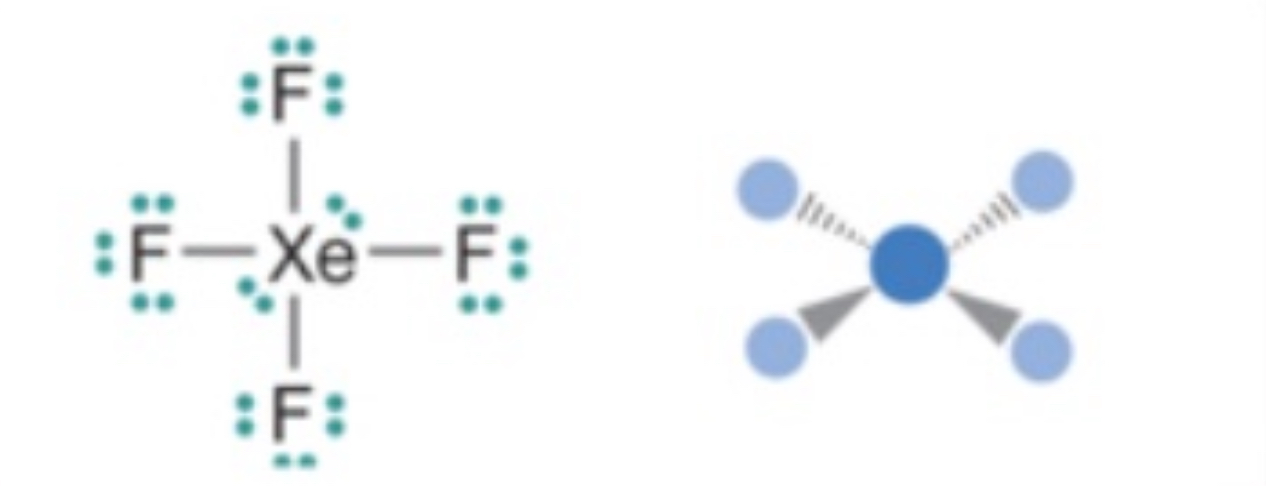

square planar drawing
