Equine Radiographs

limb + foot + spine + skull

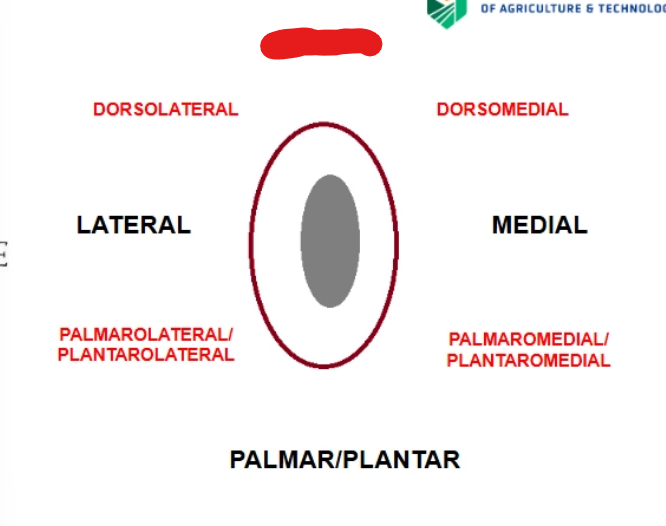

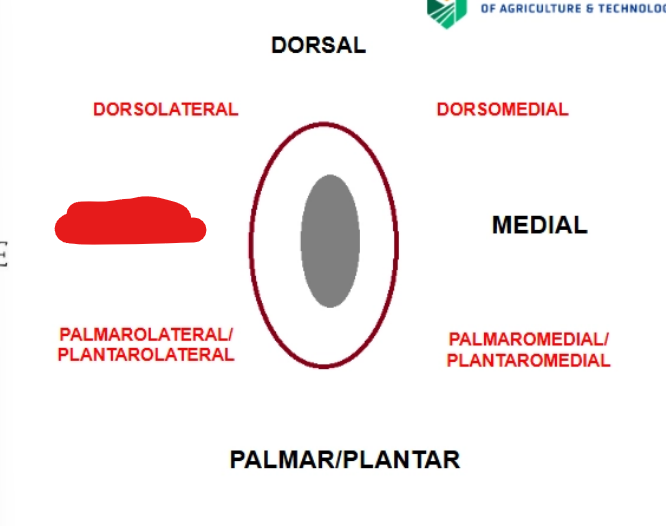

what is it

dorsal

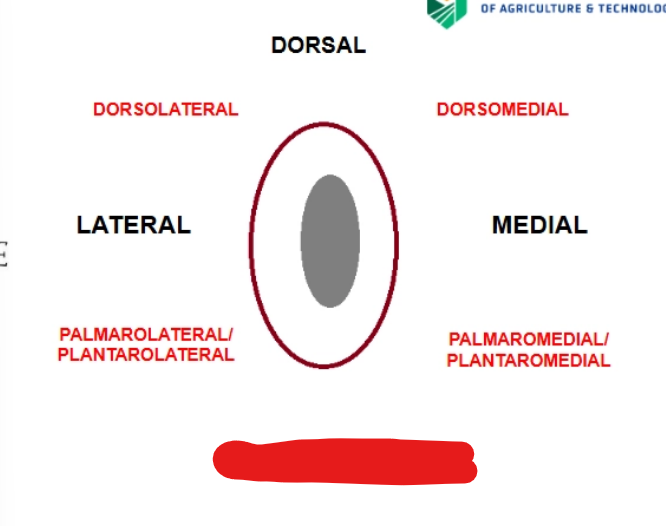

what is it

dorsomedial

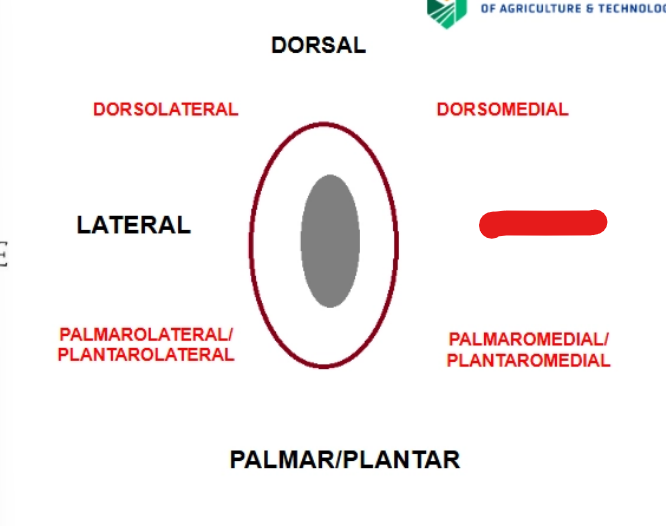

what is it

medial

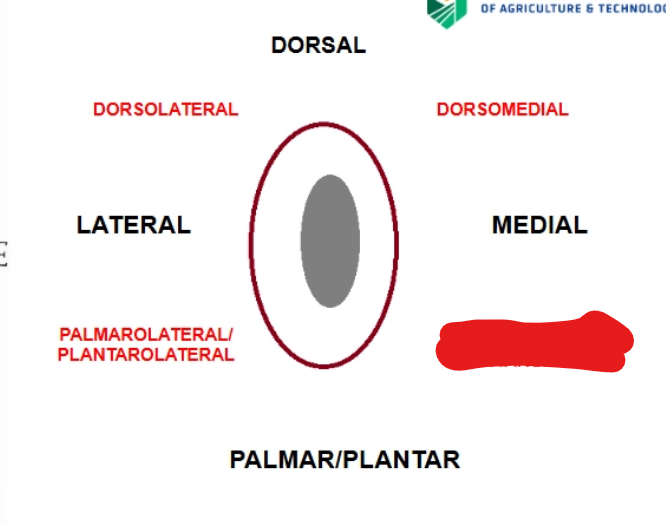

what is it

palmaromedial/plantaromedial

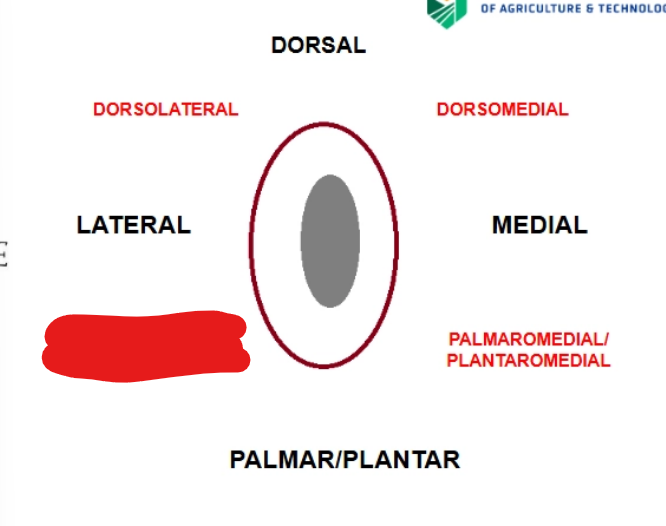

what is it

palmer/plantar

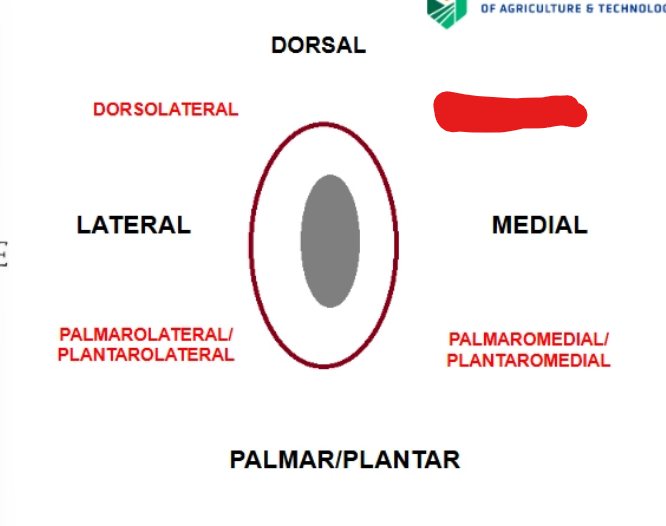

what is it

palmarolateral/plantarolateral

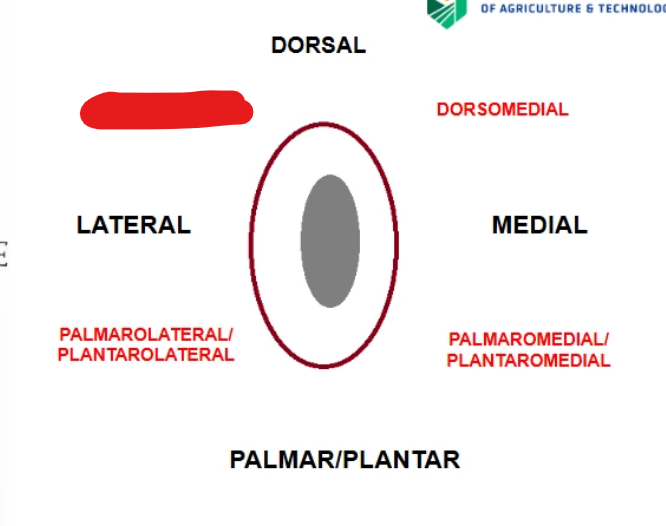

what is it

lateral

what is it

dorsolateral

the right/left marker should always be -X-, and if there is no -X- than it should be -Y-

X=lateral, Y=cranial

what are the 4 joint views

1. Lateromedial

2. Dorsopalmar/plantar

3. Dorsomedial/Palmarolateral oblique (DMPLO)

4. Dorsolateral/Palmaromedial oblique (DLPMO)

what are the views for the carpus (5)

1. lateromedial

2. dorsopalmer

3. DLPMO

4. DMPLO

5. Flexed lateral

what are the tarsus views (5)

1. lateromedial

2. dorsopalmer

3. DLPMO

4. DMPLO

5. Flexed lateral

what are the stifle views (3)

1. lateromedial

2. caudocranial

3. 30° caudolateral-craniomedial oblique:

Preparation of Foot for Radiography (4)

1. hoof should be ‘groomed’

2. shoes removed

3. The sulcus around frog should be packed with radiolucent material (play-doh)

4. prepare positioning devices

what views for Equine Foot Series (5)

1. Lateromedial

2. Horizontal Dorsopalmar/plantar

3. 45° dorsoproximal-palmaro/plantarodistal oblique

4. 65° dorsoproximal-palmaro/plantarodistal oblique

5. Navicular skyline

how to prepare patient for head x-rays

1. Ensure skull is clean and dry

2. No metal!

3. Blocks or dental plates for mouth

4. sedation

what are structures we look aim for in the skull (6)

1. Sinus

2. Cheek Teeth

3. INCISORS

4. GUTTURAL POUCH

5. TMJ

6. HYOID BONES

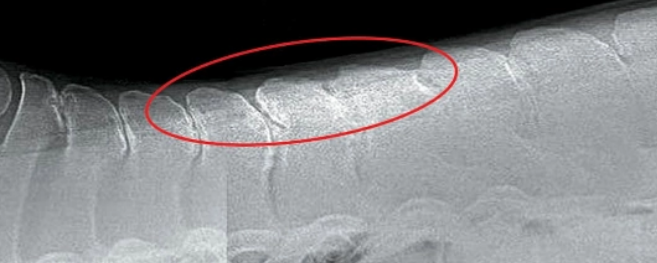

whats wrong

kissing spine
