22 Terms

1
New cards

Model View

A drawing view of a part or assembly.

2
New cards

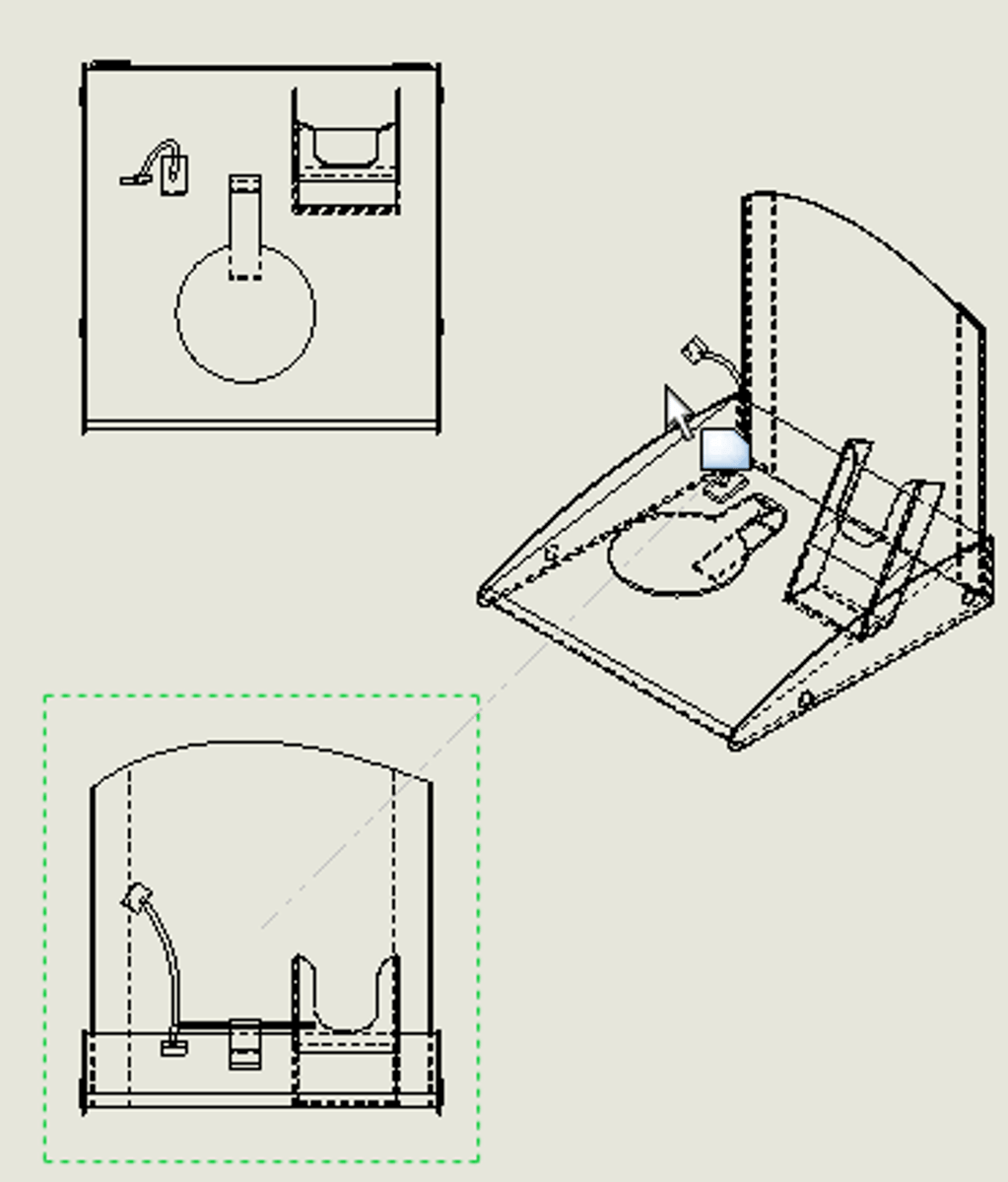

Projected View

A drawing view projected orthogonally from an existing view.

<p>A drawing view projected orthogonally from an existing view.</p>
3
New cards

Auxiliary View

An orthographic view of an object using a direction of sight other than one of the six basic views (front, top, right-side, rear, bottom, left-side); used to show a surface that is not parallel to any of the principal view planes. Used to show an object from an odd angle

4
New cards

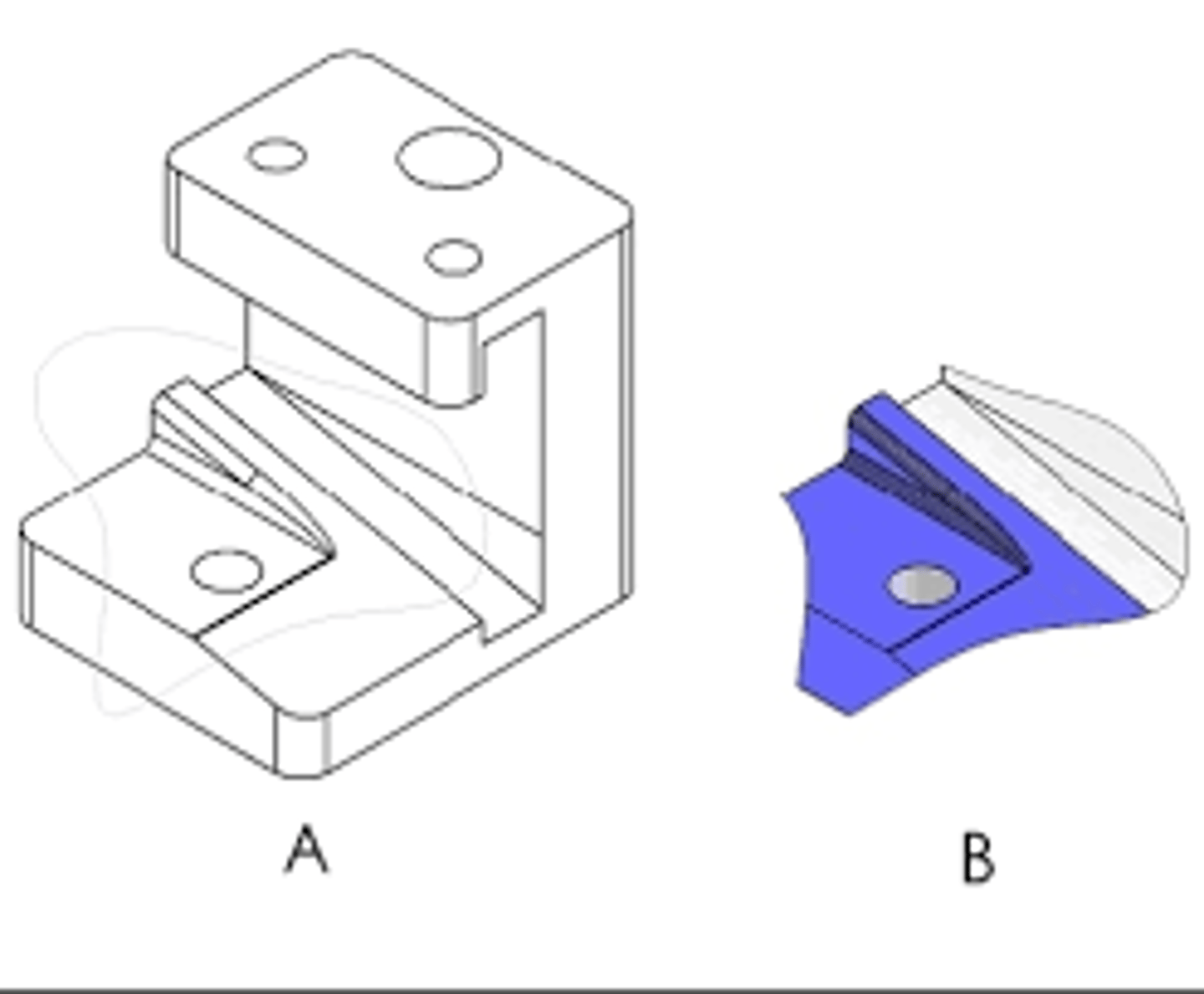

Section View

Is (1) a part or assembly view cut by a plane, or (2) a drawing view created by cutting another drawing view with a section line.

<p>Is (1) a part or assembly view cut by a plane, or (2) a drawing view created by cutting another drawing view with a section line.</p>
5
New cards

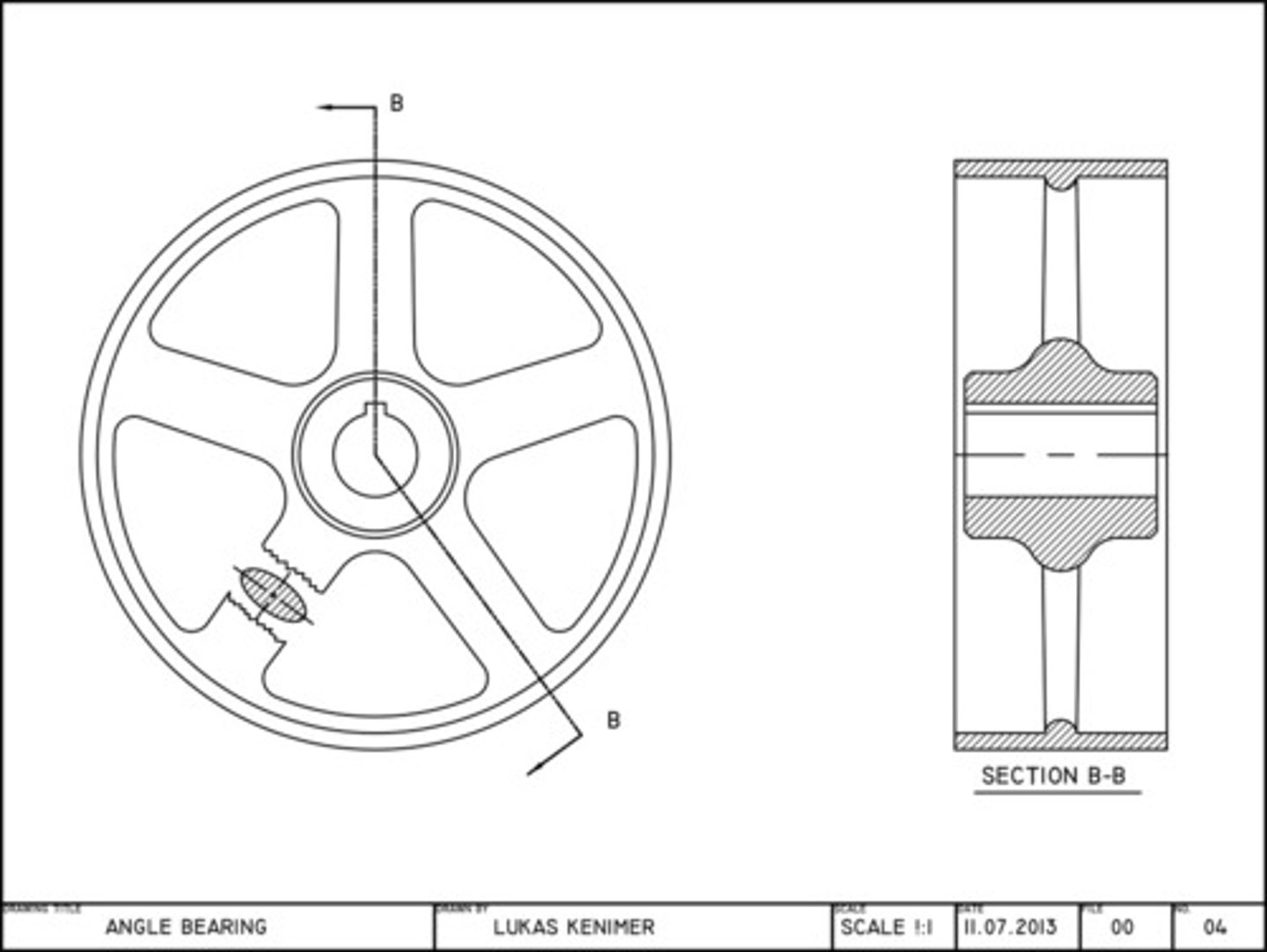

Aligned Section

A special type of section view that allows you to clearly show details of a section created at an angle. Commonly used on models that have rotational symmetry.

<p>A special type of section view that allows you to clearly show details of a section created at an angle. Commonly used on models that have rotational symmetry.</p>
6
New cards

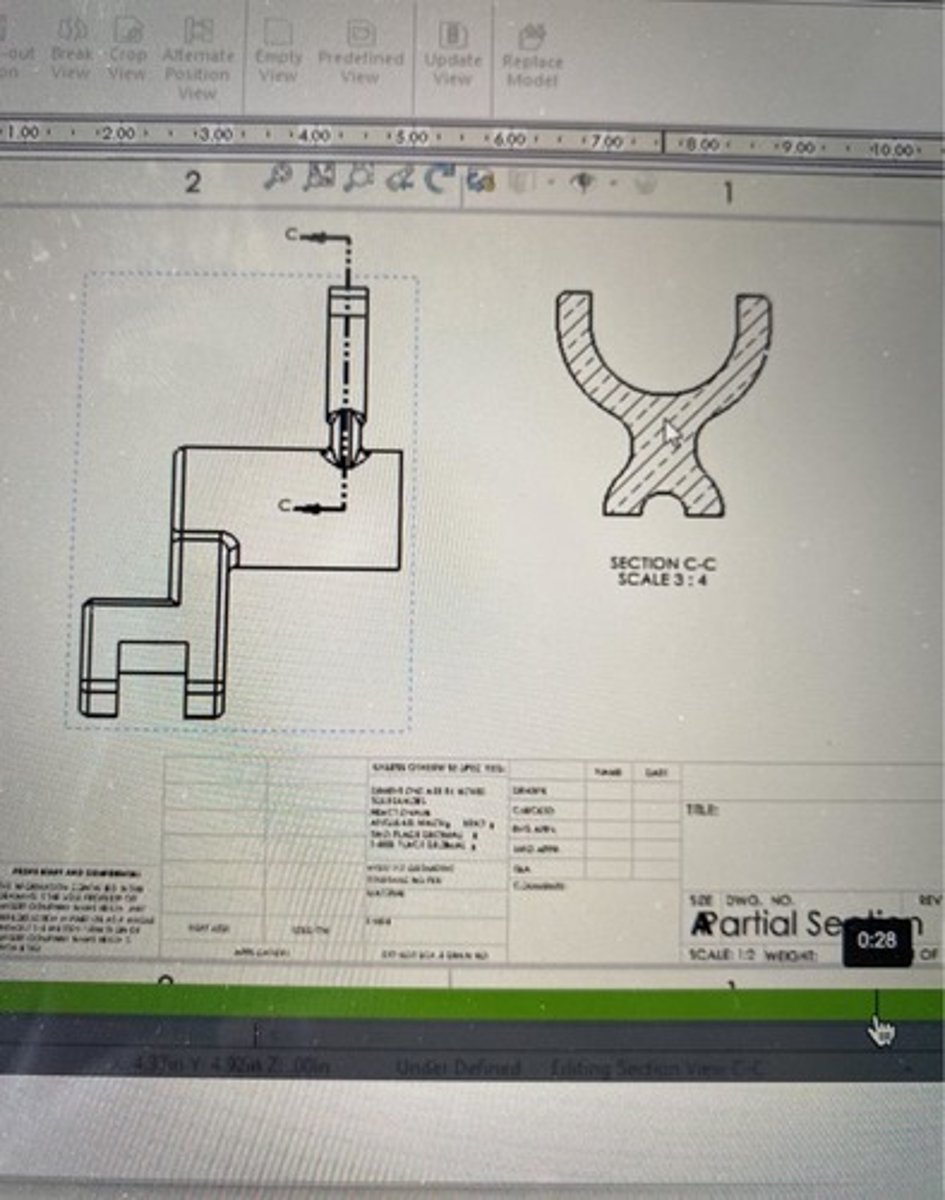

Partial Section

A special case of the regular section view. A section line that does not cross the entire model.

<p>A special case of the regular section view. A section line that does not cross the entire model.</p>
7
New cards

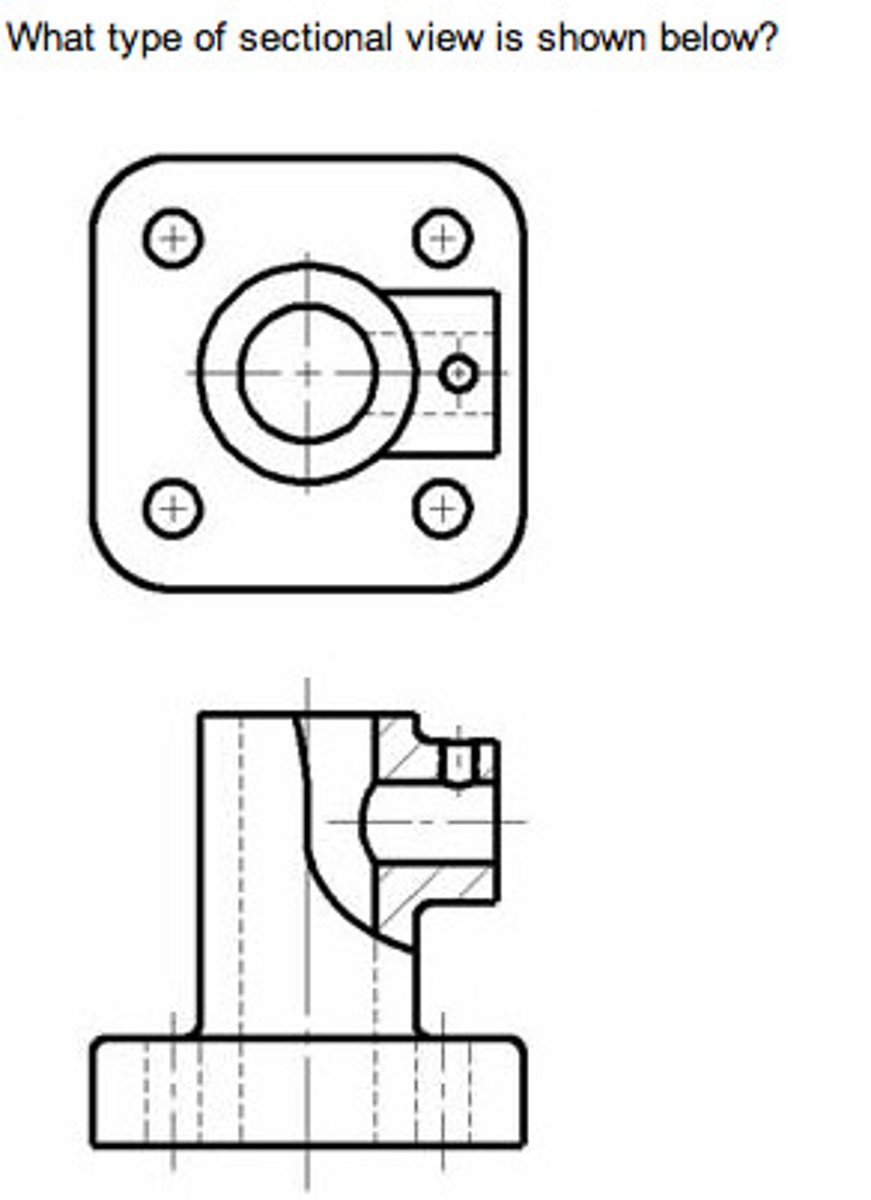

Broken-Out Section

A drawing view that exposes inner details of a drawing view by removing material from a closed profile, usually a spline.

<p>A drawing view that exposes inner details of a drawing view by removing material from a closed profile, usually a spline.</p>
8
New cards

Detail View

A portion of a larger view, usually at a larger scale than the original view.

<p>A portion of a larger view, usually at a larger scale than the original view.</p>
9
New cards

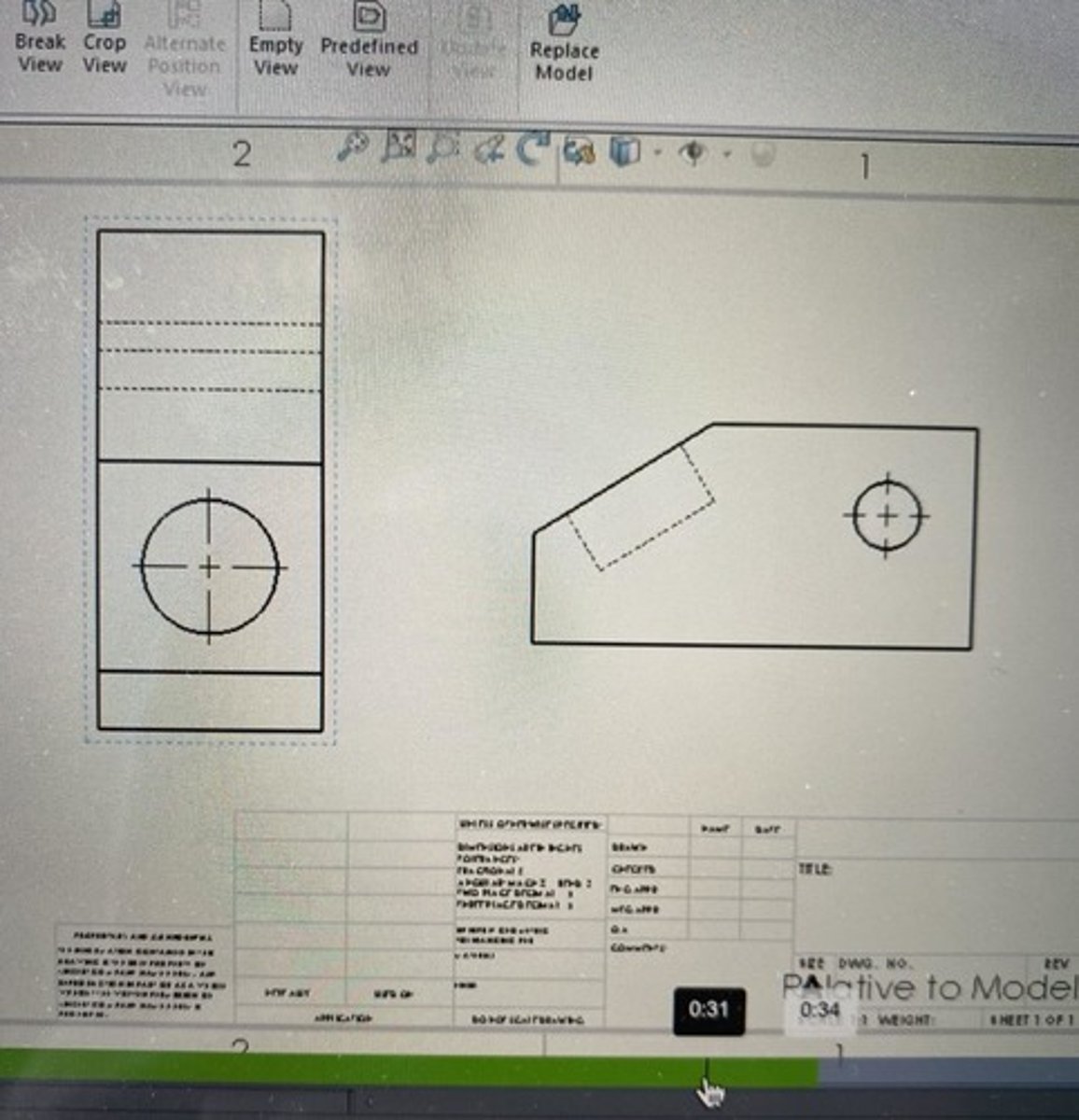

Relative to Model

Essentially allows you to create a view defined by interactively selecting faces from the model. Similar to an auxiliary view, but It does not require a parent view. Use to bring angled faces of a model parallel to a drawing sheet. No view arrow.

<p>Essentially allows you to create a view defined by interactively selecting faces from the model. Similar to an auxiliary view, but It does not require a parent view. Use to bring angled faces of a model parallel to a drawing sheet. No view arrow.</p>
10
New cards

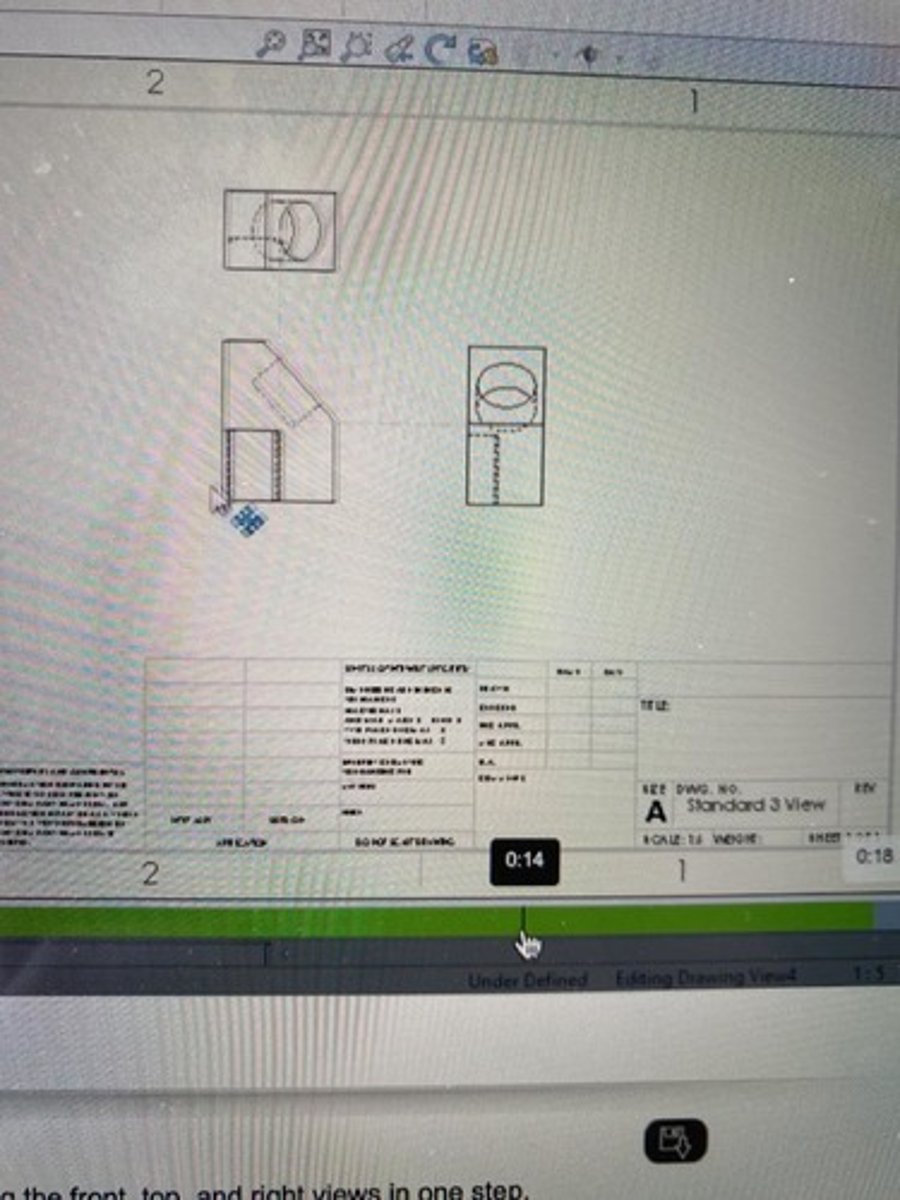

Standard 3 View

The three orthographic views (front, right, and top) that are often the basis of a drawing

<p>The three orthographic views (front, right, and top) that are often the basis of a drawing</p>
11
New cards

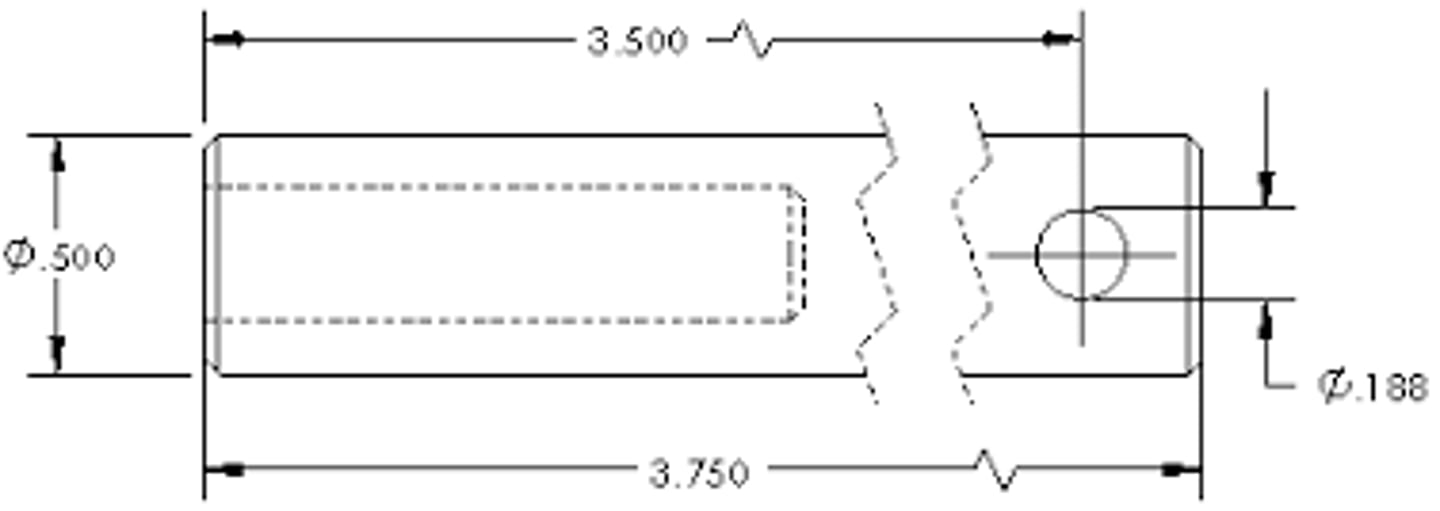

Break View

Allows you admit a portion of a long model to make it convenient for the model to be displayed on a drawing sheet. It will include break lines to show where the model is broken up.

<p>Allows you admit a portion of a long model to make it convenient for the model to be displayed on a drawing sheet. It will include break lines to show where the model is broken up.</p>
12
New cards

Cropped View

A view that has cropped to emit a portion of it. It is similar to the detail view,, except it doesn't create an extra zoom in view of the corresponding view circle. Cropped using a circular cropped shape.

<p>A view that has cropped to emit a portion of it. It is similar to the detail view,, except it doesn't create an extra zoom in view of the corresponding view circle. Cropped using a circular cropped shape.</p>
13
New cards

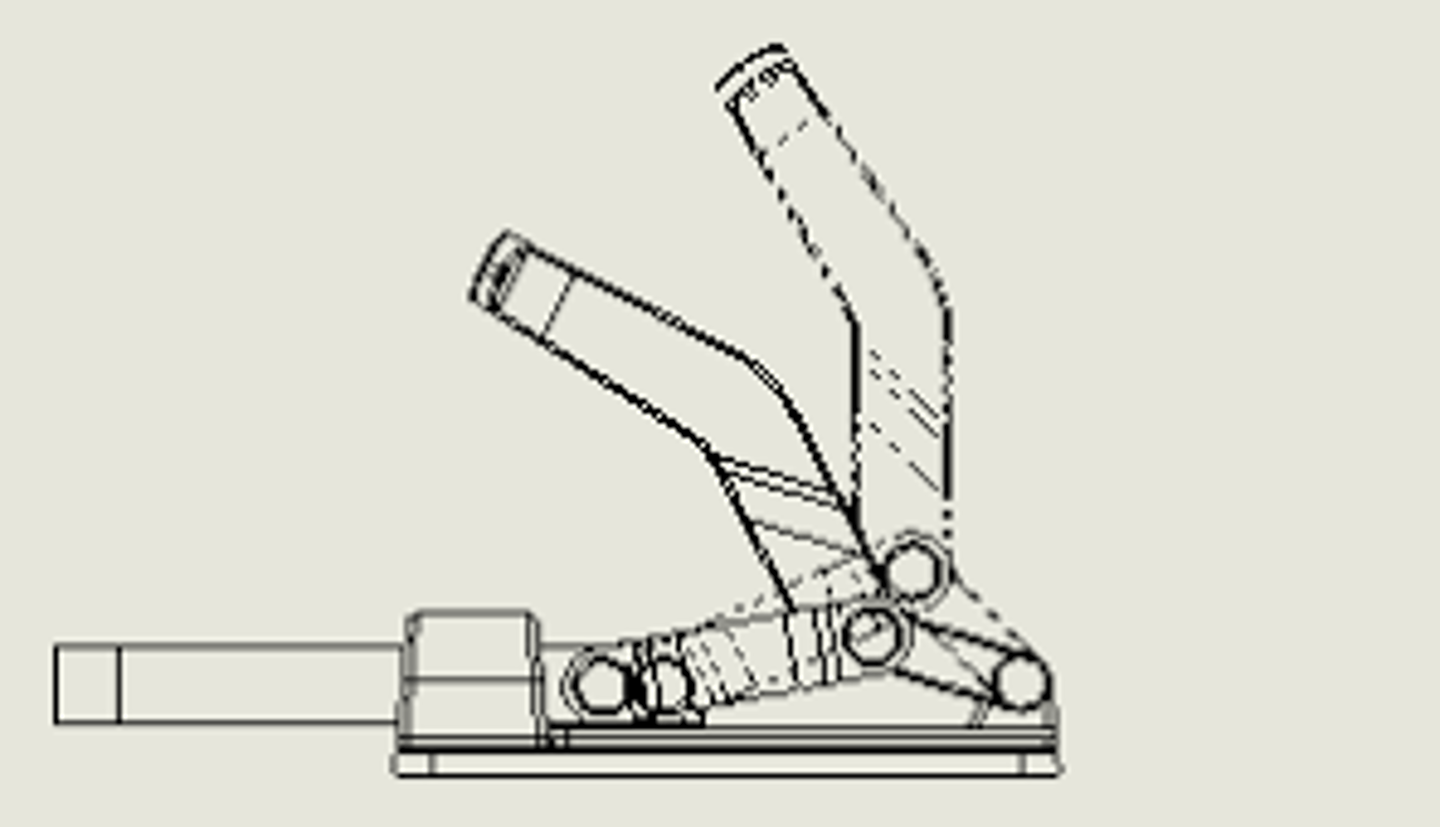

Alternate Postition View

A drawing view in which one or more views are superimposed in phantom lines on the original view. They are often used to show range of motion of an assembly

<p>A drawing view in which one or more views are superimposed in phantom lines on the original view. They are often used to show range of motion of an assembly</p>
14
New cards

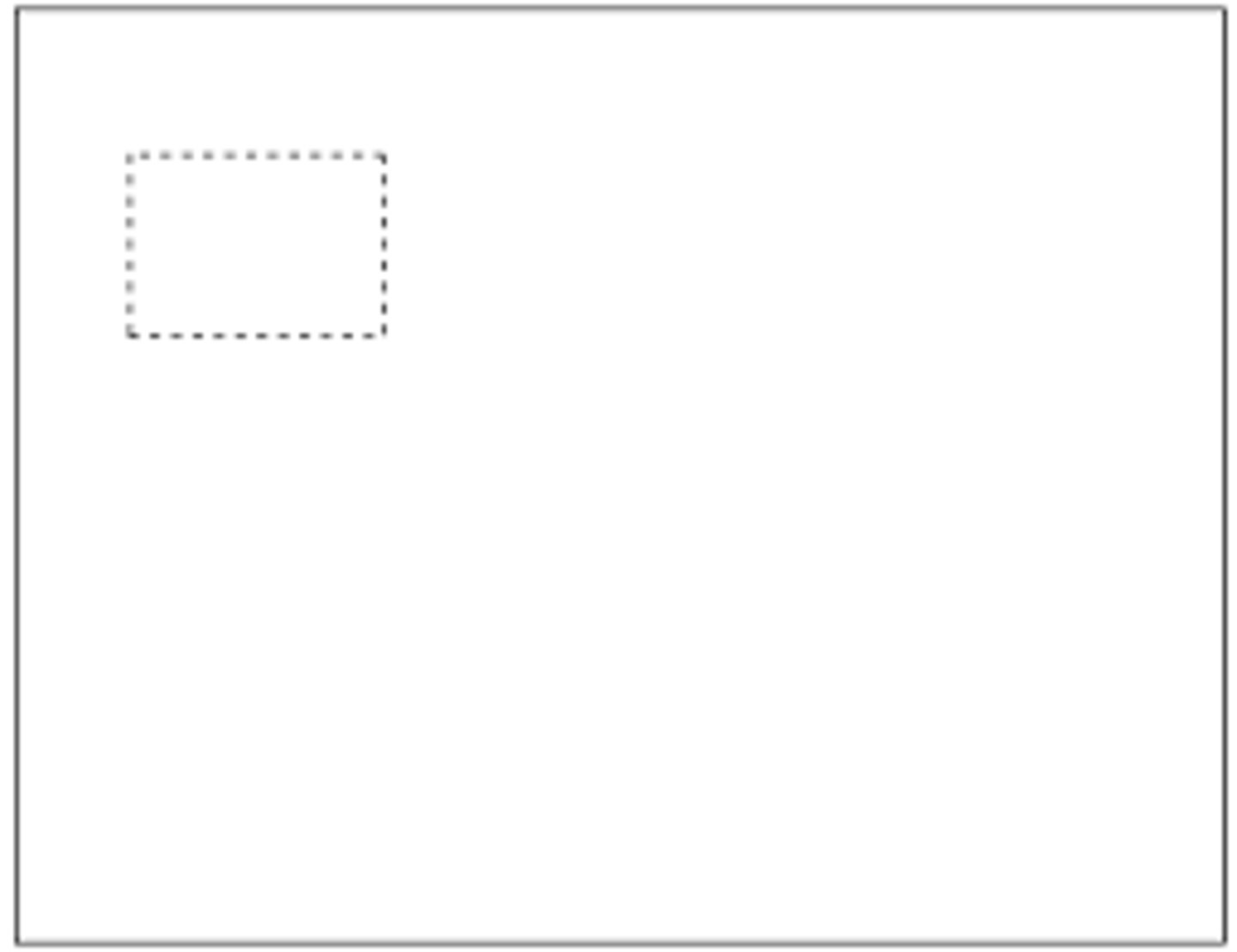

Empty View

Inserted into drawings as a way to hold manually sketched entities, copy geometry from DWG or DXF files, or even annotations. Allows you move thing collectively like a group. to identify this view look for a boundary surrounding an empty space.

<p>Inserted into drawings as a way to hold manually sketched entities, copy geometry from DWG or DXF files, or even annotations. Allows you move thing collectively like a group. to identify this view look for a boundary surrounding an empty space.</p>
15
New cards

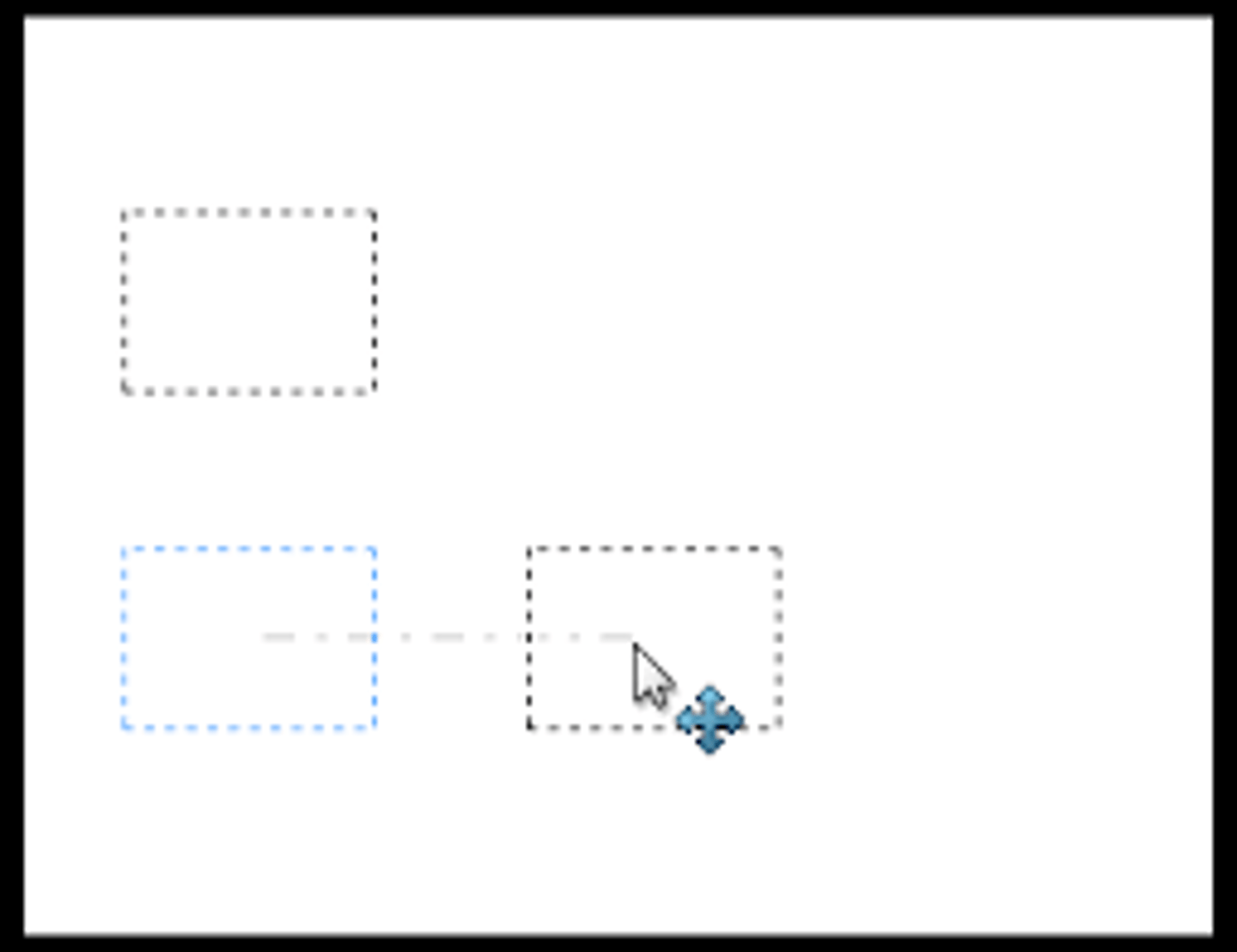

Predefined View

A drawing view in which the view position, orientation, and so on can be specified before a model is inserted. You can save drawing documents with these as templates.

<p>A drawing view in which the view position, orientation, and so on can be specified before a model is inserted. You can save drawing documents with these as templates.</p>
16
New cards

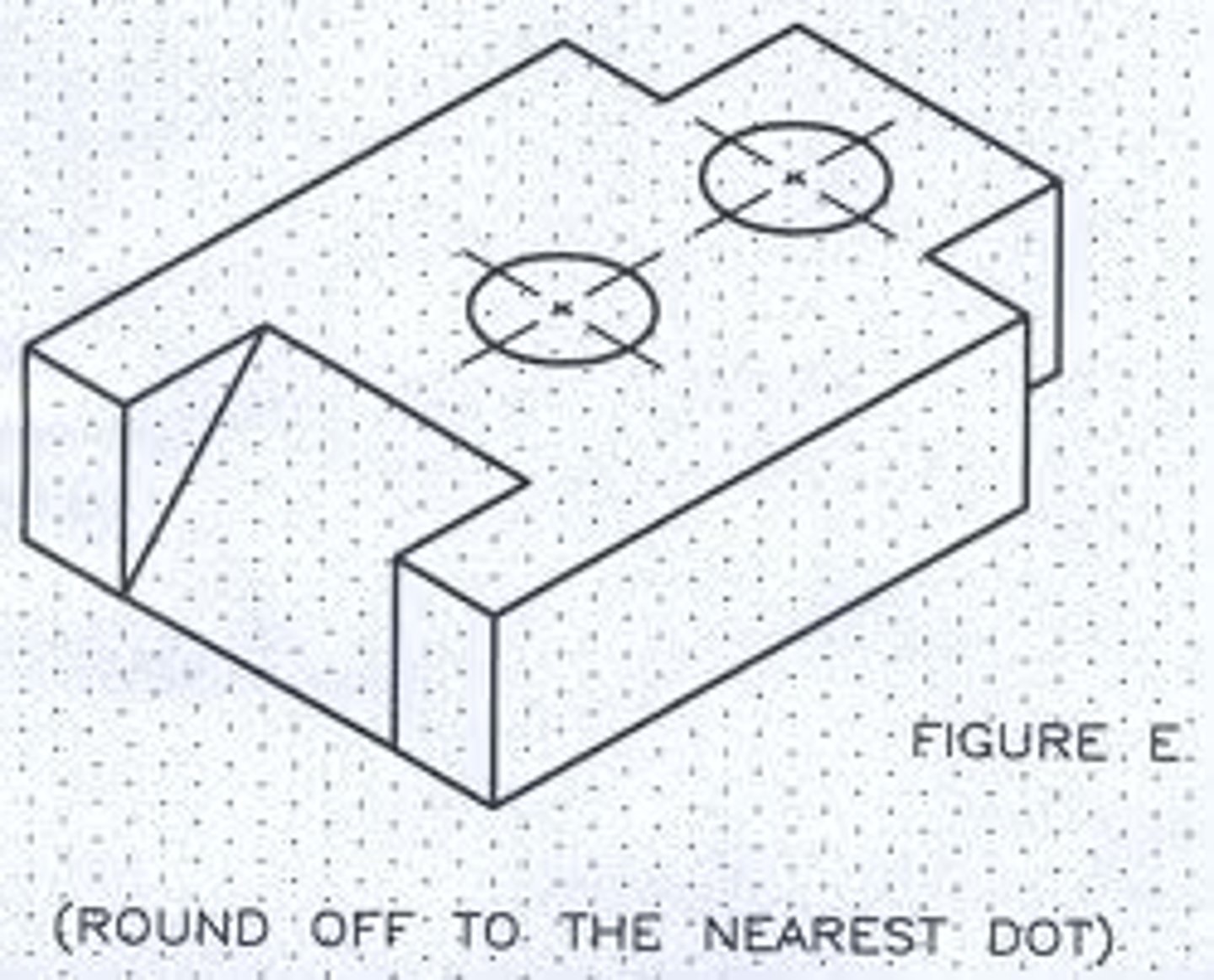

Isometric View

Scale for all three axes are the same. Best view.

<p>Scale for all three axes are the same. Best view.</p>
17
New cards

Dimetric View

The measurements along two of the three axes are not to scale

18
New cards

Trimetric View

Unequal foreshortening on all three dimensions

19
New cards

Standard Principal Views

Front, Top, Right, Left, Back, Bottom

20
New cards

Cross-Section

a surface or shape that is/would be exposed by making a straight cut through something

21
New cards

View Arrows

Indicate the direction of the section view.

22
New cards

Orthogonally

pertaining to or involving right angles or perpendiculars

<p>pertaining to or involving right angles or perpendiculars</p>
