mediastinum with rete testis
1

head of epididymis
2

seminiferous tubules within lobules
3

tunica albuginea
4

efferent ductile with cilia
5

section of epididymis with stereo cilia
6

straight tubule lined by Sertoli cells
7

rete testis
8

seminiferous tubule
9

early spermatid
A

primary spermatocyte
B

spermatogonium
C

Sertoli cell nuclei
D

late spermatids
E

primary spermatocytes
A

interstitial cell
B

spermatogonium
C

Sertoli cell nucleus
D

early spermatids
E

late spermatids
F

Top- efferent ducts
Bottom- epididymis
Compare the top and bottom structures in the image

Efferent duct

Epididymis

outer layer smooth muscle
name the layer at 1 in the epididymis

middle layer smooth muscle
name the layer at 2 in the epididymis

inner layer smooth muscle
name the layer at 3 in the epididymis

pseudo stratified columnar
classify the epithelium at 4

ductus deferens
A

pampiniform plexus
B

cavity of vaginal tunic
C

apocrine secretion in prostate
A

smooth muscle in prostate
B

corpus amylaceum
C

Ampulla of ductus deferens

Seminal vesicle
Name the tissue

Prostate
Name the tissue

Bulbourethral gland
Name the tissue

dorsal artery, vein, and nerve of penis
1

tunica albuginea
2

corpus cavernosum
3

corpus spongiosum
4

urethra
5

artery
6

venous sinuses
7

cortex of ovary
A

medulla of ovary
B

atretic follicles
C

corpus albicans
D

follicles
E

tangenital sections through follicles
A

primordial follicles
B

tunica albuginea
C

germinal epithelium
D

primary follicles
E

Primordial follicle

Primary follicle

Late primary follicle
Classify the follicle

Corona radiata
A

Zona pellucida
B

secondary follicle
classify the follicle

position of basement membrane around follicle
A

zona pellucida
B

nucleus of oocyte
C

corona radiata
D

fluid
E

antral secondary follicle
classify the follicle

antrum
A

cumulus oophorus
B

stratum granulosum
C

zona pellucida
D

theca externa
E

theca interna
F

ovary
name the organ

CL
A

uterine tube
B

cortex of ovary
C

medulla of ovary
D

CL
name the tissue

theca lutein cells
A

granulosa lutein cells
B

atretic follicles
A

corpus albicans
B

rete ovarii
what is the structure at the arrows?

uterus
name the organ

endometrium
what is the layer of the uterus shown?

myometrium
A

long uterine gland
B

short uterine gland
C

simple columnar
classify the epithelium at D

inactive mammary gland
describe the tissue at A

proliferating mammary gland
describe the tissue at B

active mammary gland
describe the tissue at C

alveoli of mammary gland
describe the tissue

plasma cells
yellow arrows

myoepithelial cells
blue arrows

orbicularis oculi m
1

nerve
2

part of Meibomian gland
3

conjunctiva
4

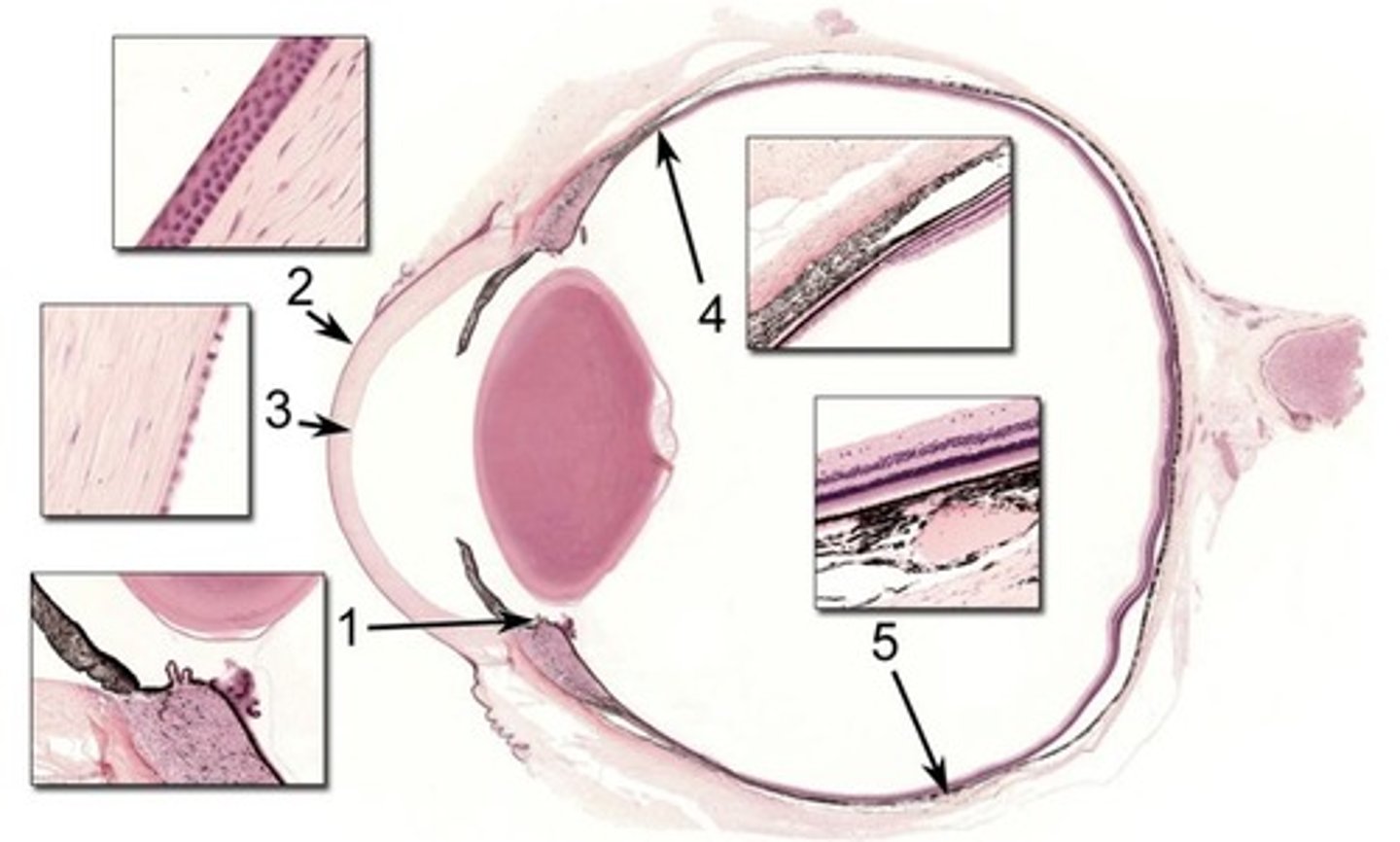

ciliary body/ iris junction
1
