17 Terms

1
New cards

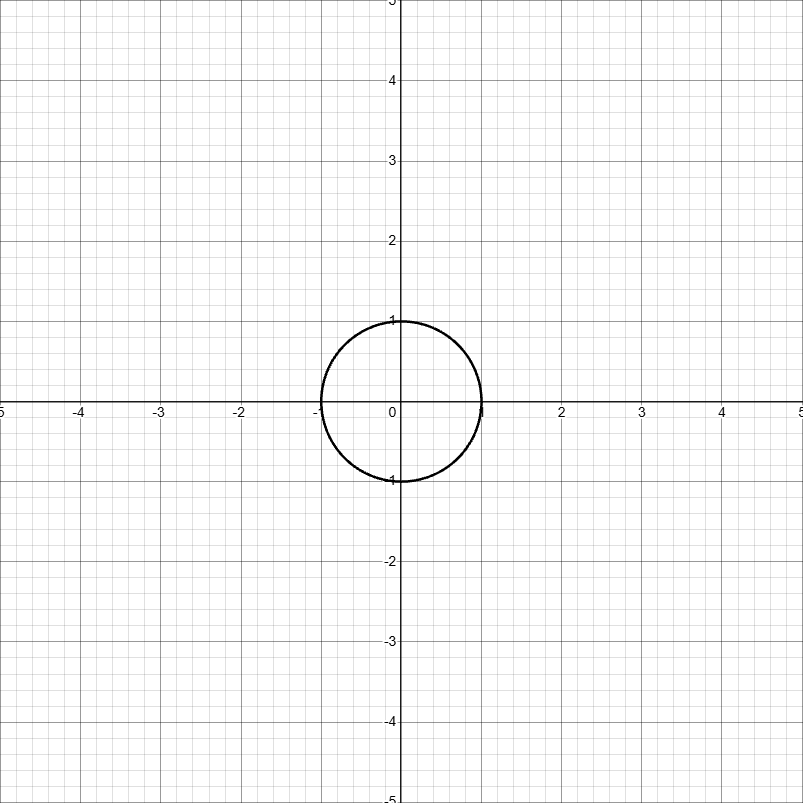

r = a

circle with radius a centered at the origin

<p>circle with radius a centered at the origin</p>
2
New cards

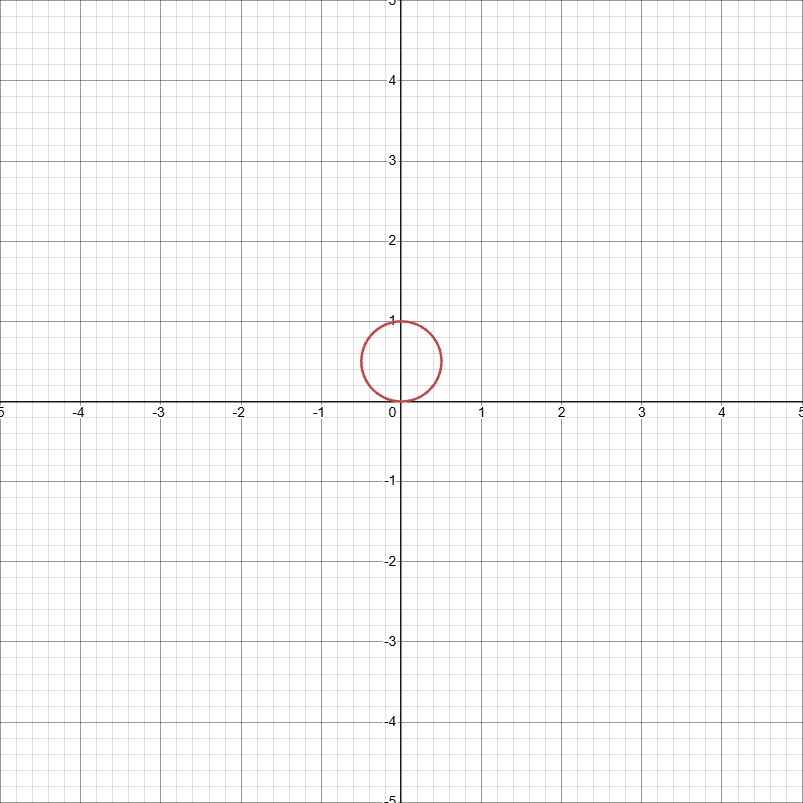

r = asin(θ)

circle with diameter a on y axis

<p>circle with diameter a on y axis</p>
3
New cards

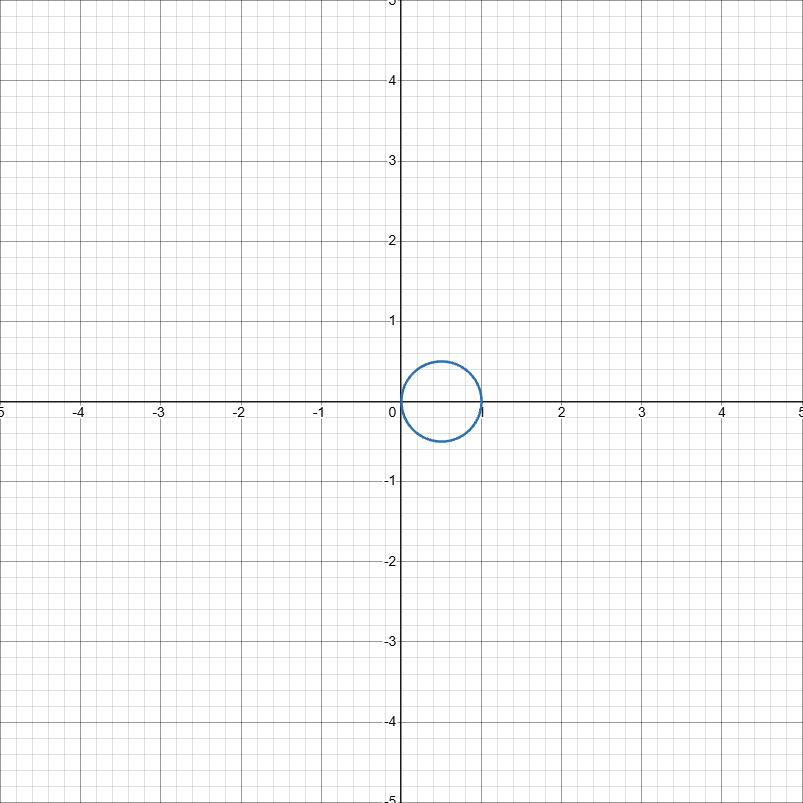

r = acos(θ)

circle with diameter a on x axis

<p>circle with diameter a on x axis</p>
4
New cards

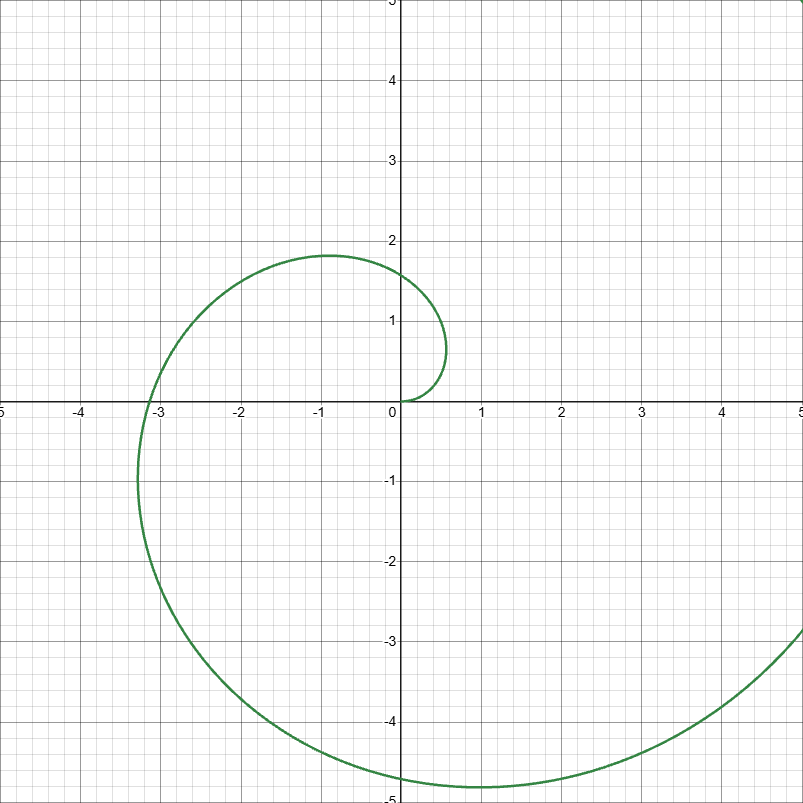

r = aθ

spiral

<p>spiral</p>
5
New cards

r = a ± bsinθ (a < b)

limacon with inner loop on y axis

<p>limacon with inner loop on y axis</p>
6
New cards

r = a ± bcosθ (a < b)

limacon with inner loop on x axis

<p>limacon with inner loop on x axis</p>
7
New cards

r = a ± bsinθ (a = b)

cardioid on y axis

<p>cardioid on y axis</p>
8
New cards

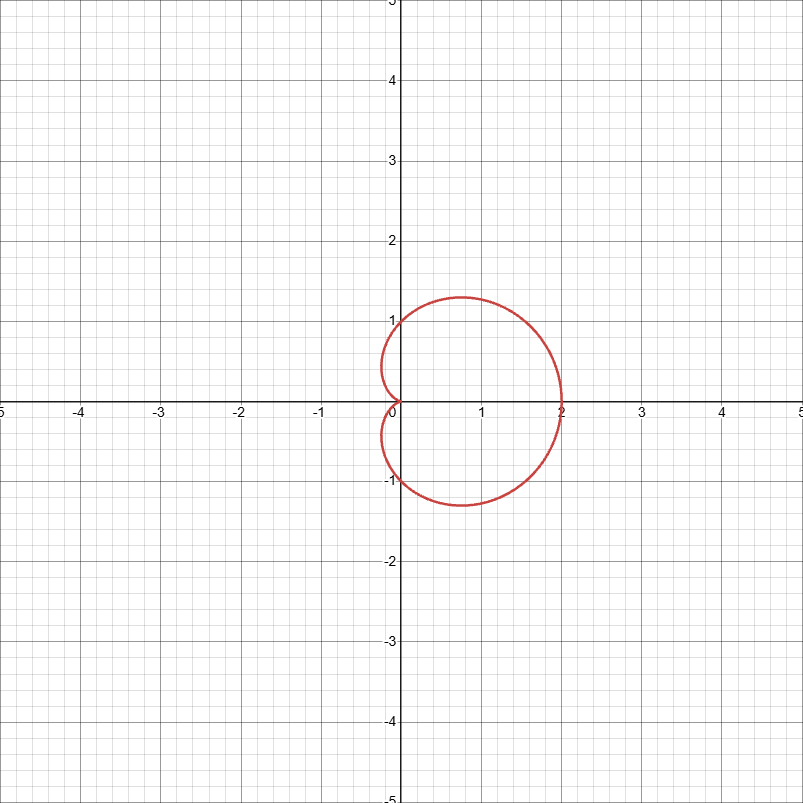

r = a ± bcosθ (a = b)

cardioid on x axis

<p>cardioid on x axis</p>
9
New cards

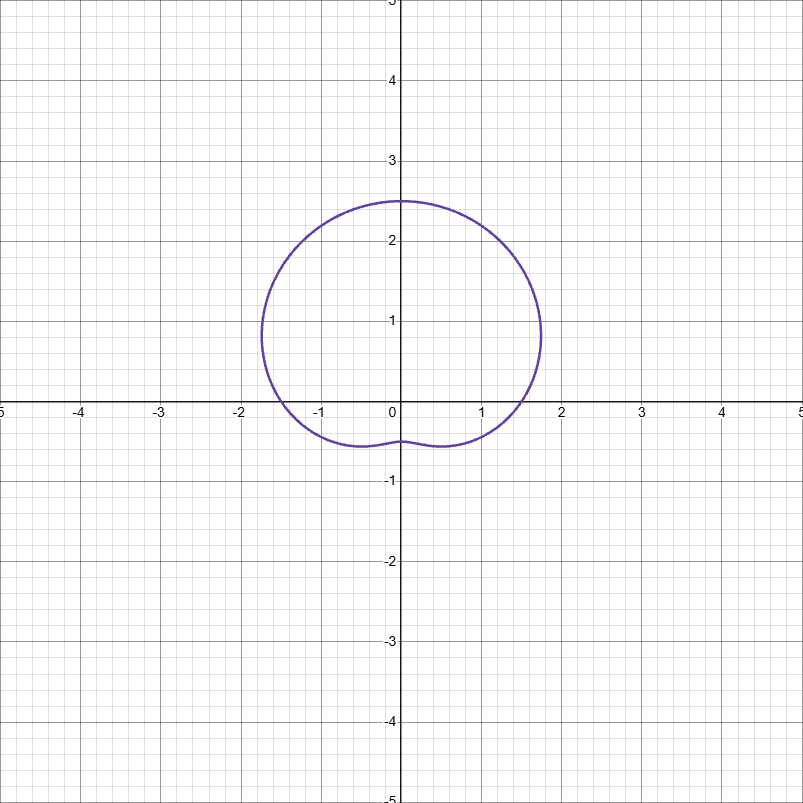

r = a ± bsinθ (a > b)

dimpled or convex limacon on y axis

<p>dimpled or convex limacon on y axis</p>
10
New cards

r = a ± bcosθ (a > b)

dimpled or convex limacon on x axis

<p>dimpled or convex limacon on x axis</p>
11
New cards

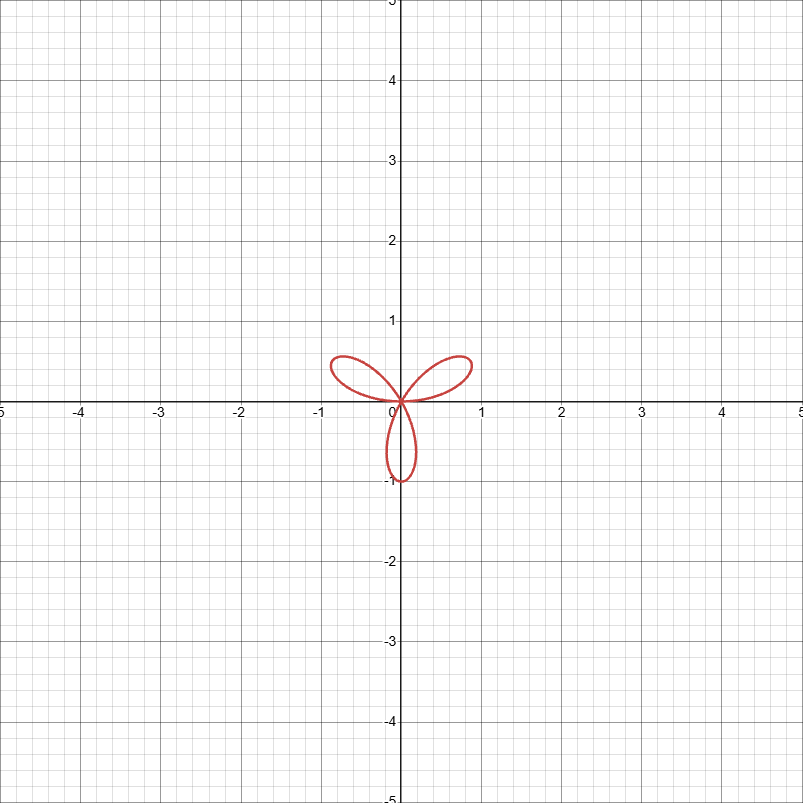

r = asin(nθ) (n is odd)

n leaved rose with first leaf off x axis and leaf length of a

<p>n leaved rose with first leaf off x axis and leaf length of a</p>
12
New cards

r = acos(nθ) (n is odd)

n leaved rose with first leaf on x axis and leaf length of a

<p>n leaved rose with first leaf on x axis and leaf length of a</p>
13
New cards

r = asin(nθ) (n is even)

2n leaved rose with first leaf off x axis and leaf length of a

<p>2n leaved rose with first leaf off x axis and leaf length of a</p>
14
New cards

r = acos(nθ) (n is even)

2n leaved rose with first leaf on x axis and leaf length of a

<p>2n leaved rose with first leaf on x axis and leaf length of a</p>
15
New cards

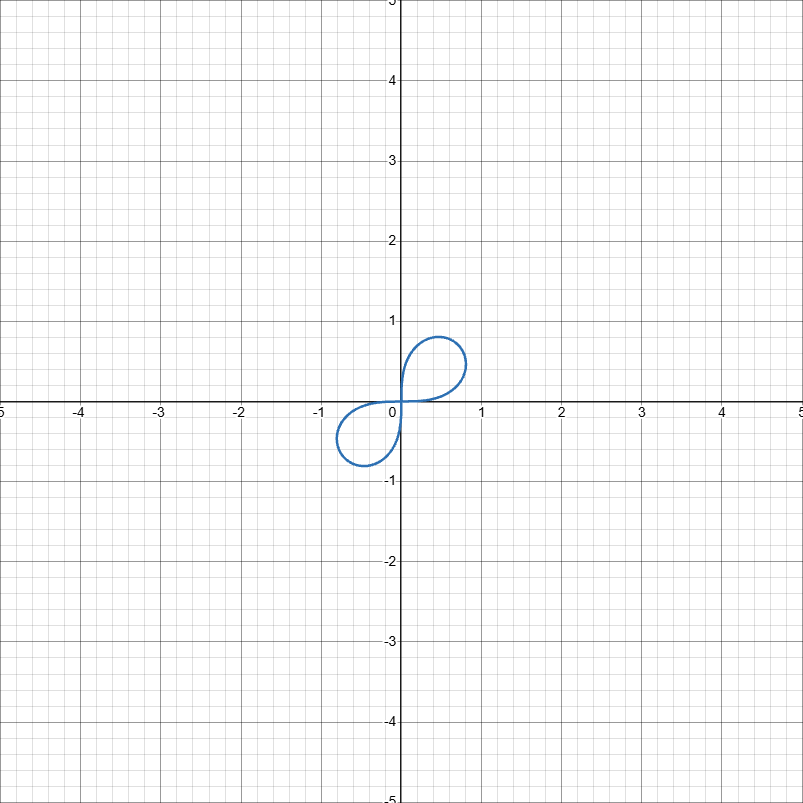

r² = a²sin(2θ)

lemniscate with loops in Q1 and Q3

<p>lemniscate with loops in Q1 and Q3</p>
16
New cards

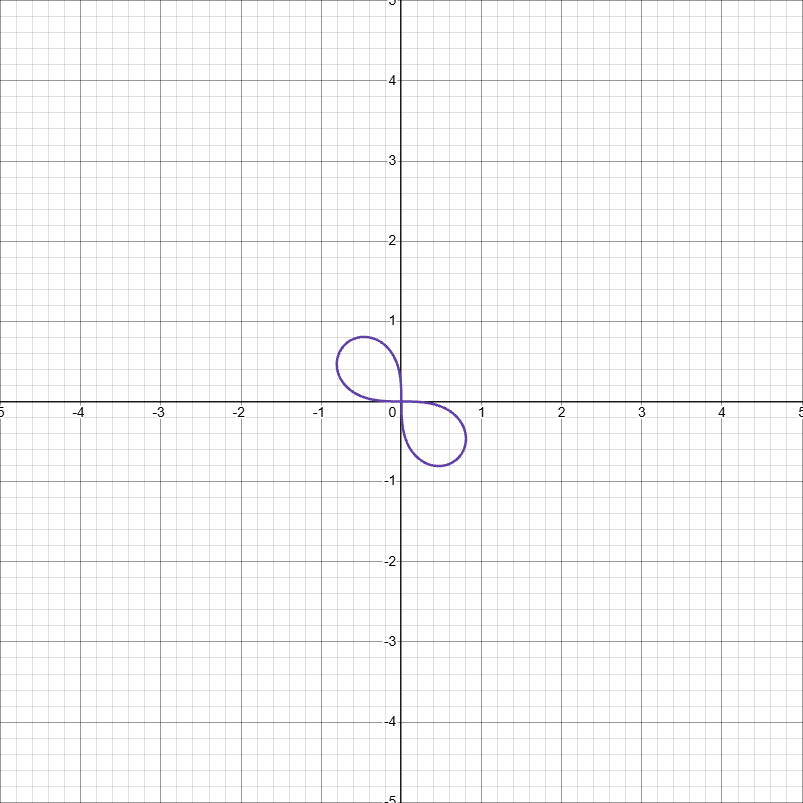

r² = -a²sin(2θ)

lemniscate with loops in Q2 and Q4

<p>lemniscate with loops in Q2 and Q4</p>
17
New cards

r² = a²cos(2θ)

lemniscate with loops on x axis

<p>lemniscate with loops on x axis</p>
