O&P Practical Labeled Images

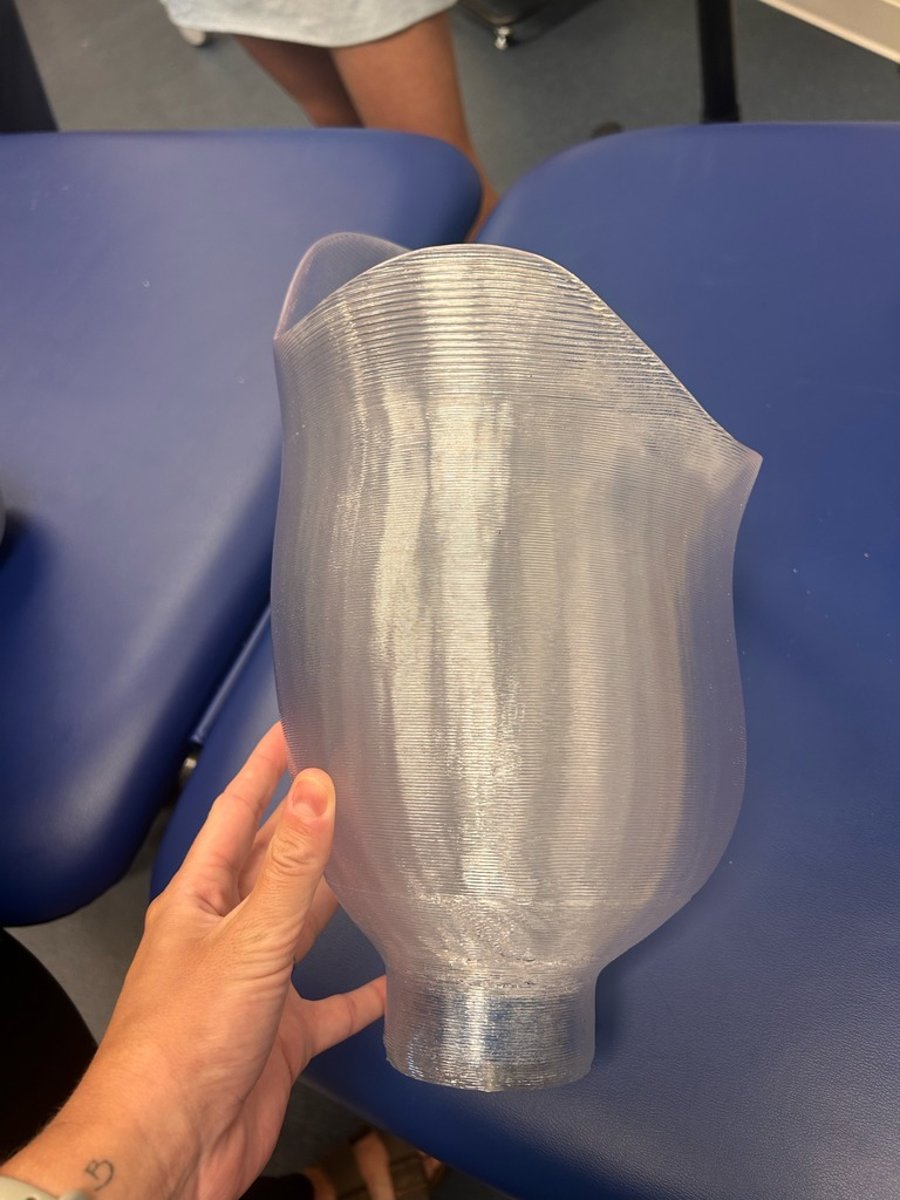

Test Socket- Ischial Containment

more secure fit reduce ML movement

**active individuals who require better control

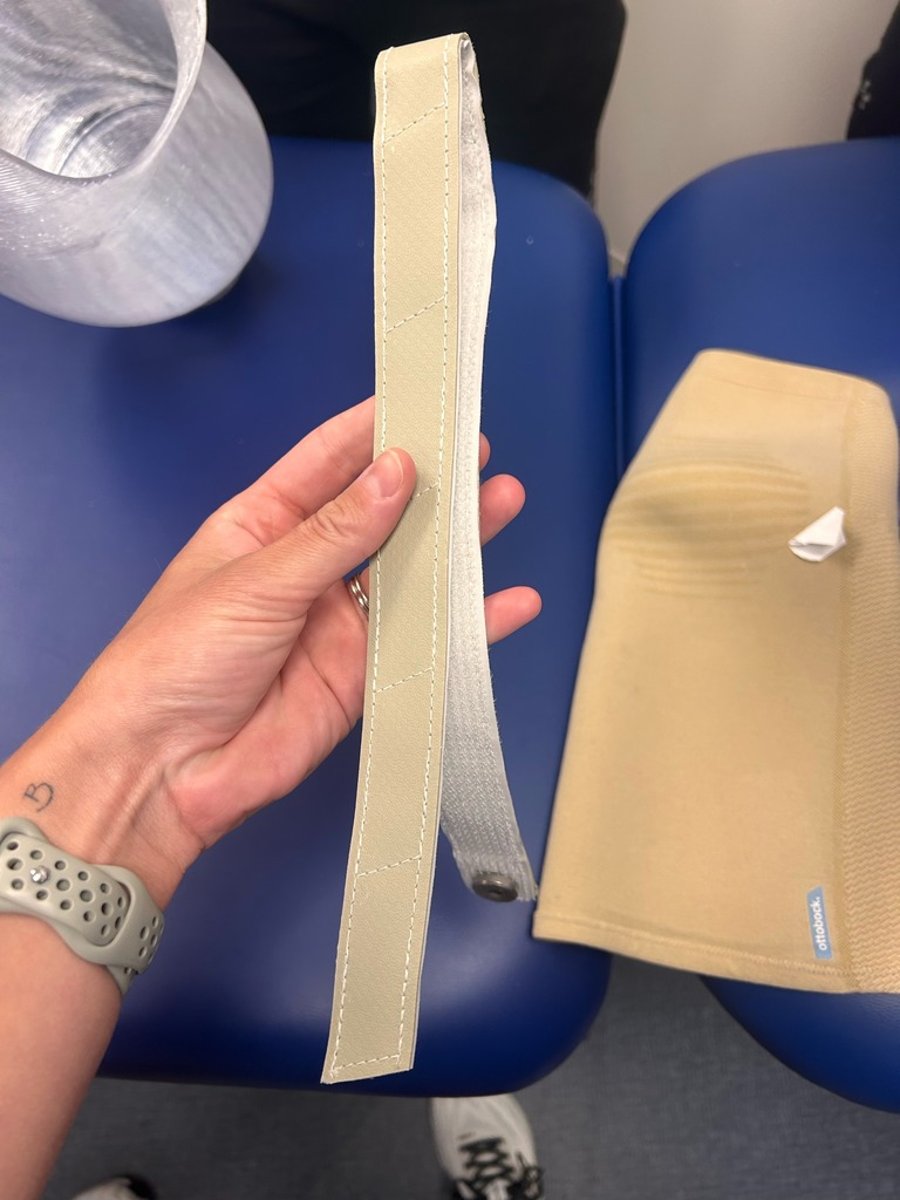

Lanyard Suspension for TF

Suspension for TF used with gel liners

**TF amputees with Upper limb weakness or dexterity issues

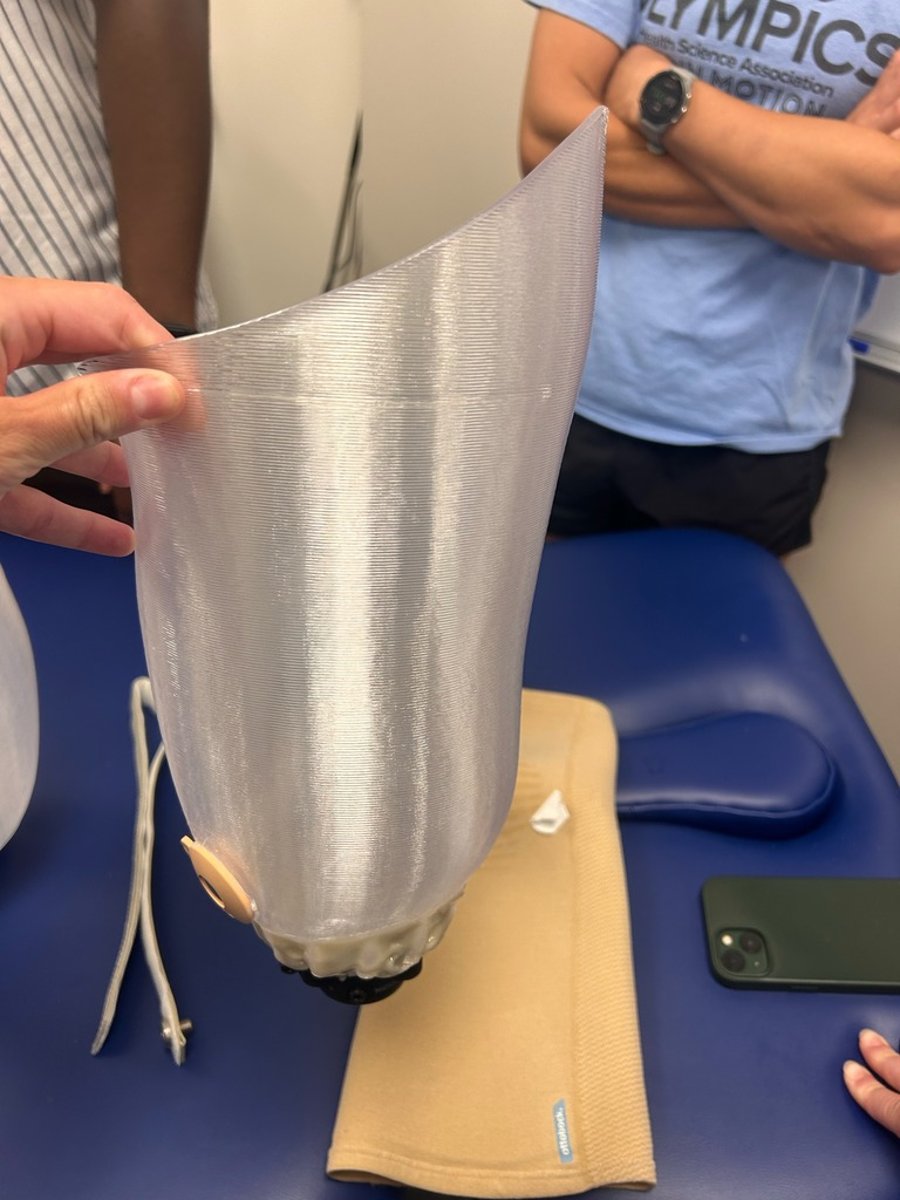

Test Socket- Sub ischial

Used with Suction suspension or elevated vaccuum

**improved sitting comfort

**TF amputees who use advances suspension systems

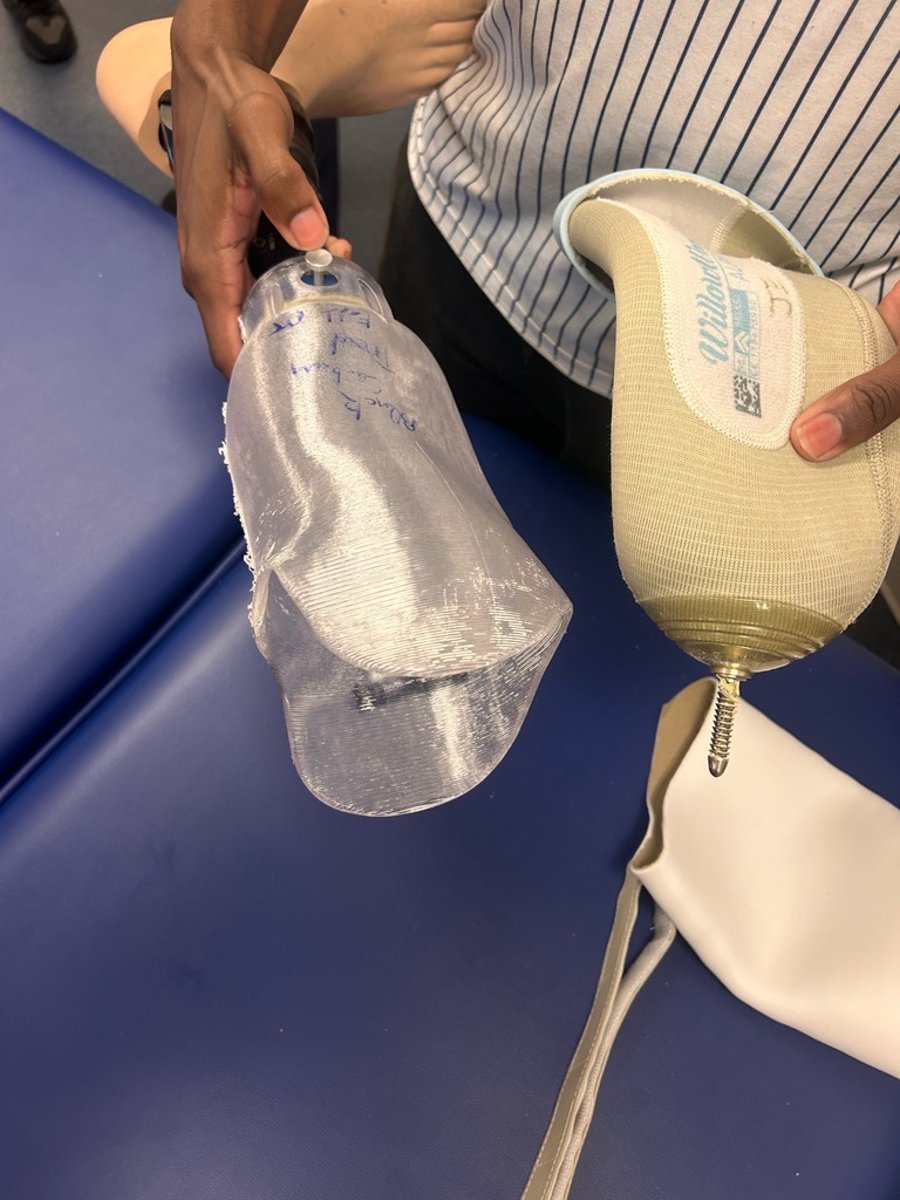

Liner with Pin Lock Suspension

TF or TT

**release button on outside of socket releases it

**Provides secure attachment /easy to use

** stable limb volume

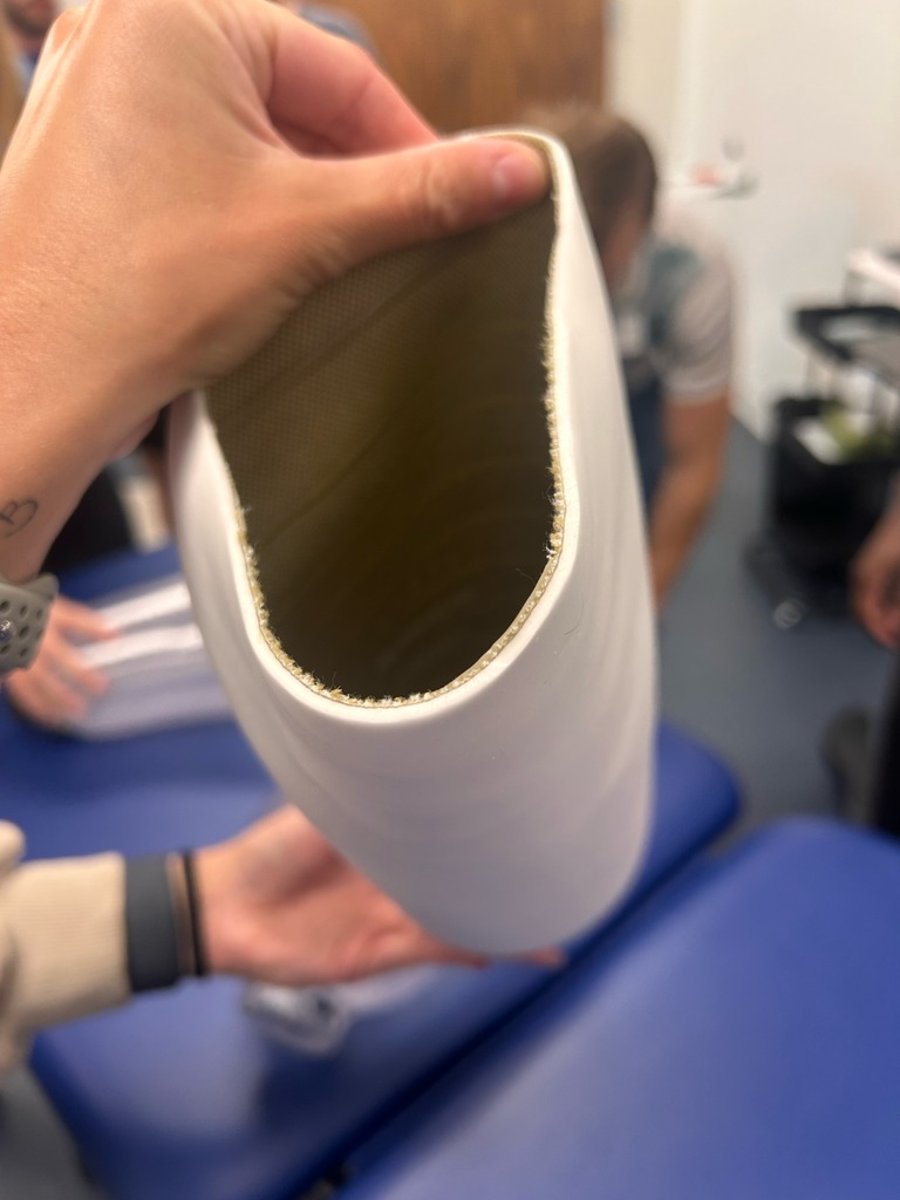

Liner (currently inside out)

turn inside out put on limb and roll onto leg no wrinkle or folds and ensure no space at end

* even pressure distribution

**suspension

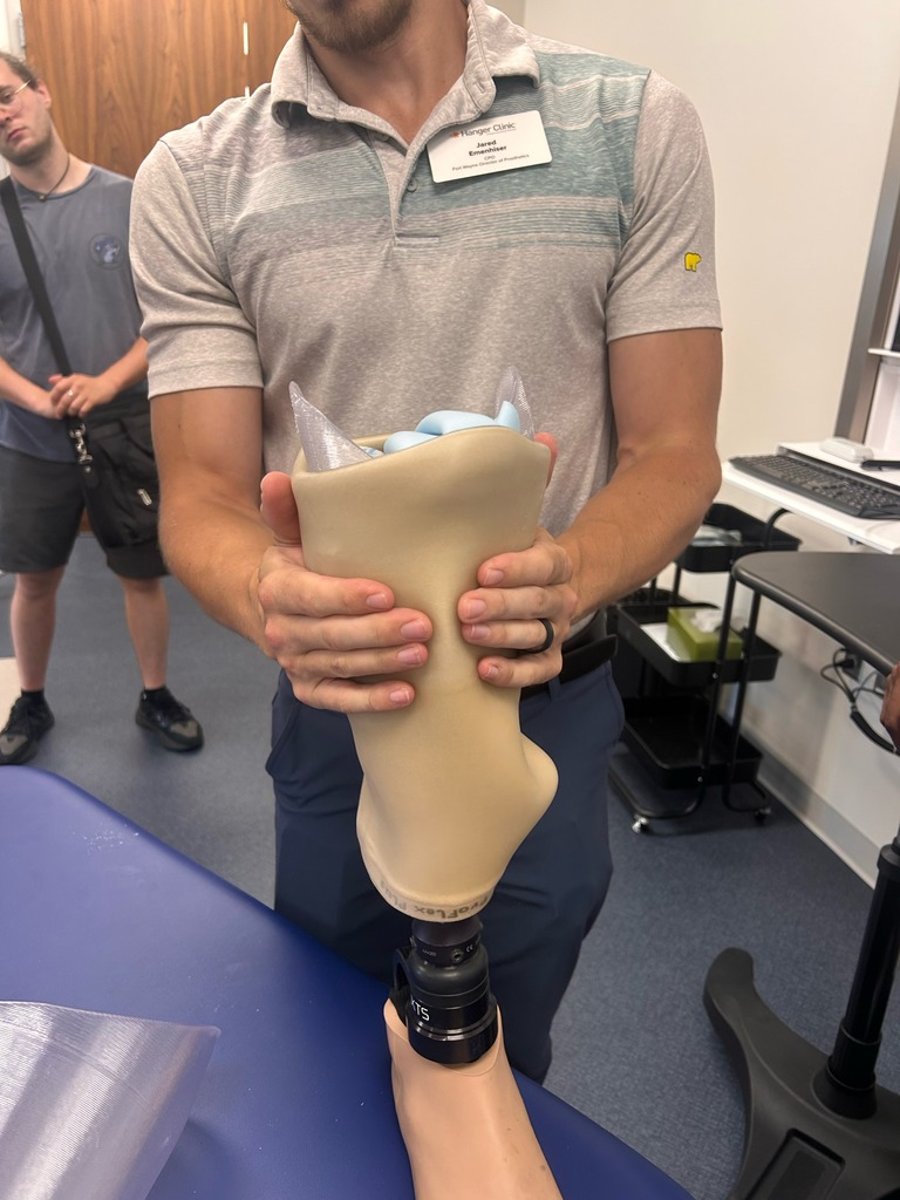

Suspension knee sleeve

**mostly for TT amputees

suction suspension

rolls over top of prosthetic socket

** need to have enough thigh tissue to create reliable seal above knee

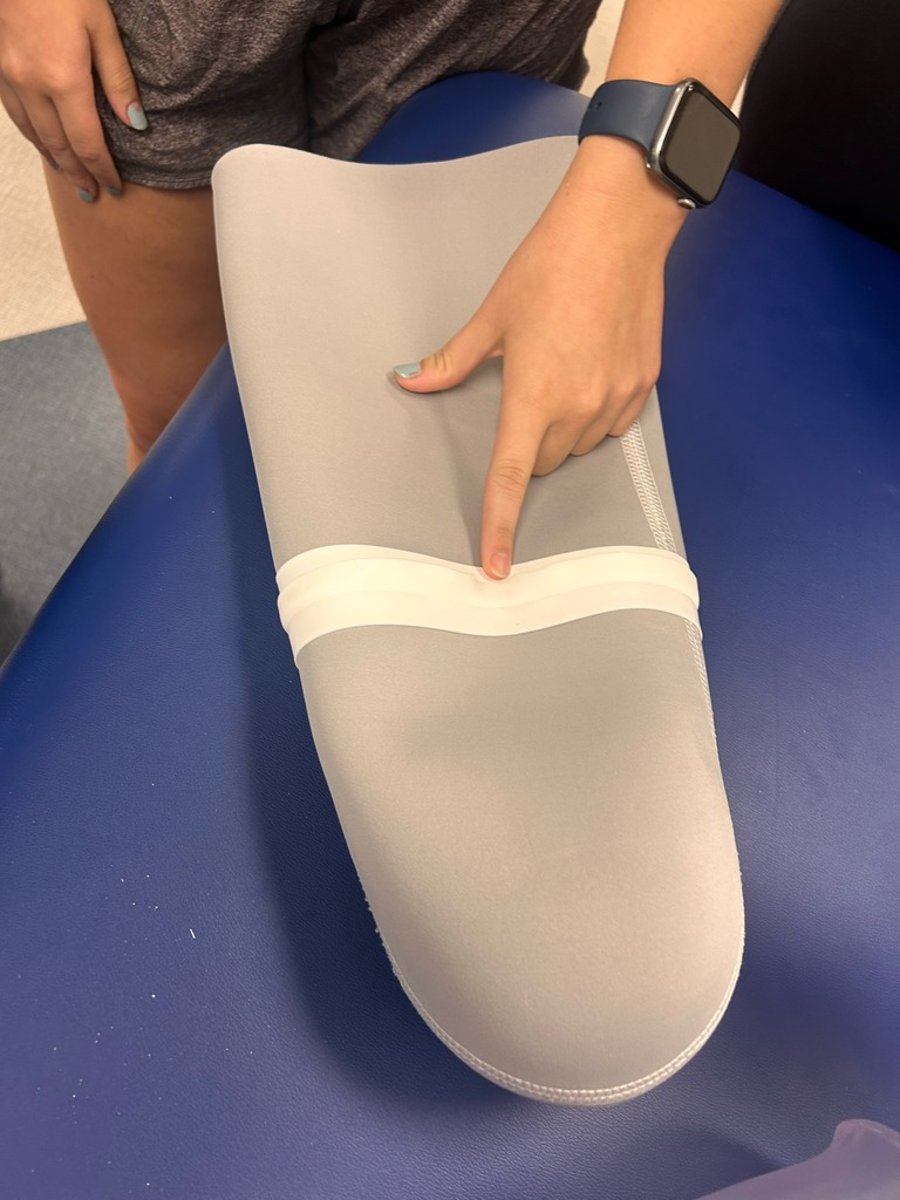

Seal-in liner (TF)

Suspension system for TF amputee without use of sleeve or pin

**one way valve during donning to create suction

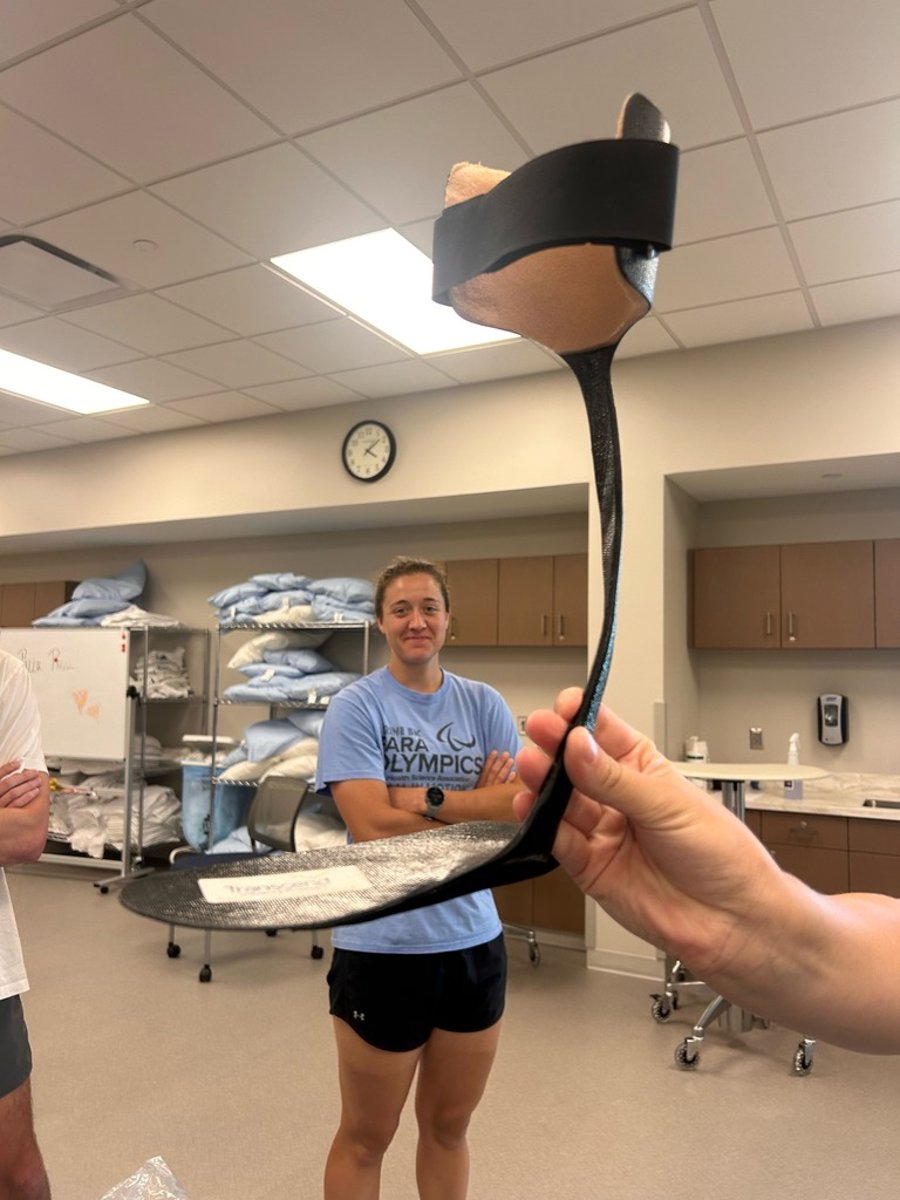

Carbon Fiber PLS

**prevents foot drop

**post CVA, MS

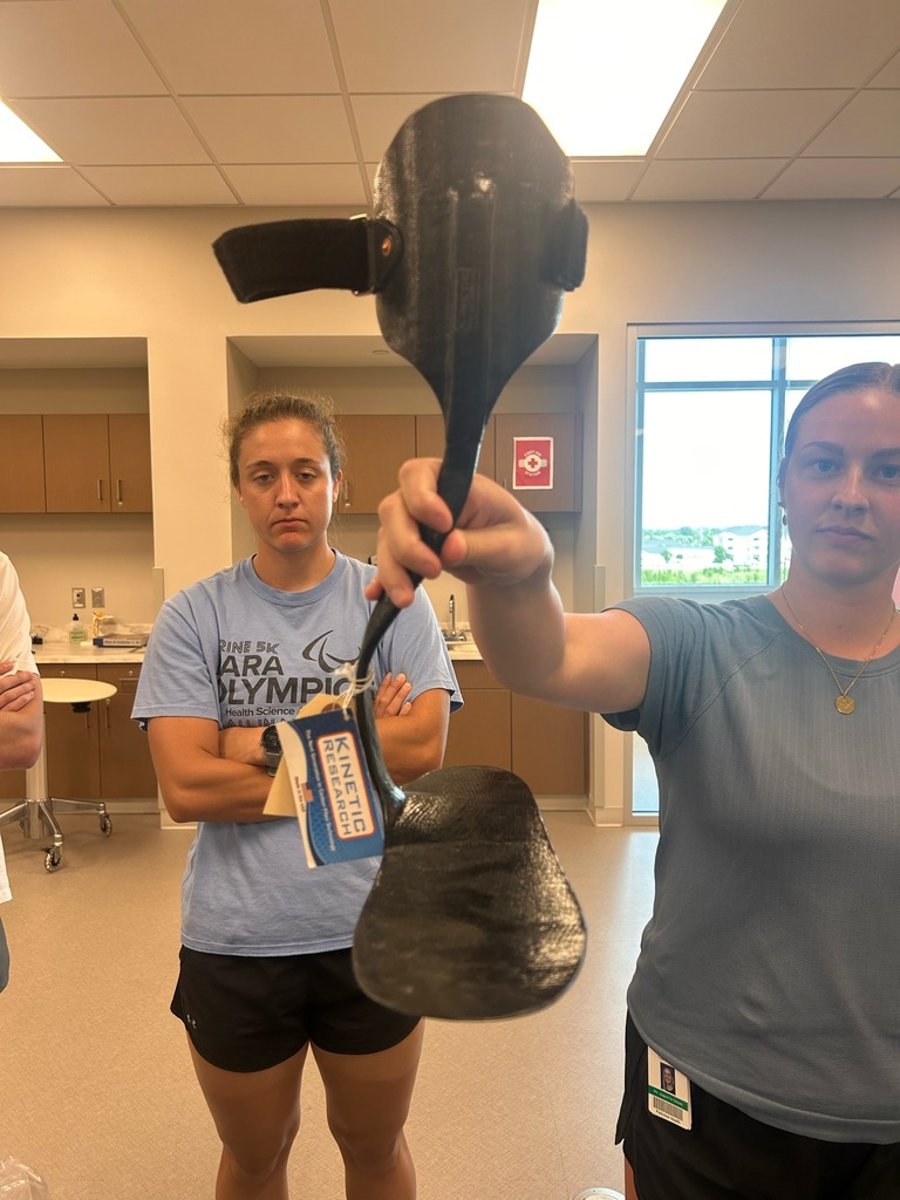

Carbon Fiber GRF AFO

**crouch gait CP, SCI

**provides knee extension moment during gait

**should apply pressure just below patella

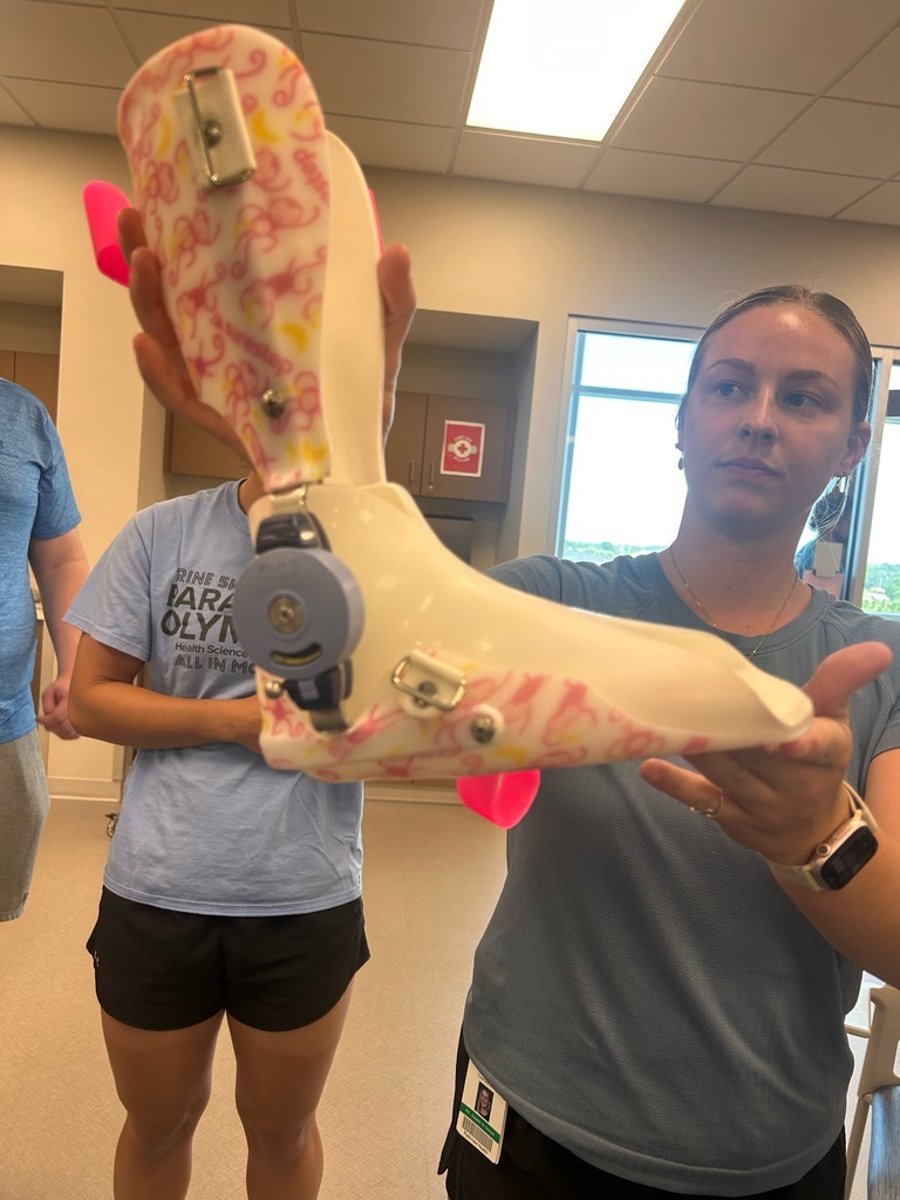

Night Time Stretching AFO with Inner boot

**inner boot to hold ankle in neutral or DF position overnight

**used for populations that are at risk of PF contractures or toe walkers that have the PROM available

**whatever else you think you got this

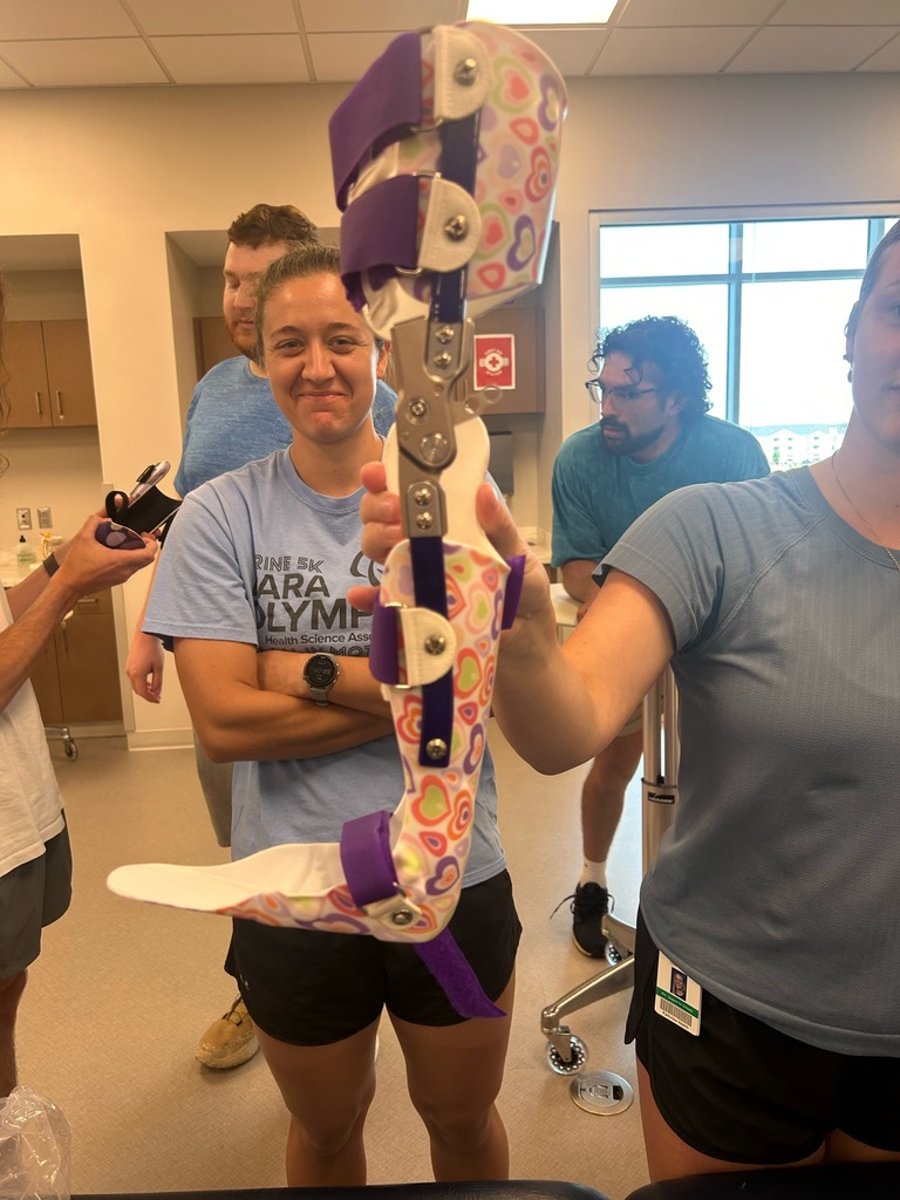

Semi Solid KAFO

**locking knee

used for someone who needs more stability

**Quad weakness

**stroke, Incomplete SCI, mild crouch, foot drop +knee instability

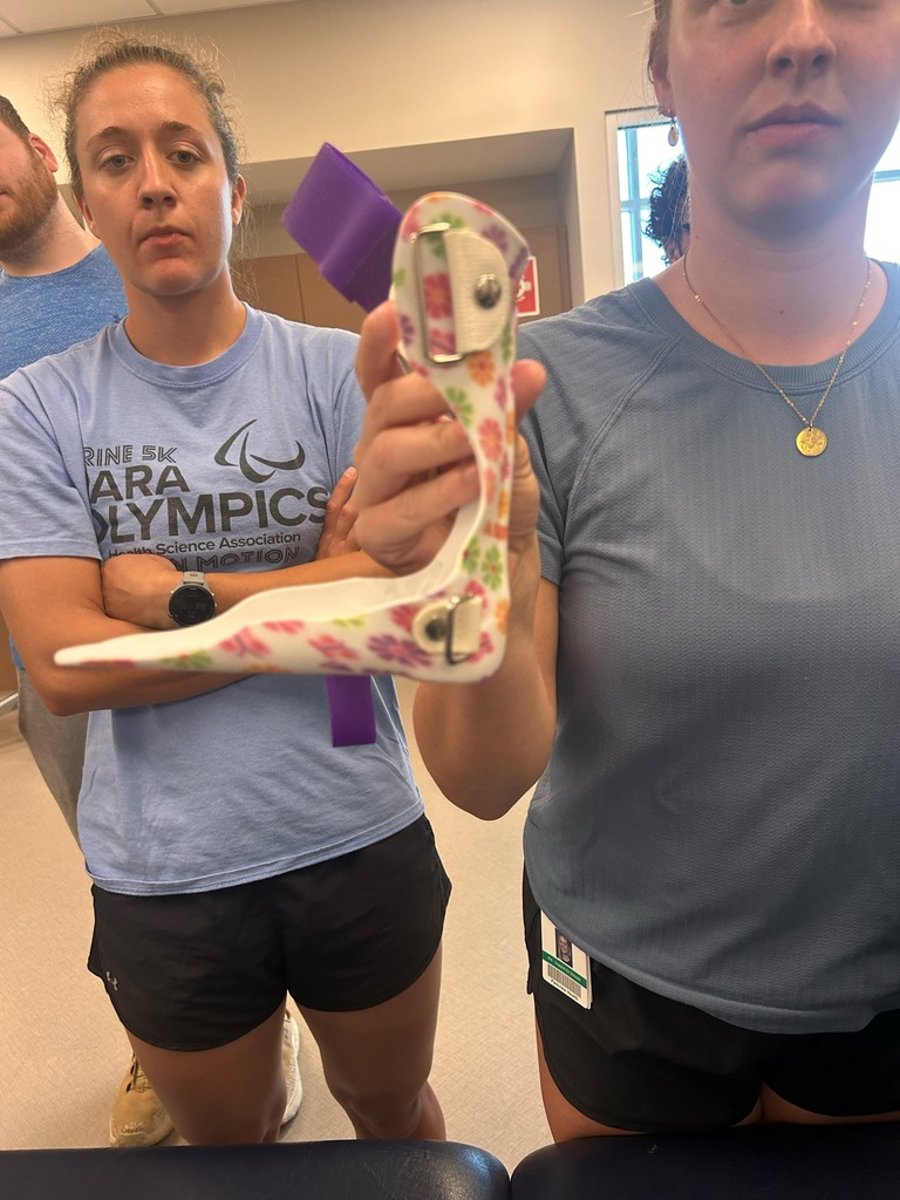

PLS with carbon fiber strut

** mild to mod DF weakness

** high functioning ambulators

**post stroke, peroneal nerve injury, MS

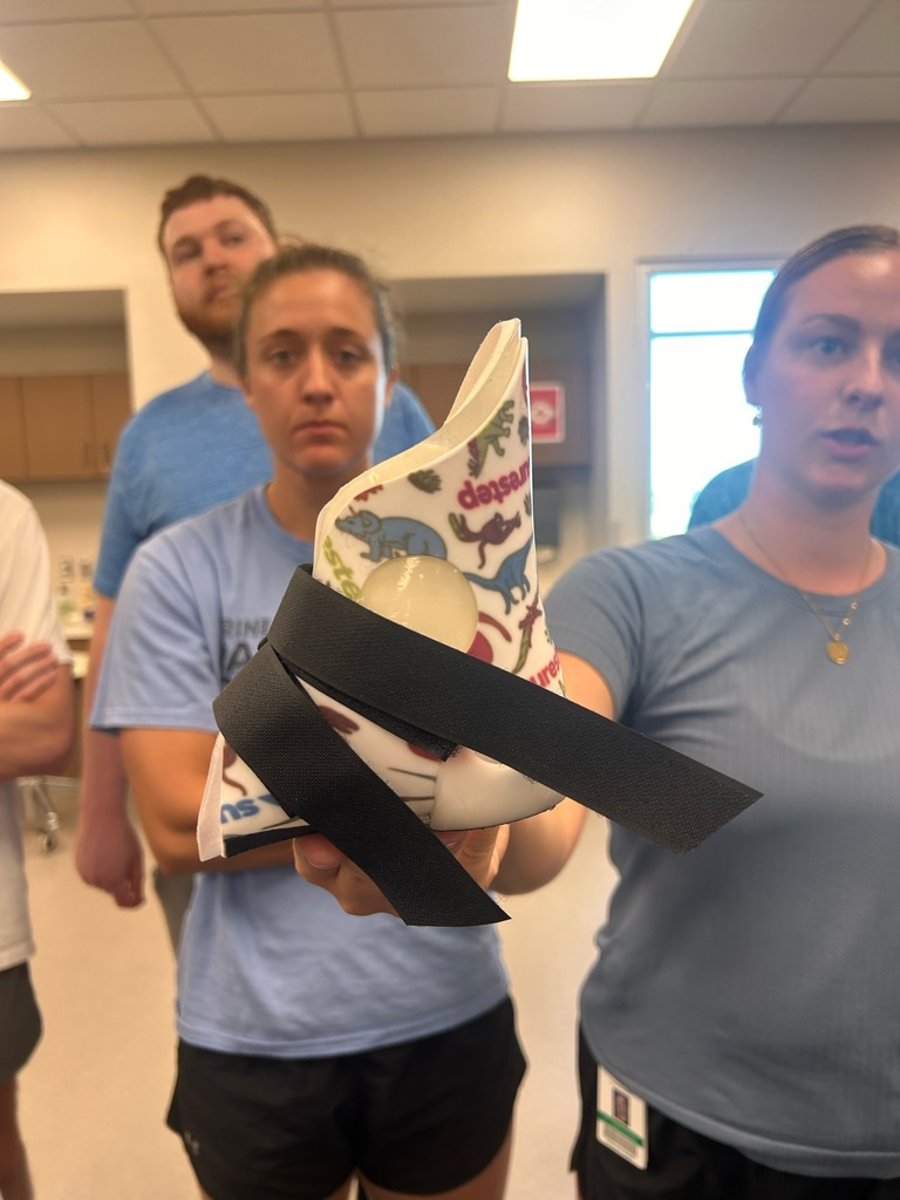

Toe Walking SMO

**molded inner boot

**idiopathic toe walking

**mild CP, autism, sensory integration

**if heel cut out= encourages heel strike

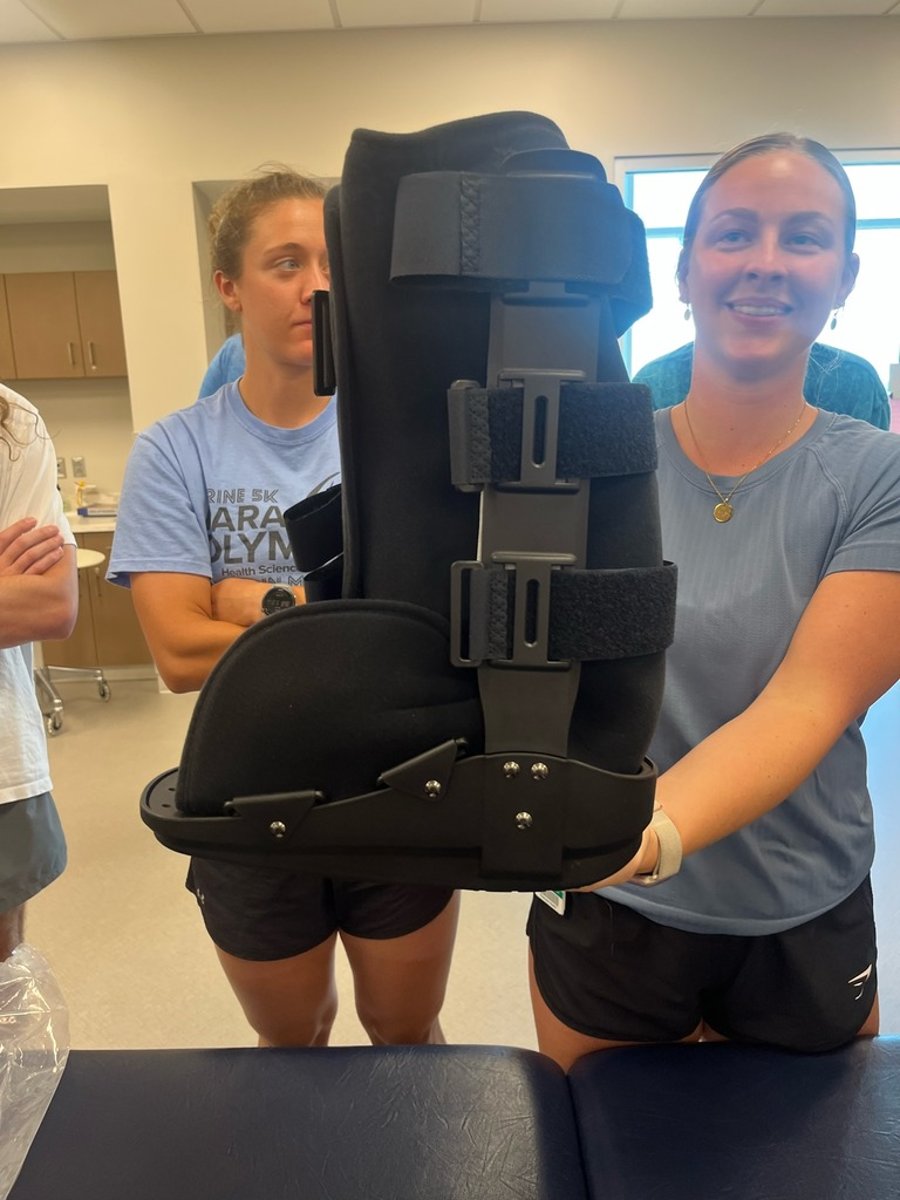

CAM boot

**for LE fx, diabetic foot ulcers, severe sprains or injuries

affects all 4 rockers

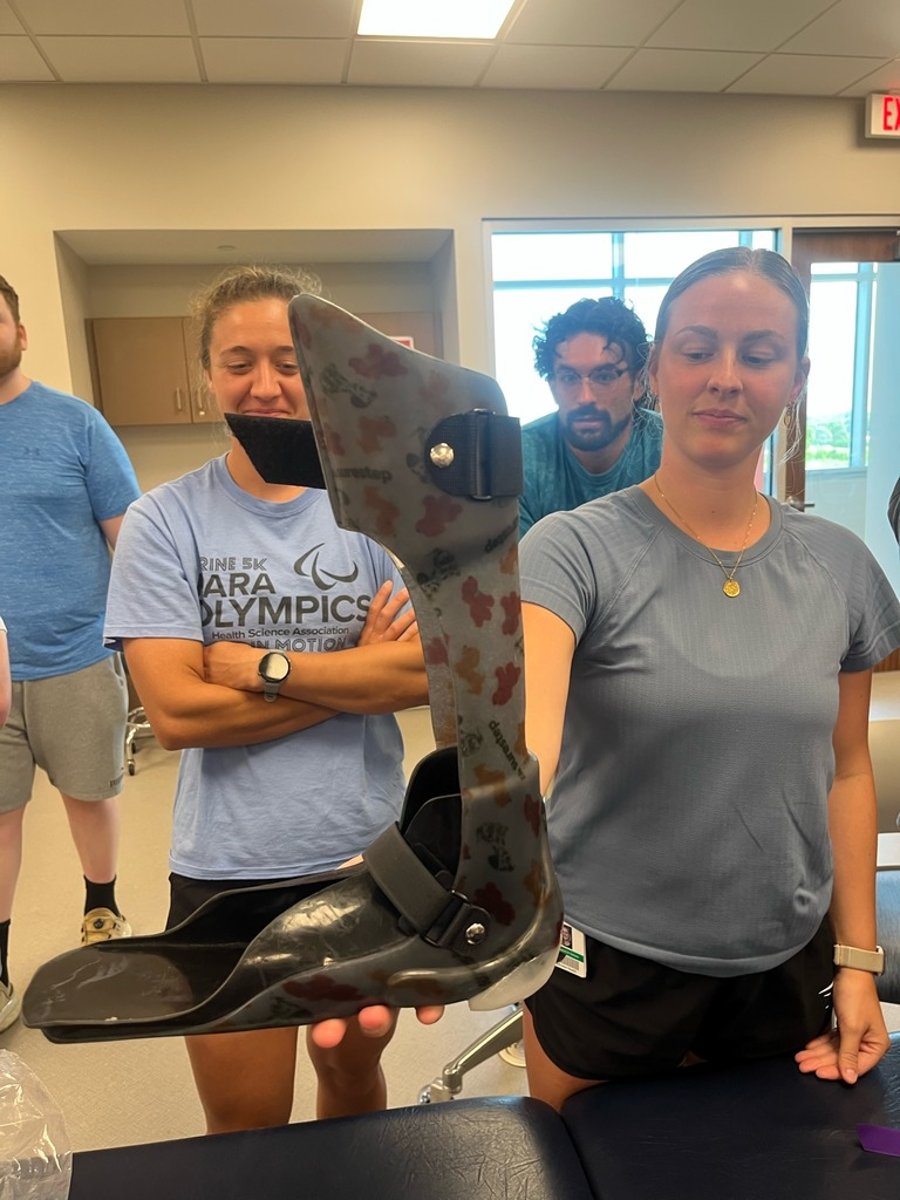

GRF AFO

**molded inner boot provides total contact and stability

**pts who lack quad control

**crouch gait

**CP

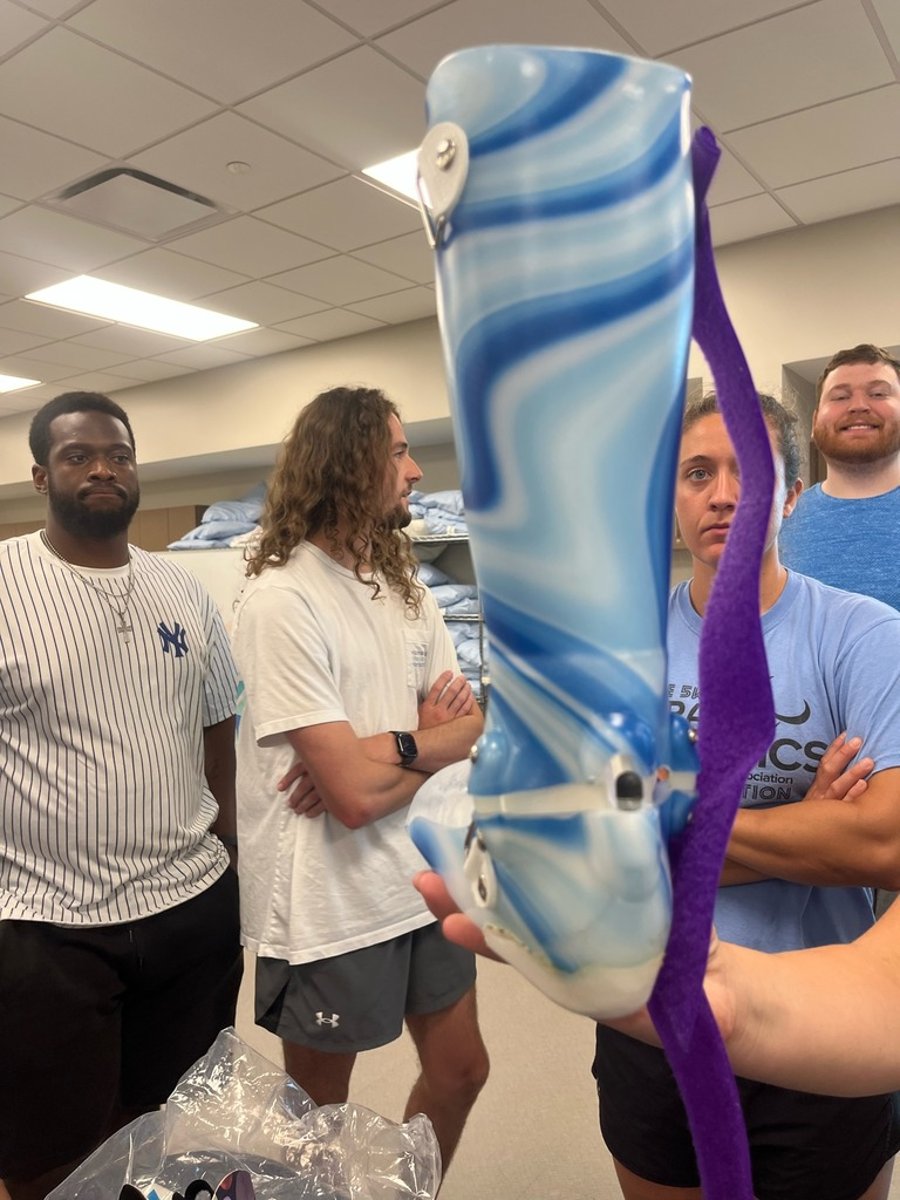

Articulated AFO

**molded inner boot- total contact and alignment

**PF stop- limit excessive PF

allows for ankle rocker

**promotes Heel strike

**CP, TBI, MS or CVA

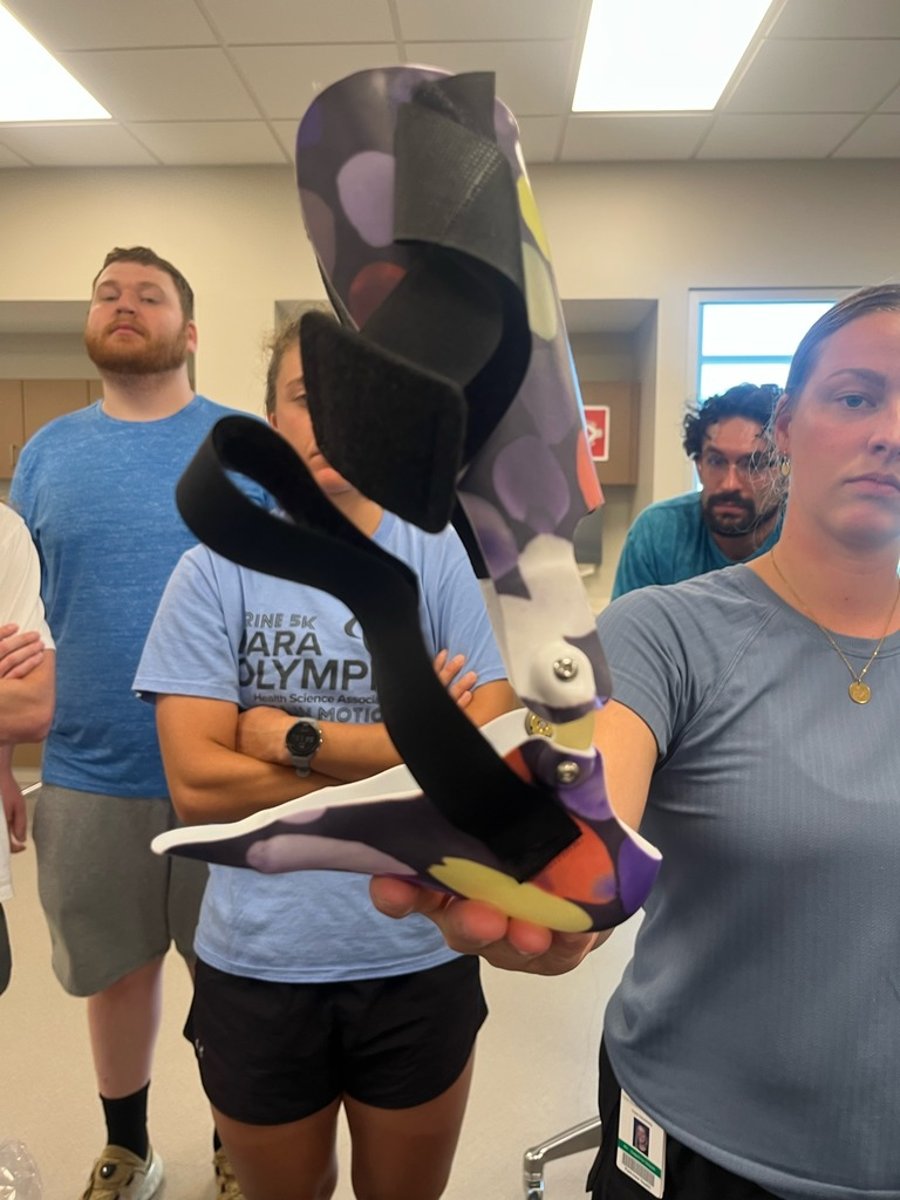

Articulated AFO

**DF assist for foot drop

DF weakness

intact ML stability

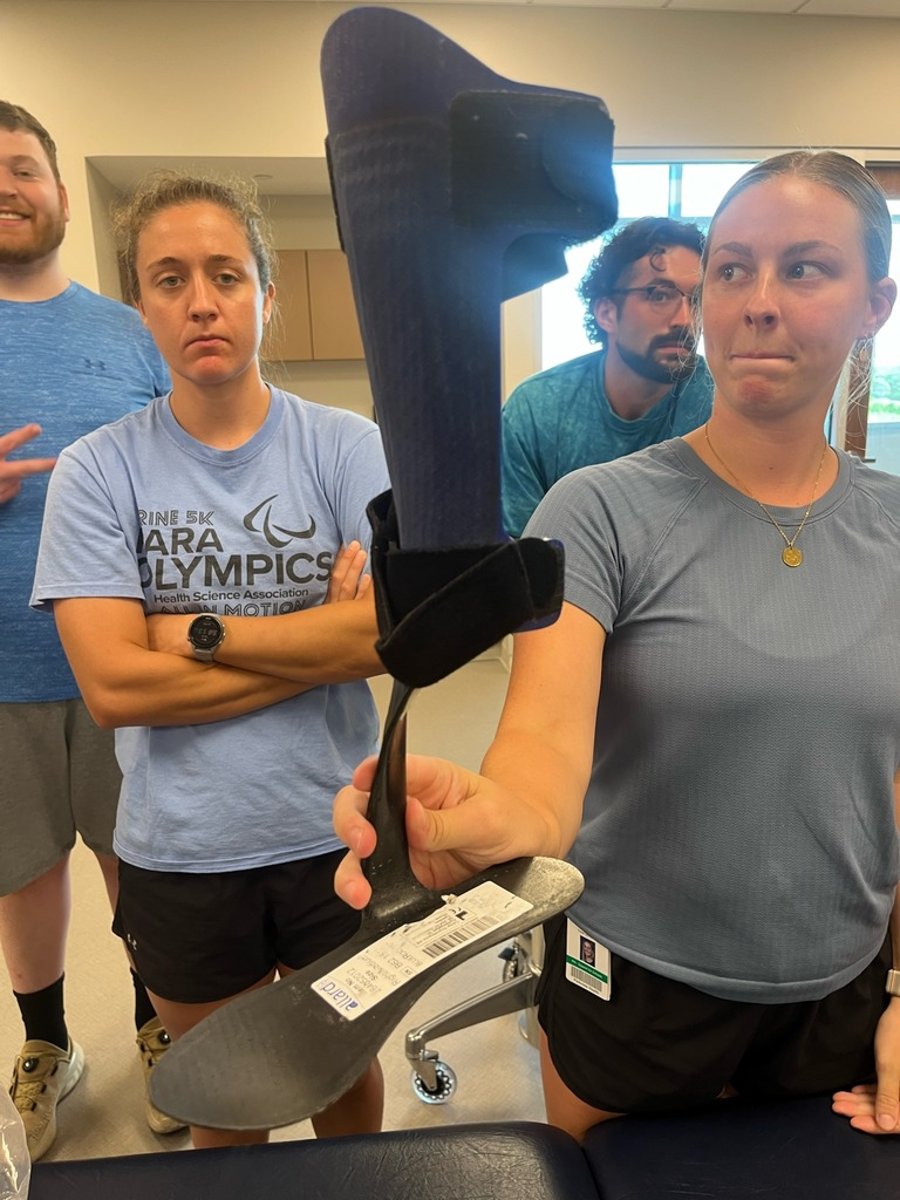

Carbon Fiber GRF

**for crouch gait, Transverse Myelitis

energy conserving

same as others we have said before

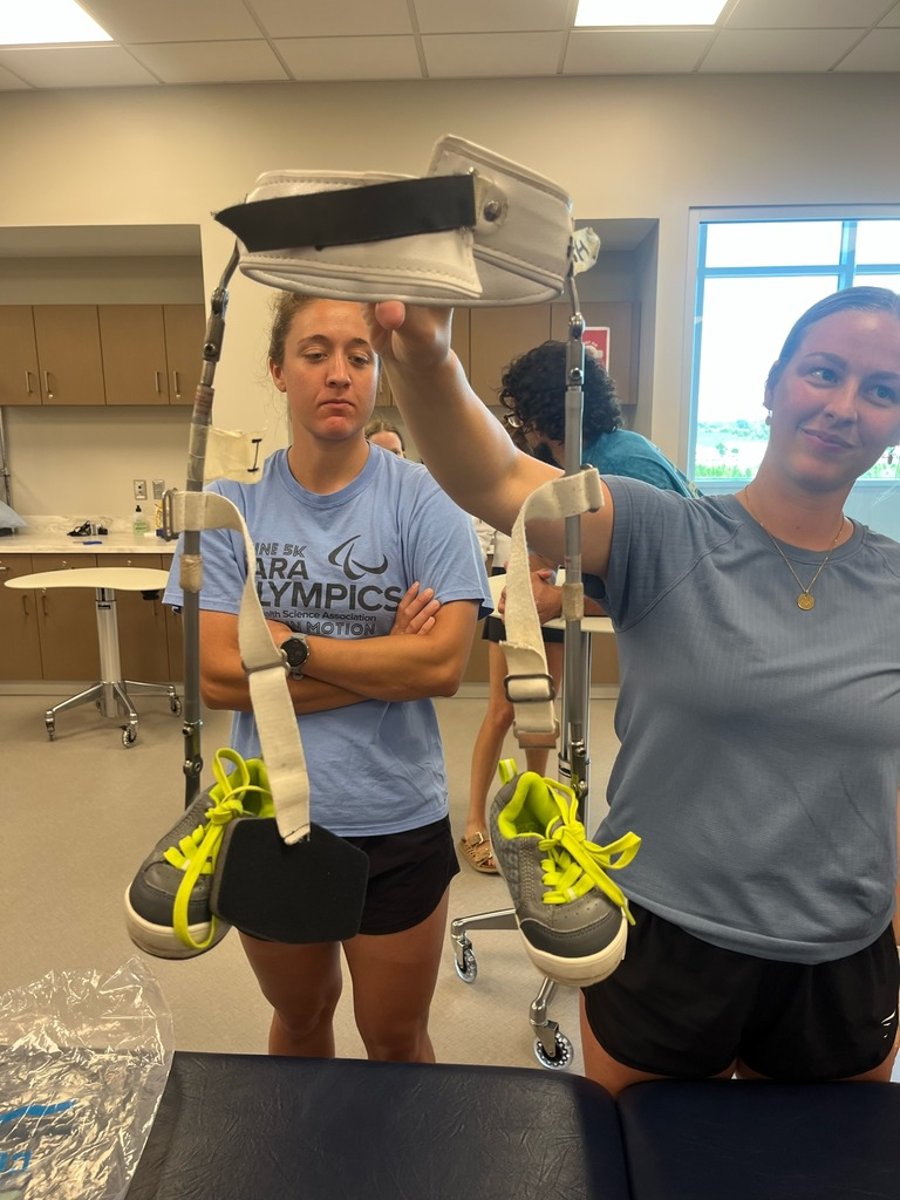

Twister Cables

**peds pop

CP, in toeing, Hypotonia,Contractures, Post op derotation osteotomy

**address excessive internal or external rotation usually anchored to AFO or KAFO

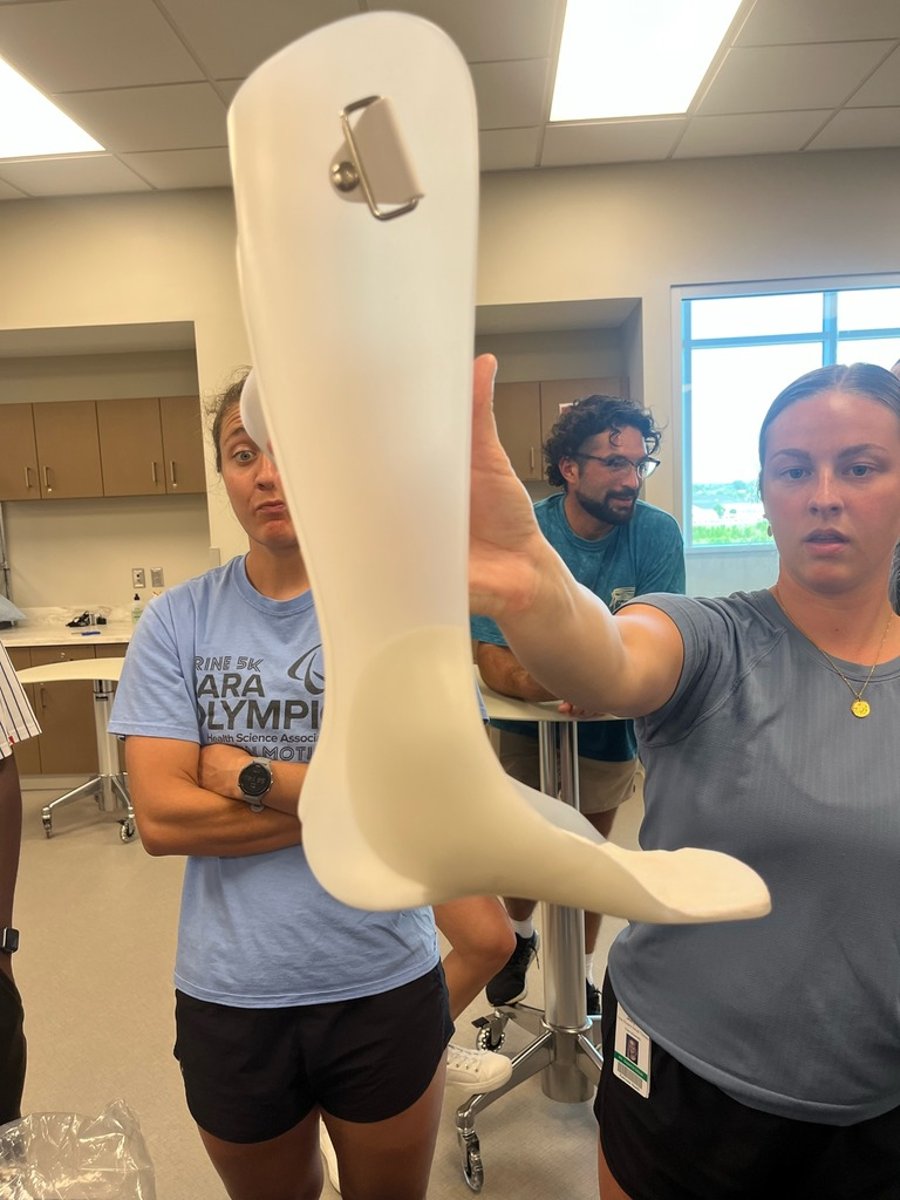

Solid AFO

**sulcus trimline - unique feature improves comfort, fit and toe off

* for those who need the MOST stability in all planes

**Spastic CP, stroke

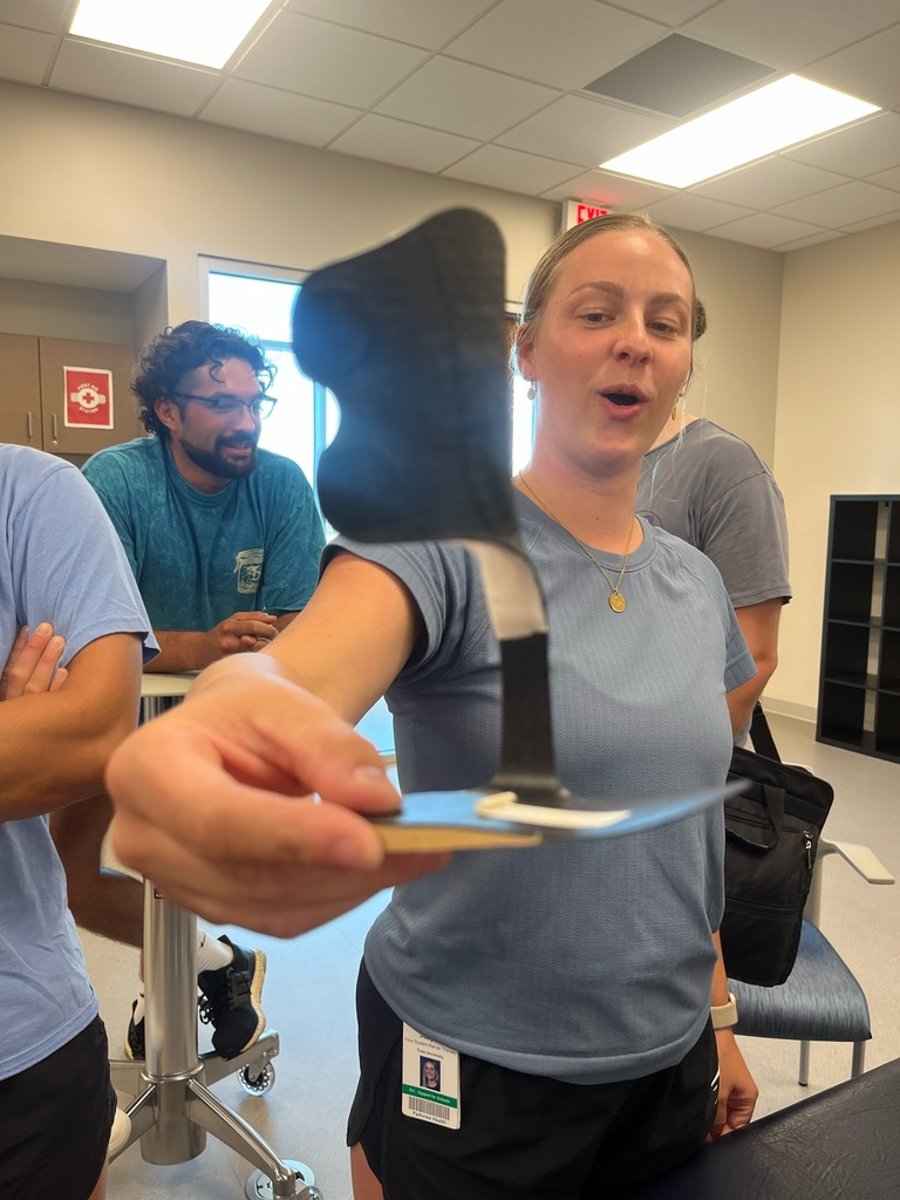

Carbon Fiber GRF

same as earlier

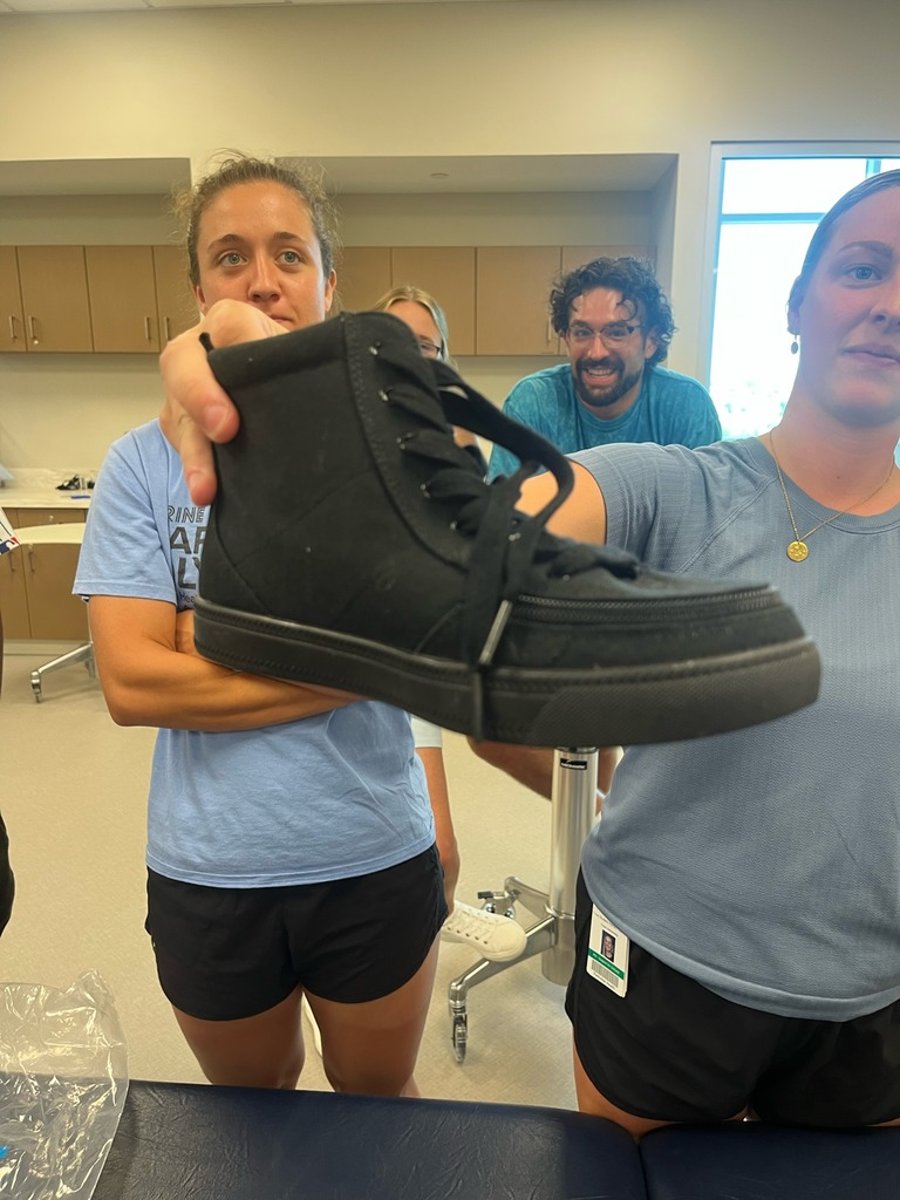

High top shoes

**toe walkers

**foot drop

**peds hypotonia

**hypermobility

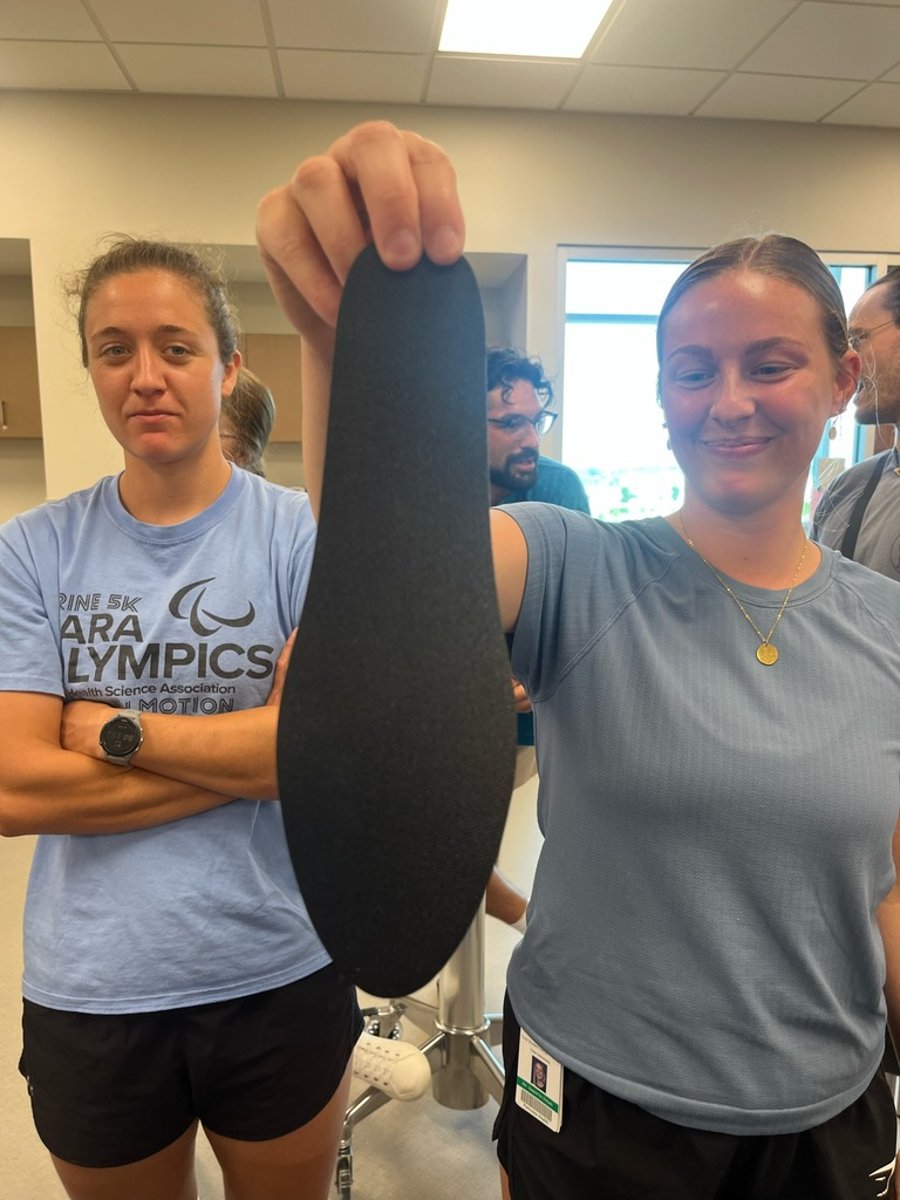

Carbon fiber PLATE

**toe walkers

**enhance propulsion

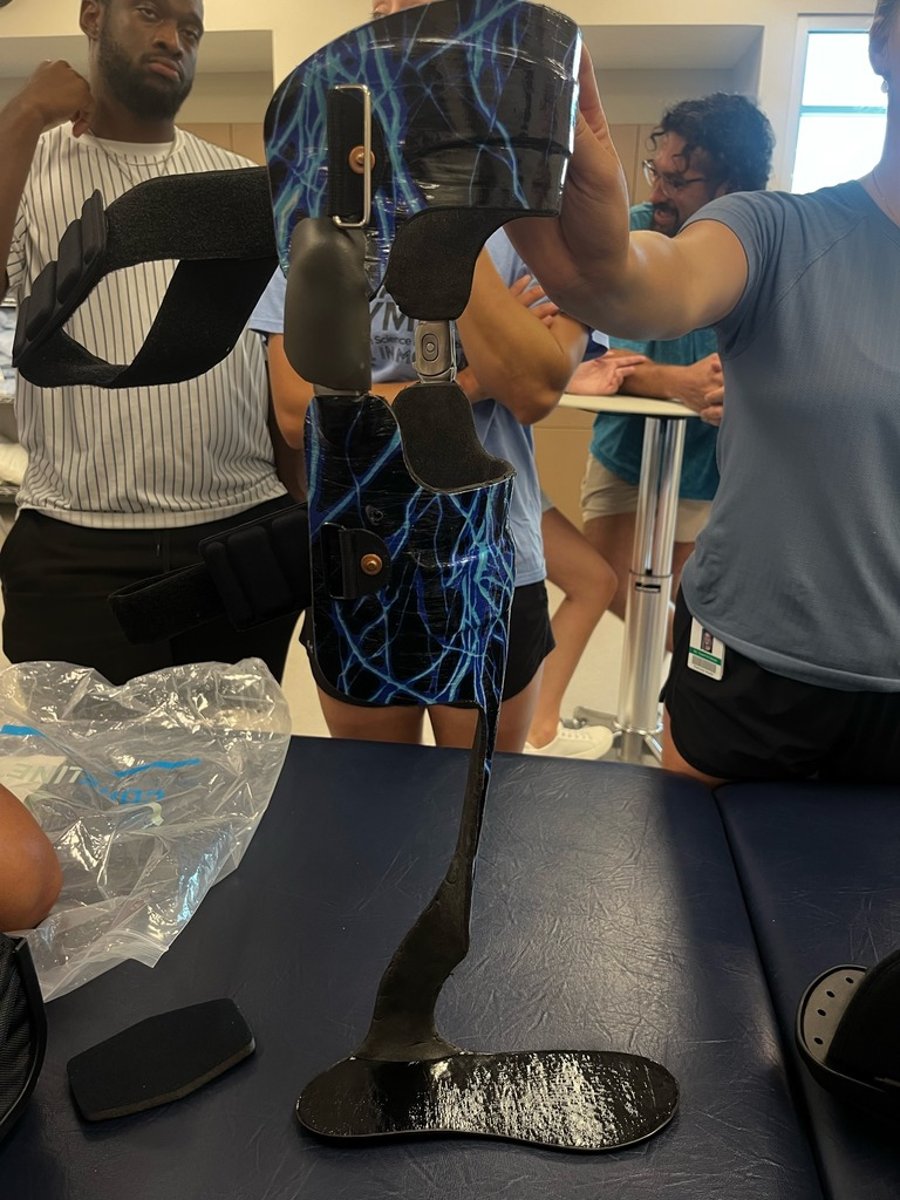

Carbon Fiber KAFO

**free motion knee to move freely through gait

**post polio, CP, Peripheral nerve injuries, foot drop + knee instability

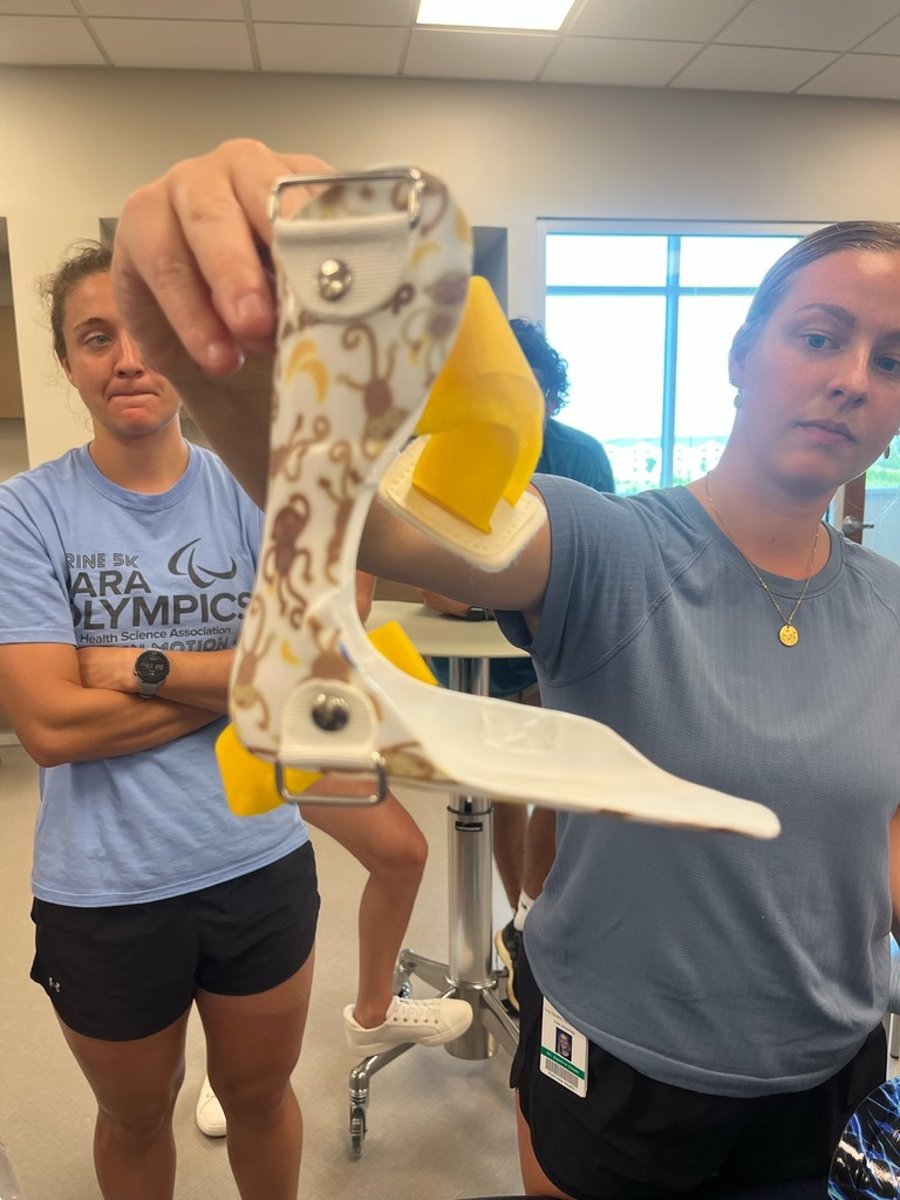

Semi Solid AFO

**moderate weakness

**mod ML instability

also prevents foot drop

**stroke, CP, MS, TBI, PN

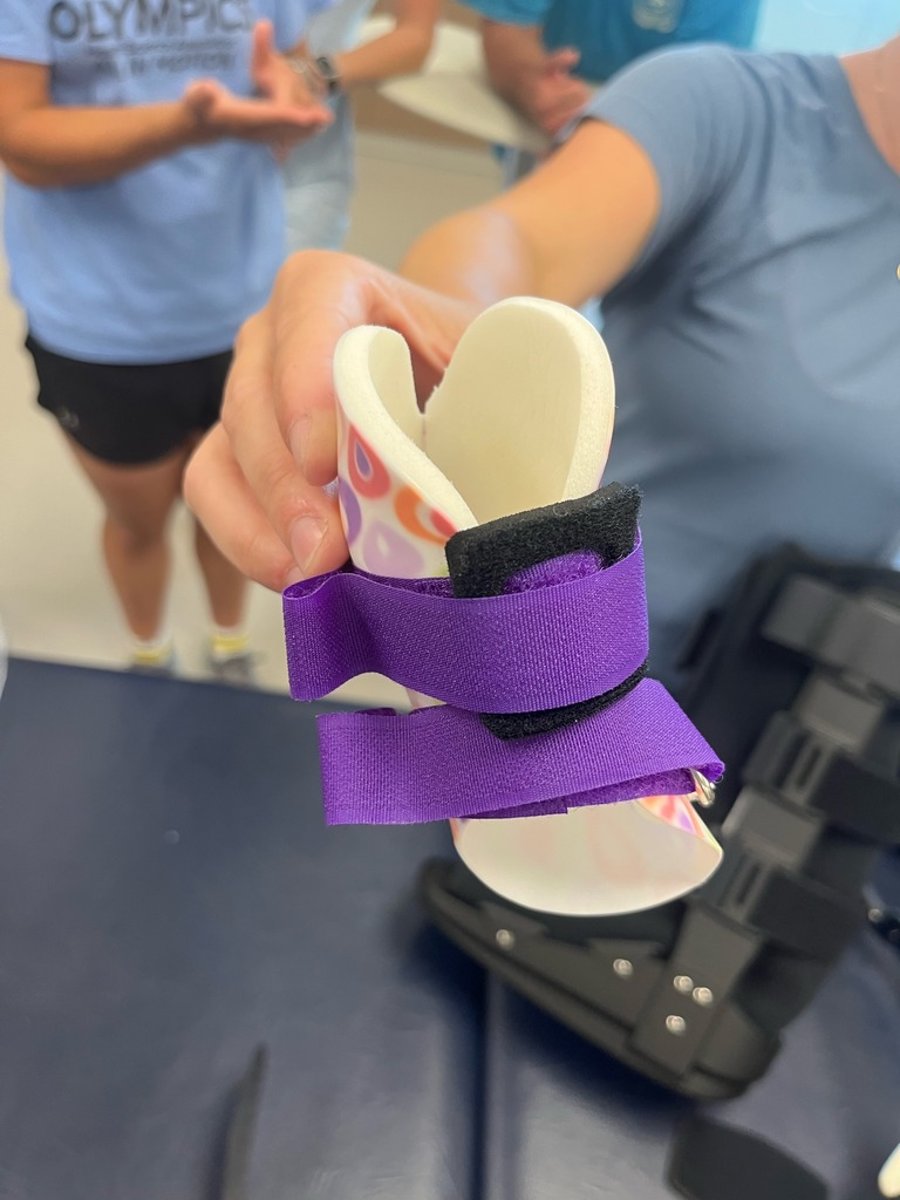

SMO

**for forefoot ABD - unique feature

**lone tone DS

**pes planus

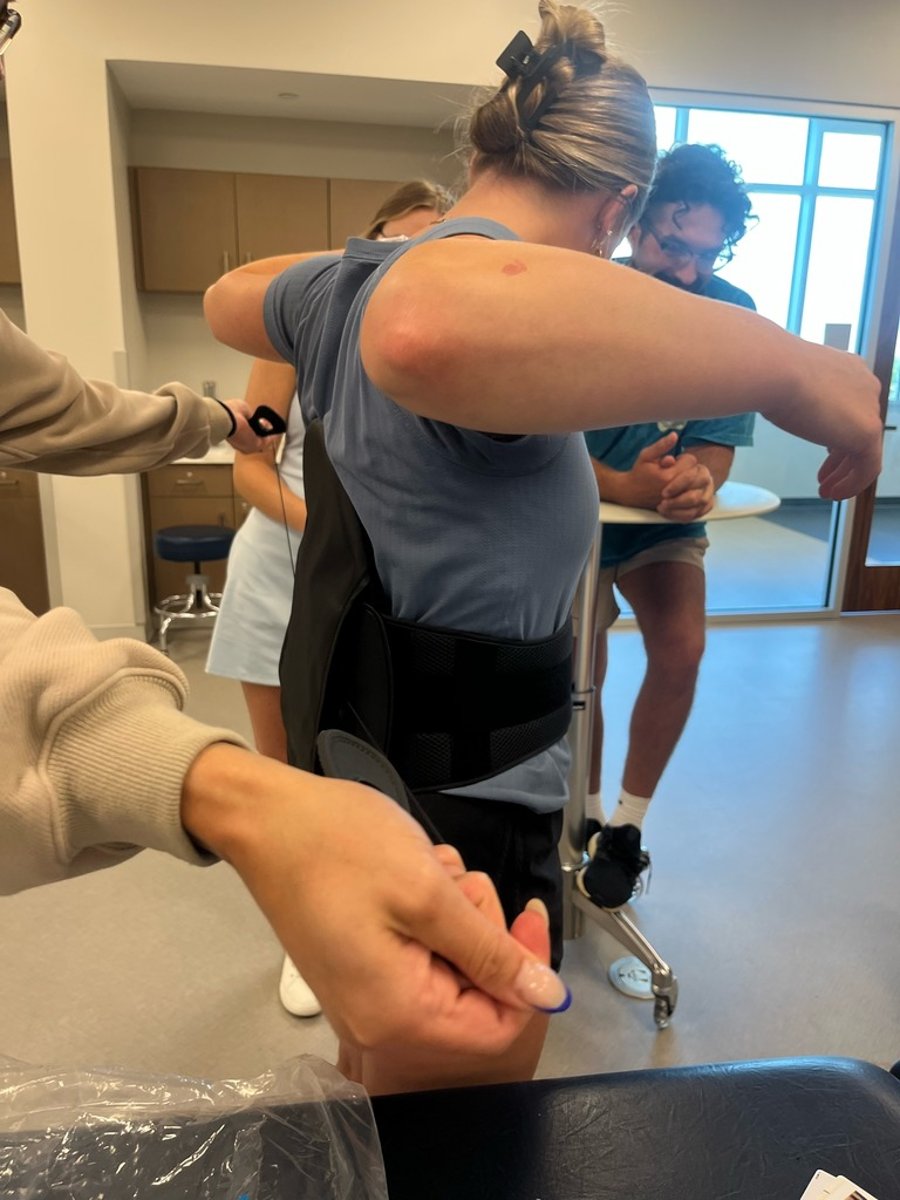

LSO

**Spondylolisthesis

**post op lumbar fusion

**Chronic low back pain

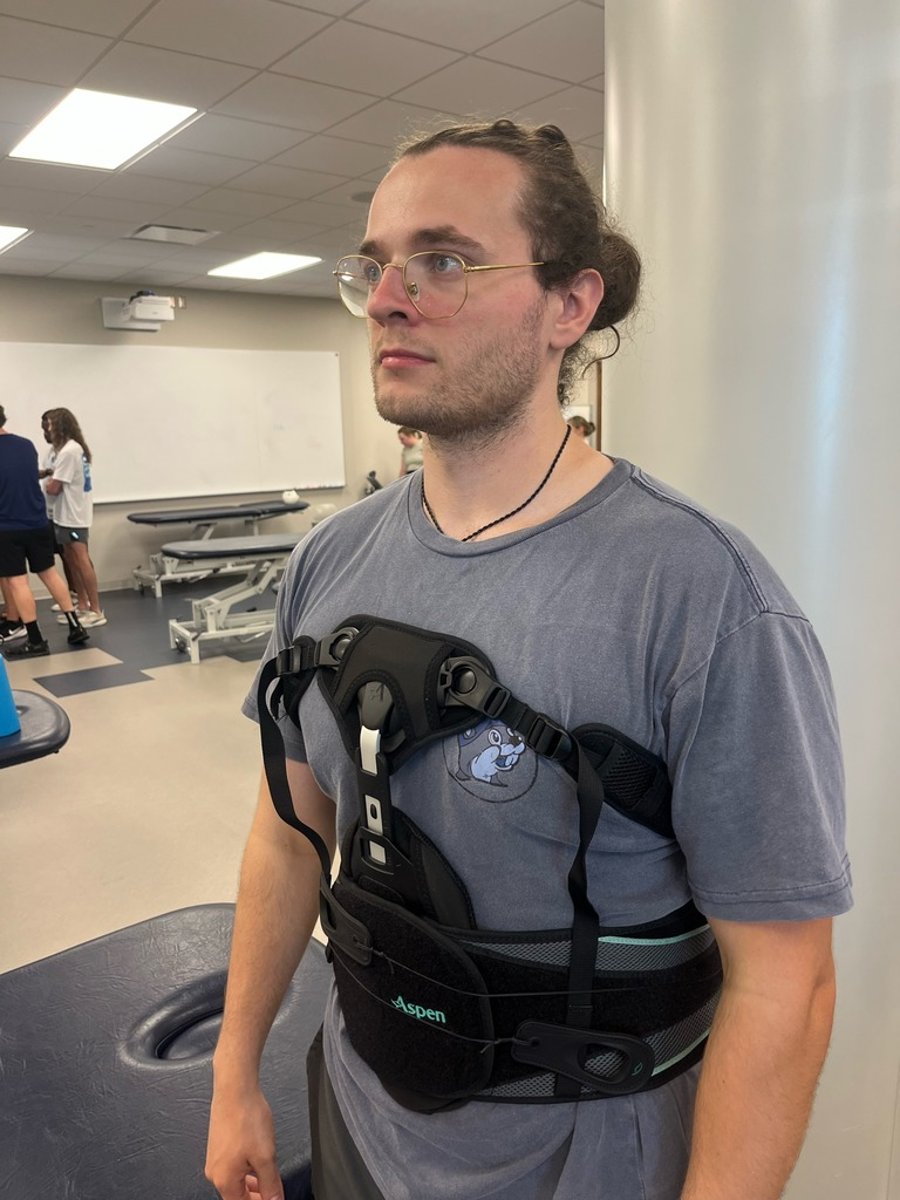

TLSO

**thoracic or upper lumbar compression fx

**post op spinal fusion

**trauma- wedge fx

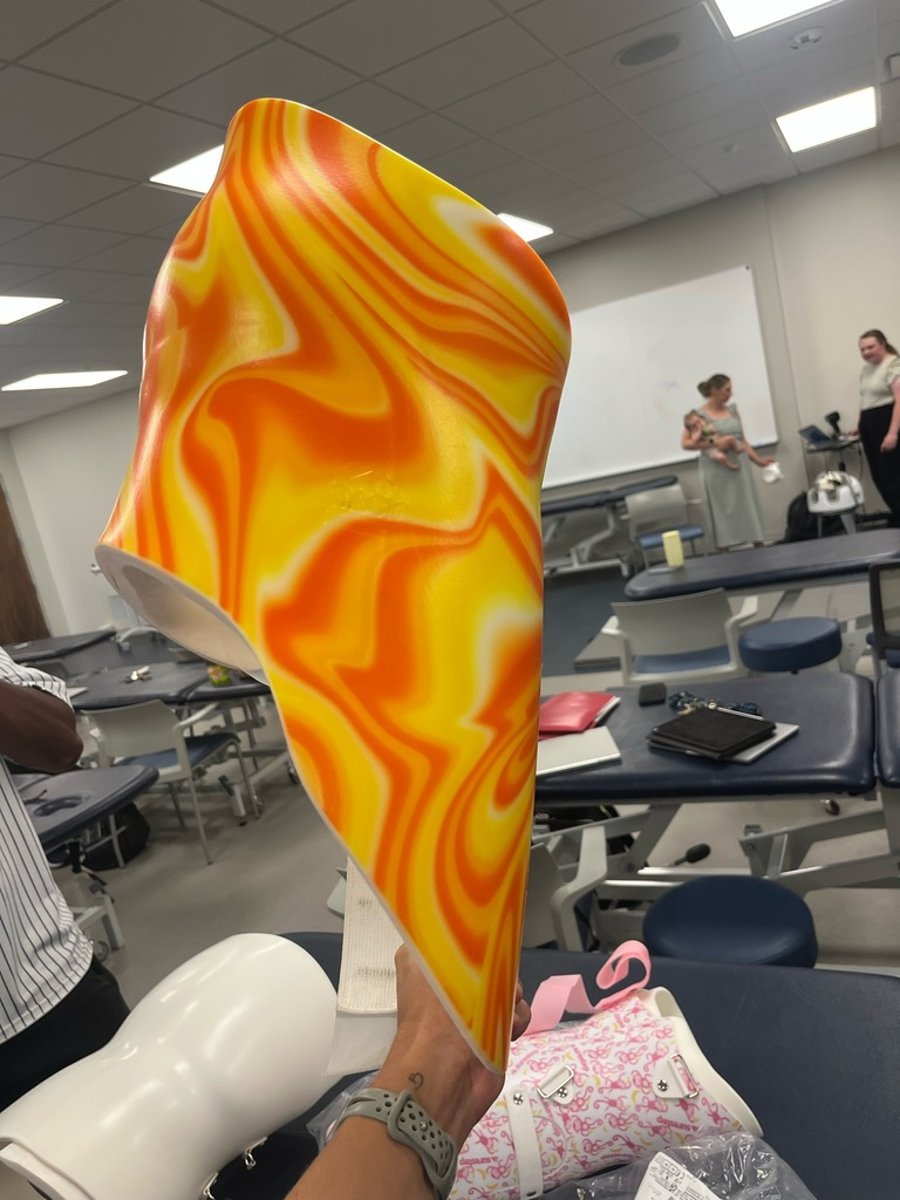

Night time TLSO

**extended greater trochantor trim

**scoliosis 20-40 cobb angle

**struggles with daytime brace

**aggressive, over corrective forces

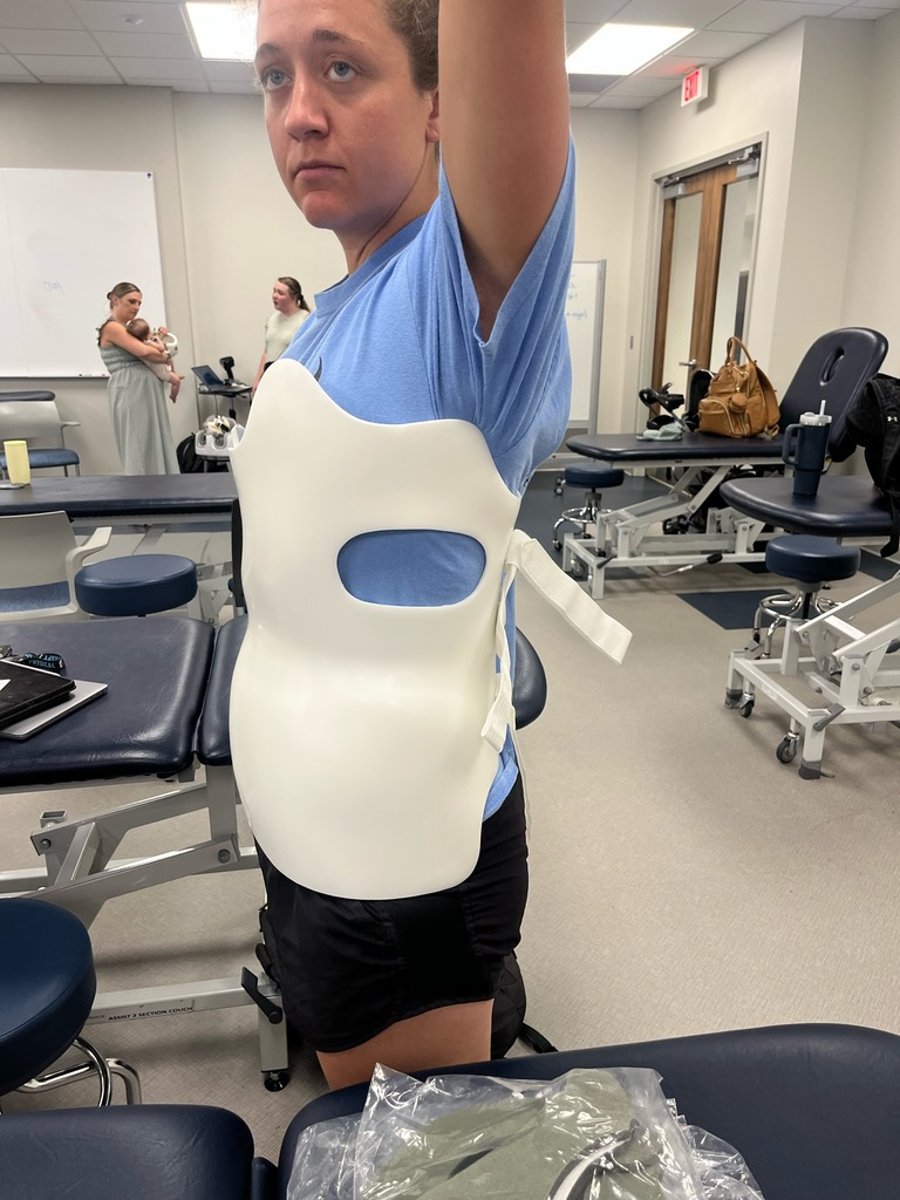

TLSO for Scoliosis

**rib cut out for pressure relief as spine shifts

This is on backwards sorry

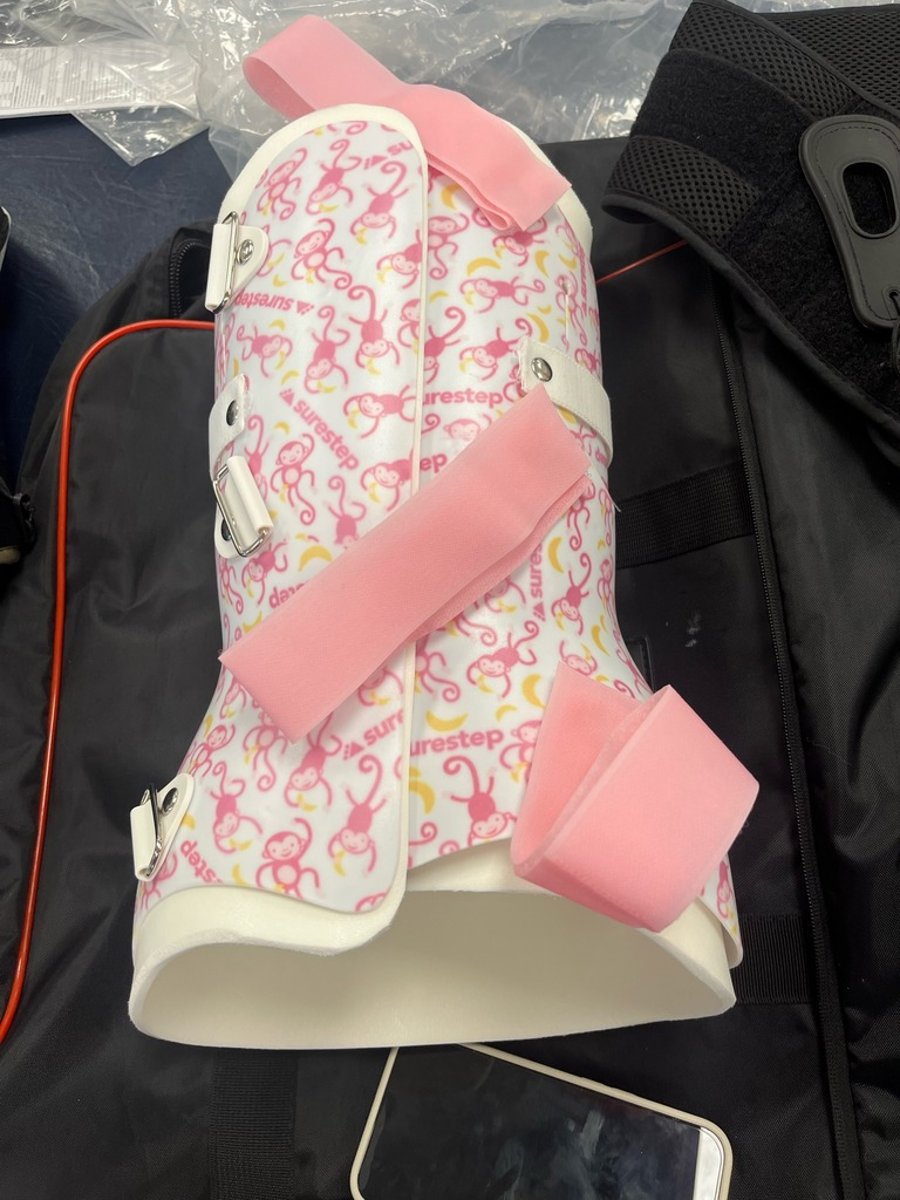

TLSO

**U Gills for rib expansion while breathing

**growing children

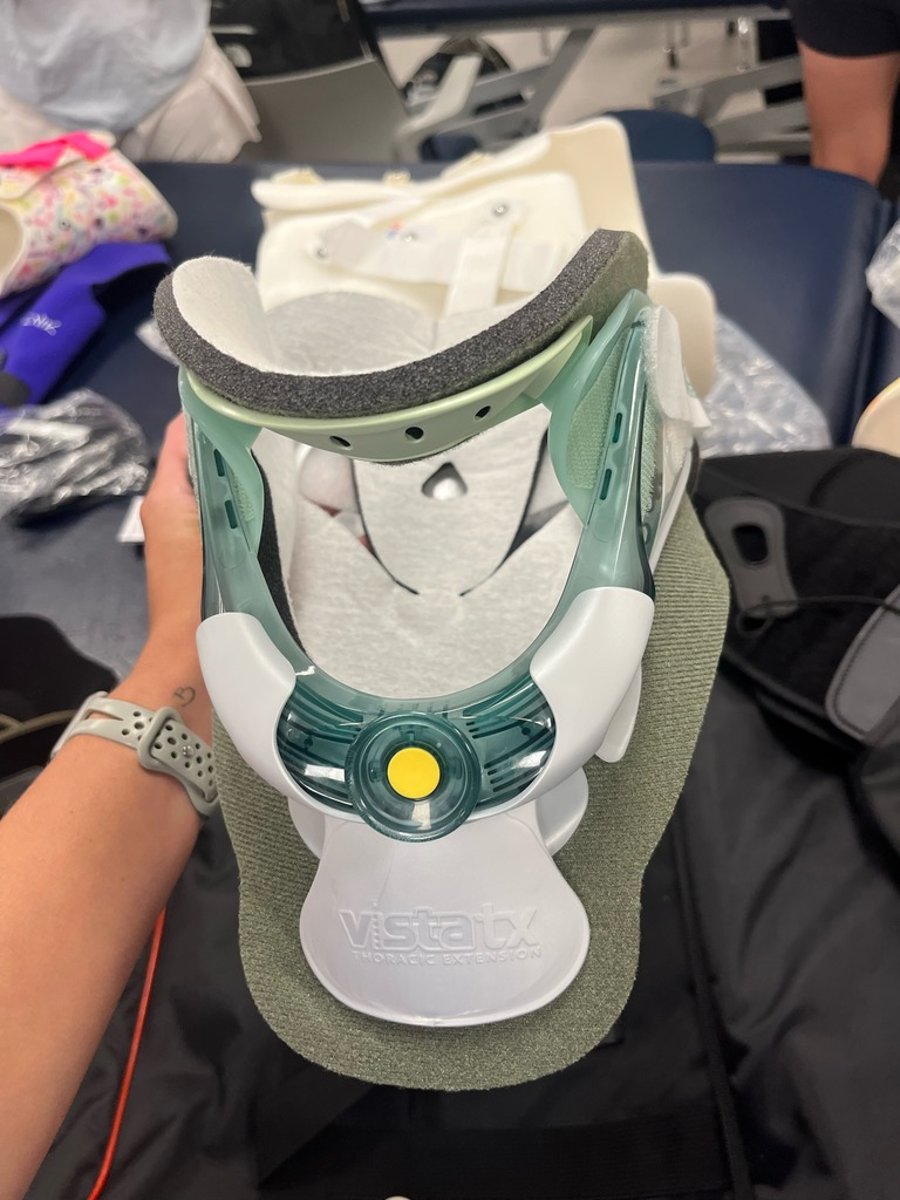

CO

**Whip lash, post op fusions, stable cervical fx, instability

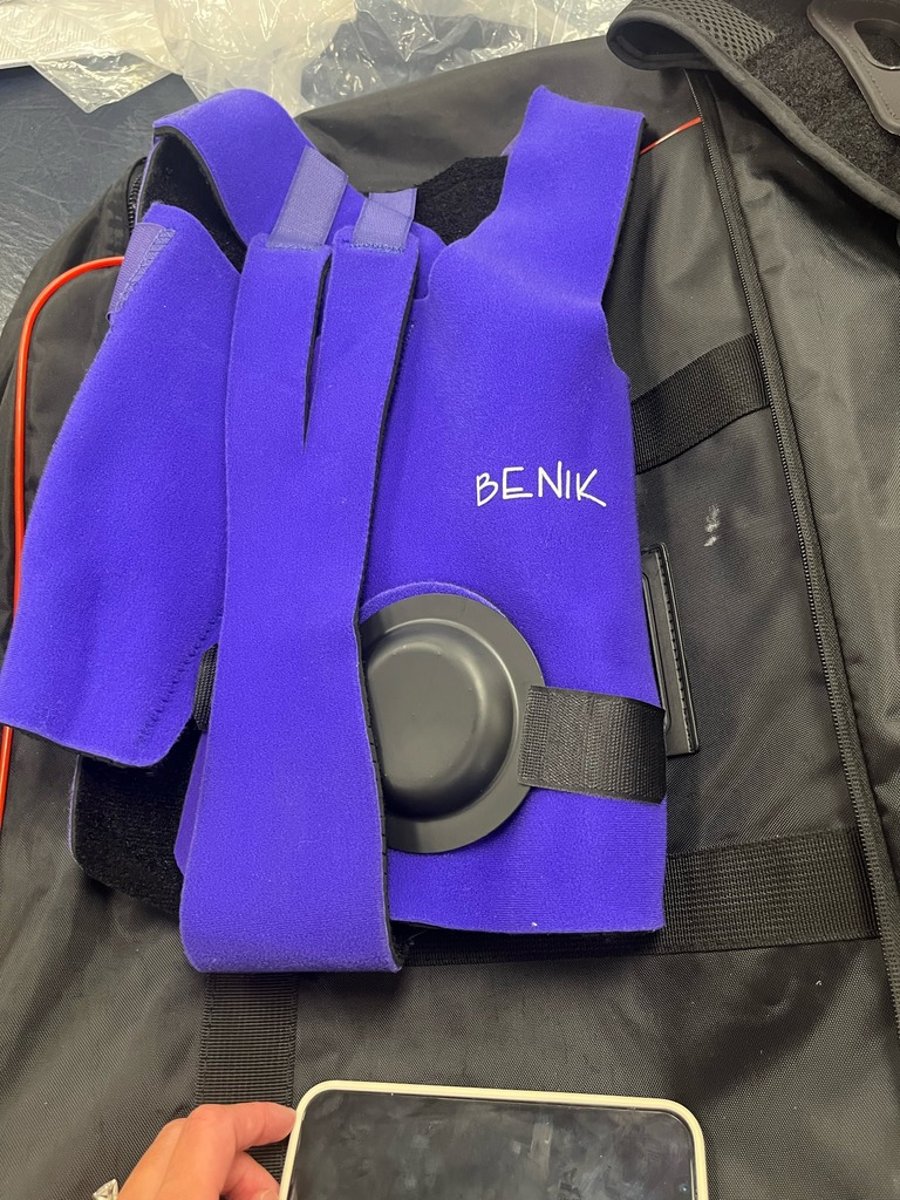

Benik Compression TLSO

**Cut out for g tube, or ostomy bag

**LOW TONE peds

**sensory seeking

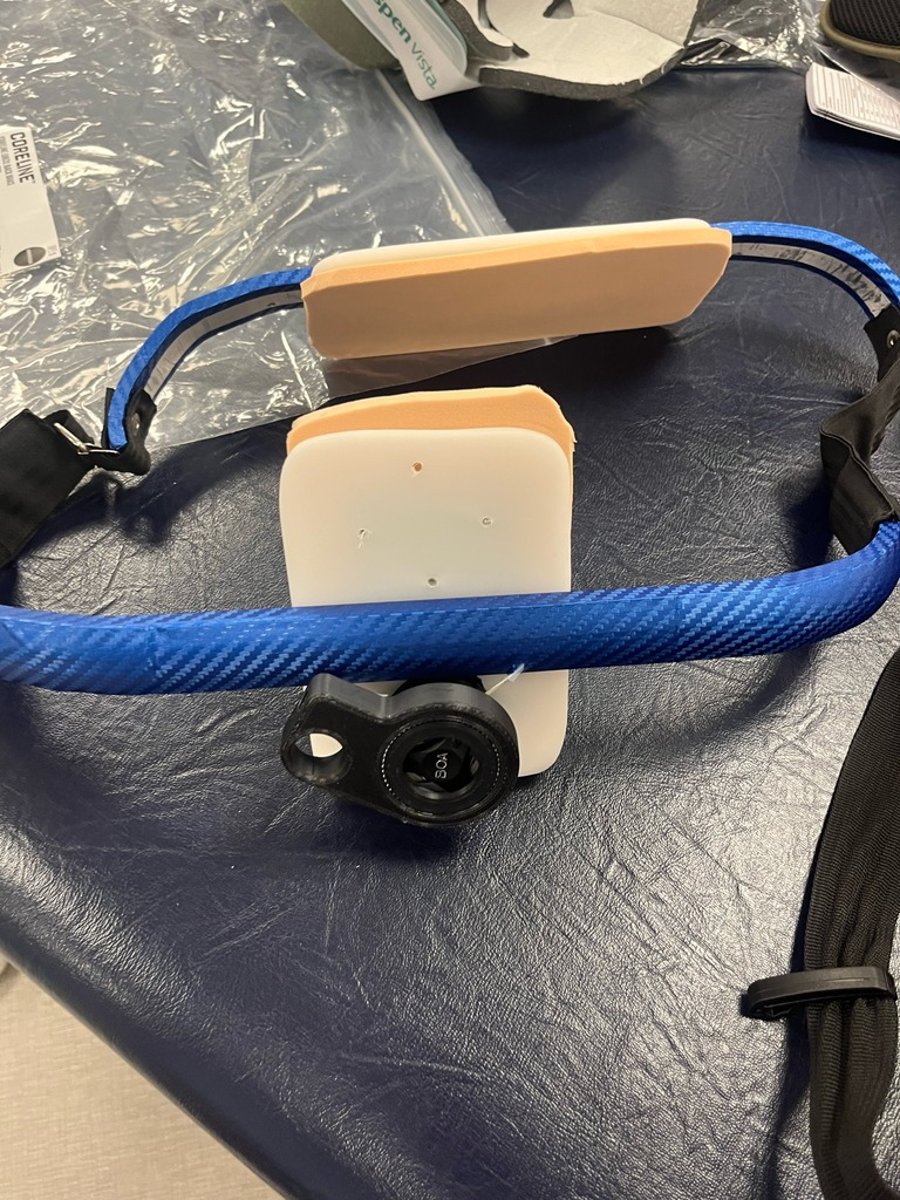

Pectus Brace

**Pectus carinatum

**non surgical option

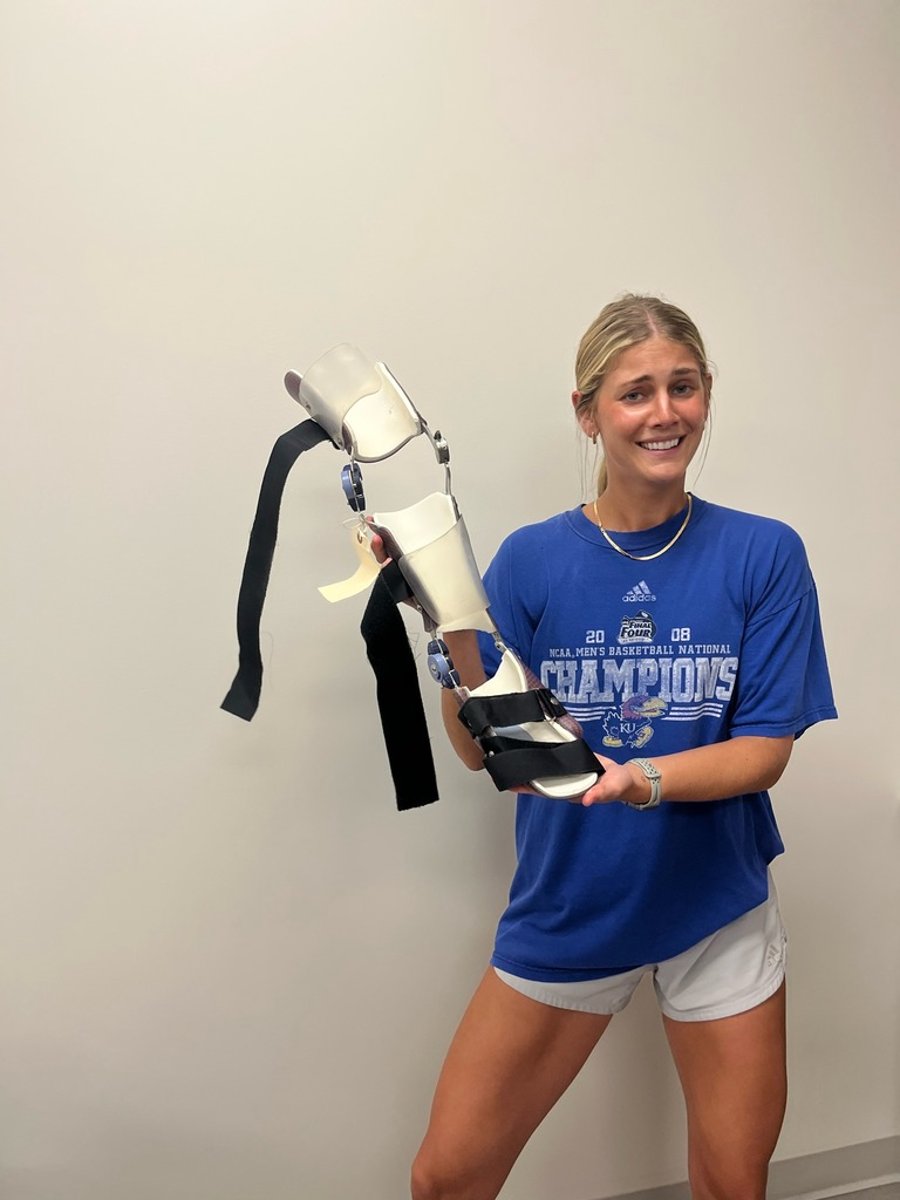

Elbow Wrist Hand Finger Orthosis (EWHFO)

Custom

**CVA upper limb spasticity

**Brachial plexus injury

**CP

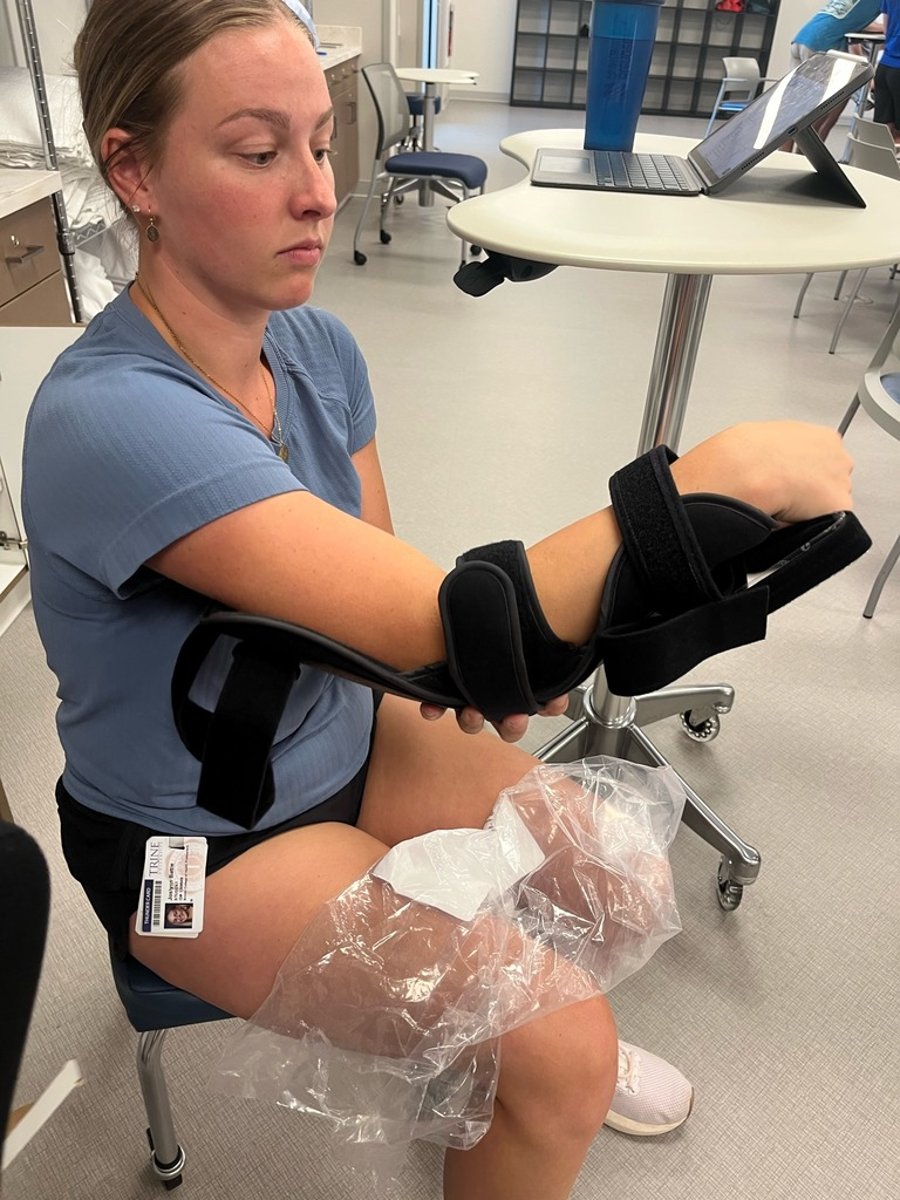

Static Elbow Flexion Splint

**humeral/forearm fx

**elbow arthroplasty

**after elbow injury or sx

**resting for comfort and positioning

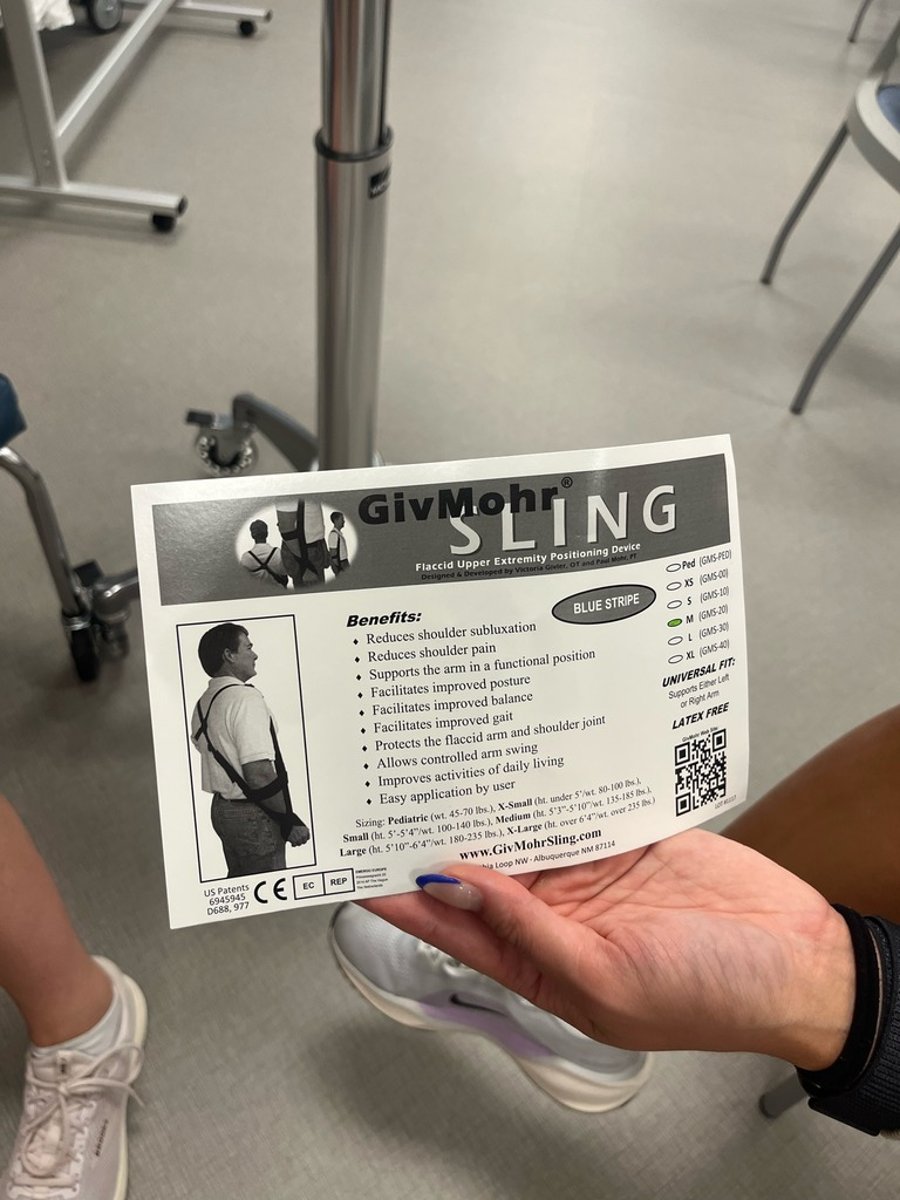

Flaccid UE positioning device

*figure 9

**weak, paralyzed arm, Stroke, TBI or SCI

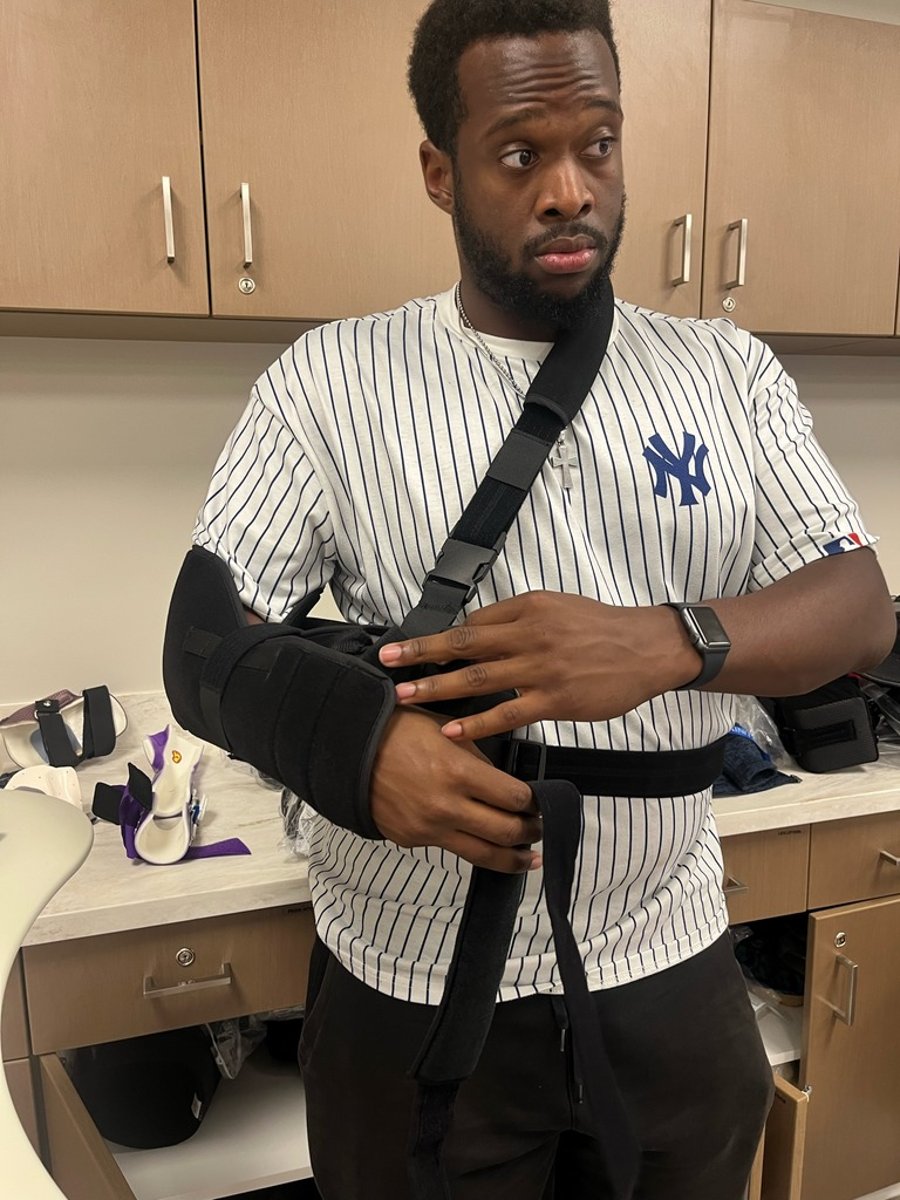

Shoulder Immobilizer SEWO

**RTC repair, early post stroke, shoulder dislocation or subluxation

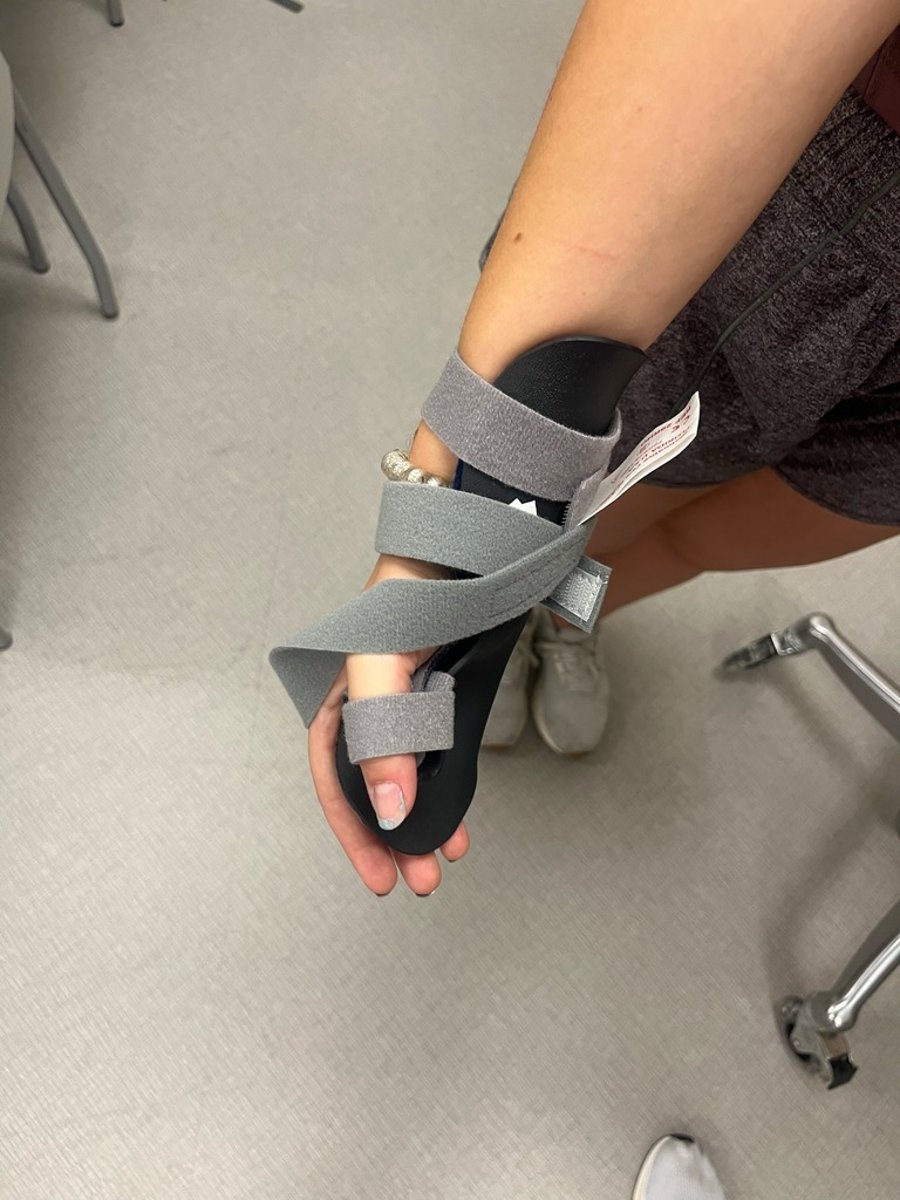

Finger Wrist Hand Orthosis FWHO or resting hand splint

**manage spasticity preserve hand function

**Stroke

*TBI, Ulnary palsy, post op tendon repair

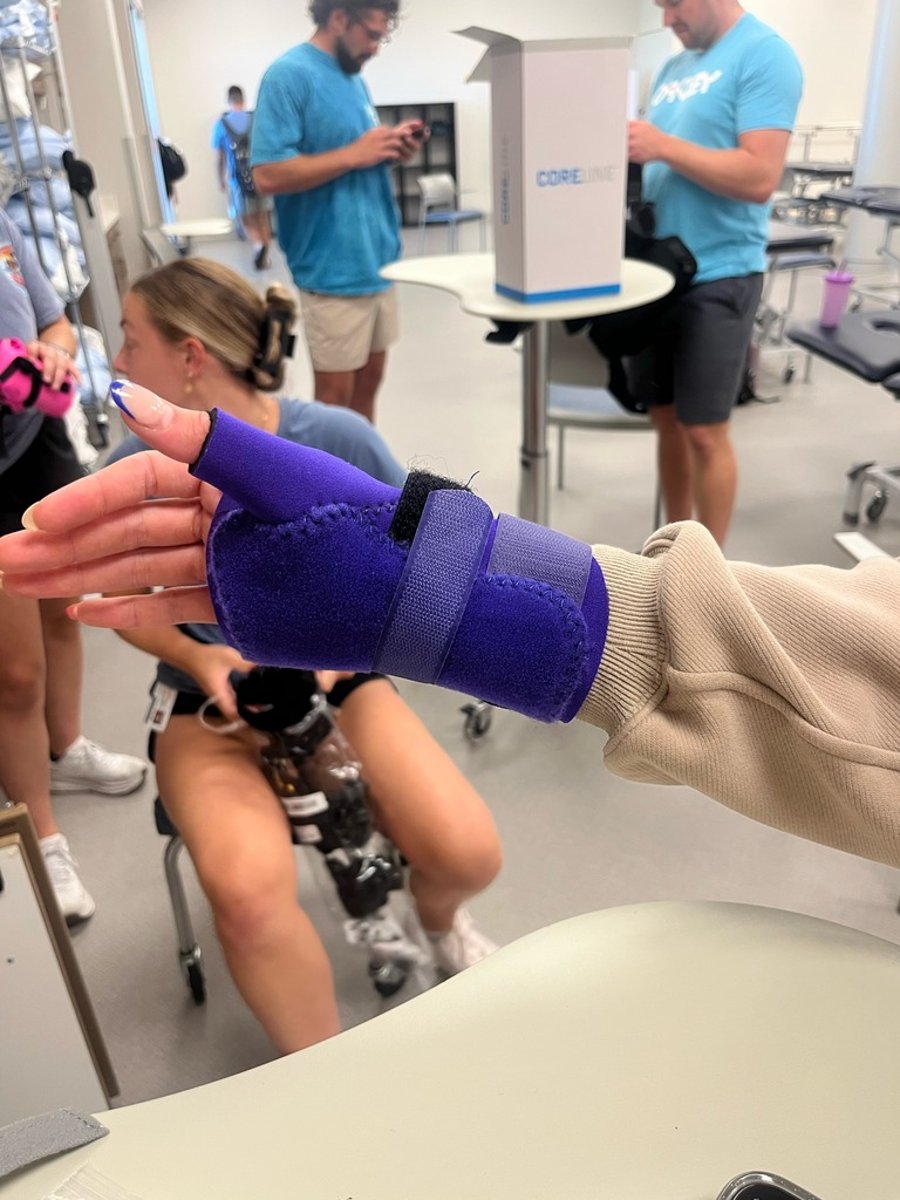

Thumb Spica

Dequervains

arthritis

RA

Thumb sprains

median nerve injuries

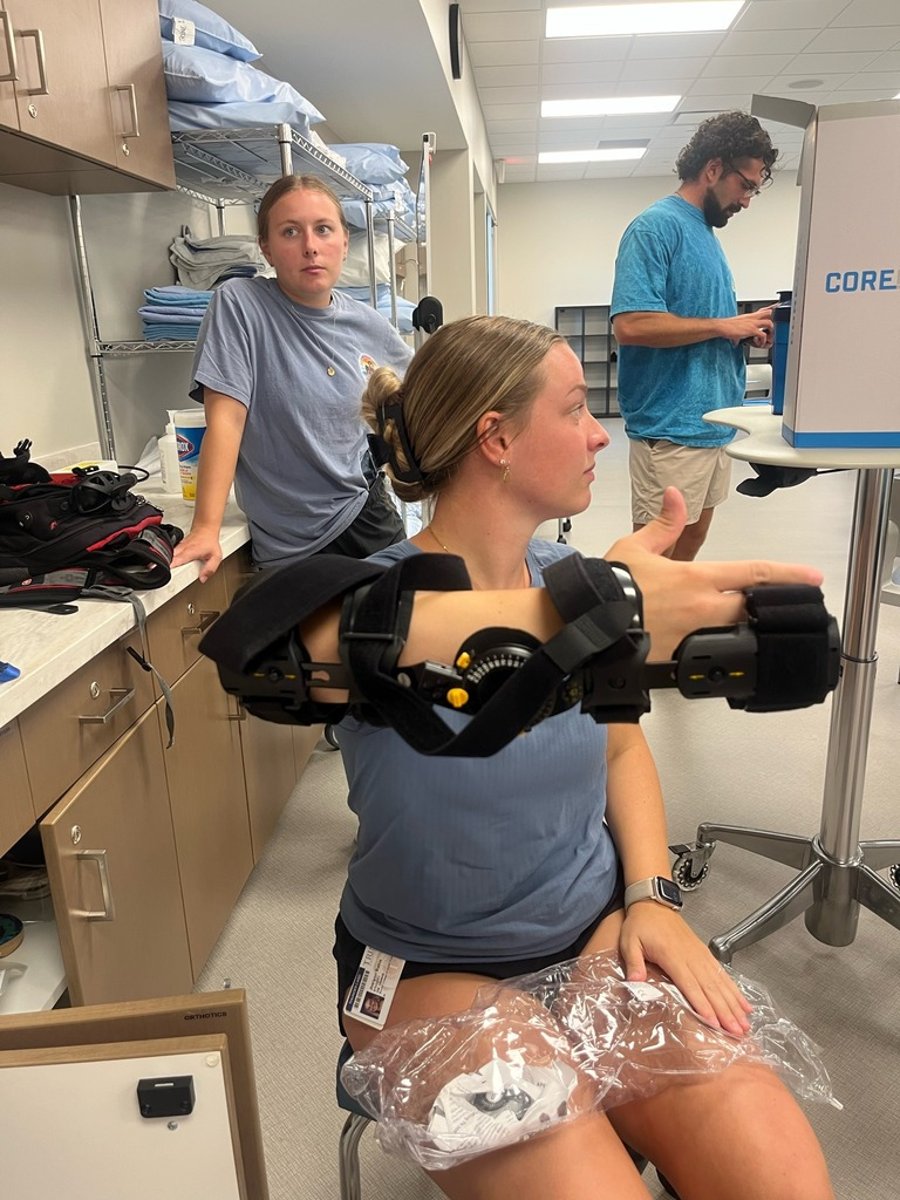

Dynamic elbow orthosis

**articulated elbow joint

**post op tendon lengthening or elbow sx, TBI, Contractures

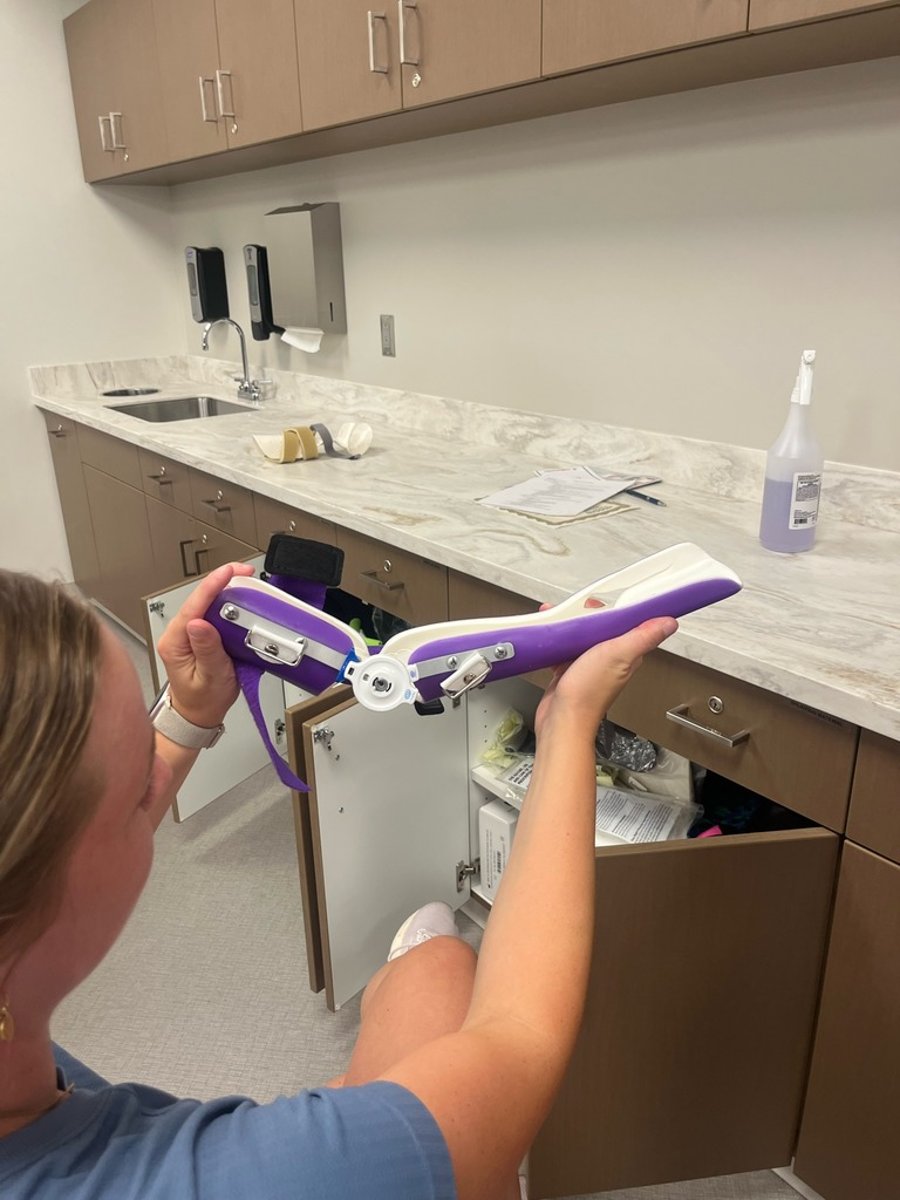

Nighttime Stretching EWHFO

**Spastic hemiplegia

TBI

CP

Burn recovery or tendon repair
