Neuroanatomy II | Exam 1 Testable Images

Red

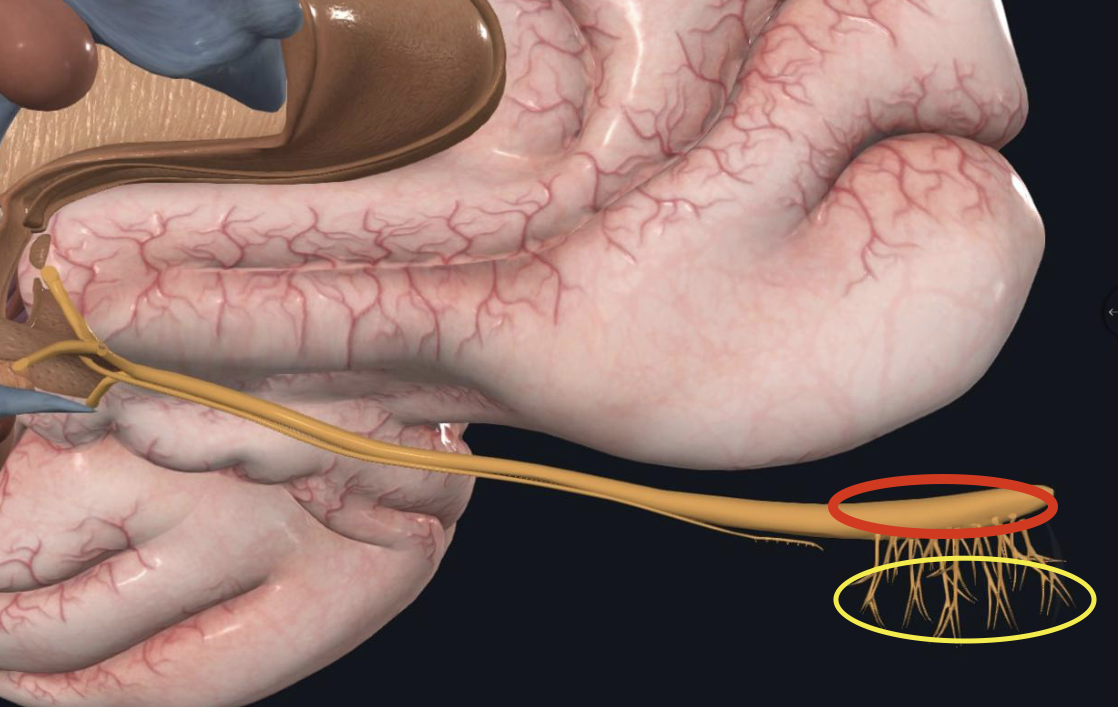

Olfactory bulb

2

Olfactory hair

1

Olfactory tract

2

Granule cell

3

Mitral cell

4

Periglomerular cell

5

Glomerulus

6

Cribriform plate

7

Olfactory nerve fiber

8

Basal cell

9

Sustentacular cell

10

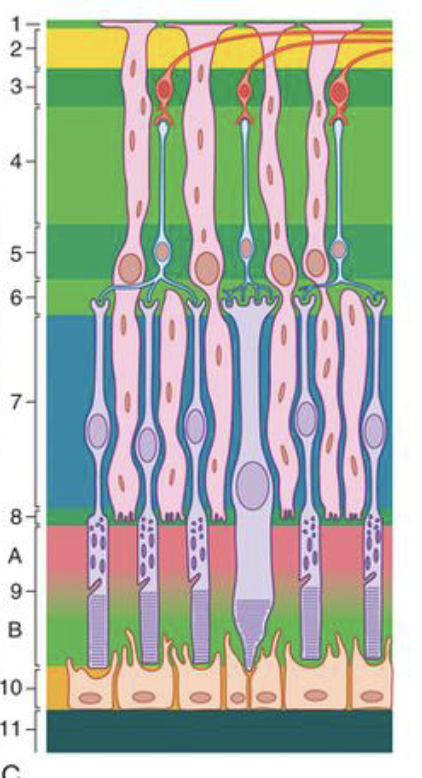

Bipolar neuron

1

Internal limiting membrane

2

Nerve fiber layer

3

Ganglion cell layer

4

Inner plexiform layer

5

Inner nuclear layer

6

Outer plexiform layer

7

Outer nuclear layer

8

External limiting membrane

9a

Photoreceptor inner layer

9b

Photoreceptor outer layer

10

Pigmented epithelium

11

Choroid

1

Oculomotor nerve (III)

2

Superior branch

3

Levator palpebrae superioris

4

Superior rectus

5

Inferior branch

6

Inferior rectus

7

Medial rectus

8

Ciliary ganglion

9

Inferior oblique

1

Sensory root

2

Nasociliary nerve

3

Long ciliary nerve

4

Sympathetic root

5

Parasympathetic (motor) root

6

Ciliary ganglion

7

Oculomotor nerve (III)

8

Short ciliary nerve

9

Sensory fibers

10

Sympathetic postganglionic fibers

11

Parasympathetic preganglionic fibers

12

Parasympathetic postganglionic fibers

1

Anterior ethmoidal nerve

2

Infratrochlear nerve

3

Supratrochlear nerve

4

Supra-orbital nerve

5

Posterior ethmoidal nerve

6

Lacrimal nerve (from V1)

7

Long ciliary nerves

8

Frontal nerve (from V1)

9

Nasociliary nerve (from V1)

10

Optic nerve (II)

11

Ophthalmic nerve (V1)

1

Pharyngeal nerve

2

Zygomatic nerve

3

Zygomaticotemporal nerve

4

Zygomaticofacial nerve

5

Infraorbital nerve

6

Anterior superior alveolar nerve

7

Middle superior alveolar nerve

8

Posterior superior alveolar nerve

9

Greater palatine nerve

10

Soft palate

11

Lesser palatine nerve

1

Trigeminal ganglion

2

Anterior trunk

3

Meningeal branch

4

Branch to tensor tympani

5

Posterior trunk

6

Branch to tensor veli palatini

7

Nerve to medial pterygoid

8

Deep head medial pterygoid

9

Masseteric nerve

10

Lower head lateral pterygoid

11

Deep temporal nerves

12

Upper head lateral pterygoid

13

Nerve to lateral pterygoid

14

Buccal nerve

1

Auriculotemporal nerve

2

Petrotympanic fissure

3

Chorda tympani nerve

4

Inferior alveolar nerve

5

Nerve to mylohyoid

6

Lingual nerve

7

Incisive nerve

8

Mental nerve

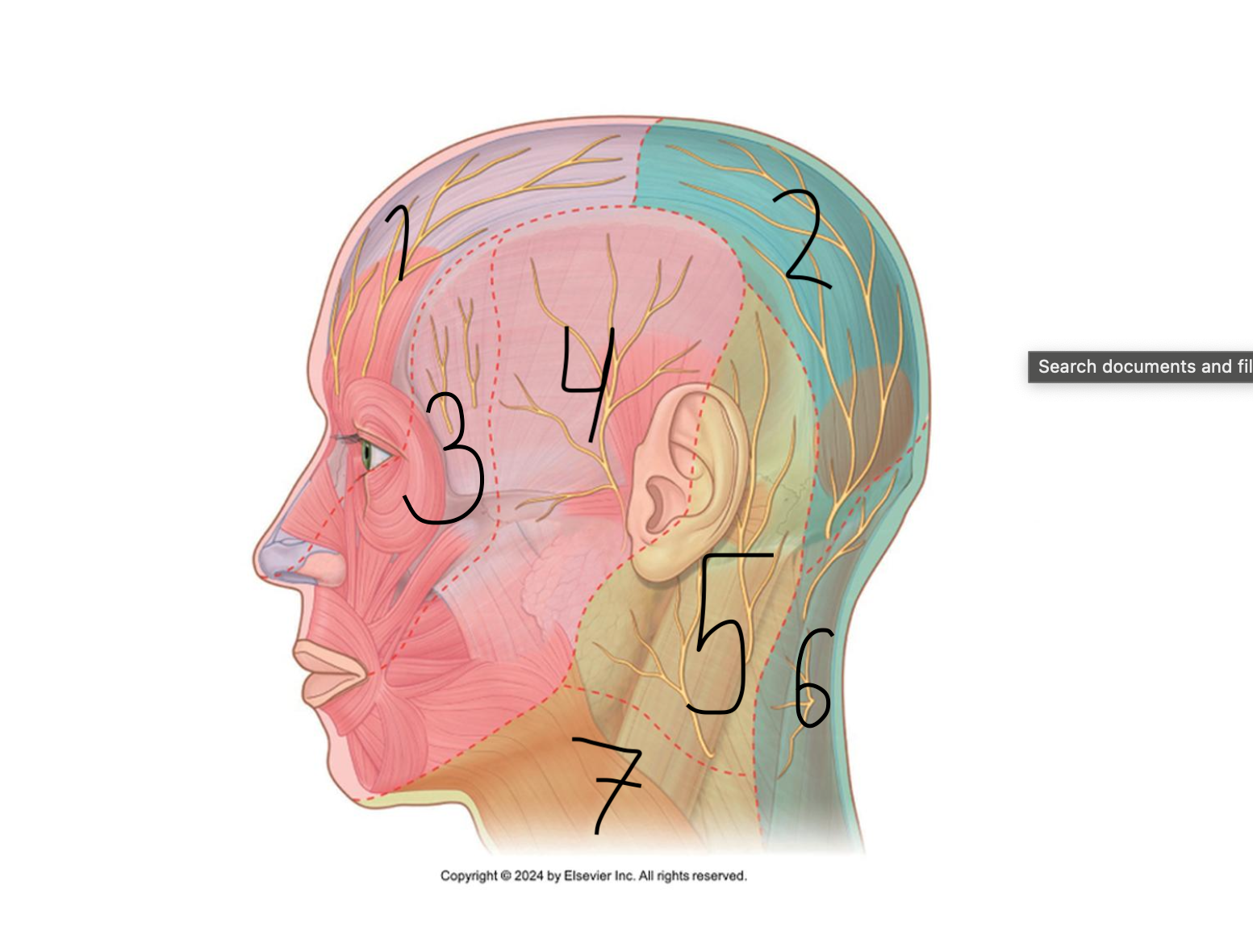

1

Ophthalmic nerve (V1)

3

Maxillary nerve (V2)

4

Mandibular nerve (V3)

1

Lacrimal gland

2

Lacrimal nerve

3

Zygomatic nerve

4

Deep petrosal nerve

5

V1

6

V2

7

V3

8

Parasympathetic nerves in branch of zygomaticotemporal nerve
