BONUS: Building Construction: Site Preparation

0.0(0)
studied byStudied by 0 people
0.0(0)
full-widthCall Kai
learnLearn
examPractice Test
spaced repetitionSpaced Repetition
heart puzzleMatch
flashcardsFlashcards
GameKnowt Play
Card Sorting

1/37

encourage image

There's no tags or description

Looks like no tags are added yet.

Study Analytics
Name
Mastery
Learn
Test
Matching
Spaced

No study sessions yet.

38 Terms

1
New cards

-laying out of building

-process of relocating the point boundaries and property line of the site

Staking out

2
New cards

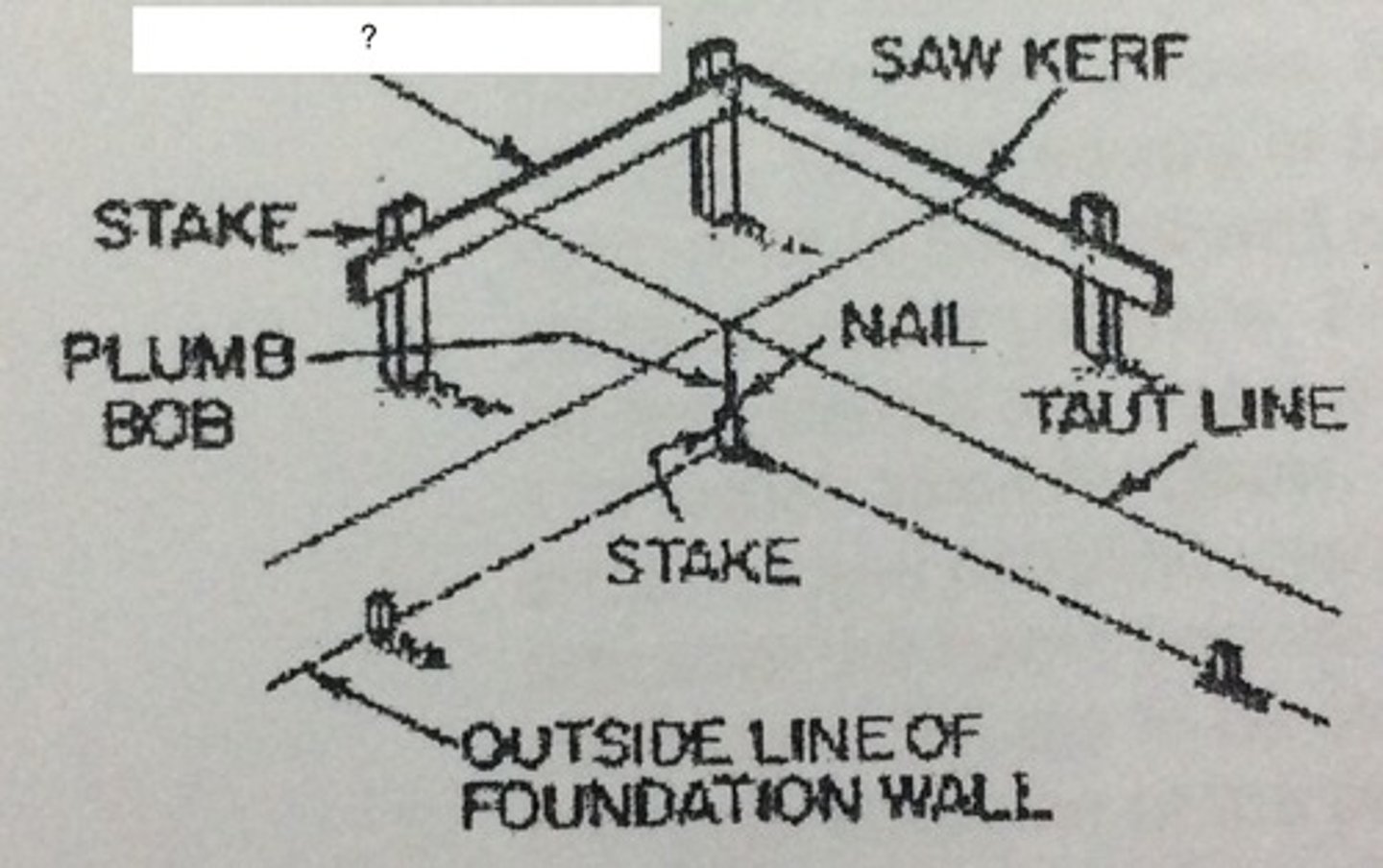

horizontal boards used to established the height of the finish foundation and to support the guidelines for the excavation of footing trenches.

Batterboard

<p>Batterboard</p>
3
New cards

distance of batter board from excavation

1.2 to 3 meters

4
New cards

vertical and horizontal line check

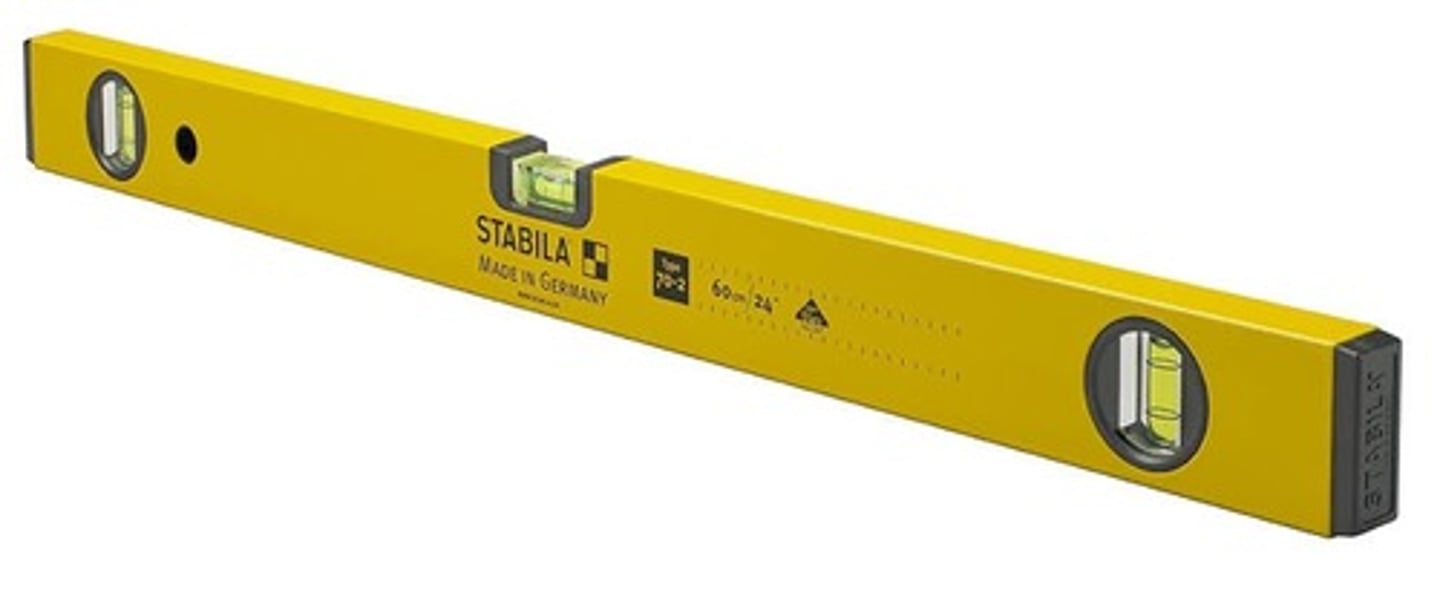

Spirit Level

<p>Spirit Level</p>
5
New cards

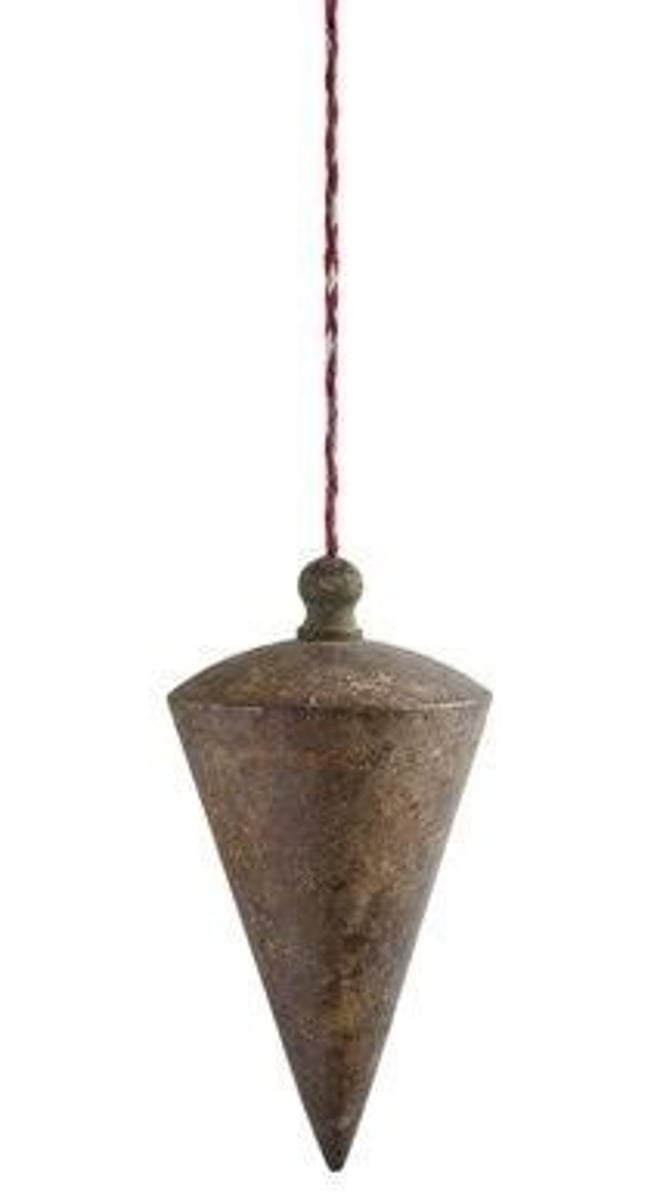

vertical line check

Plumbob

<p>Plumbob</p>
6
New cards

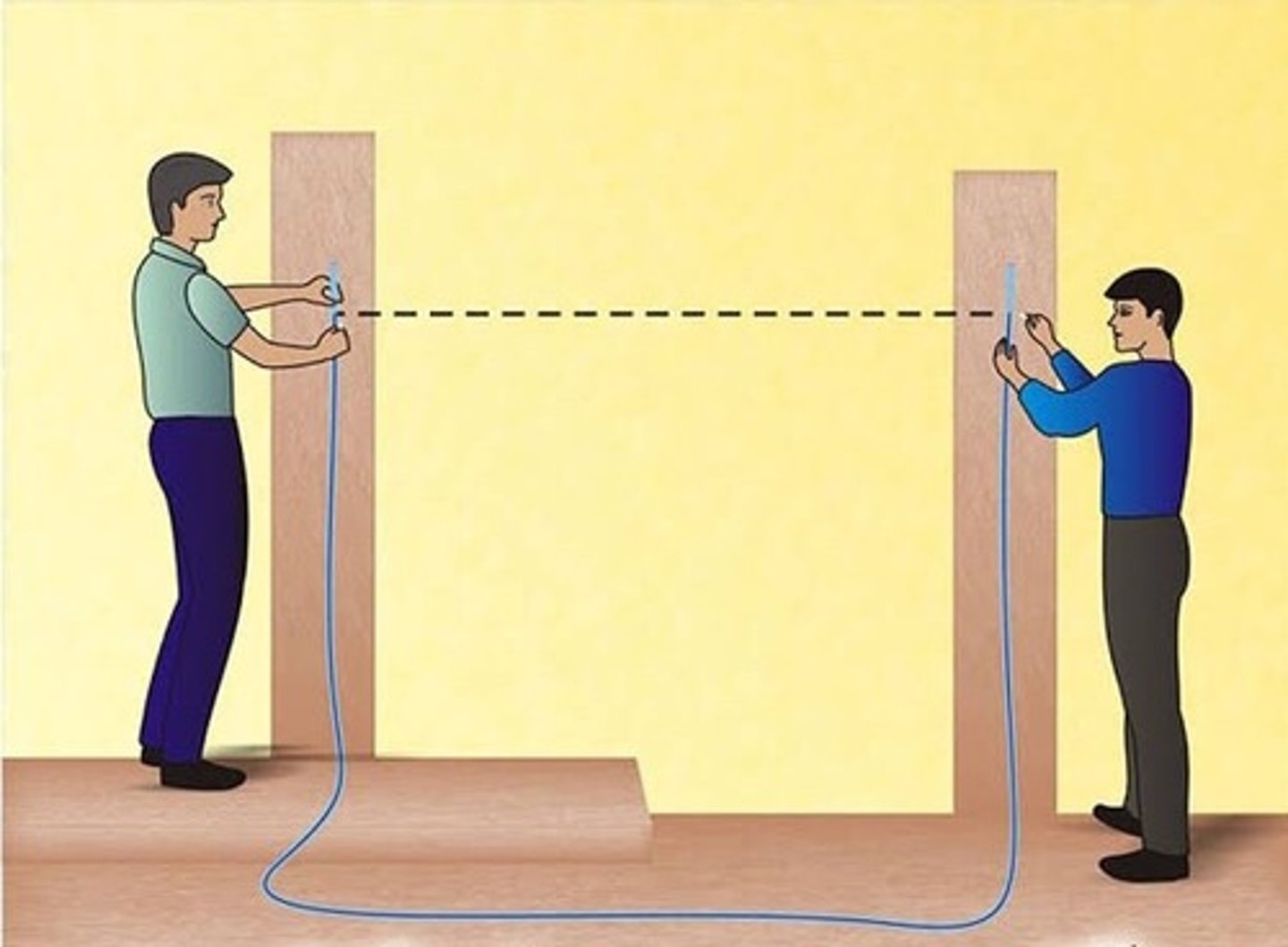

horizontal line check

Leveling hose

<p>Leveling hose</p>
7
New cards

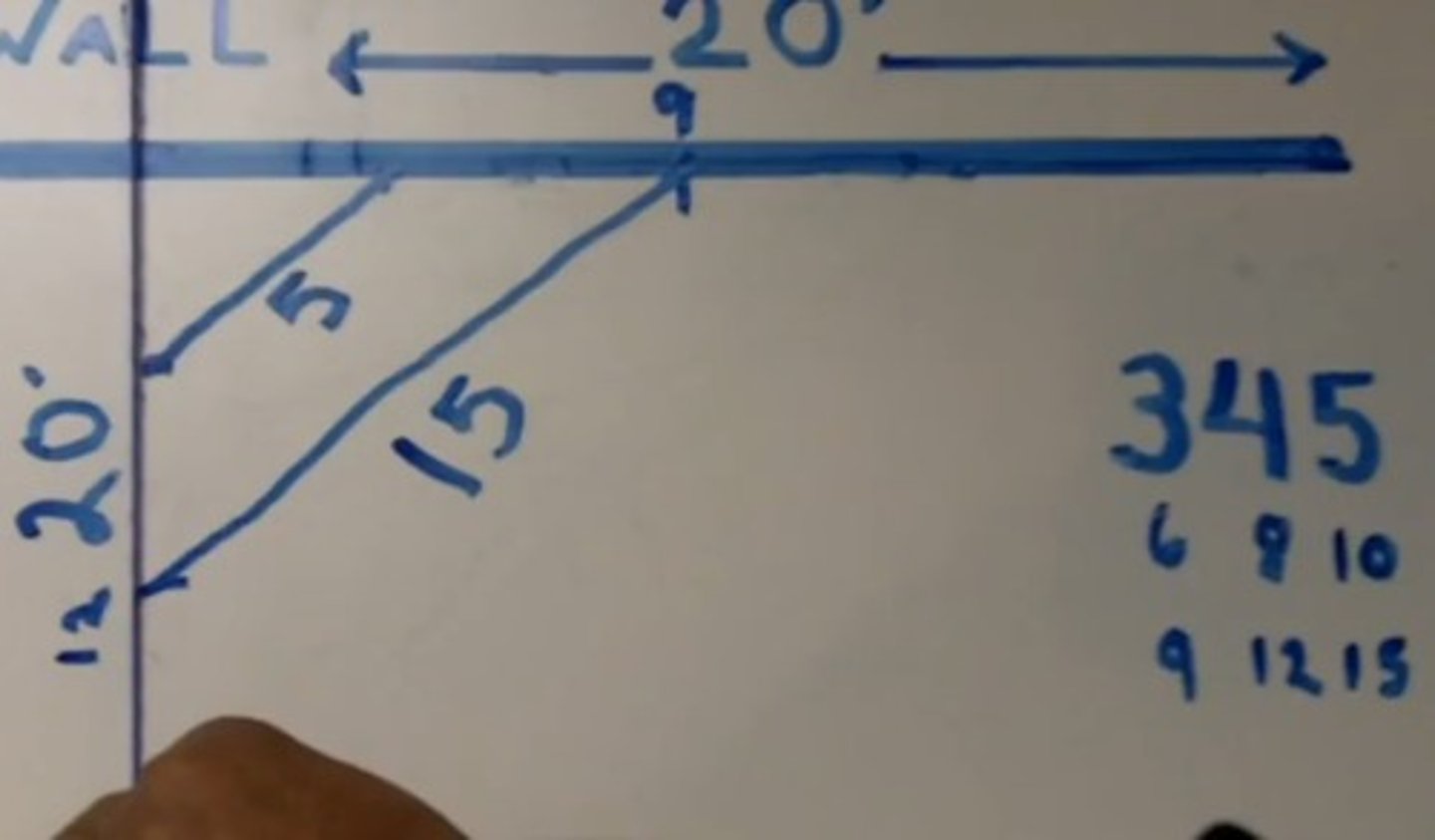

manual method of squaring the corners of building lines in staking

3-4-5 multiple (steel tape)

<p>3-4-5 multiple (steel tape)</p>
8
New cards

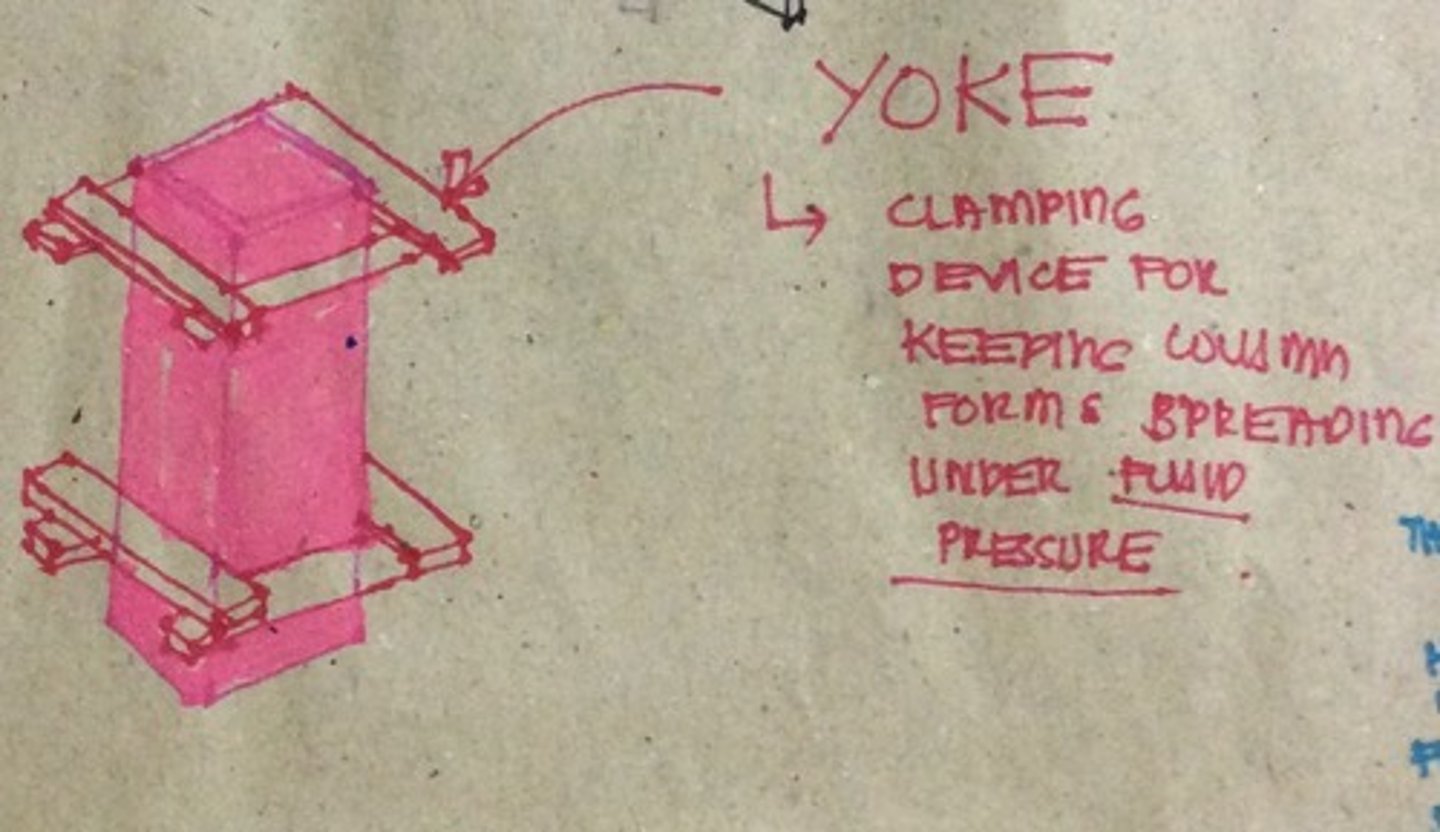

temporary structure to support concrete

Formwork

<p>Formwork</p>
9
New cards

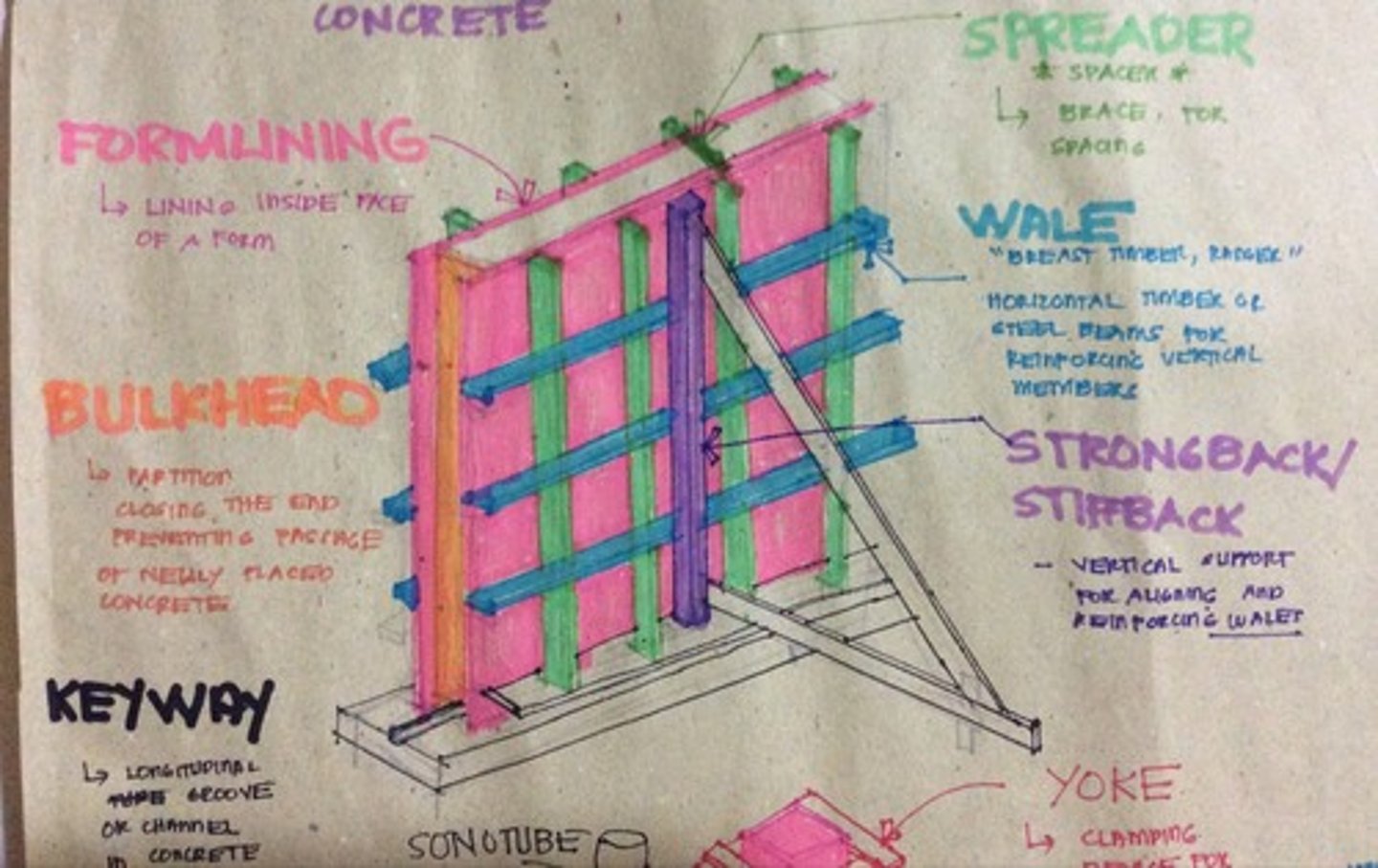

Wall formwork

<p>Wall formwork</p>
10
New cards

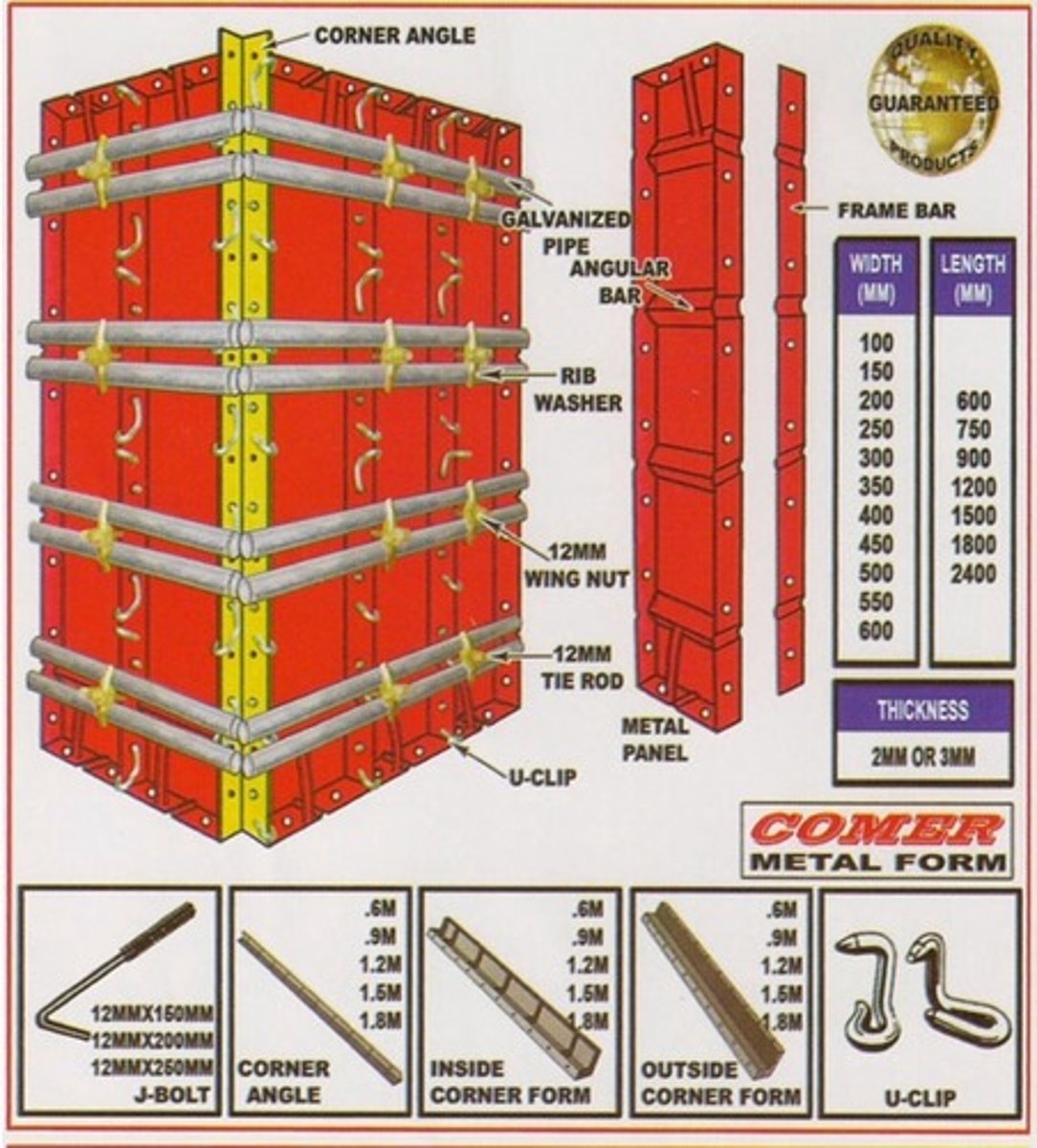

Metal formwork

<p>Metal formwork</p>
11
New cards

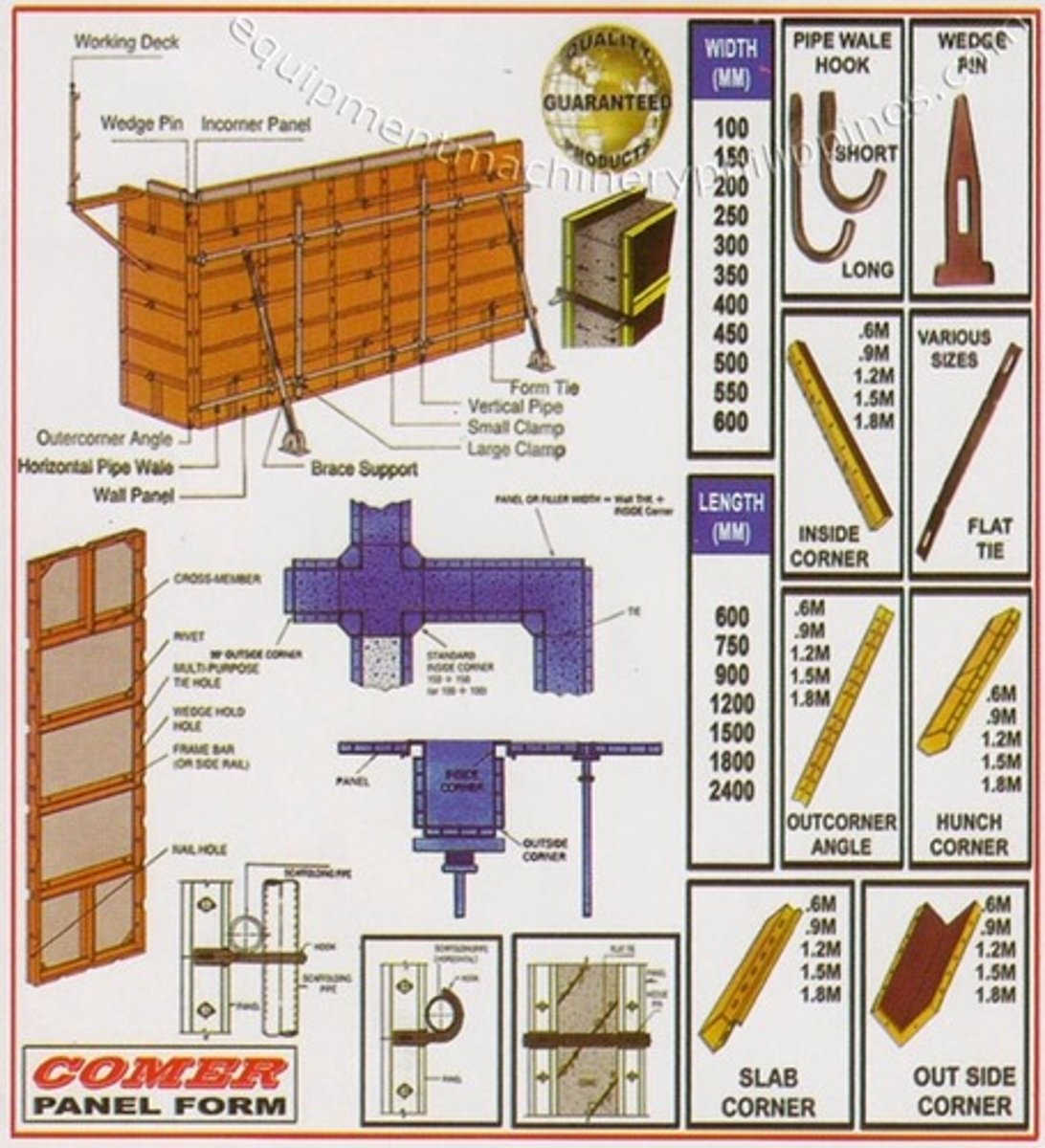

Panel formwork

<p>Panel formwork</p>
12
New cards

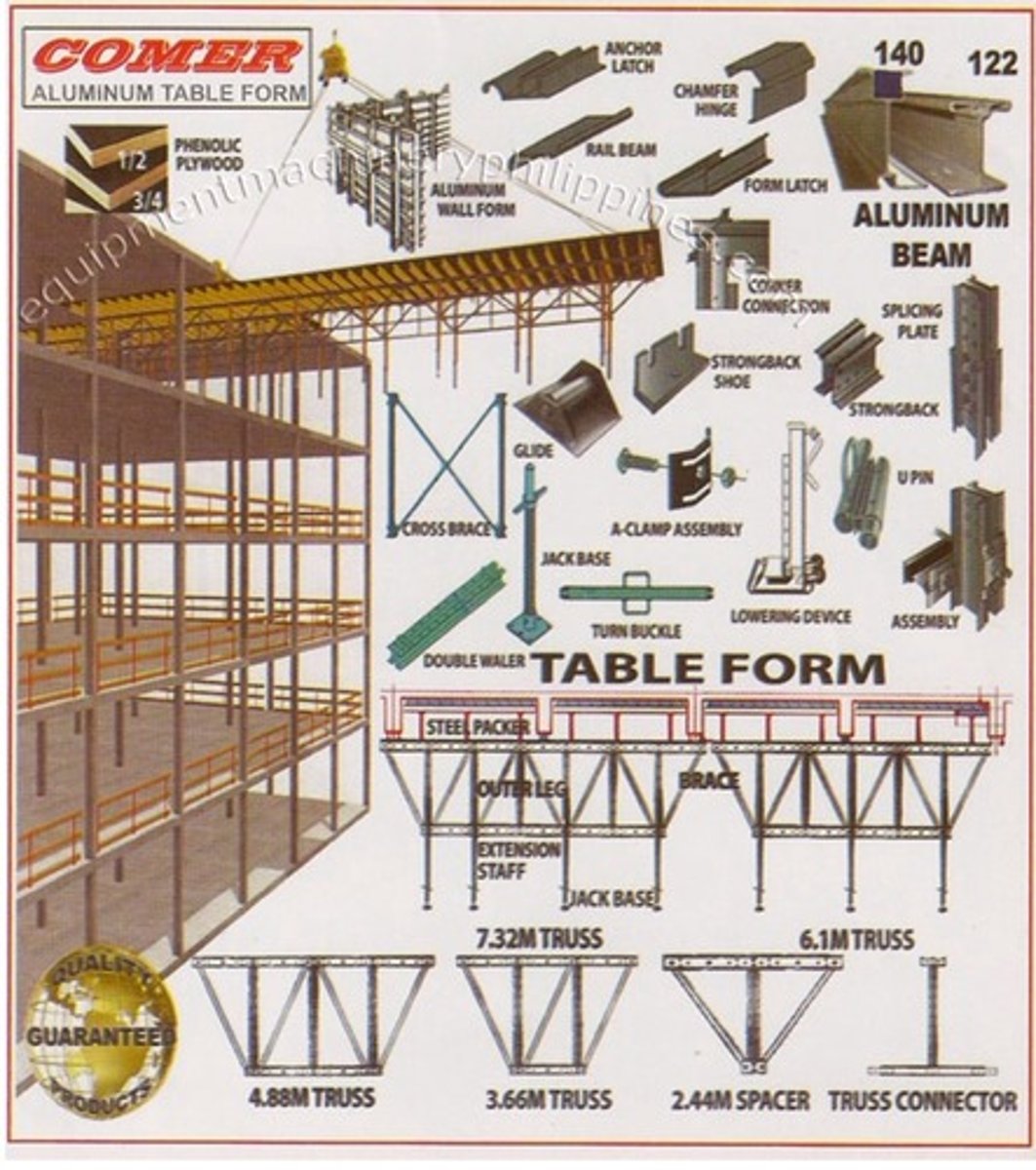

Aluminum table formwork

<p>Aluminum table formwork</p>
13
New cards

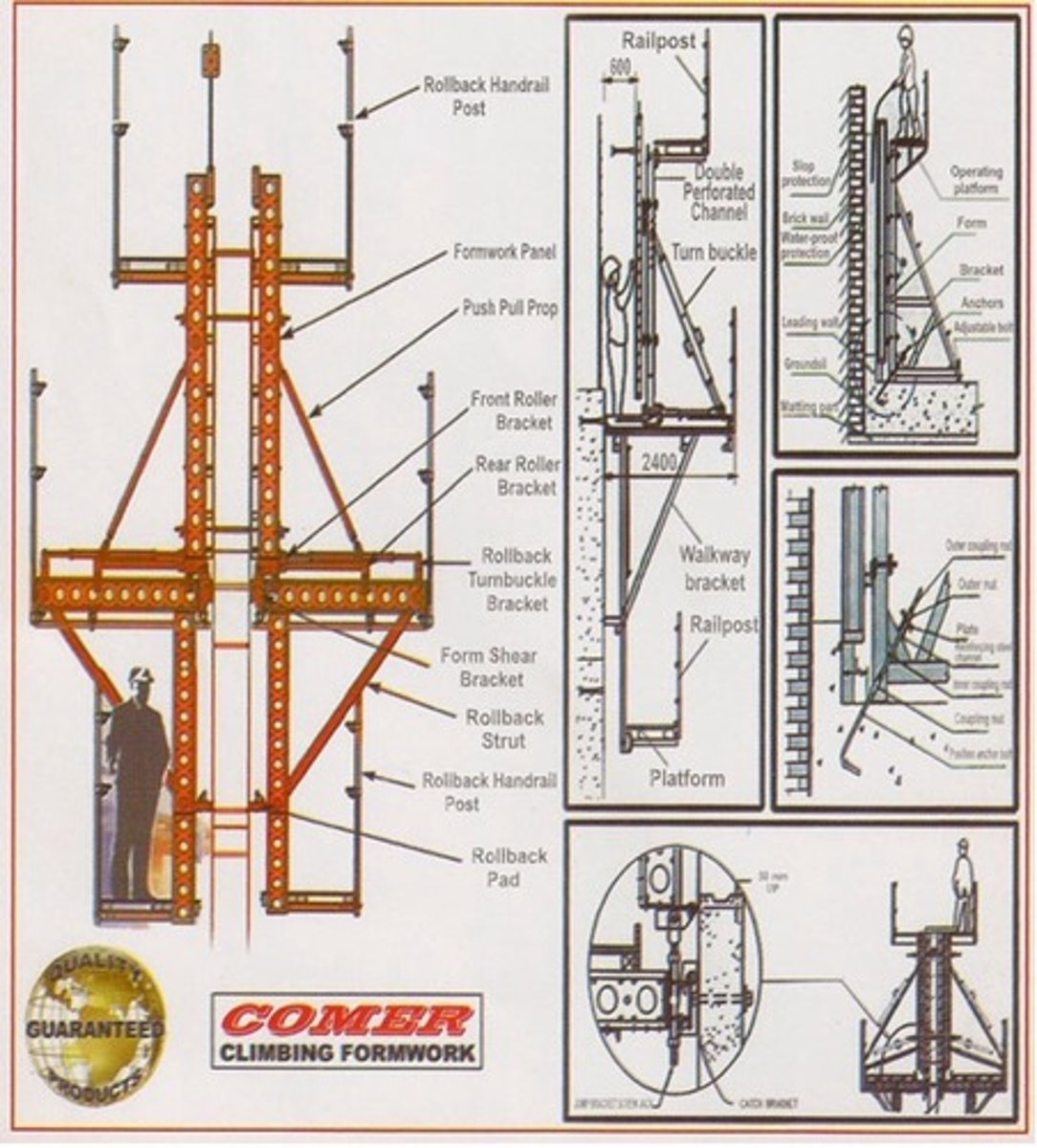

Climbing formwork

<p>Climbing formwork</p>
14
New cards

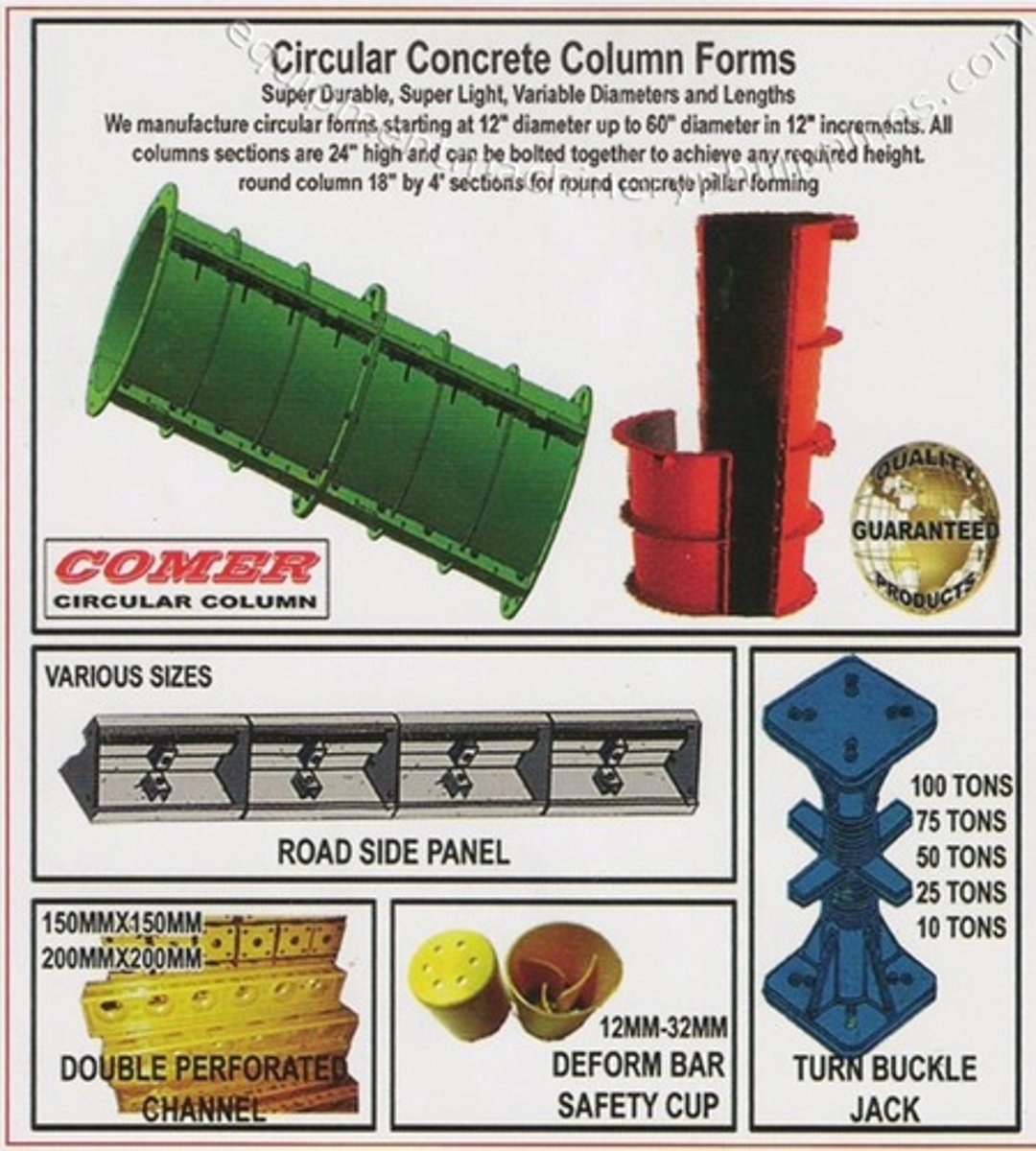

Circular formwork

<p>Circular formwork</p>
15
New cards

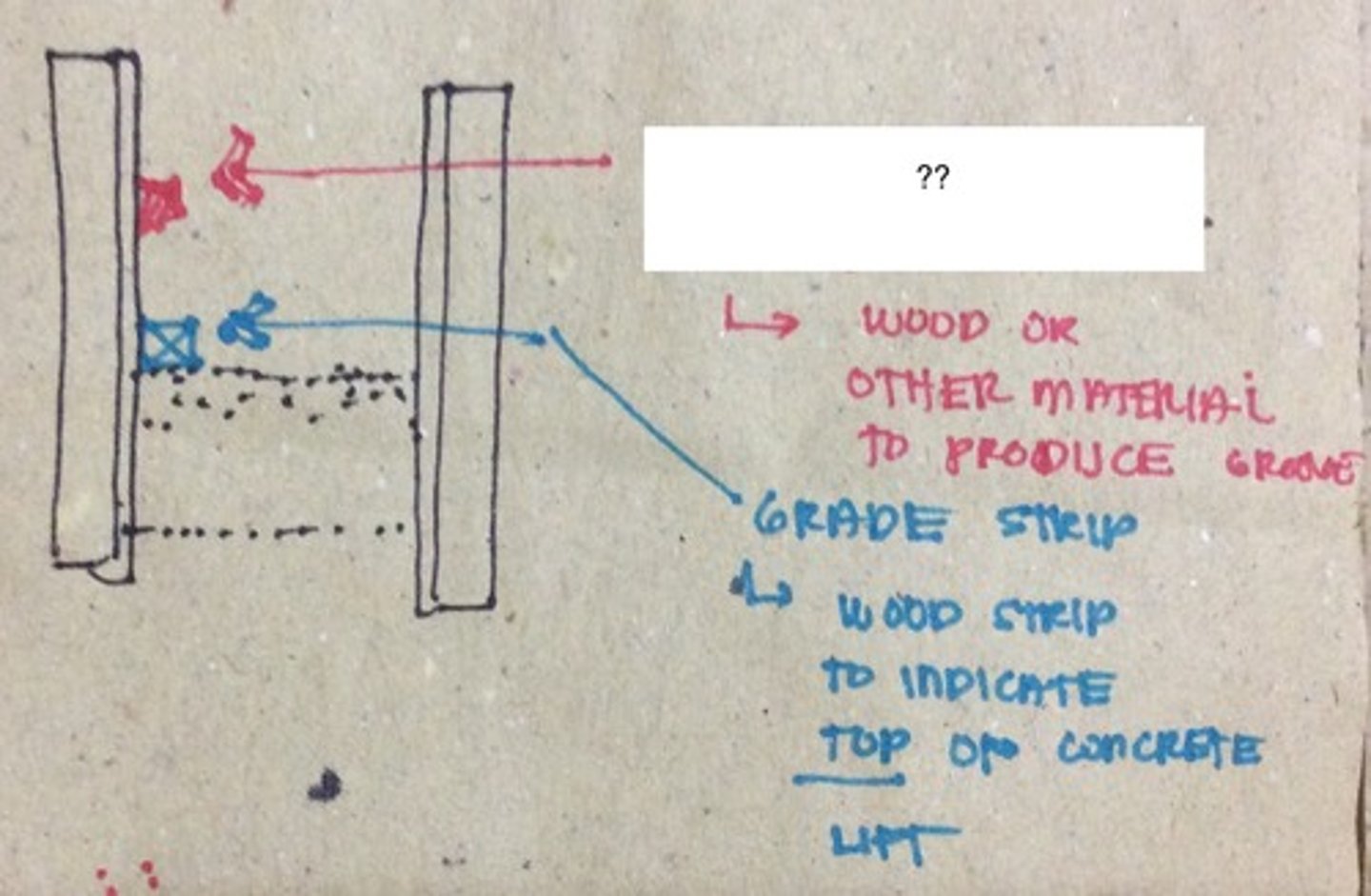

wood or other material to produce groove

Rustification strip

<p>Rustification strip</p>
16
New cards

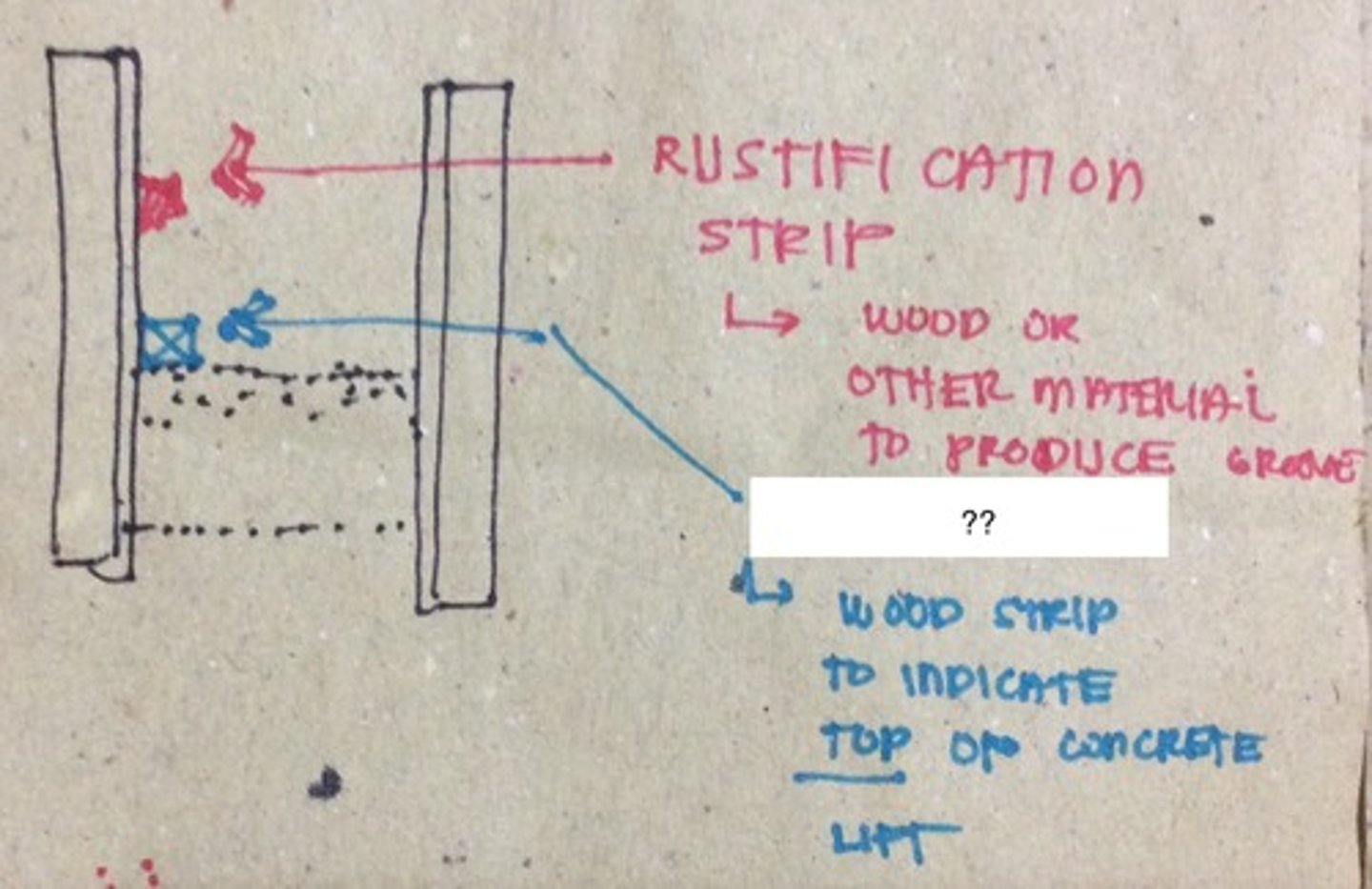

wood strip to indicate top of concrete lift

Grade strip

<p>Grade strip</p>
17
New cards

materials for formwork?

Plywood, Fiberboards, Phenolic

18
New cards

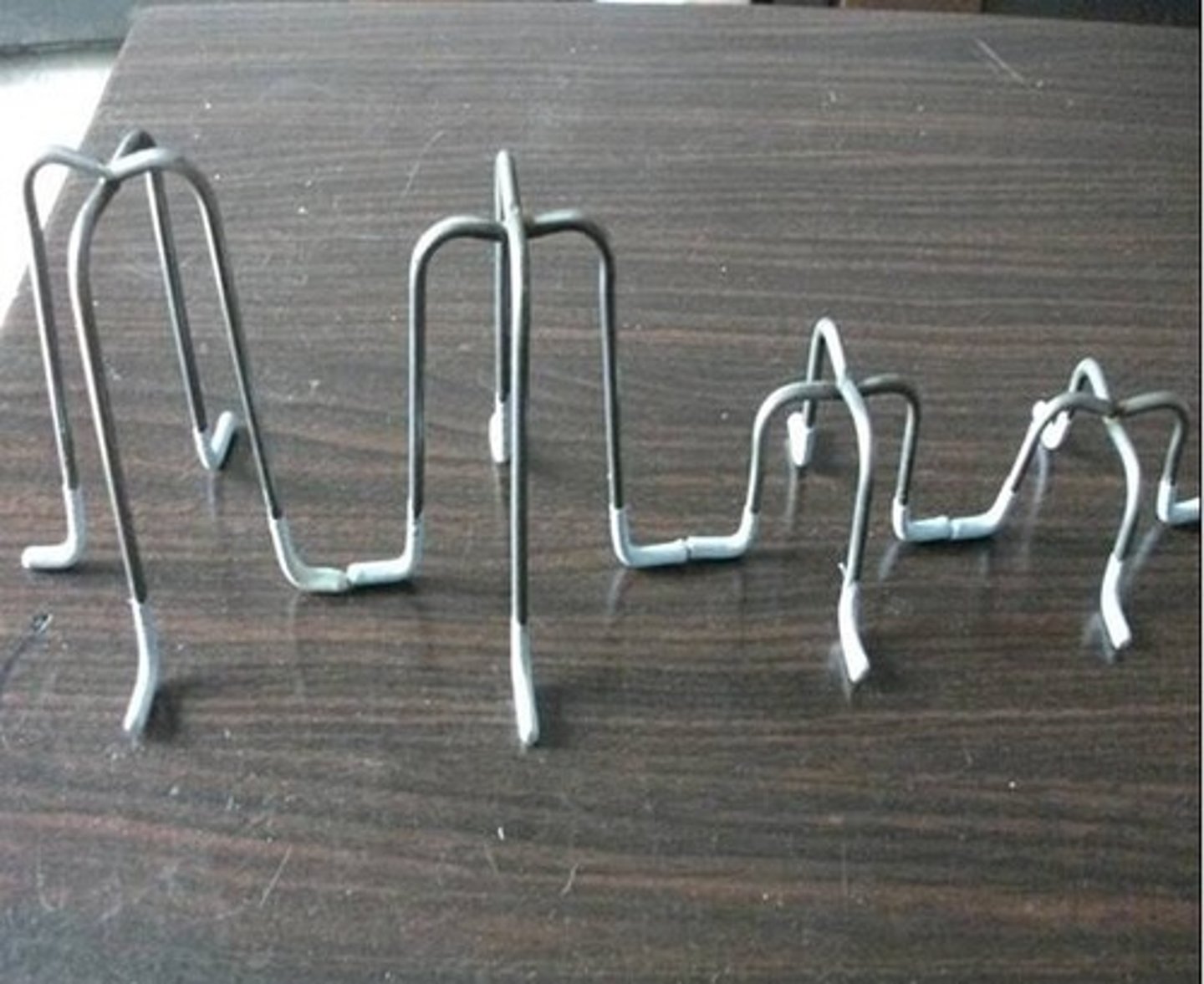

to support top rebars

High chair

<p>High chair</p>
19
New cards

to support bottom rebars

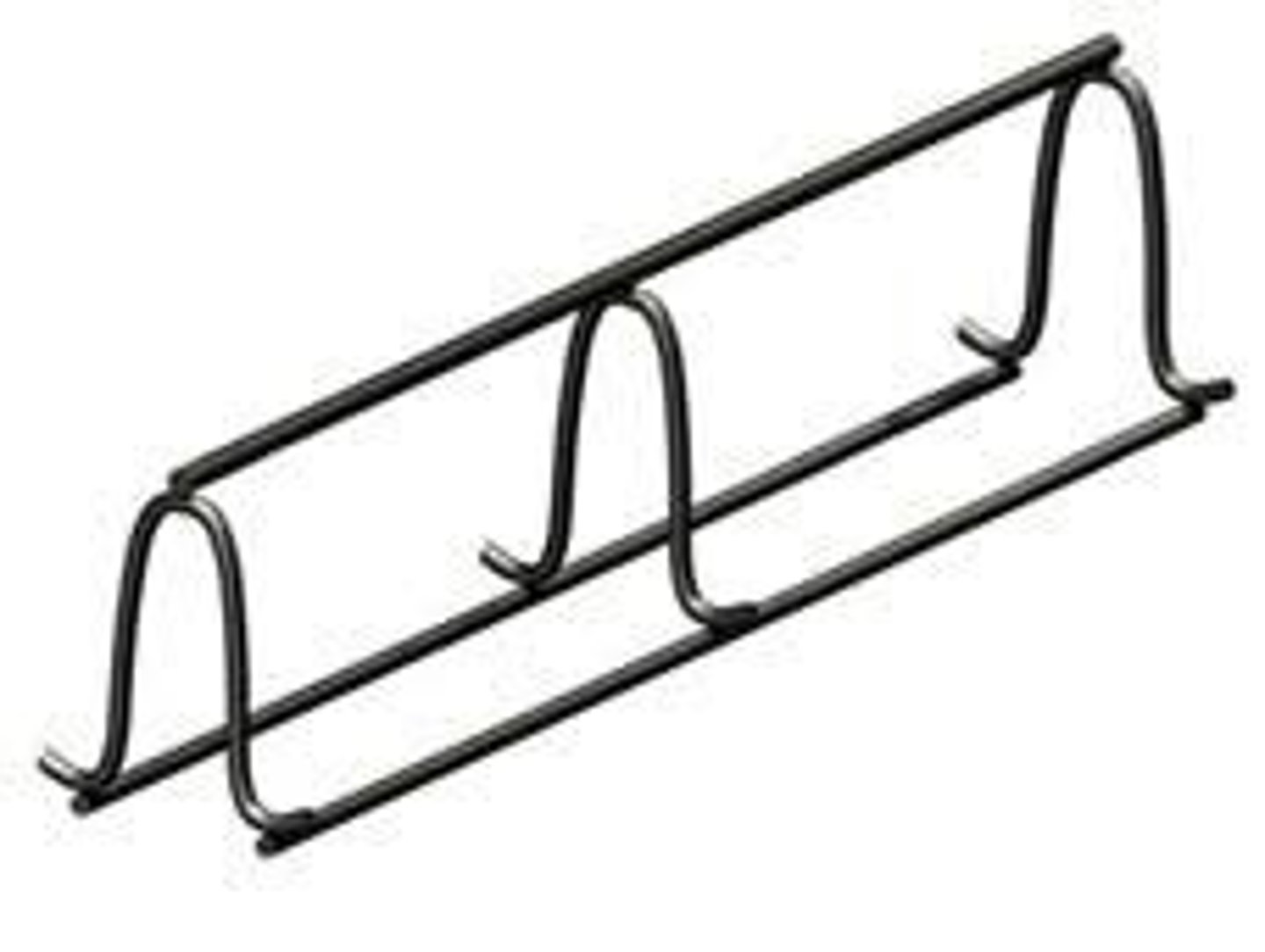

Bolster

<p>Bolster</p>
20
New cards

type of formwork

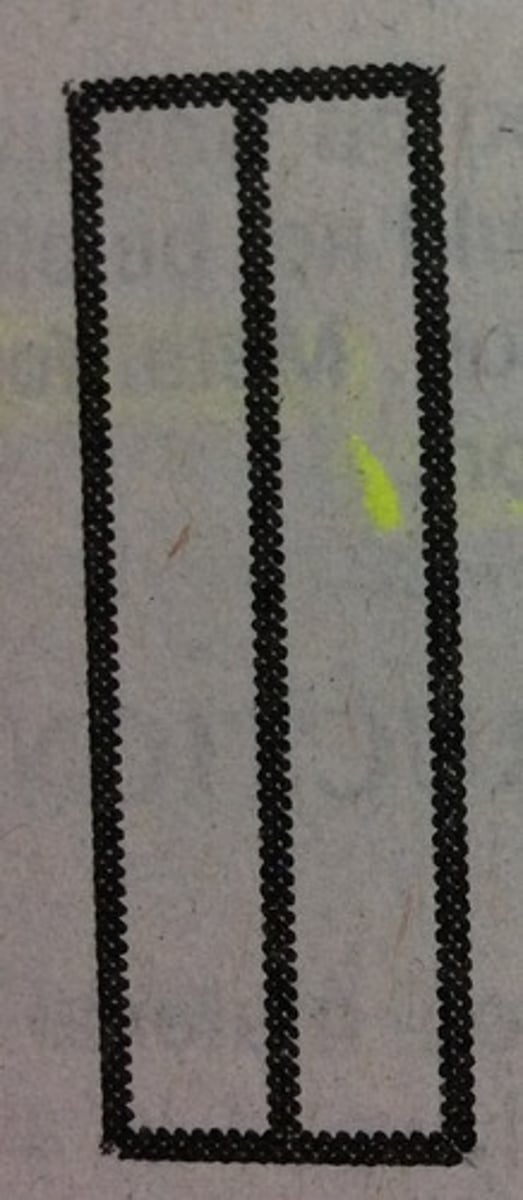

Continuous rib type

<p>Continuous rib type</p>
21
New cards

type of formwork

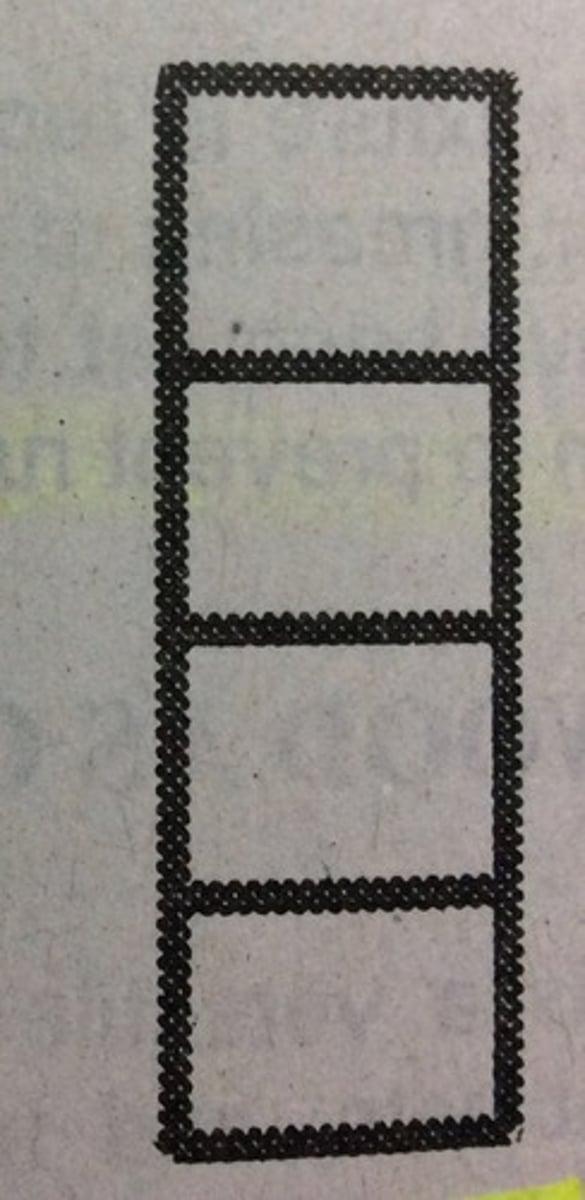

Stud type

<p>Stud type</p>
22
New cards

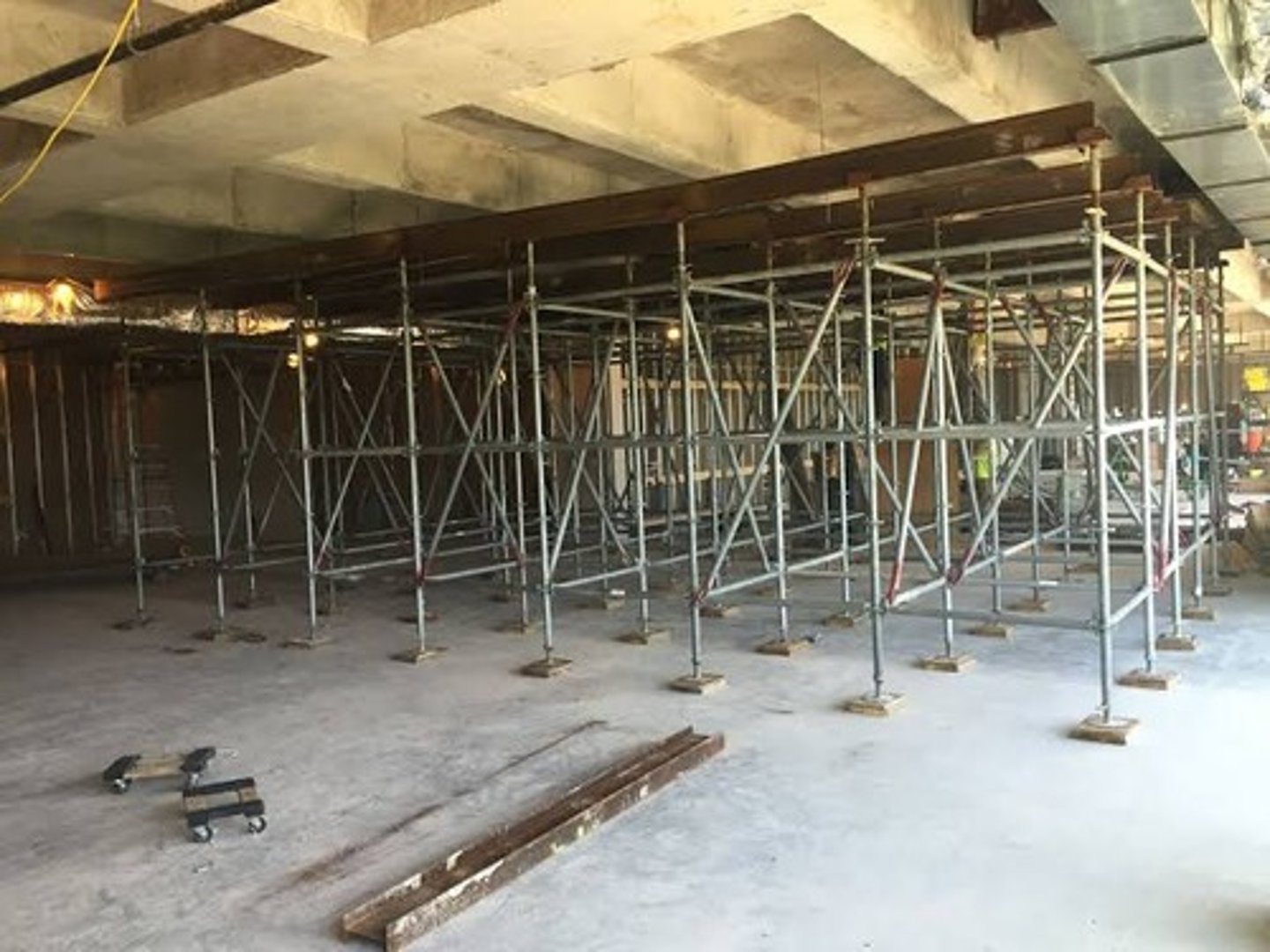

temporary supports to carry forms for beams and slabs

Shoring

<p>Shoring</p>
23
New cards

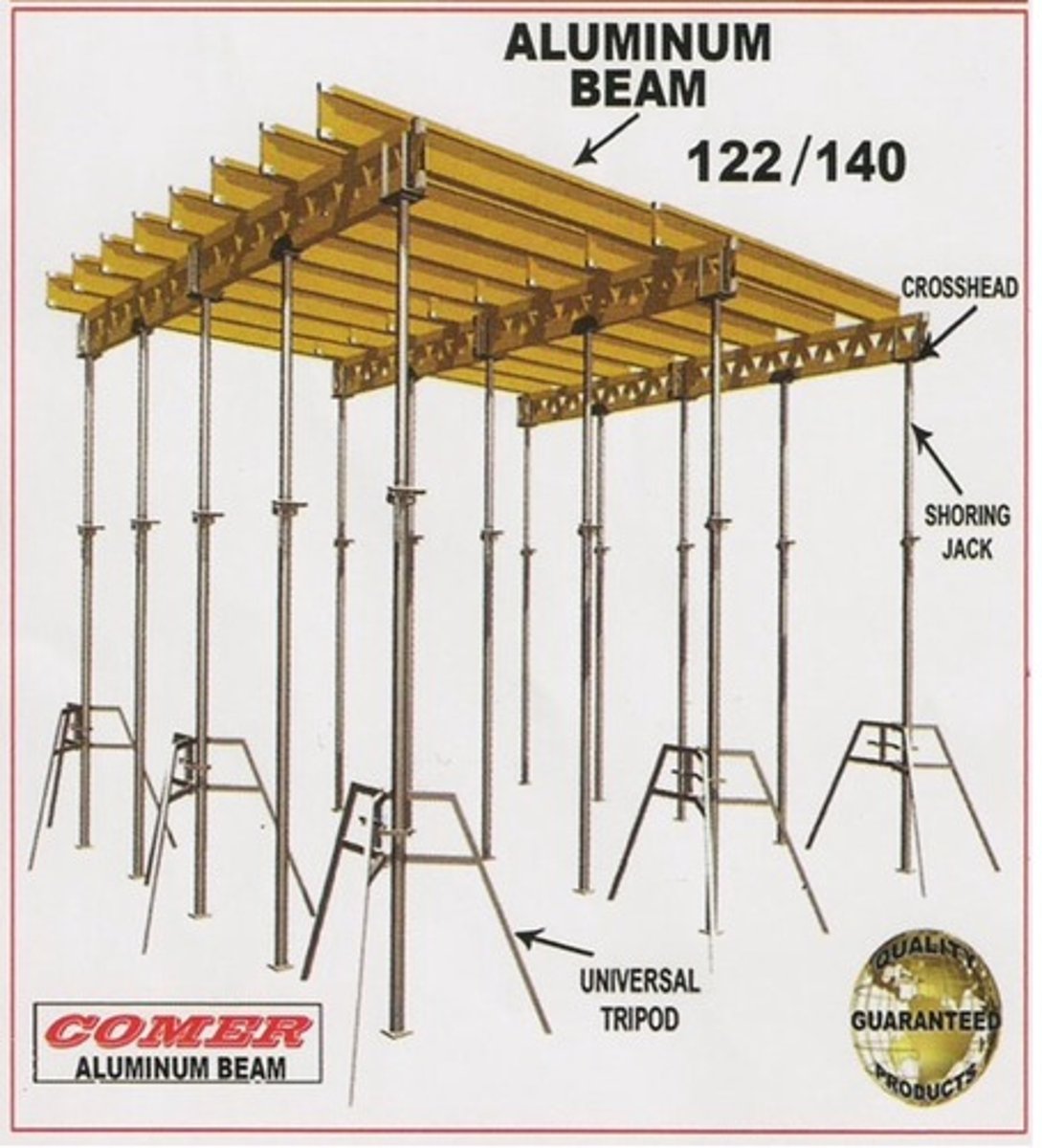

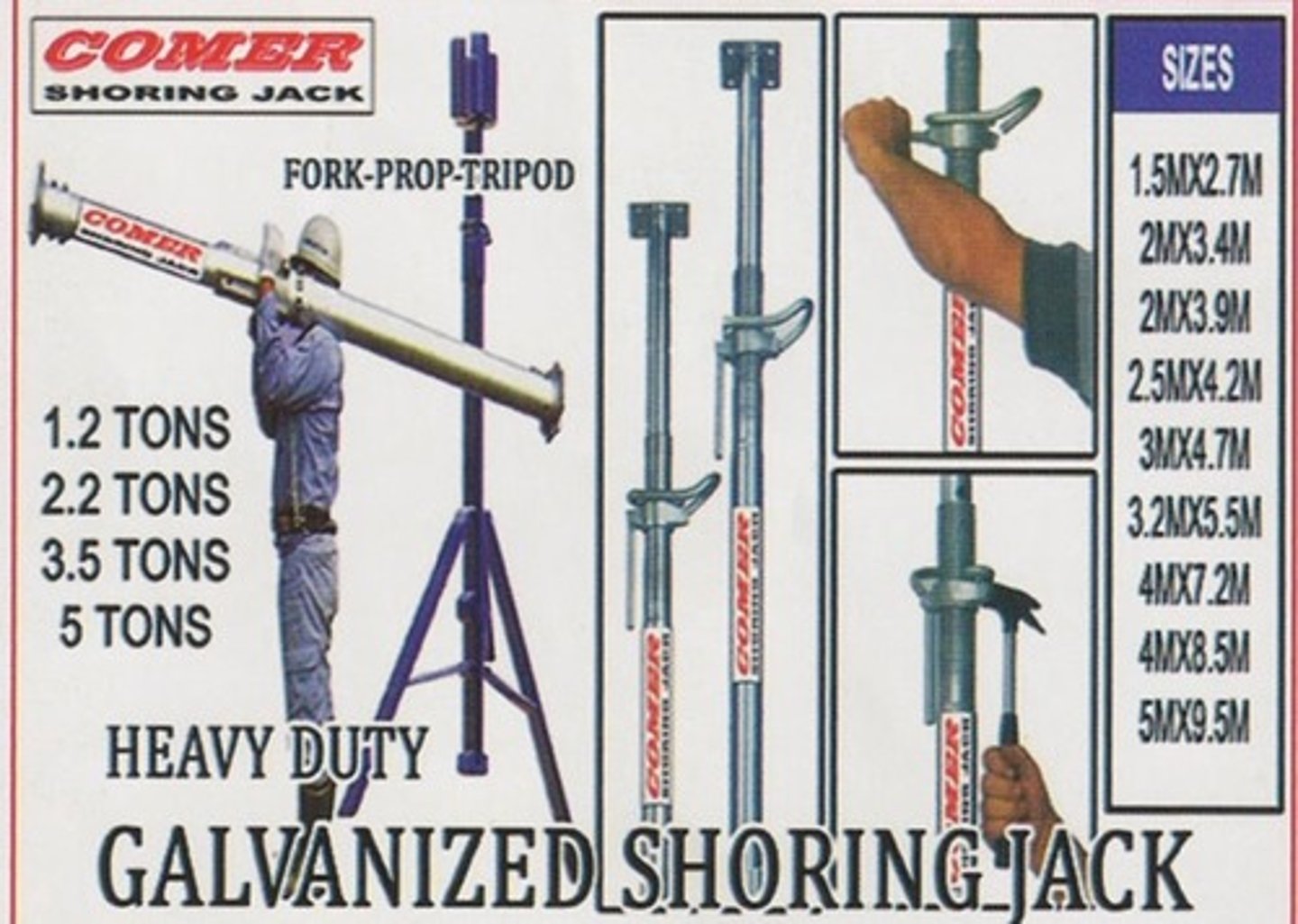

Shoring parts

<p>Shoring parts</p>
24
New cards

Shoring parts

<p>Shoring parts</p>
25
New cards

materials for shoring?

Lumber, steel

26
New cards

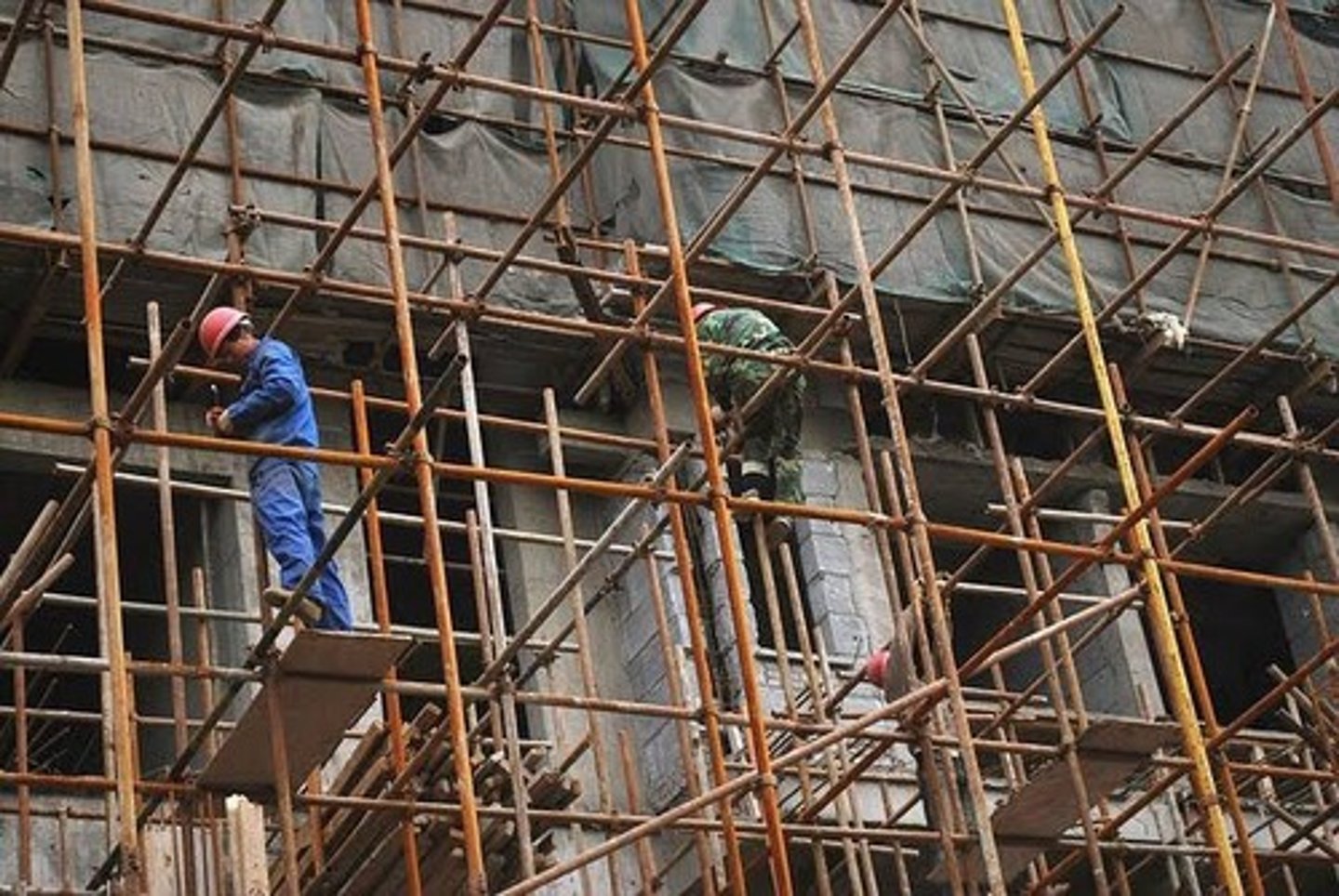

temporary supports for workers

Scaffolding

<p>Scaffolding</p>
27
New cards

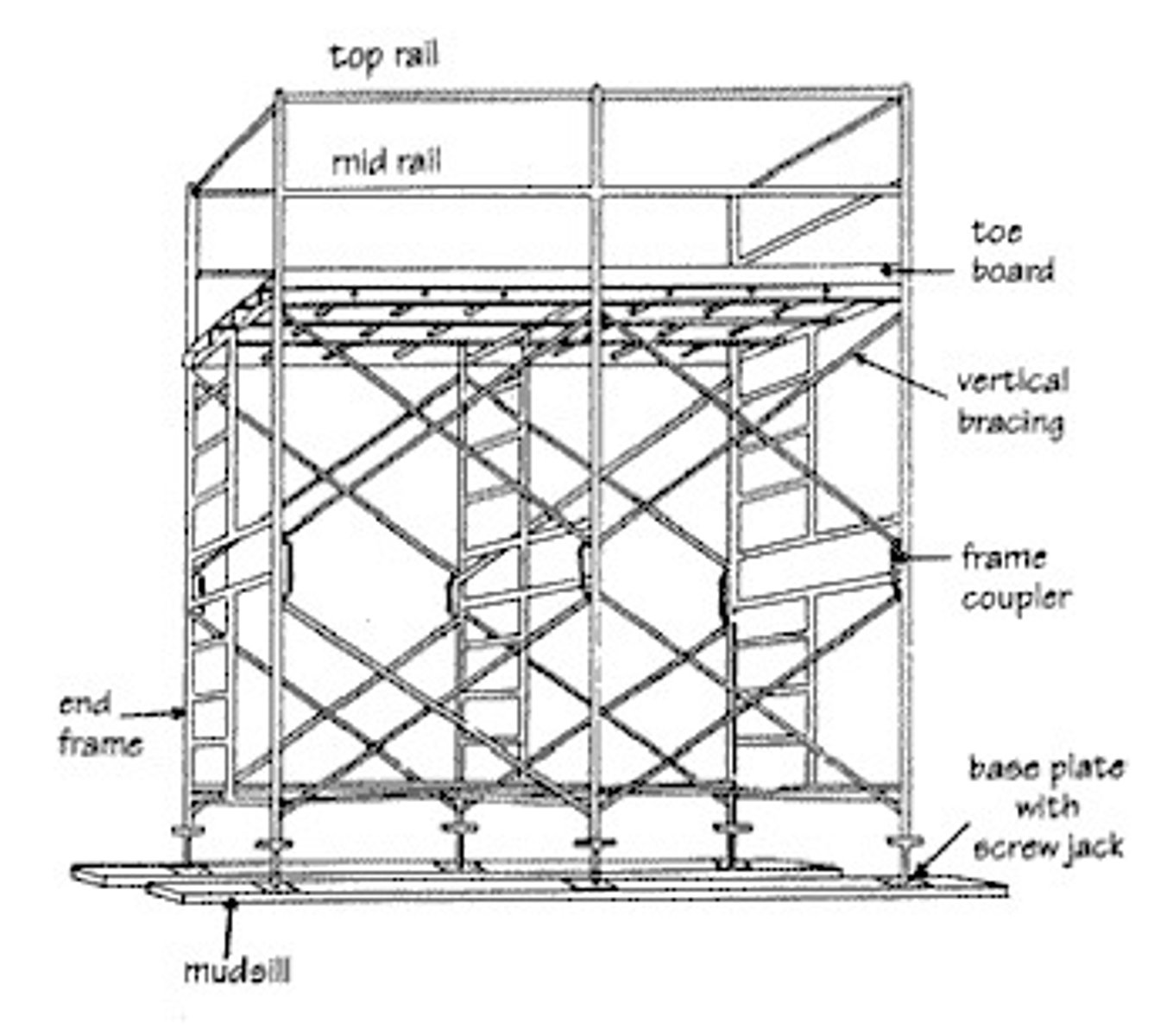

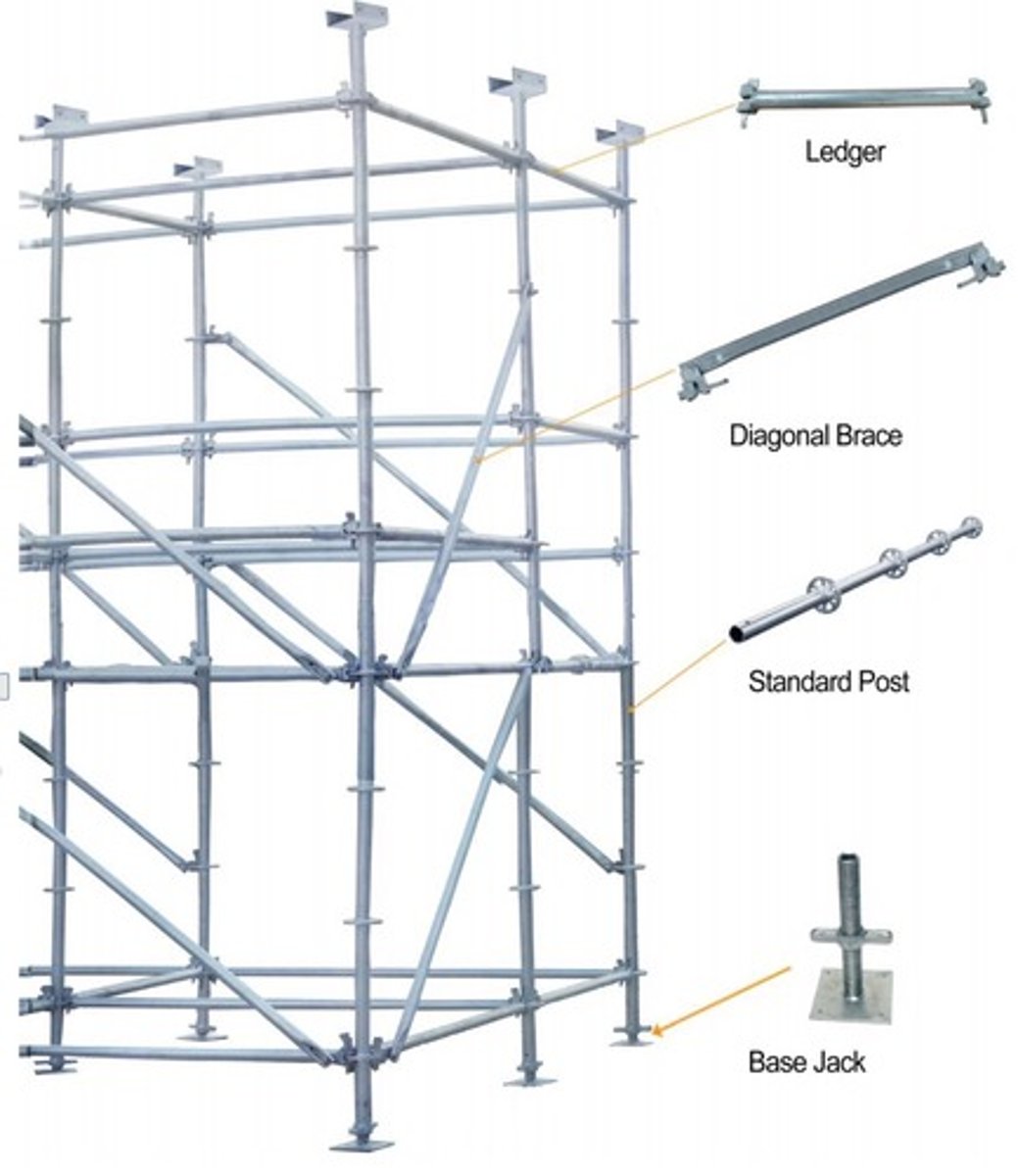

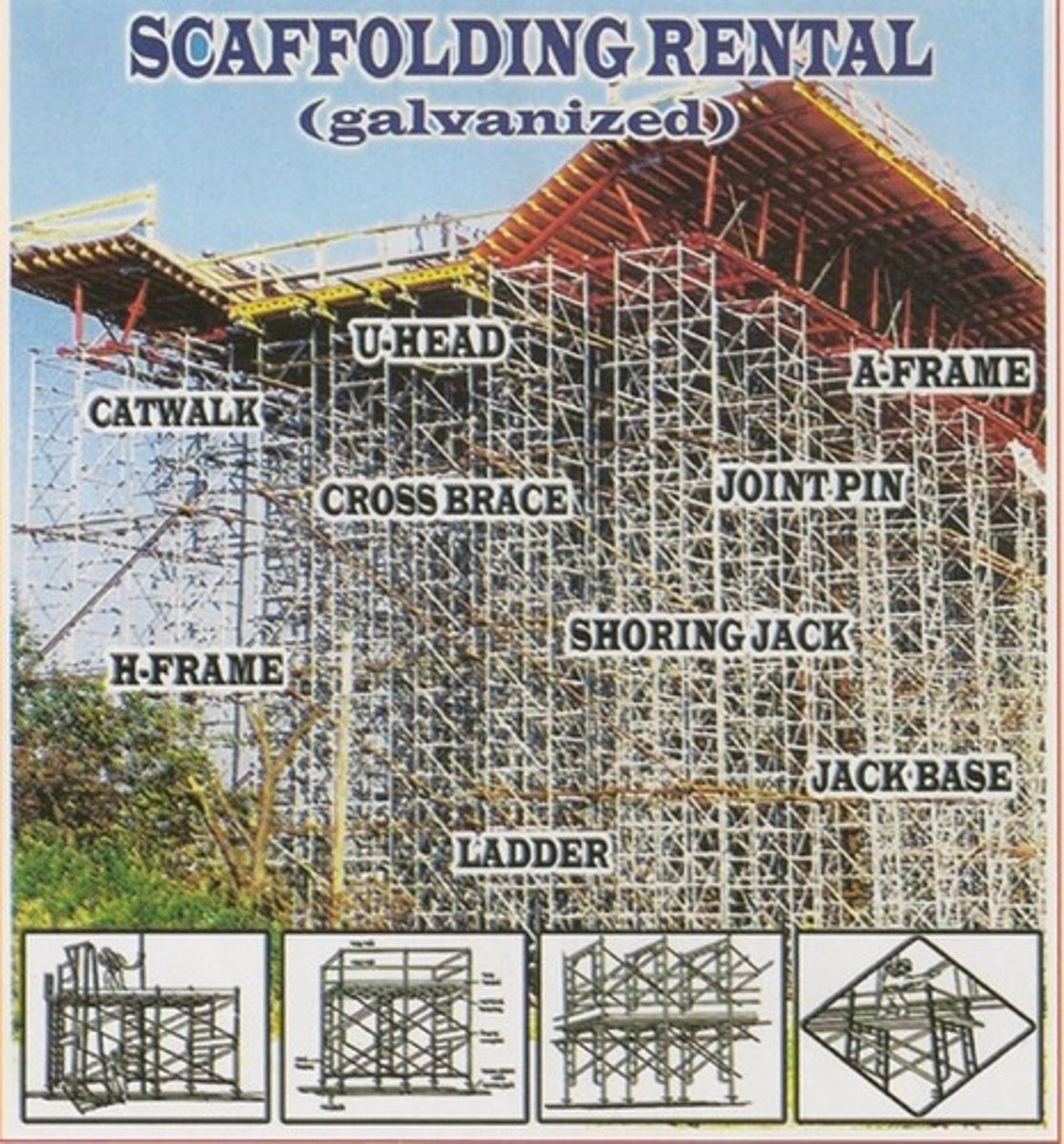

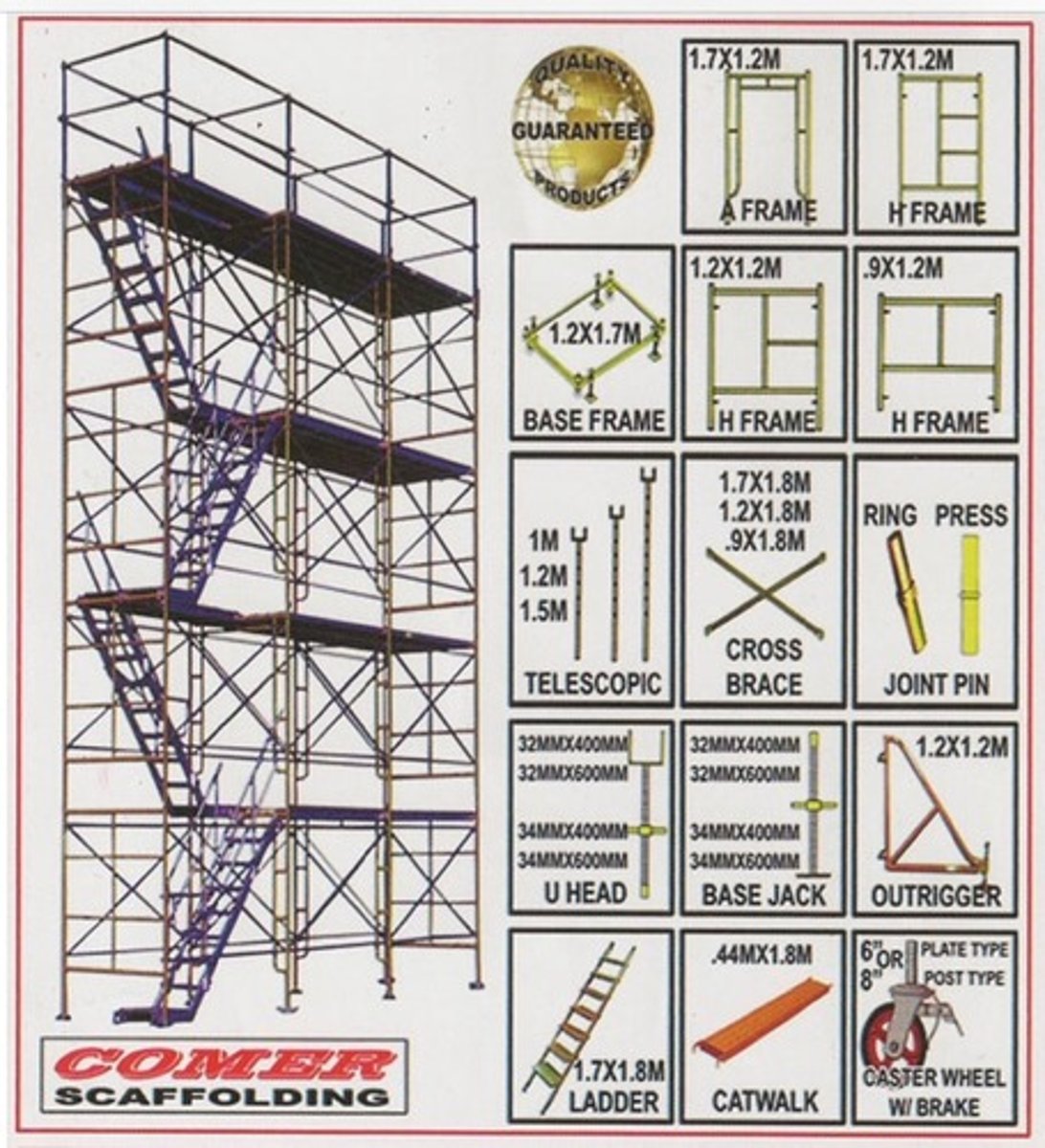

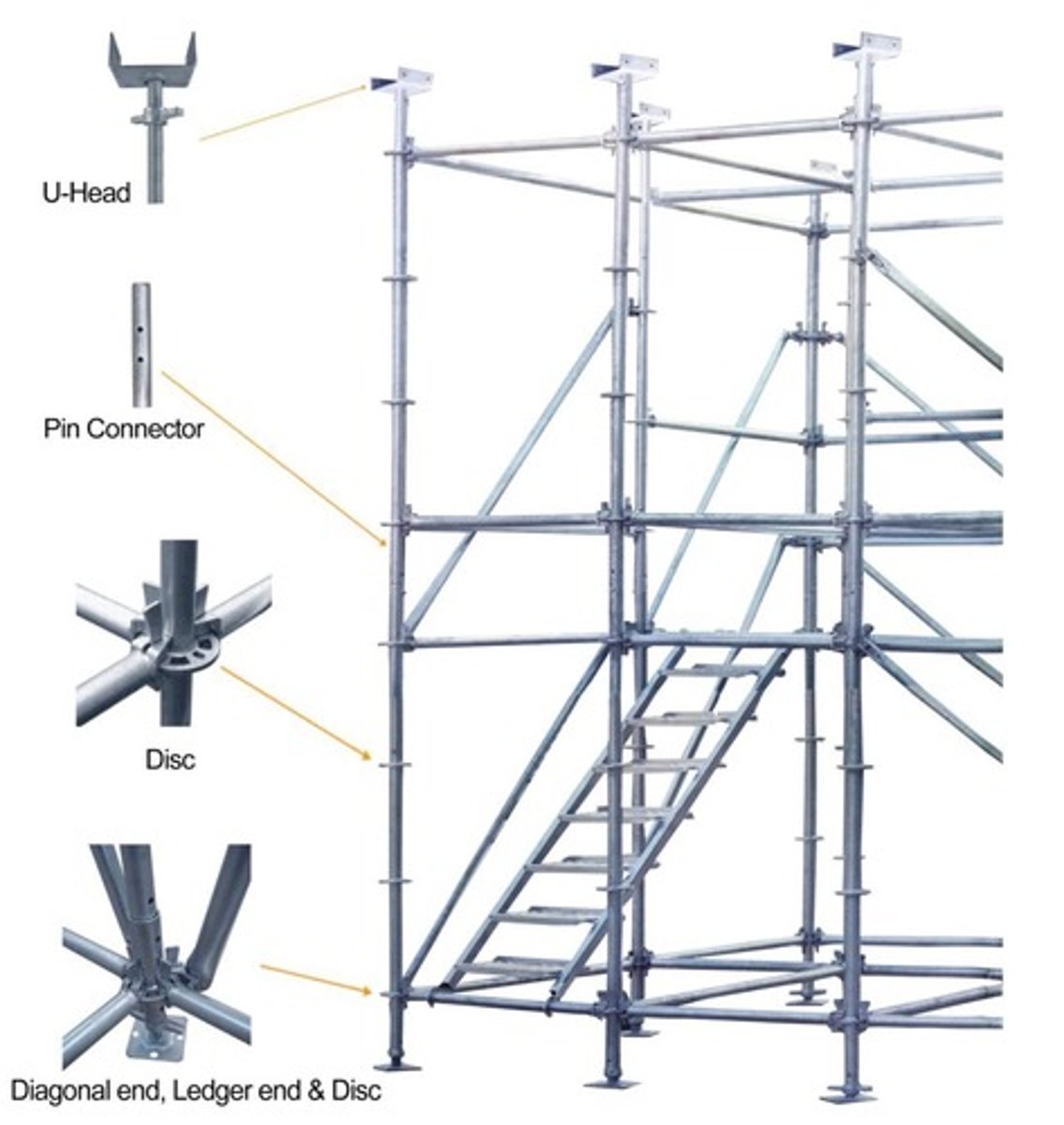

Scaffolding parts

<p>Scaffolding parts</p>
28
New cards

Scaffolding parts

<p>Scaffolding parts</p>
29
New cards

Scaffolding parts

<p>Scaffolding parts</p>
30
New cards

Scaffolding parts

<p>Scaffolding parts</p>
31
New cards

Scaffolding parts

<p>Scaffolding parts</p>
32
New cards

2x2stock- columns, beams bottom, girder bottom

1x1stock- floor panels, beams sides, girder sides

2x4stock- struts, posts, shores, uprights

1x1 or 2x2- cleats

Sizes of lumber for formworks and shoring

33
New cards

used to prevent concrete from adhering to the wood

crude oil (petroleum)

34
New cards

minimum thickness of plywood for formworks?

1/2 "thk

35
New cards

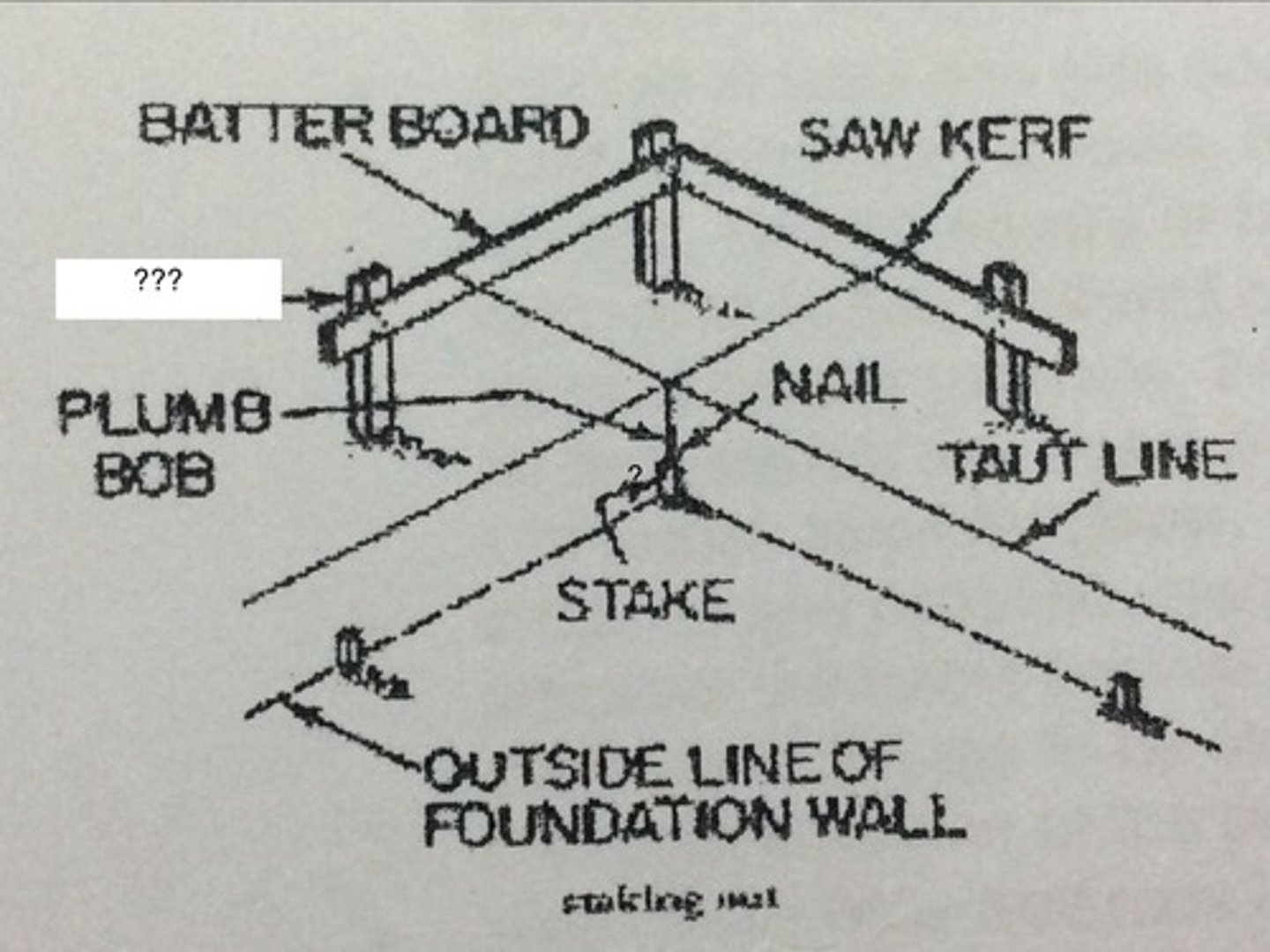

wooden sticks used as posts sharpened at one end driven into the ground to serve as boundaries or supports of the batter

Stake

<p>Stake</p>
36
New cards

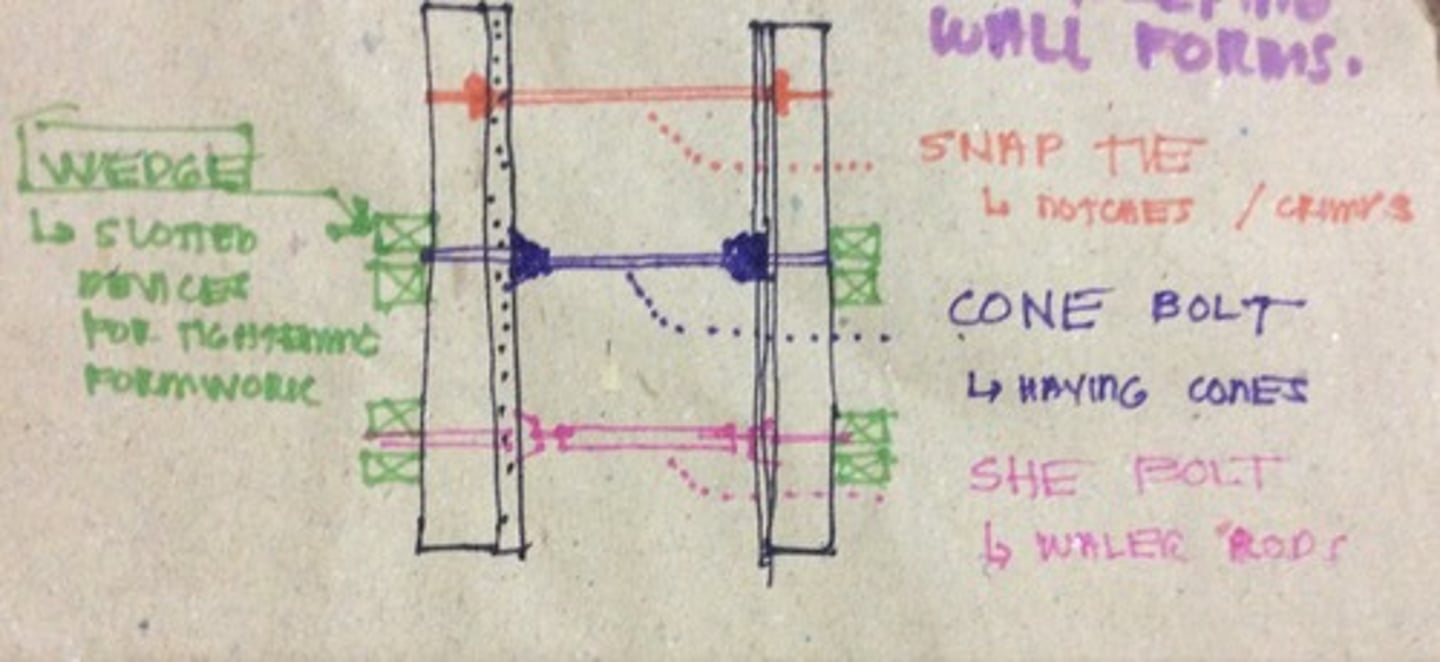

metal ties for keeping formworks

Formtie

<p>Formtie</p>
37
New cards

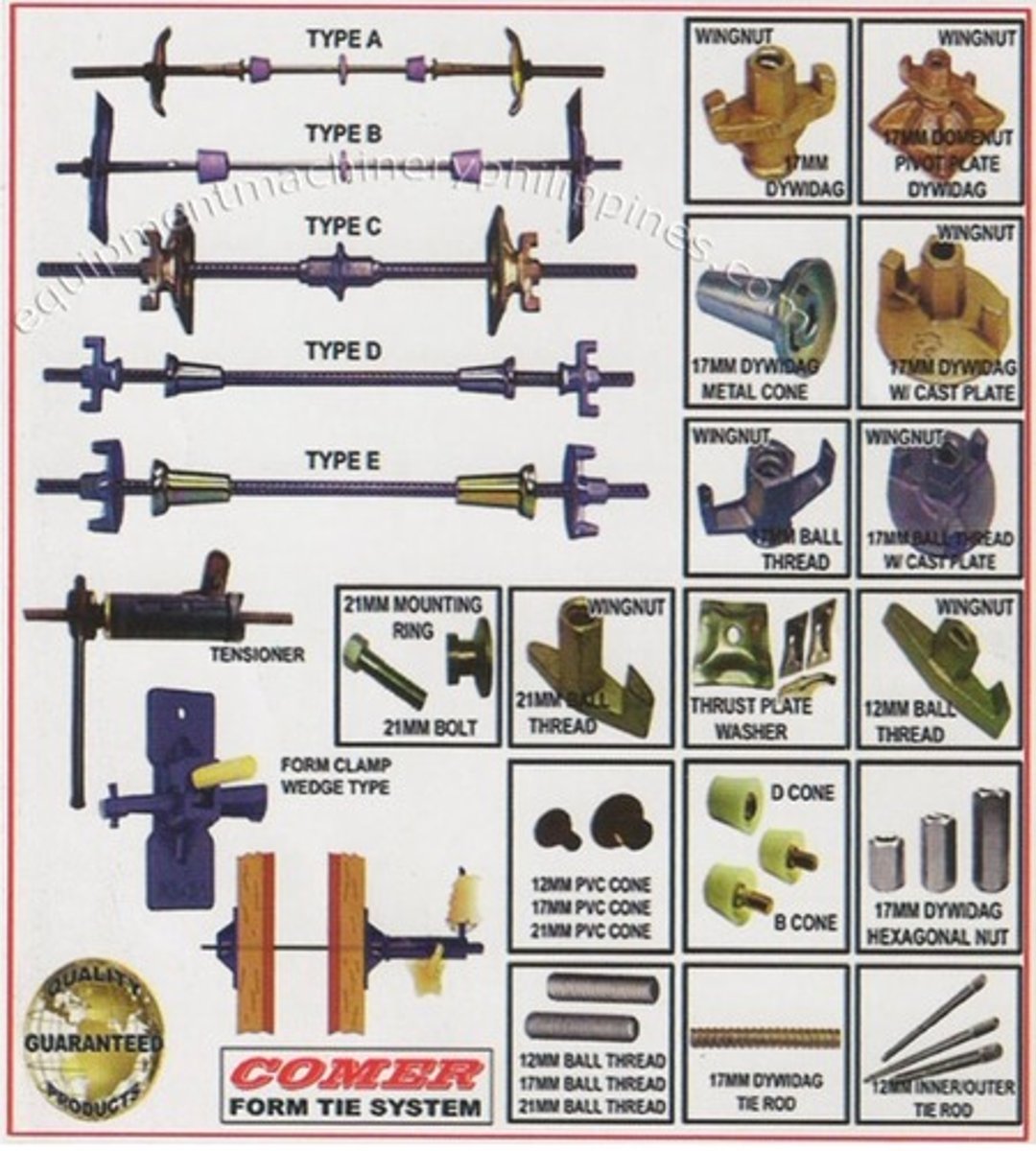

Formtie samples

<p>Formtie samples</p>
38
New cards

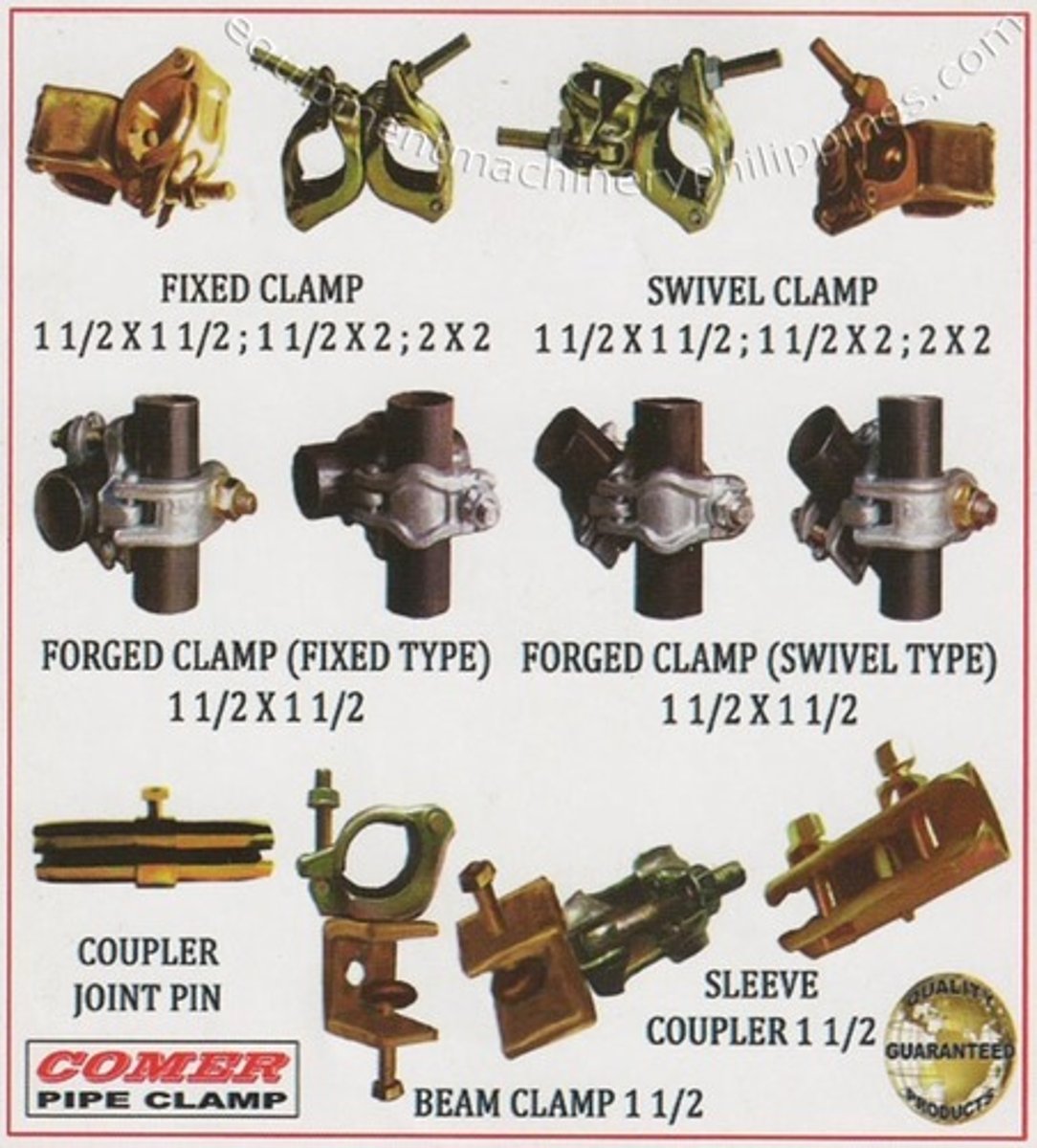

Pipe clamps

<p>Pipe clamps</p>
