AOP-904 (3) Security Events

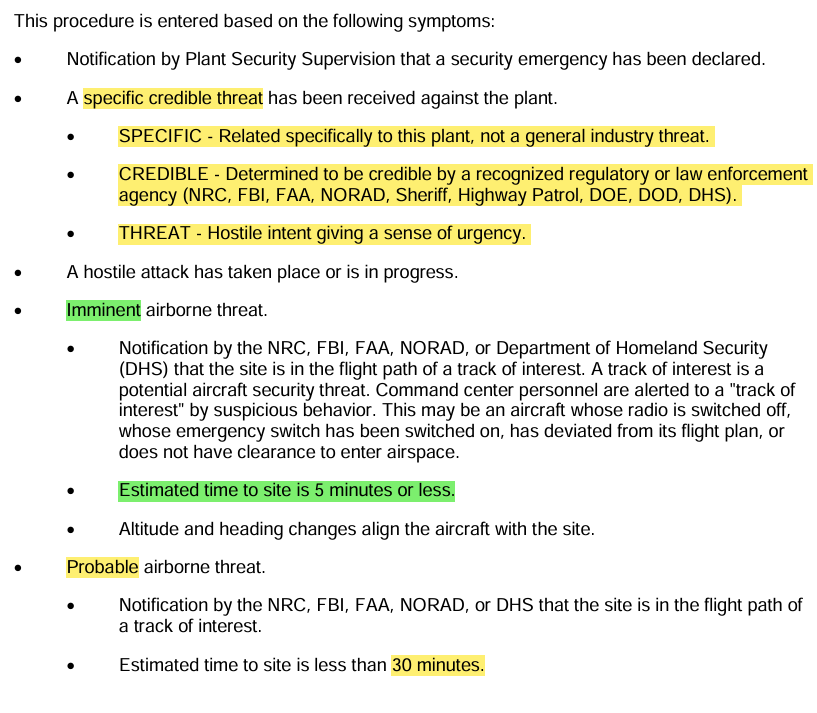

Symptoms and Entry Conditions

Emergency declared by Security Supervision

Specific Credible Threat

Airborne threat

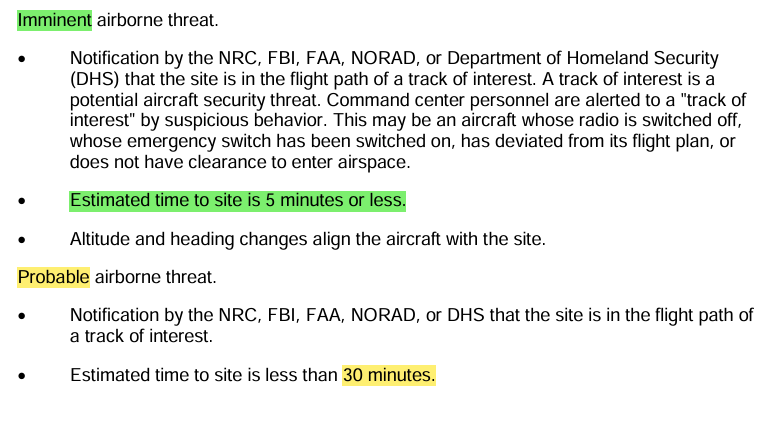

Aircraft Levels of Threat

Imminent

Probable

Informational

Imminent
ETA: 5min or less

Probable
ETA: 30min or less (Pizza is probable)

Informational
ETA: >30min (Free Pizza)

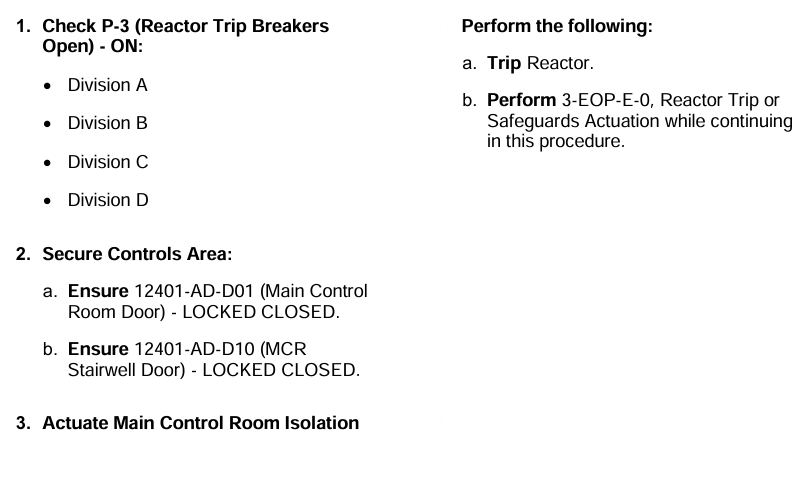

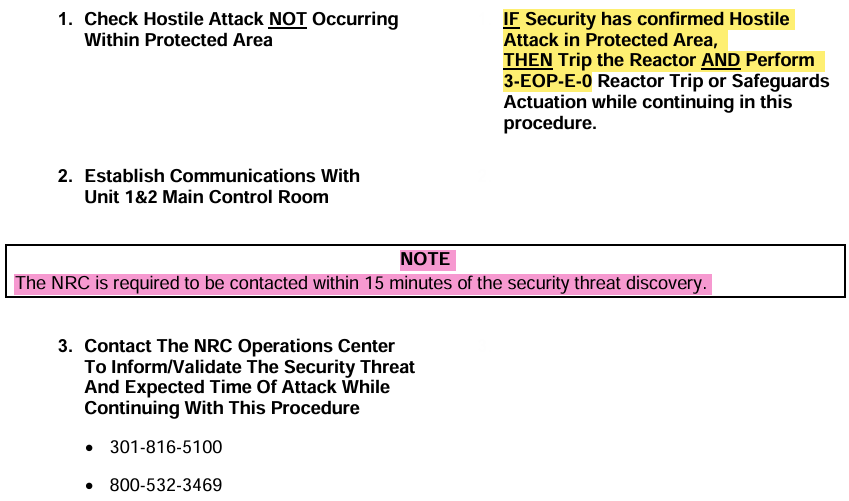

What if Attack INSIDE PA?

E-0 while CONTINUING A-904 (Step 1)

NRC Notification

15 MINUTES from threat discovery

***This is NOT EAL guidance, this is a separate requirement SPECIFIC to security threats

Hostile Attack Attachment 1 Actions

Always Trip, E-0

Lock Doors

Actuate VES (Div. ABC Restore VBS per SOP)

Borate to MODE 5 No Xe via AOP-102

Stop Fuel Movement

Close Containment Hatches

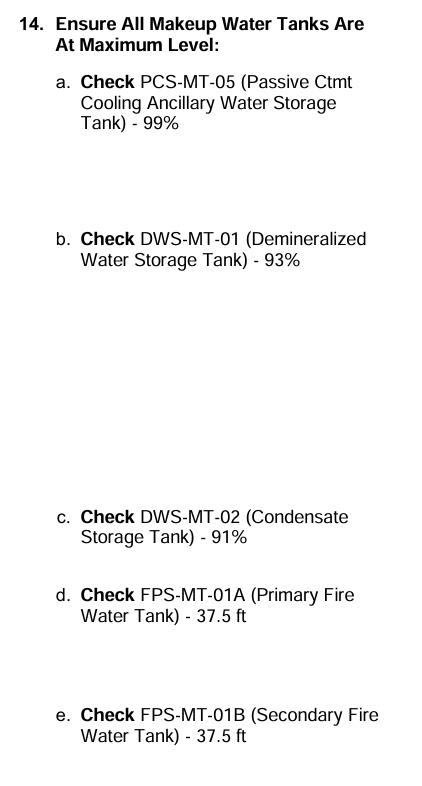

Fill all Makeup Water Tanks to MAX (PCCWST, DWST, FPS)

Tanks that are filled to maximum

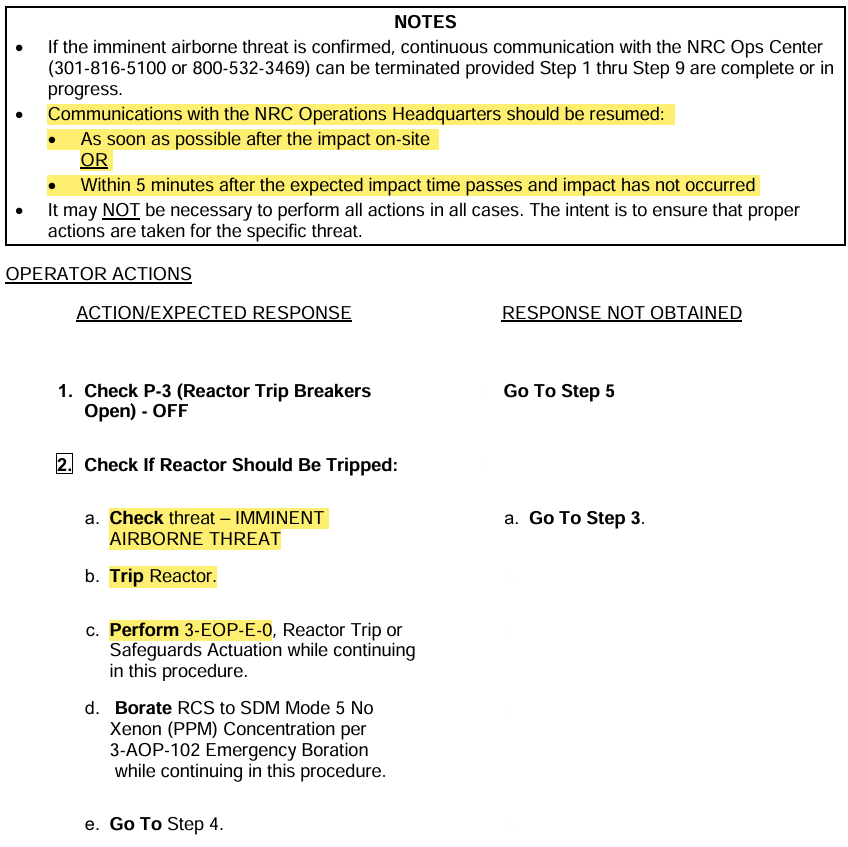

Airborne Threat Attachment 2 Actions

TRIP WHEN Imminent (<5min)

Shutdown WHEN Probable

Lock Doors

Actuate VES

Stop Fuel Movement

Close Containment Hatches

Dispatch an RO & SRO to RSR

Fill all Makeup Water Tanks to MAX (PCCWST, DWST, FPS)

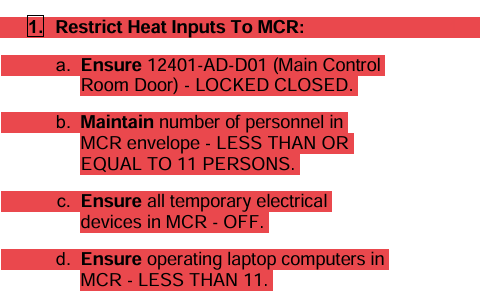

MCR Heat Input Limitations

Locked Closed door D01

≤11 people

≤Laptops

No Temp. Electrical Loads

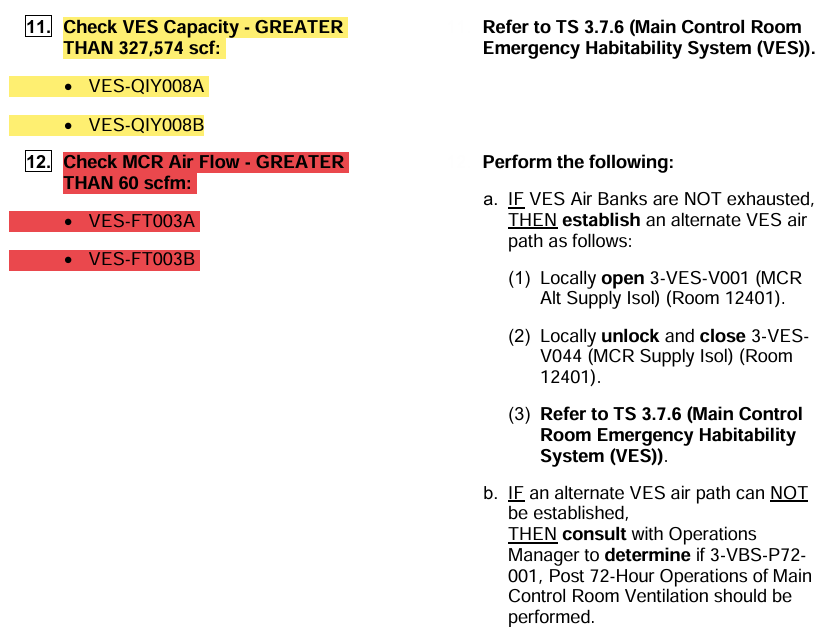

Actions if NO MCR Supply SOV Opens on VES Act.

(VES-V005A/B)

LOCALLY Open 3-VES-V001

LOCALLY Unlock and Close V044

VES/MCR Tech Spec Values (3.7.6)

Temperature

Quantity

Flow

<75F

>327,574 scf

>60scfm

Key Stage 1 and 2 Loads

When does each stage shed?

Stage 1 (At actuation)

Normal lighting, Receptables, Plant Status Display 1&2(False WPIS’s)

Stage 2 (3 hours after actuation)

All WPIS, LAN Stations

*Greater than 24hrs from actuation: shed additional emergency lighting panels, ALL laptops

Personnel Report Locations

Essential

Non-Essential

Essential

TSC (Technical Support Center - Inside PA)

Non-Essential

Training Building
