HMI written exam

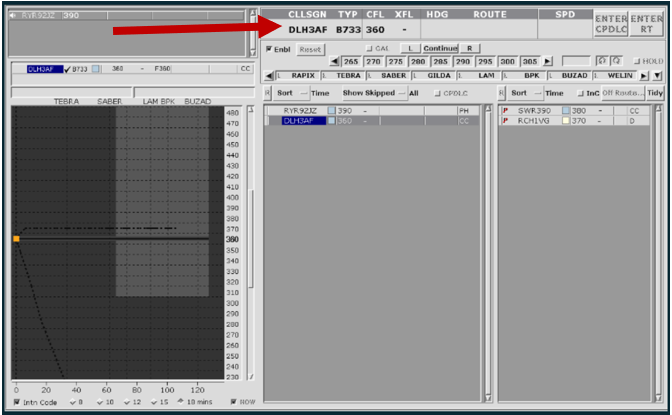

What is this?

Incomm bay

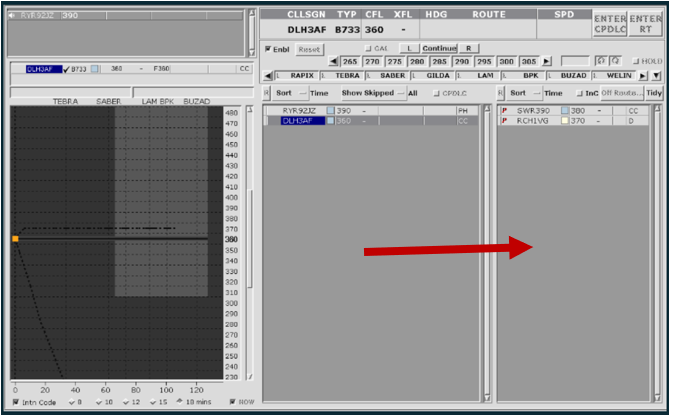

What is this?

All flights clearance history

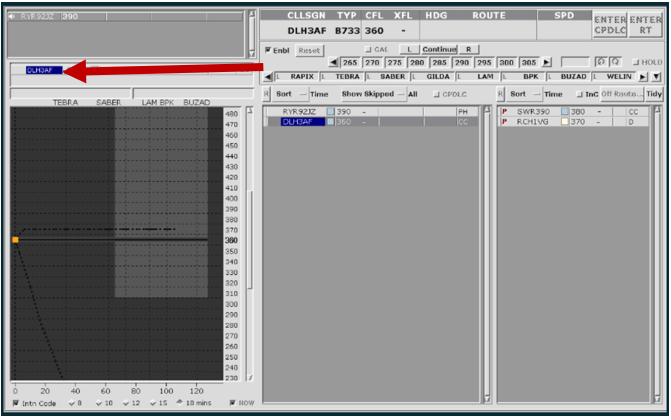

What is this?

LAD

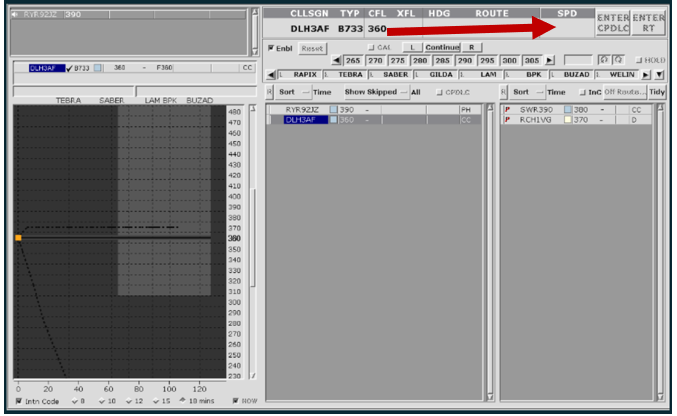

What is this?

FIDL

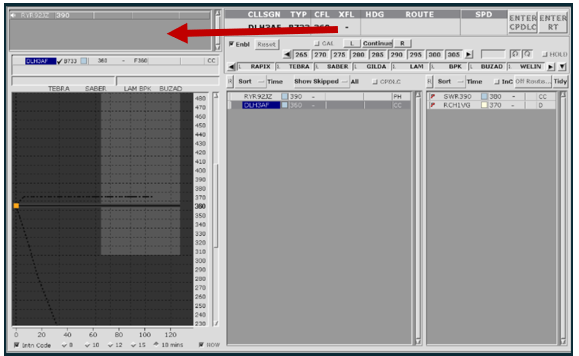

What is this?

Level selector

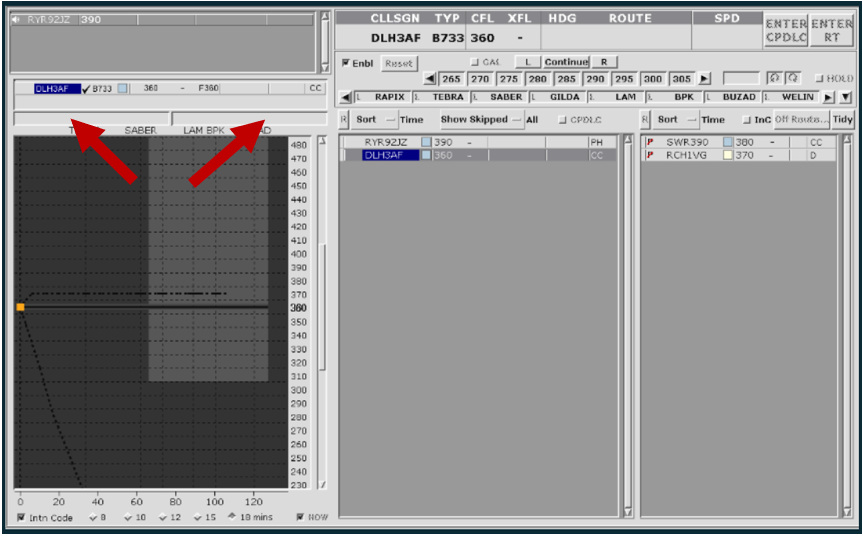

What is this?

Pending bay

What is this?

Route reclaim button

What is this?

Speed selector

What is this?

Clearance field

What is this?

Heading selector

What is this?

TDL highlight with reset

What is this?

Entry/exit coordination conditions

What does a grey radar border colour mean?

Normal ATC operations

What does a brown radar border colour mean?

Fallback in progress

What does a bright green radar border colour mean?

Fallback on adjacent sector

What does a purple radar border colour mean?

Maintenance in progress

What does an olive green radar border colour mean?

Replay in progress

What does recognition status denote?

Tracks whose trajectories are being compared by MTCD on a sector

What does foreground status denote?

Tracks for which an exit flight level is set, and you are the next sector in the sector sequence

What does a yellow not filled in diamond target symbol mean?

Not recognised, background track

When may a target symbol be not recognised and a background track?

OLDI activated track but not yet FDP paired

What does an orange filled in diamond target symbol mean?

Not recognised, background track

When may a target symbol be not recognised and a foreground track?

Identified as sector traffic but offer not yet received

What does an orange filled in square target symbol mean?

Recognised, foreground track- not accepted out

When may a target symbol be recognised and a foreground track?

Offered, sector traffic before accepted out or accepted out

What does an yellow filled in square target symbol mean?

Recognised, foreground track- accepted out

What does an yellow not filled in square target symbol mean?

Recognised, background track

When may a target symbol be recognised and a background track?

Manually recognised or rogue sector entry track

What are the considerations for the general set up for a radar?

Ensure SECTOR_SCALES is selected on radar background

Ensure danger areas are selected

What is mandatory/recommended for a tactical radar?

Mandatory- separation monitor, groundspeed, full flight plan

Recommended- mode S, vectors

What is mandatory/recommended for a planner radar?

Mandatory- offered bay, accepted bay, separation monitor, full flight plan

Recommended- mode S, vectors, flight messages

What are the components of the iFACTS core engine?

Trajectory prediction

Medium term conflict detection

Flight path monitoring

What does a red interaction on iFACTS mean?

Less than 5nm predicted between tracks

What does a orange interaction on iFACTS mean?

Less than 5nm predicted between tracks when uncertainty is taken into account but 5nm or greater is predicted when considering nominal positions

What does a yellow interaction on iFACTS mean?

5nm or greater predicted but not assured

What does a green interaction on iFACTS mean?

5nm or greater predicted between tracks is assured by setting headings or speeds

What does a white interaction on iFACTS mean?

Interaction based on a deviation trajectory

What does NAS stand for?

National airspace system

What does FFP stand for?

Full flight plan

What does SCC stand for?

Sector/Supplementary coordination conditions

What does TLPD stand for?

Traffic load prediction device

What does iFACTS stand for?

Interim future area control tools support

What does TDB stand for?

Track data block

What does FIDL stand for?

(iFACTS) flight information data line

What does NFL stand for?

Entry flight level

What does FDP stand for?

Flight data processing (*?)W

What does RDP stand for?

Radar data processing (*?)

What does SFS stand for?

System flight server

What does TDL stand for?

(iFACTS) tactical data line

What does CFL stand for?

Cleared flight level

What does BADA stand for?

Base of aircraft data

What does LAD stand for?

Level assessment display

What does FIDL stand for?

Flight information data line

What does TDL stand for?

Tactical data line
