transistors

_______ current to power____ current

A. small/High

how many junctions?

B. 2

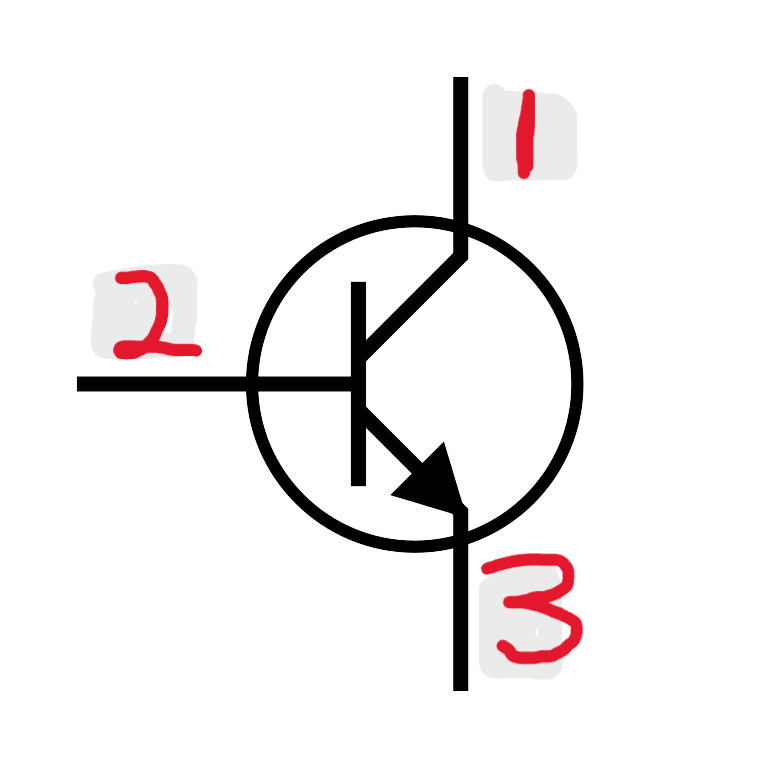

NPN

PNP

1

Collector

2

Base

3

Emitter

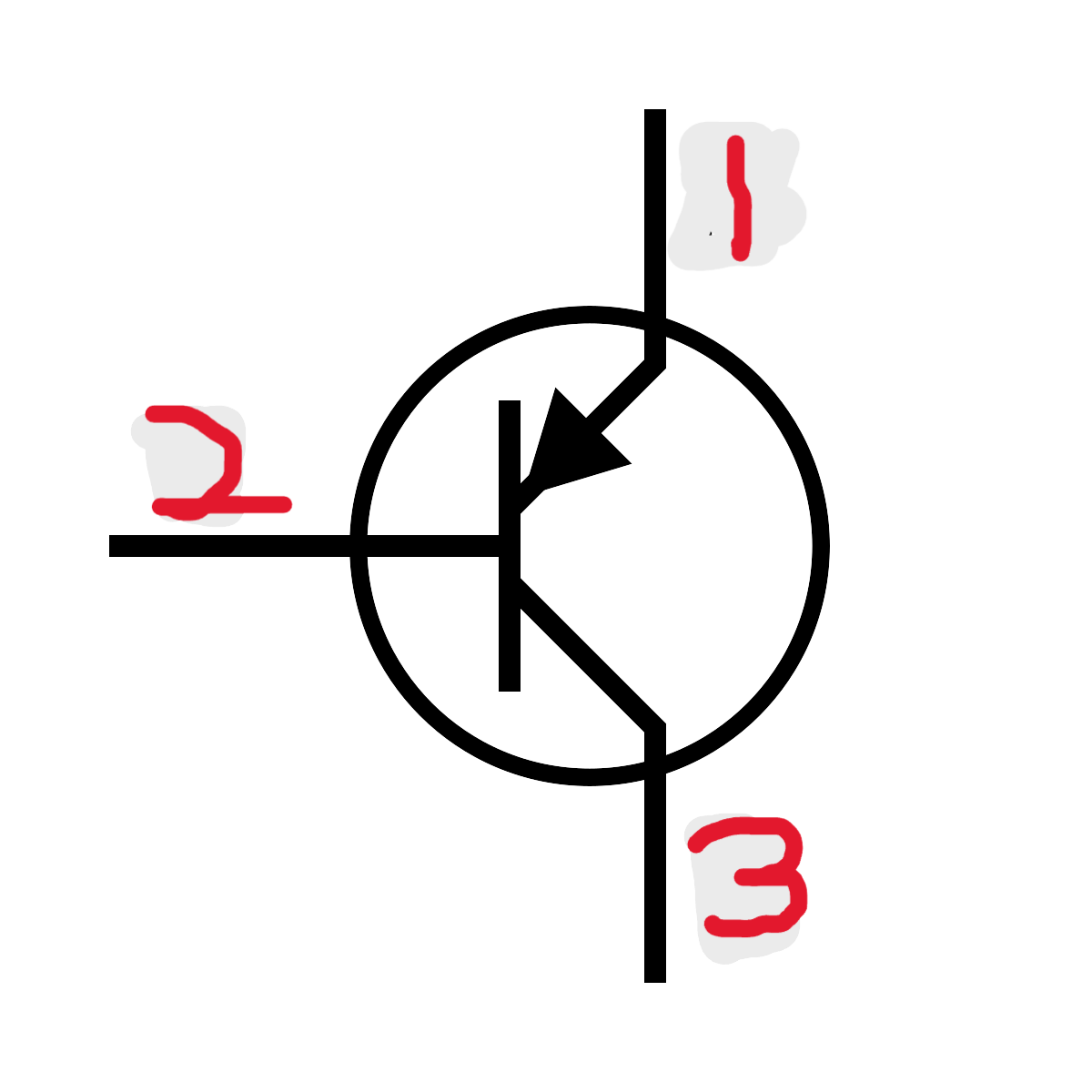

1

Emitter

2.

Base

3.

Collector

VBE

C. 0.6-0.7V

what two terminals of NPN are connected to the positive power supply terminal

C. Base and Collecter

what component does the base terminal need?

A. Resistor

What terminal is grounded in NPN

C. Emitter

NPN Base current is

B. Flowing towards the base terminal

PNP base current is

A. Flowing away from the base terminal

Cutoff of transistor

A state in which a transistor is fully turned off, resulting in no current flow between the collector and emitter terminals.

-VB<VE

-VBE<0.7

-VCE=VCC

-Ic= 0

Active of transistor

A state in which a transistor is fully turned on, allowing current to flow freely between the collector and emitter terminals.

-VBE>or equal 0.7V

-0<VCE<VCC

-0<Ic<Isat.

-Ic=Beta(Ib)

-Ib increases, Ic increases

Saturation of transistor

A state in which a transistor is fully turned on, allowing maximum current to flow between the collector and emitter terminals.
-VBE<0.7V
-VCE is close to 0V
-Ic is at maximum value.

what’s beta?

Gain or amplification factor of a transistor. It is the factor by which current is amplified in the circuit/

Sinking

refers to the process where the NPN transistor allows the current to flow from the collector to ground

Sourcing

refers to the process where the PNP transistor allows current to flow from the emitter to the load, supplying power to the circuit.

THE CE output is ____ degrees out of phase with the input

C.180

An incorrect bias setting will produce _____ amounts of distortion to the ______ waveform

B. Large, Output

Too___ an input signal will produce _____ amounts of distortion due to clipping, which is also a form of amplitude

C. Large, Large

Alpha

The factor or value that an emitter current is multiplied by to give the value of the collector current

0.7 Volts

0.7 Volts

O.L.

O.L.

C. Cutoff

B. Saturation

A. Active

A. Reverse

B. Reverse

A. Reverse

B. Forward

A. Forward

A. Forward

Active current

saturation current

Cutoff current

In PNP, The emitter and base junctions are _____ Biased

C. FWD

In PNP, the Collector and base junctions are _____ biased

B. REV

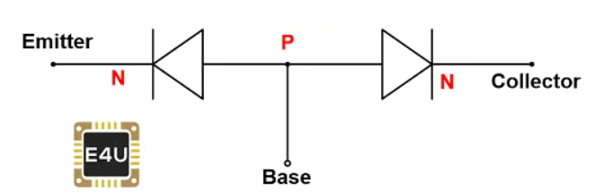

B. NPN Schematic

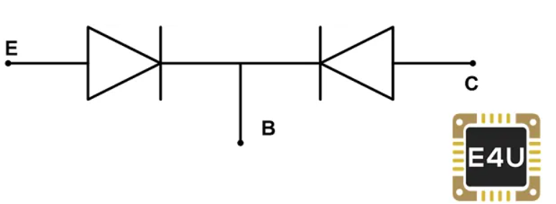

C.PNP Schematic
