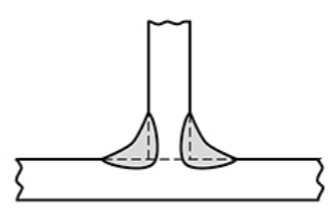

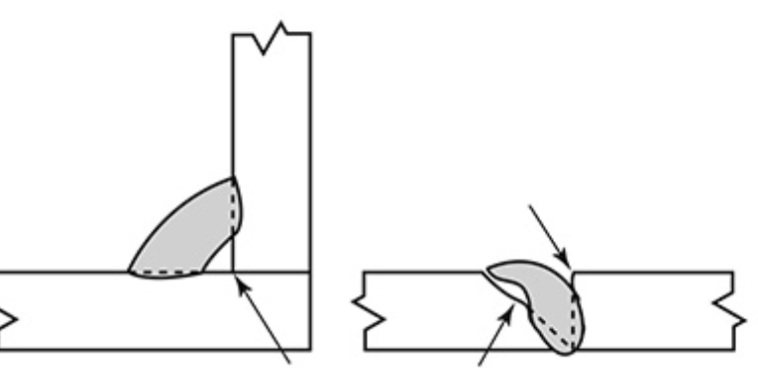

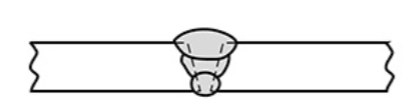

Incomplete fusion

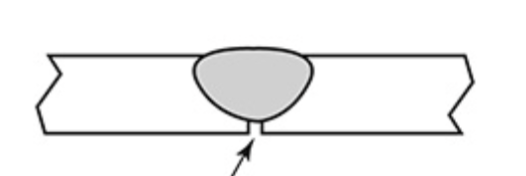

incomplete penetration

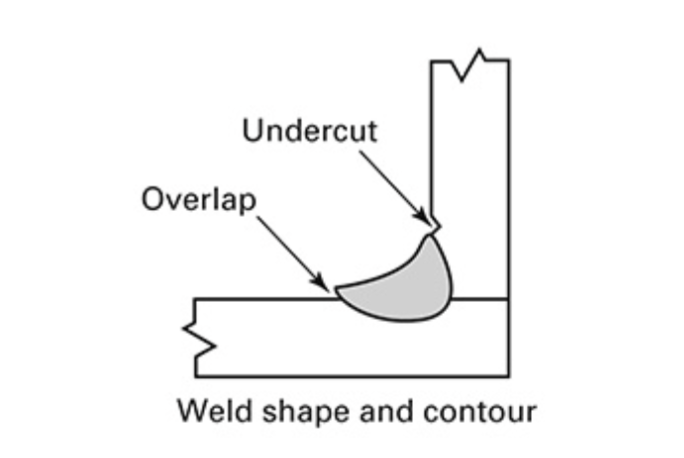

overlap and undercut

Bead welds

Limited penetration so used on
thin materials, or surface modifications

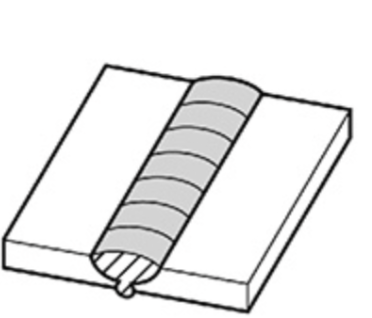

Groove welds

Used on thick materials,
requires joint preparation, used for single and
multiple passe

Fillet welds

use for tee, lap and corner joints

Plug welds

Used a permanent replacement
for rivets or bolts

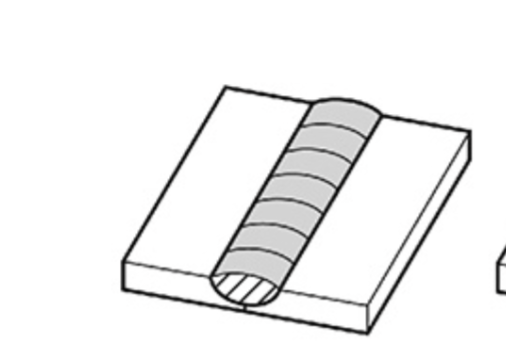

Bead weld or surfacing weld

groove weld

fillet weld

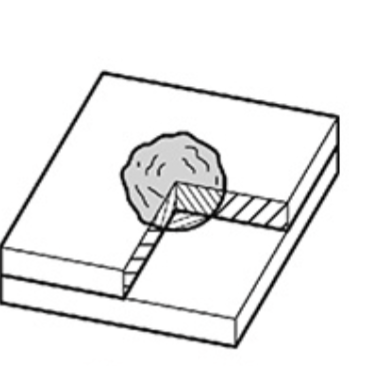

plug weld

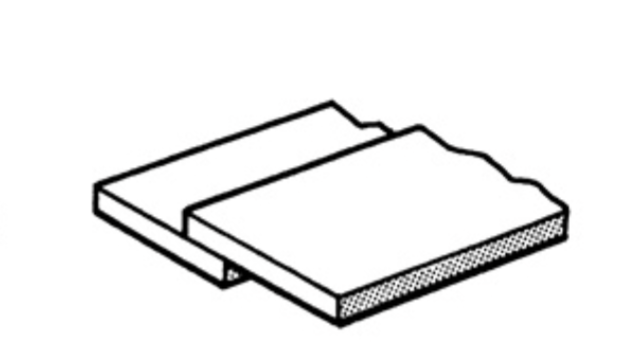

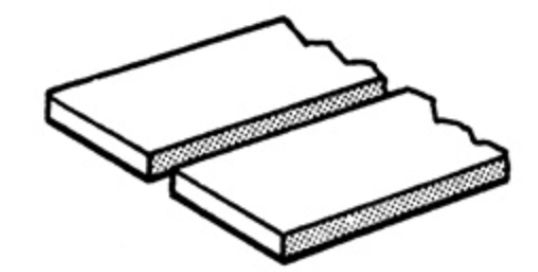

but joint

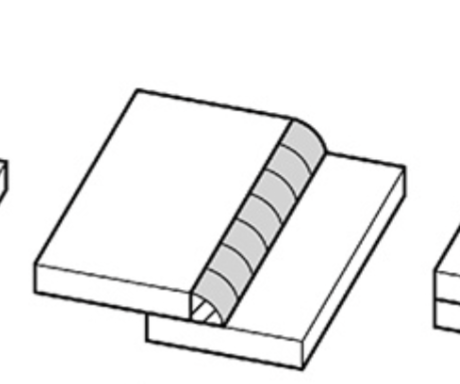

Lap joint

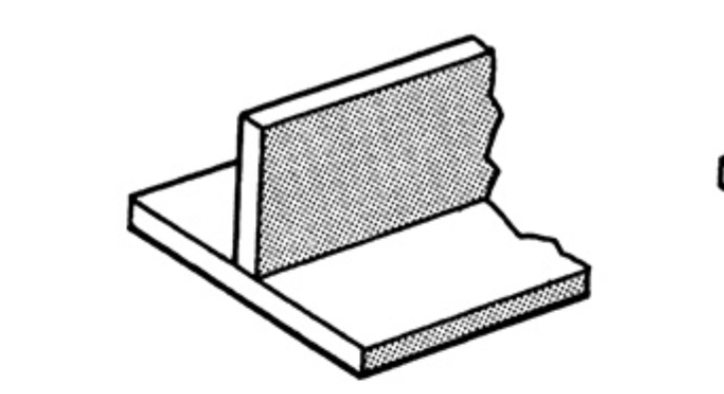

Tee joint

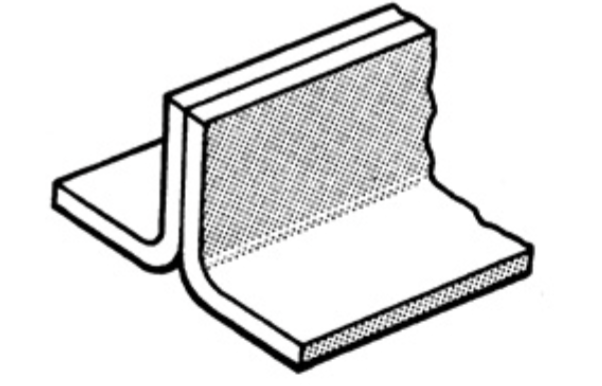

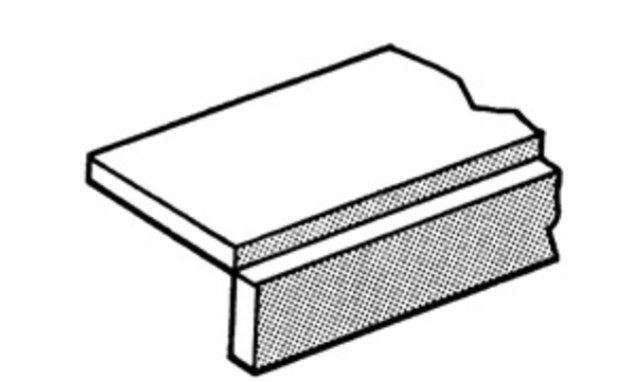

corner joint

edge joint

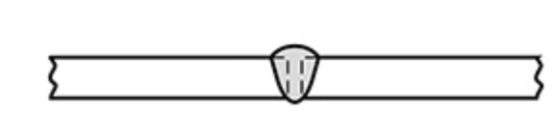

single pass, square groove but joint

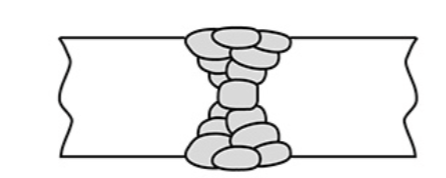

double pass square groove but joint

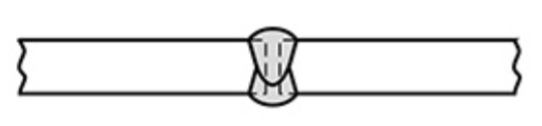

single v groove but joint

double V groove but joint

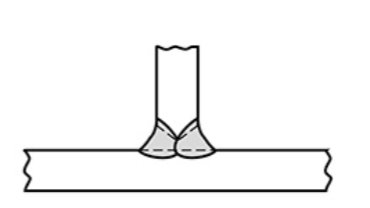

double bevel groove T joint

two fillet T joint

single bevel groove corner joint

two fillet corner joint

what does weldability and joinability depend on?

The ability of a material to be welded
reliability is dependent upon the process
used and the skill of the operator

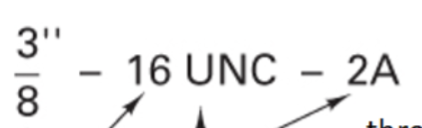

Unified system.
3/8 is the major diameter or nominal size
16 is the no. of threads per inch (thread pitch)
UNC- thread series (Course/Fine)
2- thread class
A/B- External (A) or internal (B) threads

Metric/ISO system
M- Metric system
6- nominal size
x0.75- thread pitch
5g6g- tolerance class designation
5- tolerance grade, tolerance symbol
g- tolerance position, pitch diameter
6- tolerance grade, tolerance symbol
g- tolerance position, crest diameter

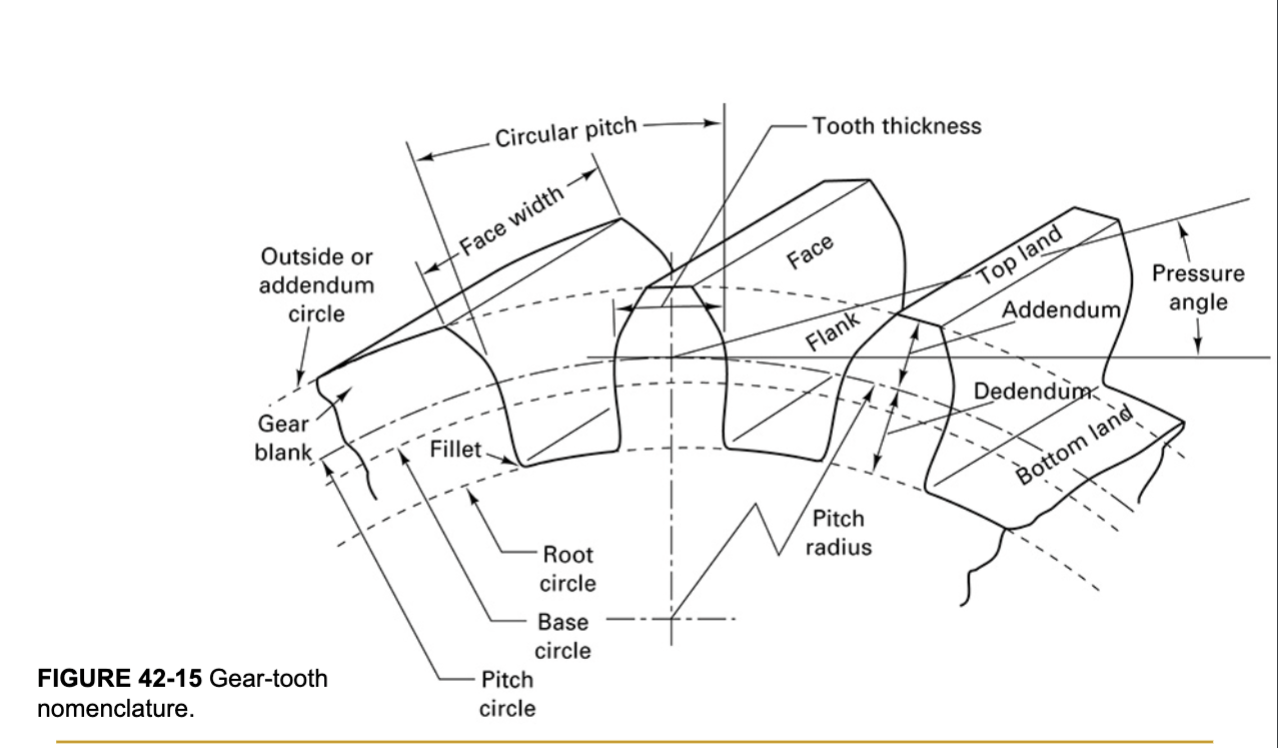

Gear nomenclature

spur gear

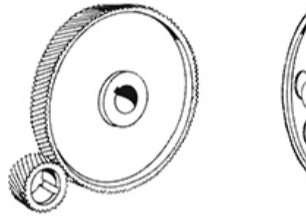

helical gears

herringbone gears

straight bevel gears

skew bevels

spiral bevels

hypoid gears

spiral gears

worm gears

internal gear

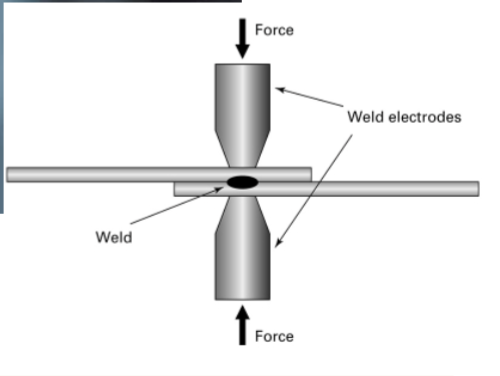

spot welding

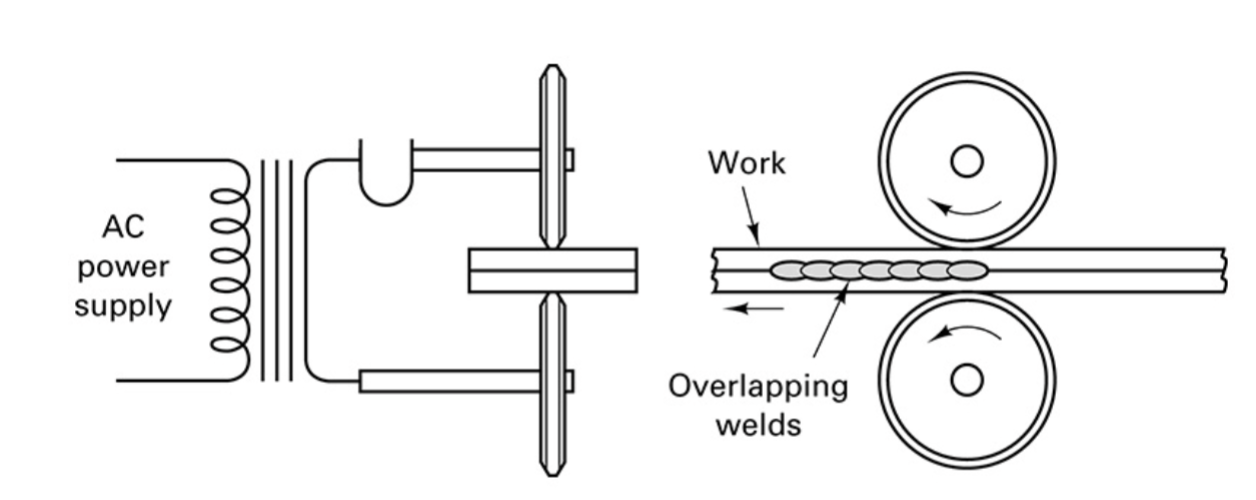

Seam welding

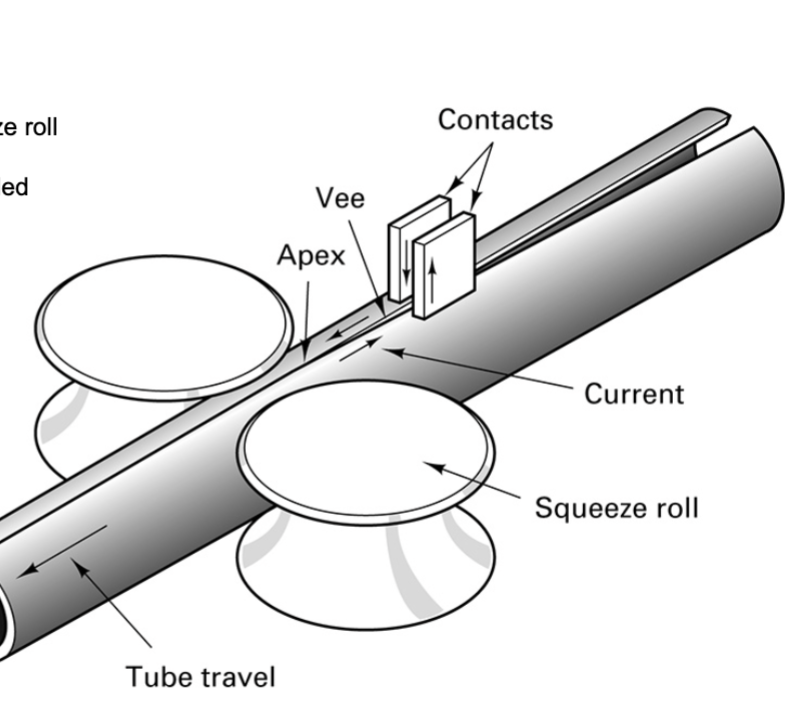

tube welding

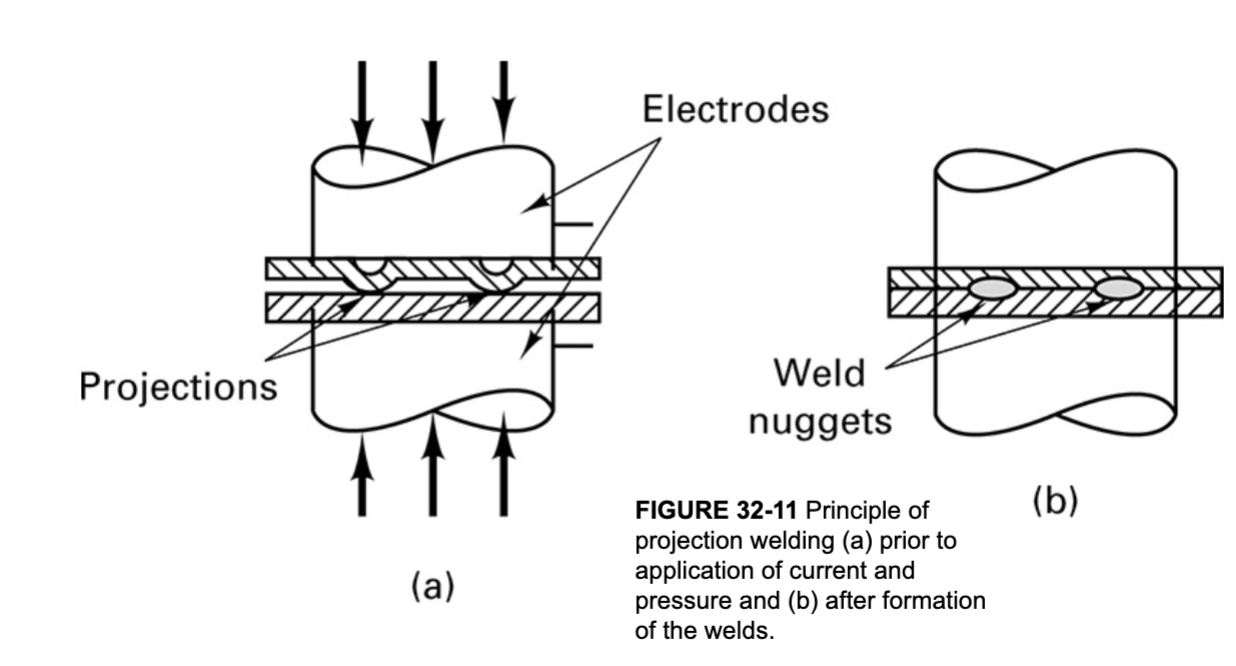

projection welding

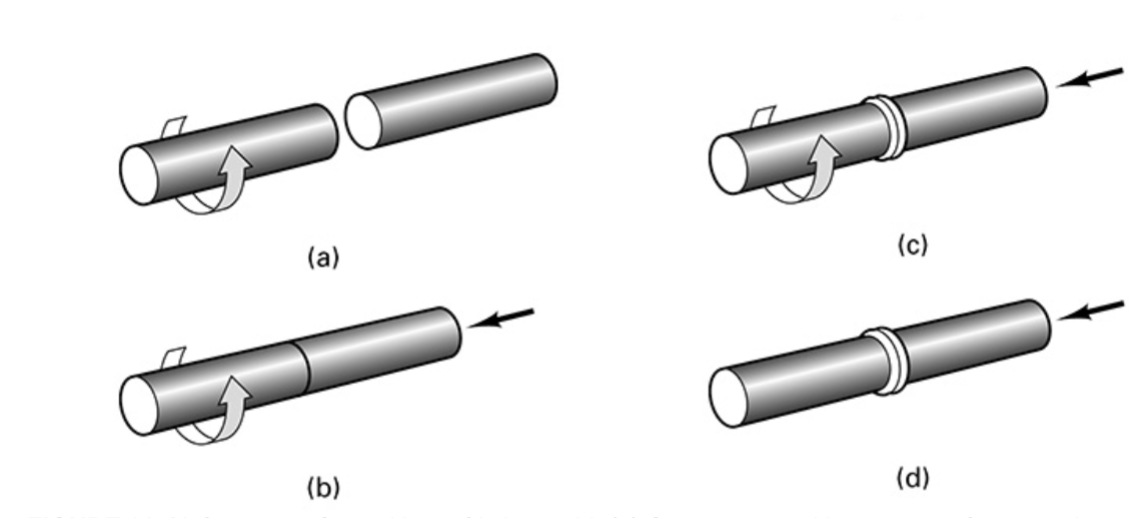

friction welding

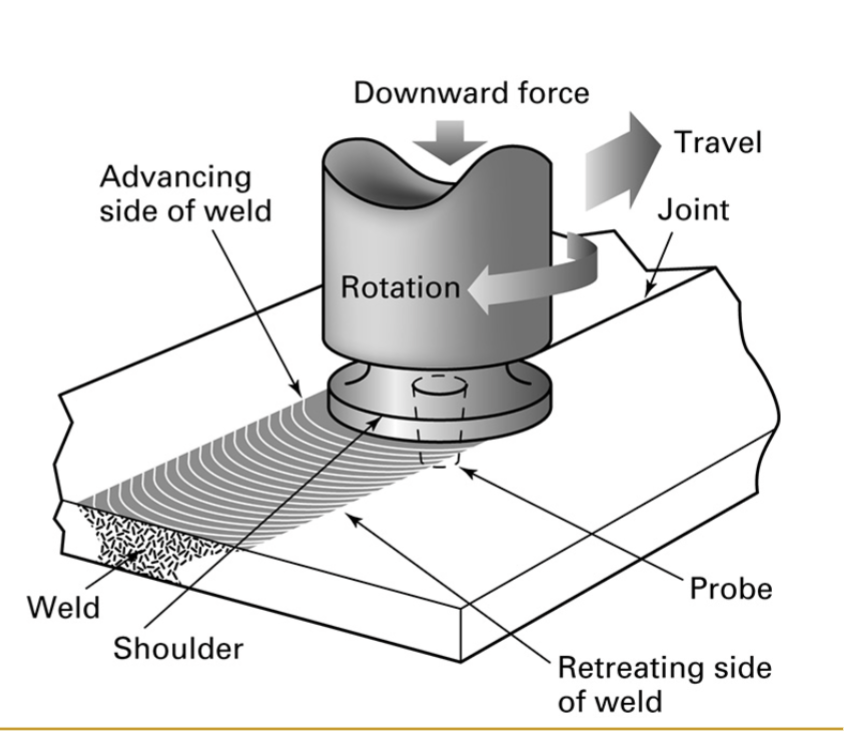

stir welding

American Acme thread

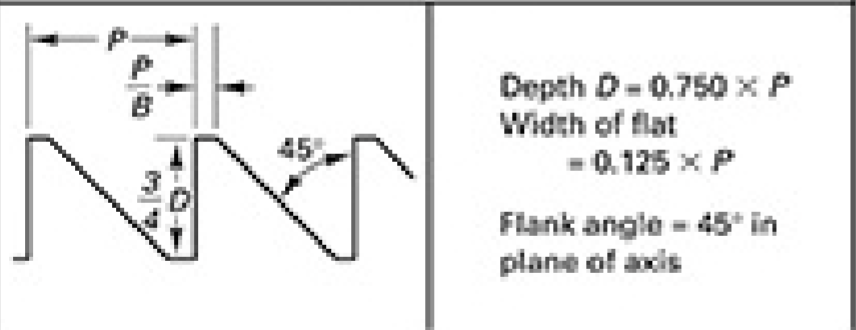

buttress thread

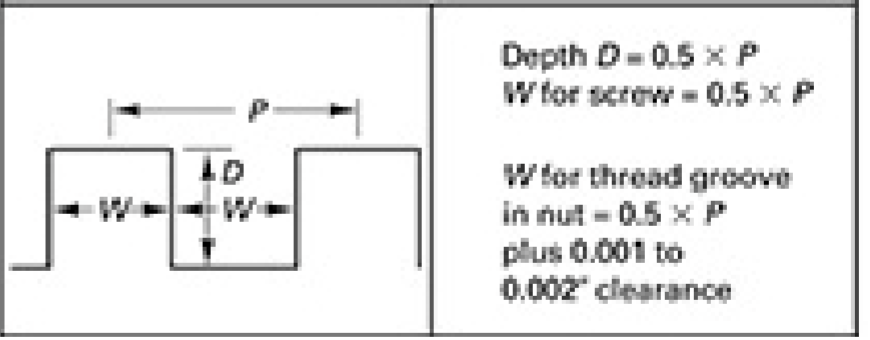

square thread

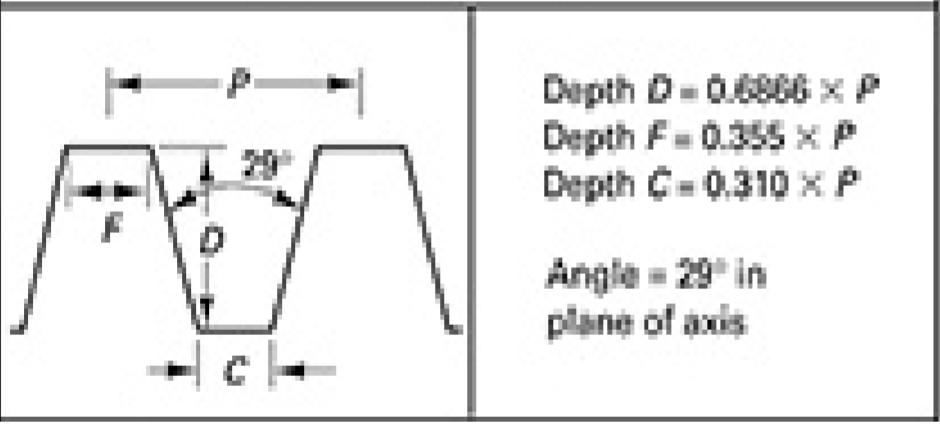

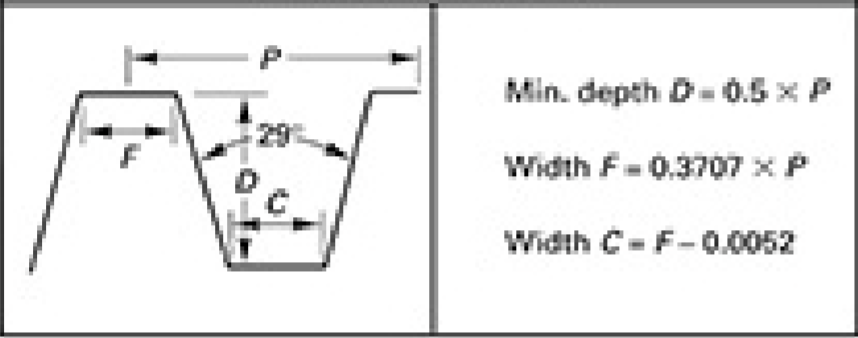

29 degree worm thread

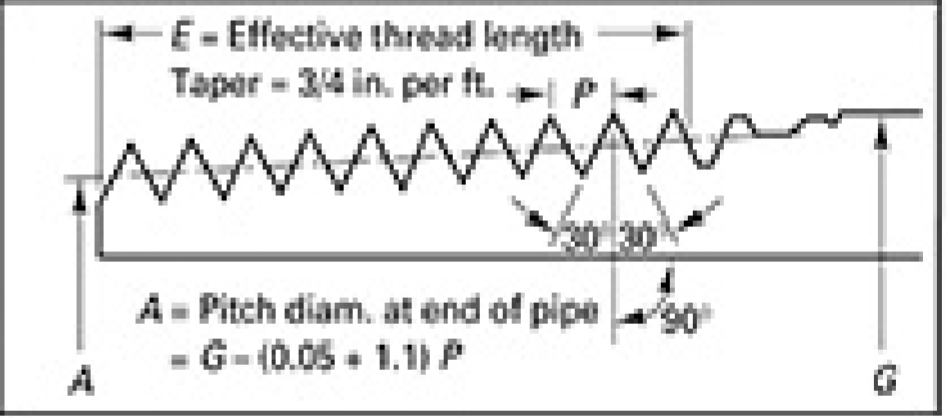

American standard pipe thread
