Ch 3 - Processes (Part 1)

What is a process?

A program in execution; process execution must progress in sequential fashion

Process in Memory

Process in memory explained:

Text : program code

Data : global variables

Heap : memory dynamically allocated during run time

Stack : temporary data

• function parameters, return addresses, local variables

Current activity including program counter, processor registers

Program vs process?

program is passive entity stored on disk (executable file), process is active

• program becomes process when executable file loaded into memory

one program can be several processes

• consider multiple users executing the same program

Process States

Process Control Block (PCB) also called task control block

a data structure used by an operating system to store all the essential information needed to track, manage, and control a specific process

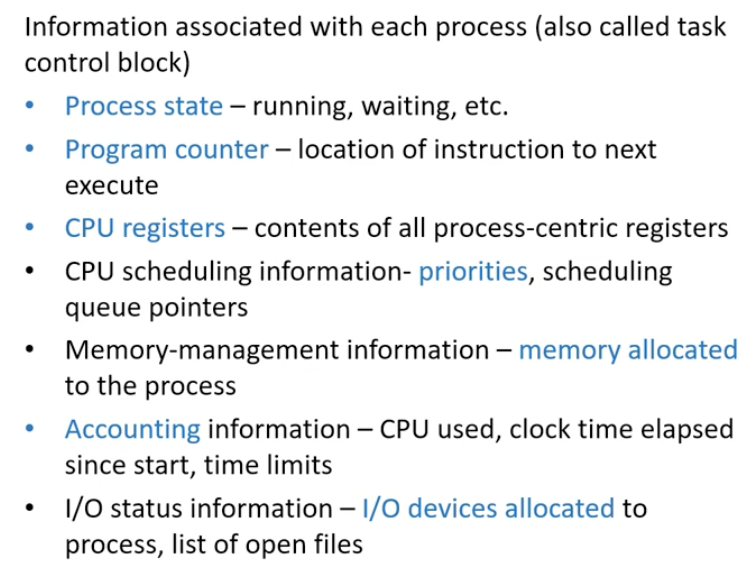

PCB details:

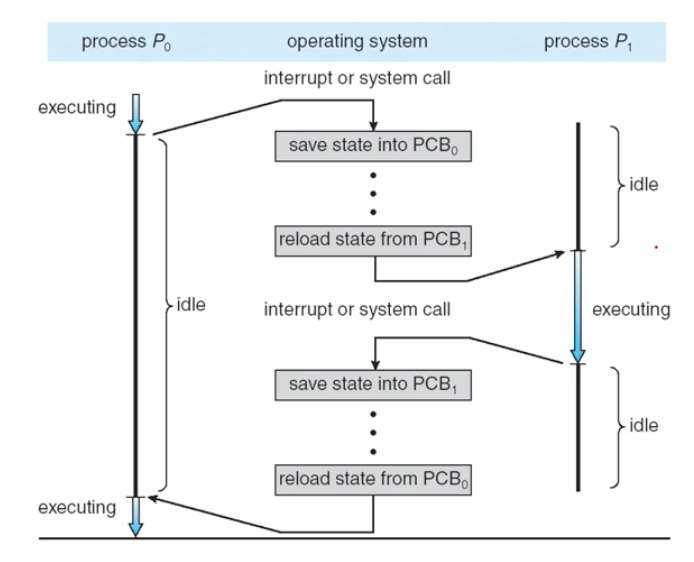

CPU Switch From Process to Process

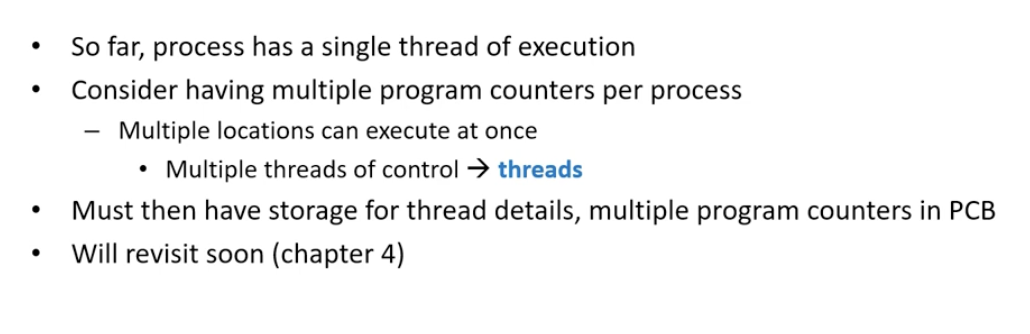

Threads

Process Representation in Linux

Process Scheduling

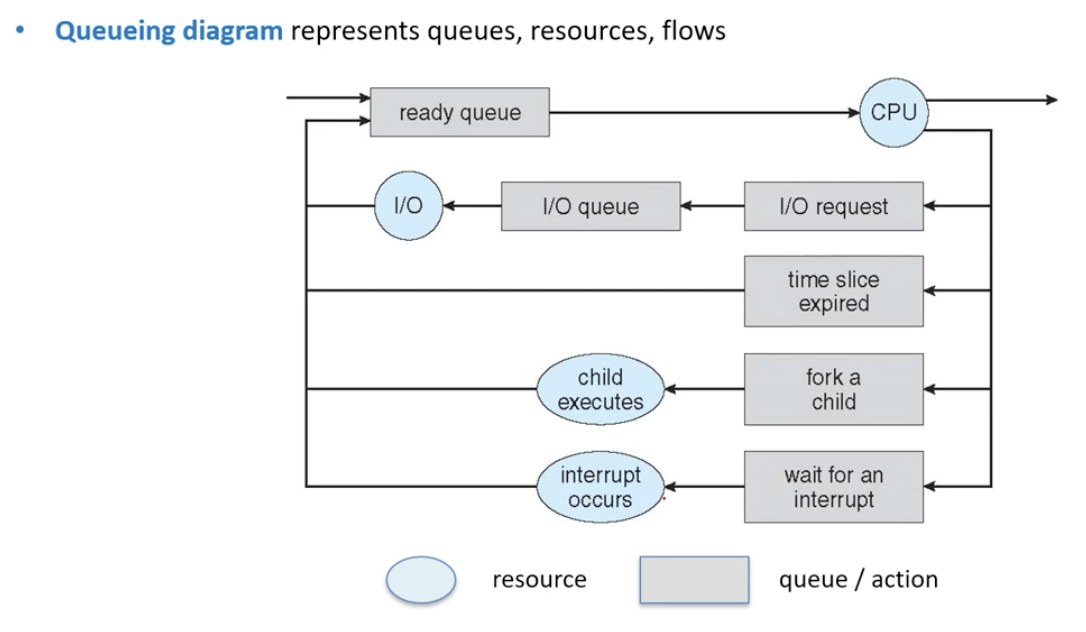

Representation of Process Scheduling

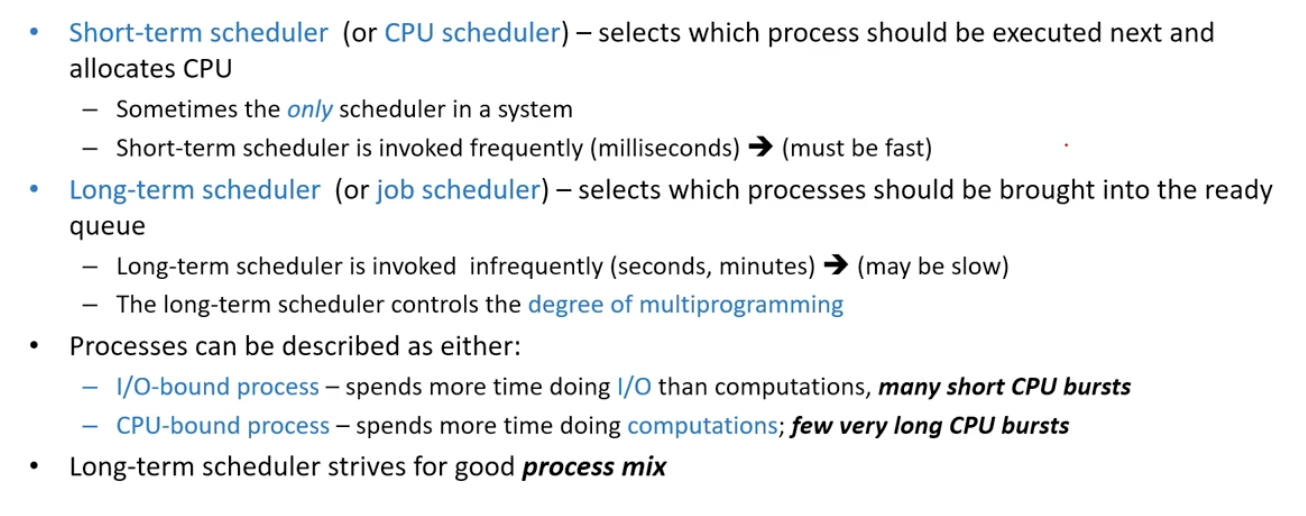

Schedulers

Addition of Medium Term Scheduling

Multitasking in Mobile Systems

Context Switch

Operations on Processes

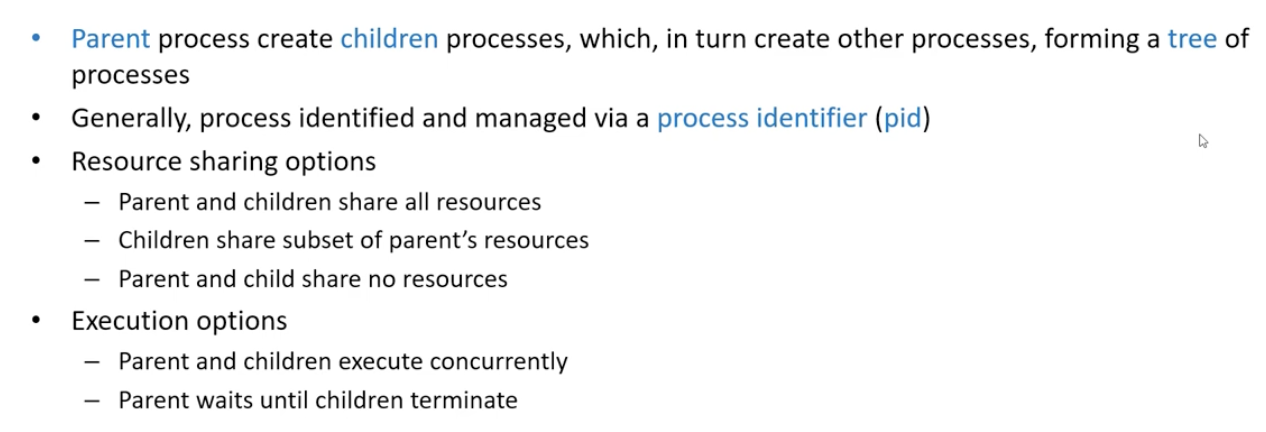

Process Creation

A Tree of Processes in Linux

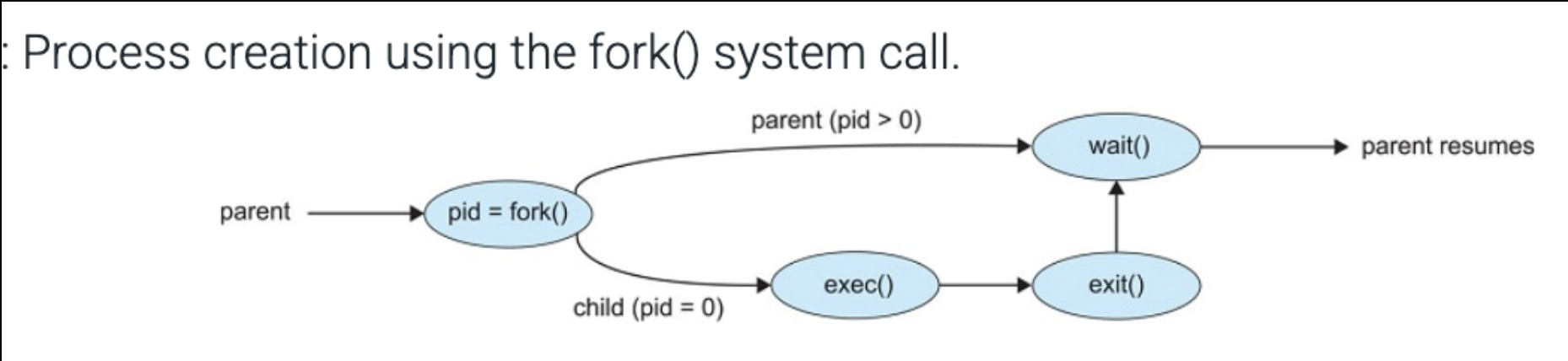

Process Creation (Cont.)

C Program Forking Separate Process

Creating a Separate Process via Windows API

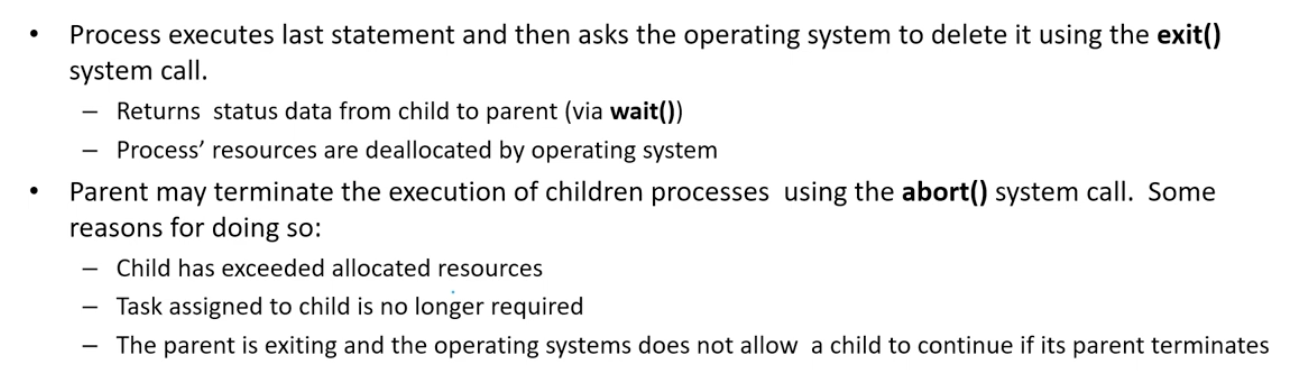

Process Termination

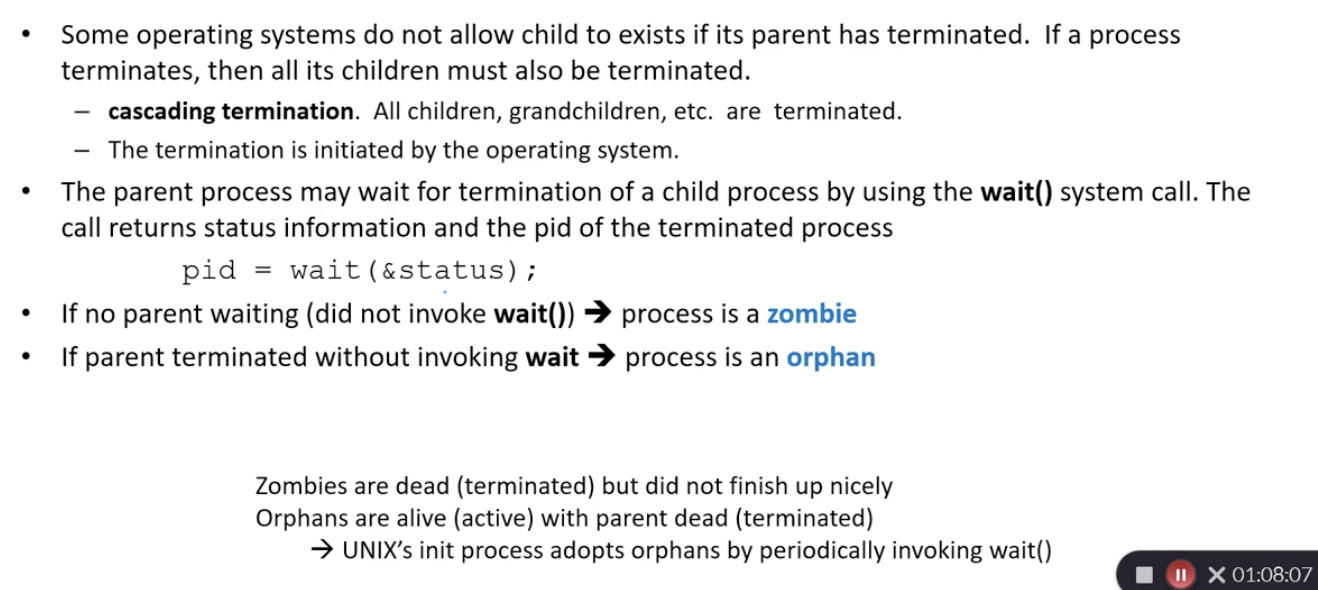

Process Termination Pt. 2

Multiprocess Architecture - Chrome Browser
