Which of the following labels correctly identifies the juxtaglomerular apparatus? (delete)

Letter C

—

A = Efferent arteriole

B = Afferent arteriole

C = Juxtaglomerular cells (Part of Juxlaglomerular apparatus)

D = Ascending limb of nephron loop

E = Proximal convoluted tubule

This is composed of dense irregular tissue that runs continuous with the ureter.

Letter C - renal capsule

This layer's main function is to protect the kidney from trauma and hold it in place within the abdominal cavity.

Letter B - adipose capsule

This layer runs deep to the peritoneum on the anterior surface of the kidneys.

Letter A - renal fascia

This can be divided into the cortical zone and the juxtamedullary zone.

Letter A - renal cortex

Each kidney can have anywhere from 8 to 18 of these.

Letter C - minor calyces

Urine formed by the nephrons first drains into these.

Letter K - papillary ducts

What two structures comprise the renal corpuscle?

A and B - glomerulus (capillary network) and the glomerular capsule (Bowman's capsule)

Where is the distal convoluted tubule?

Letter D - (further away)

Where is the arcuate vein?

Letter H

Where is the ascending limb of the nephron loop?

Letter L

Where is the corticomedullary junction?

Letter J

Where is the papillary duct?

Letter N

What does line "M" point to?

Collecting duct

What is line "C" pointing to?

Efferent arteriole

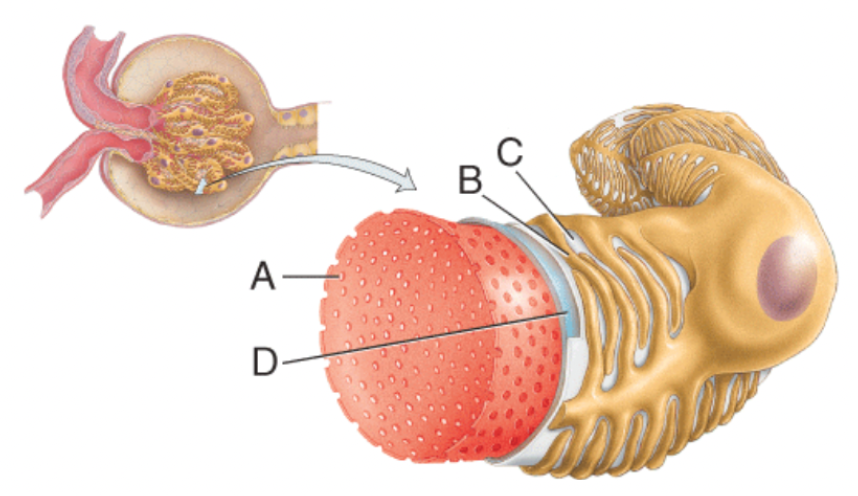

What is line "A" pointing to?

Fenestration

What is line "B" pointing to?

Pedicel

Which is line "C" pointing to?

Filtration slit

What is line "D" pointing to?

Basal lamina

Fluid flowing from point N in the figure will go to which structure next?

Letter G - from Proximal convoluted tubule to Nephron loop: descending limb

Fluid flowing from point G in the figure will go to which structure next?

Letter I - from Nephron loop: descending limb to Ascending loop of Nephron

Fluid flowing from point H in the figure will go to which structure next?

Letter B - from Ascending loop of Nephron to distal convoluted tubule

Fluid flowing from point B in the figure will go to which of the following structures?

Letter J - from distal convoluted tubule to minor calyx

Which vessel in the diagram is the afferent arteriole?

Letter C

Which vessel in the diagram is the interlobular vein?

Letter E

Which vessel(s) in the diagram are the vasa recta?

Letter L

Which vessel in the diagram is the interlobular artery?

Letter D

Which vessel in the diagram is the arcuate artery?

Letter F

Which vessel(s) in the diagram are the peritubular capillaries?

Letter M
